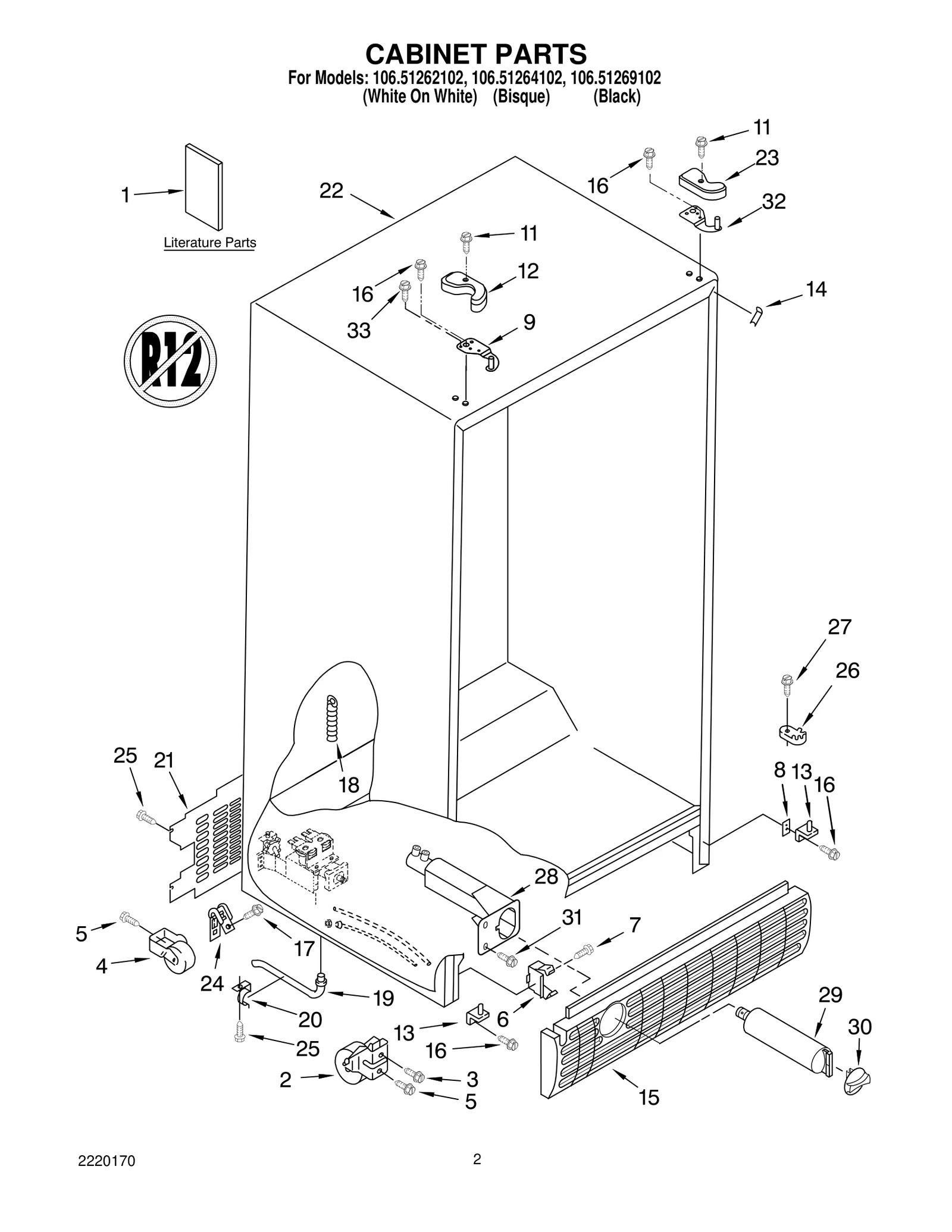

Model Whirlpool 106.51262102 Refrigerator – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $51.10

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Retainer Fan Motor WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $46.23

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $26.85

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Light Lens WPL 2200096 Contact Us For Availability

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $39.73

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $29.77

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Shim WPL 2209697 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $39.97

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $36.00

10

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

10

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $92.53

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Bracket, Insert WPL 2216997 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

13

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $76.53

13

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper — White WPL 2196094 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

15

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Start−Device, Combination (Start Relay and WPL 2212193 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

2198621 Whirlpool Refrigerator Switch Backorder WPL 2198621 $98.61

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

For Models: 106.51262102, 106.51264102, 106.5 WPL N/S Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $34.28

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Screw Grommet WPL 509812 Contact Us For Availability

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $93.11

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $103.97

Unit Cover, Bottom WPL 2200465 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Trim, Door−Top — White WPL 2194706W Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $30.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Trim, Door−Bottom — White WPL 2194705W Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $138.03

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $42.79

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $36.23

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

Escutcheon, Control Box WPL 2216977 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Thermostat Knob WPL 2182111 Contact Us For Availability

Harness, Unit WPL 2187425 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP2212370 Whirlpool Washer In Stock WPL WP2212370 $7.45

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Knob, Air Control WPL 2197871 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $38.23

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

Bracket, Ice Maker Mounting WPL 2212317 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $106.63

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $51.68

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $21.50

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $33.10

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $45.77

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $95.52

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $52.48

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $52.59

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.05

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $25.22

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

OPT-5

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

OPT-7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

OPT-9

Brush Touch−up Kit WPL 80051 Contact Us For Availability

OPT-10

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

OPT-11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-12

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-14

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-16

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-17

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-19

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-20

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-21

Cement, WPL 542639 Contact Us For Availability

OPT-22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-23

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-24

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-25

Ice Container− WPL 2212387 Contact Us For Availability

OPT-26

Enamel, Black WPL 799340 Contact Us For Availability

OPT-27

Enamel, White WPL 799344 Contact Us For Availability

OPT-28

Enamel, WPL 4392900 Contact Us For Availability

OPT-29

Enamel, Graphite WPL 8171358 Contact Us For Availability

OPT-30

Torx Key WPL 1117510 Contact Us For Availability
