Model Whirlpool YWED9270XW2 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

2

WPW10336080 Whirlpool Top Assembly Backorder WPL WPW10336080 $129.87

2

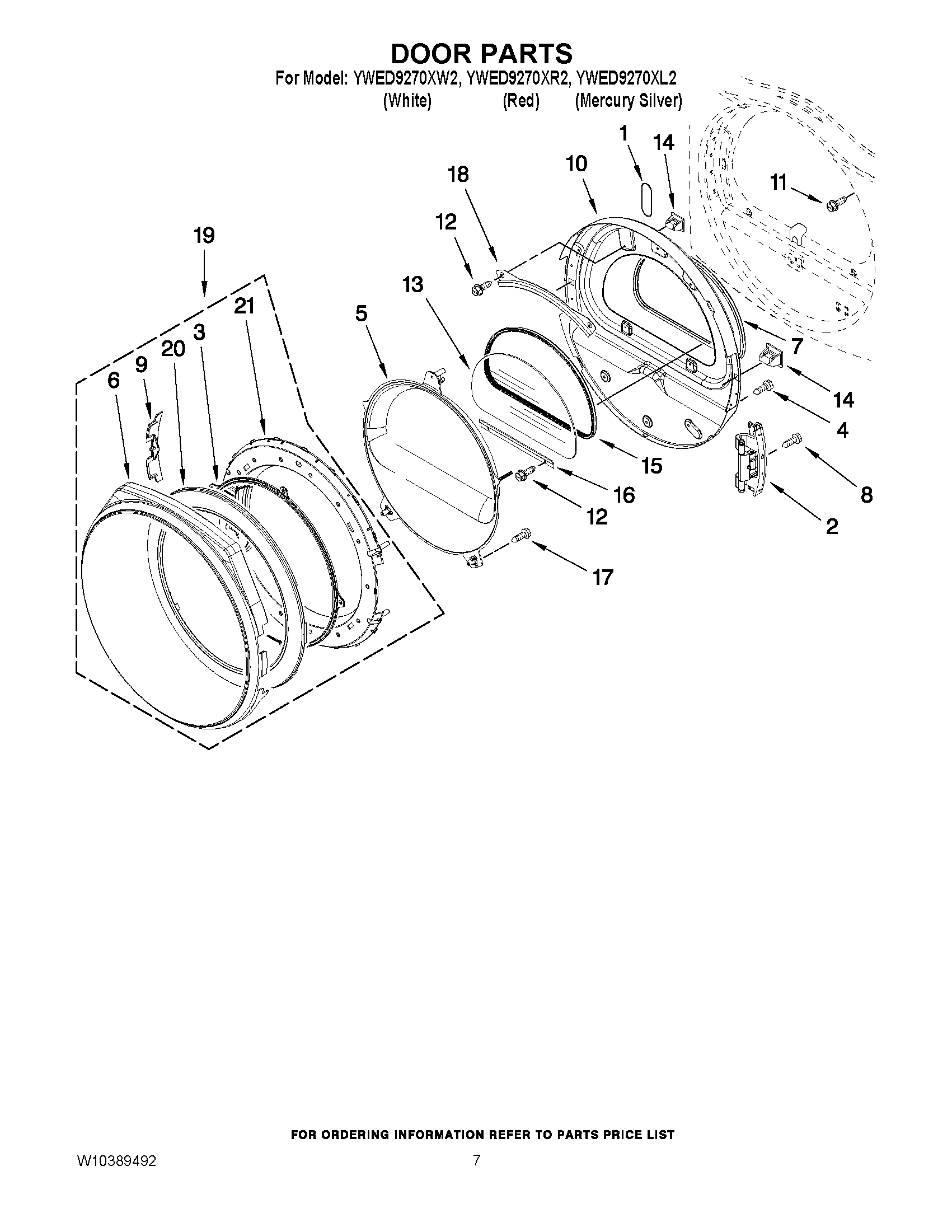

DOOR HINGE ASSEMBLY WPL W10304672 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

3

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

4

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

4

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $9.33

5

W10153920 Whirlpool Clip Backorder WPL W10153920 $5.65

5

WPW10411937 Whirlpool Switch In Stock WPL WPW10411937 $14.69

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.70

6

DOOR TRIM OUTER RING (WHITE) WPL W10215757 Contact Us For Availability

7

W10542715 Whirlpool Panel Backorder WPL W10542715 $128.28

7

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $45.29

7

PANEL, SIDE (L.H.) (RED) WPL W10251216 Contact Us For Availability

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.70

10

W11690171 Whirlpool Door Assembly Backorder WPL W11690171 $76.33

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $3.33

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $11.53

13

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $107.14

14

279318 Whirlpool Terminal In Stock WPL 279318 $42.38

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $68.08

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.76

15

W11706993 Whirlpool Seal Backorder WPL W11706993 $9.75

15

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $3.70

16

BRACKET, CONTROL POGO WPL W10103443 Contact Us For Availability

17

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.51

17

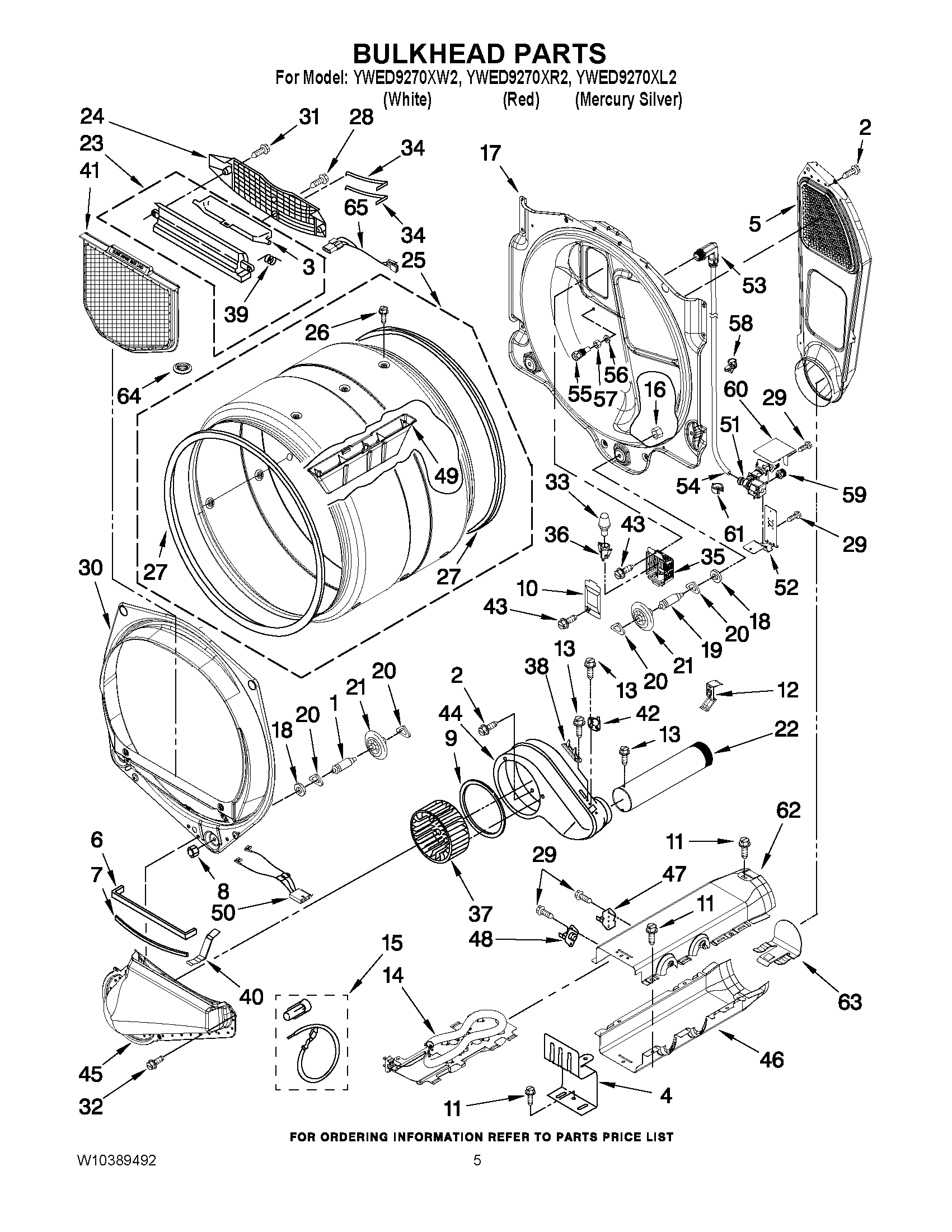

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $3.33

19

W10318609 Whirlpool Dryer Door Switch Backorder WPL W10318609 $28.02

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.50

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $4.52

22

8580015 Whirlpool Ramp Backorder WPL 8580015 $29.23

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $56.54

23

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $33.01

24

W10542714 Whirlpool Panel Backorder WPL W10542714 $133.54

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $15.06

24

PANEL, SIDE (R.H.) (RED) WPL W10251217 Contact Us For Availability

25

PANEL, REAR WPL W10281297 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

26

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $8.24

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $12.06

31

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $24.80

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $33.45

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $16.18

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.21

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

35

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $43.76

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $30.89

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $32.15

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $30.25

38

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $32.52

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

W10251210 Whirlpool Toe Panel Backorder WPL W10251210 $112.35

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

WP8540621 Whirlpool Toe Panel Backorder WPL WP8540621 $69.56

TOE PANEL (RED) WPL W10251209 Contact Us For Availability

41

WPW10405846-includeCORE Whirlpool WPW10405846 Backorder WPL WPW10405846-includeCORE $229.34

42

W11215531 Whirlpool Base Backorder WPL W11215531 $118.10

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $19.25

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.99

45

FRONT P WPL 8580257 Contact Us For Availability

45

WPL W10251203 WPL W10251203 Contact Us For Availability

45

WPL W10251204 WPL W10251204 Contact Us For Availability

46

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

46

WPL W10103457 WPL W10103457 Contact Us For Availability

47

WPL W10101220 WPL W10101220 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $64.06

48

WPL W10101183 WPL W10101183 Contact Us For Availability

49

WPL W10307561 WPL W10307561 Contact Us For Availability

50

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

51

WPL W10011740 WPL W10011740 Contact Us For Availability

52

W11729831 Whirlpool Power Cord Backorder WPL W11729831 $49.48

53

W11712577 Whirlpool Clip In Stock WPL W11712577 $3.26

55

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $99.80

56

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.65

57

W10044628 Whirlpool Nut Backorder WPL W10044628 $30.25

59

W10859554 Whirlpool Coupler Backorder WPL W10859554 $28.09

62

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

63

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $14.71

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W10331132 Whirlpool Plug Backorder WPL W10331132 $39.33

W10819173 Whirlpool Hose Fill Backorder WPL W10819173 $26.04

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.58

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

WPW10336486 Whirlpool Connector In Stock WPL WPW10336486 $29.04

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability
