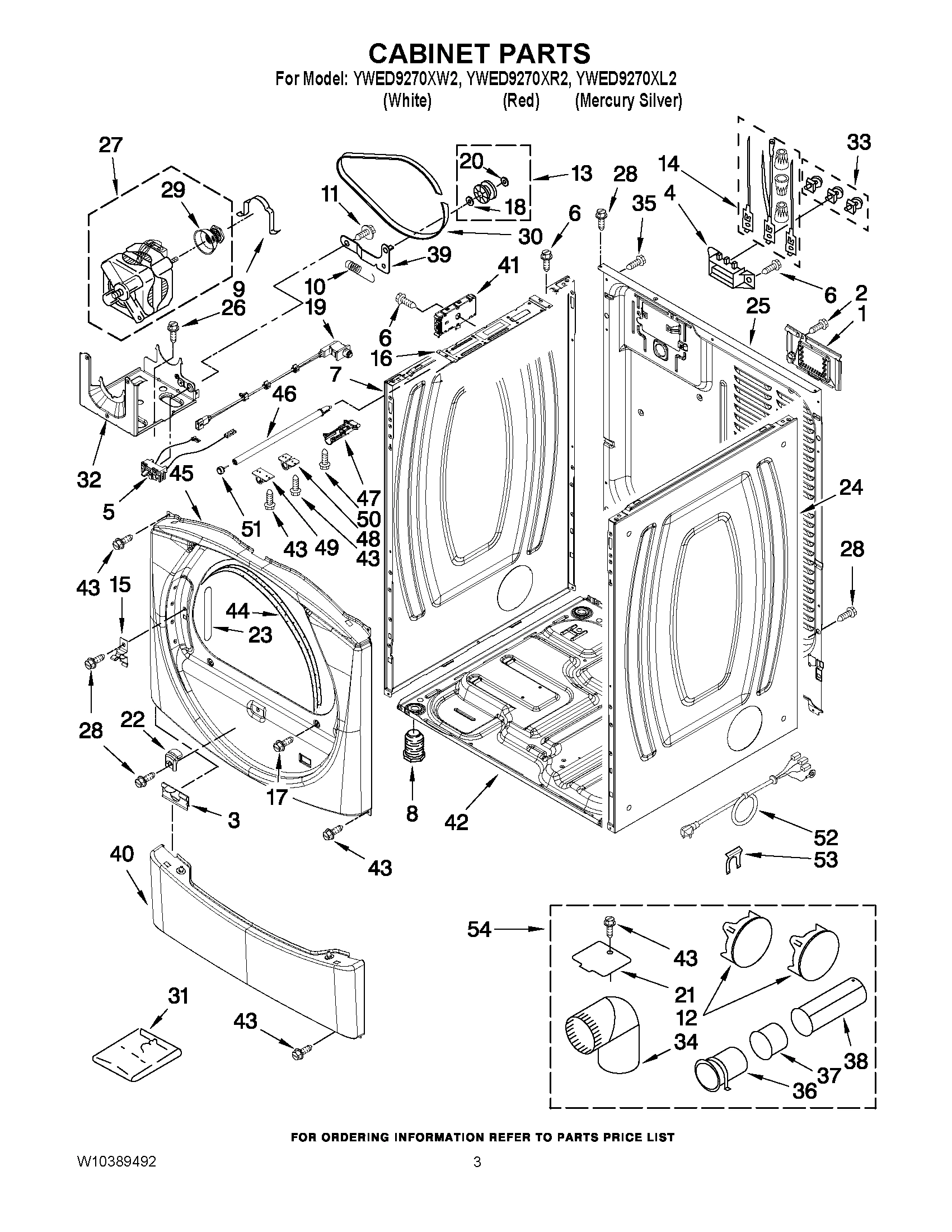

Model Whirlpool YWED9270XL2 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10256915 Whirlpool Label Backorder WPL WPW10256915 $30.25

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1

TECH SHEET WPL W10340328 Contact Us For Availability

2

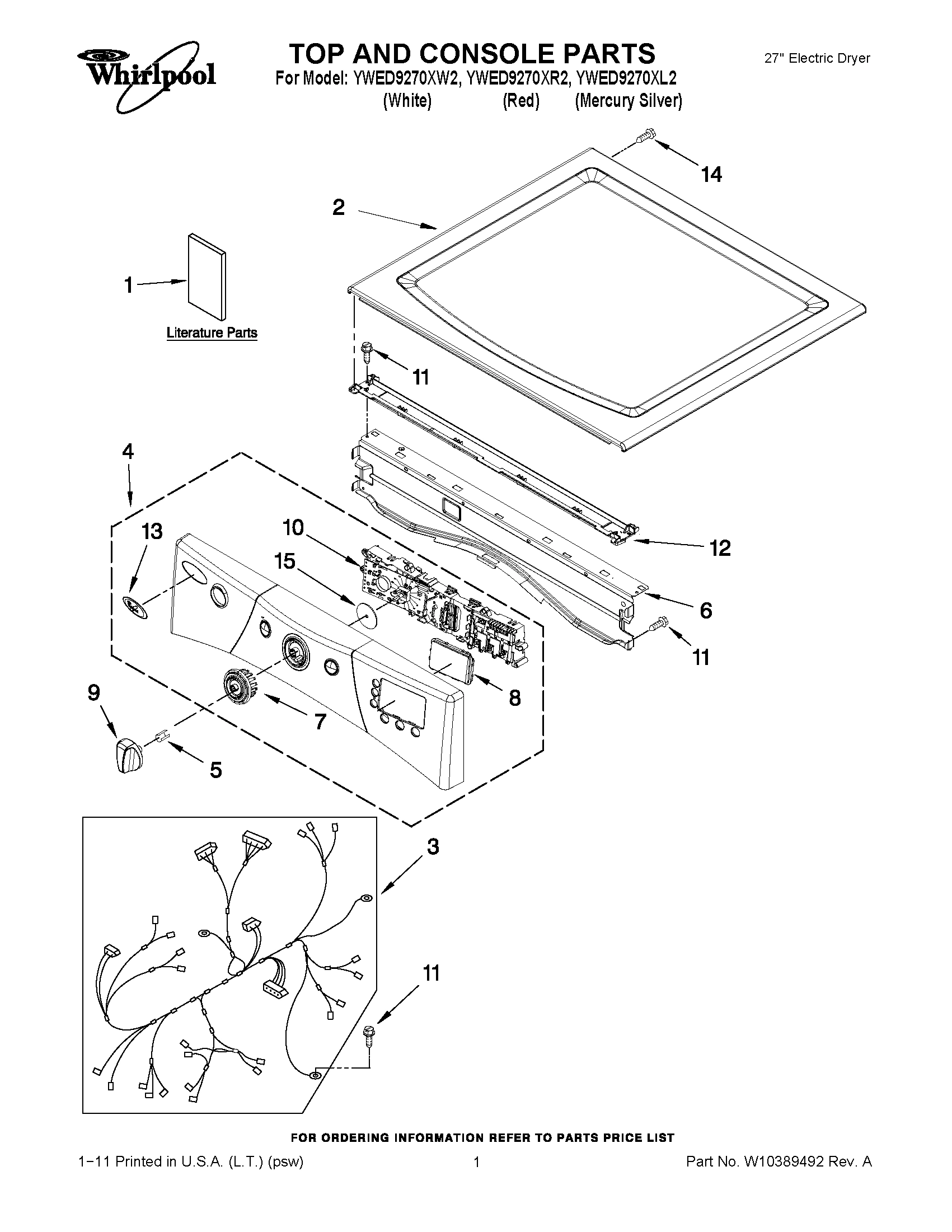

WPW10336080 Whirlpool Top Assembly Backorder WPL WPW10336080 $129.87

2

WPW10336091 Whirlpool Top Backorder WPL WPW10336091 $130.95

2

DOOR HINGE ASSEMBLY WPL W10304672 Contact Us For Availability

2

TOP (RED) WPL W10336090 Contact Us For Availability

3

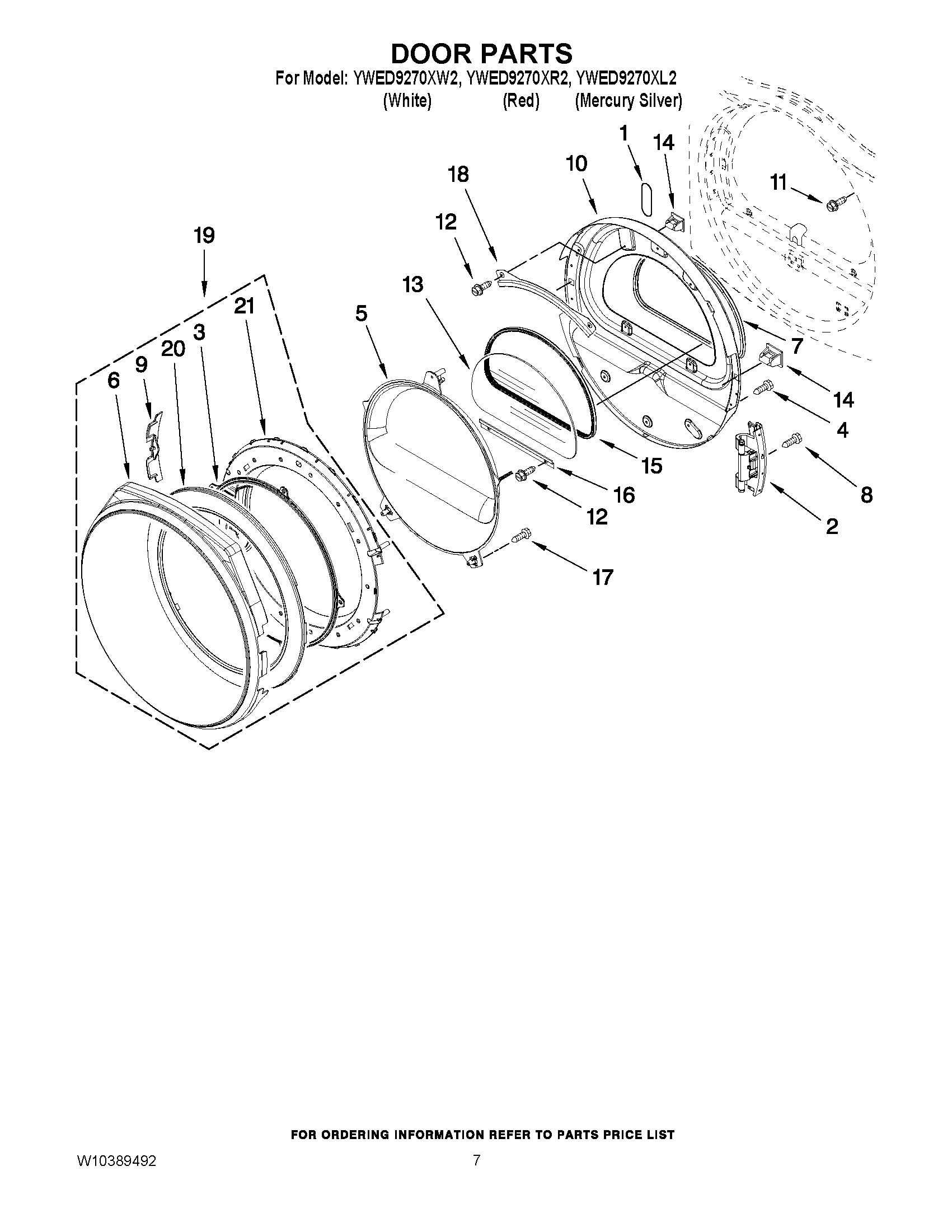

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

3

HARNESS, MAIN WPL W10278760 Contact Us For Availability

4

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

4

W11116979 Whirlpool Screw Backorder WPL W11116979 $9.13

4

WPW10215463 Whirlpool Console Assembly Backorder WPL WPW10215463 $260.50

4

PANEL, CONSOLE (INCLUDE ITEMS, 7,8,10,13 & 15 WPL W10329850 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDE ITEMS, 7,8,10,13 & 15 WPL W10329851 Contact Us For Availability

5

W10153920 Whirlpool Clip Backorder WPL W10153920 $5.65

5

DOOR, INTERMEDIATE STATIONARY WPL W10215764 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WP8565237 Whirlpool Bracket Assembly In Stock WPL WP8565237 $75.13

6

DOOR TRIM OUTER RING (WHITE) WPL W10215757 Contact Us For Availability

6

DOOR TRIM OUTER RING (MERCURY) WPL W10215823 Contact Us For Availability

6

DOOR TRIM OUTER RING (RED) WPL W10215824 Contact Us For Availability

7

W10237301 Whirlpool Ring Backorder WPL W10237301 $38.16

7

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $45.29

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

8

WINDOW, LED DISPLAY WPL W10212742 Contact Us For Availability

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

9

WPW10215781 Whirlpool Knob Backorder WPL WPW10215781 $34.55

9

WPW10247262 Whirlpool Knob Backorder WPL WPW10247262 $32.96

9

DOOR TRIM, HINGE COVER (WHITE) WPL W10215766 Contact Us For Availability

9

DOOR TRIM, HINGE COVER (MERCURY) WPL W10215825 Contact Us For Availability

9

DOOR TRIM, HINGE COVER (RED) WPL W10215826 Contact Us For Availability

10

W11690171 Whirlpool Door Assembly Backorder WPL W11690171 $76.33

10

ASSEMBLY, USER INTERFACE WPL W10215476 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

12

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

12

WPW10266747 Whirlpool Channel Backorder WPL WPW10266747 $27.27

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $107.14

13

BADGE ASSEMBLY WPL W10117943 Contact Us For Availability

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

Screw, 2-28 x 1/2 WPL 3400238 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S Backorder WPL 279457 $3.93

W11706993 Whirlpool Seal Backorder WPL W11706993 $9.75

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $3.70

SEAL, USER INTERFACE WPL 8572039 Contact Us For Availability

16

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.51

17

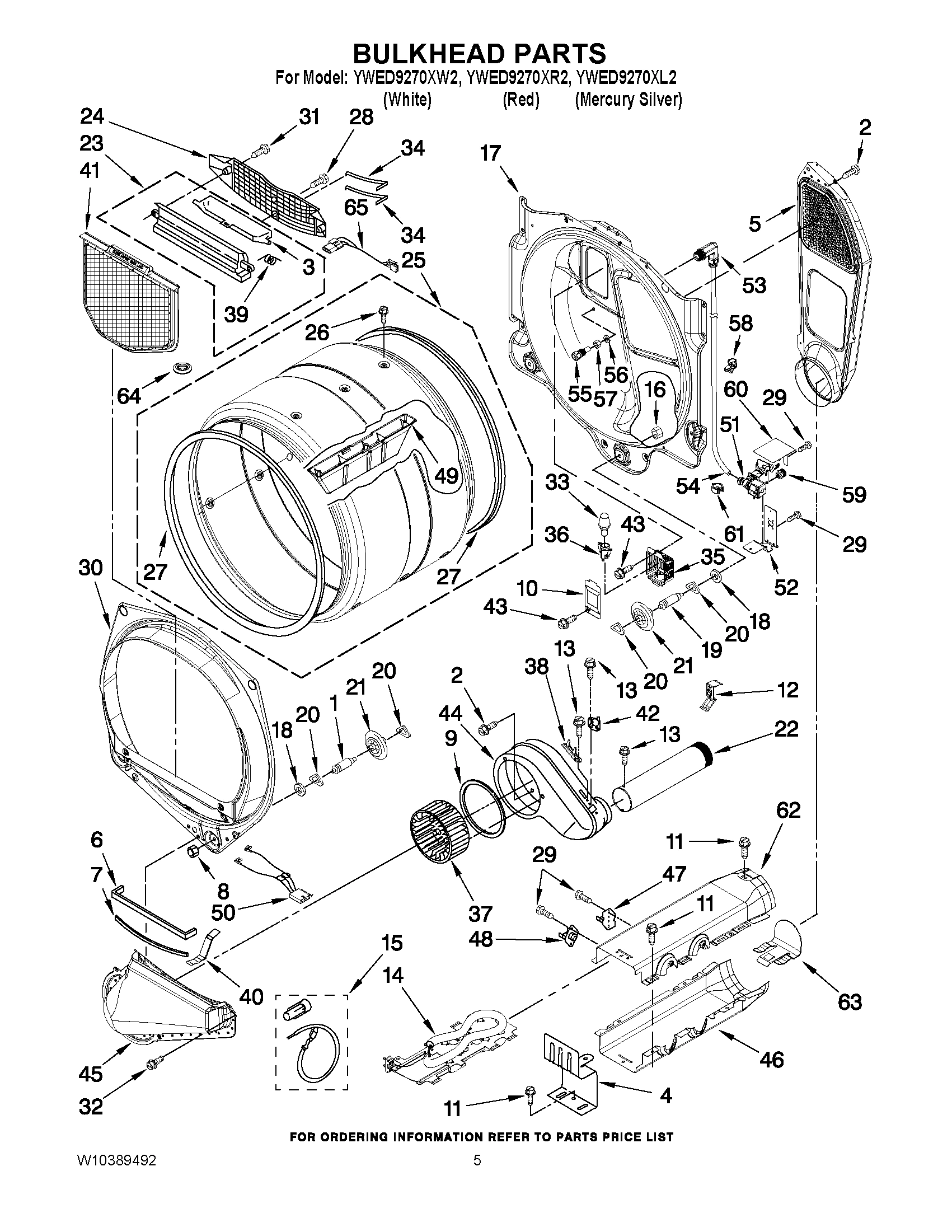

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

W10318609 Whirlpool Dryer Door Switch Backorder WPL W10318609 $28.02

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

DOOR ASSEMBLY OUTER (WHITE) WPL W10215756 Contact Us For Availability

DOOR ASSEMBLY OUTER (MERCURY) WPL W10215830 Contact Us For Availability

DOOR ASSEMBLY OUTER (RED) WPL W10215831 Contact Us For Availability

20

TRIM-DOOR INNER RING (NOT SERVICEABLE SEPERAT WPL NP Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

21

DOOR INTERMEDIATE ROTATIONAL WPL W10215762 Contact Us For Availability

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $56.54

23

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $33.01

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

25

PANEL, REAR WPL W10281297 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

31

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $23.97

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $32.63

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

50

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

55

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $99.80

56

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.65

57

W10044628 Whirlpool Nut Backorder WPL W10044628 $30.25

59

W10859554 Whirlpool Coupler Backorder WPL W10859554 $28.09

62

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

63

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.32

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $20.97

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W10819173 Whirlpool Hose Fill Backorder WPL W10819173 $26.04

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

WPW10336486 Whirlpool Connector In Stock WPL WPW10336486 $28.22

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability

Hold Down Kit WPL 8529894 Contact Us For Availability
