Model Maytag YMEDZ400TQ0 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

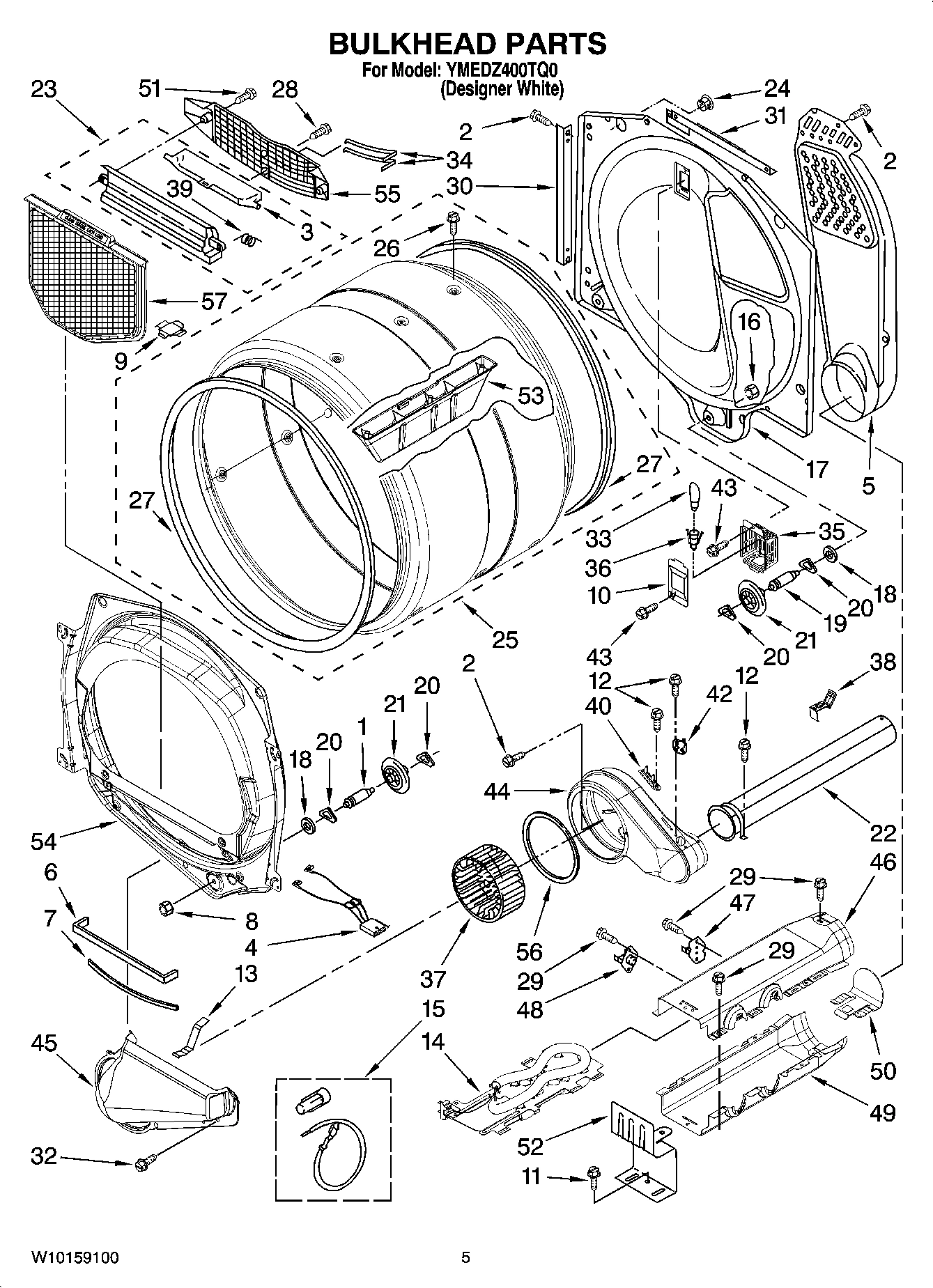

03 - BULKHEAD PARTS

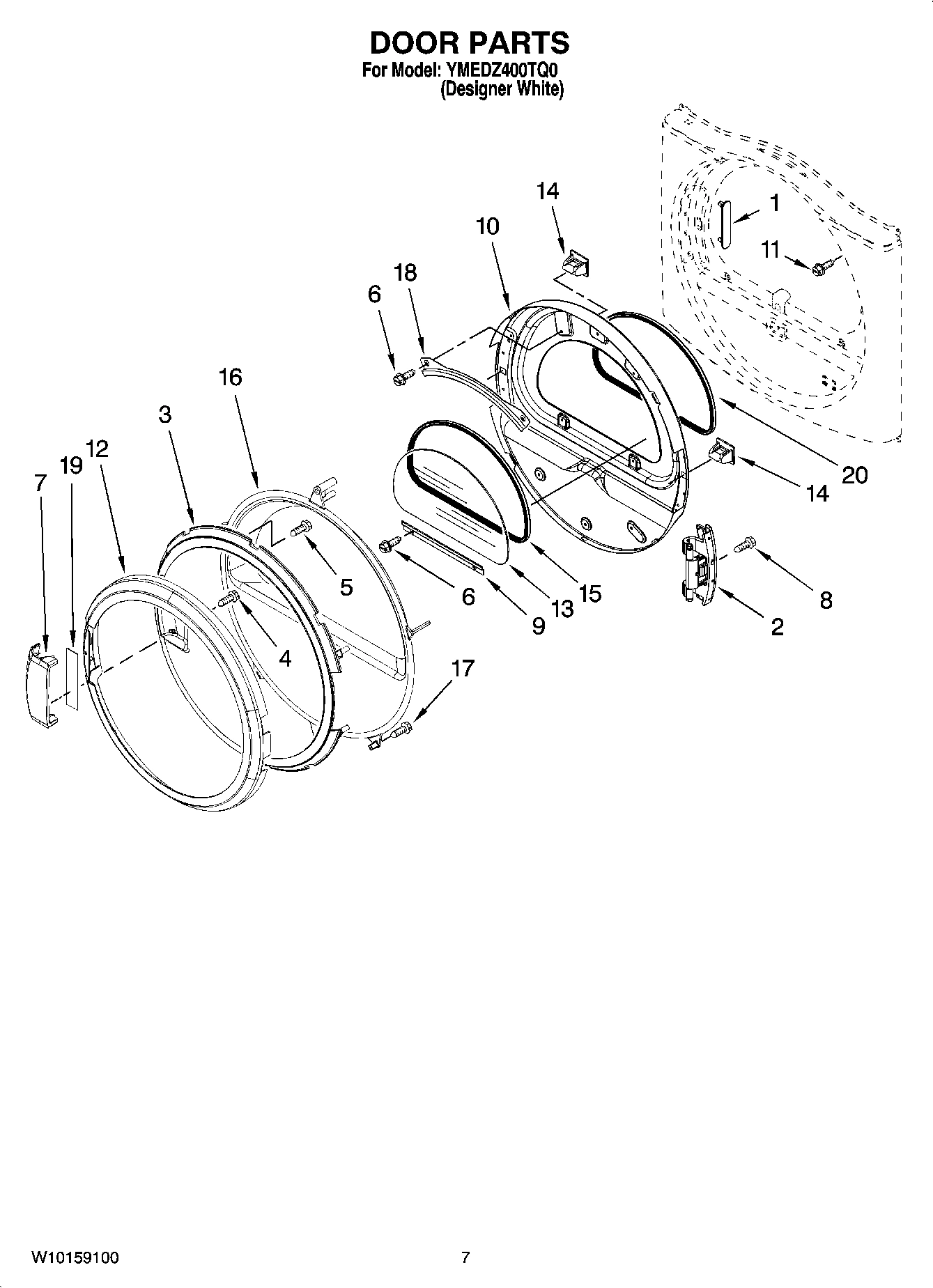

04 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDZ400TQ0 ELECTRIC DRYER
1
MAY W10112937 MAY W10112937 Contact Us For Availability
1
MAY W10117403 MAY W10117403 Contact Us For Availability
1
MAY W10133923 MAY W10133923 Contact Us For Availability
1
MAY 8576583 MAY 8576583 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
MAY 8565119 MAY 8565119 Contact Us For Availability
2
Top MAY 8563730 Contact Us For Availability
2
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
2
SCREW GROUND MAY 8533974 Contact Us For Availability
2
DOOR HINGE ASSEMBLY MAY 8578887 Contact Us For Availability
3
MAY W10110974 MAY W10110974 Contact Us For Availability
3
MAY 3357011 MAY 3357011 Contact Us For Availability
3
MAY 8563758 MAY 8563758 Contact Us For Availability
3
Door, Screen Intermediate Assy. MAY W10119053 Contact Us For Availability
4
Panel, Console (Includes Illus. 15.) MAY W10117384 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
CLIP, HARNESS MAY 3394427 Contact Us For Availability
5
MAY 3394881 MAY 3394881 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
5
MAY 3400618 MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Screw, 10-16 x 1/2 MAY 3393258 Contact Us For Availability
7
Connector Sensor MAY 353424 Contact Us For Availability
7
MAY 8565054 MAY 8565054 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
HANDLE, DOOR (INCLUDES ILLUS.19.) MAY W10117478 Contact Us For Availability
8
Terminal MAY 94614 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
Screw, 10-32 x .455 MAY W10017850 Contact Us For Availability
9
Plug, Terminal MAY 3936144 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
Plug, Drum Hole MAY 8066086 Contact Us For Availability
9
MAY 8519354 MAY 8519354 Contact Us For Availability
10
Terminal MAY 94613 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
Door Assembly (Inner) (Includes Illus. 1 & 14 MAY 8578933 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
11
MAY 355515 MAY 355515 Contact Us For Availability
12
MAY W10117387 MAY W10117387 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 8533971 MAY 8533971 Contact Us For Availability
12
Door, Outer Ring MAY W10112916 Contact Us For Availability
13
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
CLIP-SPRING MAY 8066208 Contact Us For Availability
13
MAY 8565117 MAY 8565117 Contact Us For Availability
14
MAY W10117416 MAY W10117416 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Illus. MAY 279318 Contact Us For Availability
14
Heater Element MAY 8544771 Contact Us For Availability
14
Door Catch Assembly MAY 690081 Contact Us For Availability
15
Badge MAY W10112569 Contact Us For Availability
15
MAY 8066120 MAY 8066120 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY 8579663 MAY 8579663 Contact Us For Availability
16
Knob, Assembly MAY W10112899 Contact Us For Availability
16
MAY 3394081 MAY 3394081 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
MAY 8565114 MAY 8565114 Contact Us For Availability
17
MAY 8574968 MAY 8574968 Contact Us For Availability
17
MAY 343641 MAY 343641 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
MAY 3400238 MAY 3400238 Contact Us For Availability
18
MAY 233520 MAY 233520 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
18
MAY 8519356 MAY 8519356 Contact Us For Availability
19
MAY 8574875 MAY 8574875 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
MAY 8066115 MAY 8066115 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
MAY 8565083 MAY 8565083 Contact Us For Availability
22
MAY 8563728 MAY 8563728 Contact Us For Availability
23
Housing, Outlet MAY 8563755 Contact Us For Availability
24
MAY 8565048 MAY 8565048 Contact Us For Availability
24
MAY 8529007 MAY 8529007 Contact Us For Availability
25
MAY 8563735 MAY 8563735 Contact Us For Availability
26
MAY 8565059 MAY 8565059 Contact Us For Availability
26
MAY W10109200 MAY W10109200 Contact Us For Availability
27
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
27
MAY 697694 MAY 697694 Contact Us For Availability
28
Wire, Jumper (Broken Belt Switch) MAY 3398948 Contact Us For Availability
28
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
29
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
29
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
MAY 8519221 MAY 8519221 Contact Us For Availability
31
MAY 8572546 MAY 8572546 Contact Us For Availability
31
MAY 8571651 MAY 8571651 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
MAY 489463 MAY 489463 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 49026 MAY 49026 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
Plug, Front Panel MAY 8565043 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY 8563747 MAY 8563747 Contact Us For Availability
36
MAY W10136369 MAY W10136369 Contact Us For Availability
37
MAY 8563750 MAY 8563750 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
MAY 8519459 MAY 8519459 Contact Us For Availability
40
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
41
MAY 8540621 MAY 8540621 Contact Us For Availability
42
Screw, 6-20 x 1-1/16 MAY 98129 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
STRIKE, DOOR MAY 8565122 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY 8563727 MAY 8563727 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
MAY W10132445 MAY W10132445 Contact Us For Availability
48
MAY 3391914 MAY 3391914 Contact Us For Availability
49
MAY 8544770 MAY 8544770 Contact Us For Availability
50
MAY 8565046 MAY 8565046 Contact Us For Availability
50
MAY 8544776 MAY 8544776 Contact Us For Availability
51
Front Panel (Includes Illus. 44) MAY W10117421 Contact Us For Availability
51
Screw, 10-16 x 1 MAY 3387230 Contact Us For Availability
52
MAY 8579325 MAY 8579325 Contact Us For Availability
52
MAY 8066099 MAY 8066099 Contact Us For Availability
53
STRAIN-RELIEF MAY 694415 Contact Us For Availability
53
MAY 8565733 MAY 8565733 Contact Us For Availability
54
MAY 8565061 MAY 8565061 Contact Us For Availability
55
MAY 8563756 MAY 8563756 Contact Us For Availability
56
MAY 697770 MAY 697770 Contact Us For Availability
57
MAY W10049370 MAY W10049370 Contact Us For Availability
66
MAY 279818 MAY 279818 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
NI
MAY 8563738 MAY 8563738 Contact Us For Availability
× ![]()
