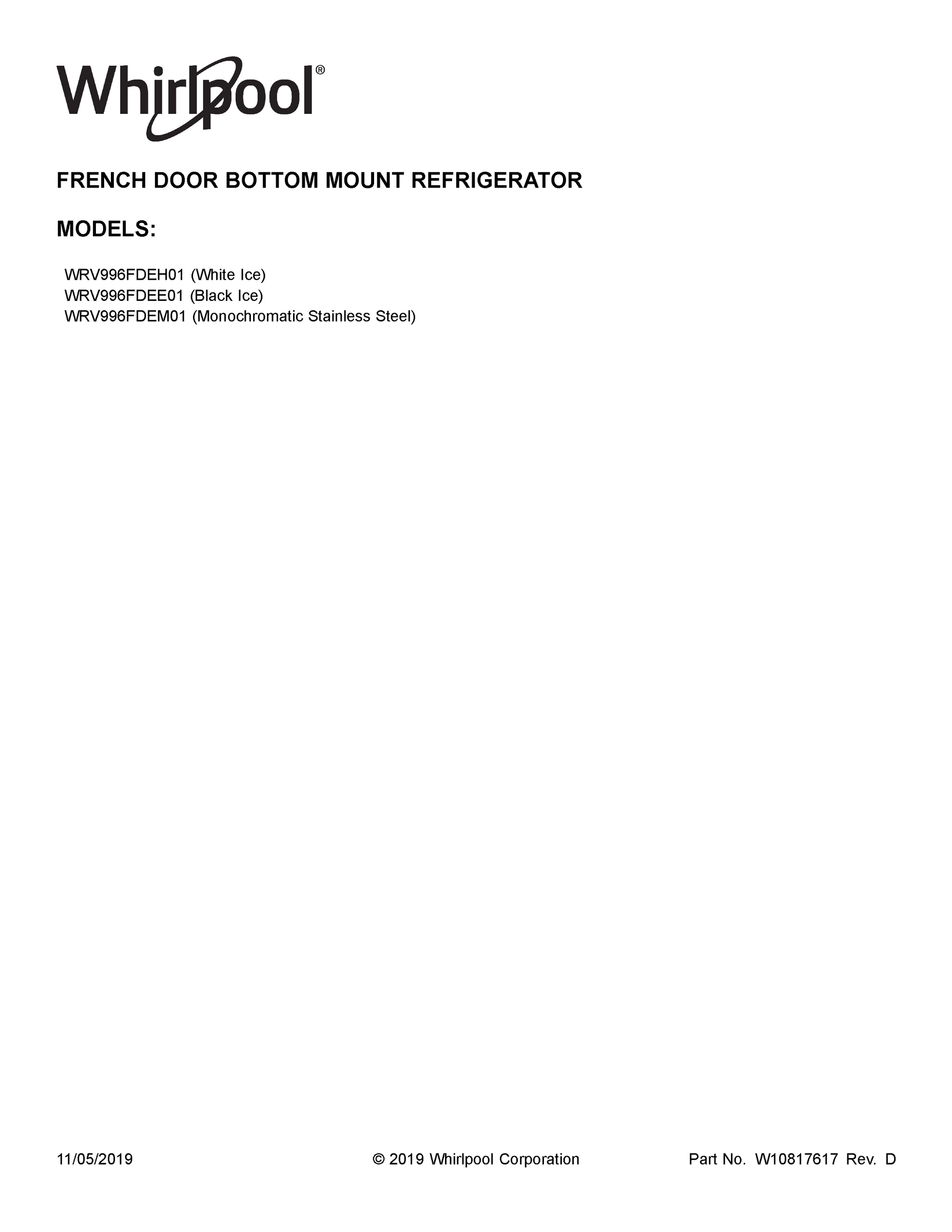

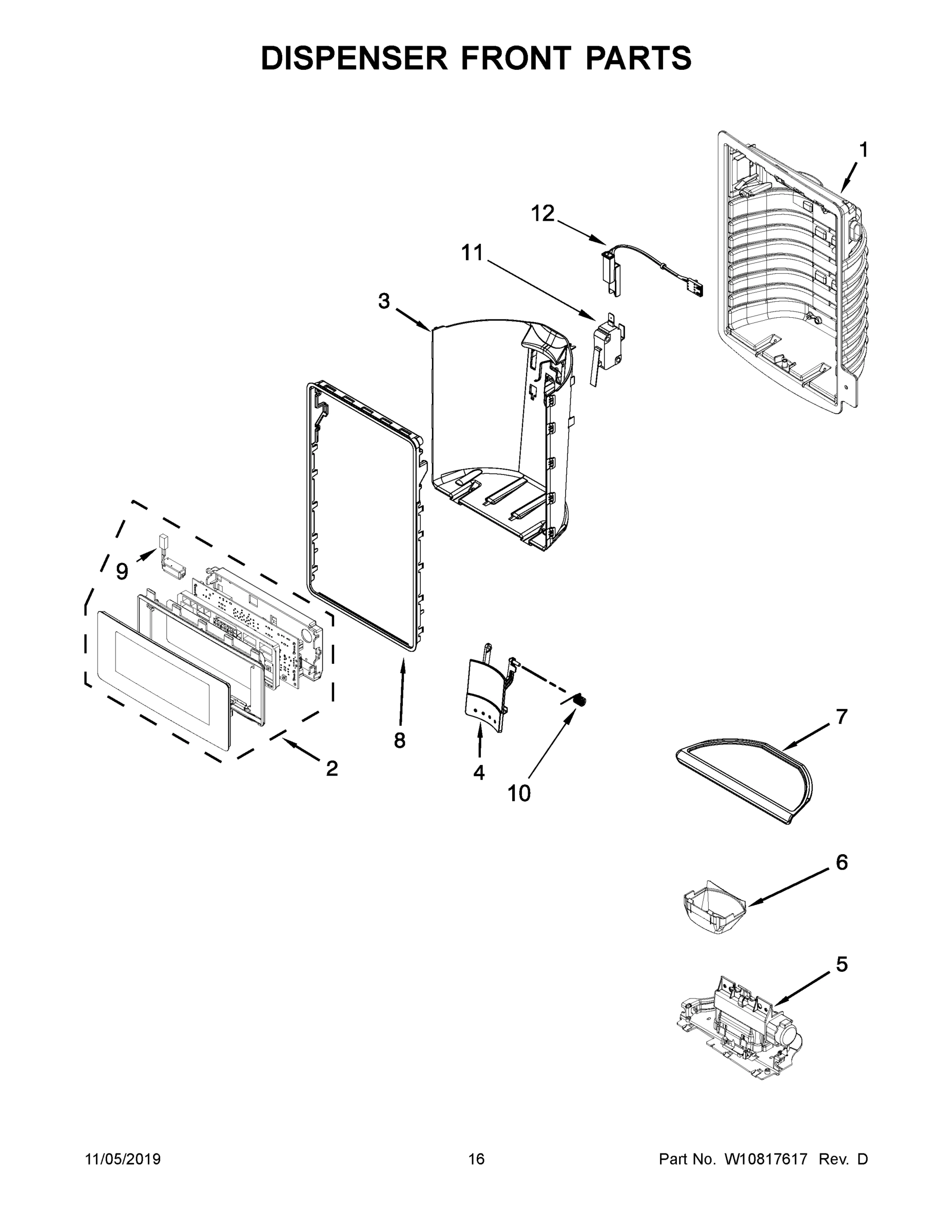

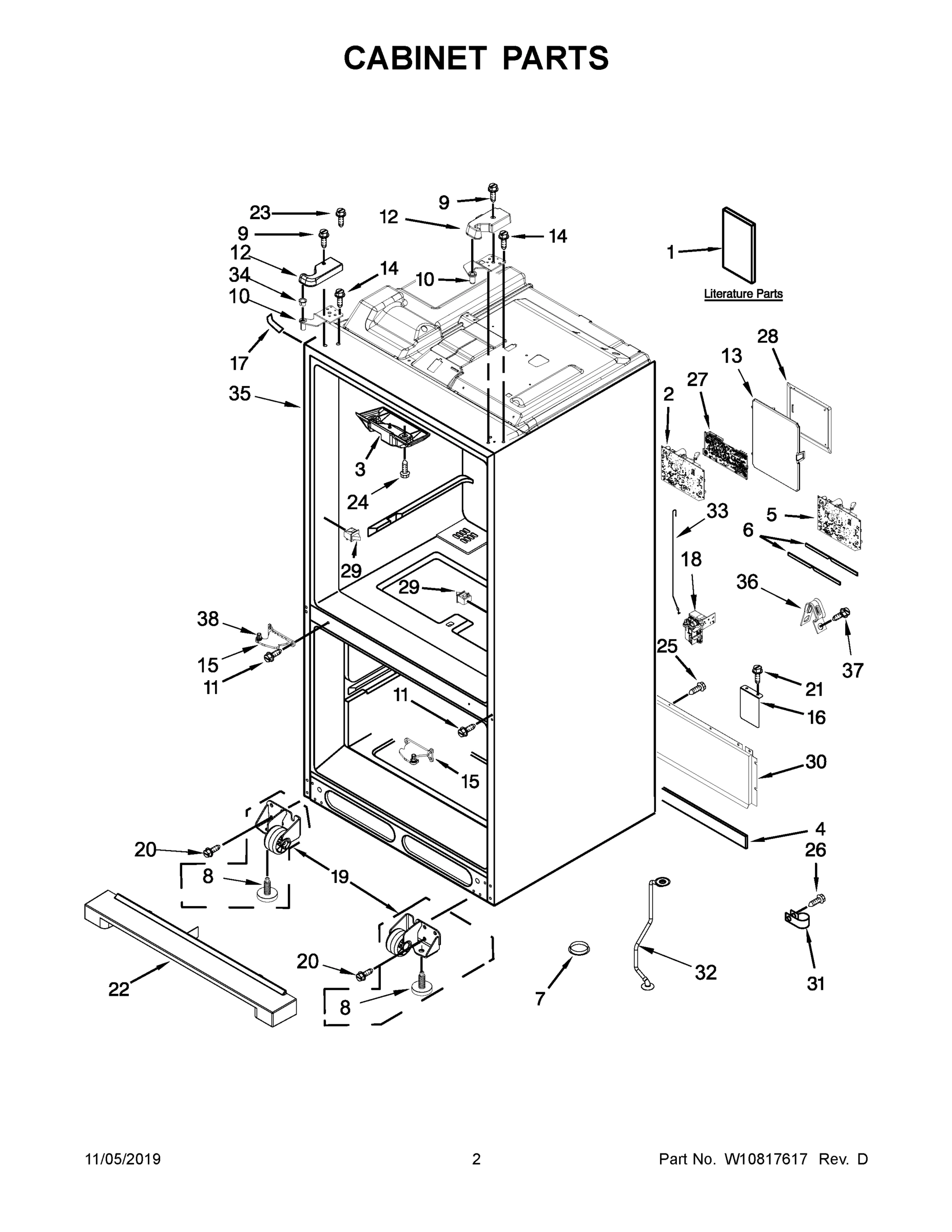

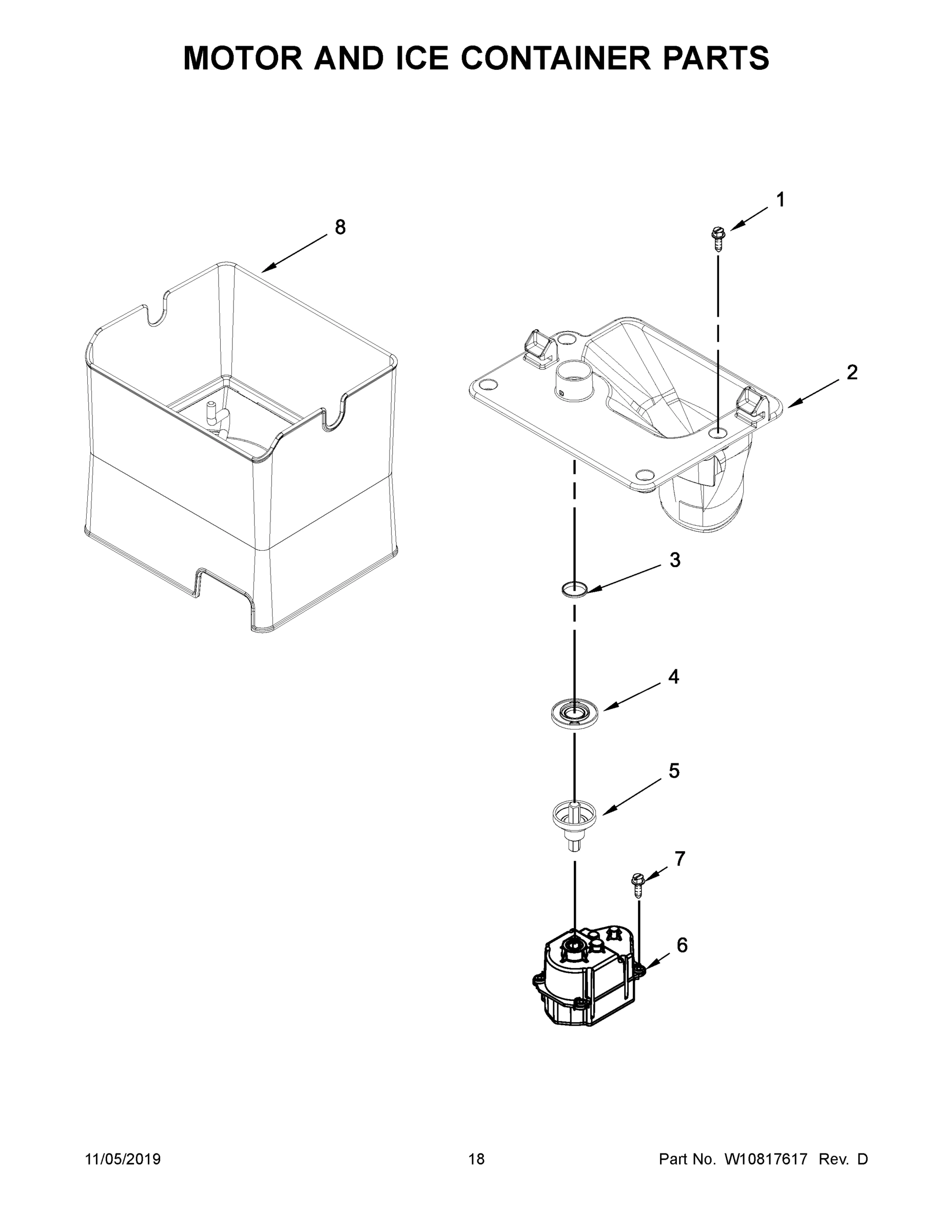

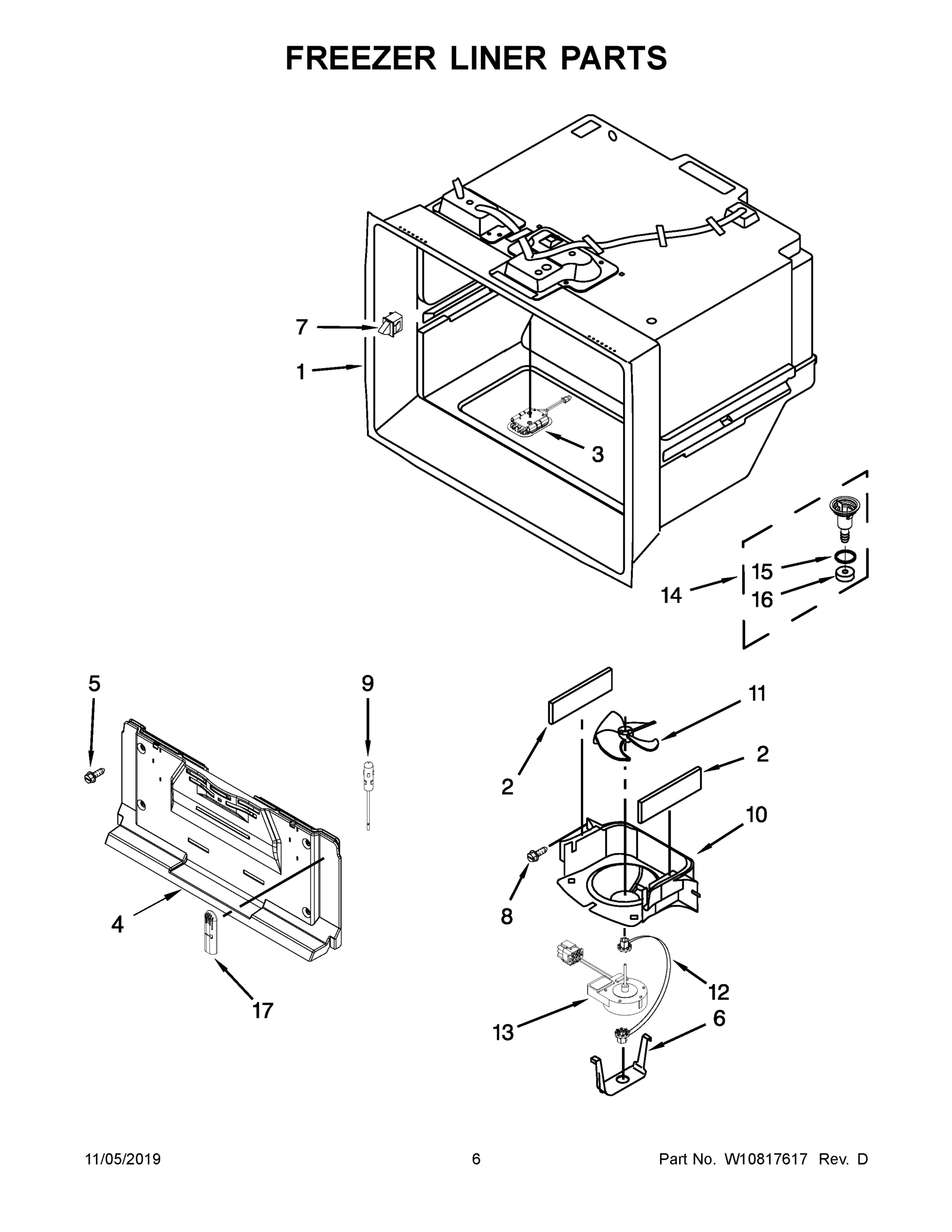

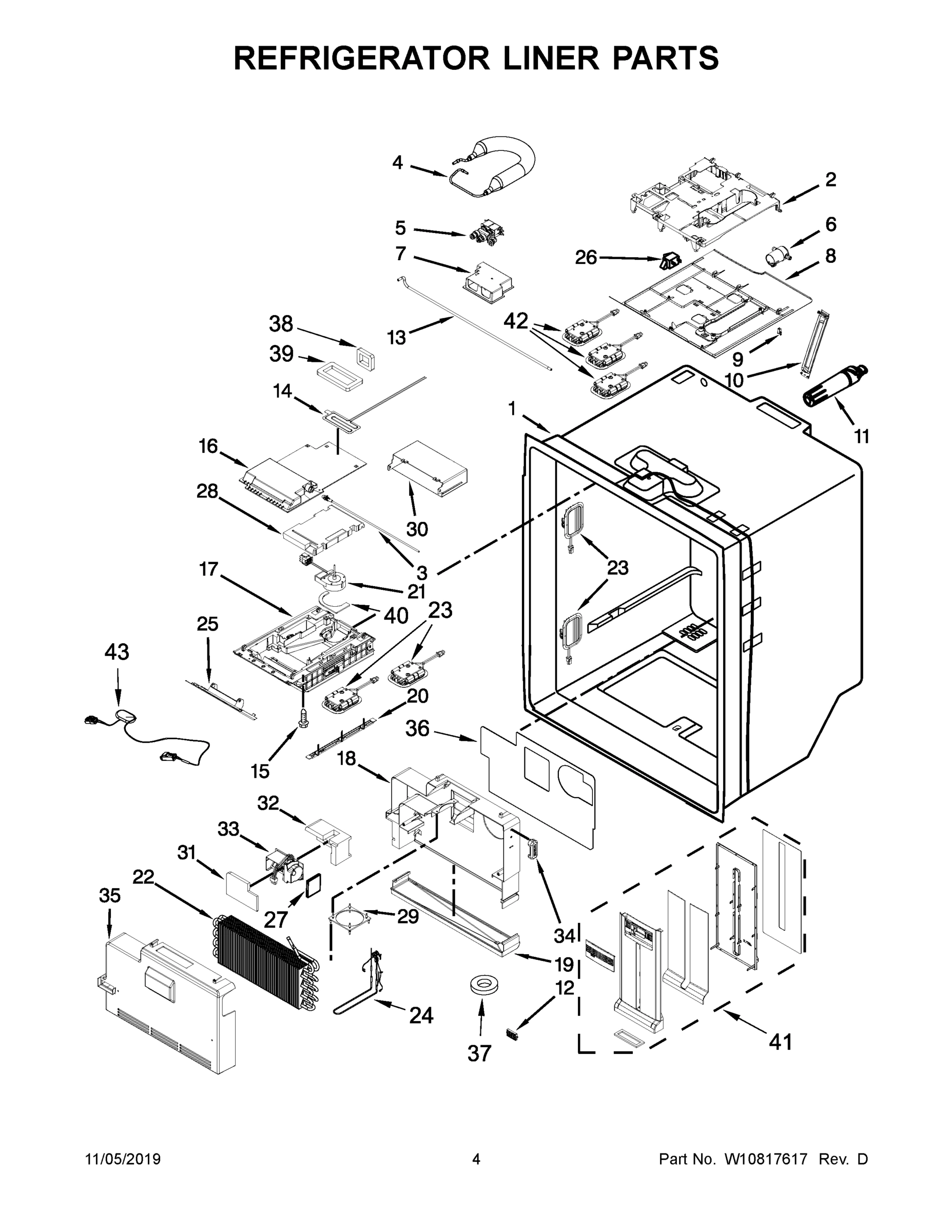

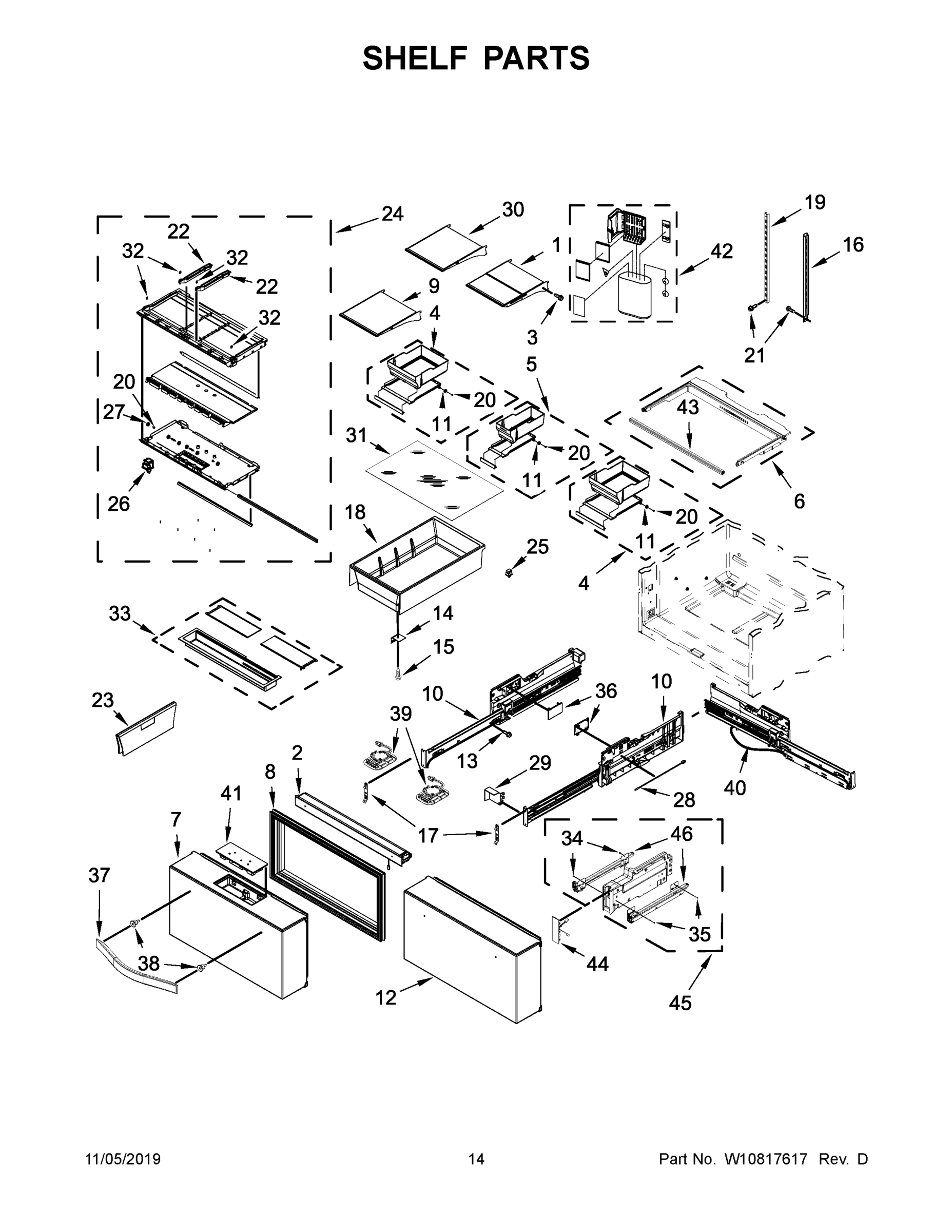

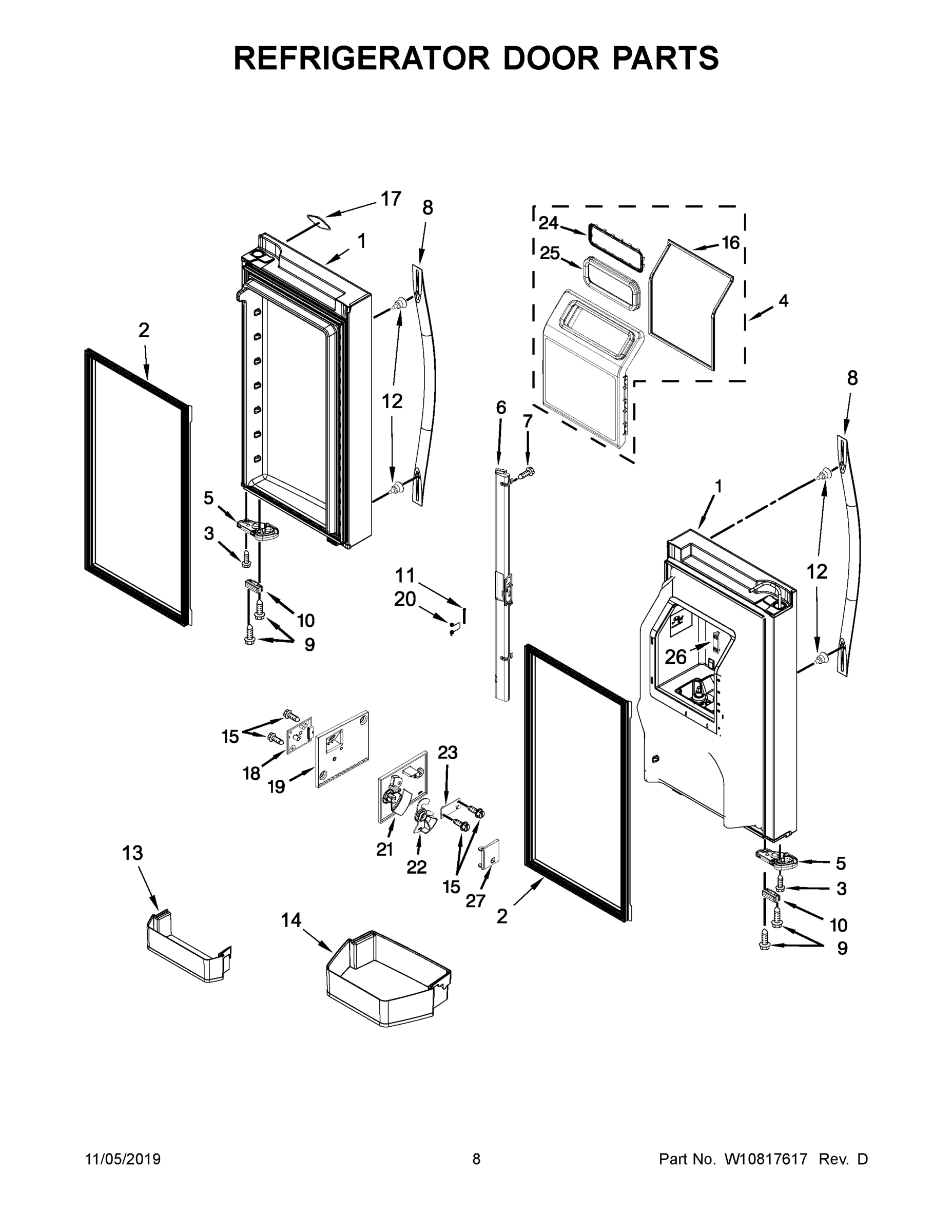

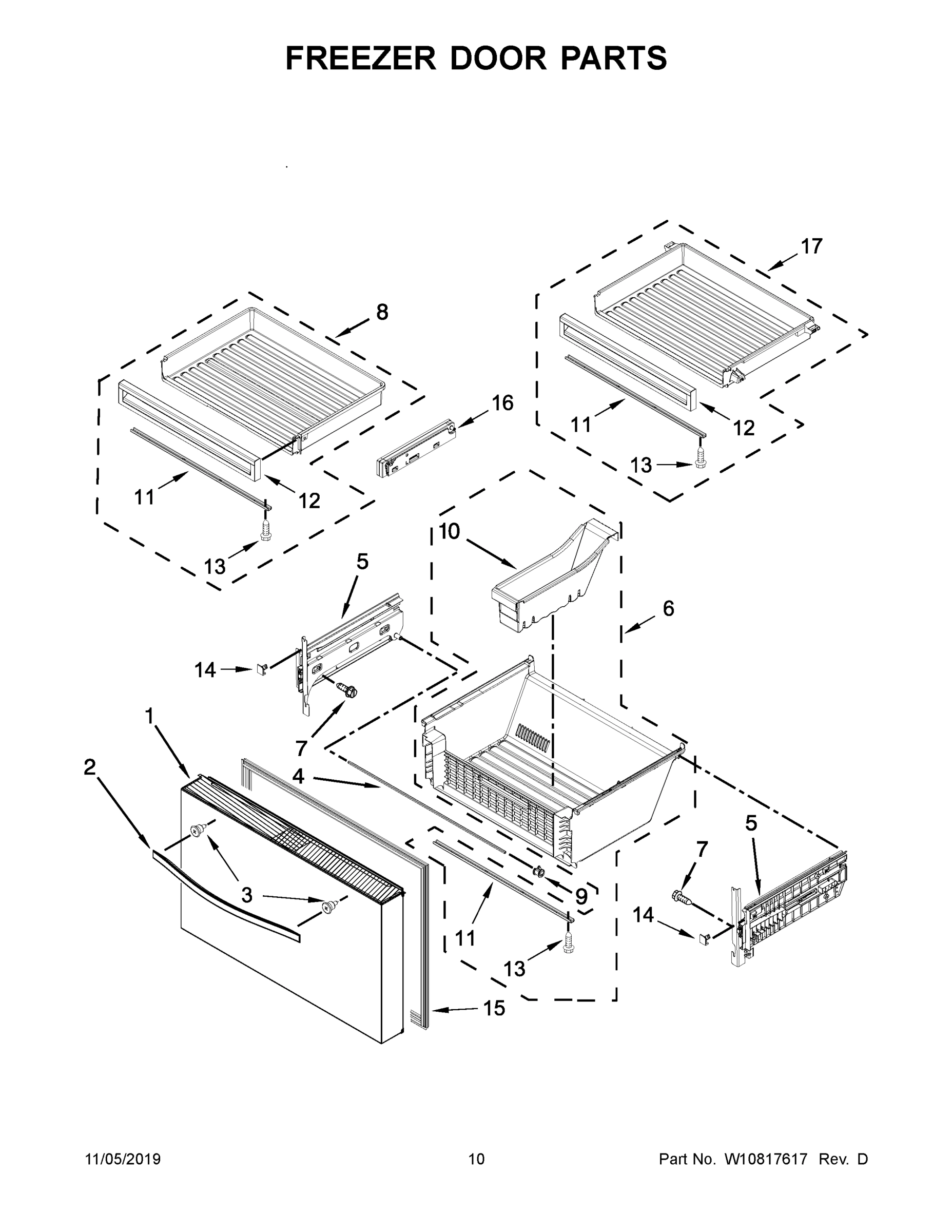

Model Whirlpool WRV996FDEM01 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $31.71

2

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $197.36

3

W10421495 Whirlpool Refrigerator Screw Backorder WPL W10421495 $6.92

3

W10734554 Whirlpool Refrigerator Block Pivot Backorder WPL W10734554 $8.34

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

3

WPW10464016 Whirlpool Refrigerator Screw Backorder WPL WPW10464016 $4.65

3A

W10663632 Whirlpool Refrigerator Shield Backorder WPL W10663632 $75.64

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $9.92

4

W10673702 Whirlpool Refrigerator Door Pad Backorder WPL W10673702 $30.85

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $6.24

4

W11690163 Whirlpool Refrigerator Evaporator C In Stock WPL W11690163 $82.54

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $33.49

4

WPW10549589 Whirlpool Refrigerator Ice Door Backorder WPL WPW10549589 $178.85

5

W10509275 Whirlpool Refrigerator Crisper Pan Backorder WPL W10509275 $107.10

5

W10904595 Whirlpool Refrigerator Closer Backorder WPL W10904595 $6.39

5

W11122874 Whirlpool Refrigerator Ice Door Backorder WPL W11122874 $58.50

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $11.69

5

W11745092 Whirlpool Dual Evaporator Drain Ext In Stock WPL W11745092 $47.93

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $49.20

5A

W11212164 Whirlpool Refrigerator Door Closer Backorder WPL W11212164 $6.95

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10680631 Whirlpool Refrigerator Freezer Bin Backorder WPL W10680631 $75.68

6

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $9.28

6B

W11122876 Whirlpool Refrigerator Mullion Rail Backorder WPL W11122876 $126.04

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $41.14

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7A

W10875578 Whirlpool Refrigerator Drip Tray Backorder WPL W10875578 $36.40

8

W11190820 Whirlpool Refrigerator Cover Backorder WPL W11190820 $41.14

8

W11225840 Whirlpool Refrigerator Evaporator T Backorder WPL W11225840 $56.42

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $191.66

8

WPW10493169 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10493169 $90.05

8

RING, TRIM (CHROME) WPL W10663633 Contact Us For Availability

9

W10852685 Whirlpool Clip Assembly Backorder WPL W10852685 $3.62

9

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $46.48

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

W10507444 Whirlpool Refrigerator Divider Backorder WPL W10507444 $31.55

W11027247 Whirlpool Refrigerator Door Hinge Backorder WPL W11027247 $26.55

W11109505 Whirlpool Refrigerator Spring In Stock WPL W11109505 $7.58

W11294518 Whirlpool Refrigerator Adapter Backorder WPL W11294518 $144.70

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $67.69

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $34.97

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $28.09

BUMPER, DOOR (WHITE) WPL W10407175 Contact Us For Availability

10A

W10407187 Whirlpool Refrigerator Door Bumper In Stock WPL W10407187 $27.76

10A

W11294519 Whirlpool Refrigerator Adapter Backorder WPL W11294519 $107.10

10A

W11736793 Whirlpool Door Hinge Backorder WPL W11736793 $25.71

10B

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $10.76

W10654619 Whirlpool Refrigerator Inverter Box Backorder WPL W10654619 $168.57

W11087492 Whirlpool Refrigerator Water Dispen In Stock WPL W11087492 $14.97

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

12

W11175811 Whirlpool Refrigerator Front Panel Backorder WPL W11175811 $116.16

12

W11238426 Whirlpool Refrigerator Wire Harness Backorder WPL W11238426 $89.21

12B

W10725013 Whirlpool Refrigerator Cover Backorder WPL W10725013 $11.69

12D

W10709867 Whirlpool Refrigerator Cover Backorder WPL W10709867 $11.69

12E

W10709866 Whirlpool Refrigerator Cover Backorder WPL W10709866 $11.69

W10277839 Whirlpool Refrigerator Cover Backorder WPL W10277839 $31.81

W11109595 Whirlpool Refrigerator Evaporator M In Stock WPL W11109595 $180.15

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $33.84

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.51

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W11672775 Whirlpool Heater Assembly In Stock WPL W11672775 $13.52

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $29.26

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $29.26

15

W10664603 Whirlpool Refrigerator Screw Backorder WPL W10664603 $9.13

15

W10691676 Whirlpool Refrigerator Door Hinge Backorder WPL W10691676 $31.07

15A

W10691674 Whirlpool Refrigerator Door Hinge Backorder WPL W10691674 $32.23

15B

W11122872 Whirlpool Refrigerator Door Hinge Backorder WPL W11122872 $27.89

15D

W10691700 Whirlpool Refrigerator Door Hinge Backorder WPL W10691700 $32.23

15E

W11167119 Whirlpool Refrigerator Door Hinge Backorder WPL W11167119 $27.89

W10719660 Whirlpool Refrigerator Ladder Backorder WPL W10719660 $81.36

W10850332 Whirlpool Refrigerator Bracket In Stock WPL W10850332 $61.68

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $38.14

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $60.96

16A

W10858092 Whirlpool Refrigerator Bracket Backorder WPL W10858092 $56.73

W10698555 Whirlpool Refrigerator Cover Backorder WPL W10698555 $44.10

W10732765 Whirlpool Refrigerator Clip Backorder WPL W10732765 $7.39

W10858802 Whirlpool Refrigerator Freezer Bin Backorder WPL W10858802 $117.34

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

ASSEMBLY, ICEBOX (FOAMED) WPL W10739299 Contact Us For Availability

17B

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

18

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $199.02

18

W11435997 Whirlpool Refrigerator Housing Backorder WPL W11435997 $87.50

18

TRAY, DRIP WPL W10342573 Contact Us For Availability

W10467461 Whirlpool Refrigerator Ladder Backorder WPL W10467461 $28.09

W11457241 Whirlpool Burner Drip Bowl In Stock WPL W11457241 $51.31

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

COVER, RECEIVER WPL W10258510 Contact Us For Availability

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

20

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $12.83

20

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

21

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $33.16

21

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $75.30

22

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

22A

W11129933 Whirlpool Refrigerator Front Grille Backorder WPL W11129933 $45.13

22B

W10911309 Whirlpool Toe Kick Plate Backorder WPL W10911309 $46.94

23

W11026309 Whirlpool Refrigerator Divider Backorder WPL W11026309 $28.88

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

W11087438 Whirlpool Refrigerator Evaporator M In Stock WPL W11087438 $81.27

W11190822 Whirlpool Refrigerator Wire Harness Backorder WPL W11190822 $62.12

W11215630 Whirlpool Refrigerator Floor Backorder WPL W11215630 $132.56

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $11.44

25

W10682576 Whirlpool Refrigerator Heater Backorder WPL W10682576 $57.92

26

W10819813 Whirlpool Refrigerator Compressor Backorder WPL W10819813 $520.98

27

W10470981 Whirlpool Refrigerator Gasket Backorder WPL W10470981 $9.66

27

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $9.24

27

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $30.34

28

W10754591 Whirlpool Refrigerator Cover Backorder WPL W10754591 $44.10

28

W11168403 Whirlpool Refrigerator Thermistor In Stock WPL W11168403 $47.07

28

WPW10280983 Whirlpool Refrigerator Insulation In Stock WPL WPW10280983 $30.98

W10711645 Whirlpool Refrigerator Cover Backorder WPL W10711645 $44.10

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.68

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $9.13

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $26.19

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $40.02

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $49.50

31

W11225849 Whirlpool Refrigerator Retainer Backorder WPL W11225849 $10.76

12702901 Whirlpool Refrigerator Pad Backorder WPL 12702901 $6.59

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $6.90

W11230117 Whirlpool Refrigerator Support Backorder WPL W11230117 $111.02

TUBE, DRAIN WPL W10503562 Contact Us For Availability

33

W10634634 Whirlpool Door Shelf Bin Backorder WPL W10634634 $79.55

33

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $92.63

34

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $30.91

34

W10737730 Whirlpool Refrigerator Rivet Backorder WPL W10737730 $8.60

34

W11238397 Whirlpool Refrigerator Cover In Stock WPL W11238397 $10.76

35

W10737605 Whirlpool Refrigerator Screw Backorder WPL W10737605 $5.16

35

W11188493 Whirlpool Refrigerator Evaporator C In Stock WPL W11188493 $92.06

36

W10518036 Whirlpool Refrigerator Cover Backorder WPL W10518036 $8.22

36

W11435996 Whirlpool Gasket Backorder WPL W11435996 $9.63

37

W11568592 Whirlpool Refrigerator Gasket Backorder WPL W11568592 $4.61

38

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $10.58

38

WPL W10505294 WPL W10505294 Contact Us For Availability

39

W11683243 Whirlpool Module In Stock WPL W11683243 $110.35

39

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $4.52

40

W11170612 Whirlpool Refrigerator Wire Harness In Stock WPL W11170612 $60.65

40

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $9.70

42

W10826105 Whirlpool Refrigerator Pro Service Backorder WPL W10826105 $63.19

43

W10530297 Whirlpool Drawer Support Backorder WPL W10530297 $94.64

43

W10673048 Whirlpool Refrigerator Wire Jumper Backorder WPL W10673048 $49.01

45

W11294550 Whirlpool Refrigerator Adapter Backorder WPL W11294550 $66.79

46

W11242542 Whirlpool Refrigerator Slide Backorder WPL W11242542 $104.60

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $8.67

W10672154 Whirlpool Refrigerator Wire Harness Backorder WPL W10672154 $97.16

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
