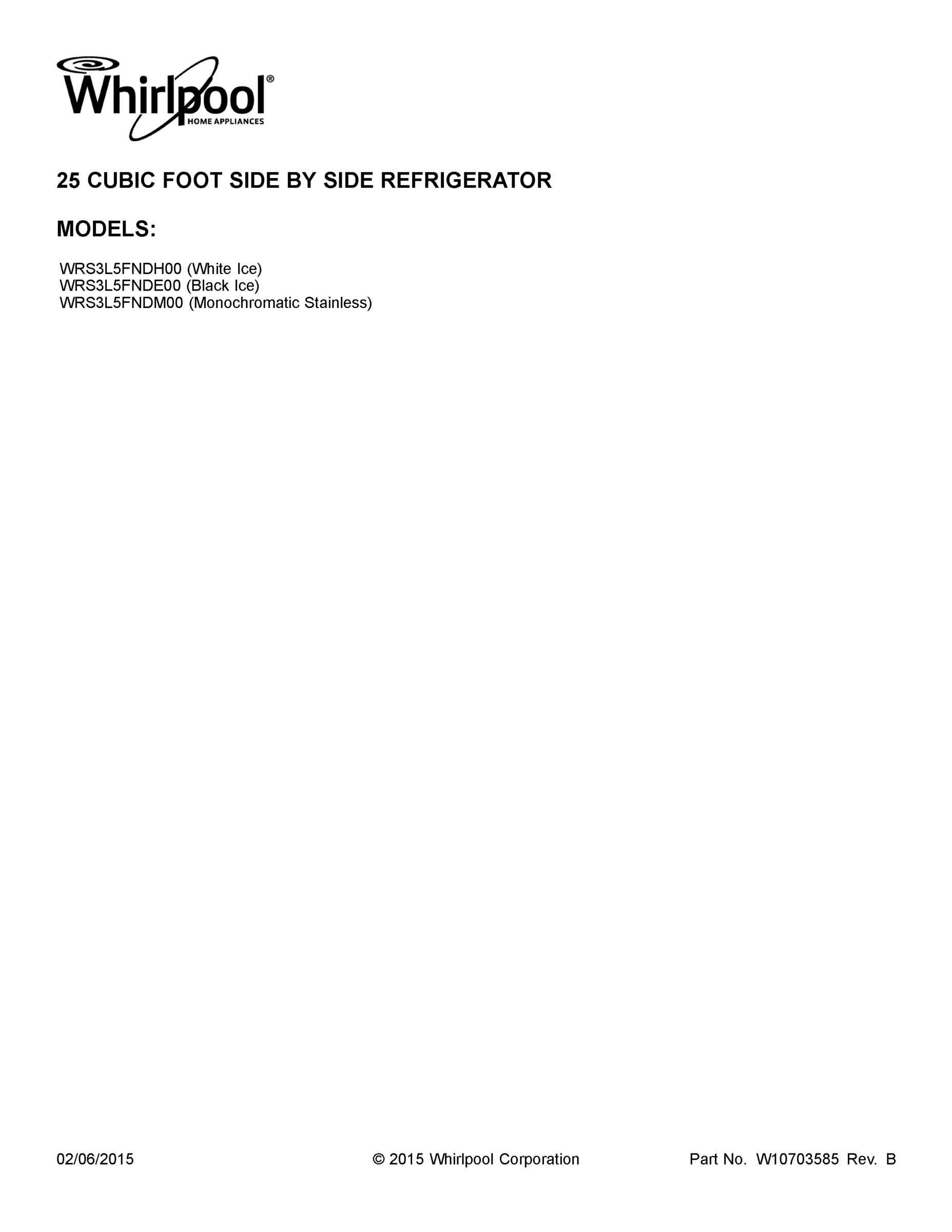

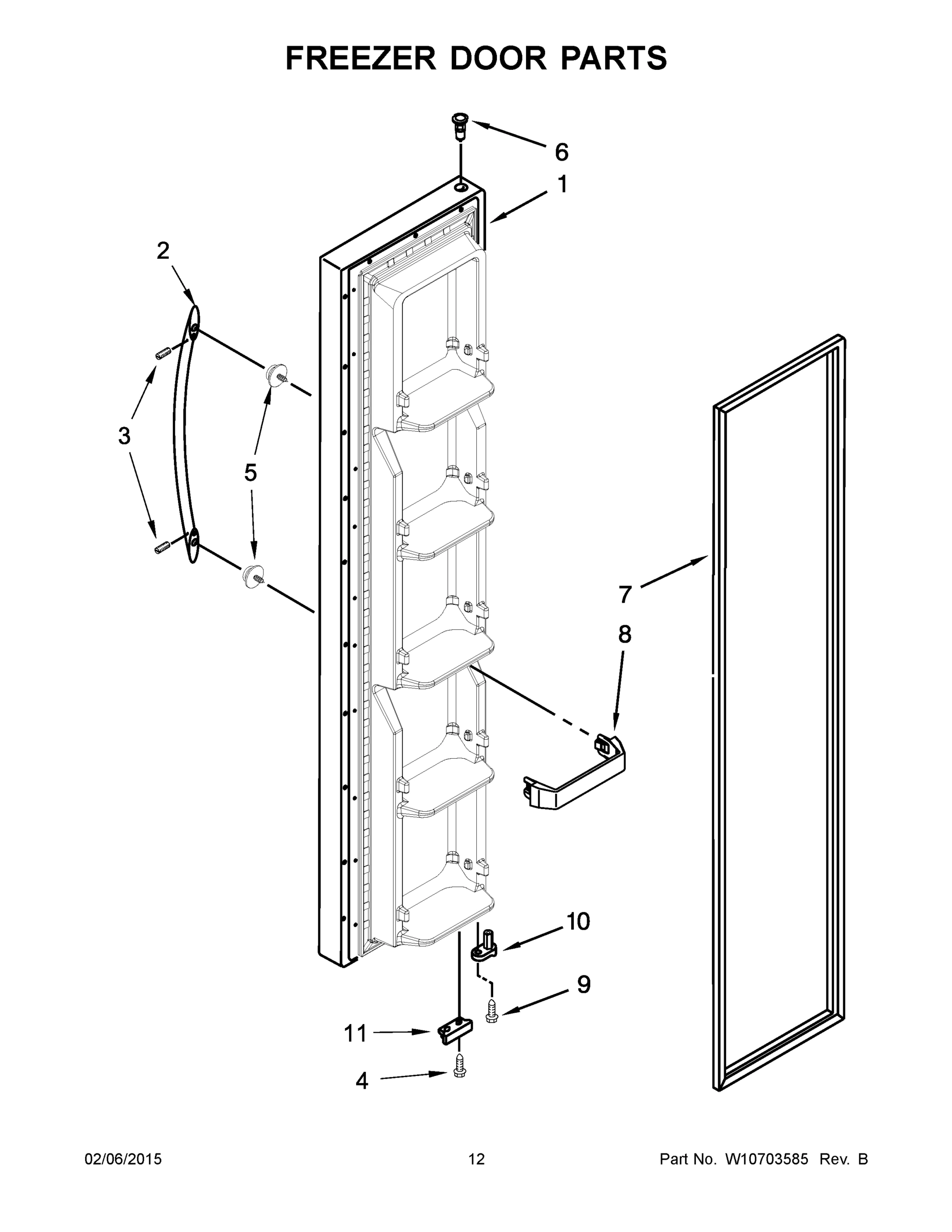

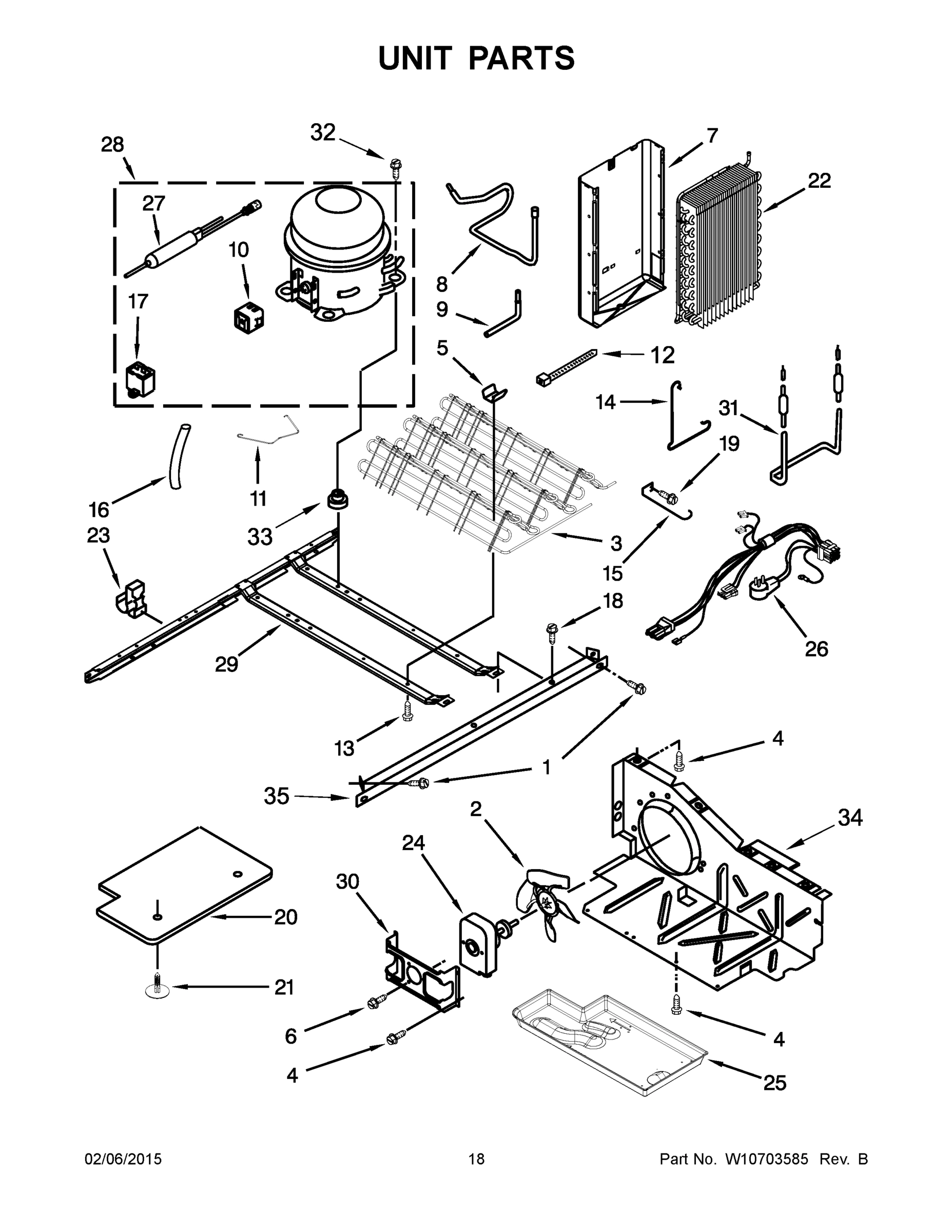

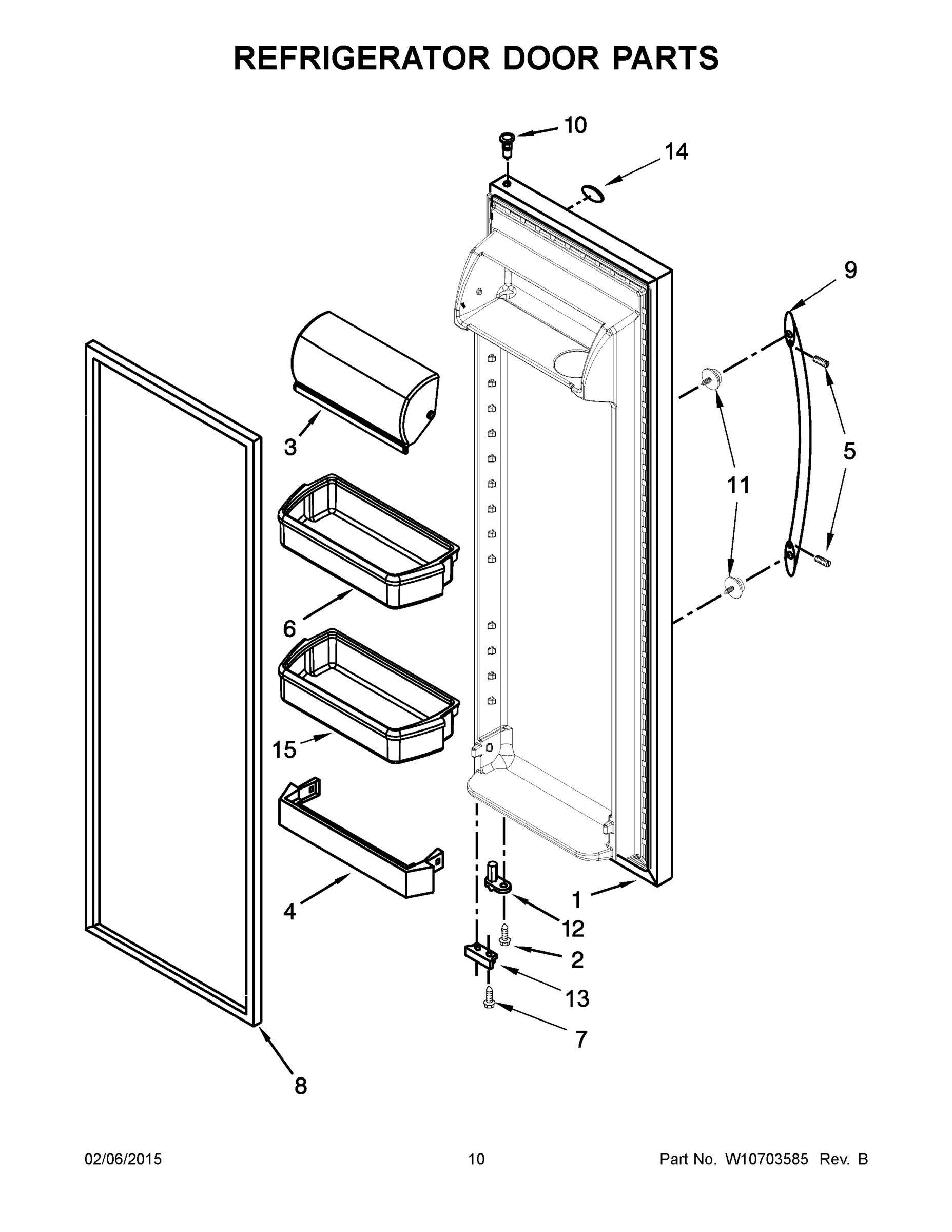

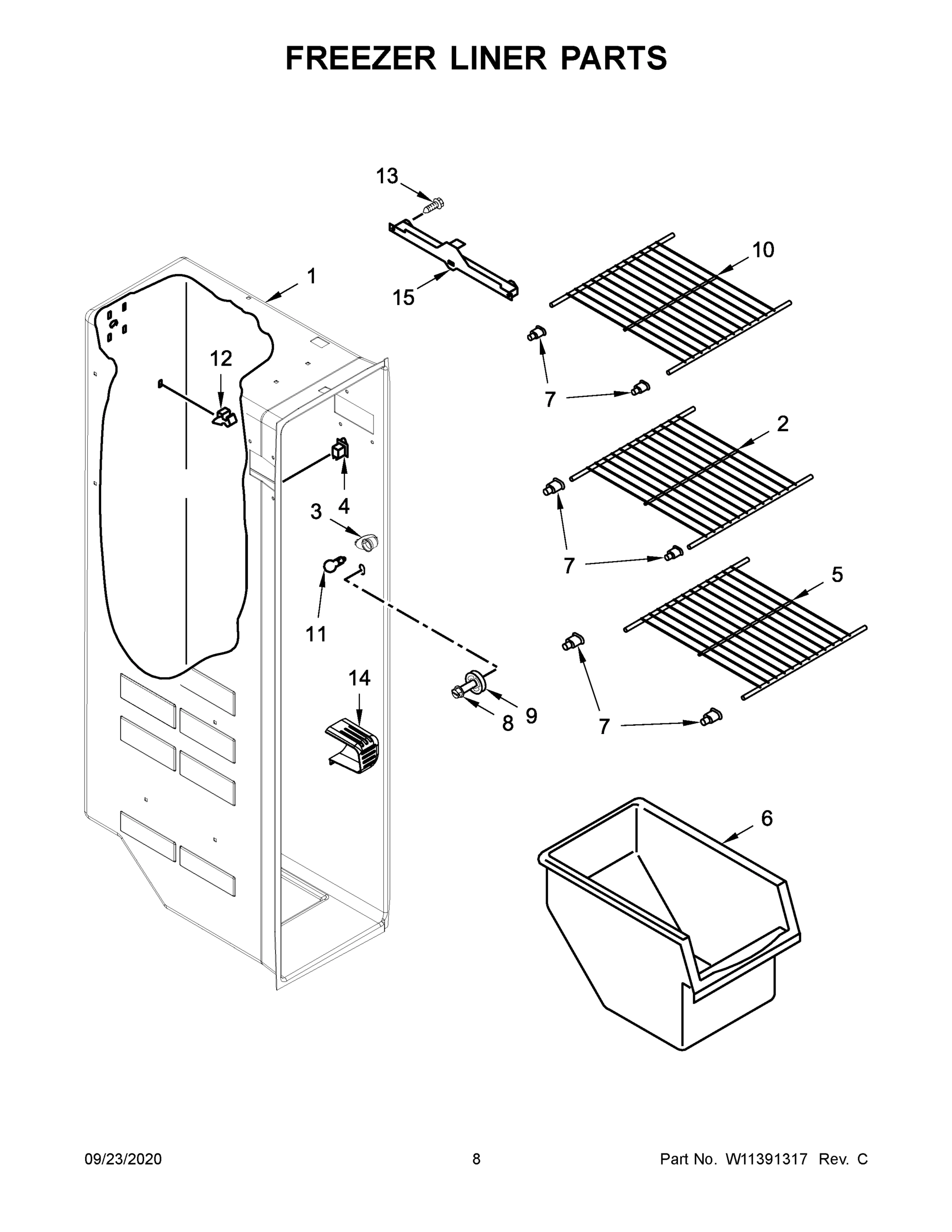

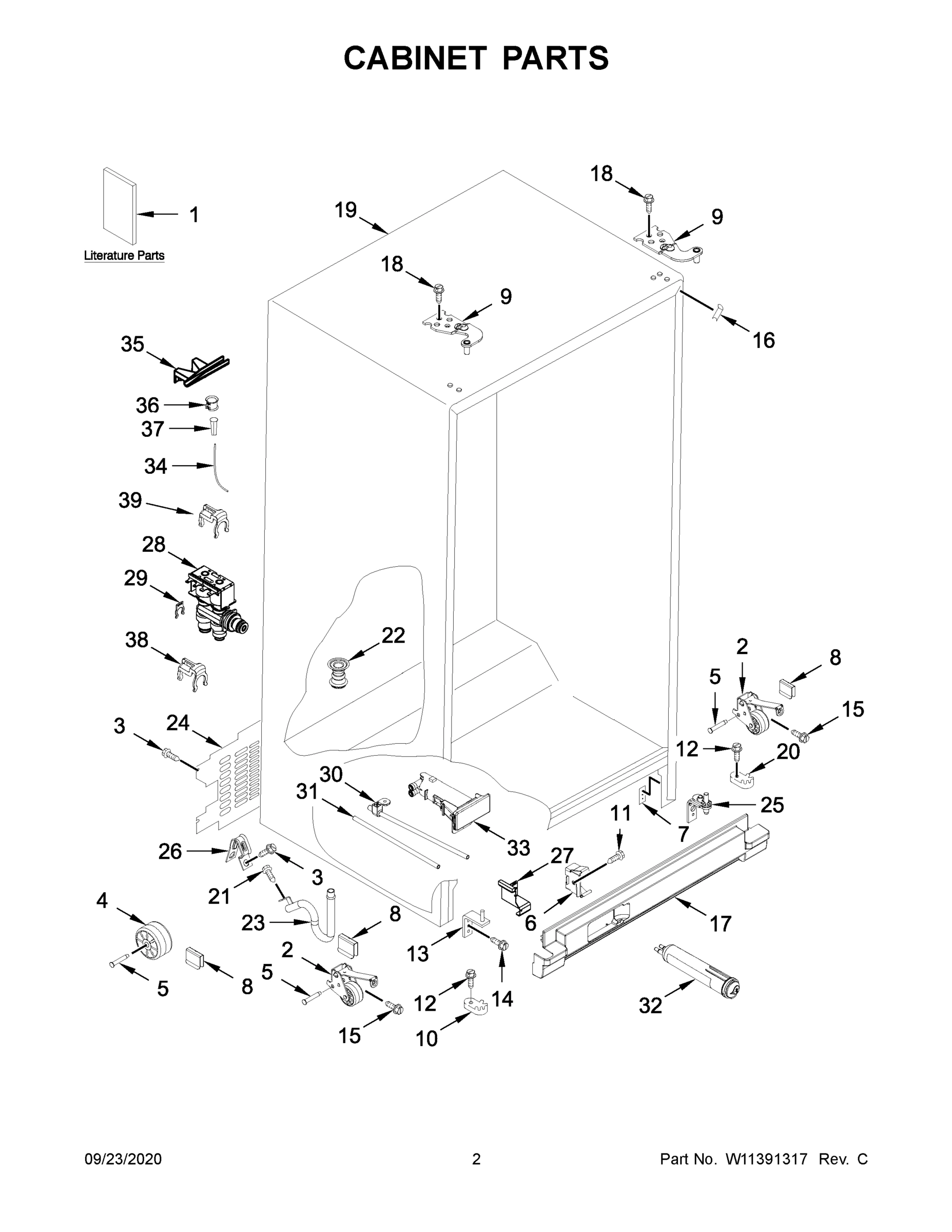

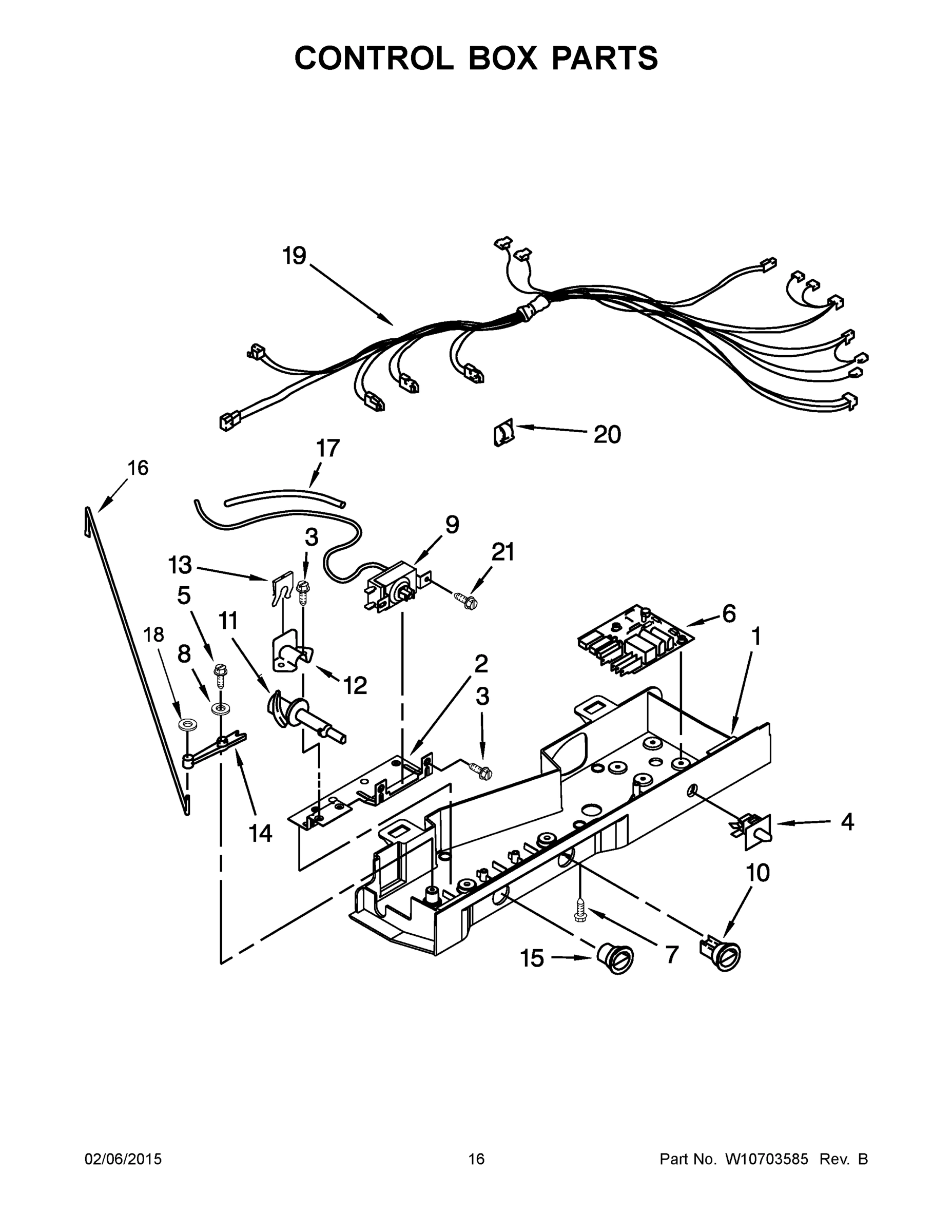

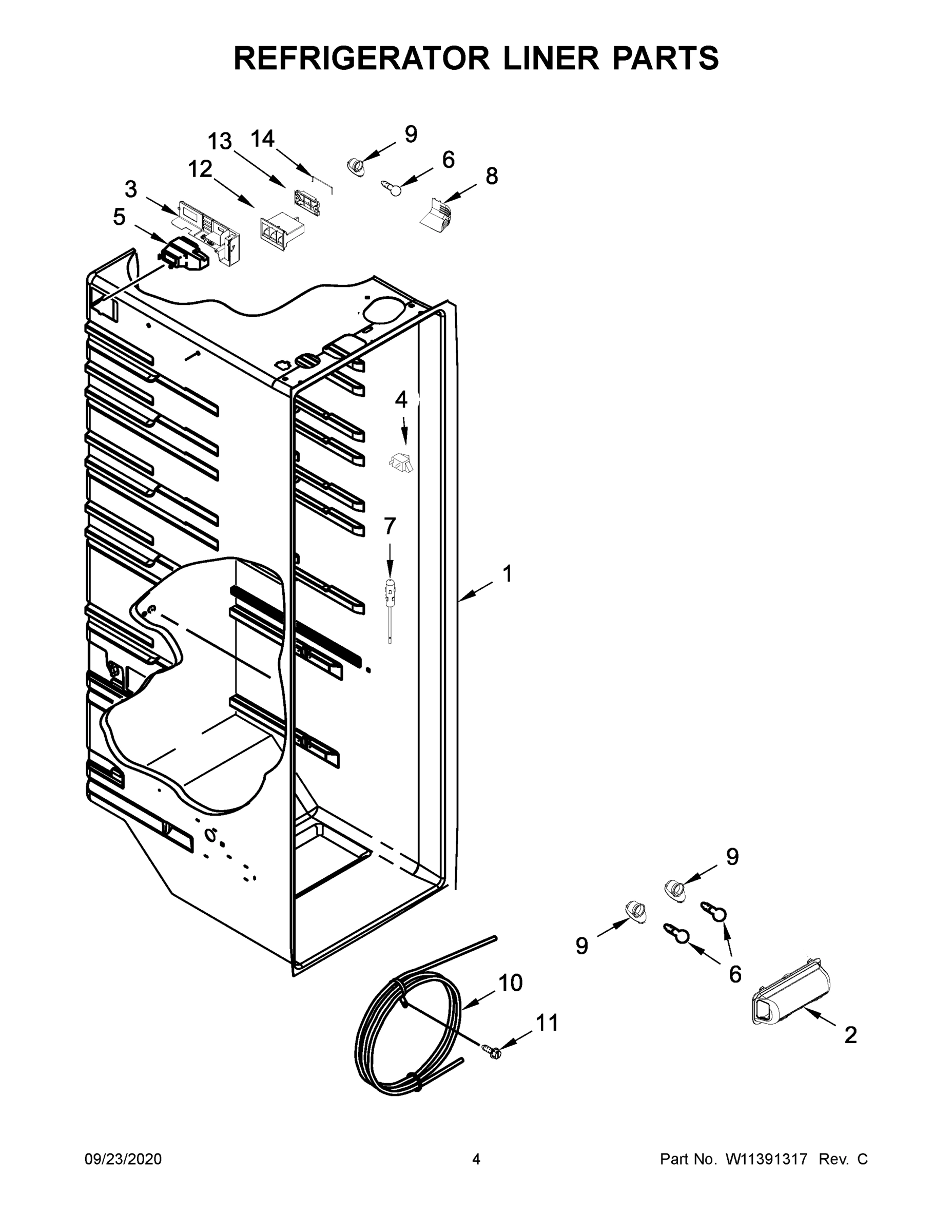

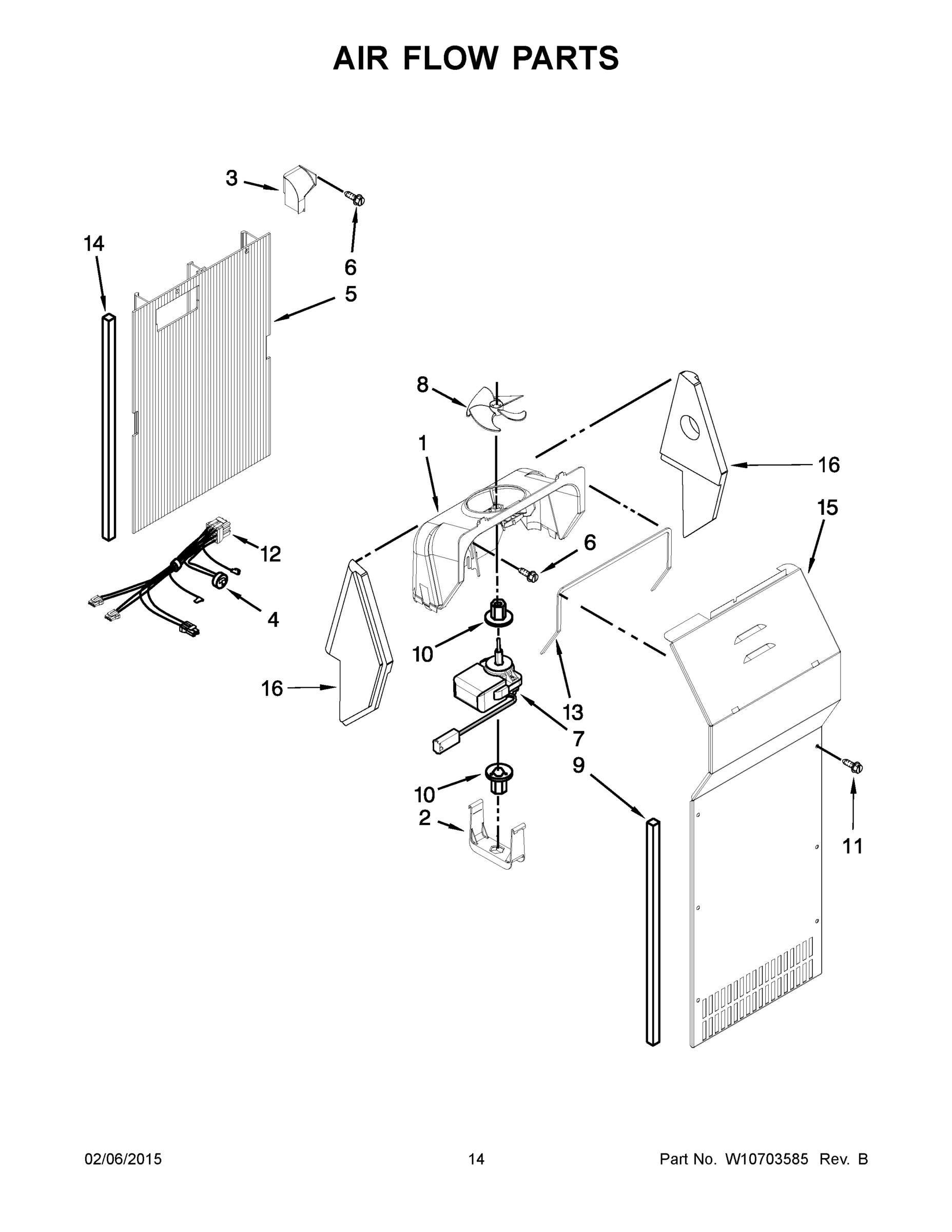

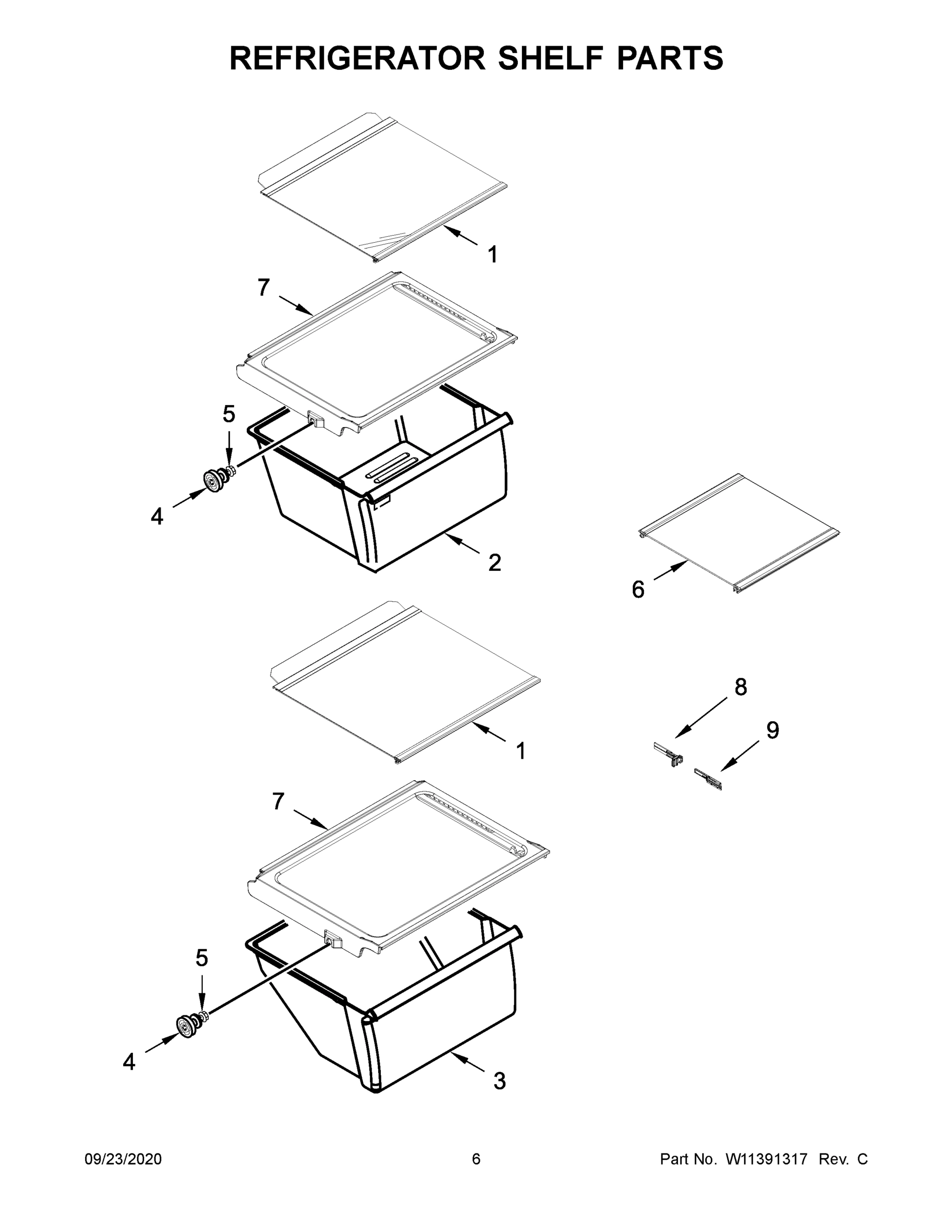

Model Whirlpool WRS3L5FNDM00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $29.99

3

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10803534 Whirlpool Screw Backorder WPL W10803534 $5.01

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

W11104452 Whirlpool Refrigerator Light In Stock WPL W11104452 $52.08

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

COVER, PAN WPL W10485332 Contact Us For Availability

4

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

5

DUCT, FREEZER AIR WPL 2203594 No Longer Available

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

5

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

5

WPW10515058 Whirlpool LED Light Backorder WPL WPW10515058 $20.35

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

7

W10318945 Whirlpool Refrigerator Wire Shelf Backorder WPL W10318945 $53.27

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $128.57

7

WPW10515057 Whirlpool Light Board In Stock WPL WPW10515057 $20.44

8

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $27.45

8

W10336489 Whirlpool Refrigerator Screw Backorder WPL W10336489 $5.44

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $37.62

8

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $39.73

9

W10899551 Whirlpool Door Handle In Stock WPL W10899551 $68.07

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $4.63

9

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

9

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

9

WPW10583800 Whirlpool Refrigerator Thermostat In Stock WPL WPW10583800 $87.53

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $58.28

WPW10318961 Whirlpool Refrigerator Wire Shelf In Stock WPL WPW10318961 $42.46

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $32.79

W10861746 Whirlpool Crisper Pan Trim In Stock WPL W10861746 $14.62

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

11A

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

12

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

12

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $111.89

12A

W11579508 Whirlpool Top Hinge Backorder WPL W11579508 $14.48

12B

W11164088 Whirlpool Refrigerator Door Hinge Backorder WPL W11164088 $26.55

W11049959 Whirlpool Refrigerator Hinge In Stock WPL W11049959 $43.87

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

BRACKET, DOOR STOP (SILVER) WPL W10219801 Contact Us For Availability

13A

BRACKET, DOOR STOP (BLACK) WPL W10219802 Contact Us For Availability

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WPW10511972 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511972 $37.35

ARM, PIVOT WPL 1110559 Contact Us For Availability

CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

W11035574 Whirlpool Refrigerator Pan Trim In Stock WPL W11035574 $31.82

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $25.24

16

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

16

W10646418 Whirlpool Refrigerator Door Hinge Backorder WPL W10646418 $14.42

17

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $135.64

17

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $35.45

17

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $42.93

18

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

18

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

18A

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

18B

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $3.70

19

W10417924 Whirlpool Refrigerator Wire Harness Backorder WPL W10417924 $133.45

19

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

19A

GRILLE (BLACK) WPL W10449699 Contact Us For Availability

20

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $26.21

20

UNIT COVER, BOTTOM WPL W10466698 Contact Us For Availability

20A

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

23

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

24

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $103.19

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

30

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

SCREW WPL W10476309 Contact Us For Availability

34

BAFFLE, AIR WPL W10332806 Contact Us For Availability

35

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $49.54

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
