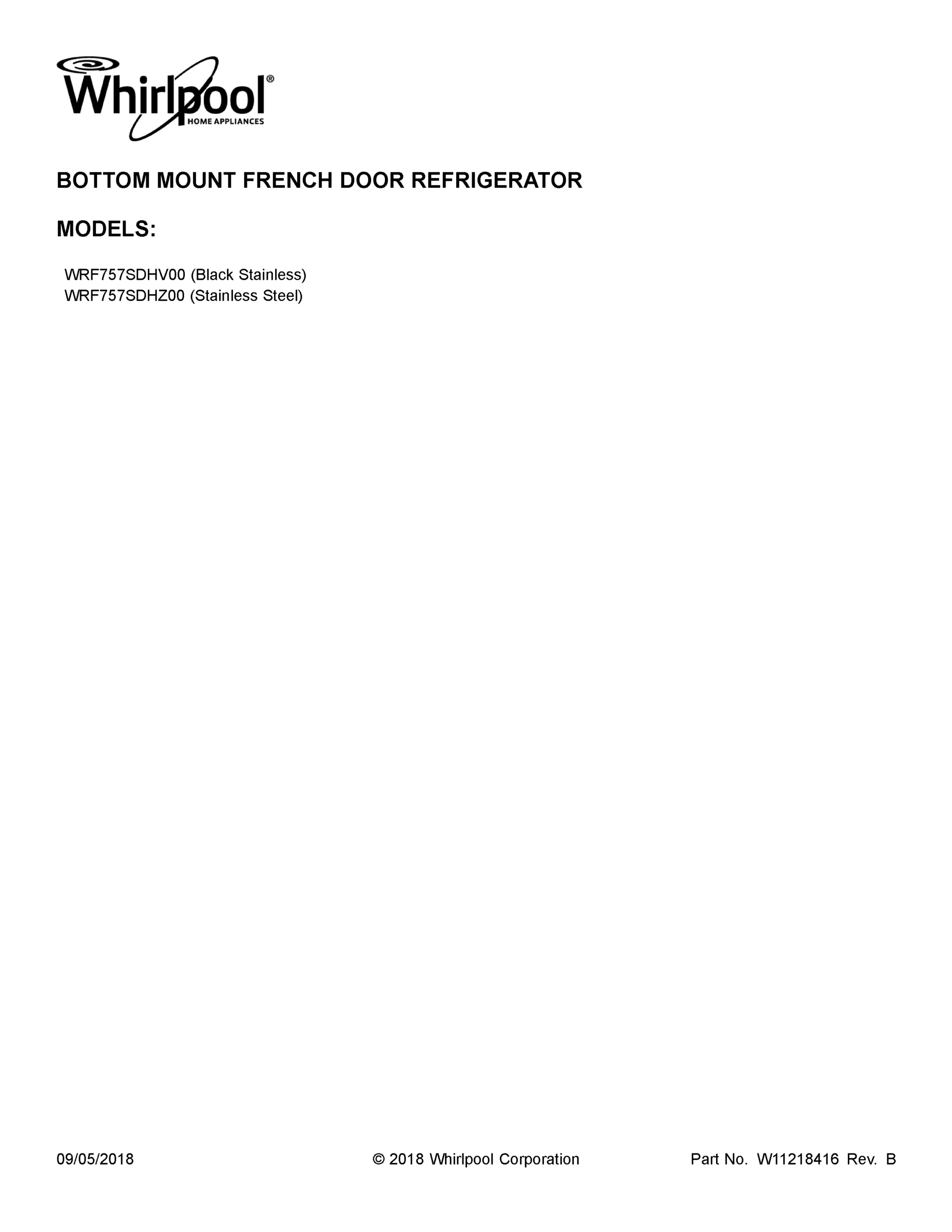

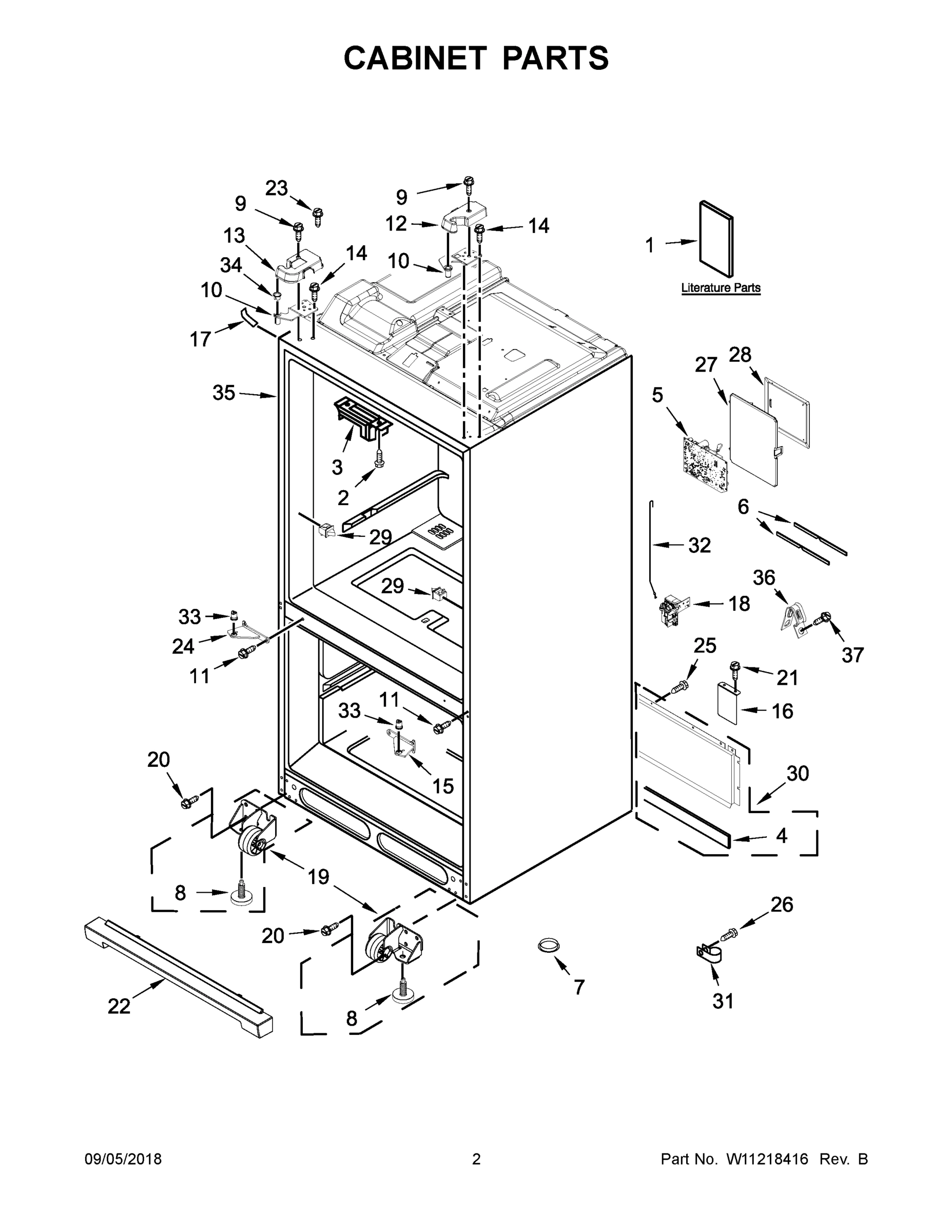

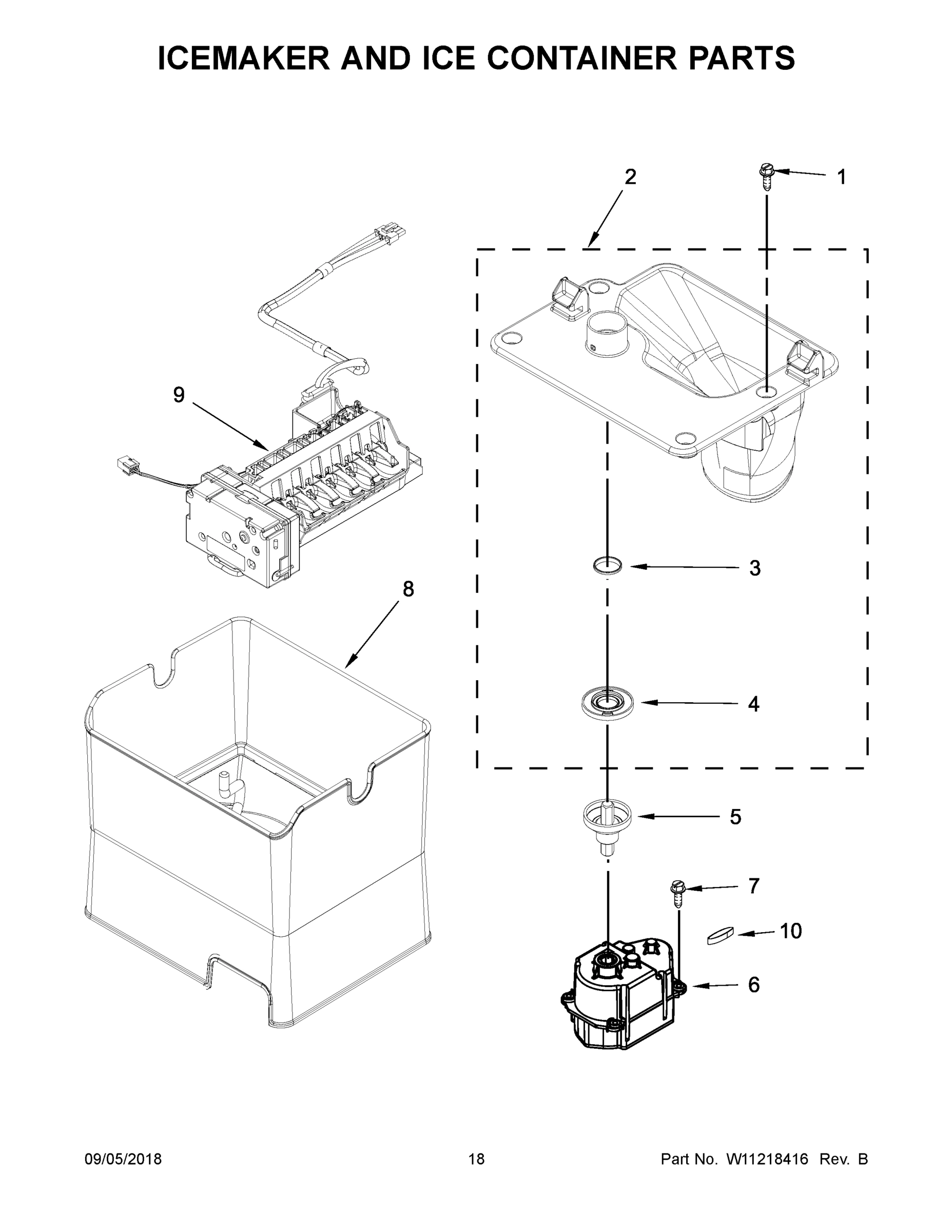

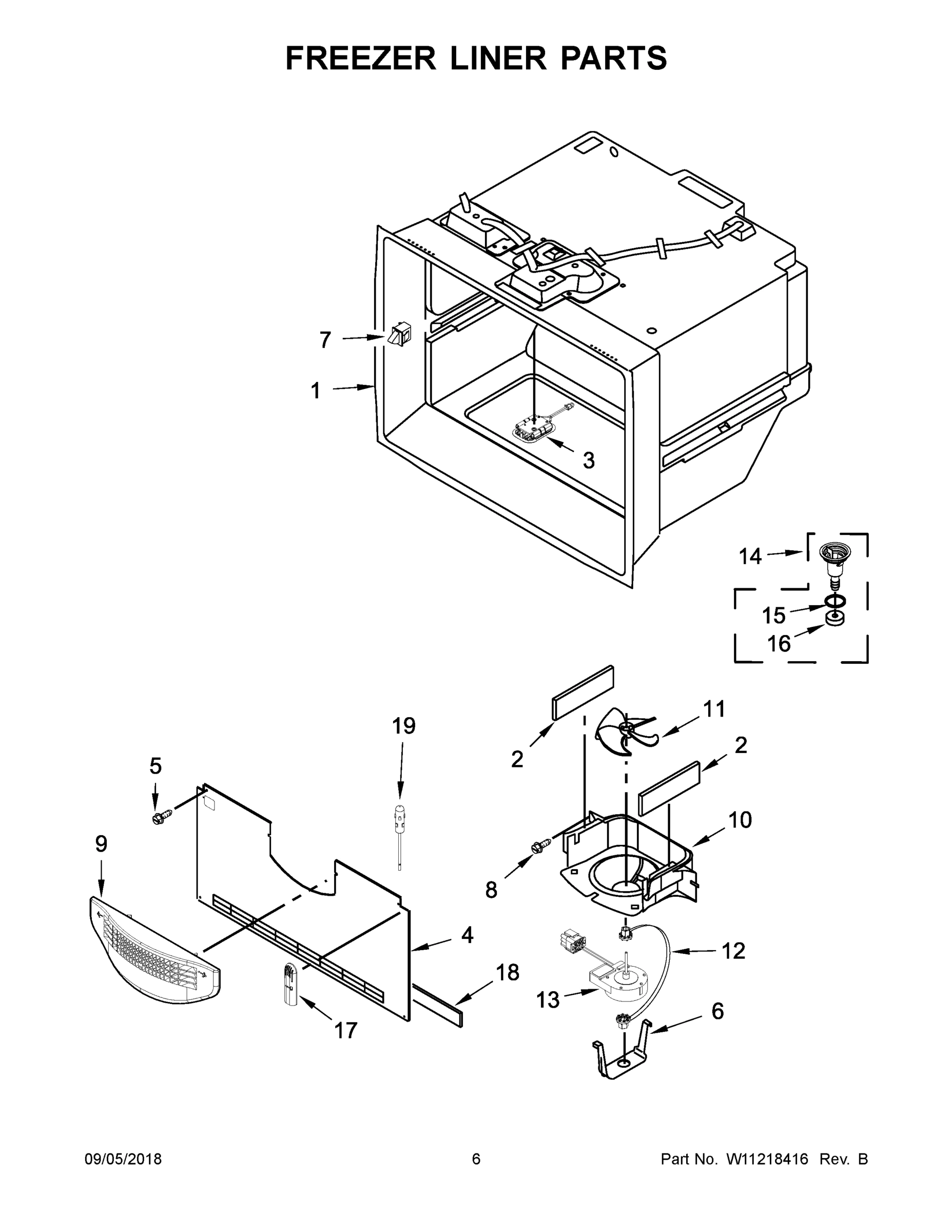

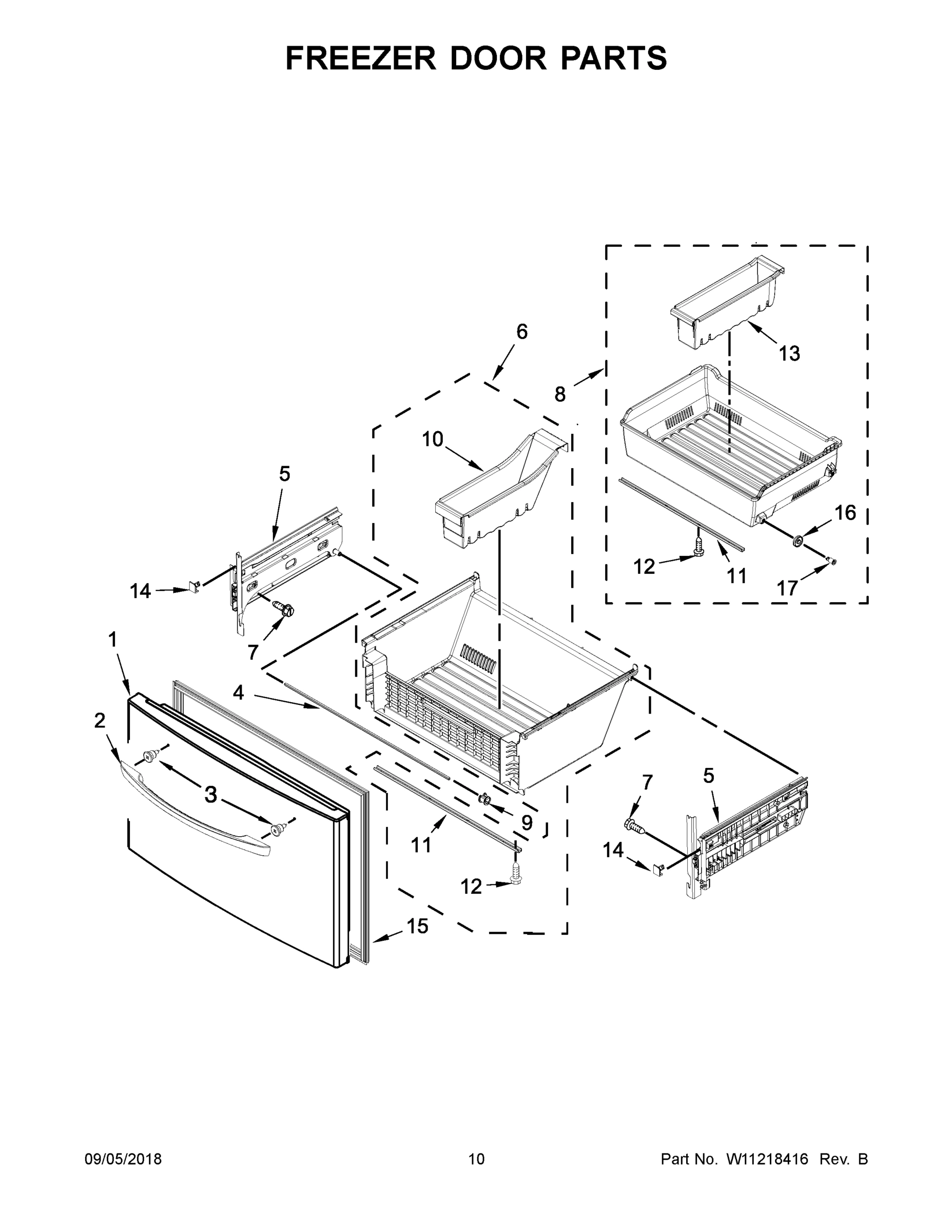

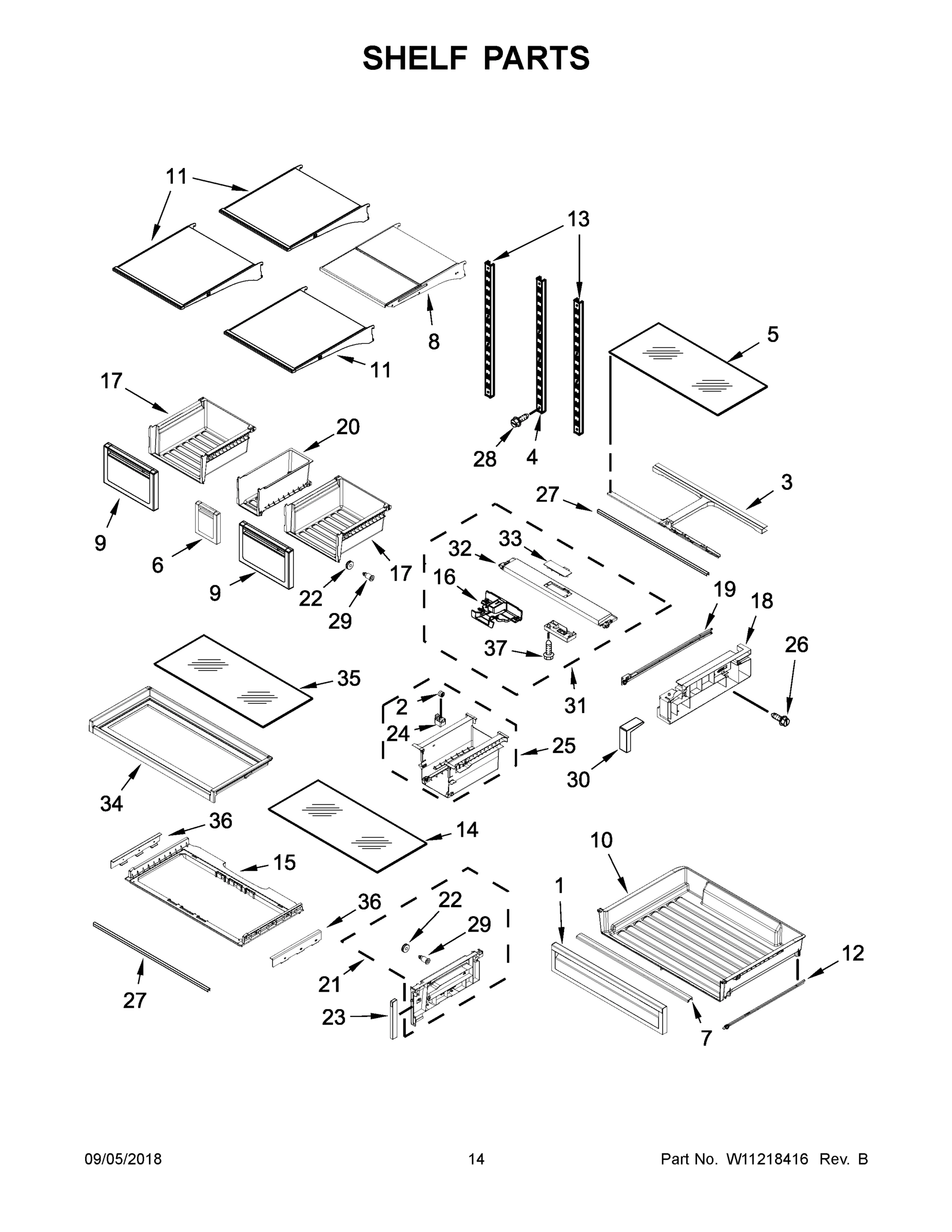

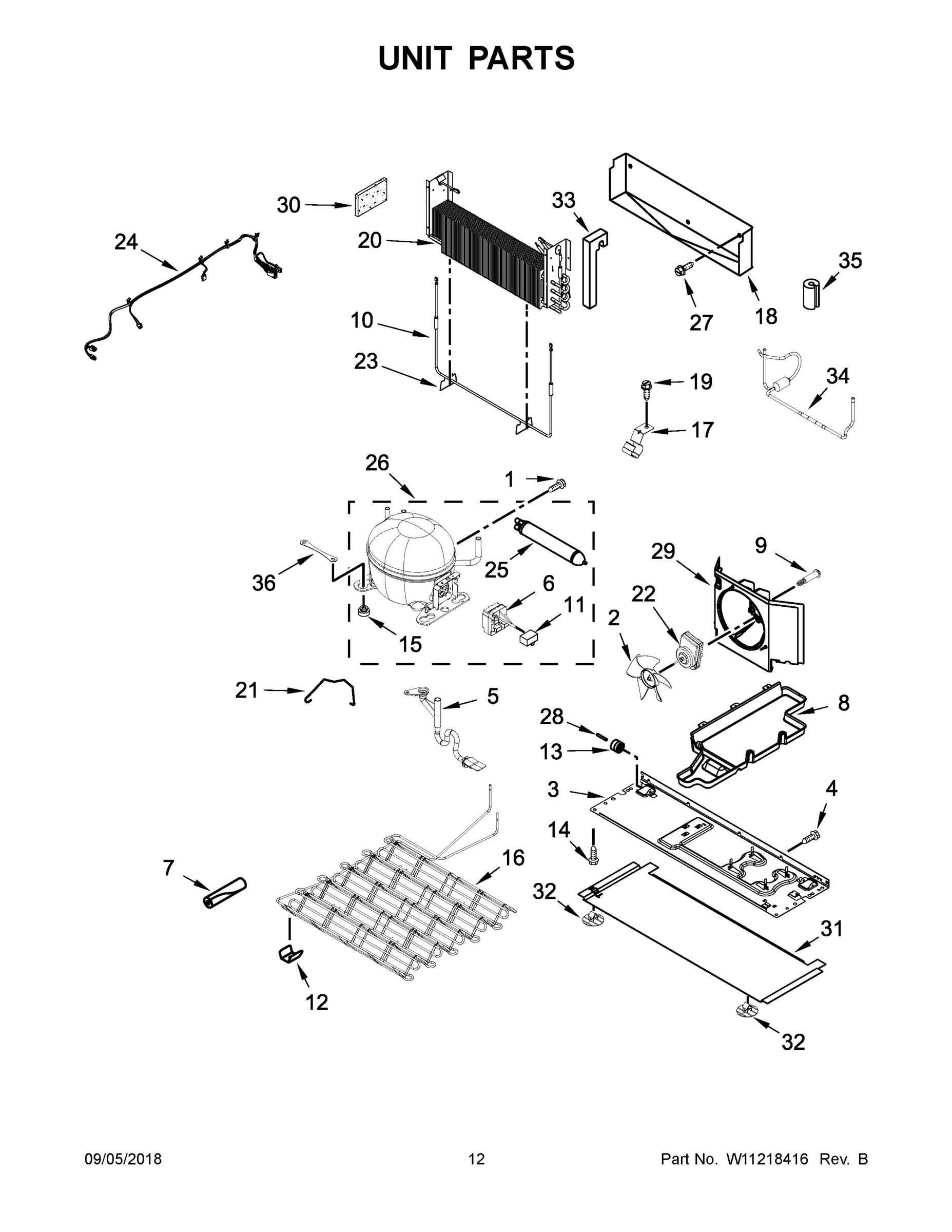

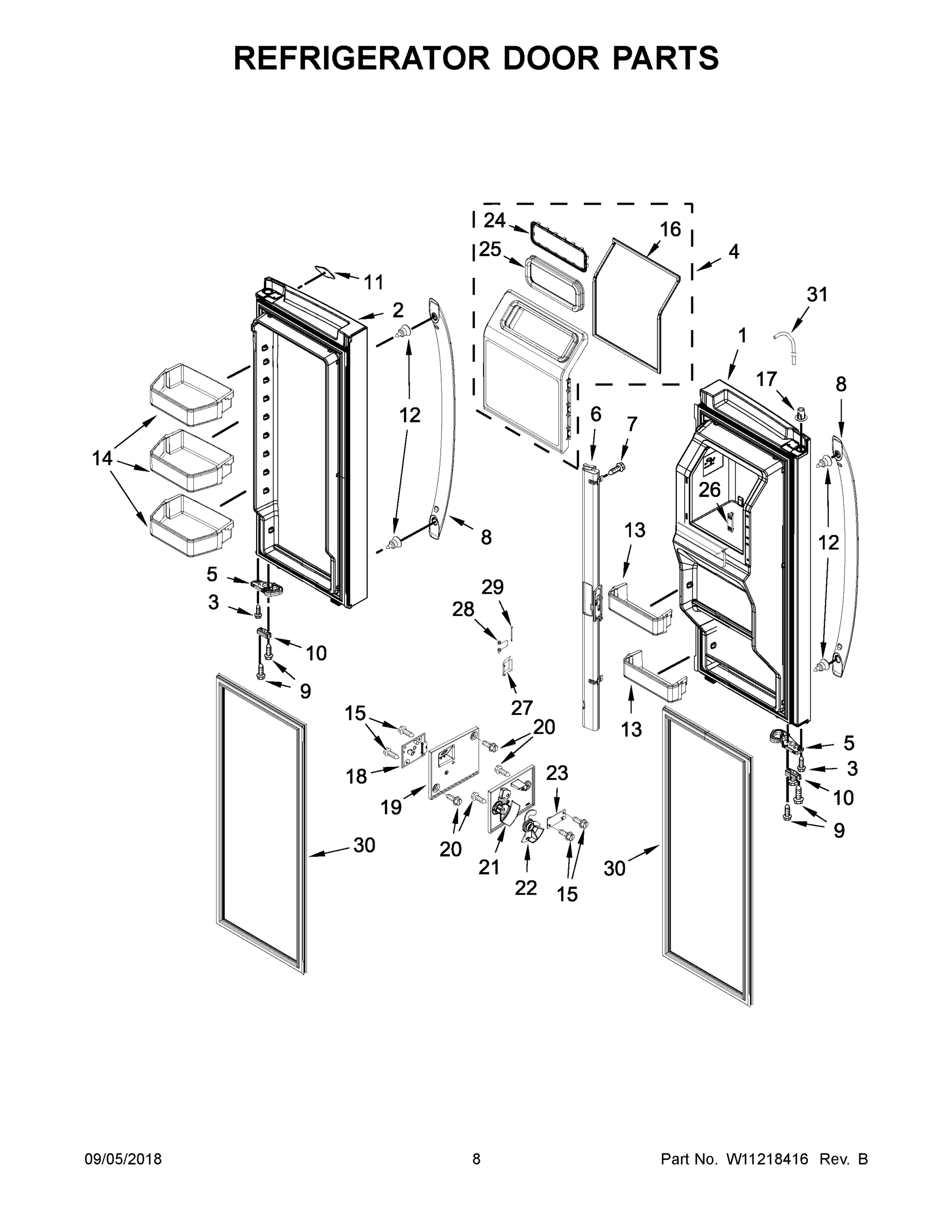

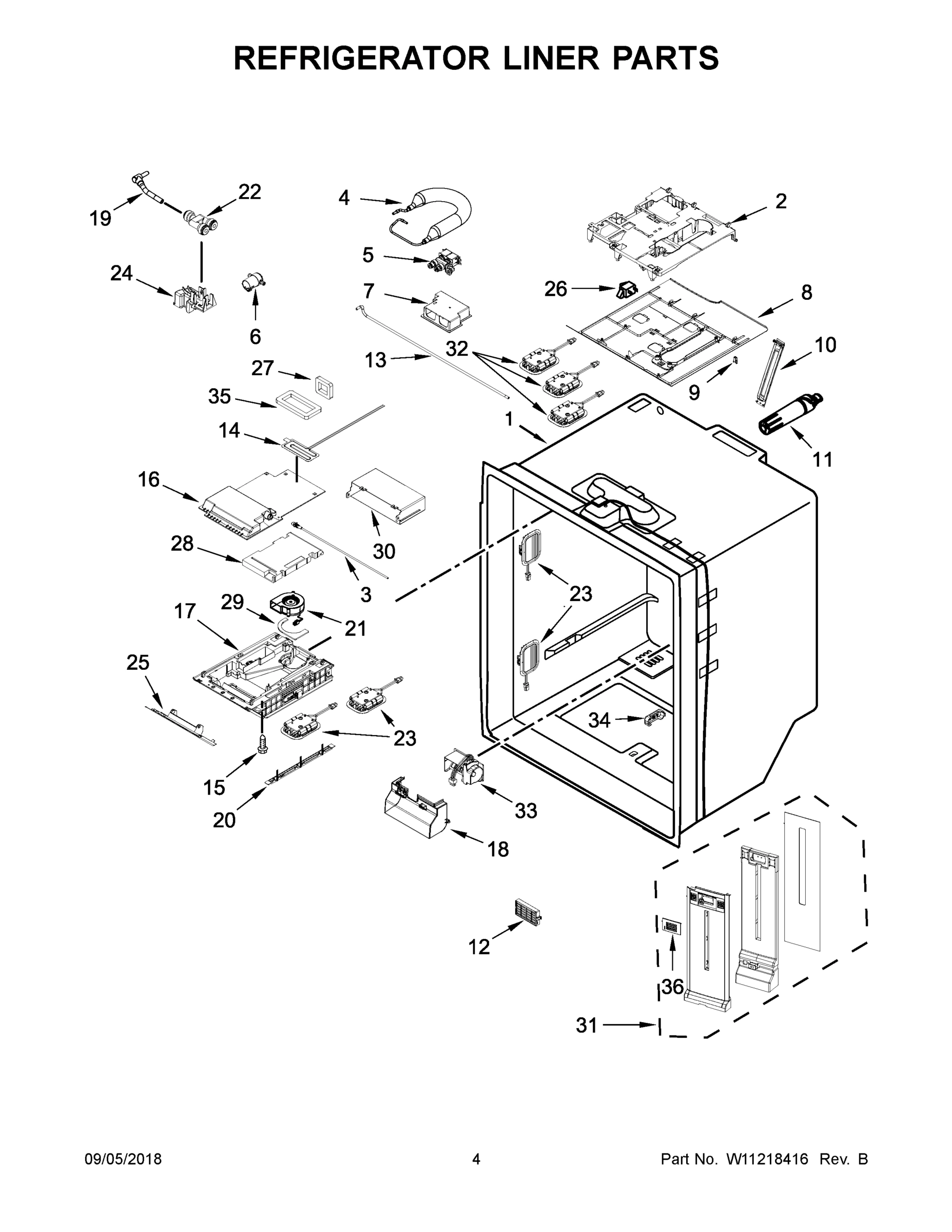

Model Whirlpool WRF757SDHV00 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

1

WPW10510417 Whirlpool Refrigerator Front Pan Backorder WPL WPW10510417 $40.50

2

W10248789 Whirlpool Refrigerator Roller Backorder WPL W10248789 $6.57

2

W10837274 Whirlpool Refrigerator Plate Backorder WPL W10837274 $28.09

2

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $30.89

3

W10570074 Whirlpool Refrigerator Plate In Stock WPL W10570074 $57.67

3

W10819058 Whirlpool Refrigerator Shield Backorder WPL W10819058 $52.69

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

3

WPW10344432 Whirlpool Pivot Block In Stock WPL WPW10344432 $6.37

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $9.92

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $5.42

4

W11171728 Whirlpool Refrigerator Ice Door In Stock WPL W11171728 $90.49

4

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $46.48

4

W11690163 Whirlpool Refrigerator Evaporator C In Stock WPL W11690163 $82.54

4

W11690685 Whirlpool Ladder Backorder WPL W11690685 $31.26

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $33.49

5

W10904595 Whirlpool Refrigerator Closer Backorder WPL W10904595 $6.39

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $10.87

5

W11712703 Whirlpool Extension Assembly Backorder WPL W11712703 $17.22

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $49.20

5

WPW10577864 Whirlpool Refrigerator Ice Door In Stock WPL WPW10577864 $60.22

5A

W11212164 Whirlpool Refrigerator Door Closer Backorder WPL W11212164 $6.13

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10594047 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594047 $125.65

6

W10698196 Whirlpool Refrigerator Mullion Rail Backorder WPL W10698196 $62.17

6

W11218695 Whirlpool Refrigerator Front Pan Backorder WPL W11218695 $116.16

6

WPW10402180 Whirlpool Refrigerator Trim Backorder WPL WPW10402180 $34.99

7

W10398002 Whirlpool Refrigerator Handle Backorder WPL W10398002 $45.95

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $41.14

7

W11448765 Whirlpool Drip Tray In Stock WPL W11448765 $7.39

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

8

W10704090 Whirlpool Refrigerator Freezer Bin Backorder WPL W10704090 $92.56

8

W10853387 Whirlpool Refrigerator Pad Backorder WPL W10853387 $110.79

8

W11190820 Whirlpool Refrigerator Cover Backorder WPL W11190820 $41.14

8

W11225840 Whirlpool Refrigerator Evaporator T Backorder WPL W11225840 $56.42

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $190.87

9

W10852685 Whirlpool Clip Assembly Backorder WPL W10852685 $3.62

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $49.89

9

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

9

WPW10688114 Whirlpool Drawer Front In Stock WPL WPW10688114 $67.47

W10407187 Whirlpool Refrigerator Door Bumper In Stock WPL W10407187 $27.76

W10507444 Whirlpool Refrigerator Divider Backorder WPL W10507444 $31.55

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $10.07

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $66.88

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $34.97

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $28.09

10A

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $10.76

10A

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $8.55

W10673842 Whirlpool Refrigerator Screw Backorder WPL W10673842 $9.59

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $54.11

12

W10508330 Whirlpool Refrigerator Slide Backorder WPL W10508330 $46.57

12

COVER, HINGE (RIGHT) (BLACK) WPL W10407157 Contact Us For Availability

12A

W10508328 Whirlpool Refrigerator Slide Backorder WPL W10508328 $123.50

12A

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.05

W10471617 Whirlpool Refrigerator Cover Backorder WPL W10471617 $13.32

W11366475 Whirlpool Refrigerator Trivet In Stock WPL W11366475 $54.57

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $33.01

W11690684 Whirlpool Ladder Backorder WPL W11690684 $31.26

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W11087201 Whirlpool Refrigerator Heater In Stock WPL W11087201 $52.08

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $9.59

W11371716 Whirlpool Refrigerator Gallon Door Backorder WPL W11371716 $99.03

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $29.26

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $29.26

15

W10407275 Whirlpool Refrigerator Door Hinge Backorder WPL W10407275 $31.07

15

W11133636 Whirlpool Refrigerator Frame Backorder WPL W11133636 $106.28

15A

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $27.89

W11578839 Whirlpool Roller In Stock WPL W11578839 $5.38

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $38.14

CONDENSER In Stock WPL W11760073 $68.62

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $60.96

W10850377 Whirlpool Drawer Crisper In Stock WPL W10850377 $65.05

W11242954 Whirlpool Refrigerator Ice Box In Stock WPL W11242954 $124.78

W11573594 Whirlpool Refrigerator Axle Backorder WPL W11573594 $6.90

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $10.76

17A

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $39.10

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $199.02

WPW10498906 Whirlpool Refrigerator Plate Backorder WPL WPW10498906 $44.45

TRAY, DRIP WPL W10342573 Contact Us For Availability

COVER, DAMPER WPL W10530312 Contact Us For Availability

W10508327 Whirlpool Refrigerator Slide Backorder WPL W10508327 $119.44

W10723352 Whirlpool Refrigerator Water Tube Backorder WPL W10723352 $45.71

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

COVER, RECEIVER WPL W10258510 Contact Us For Availability

19A

W10508326 Whirlpool Refrigerator Slide Backorder WPL W10508326 $119.38

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

20

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $12.83

21

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $33.16

21

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

21

SIDEPLATE, CRISPER (LEFT HAND) WPL W10549601 Contact Us For Availability

21A

W10549602 Whirlpool Refrigerator Plate Backorder WPL W10549602 $45.18

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

W11209438 Whirlpool Refrigerator Connector Backorder WPL W11209438 $13.16

WPW10248544 Whirlpool Refrigerator Roller Backorder WPL WPW10248544 $3.70

WPW10637669 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637669 $45.84

22A

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $57.68

23

W10467415 Whirlpool Refrigerator Trim Backorder WPL W10467415 $27.60

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

23

W11683243 Whirlpool Module In Stock WPL W11683243 $109.68

W10407279 Whirlpool Refrigerator Door Hinge Backorder WPL W10407279 $31.07

W10530314 Whirlpool Refrigerator Housing Backorder WPL W10530314 $6.08

W10713934 Whirlpool Refrigerator Bracket Backorder WPL W10713934 $26.54

W11171078 Whirlpool Refrigerator Wire Harness Backorder WPL W11171078 $62.05

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $10.61

24A

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $28.64

25

W10662015 Whirlpool Drawer Support Assembly Backorder WPL W10662015 $35.19

25

W11637688 Whirlpool Heater In Stock WPL W11637688 $45.13

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $19.51

26

WP8281136 Whirlpool Screw Backorder WPL WP8281136 $2.51

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $41.47

WPW10236512 Whirlpool Refrigerator Support Backorder WPL WPW10236512 $45.70

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $30.34

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $9.75

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $9.59

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $34.13

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WPW10280983 Whirlpool Refrigerator Insulation Backorder WPL WPW10280983 $30.98

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10257246 Whirlpool Refrigerator Axle Backorder WPL WPW10257246 $16.38

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $9.70

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $26.19

30

W10467416 Whirlpool Refrigerator Trim Backorder WPL W10467416 $12.65

30

W11482027 Whirlpool Refrigerator Back Cover Backorder WPL W11482027 $42.90

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $40.02

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $49.50

W10554293 Whirlpool Refrigerator Cover Backorder WPL W10554293 $75.08

W11373867 Whirlpool Refrigerator Air Tower Backorder WPL W11373867 $137.33

WPW10499015 Whirlpool Refrigerator Water Tube Backorder WPL WPW10499015 $44.21

32

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $6.90

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $9.24

WPW10479155 Whirlpool Refrigerator Control In Stock WPL WPW10479155 $58.27

COUPLER, DOOR WPL W10505294 Contact Us For Availability

HOUSING, PANTRY TEMPERATURE CONTROL WPL W10554279 Contact Us For Availability

34

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $7.78

34

W11238397 Whirlpool Refrigerator Cover In Stock WPL W11238397 $10.76

35

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

35

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $3.70

36

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

36

W11133647 Whirlpool Refrigerator Rail Backorder WPL W11133647 $52.26

36A

W11133648 Whirlpool Refrigerator Rail Backorder WPL W11133648 $52.26

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
