  • Whirlpool WRB322DMBM03 Parts List

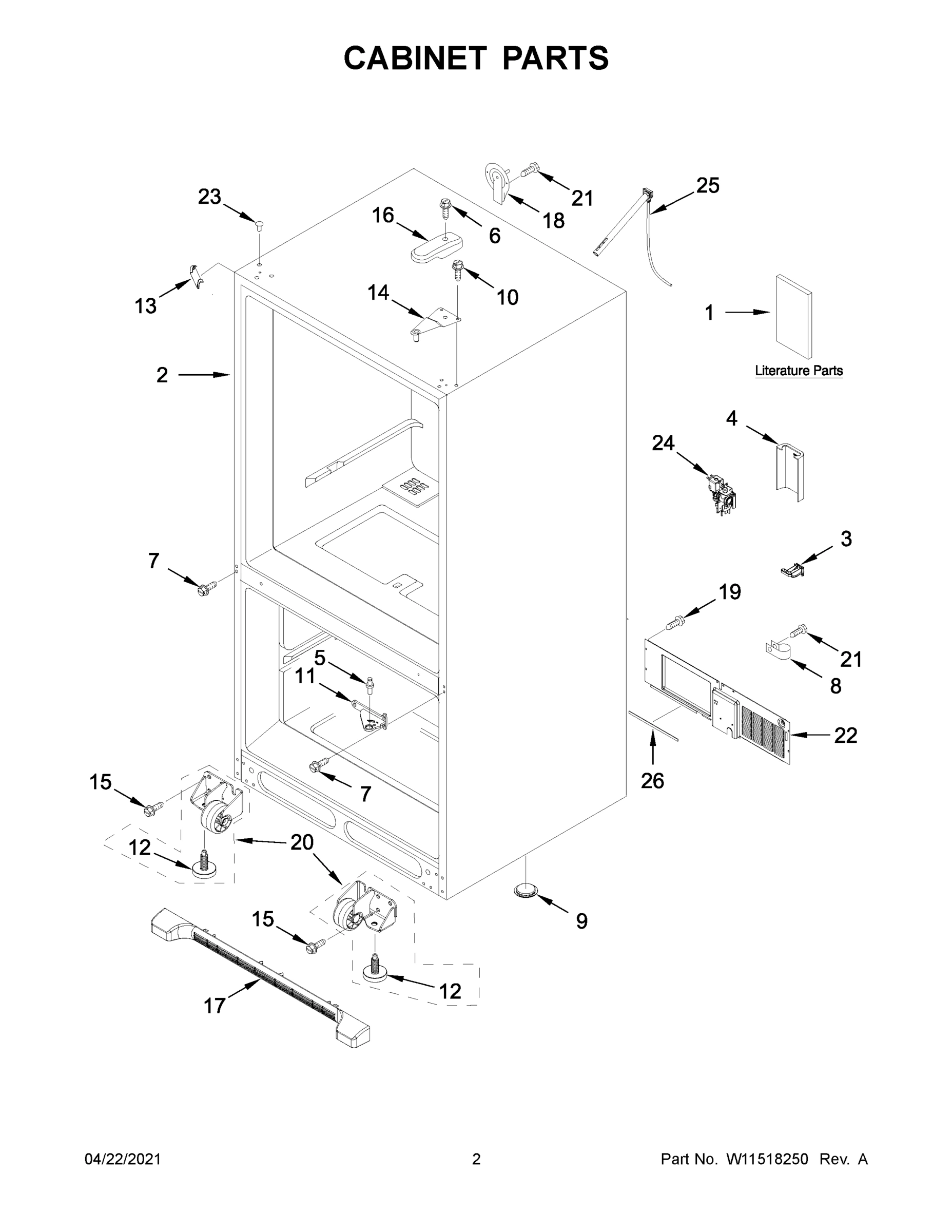

Model Whirlpool WRB322DMBM03 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

1
SCREW
SCREW WPL 12992301 Contact Us For Availability
View on Model
1
LADDER, SIDE
LADDER, SIDE WPL W10251969 Contact Us For Availability
View on Model
2
MODULE, LIGHT
MODULE, LIGHT WPL W10464757 Contact Us For Availability
View on Model
3
GEAR
GEAR WPL 12002497 Contact Us For Availability
View on Model
3
OVERLAY
OVERLAY WPL W10593588 Contact Us For Availability
View on Model
3
LADDER, CENTER
LADDER, CENTER WPL W10273463 Contact Us For Availability
View on Model
3
BASEPAN
BASEPAN WPL W10480110 Contact Us For Availability
View on Model
4
GASKET, DOOR (WHITE)
GASKET, DOOR (WHITE) WPL W10443315 Contact Us For Availability
View on Model
4
DIVERTER, AIR
DIVERTER, AIR WPL W10157765 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL W10215666 Contact Us For Availability
View on Model
4
COVER, VALVE
COVER, VALVE WPL W10208592 Contact Us For Availability
View on Model
4B
GASKET, DOOR (GREY)
GASKET, DOOR (GREY) WPL W10443316 Contact Us For Availability
View on Model
5
STRAP, COMPRESSOR
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
View on Model
7
GASKET, DOOR (WHITE)
GASKET, DOOR (WHITE) WPL W10443313 Contact Us For Availability
View on Model
7B
GASKET, DOOR (GREY)
GASKET, DOOR (GREY) WPL W10443314 Contact Us For Availability
View on Model
8
HOUSING, LIGHT
HOUSING, LIGHT WPL W10443023 Contact Us For Availability
View on Model
11
COVER, EVAPORATOR
COVER, EVAPORATOR WPL W10308415 Contact Us For Availability
View on Model
13
FILLER, WRAPPER (WHITE)
FILLER, WRAPPER (WHITE) WPL 12587703W Contact Us For Availability
View on Model
15
CLIP, EVAPORATOR MOTOR
CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability
View on Model
15A
5 NK MS 00 (SUCTION LINE TO CONDENSER)
5 NK MS 00 (SUCTION LINE TO CONDENSER) WPL W11506623 Contact Us For Availability
View on Model
15B
6/5 NR MS 00 (HEAT LOOP TO CONDENSER)
6/5 NR MS 00 (HEAT LOOP TO CONDENSER) WPL W11504432 Contact Us For Availability
View on Model
17
SHAFT, RACK
SHAFT, RACK WPL W10802339 Contact Us For Availability
View on Model
18
DIVIDER, BASKET (UPPER)
DIVIDER, BASKET (UPPER) WPL W10241046 Contact Us For Availability
View on Model
18
COVER, WATER LINE
COVER, WATER LINE WPL 12726003 Contact Us For Availability
View on Model
18A
8/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR)
8/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR) WPL W11504423 Contact Us For Availability
View on Model
18B
8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR)
8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR) WPL W11504415 Contact Us For Availability
View on Model
19
MOUNT, GEAR (LEFT HAND)
MOUNT, GEAR (LEFT HAND) WPL W10348259 Contact Us For Availability
View on Model
19A
MOUNT, GEAR (RIGHT HAND)
MOUNT, GEAR (RIGHT HAND) WPL W10348260 Contact Us For Availability
View on Model
23A
5/4 NR MS 00 (HEAT LOOP TO CONDENSER)
5/4 NR MS 00 (HEAT LOOP TO CONDENSER) WPL W11504445 Contact Us For Availability
View on Model
23B
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER) WPL W11504447 Contact Us For Availability
View on Model
24
DIVIDER, BASKET (UPPER)
DIVIDER, BASKET (UPPER) WPL W10311695 Contact Us For Availability
View on Model
24A
8.5/6 NR MS 00 (SUCTION TUBE TO COMPRESSOR)
8.5/6 NR MS 00 (SUCTION TUBE TO COMPRESSOR) WPL W11504416 Contact Us For Availability
View on Model
24B
7/5 NR MS 00 (COMPRESSOR TO CONDENSER)
7/5 NR MS 00 (COMPRESSOR TO CONDENSER) WPL W11504431 Contact Us For Availability
View on Model
24C
6 NK MS 00 (CHARGING TUBE TO COMPRESSOR)
6 NK MS 00 (CHARGING TUBE TO COMPRESSOR) WPL W11506621 Contact Us For Availability
View on Model
24D
TUBE, CHARGING (1/4" W/ SCHRADER VALVE)
TUBE, CHARGING (1/4" W/ SCHRADER VALVE) WPL W11506635 Contact Us For Availability
View on Model
25
GROMMET
GROMMET WPL W10121318 Contact Us For Availability
View on Model
26
GASKET
GASKET WPL B5759655 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability
View on Model
NI
SEALER, GUM (4 FEET)
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND WPL 4392901 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY)
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) WPL W10134625 Contact Us For Availability
View on Model
NI
WHITE PORCELAIN (2 OZ.)
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
View on Model
NI
TOUCH-UP PAINT (MIDNIGHT GREY)
TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability
View on Model
NI
INSULATION (2 PIECES, 3" X 24" X 48")
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
View on Model
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2")
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
View on Model
NI
KIT, TERMINAL CONNECTOR
KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108")
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH, TORX KEY
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
View on Model
