Model Whirlpool WGD9400SW3 GAS DRYER – Common Parts & Diagrams

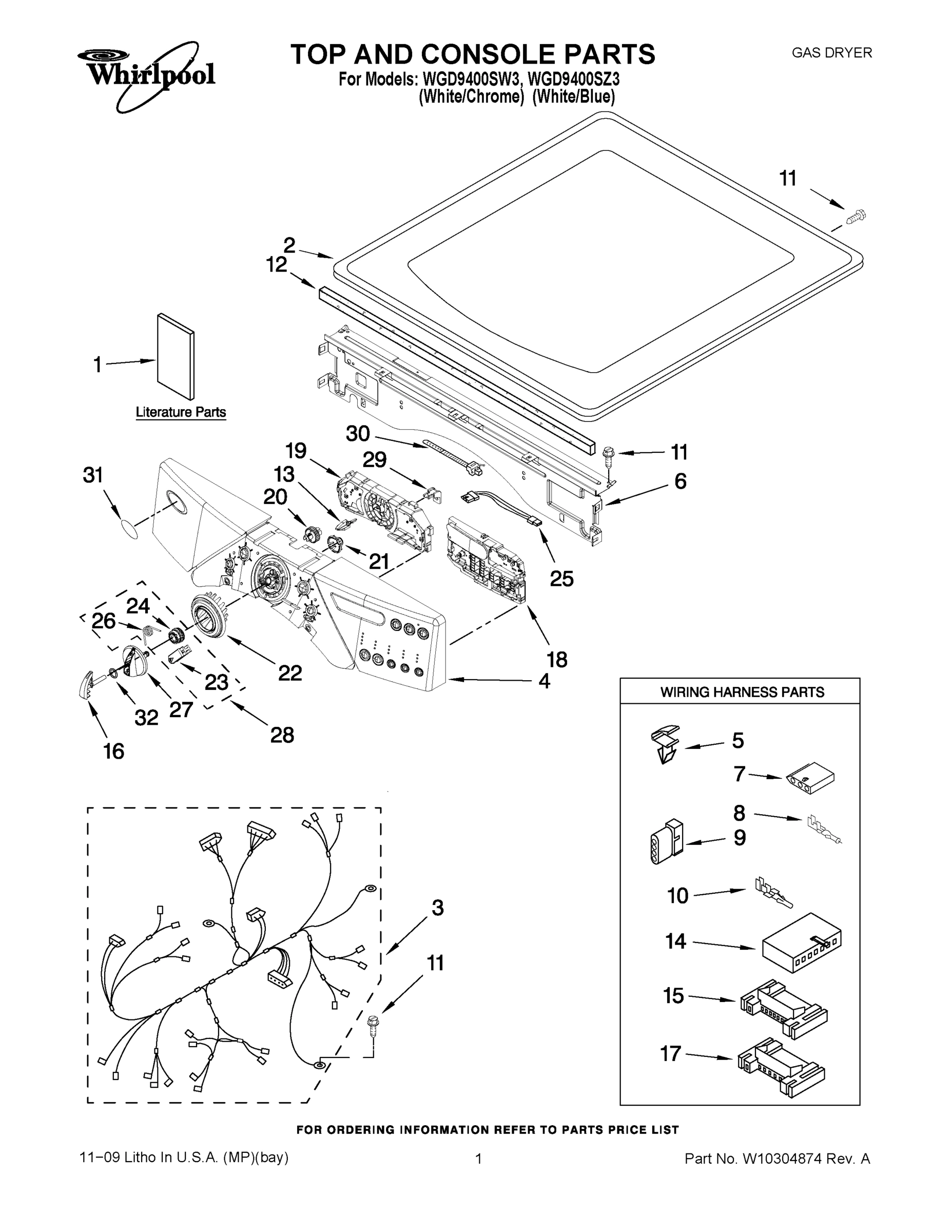

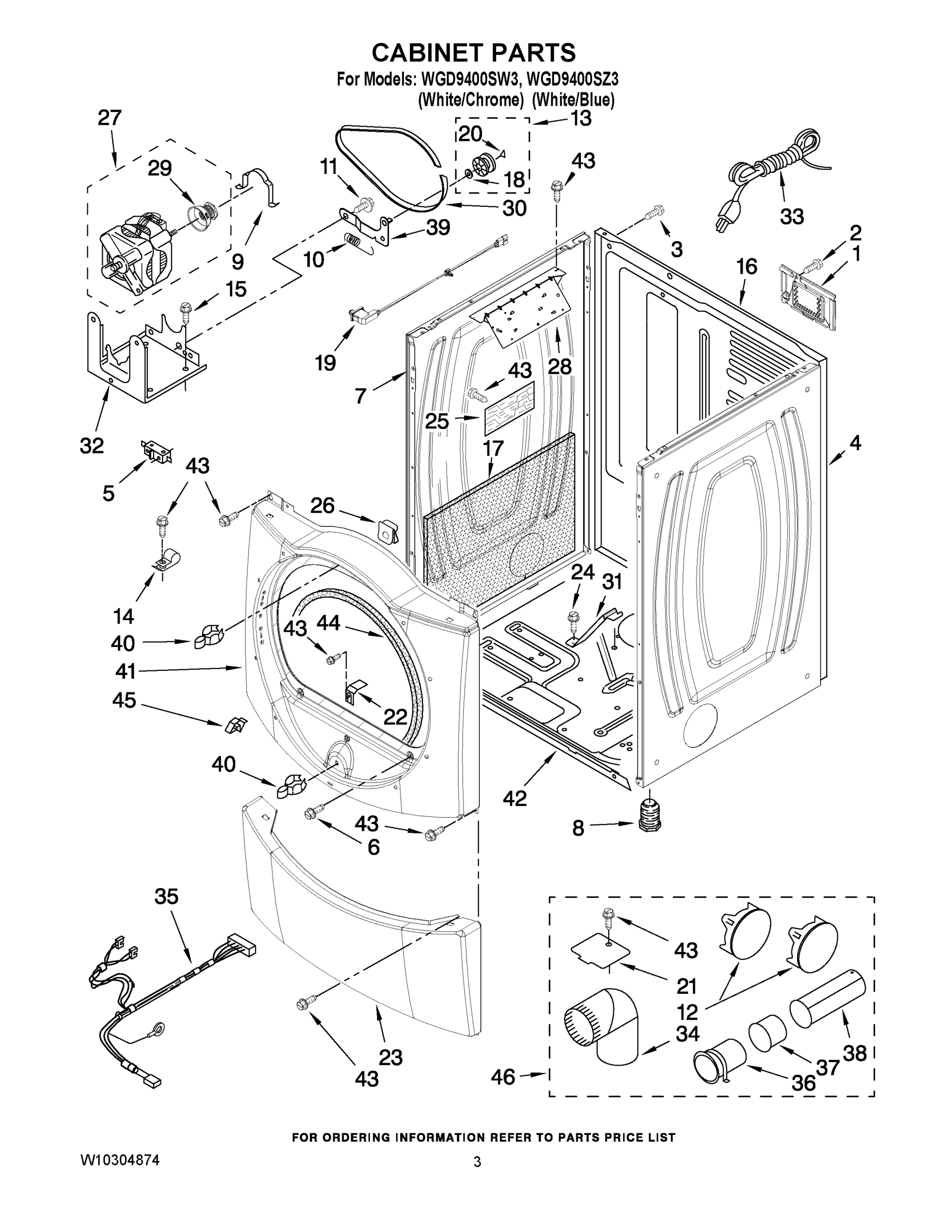

Common parts from model Whirlpool WGD9400SW3 GAS DRYER
4
Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability
5
Screw-Plug WPL W10048910 Contact Us For Availability
7
HANDLE, RING ASSEMBLY (WHITE/BLUE) WPL 8579496 Contact Us For Availability
7
Base, Burner WPL 3389871 Contact Us For Availability
9

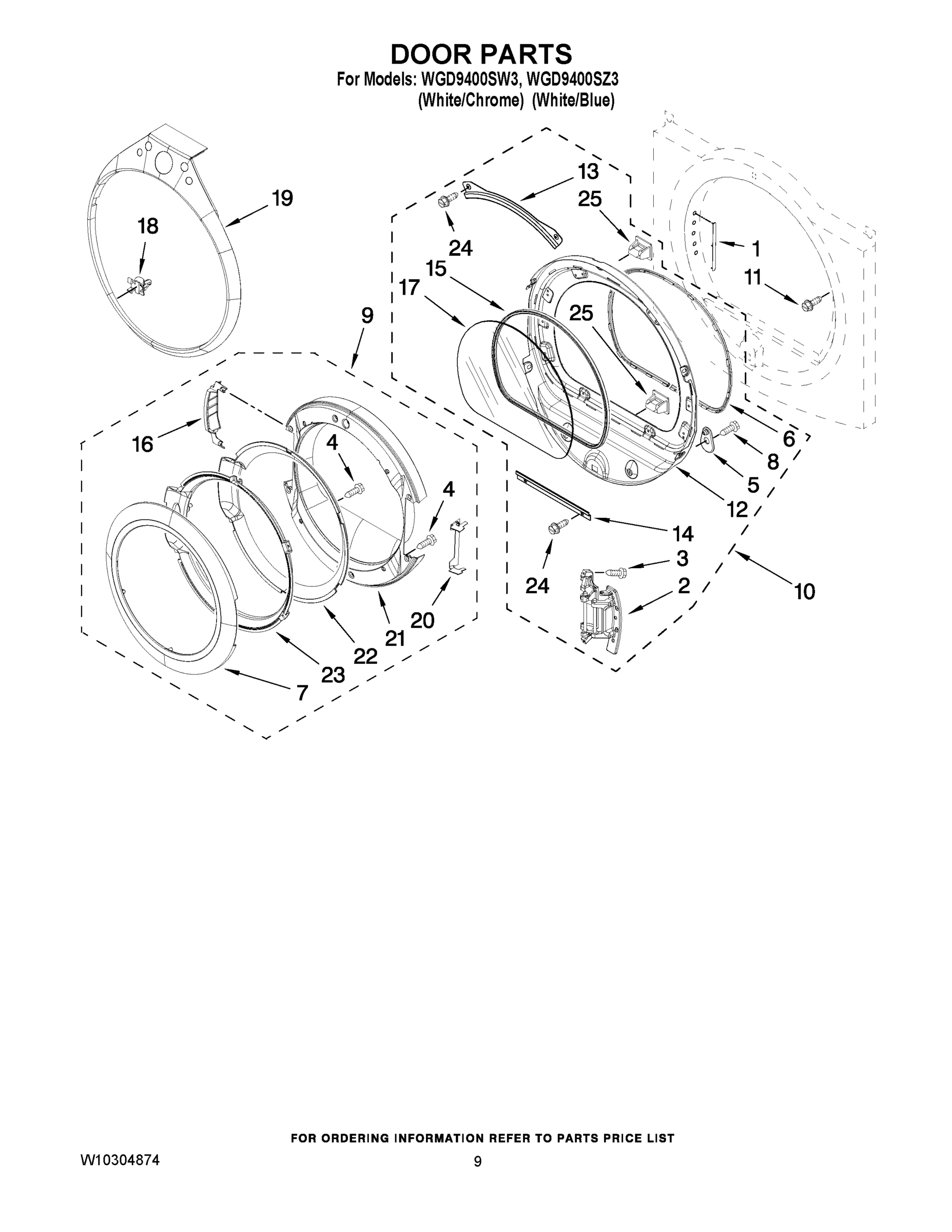

DOOR ASSEMBLY (OUTER) (WHITE/CHROME) WPL W10180115 Contact Us For Availability
10
DOOR ASSEMBLY (INNER) (INCLUDES ILLUS.2,3,5,6 WPL 8577819 Contact Us For Availability
12
Door Inner WPL 8578229 Contact Us For Availability
12
Bracket, Support WPL 3389889 Contact Us For Availability
19
TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE/CHROME) WPL W10180492 Contact Us For Availability
19
Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10180494 Contact Us For Availability
20
Door Shield WPL W10180120 Contact Us For Availability
21
Door, Intermediate WPL W10180118 Contact Us For Availability
21
Retainer-Snap WPL W10012440 Contact Us For Availability
22
Ramp, Door WPL 8529053 Contact Us For Availability
22
KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability
25
CONTROL BOARD WPL W10174745 Contact Us For Availability
26
Clip-S Type WPL 62825 Contact Us For Availability
28
Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability
32

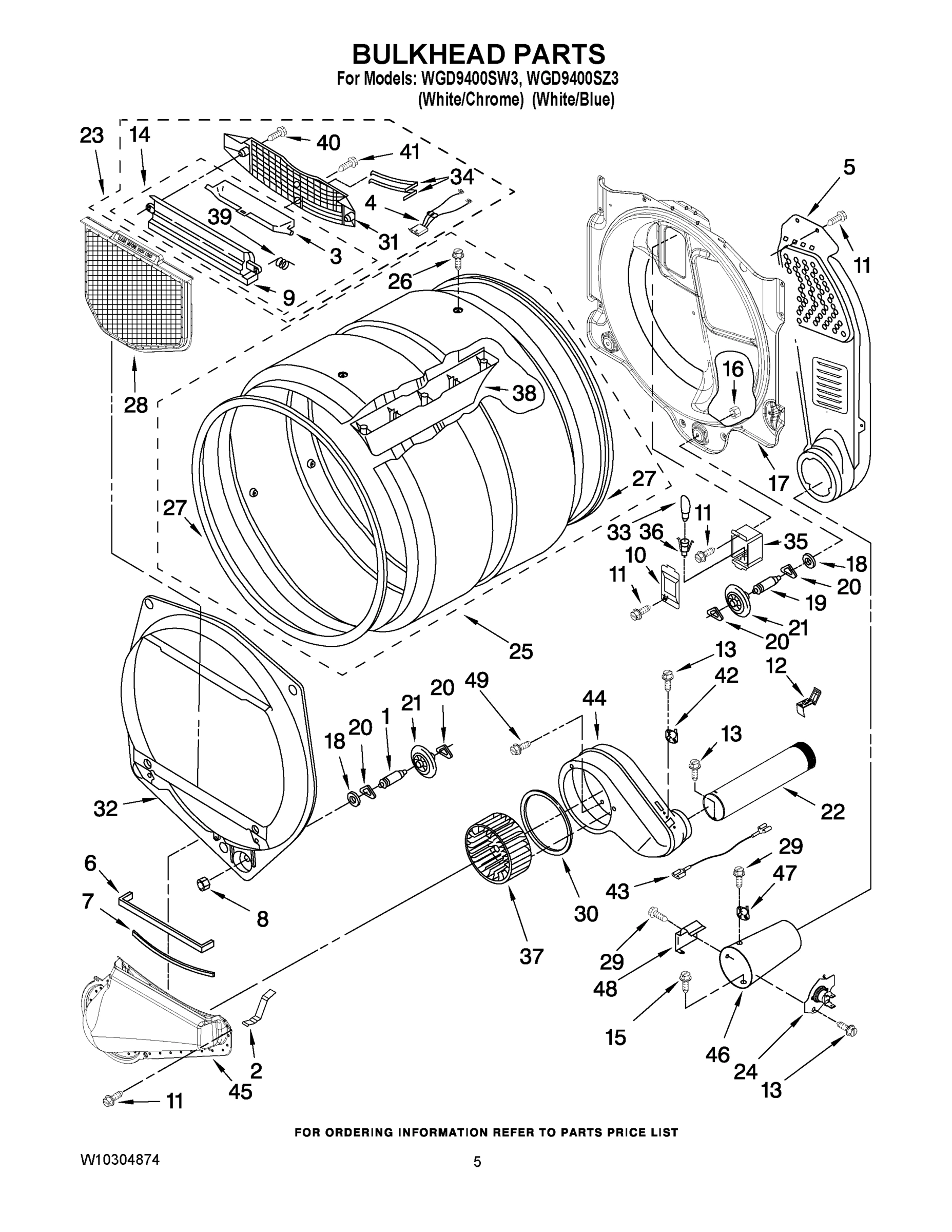

BULKHEAD, FRONT WPL W10252304 Contact Us For Availability
35
HARNESS, DIGITAL INTERFACE WPL W10242903 Contact Us For Availability
43
JUMPER, TCO HI-LIMIT WPL 3401710 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) WPL 72302 Contact Us For Availability
NI
Kit, Hold Down WPL 8529894 Contact Us For Availability
× ![]()
