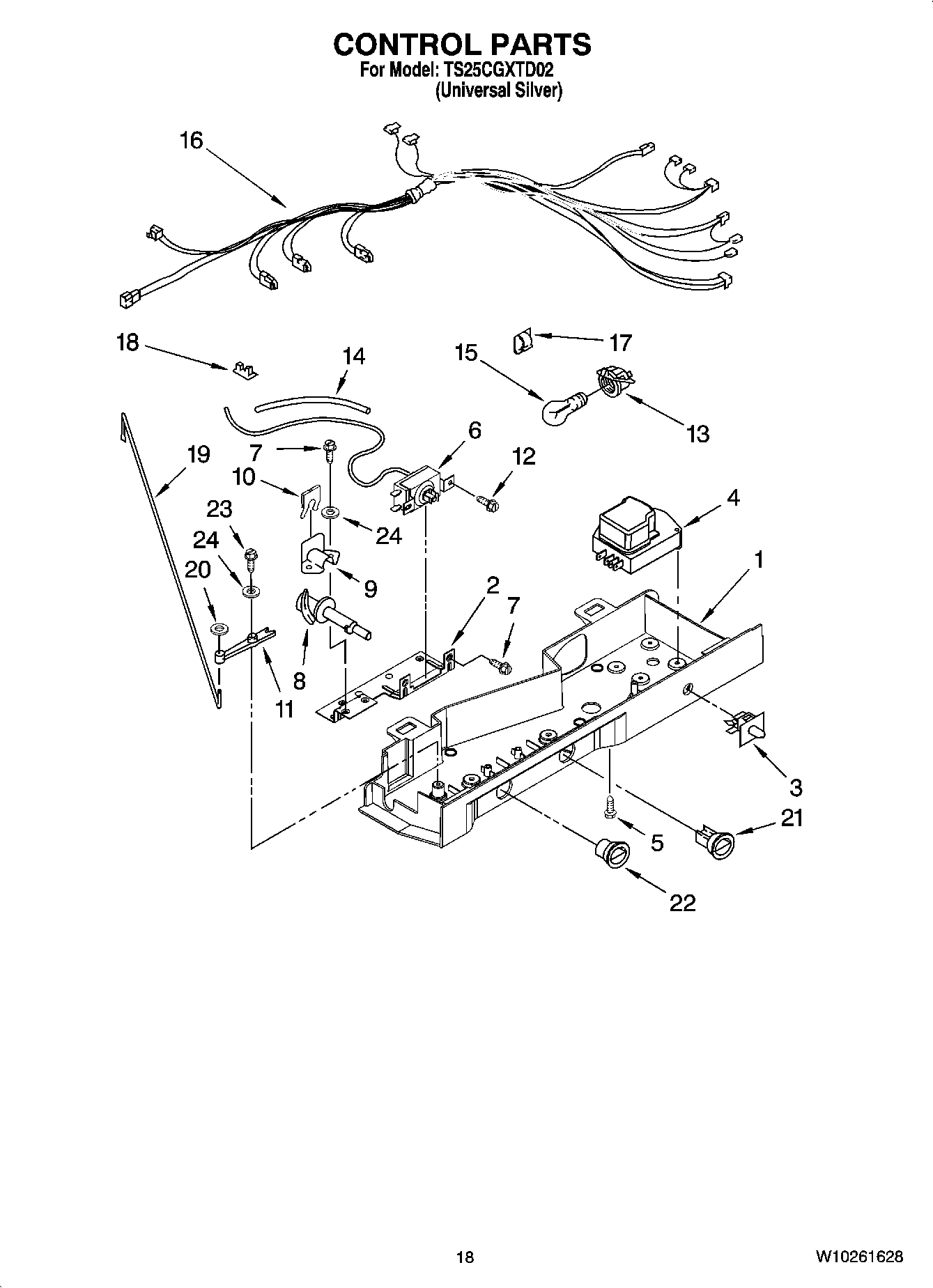

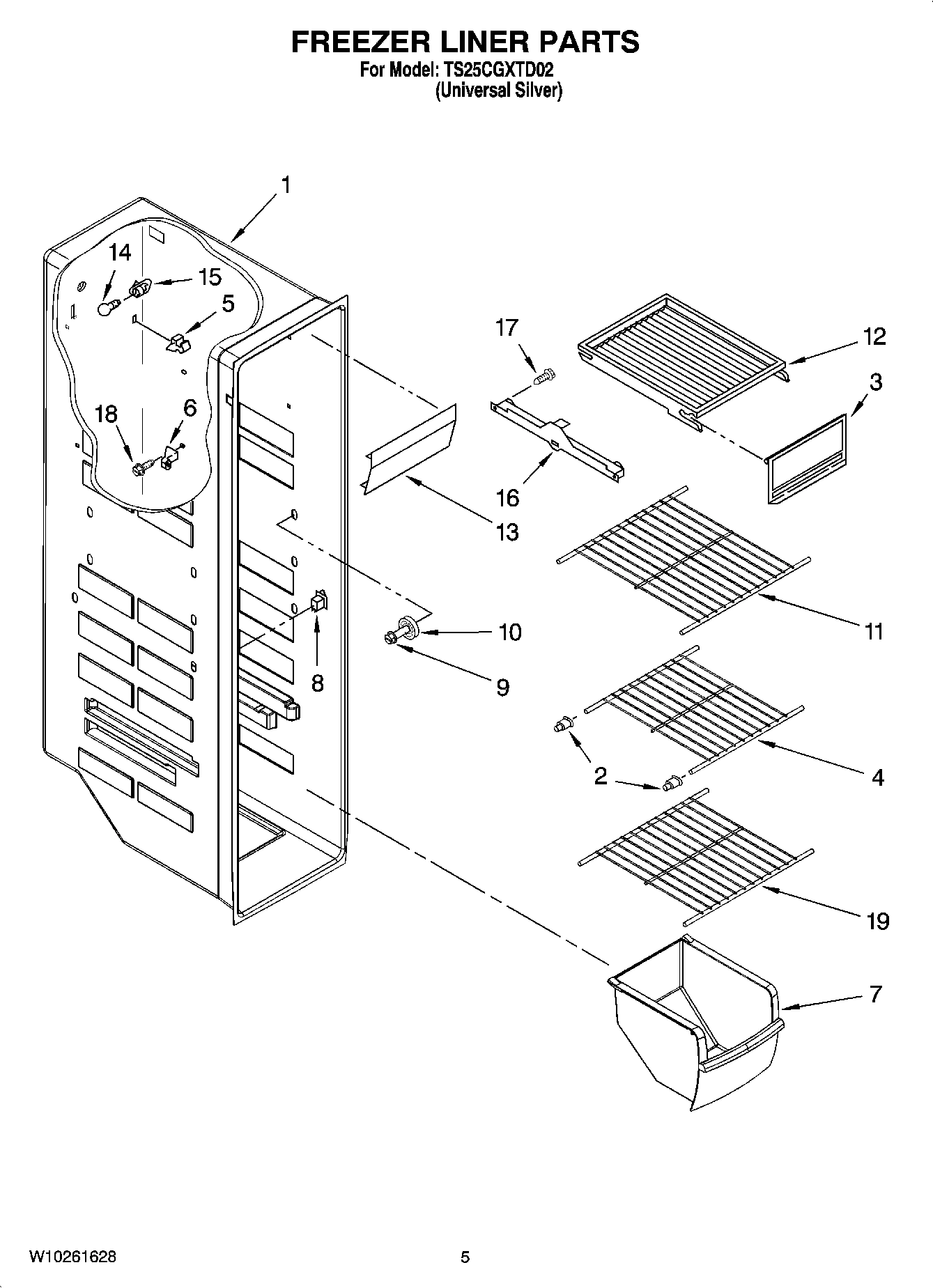

Model Whirlpool TS25CGXTD02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI132446A Contact Us For Availability

Miscellaneous WPL ARI132447A Contact Us For Availability

TORX SCREW WRENCH WPL ARI132448A Contact Us For Availability

1

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

6

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

7

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

8

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

8

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

9

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

10

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $59.55

Pivot Arm WPL 1110559 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

Screw (2) WPL 488280 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Cover, Evaporator WPL W10194476 Contact Us For Availability

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

17

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

17

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

17

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

18

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $87.10

18

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

18

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

20

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

20

Fastener, Push-On WPL 489285 Contact Us For Availability

21

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

21

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

22

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

23

Front Cover Assembly (Includes Items 18, 19, WPL 2311698B Contact Us For Availability

23

Motor (Not Serviced, Order 21) WPL ARI132445A Contact Us For Availability

24

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

24

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

25

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Clip WPL 2161324 Contact Us For Availability

27

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

28

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

29

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

30

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

30

Air Baffle WPL W10163483 Contact Us For Availability

31

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

32

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

33

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

33

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

34

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

36

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $54.18
