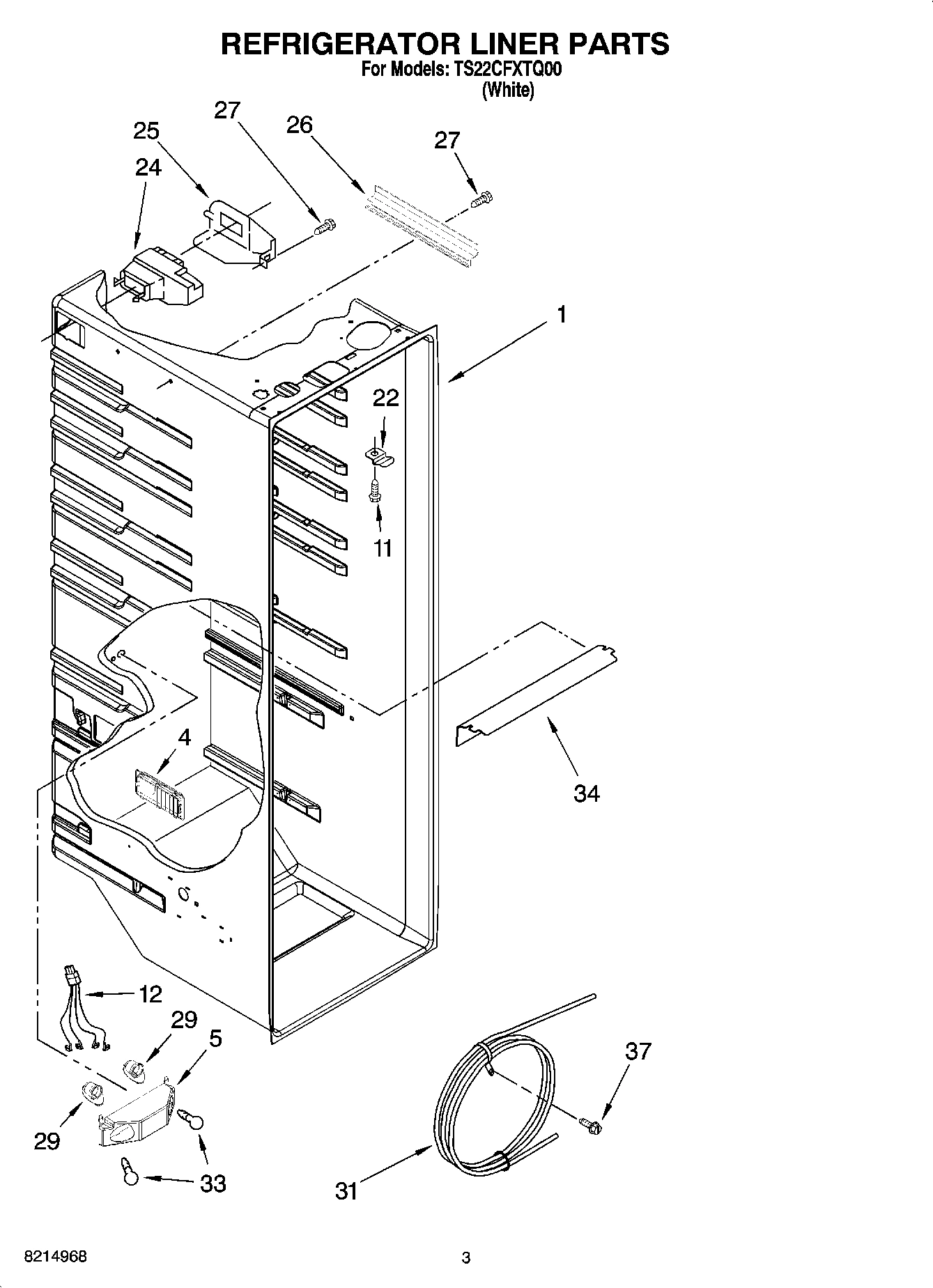

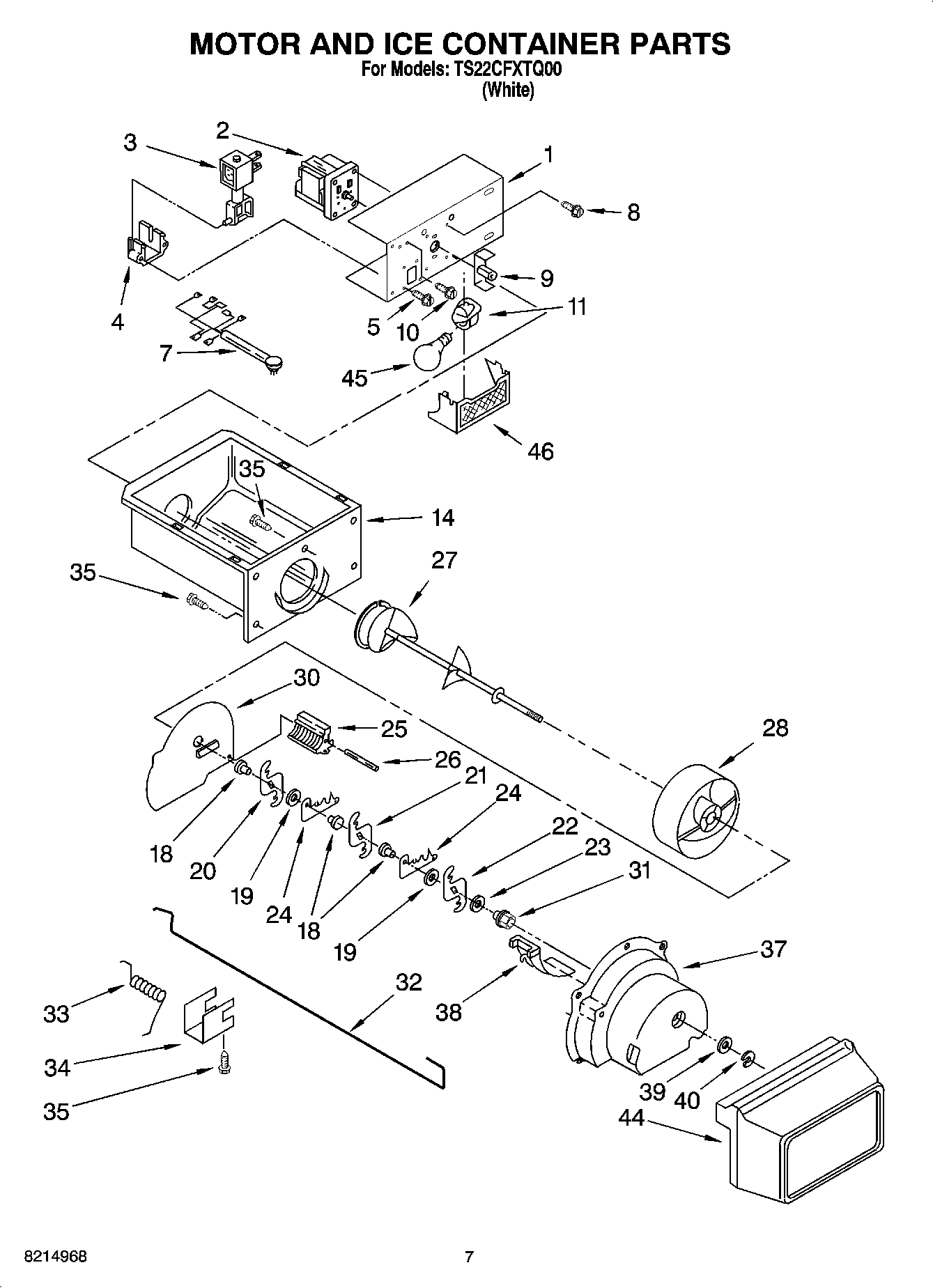

Model Whirlpool TS22CFXTQ00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

TORX SCREW WRENCH WPL ARI132013A Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $93.63

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Air Scoop WPL 2161231 Contact Us For Availability

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

Handle (White) WPL 2186649W Contact Us For Availability

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Housing, Water Filter WPL 2255521 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $56.13

Meat Pan WPL 2174418 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

15

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

16

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

17

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

19

WPW10276354 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276354 $135.26

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clip (2) WPL 2161324 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

Motor (Not Serviced, Order 35) WPL ARI132012A Contact Us For Availability

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

48

Cabinet, (Not A Serviceable Part) WPL ARI132002A Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $54.18
