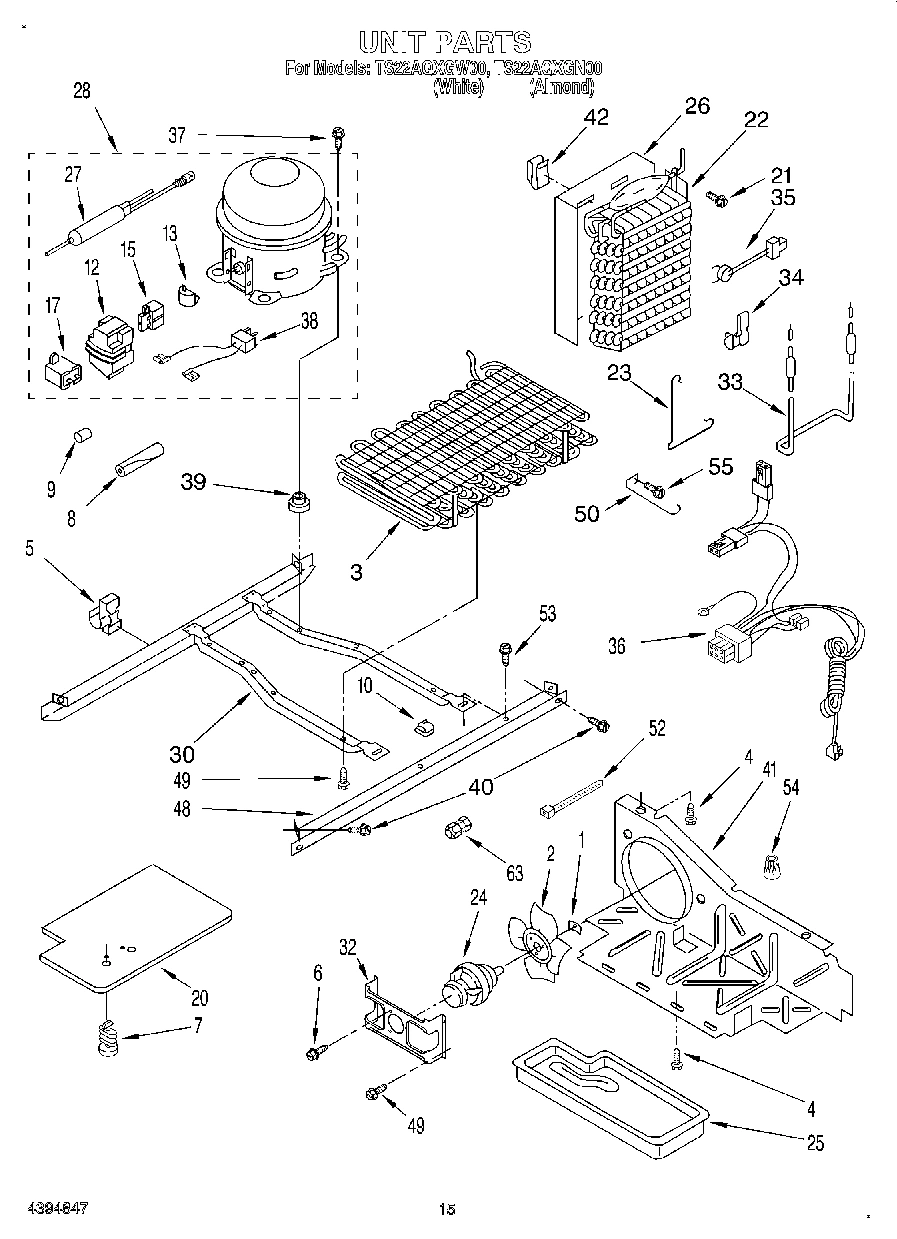

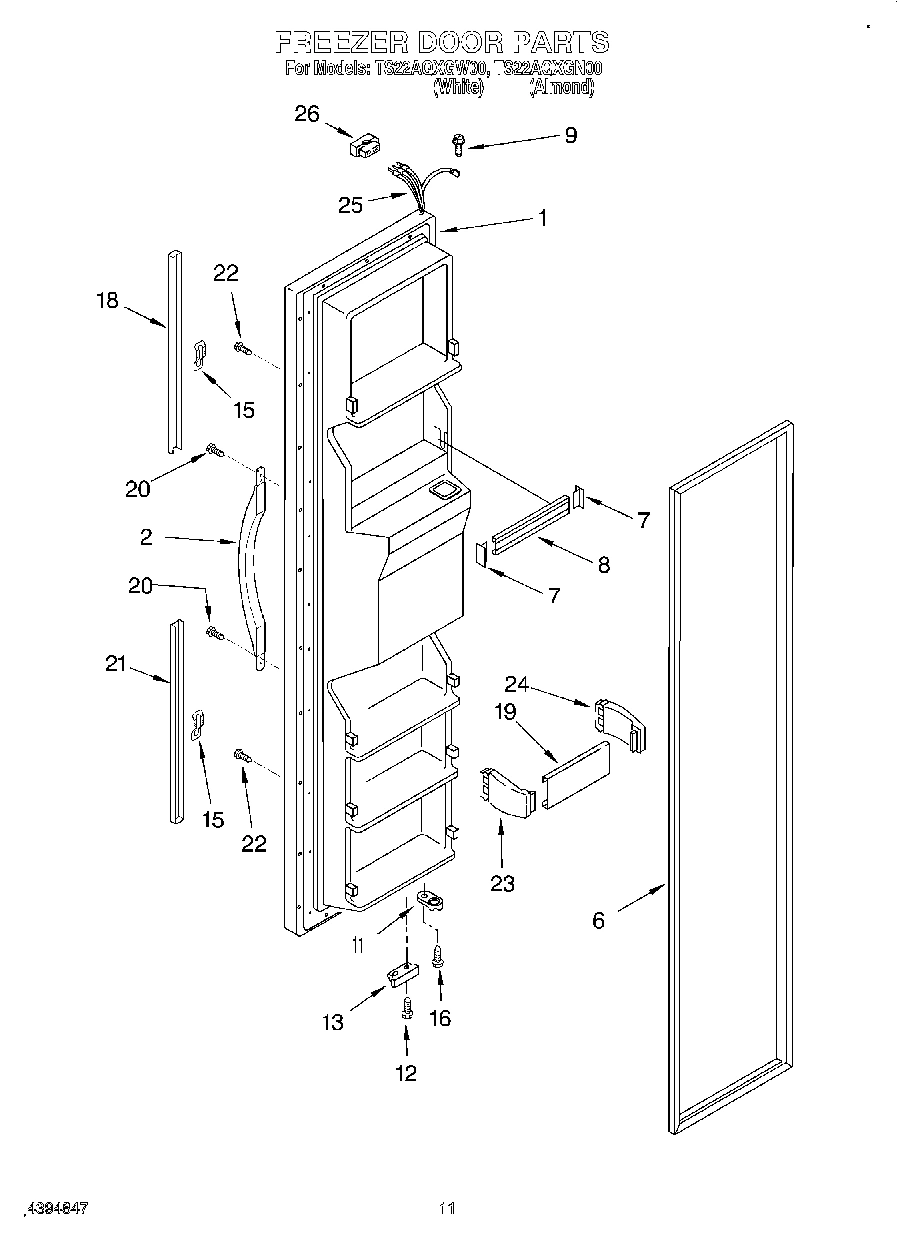

Model Whirlpool TS22AQXGN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
1

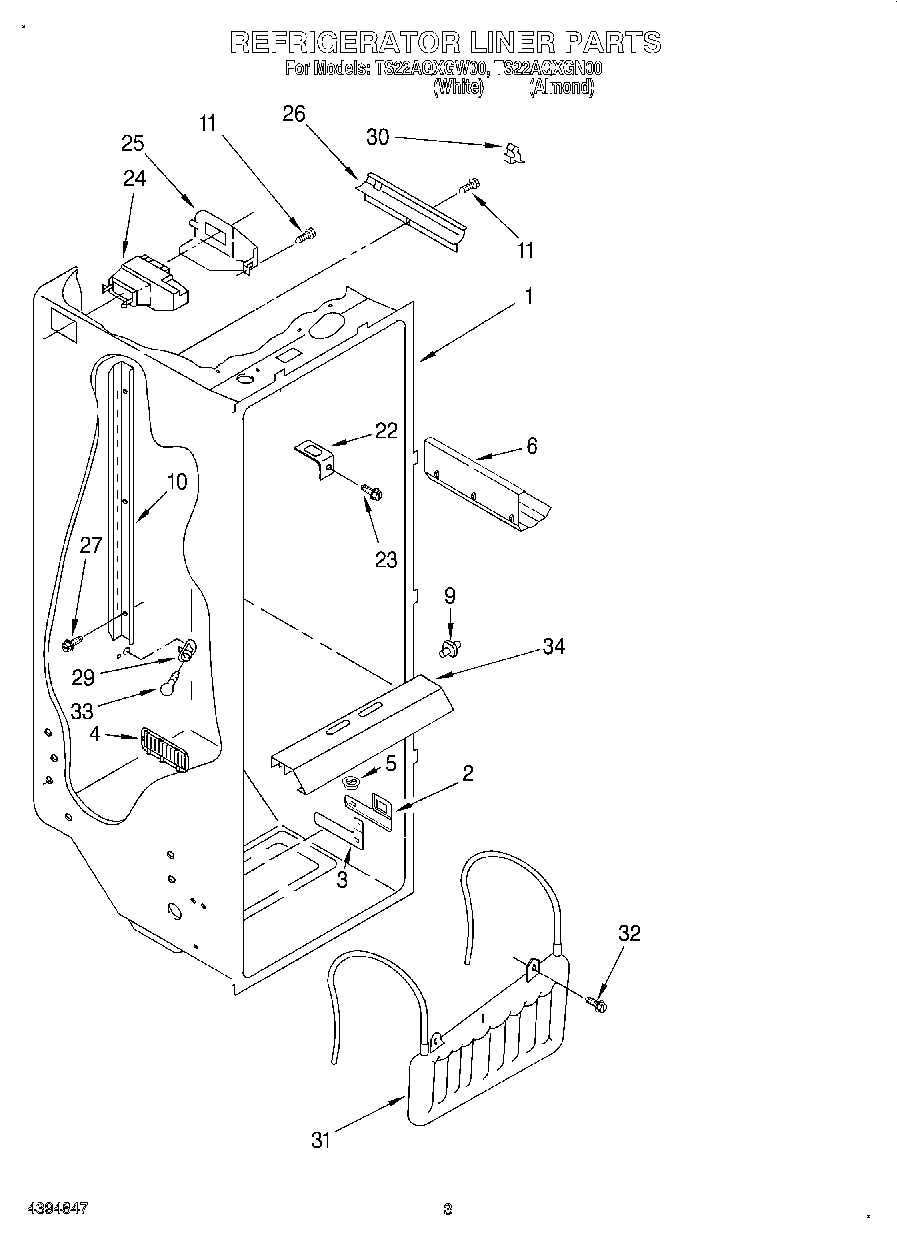

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI131934A Contact Us For Availability
View on Model
1
Freezer Door (Almond (Includes Item No.6 And
Freezer Door (Almond (Includes Item No.6 And WPL 2186473N Contact Us For Availability
View on Model
1
Freezer Door (White)
Freezer Door (White) WPL 2186473W Contact Us For Availability
View on Model
1

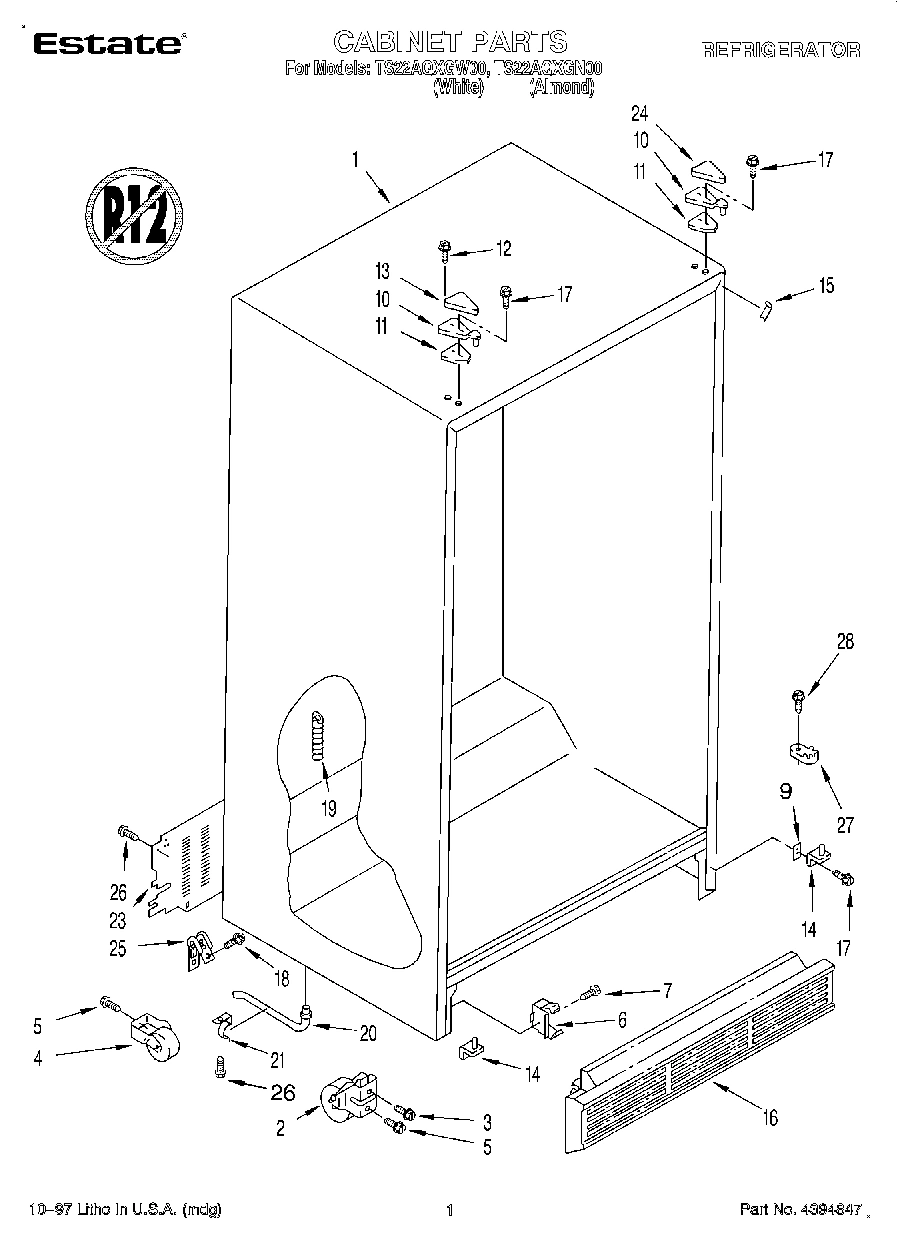

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI131932A Contact Us For Availability
View on Model
1

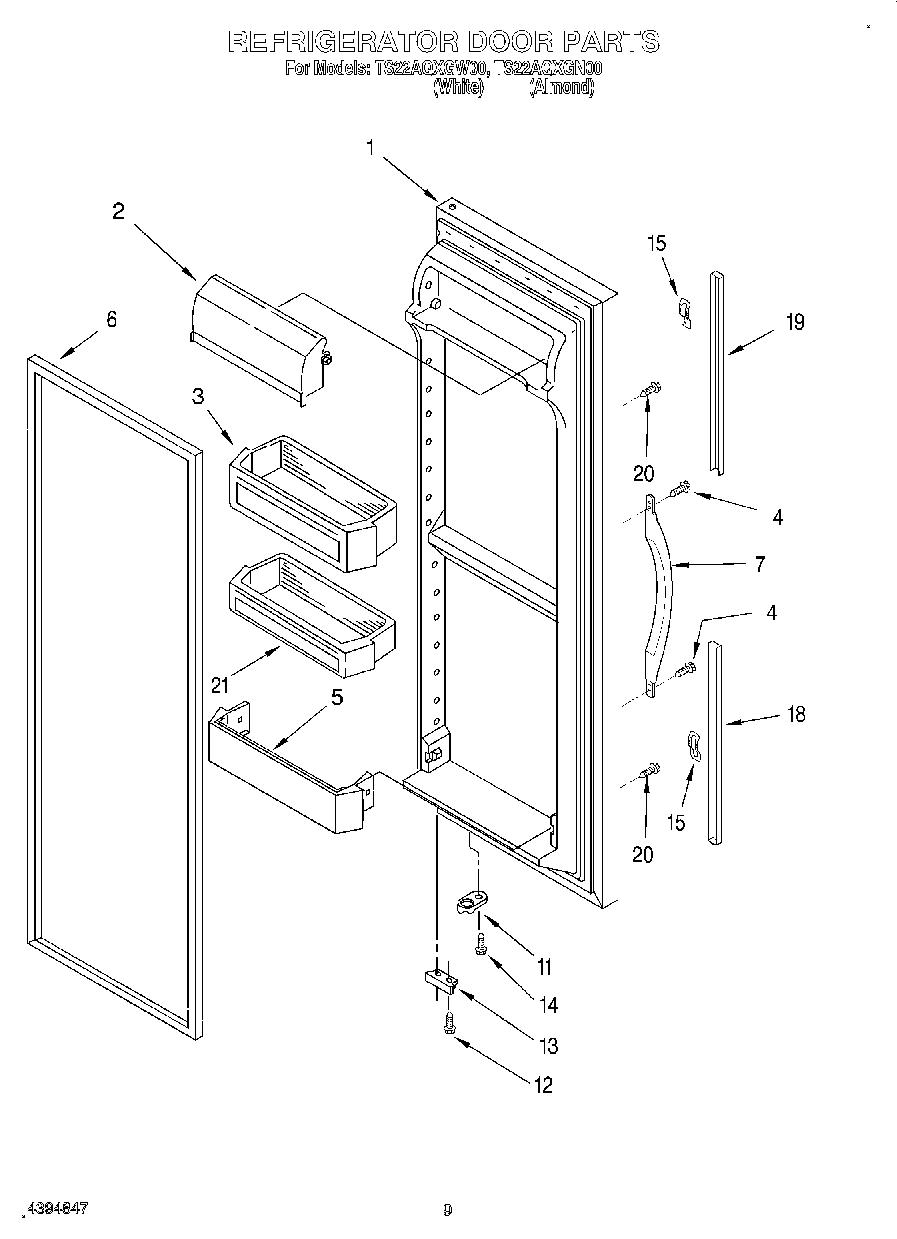

Refrigerator Door (Almond (Includes Item No.6
Refrigerator Door (Almond (Includes Item No.6 WPL 2194275N Contact Us For Availability
View on Model
1
Refrigerator Door (White)
Refrigerator Door (White) WPL 2194275W Contact Us For Availability
View on Model
1
Housing, Dispenser (Not a Serviceable Part)
Housing, Dispenser (Not a Serviceable Part) WPL ARI131935A Contact Us For Availability
View on Model
2

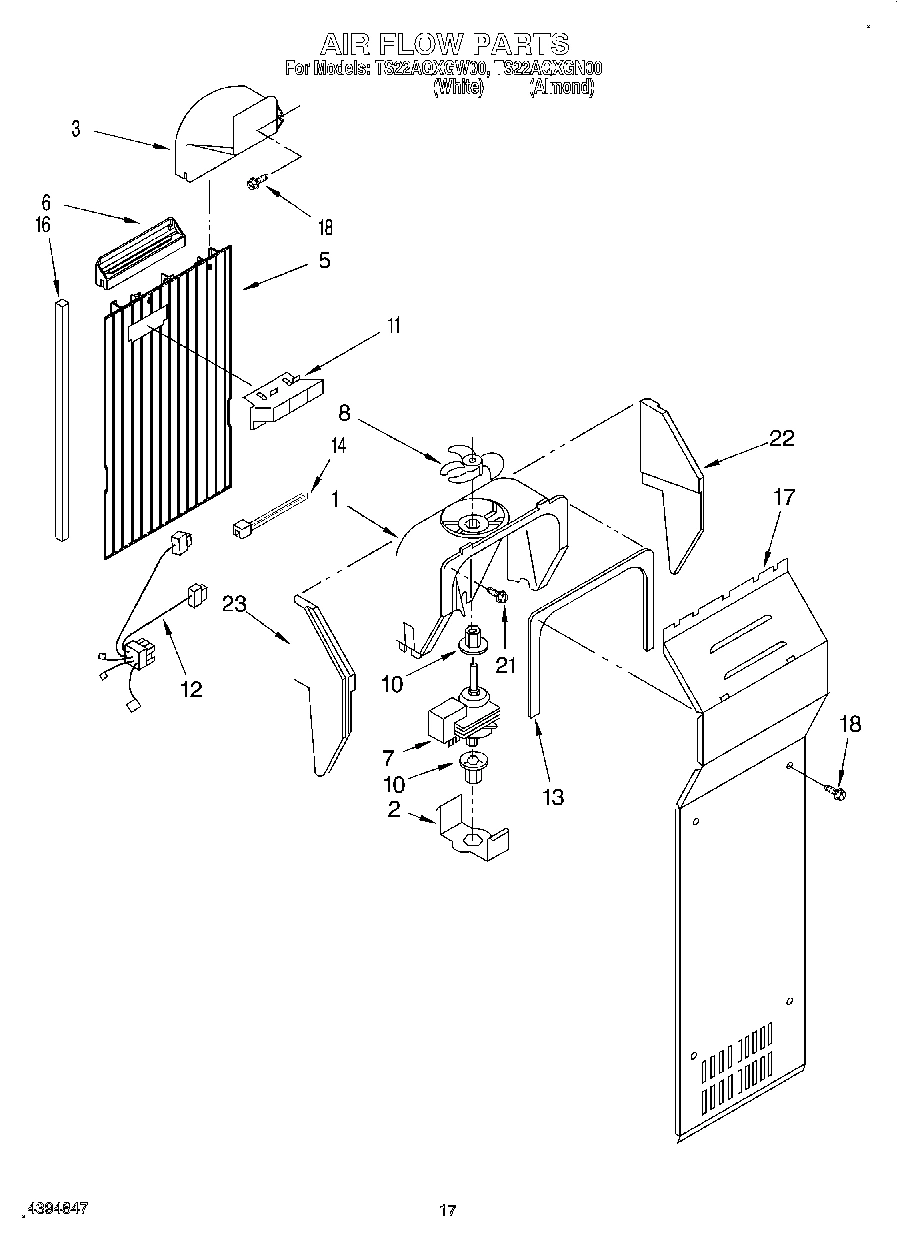

Fan, Blade
Fan, Blade WPL 1108179 Contact Us For Availability
View on Model
2
Mounting Bracket
Mounting Bracket WPL 1110629 Contact Us For Availability
View on Model
2
Slide, Ice Door
Slide, Ice Door WPL 1115380 Contact Us For Availability
View on Model
2
Front Roller (2)
Front Roller (2) WPL 2174748 Contact Us For Availability
View on Model
3
SLIDE MEAT PAN CONTROL
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
View on Model
3
Shelf Bin (2)
Shelf Bin (2) WPL 2177882 Contact Us For Availability
View on Model
6
Door, Ice
Door, Ice WPL 2180205 Contact Us For Availability
View on Model
7
Handle, Center (Almond)
Handle, Center (Almond) WPL 2193345N Contact Us For Availability
View on Model
7
Handle, Center (White)
Handle, Center (White) WPL 2193345W Contact Us For Availability
View on Model
7
Door Mechanism Assembly
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
View on Model
8

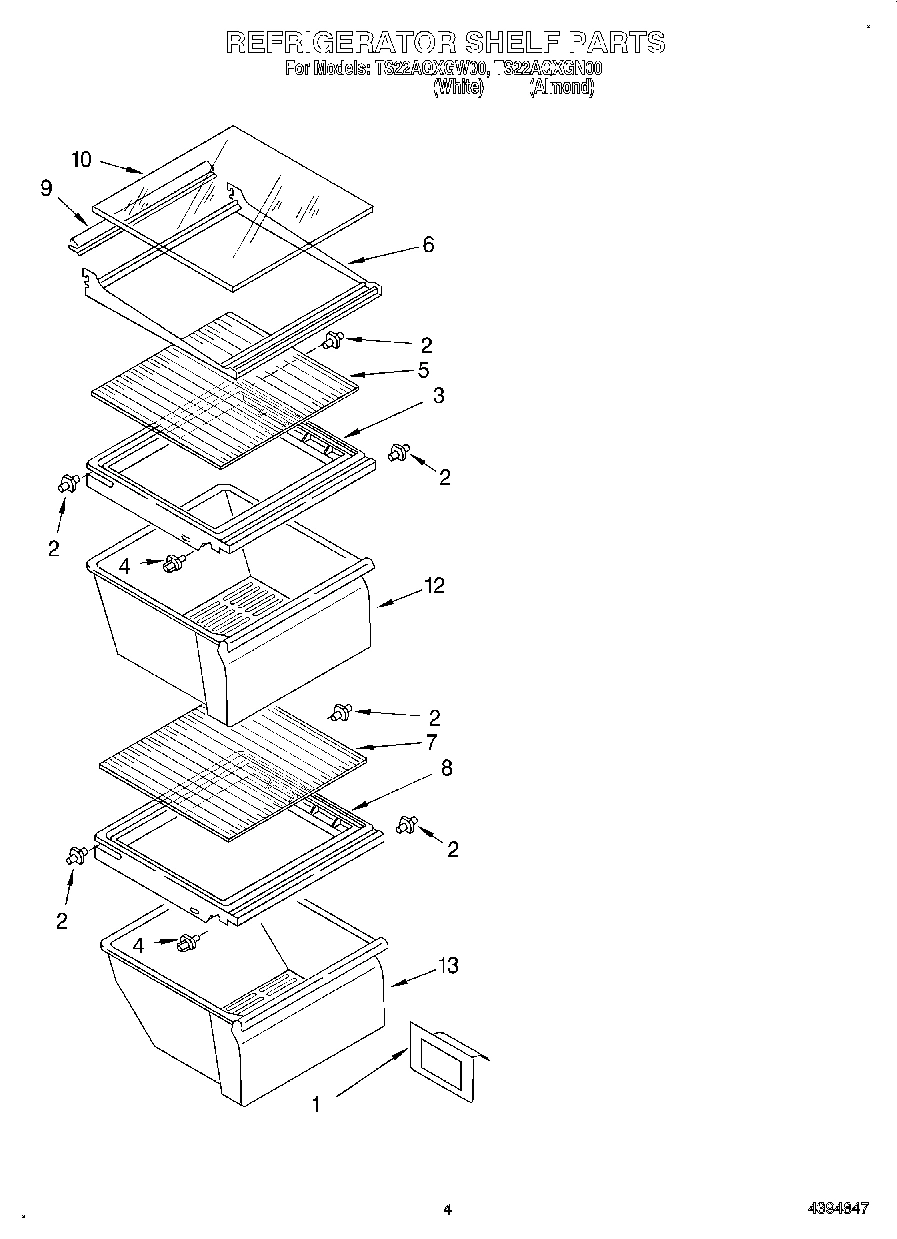

Shelf, Large (2)
Shelf, Large (2) WPL 2174265 Contact Us For Availability
View on Model
8
Delay Mechanism
Delay Mechanism WPL 2180223 Contact Us For Availability
View on Model
9
Grille, Overflow (White)
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
View on Model
9
Retainer, Glass
Retainer, Glass WPL 1125594 Contact Us For Availability
View on Model
9
Grille, Overflow (Almond)
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
View on Model
10
Grommet
Grommet WPL 2176134 Contact Us For Availability
View on Model
10
Glass (3)
Glass (3) WPL 2177986 Contact Us For Availability
View on Model
11

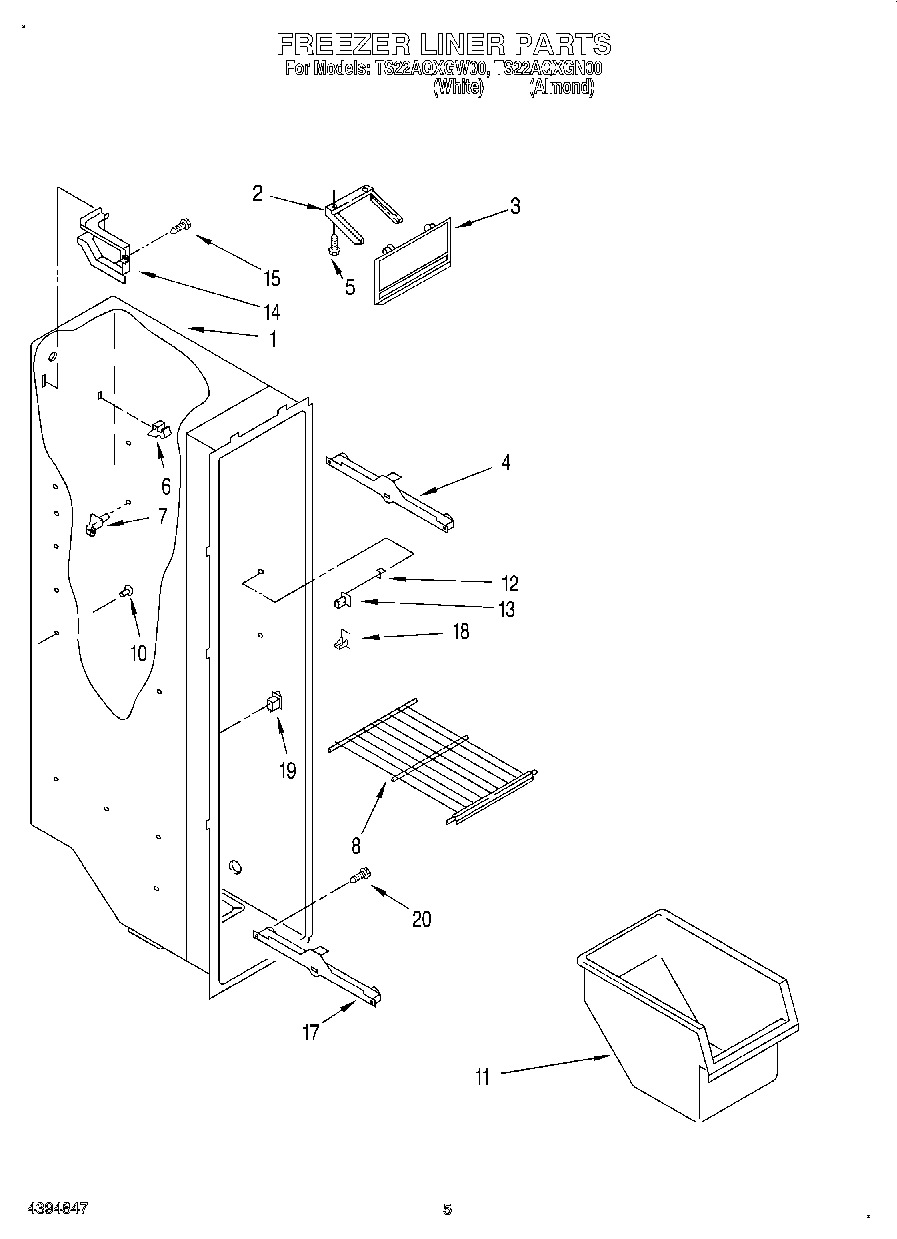

Bin, Freezer
Bin, Freezer WPL 2171707 Contact Us For Availability
View on Model
11
Shim, Hinge Top
Shim, Hinge Top WPL 2196048 Contact Us For Availability
View on Model
11
Lever, Ice Dispenser (Almond)
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
View on Model
11
Lever, Ice Dispenser (White)
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
View on Model
12
Stud, Support
Stud, Support WPL 946355 Contact Us For Availability
View on Model
12
Screw
Screw WPL 489284 Contact Us For Availability
View on Model
13
Hinge Cover (White)
Hinge Cover (White) WPL 1129262 Contact Us For Availability
View on Model
13
Bracket, Door Stop
Bracket, Door Stop WPL 2195950 Contact Us For Availability
View on Model
13
Meat Pan
Meat Pan WPL 2174118 Contact Us For Availability
View on Model
13
Stud, Front
Stud, Front WPL 946356 Contact Us For Availability
View on Model
13
Hinge Cover (Almond)
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
View on Model
14
Cover, Wiring
Cover, Wiring WPL 2155572 Contact Us For Availability
View on Model
15
Pivot Arm
Pivot Arm WPL 1110559 Contact Us For Availability
View on Model
15
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
View on Model
15
Filler, Wrapper (Almond)
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
View on Model
16
Grille (White)
Grille (White) WPL 2155477 Contact Us For Availability
View on Model
16
Grille (Almond)
Grille (Almond) WPL 2155478 Contact Us For Availability
View on Model
17
Slide, Freezer Bin (Left Side)
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
View on Model
18
Stud, Rear
Stud, Rear WPL 1106982 Contact Us For Availability
View on Model
18
Extension, Bottom (Almond)
Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability
View on Model
18
Extension, Bottom (White)
Extension, Bottom (White) WPL 2194970W Contact Us For Availability
View on Model
19
Extension, Top (Almond)
Extension, Top (Almond) WPL 2194972N Contact Us For Availability
View on Model
19
Extension, Top (White)
Extension, Top (White) WPL 2194972W Contact Us For Availability
View on Model
19
Door, Shelf (4)
Door, Shelf (4) WPL 2195919 Contact Us For Availability
View on Model
19
Plaque, Front Cover (Almond)
Plaque, Front Cover (Almond) WPL 2186471N Contact Us For Availability
View on Model
19
Plaque, Front Cover (White)
Plaque, Front Cover (White) WPL 2186471W Contact Us For Availability
View on Model
20
Unit Cover, Bottom
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
View on Model
20
Wire Assembly
Wire Assembly WPL 2180331 Contact Us For Availability
View on Model
21
Shelf Bin
Shelf Bin WPL 2177883 Contact Us For Availability
View on Model
21
Front Cover, Housing (Not Available, Order No
Front Cover, Housing (Not Available, Order No WPL ARI131936A Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 2161324 Contact Us For Availability
View on Model
23
Front Cover Assembly (Includes Items 18, 19,
Front Cover Assembly (Includes Items 18, 19, WPL 2186472N Contact Us For Availability
View on Model
23
Front Cover Assembly (Includes Items 18, 19,
Front Cover Assembly (Includes Items 18, 19, WPL 2186472W Contact Us For Availability
View on Model
24
Spacer, Switch (2)
Spacer, Switch (2) WPL 625834 Contact Us For Availability
View on Model
24
Fastener, Push-On
Fastener, Push-On WPL 489285 Contact Us For Availability
View on Model
25
Wire Assembly
Wire Assembly WPL 2198271 Contact Us For Availability
View on Model
27

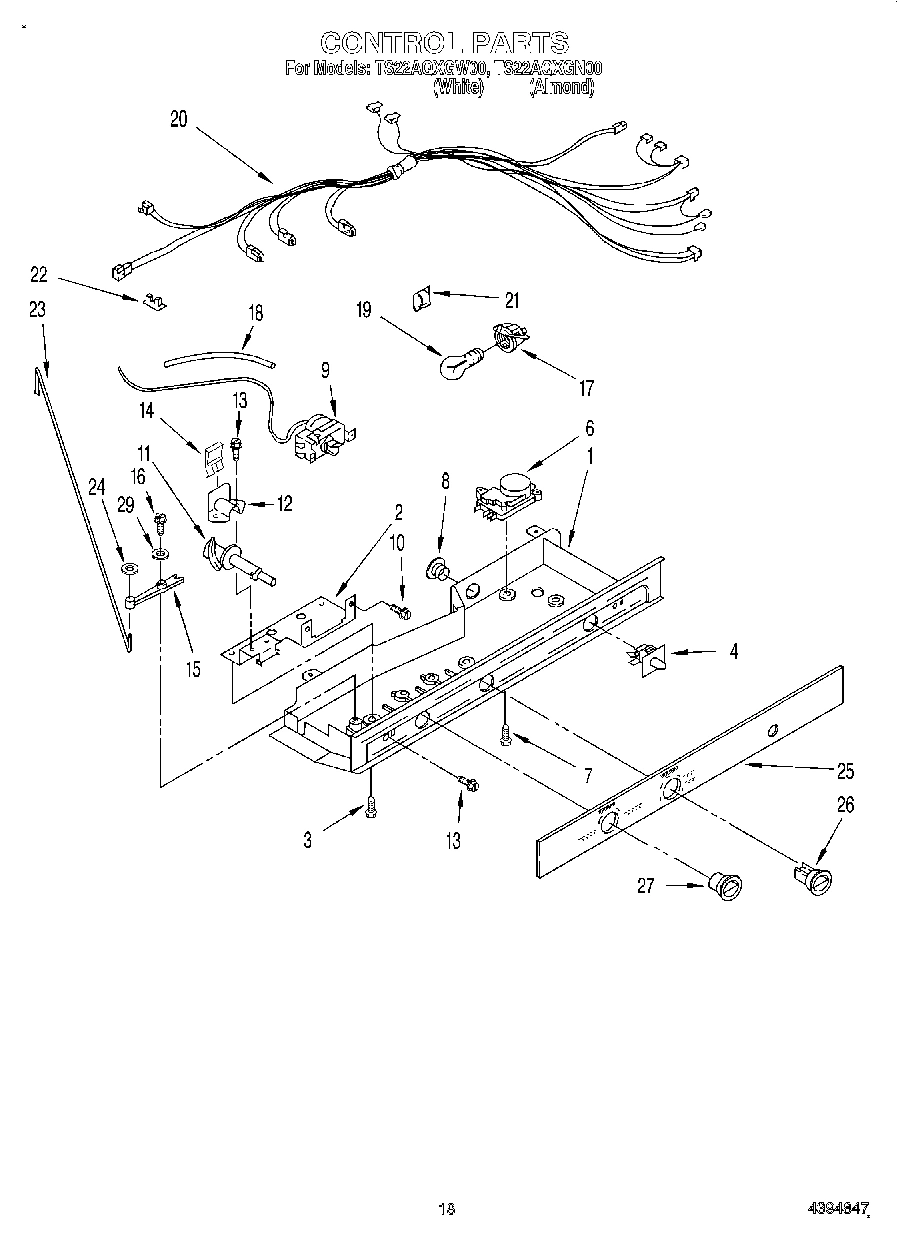

Knob, Air Control
Knob, Air Control WPL 2197871 Contact Us For Availability
View on Model
34
Light Lens
Light Lens WPL 2174436 Contact Us For Availability
View on Model
44

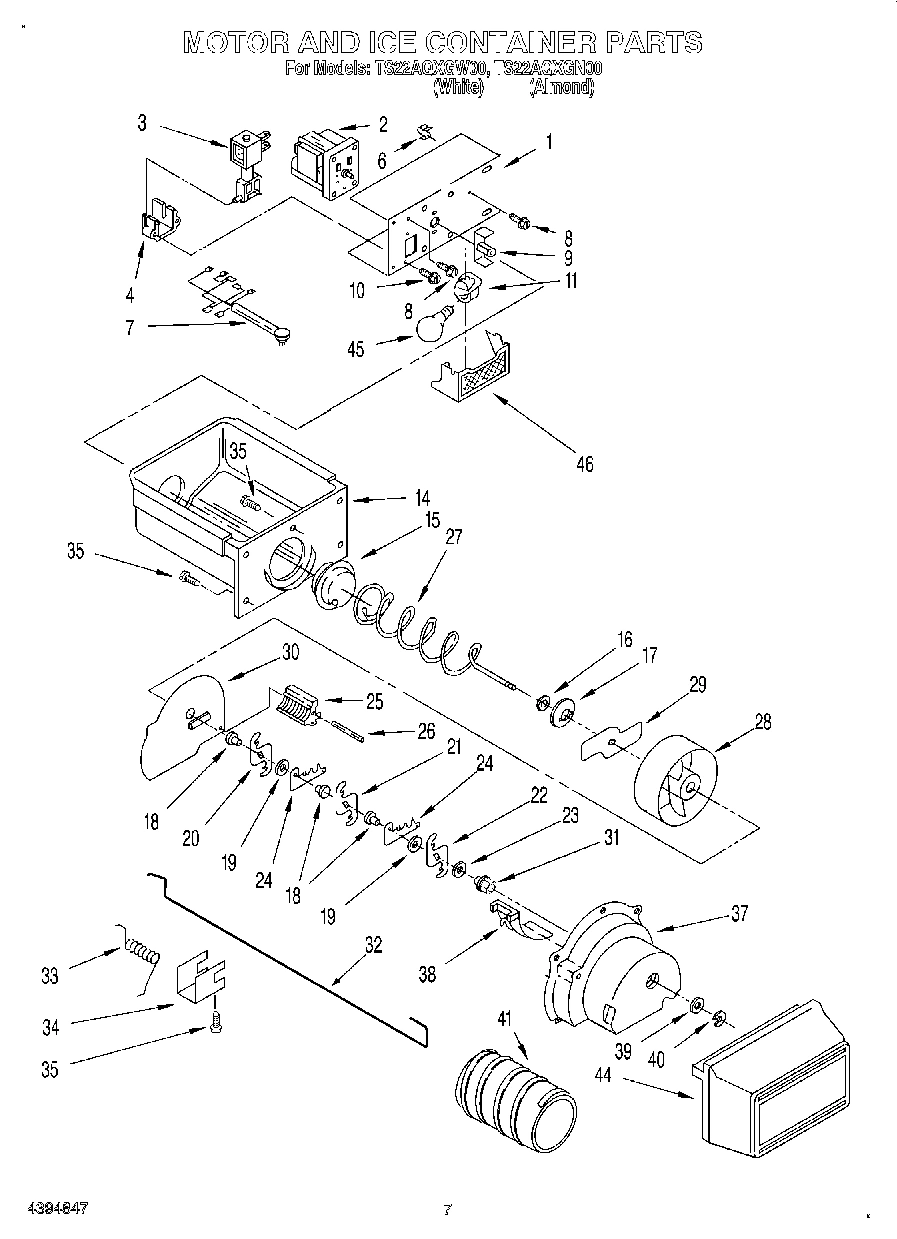

Front Cover, Ice Container
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
View on Model
63
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
100
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
