Model Whirlpool TS22AQXDN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER LINER
11 - CONTROL

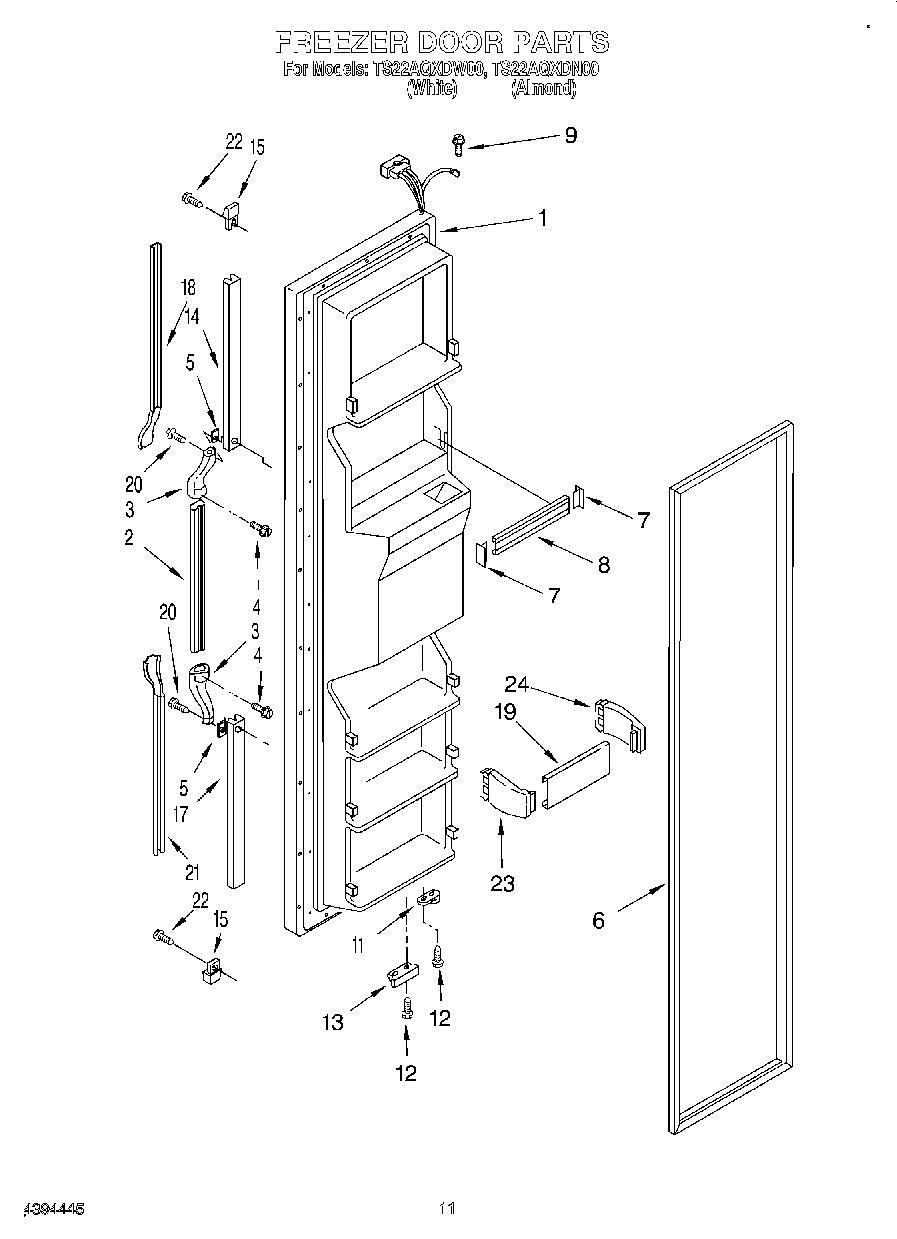

07 - FREEZER DOOR
08 - DISPENSER FRONT
01 - CABINET
03 - REFRIGERATOR SHELF

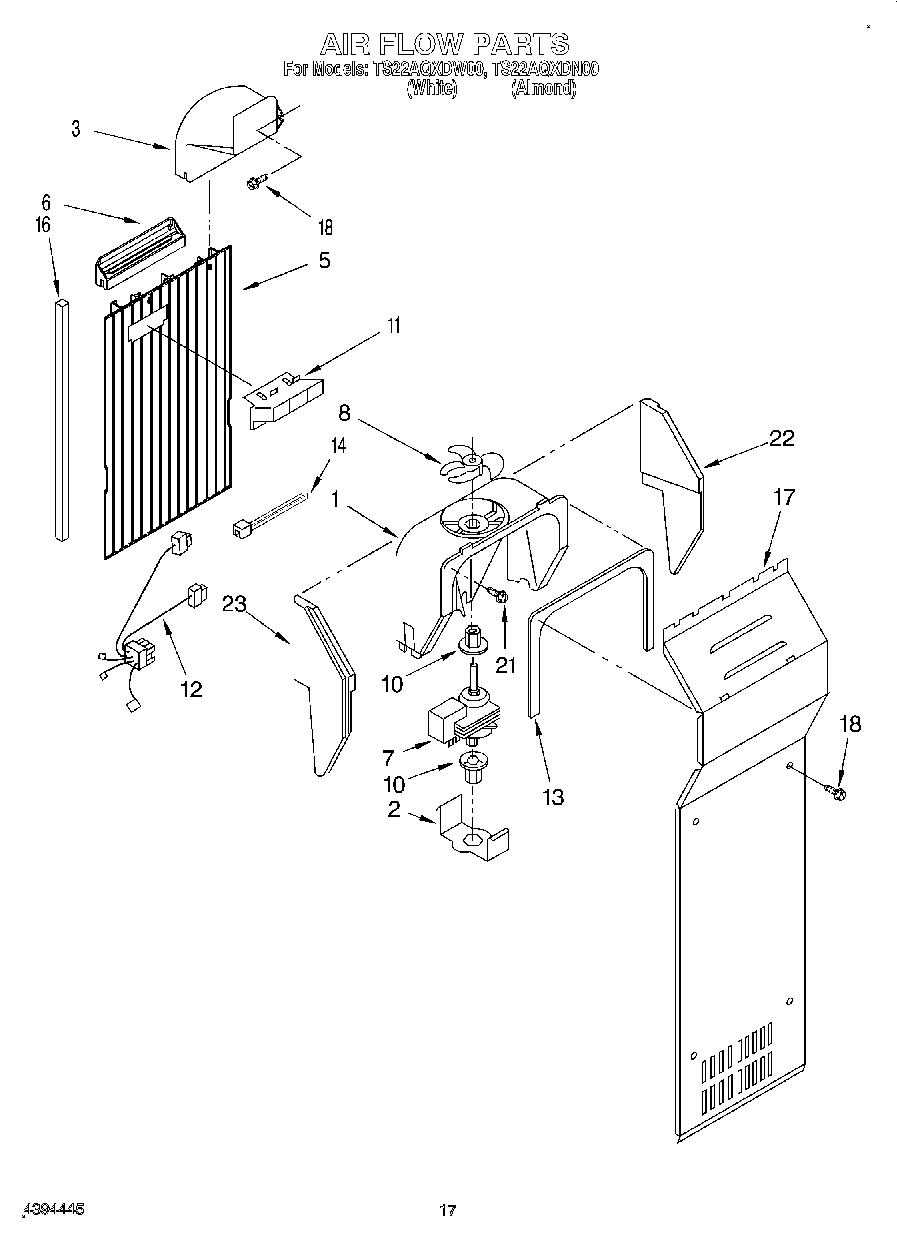

10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL

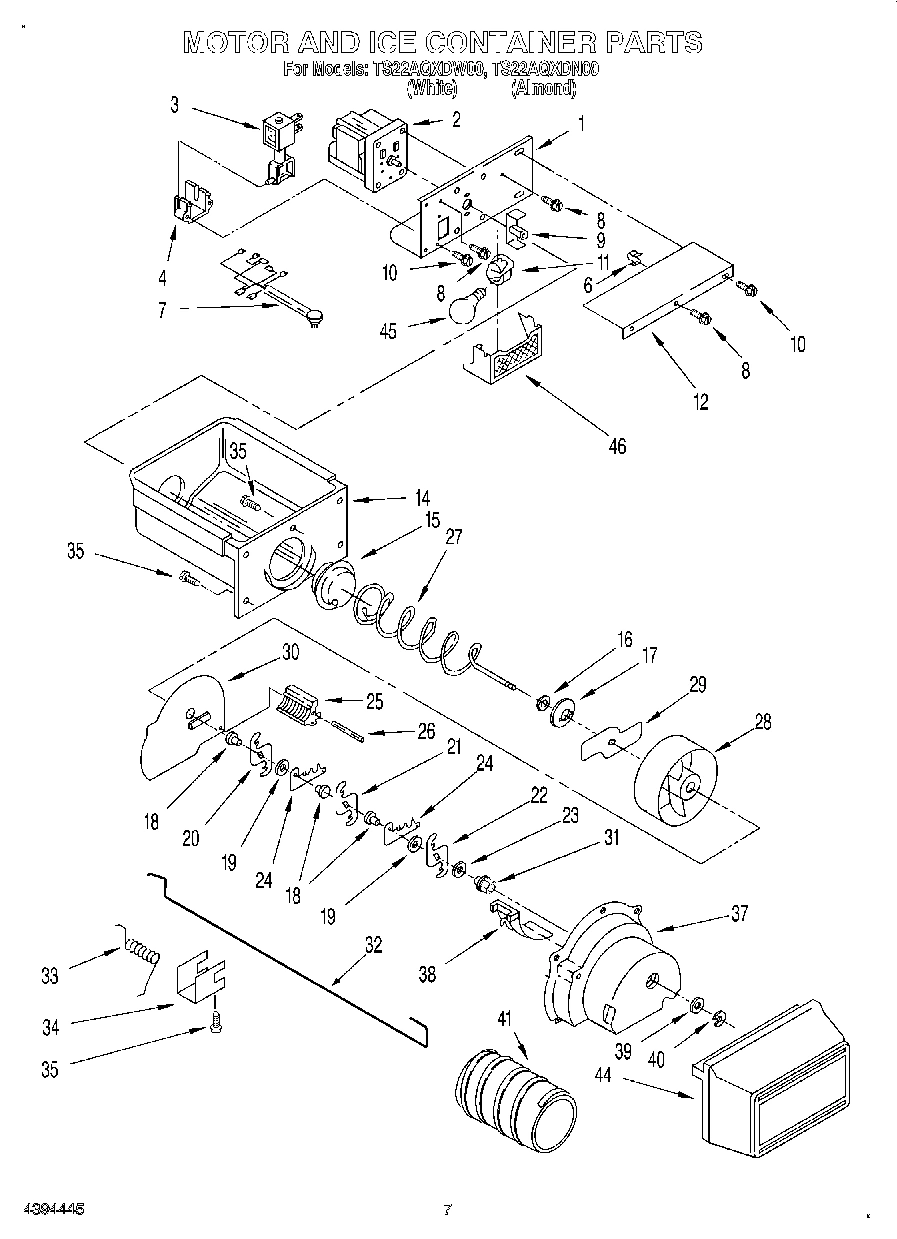

05 - MOTOR AND ICE CONTAINER

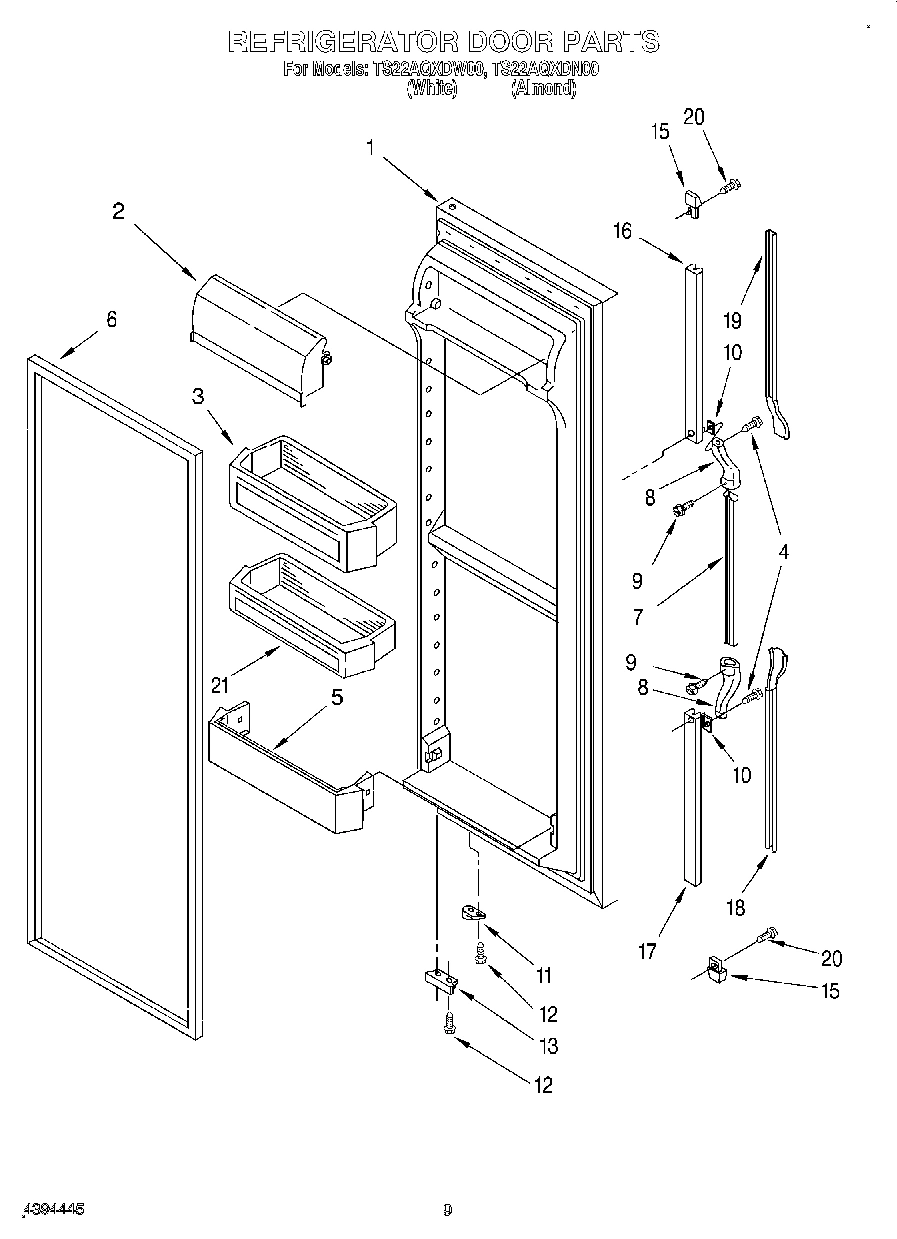

06 - REFRIGERATOR DOOR

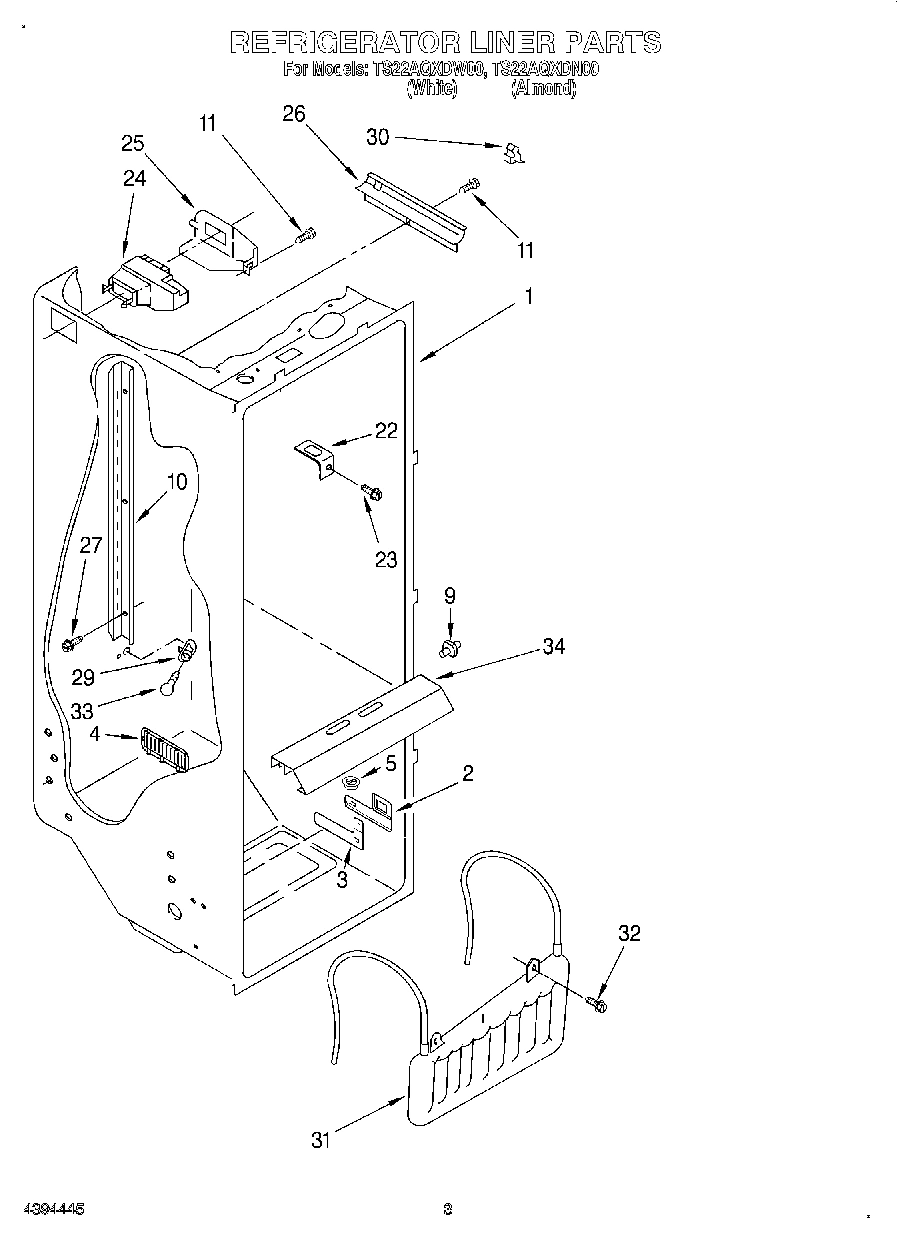

02 - REFRIGERATOR LINER

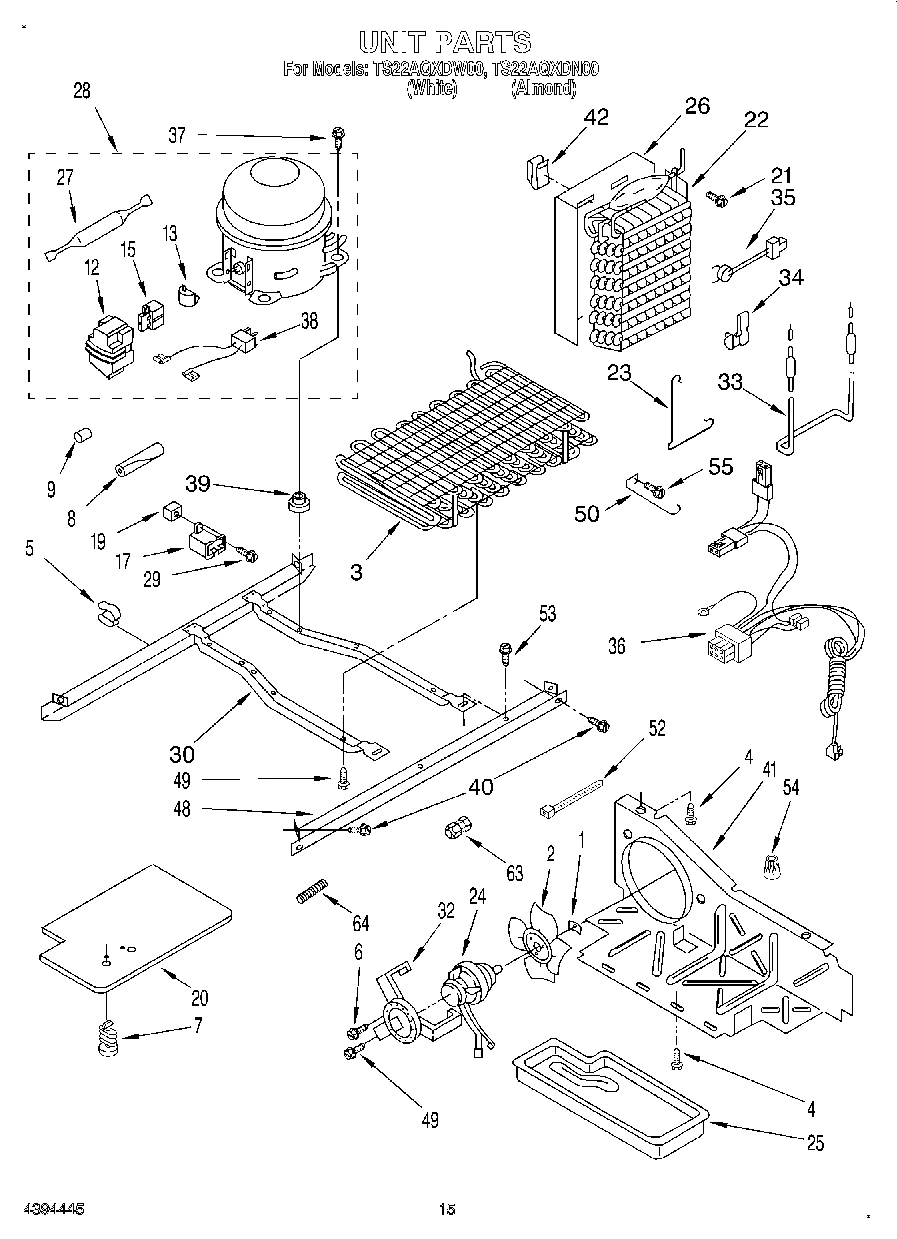

09 - UNIT
Common parts from model Whirlpool TS22AQXDN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2189513 WPL LIT2189513 Contact Us For Availability
WPL LIT2189525 WPL LIT2189525 Contact Us For Availability
WPL LIT2194733 WPL LIT2194733 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (White) WPL 2171082 Contact Us For Availability
1
Refrigerator Door (Almond (Includes Item No.6 WPL 2171083 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI131873A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Shelf Bin (2) WPL 2177882 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Louver WPL 1127161 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Handle, Center (White) WPL 1124713 Contact Us For Availability
7
Handle, Center (Almond) WPL 943079 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Screw WPL 489022 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Shim WPL 935075 Contact Us For Availability
10
Ladder, Shelf WPL 2181796 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap (2) WPL 2156220 Contact Us For Availability
15
Relay (See Overload) WPL ARI131878A Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Top WPL 1119366 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Retainer, Bottom WPL 1119360 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Extension, Bottom (White) WPL 1119361 Contact Us For Availability
18
Extension, Bottom (Almond) WPL 1119363 Contact Us For Availability
19
Extension, Top (White) WPL 1119367 Contact Us For Availability
19
Extension, Top (Almond) WPL 1119369 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 2177883 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
32
Screw WPL 488280 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Unit, Harness WPL 2181709 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Spring-Tube WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
