Model GE TFX27PRXBAA Refrigerator – Common Parts & Diagrams

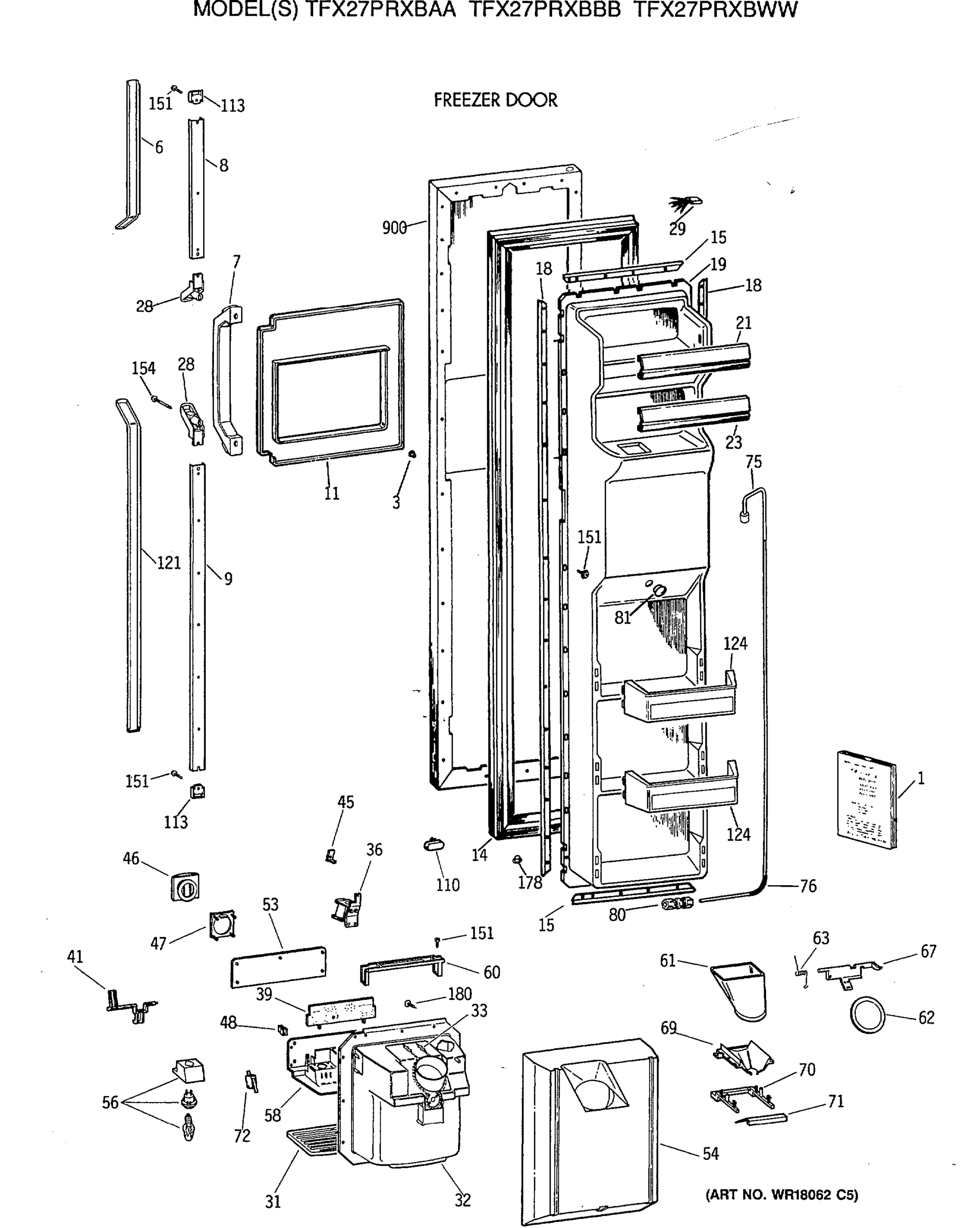

FREEZER DOOR

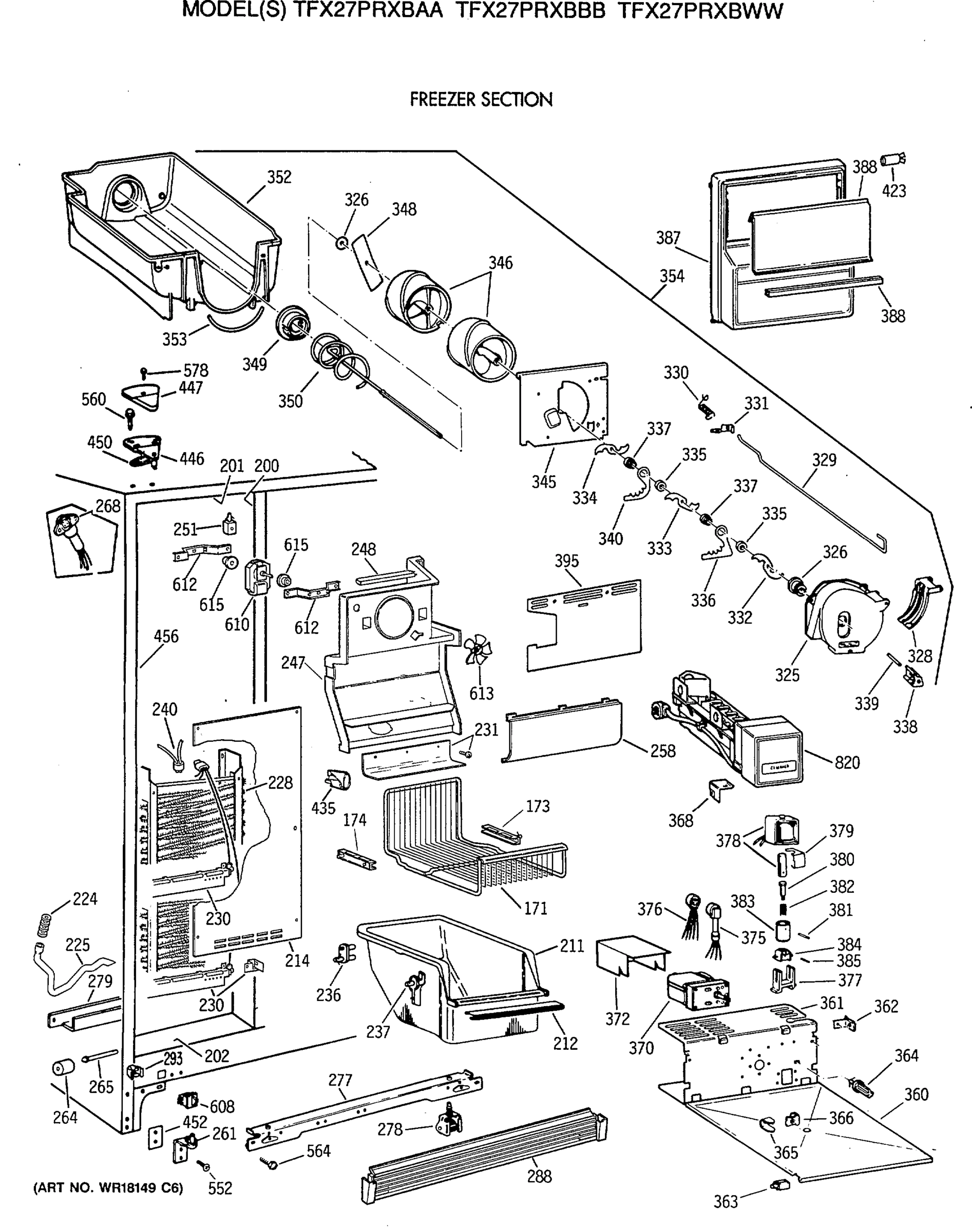

FREEZER SECTION

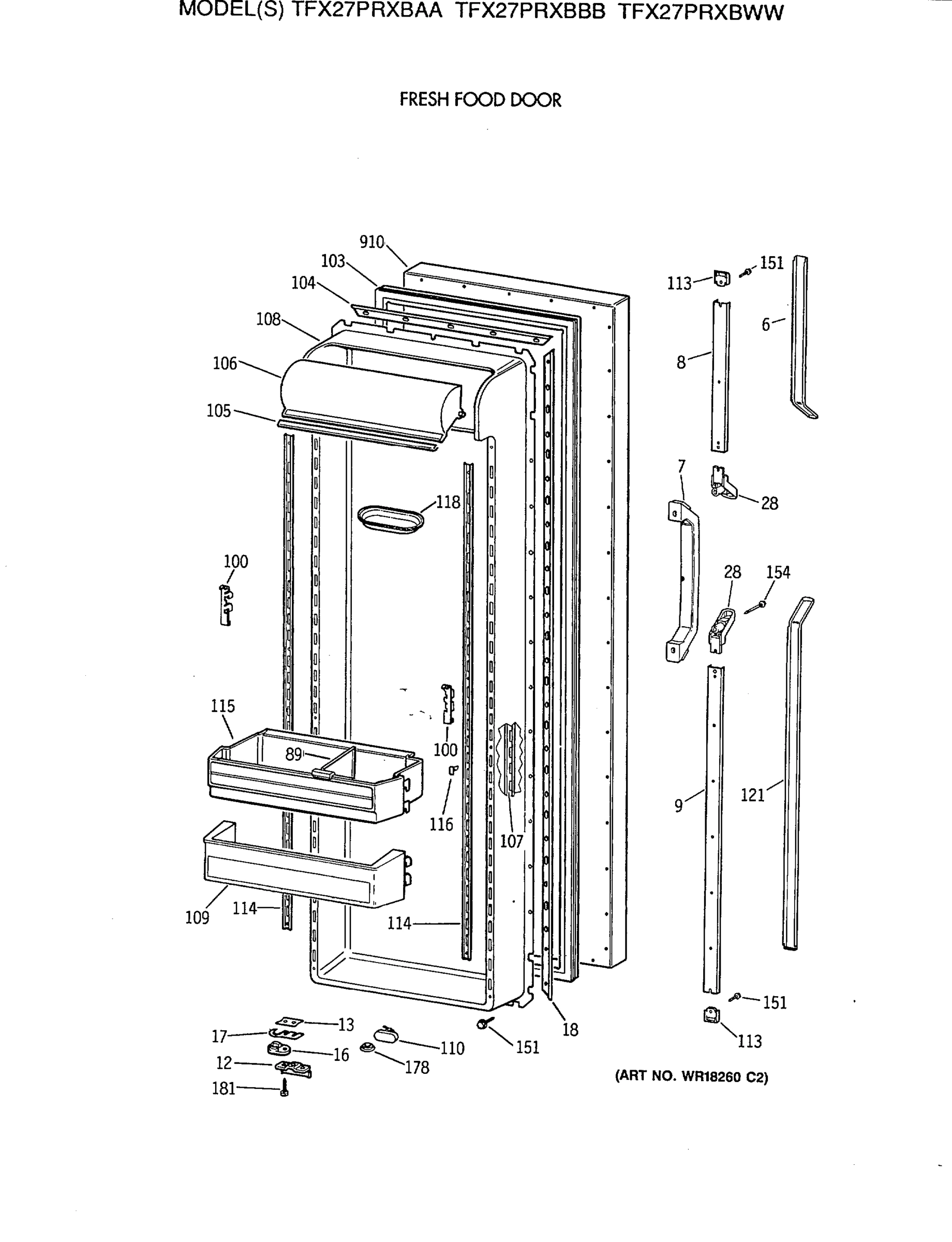

FRESH FOOD DOOR

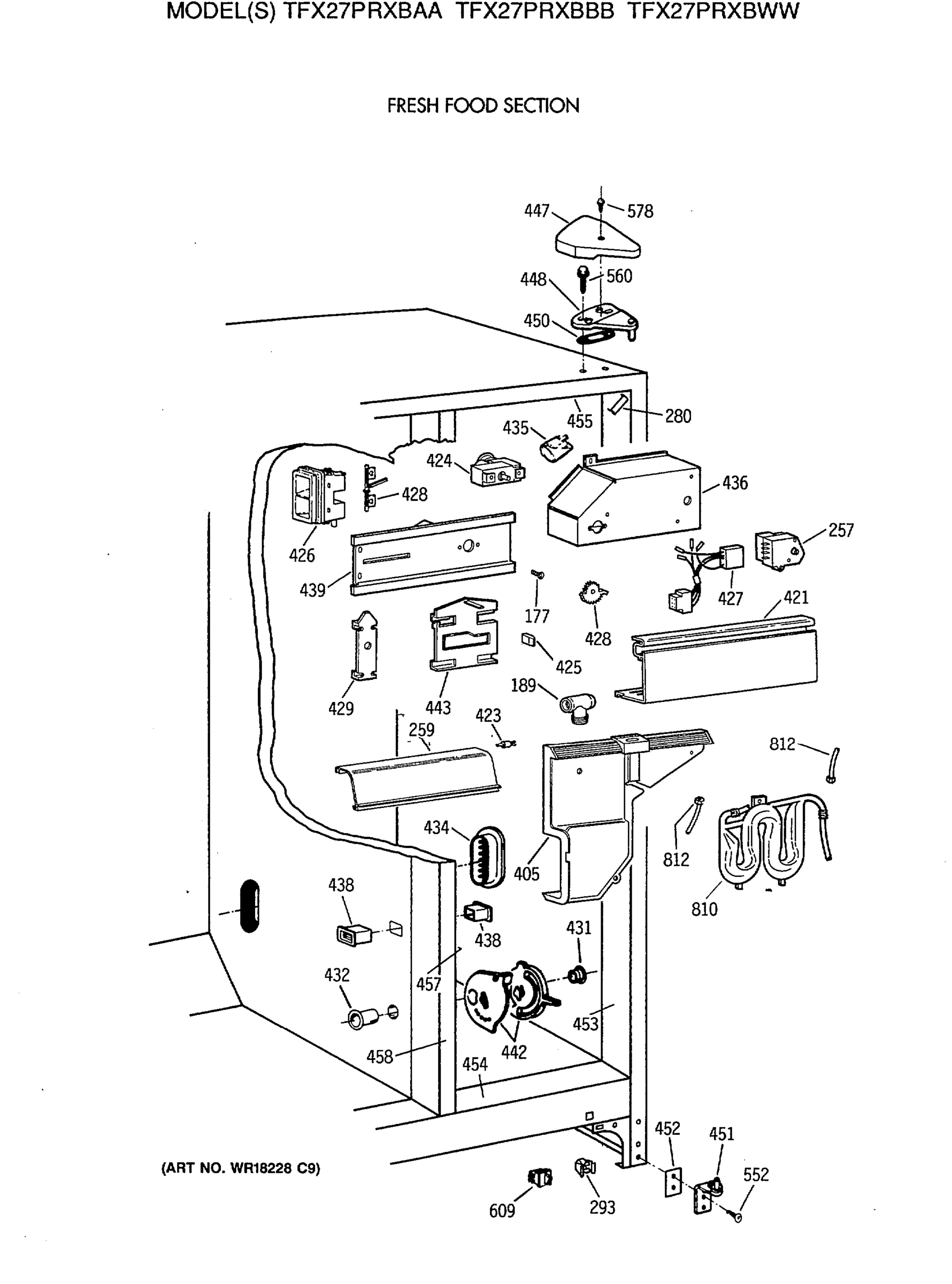

FRESH FOOD SECTION

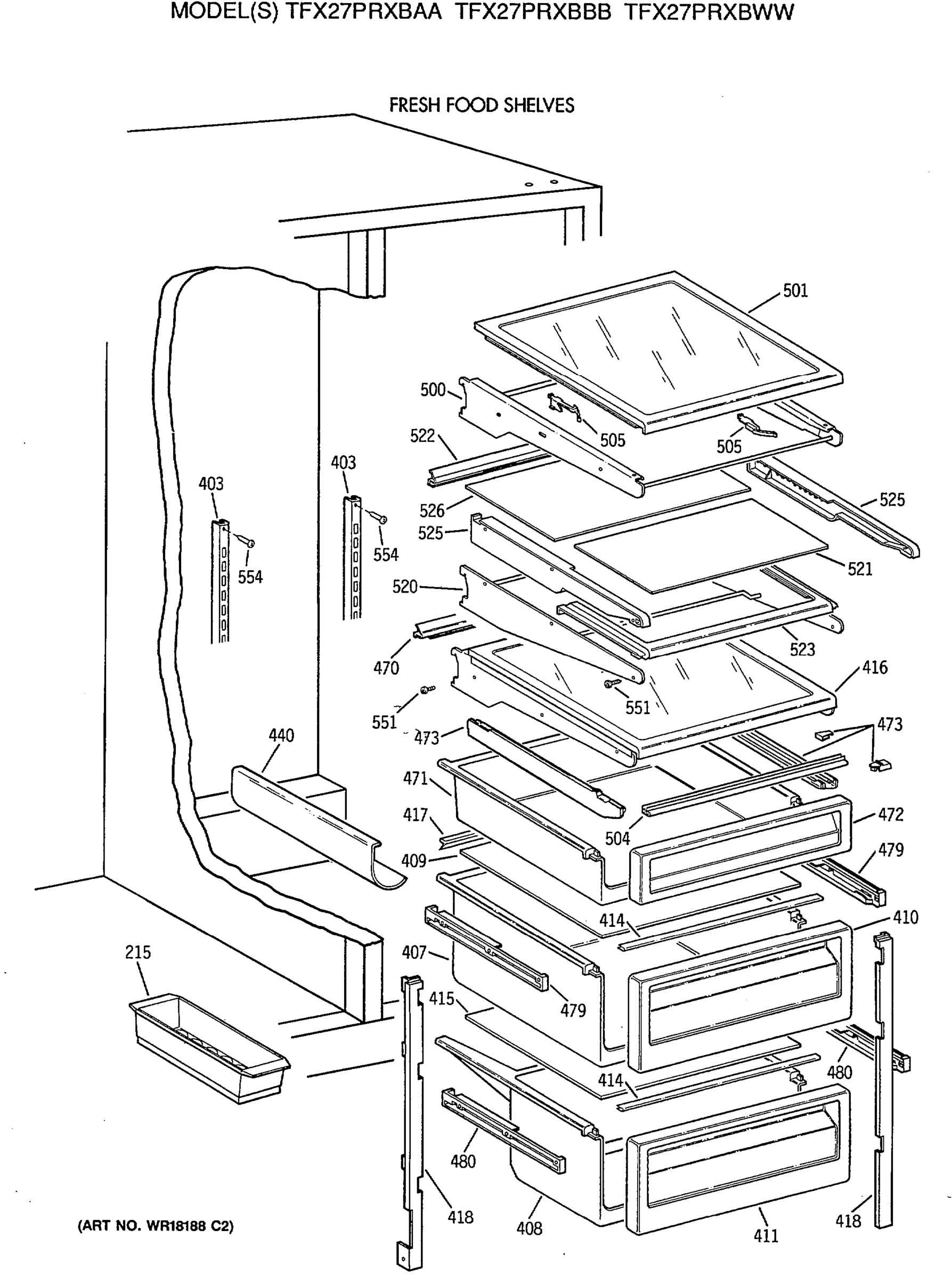

FRESH FOOD SHELVES

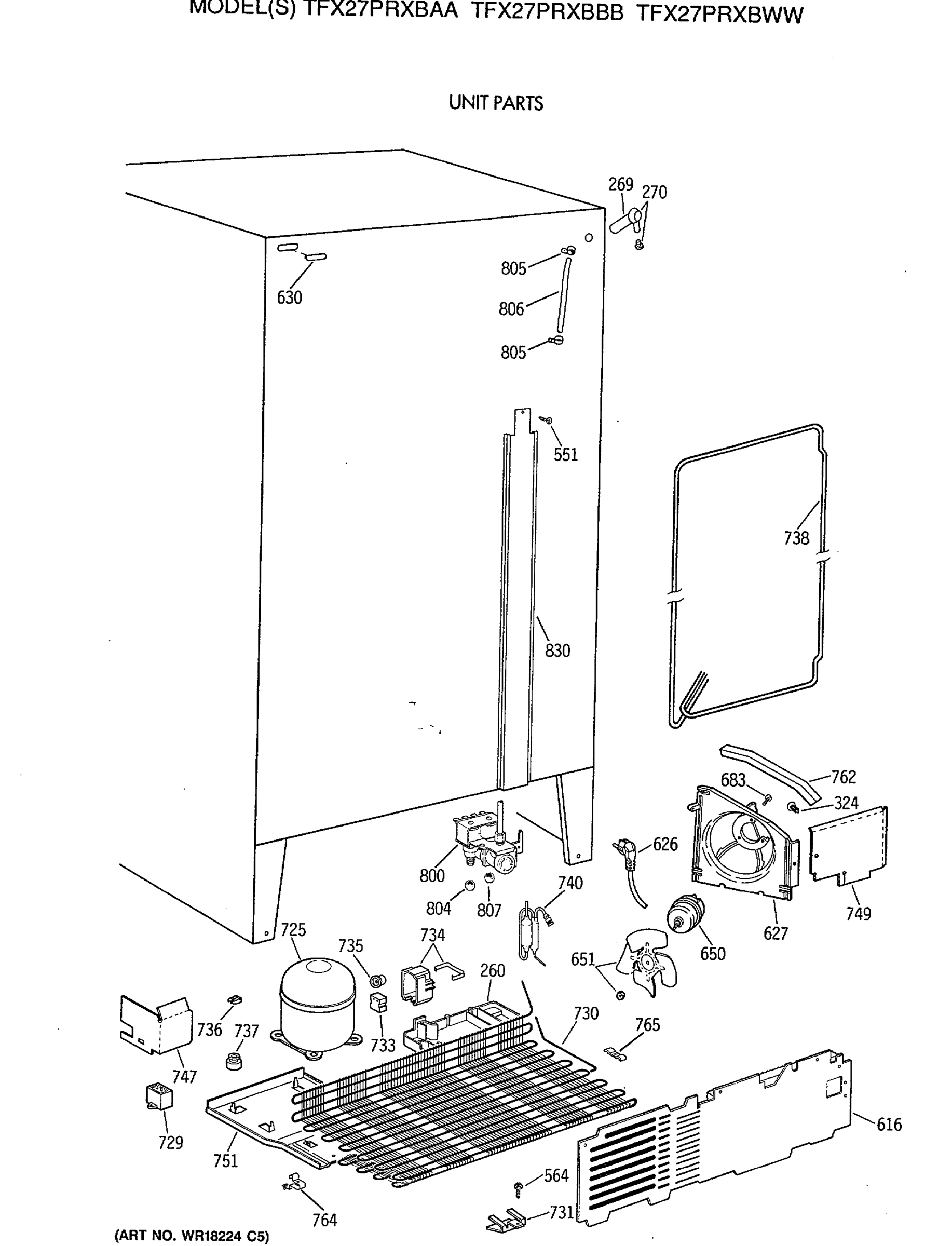

UNIT PARTS
Common parts from model GE TFX27PRXBAA Refrigerator
6
GEN WR12X0854 GEN WR12X0854 Contact Us For Availability
7
GEN WR12X0870 GEN WR12X0870 Contact Us For Availability
8
GEN WR12X0918 GEN WR12X0918 Contact Us For Availability
9
GEN WR12X0873 GEN WR12X0873 Contact Us For Availability
12
GEN WR02X9302 GEN WR02X9302 Contact Us For Availability
13
GEN WR02X7489 GEN WR02X7489 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
16
GEN WR02X7512 GEN WR02X7512 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
17
GEN WR02X9147 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
31
GEN WR17X4151 GEN WR17X4151 Contact Us For Availability
32
GEN WR17X3334 GEN WR17X3334 Contact Us For Availability
33
GEN WR51X0353 GEN WR51X0353 Contact Us For Availability
39
GEN WR55X0129 GEN WR55X0129 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8726 GEN WR02X8726 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X3855 GEN WR17X3855 Contact Us For Availability
54
GEN WR17X4013 GEN WR17X4013 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
58
GEN WR17X3210 GEN WR17X3210 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
61
GEN WR17X3086 GEN WR17X3086 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
GEN WR02X8956 GEN WR02X8956 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GEN WR17X3611 GEN WR17X3611 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
81
GEN WR01X2077 GEN WR01X2077 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
89
GEN WR02X7957 GEN WR02X7957 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X0526 GEN WR24X0526 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2067 GEN WR38X2067 Contact Us For Availability
106
GEN WR22X0378 GEN WR22X0378 Contact Us For Availability
107
GEN WR72X0091 GEN WR72X0091 Contact Us For Availability
108
GEN WR77X0506 GEN WR77X0506 Contact Us For Availability
109
GEN WR71X2631 GEN WR71X2631 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
114
GEN WR72X0092 GEN WR72X0092 Contact Us For Availability
115
GEN WR71X2629 GEN WR71X2629 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X0851 GEN WR12X0851 Contact Us For Availability
124
GEN WR71X2628 GEN WR71X2628 Contact Us For Availability
154
GEN WR01X2085 GEN WR01X2085 Contact Us For Availability
154
GEN WR01X2127 GEN WR01X2127 Contact Us For Availability
171
GEN WR71X2352 GEN WR71X2352 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
175
GEN WR01X2023 GEN WR01X2023 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
200
GEN WR40X1730 GEN WR40X1730 Contact Us For Availability
201
GEN WR40X1731 GEN WR40X1731 Contact Us For Availability
202
GEN WR40X1732 GEN WR40X1732 Contact Us For Availability
211
GEN WR21X0190 GEN WR21X0190 Contact Us For Availability
212
GEN WR17X3103 GEN WR17X3103 Contact Us For Availability
214
GEN WR01X2128 GEN WR01X2128 Contact Us For Availability
214
GEN WR14X0456 GEN WR14X0456 Contact Us For Availability
214
GEN WR17X3915 GEN WR17X3915 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
231
GEN WR17X3651 GEN WR17X3651 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3489 No Longer Available
259
SHIELD LIGHT LOWER GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
261
GEN WR13X0618 GEN WR13X0618 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X8668 GEN WR02X8668 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3661 GEN WR17X3661 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0210 GEN WR74X0210 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2465 GEN WR71X2465 Contact Us For Availability
361
GEN WR71X2353 GEN WR71X2353 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2964 GEN WR17X2964 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
405
GEN WR17X3890 GEN WR17X3890 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X1459 GEN WR32X1459 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X3840 GEN WR17X3840 Contact Us For Availability
411
GEN WR17X3841 GEN WR17X3841 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR32X1545 GEN WR32X1545 Contact Us For Availability
417
GEN WR14X0478 GEN WR14X0478 Contact Us For Availability
418
GEN WR17X4085 GEN WR17X4085 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
421
GEN WR17X2975 GEN WR17X2975 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0569 GEN WR09X0569 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
428
GEN WR02X8582 GEN WR02X8582 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9175 GEN WR02X9175 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X8840 GEN WR02X8840 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
446
GEN WR13X0645 GEN WR13X0645 Contact Us For Availability
447
GEN WR02X8334 GEN WR02X8334 Contact Us For Availability
448
GEN WR13X0644 GEN WR13X0644 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
451
GEN WR13X0621 GEN WR13X0621 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02 GEN WR02 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1734 GEN WR40X1734 Contact Us For Availability
454
GEN WR40X1735 GEN WR40X1735 Contact Us For Availability
455
GEN WR40X1736 GEN WR40X1736 Contact Us For Availability
457
GEN WR40X1737 GEN WR40X1737 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1740 GEN WR40X1740 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X3839 GEN WR17X3839 Contact Us For Availability
473
GEN WR72X0250 GEN WR72X0250 Contact Us For Availability
473
GEN WR72X0251 GEN WR72X0251 Contact Us For Availability
500
GEN WR71X2559 GEN WR71X2559 Contact Us For Availability
501
GEN WR32X1561 GEN WR32X1561 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2246 GEN WR71X2246 Contact Us For Availability
521
GEN WR32X1503 GEN WR32X1503 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0218 GEN WR72X0218 Contact Us For Availability
525
GEN WR72X0219 GEN WR72X0219 Contact Us For Availability
526
GEN WR32X1268 GEN WR32X1268 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X2078 GEN WR01X2078 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
GEN WR01X2081 GEN WR01X2081 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
616
GEN WR17X4093 GEN WR17X4093 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
GEN WR17X3811 GEN WR17X3811 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
730
GEN WR84X0189 GEN WR84X0189 Contact Us For Availability
731
GEN WR01X2014 GEN WR01X2014 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
733
RELAY (PTCR) GEN WR07X0198 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0172 GEN WR08X0172 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0168 GEN WR84X0168 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X4148 GEN WR17X4148 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
830
GEN WR17X3732 GEN WR17X3732 Contact Us For Availability
900
GEN WR78X8505 GEN WR78X8505 Contact Us For Availability
910
GEN WR78X8504 GEN WR78X8504 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
942
GEN WD01X1395 GEN WD01X1395 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
× ![]()
