Model Whirlpool SS25AEXHW03 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR SHELF
07 - FREEZER DOOR

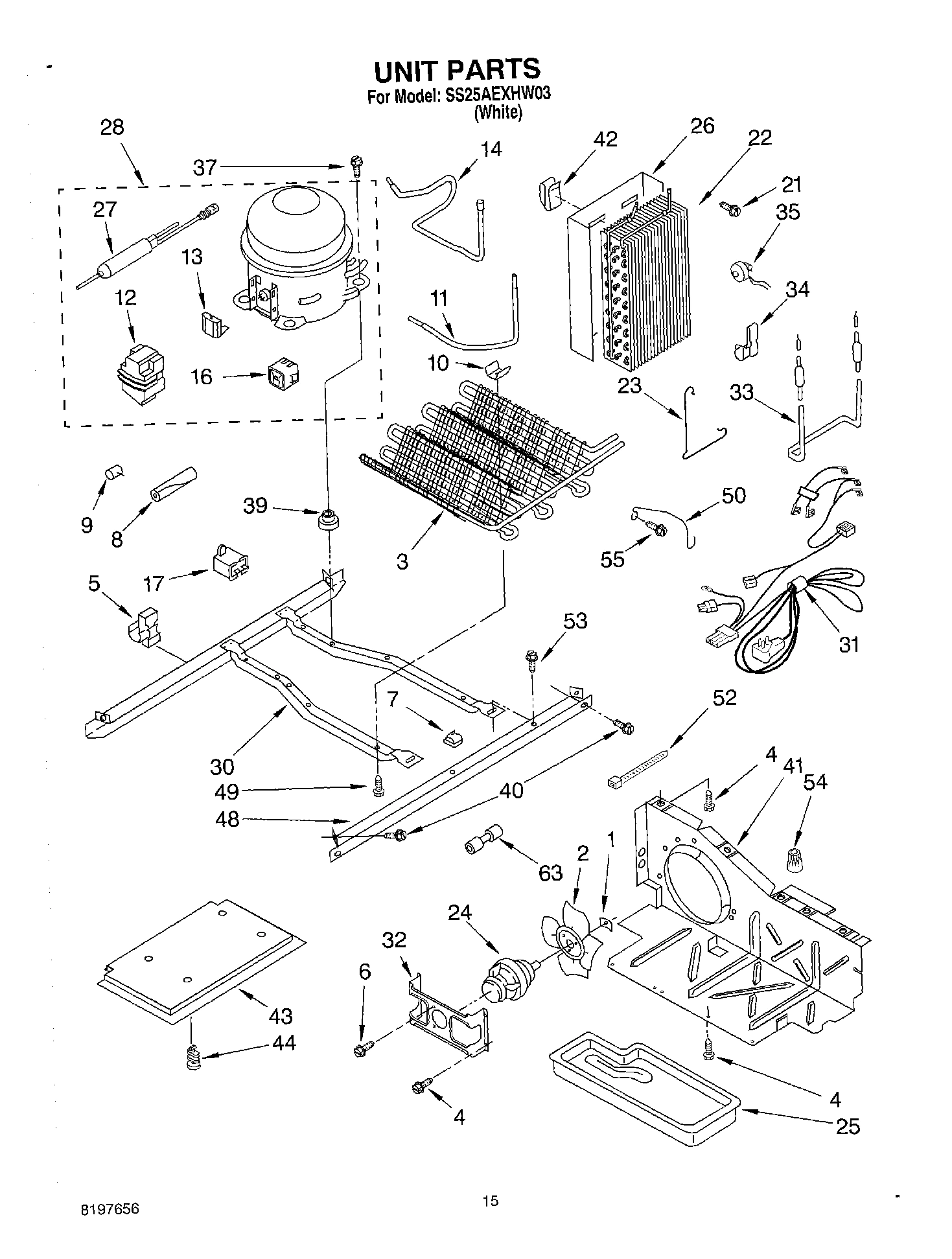

09 - UNIT

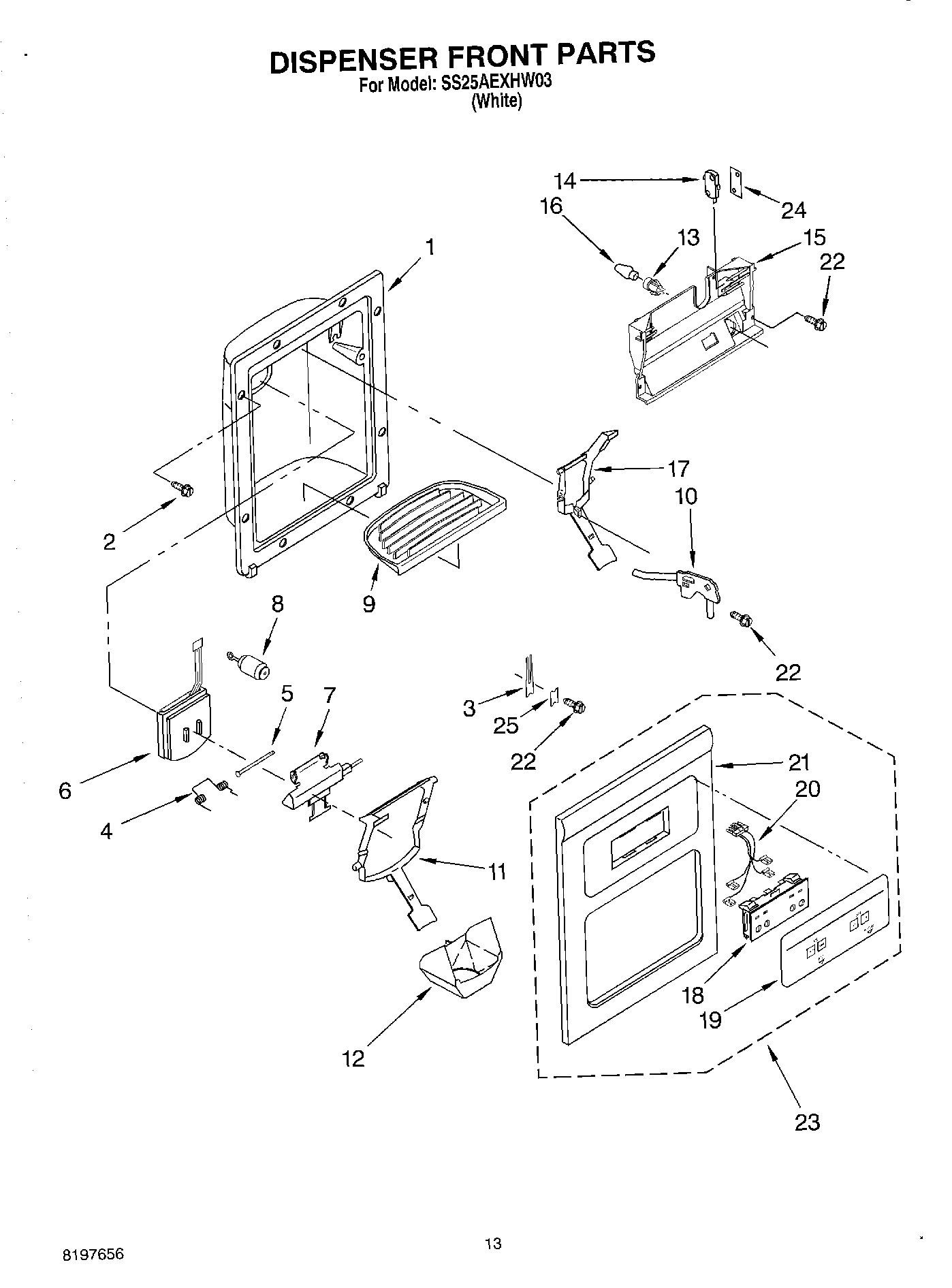

08 - DISPENSER FRONT

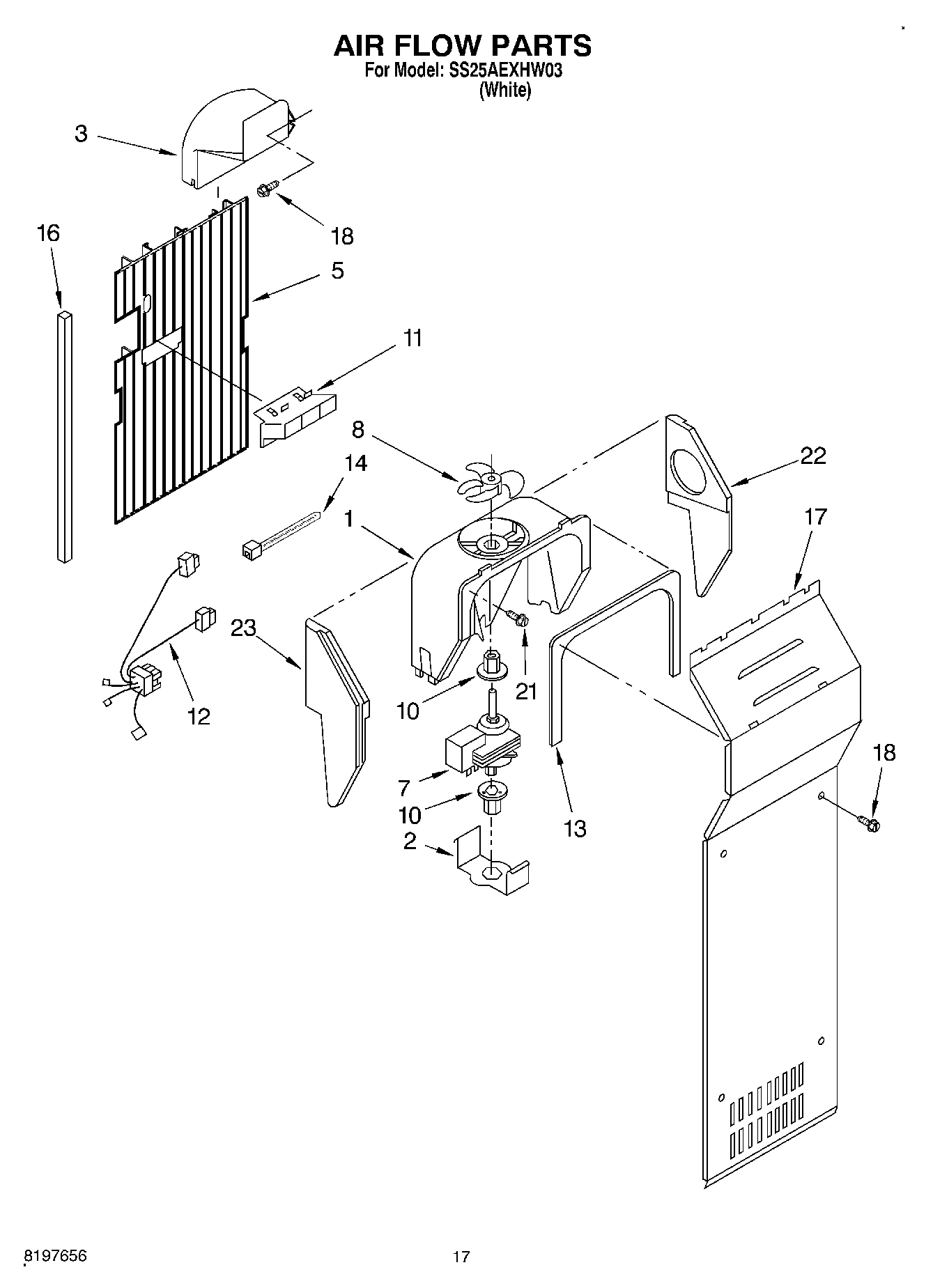

10 - AIR FLOW

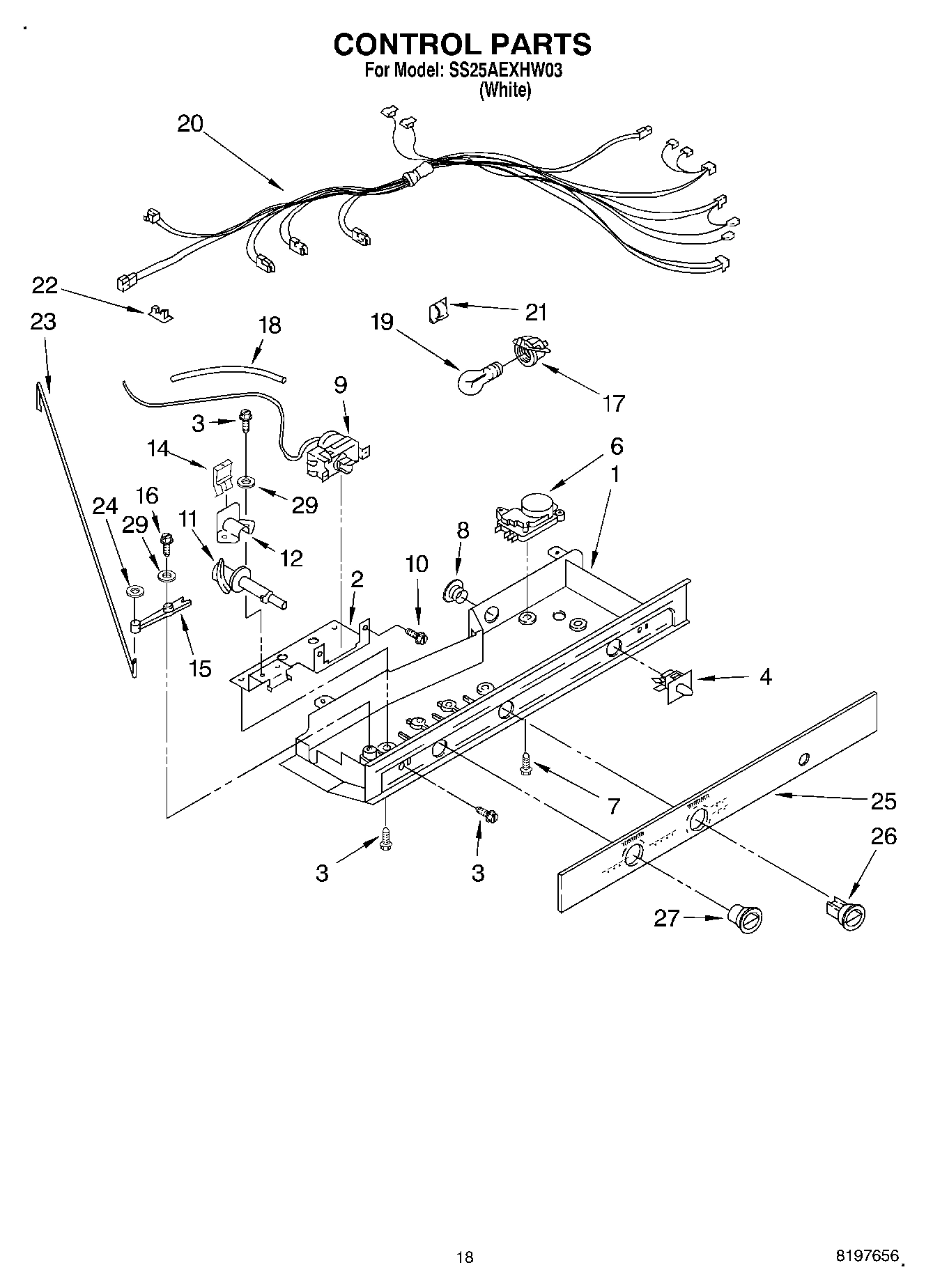

11 - CONTROL

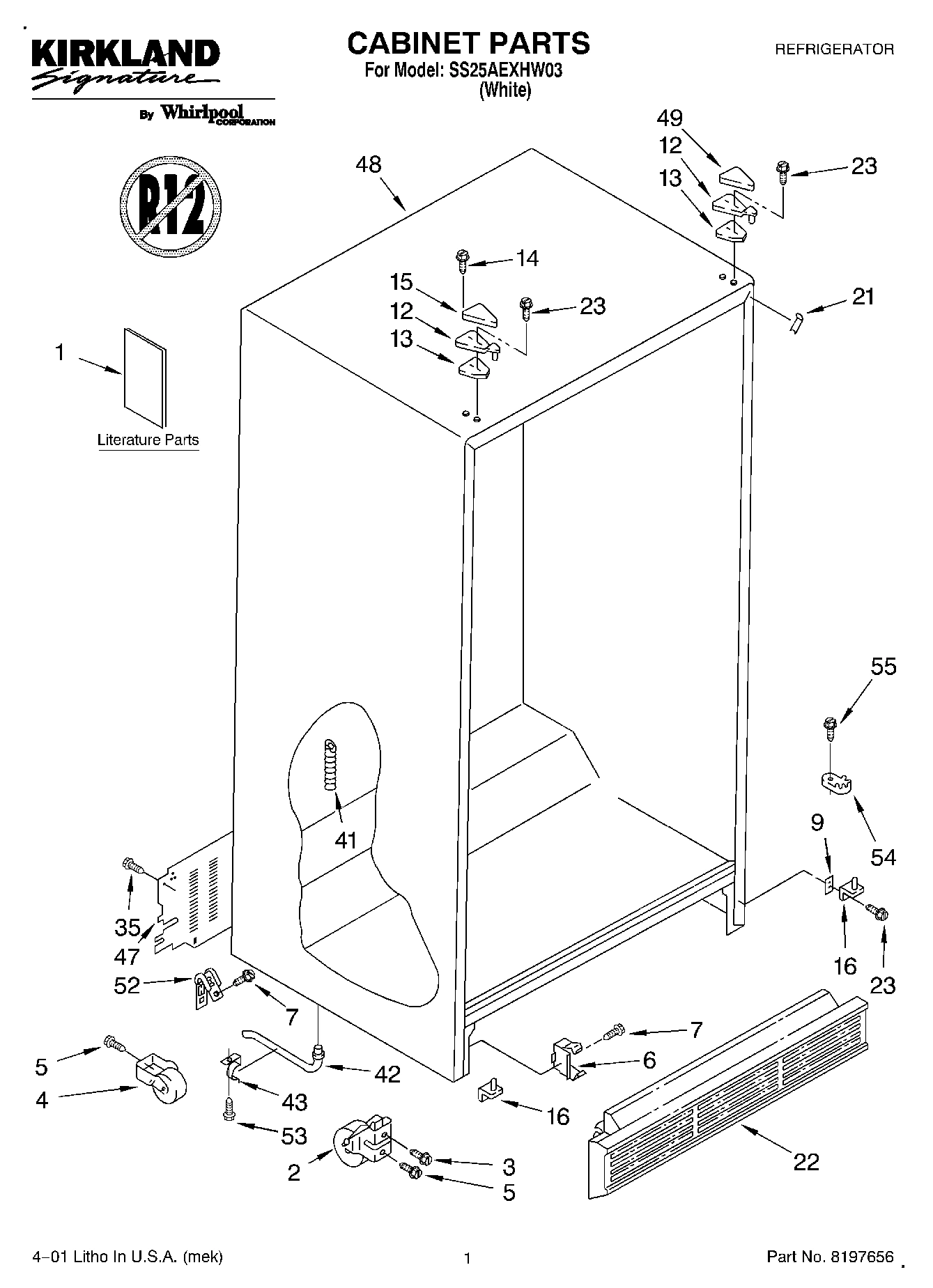

01 - CABINET, LITERATURE

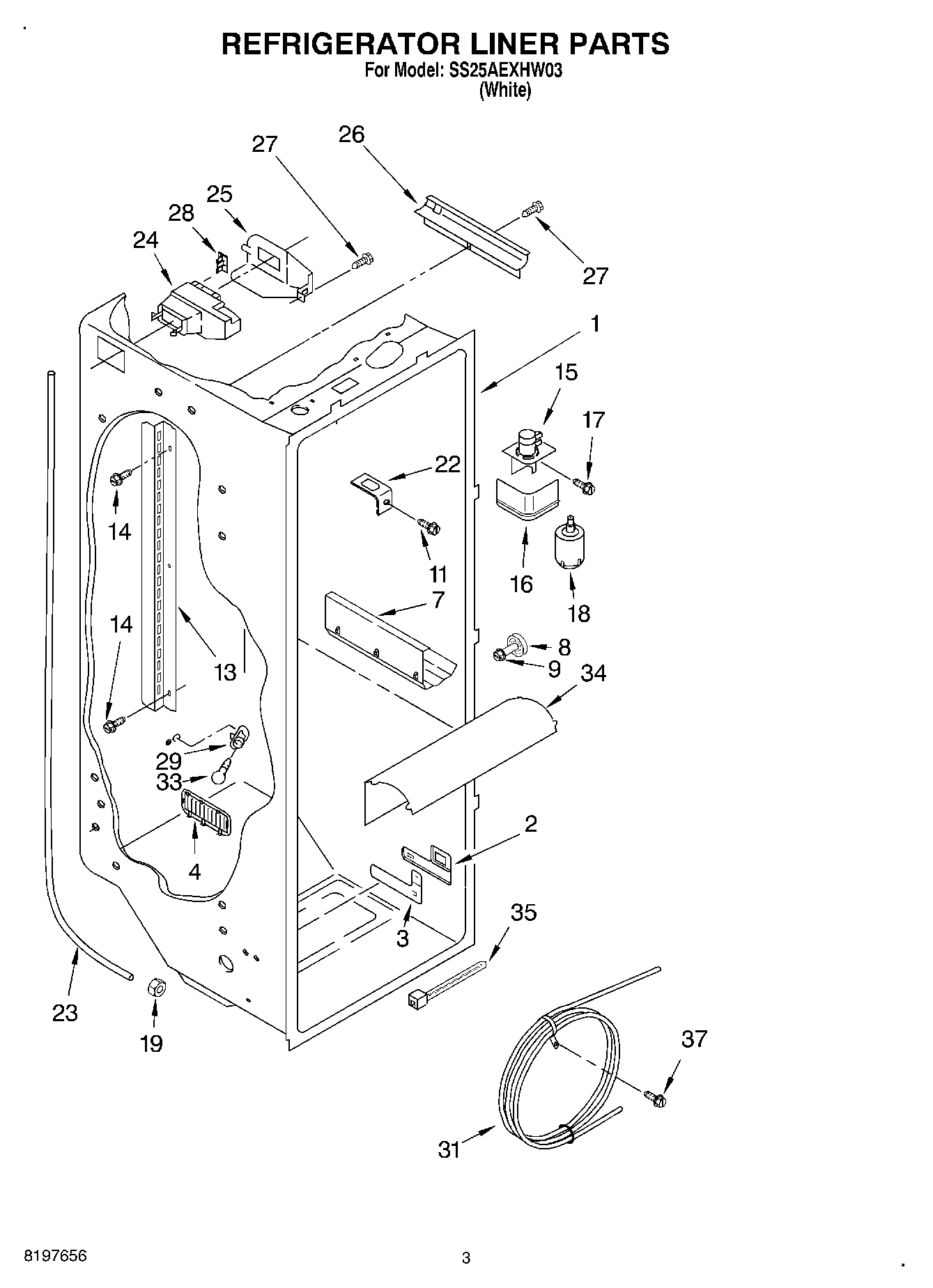

02 - REFRIGERATOR LINER

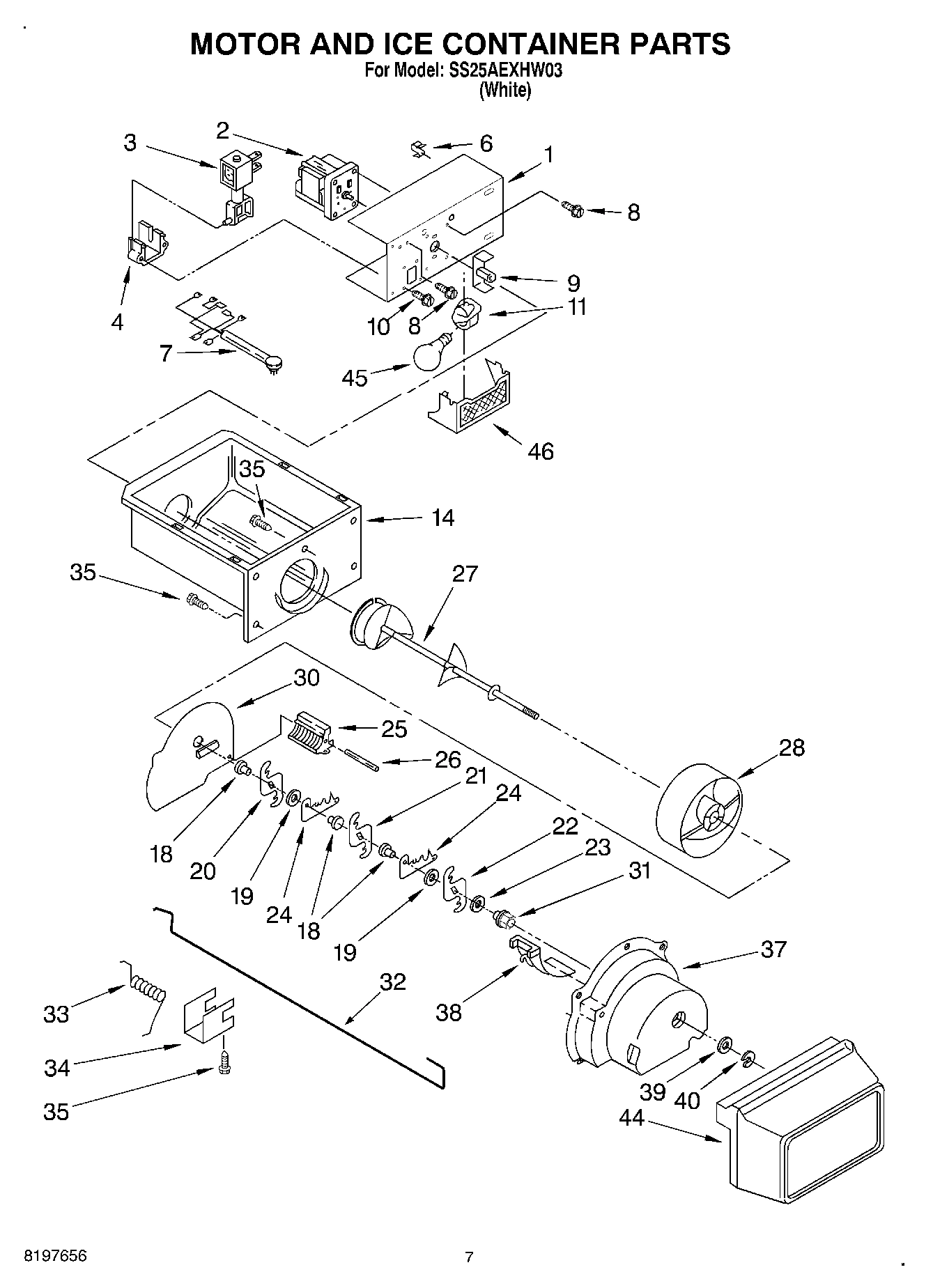

05 - MOTOR AND ICE CONTAINER

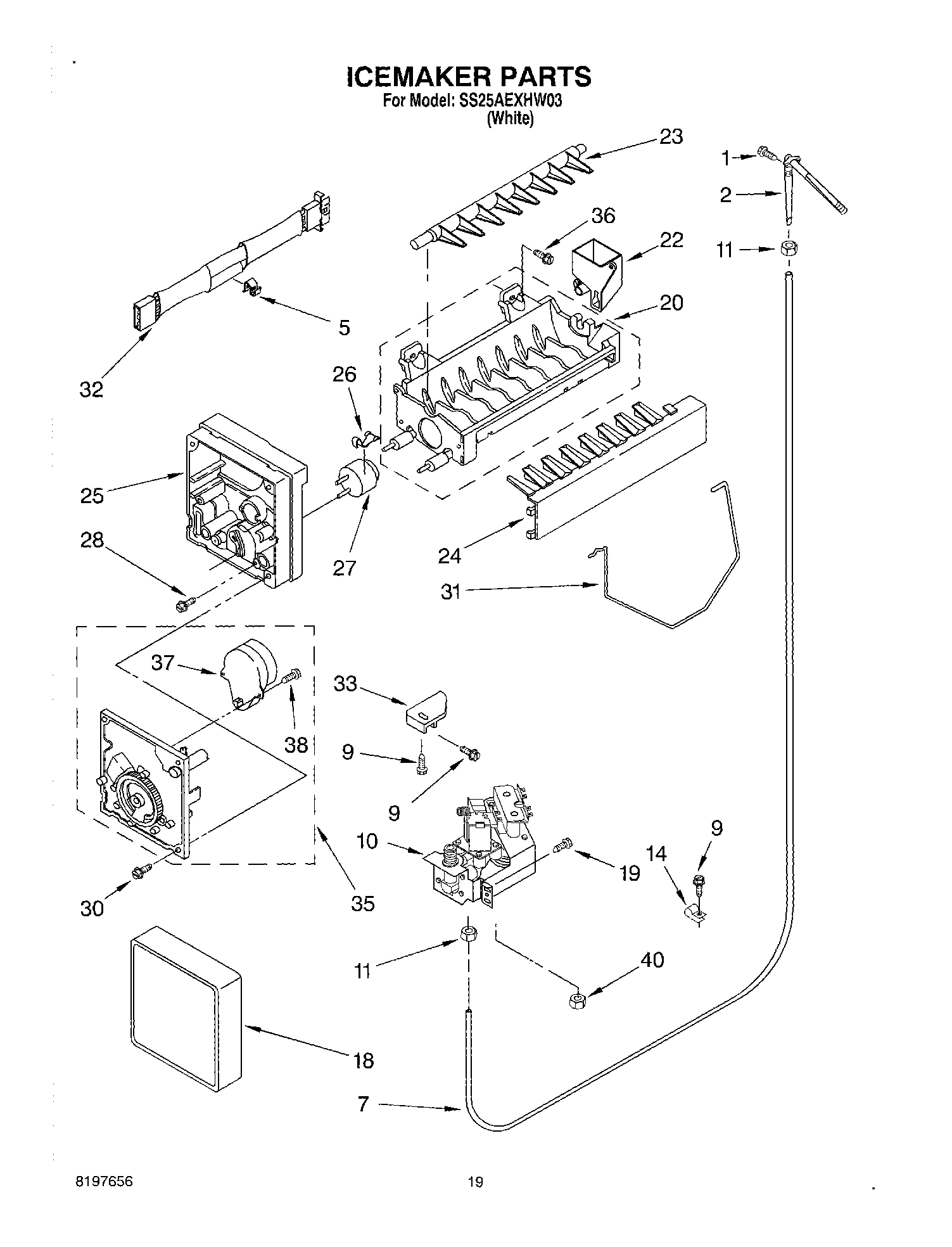

12 - ICE MAKER, OPTIONAL

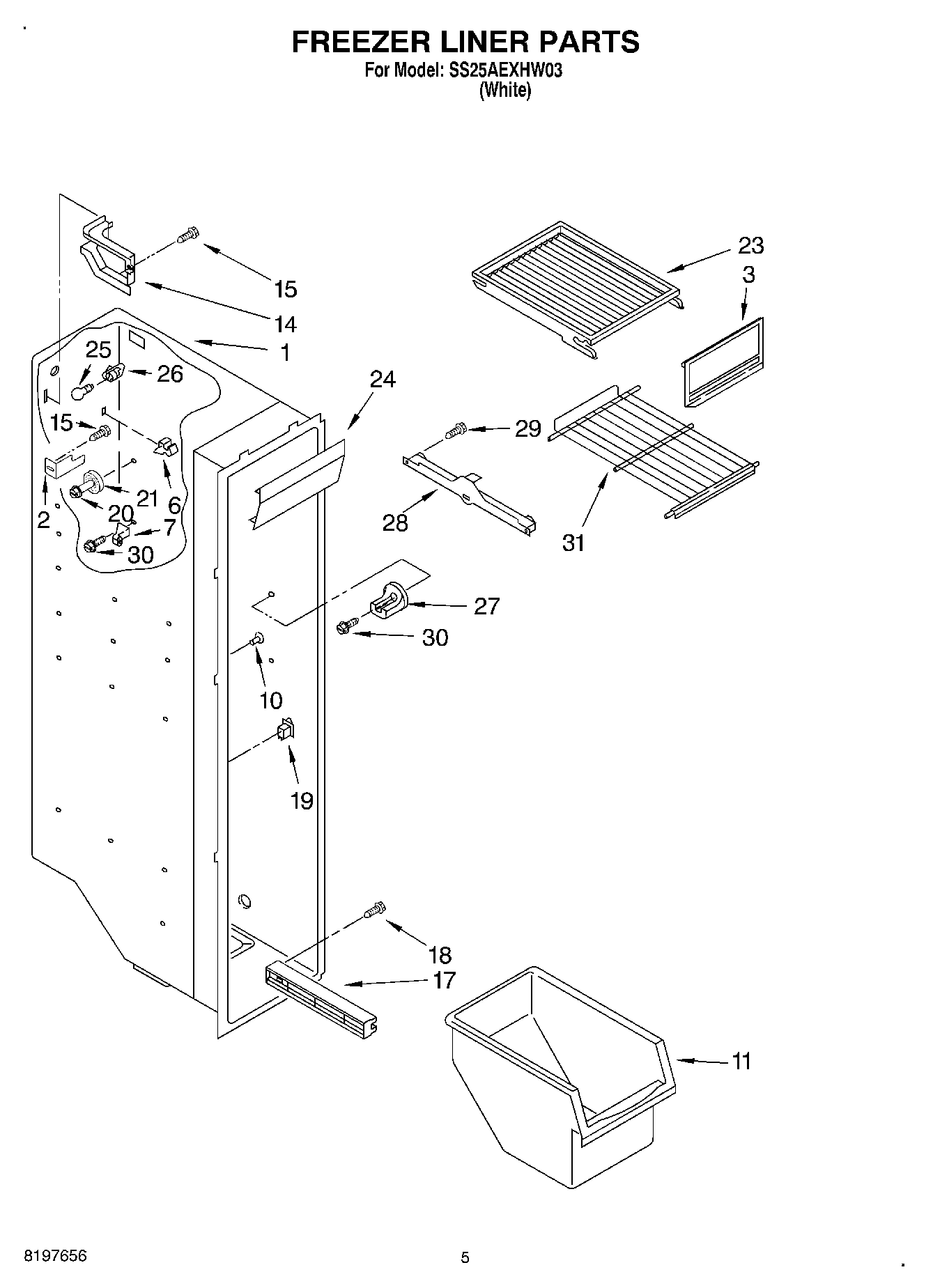

04 - FREEZER LINER

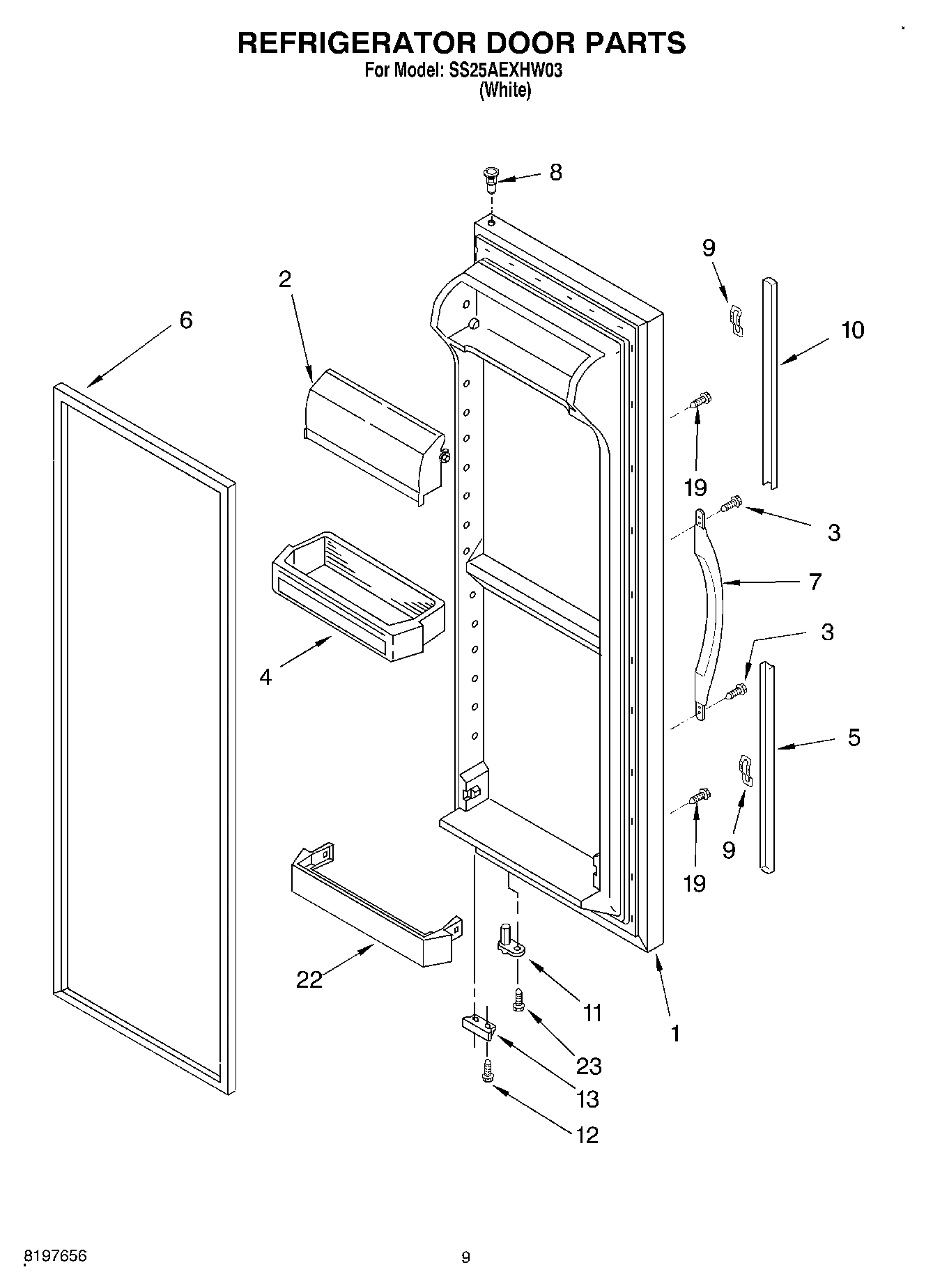

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool SS25AEXHW03 SIDE BY SIDE REFRIGERATOR
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI130560A Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2194509W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
10
Valve, Solenoid WPL 2206123 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Extension, Handle (White) WPL 2194973W Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
TUBE, SUCTION WPL 2205765 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
17
Extension, Handle (White) WPL 2194969W Contact Us For Availability
17
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Water Tube (Inlet) WPL 2205814 Contact Us For Availability
23
Water Tube (Outlet) WPL 2205815 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lens, Light WPL 2171705 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Cover, Air Diffuser WPL 2152019 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
26
Knob, Thermostat WPL 2182111 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
28
Air Diffuser Cover WPL 2204409 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
34
Light Lens WPL 2206269 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2204321 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
100
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
100
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
100
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
100
xEnamel, Almond (13 Oz. Spray Can) WPL 350956 Contact Us For Availability
100
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
100
WPL 876370 WPL 876370 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
WPL 833938 WPL 833938 Contact Us For Availability
100
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, EVA WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
