Model Speed Queen SDGNXRGS113CW02 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Coin Drop Models
Control Panel and Controls - Rear Control Card Models

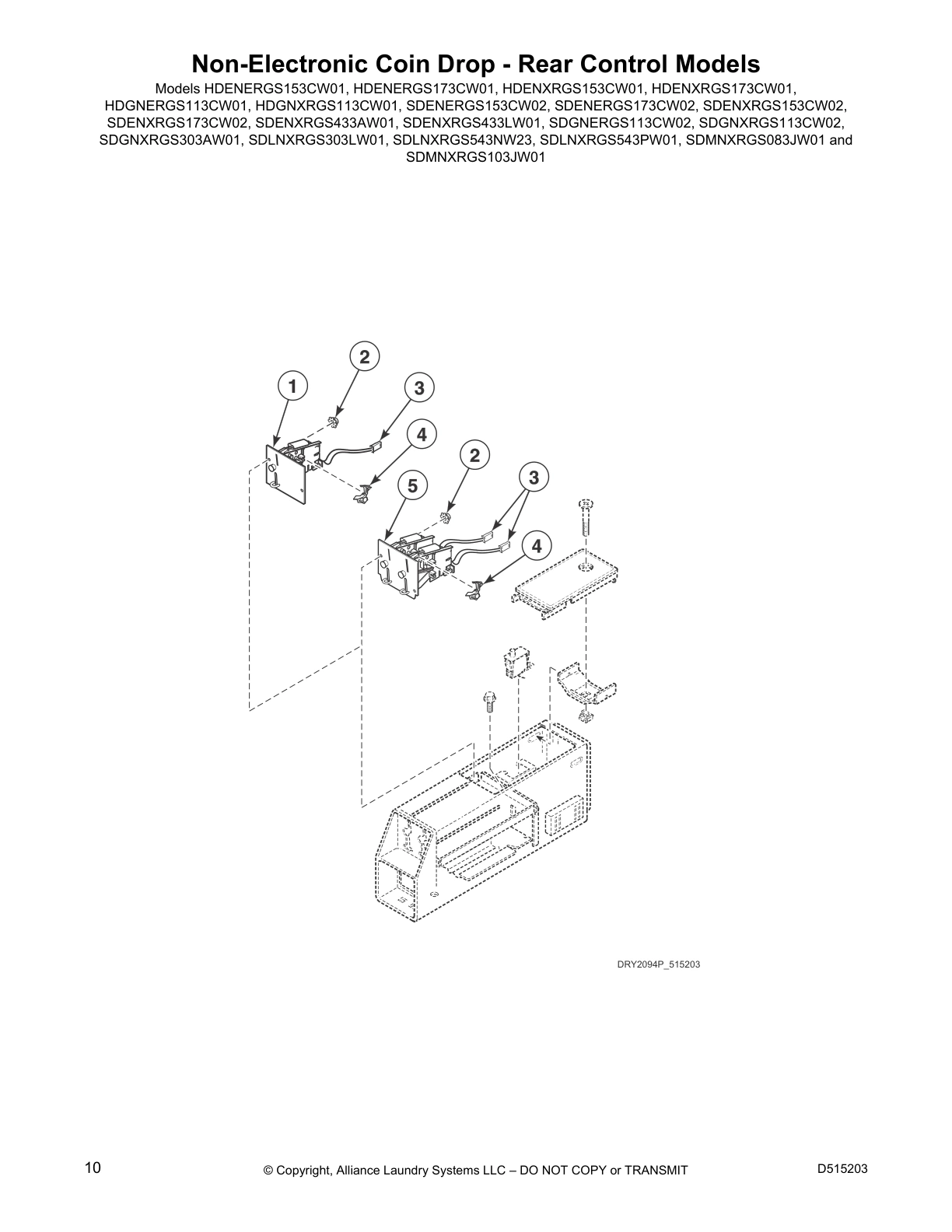

Non-Electronic Coin Drop - Rear Control Models

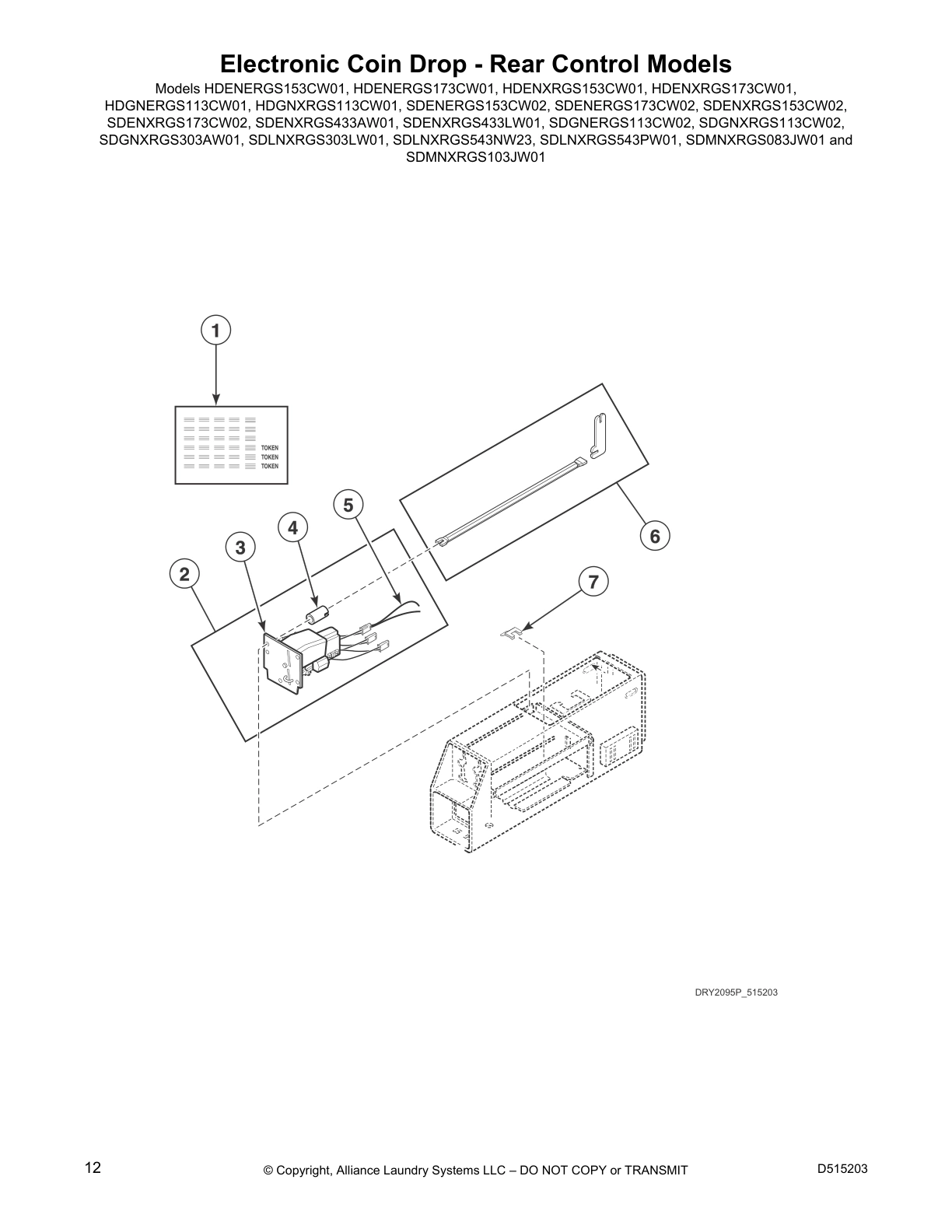

Electronic Coin Drop - Rear Control Models

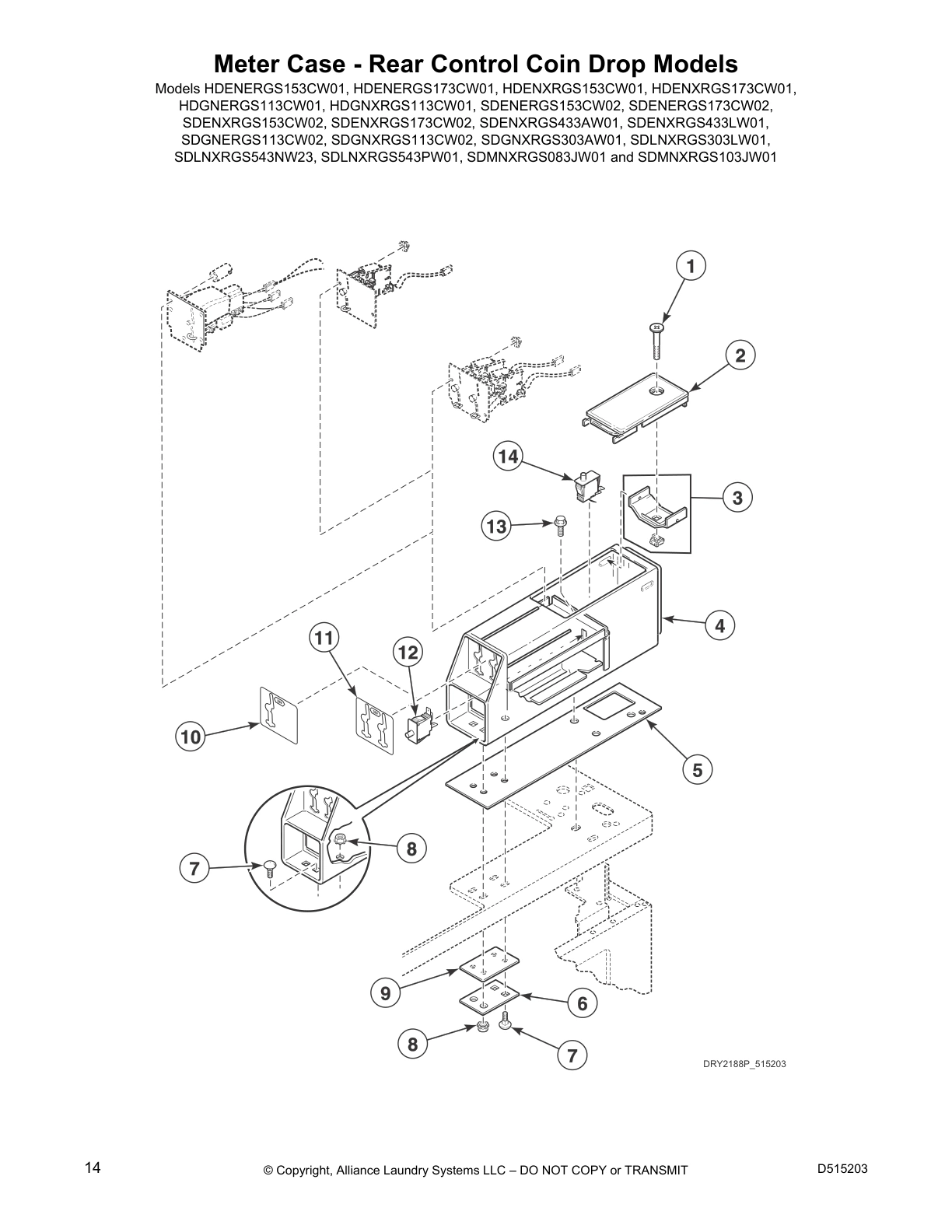

Meter Case - Rear Control Coin Drop Models

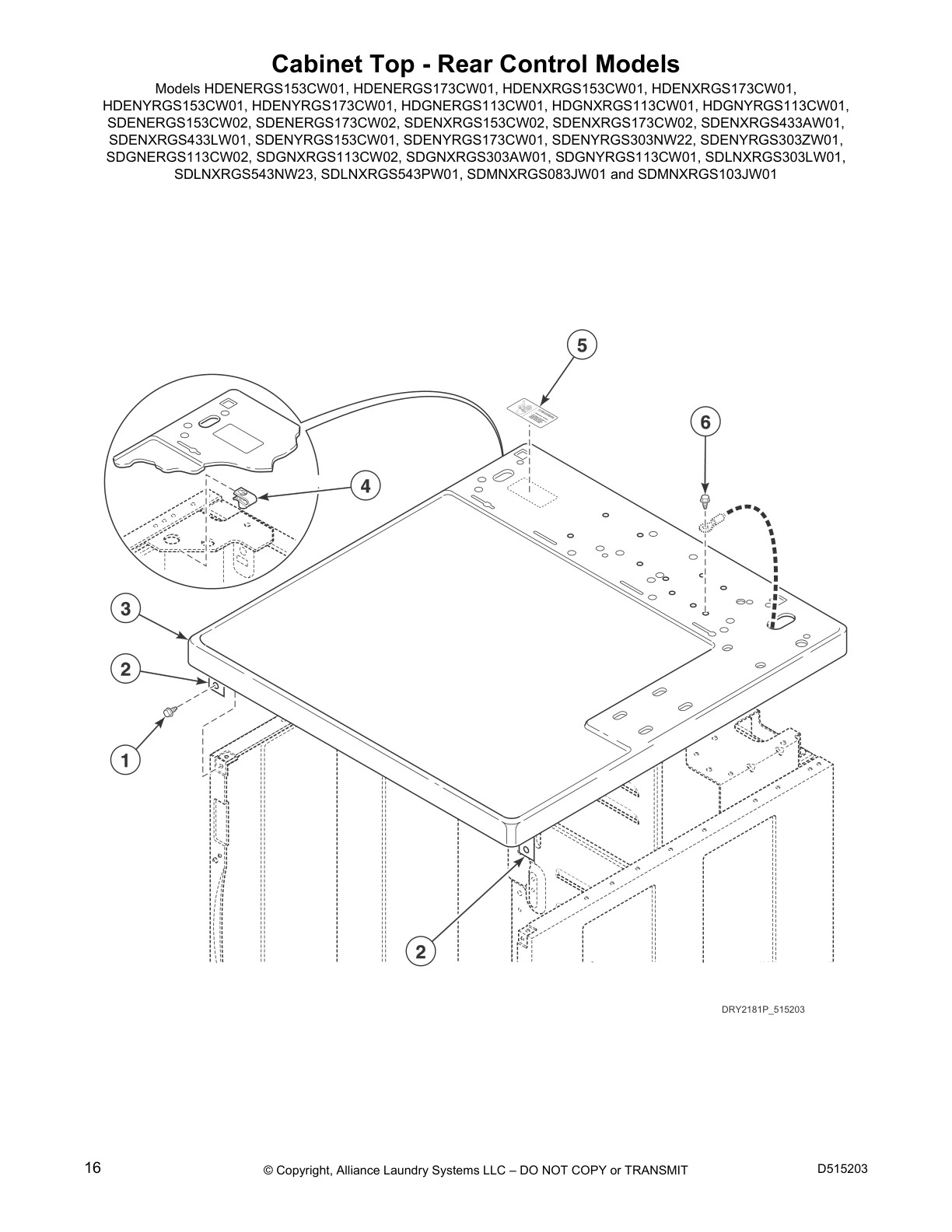

Cabinet Top - Rear Control Models

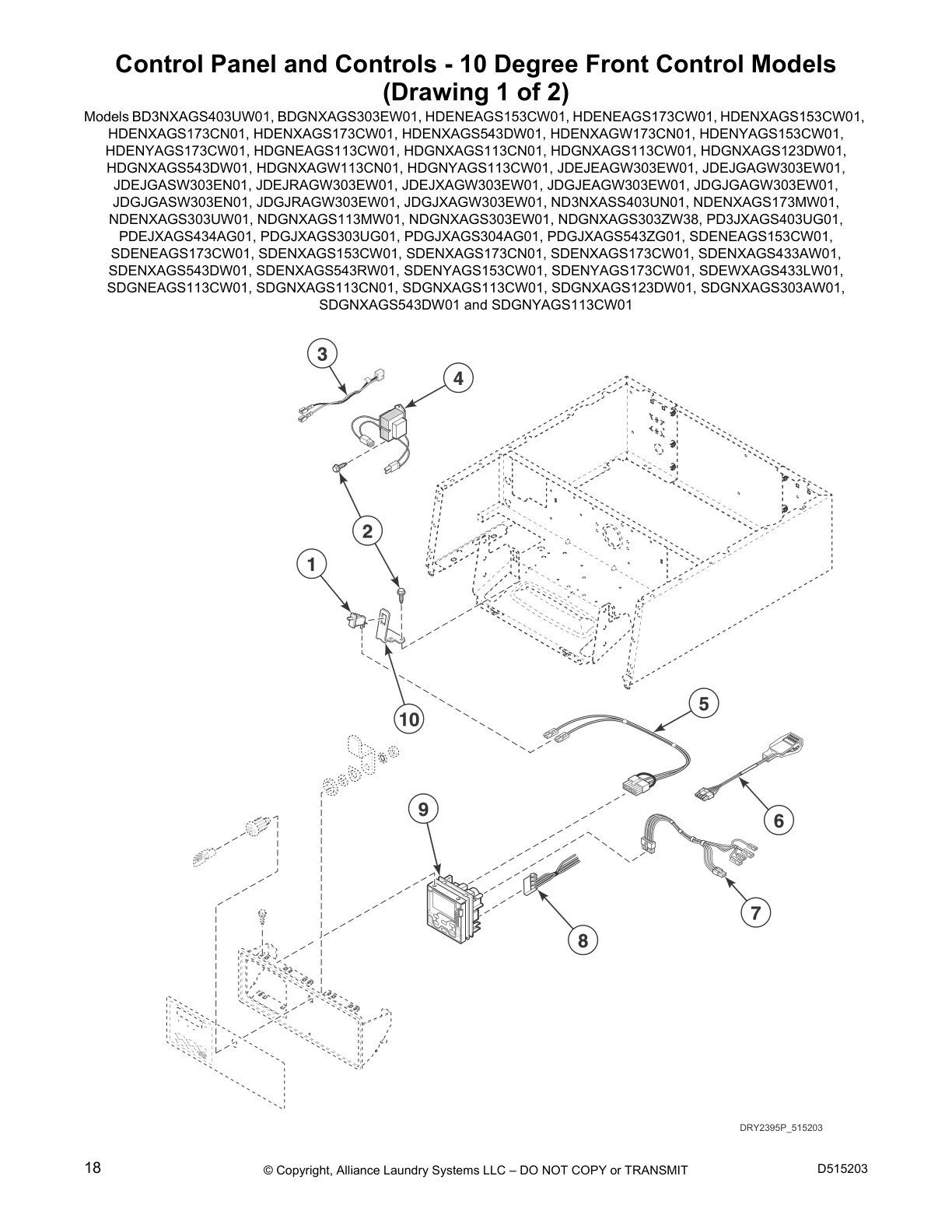

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

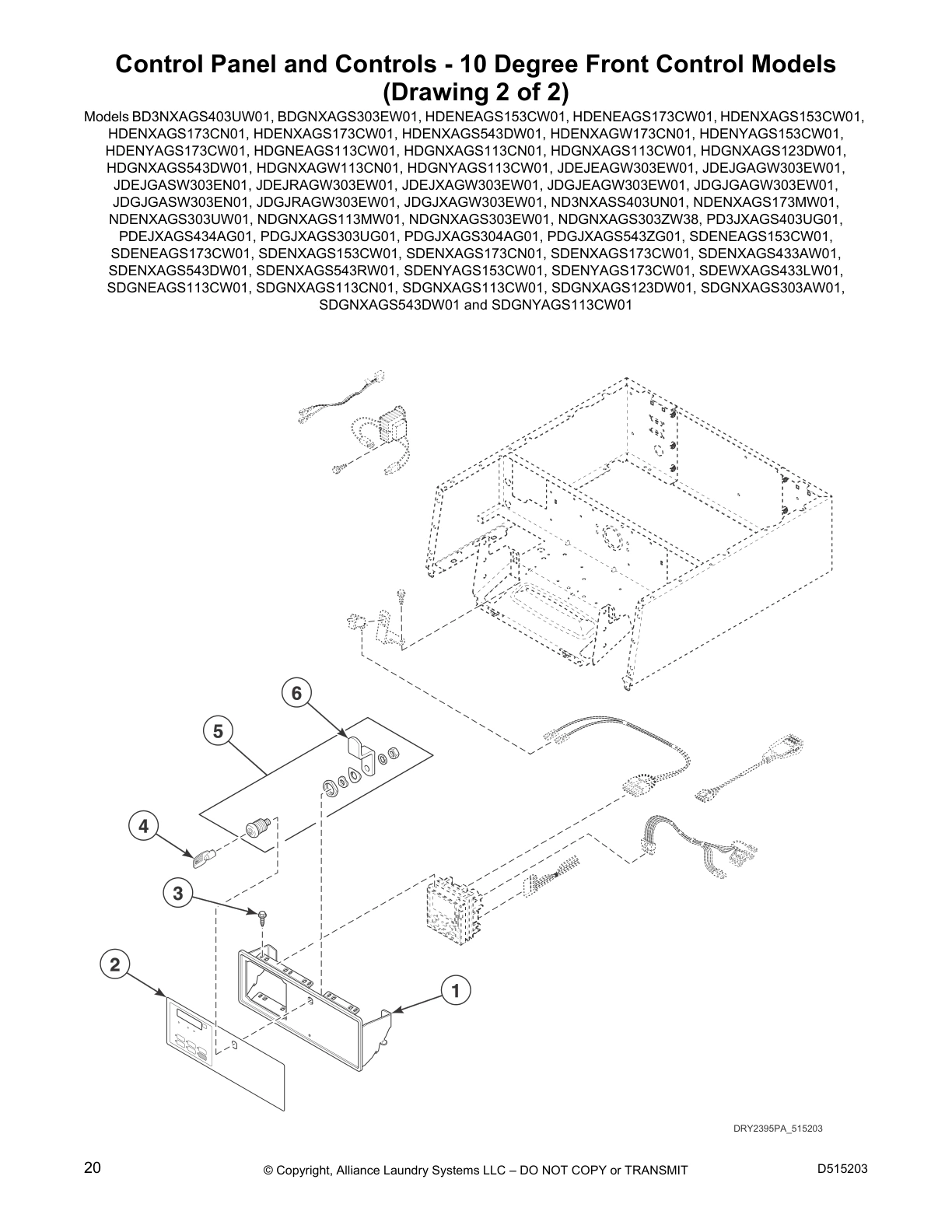

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

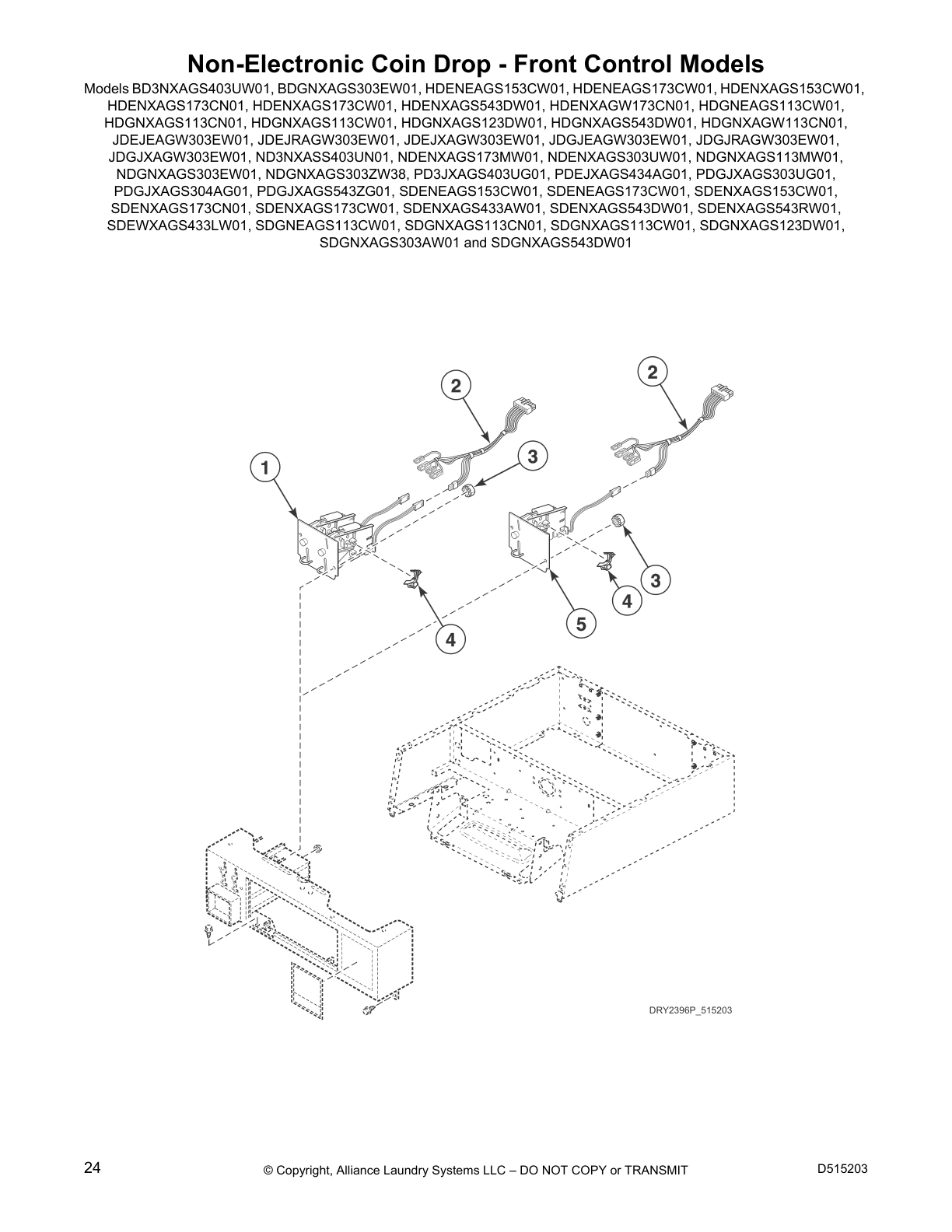

Non-Electronic Coin Drop - Front Control Models

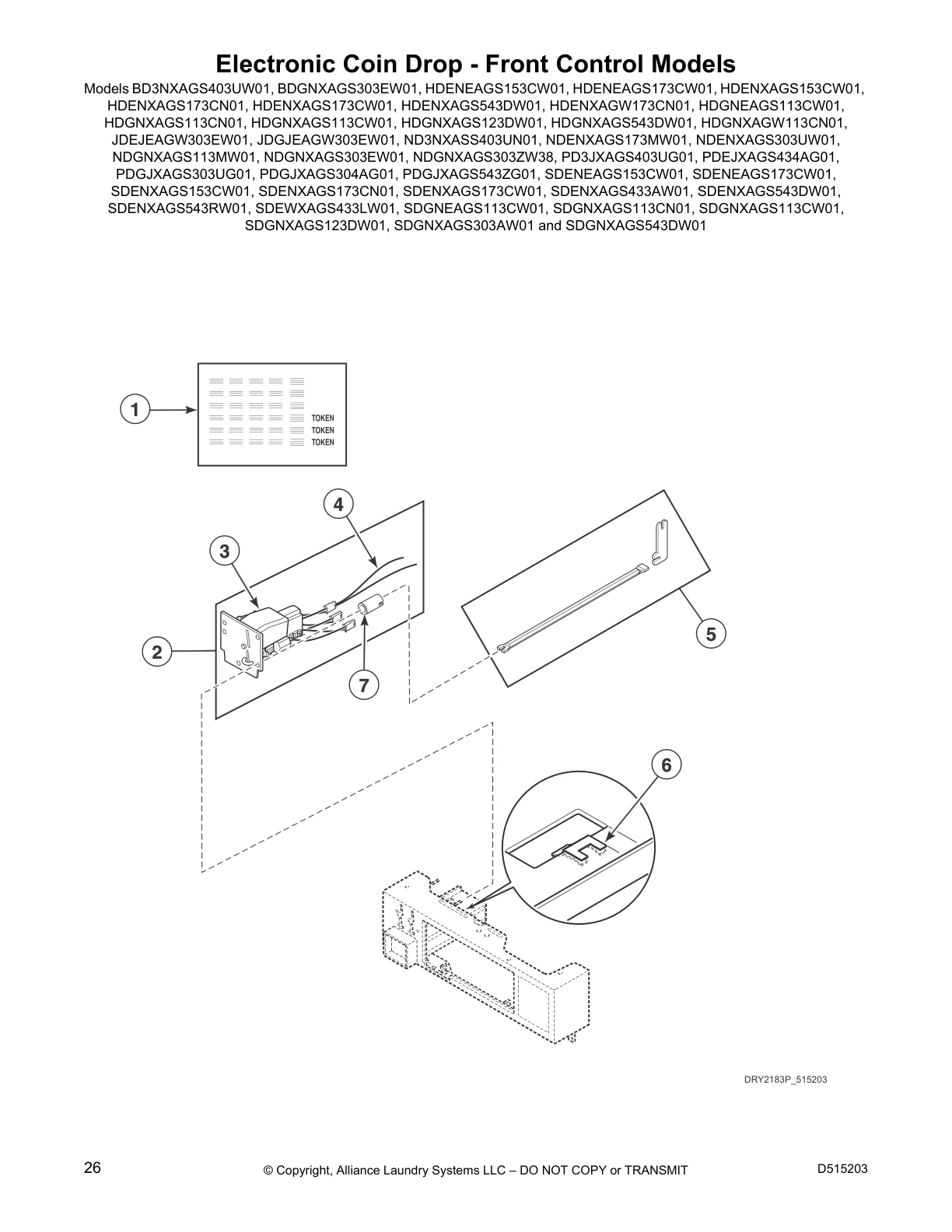

Electronic Coin Drop - Front Control Models

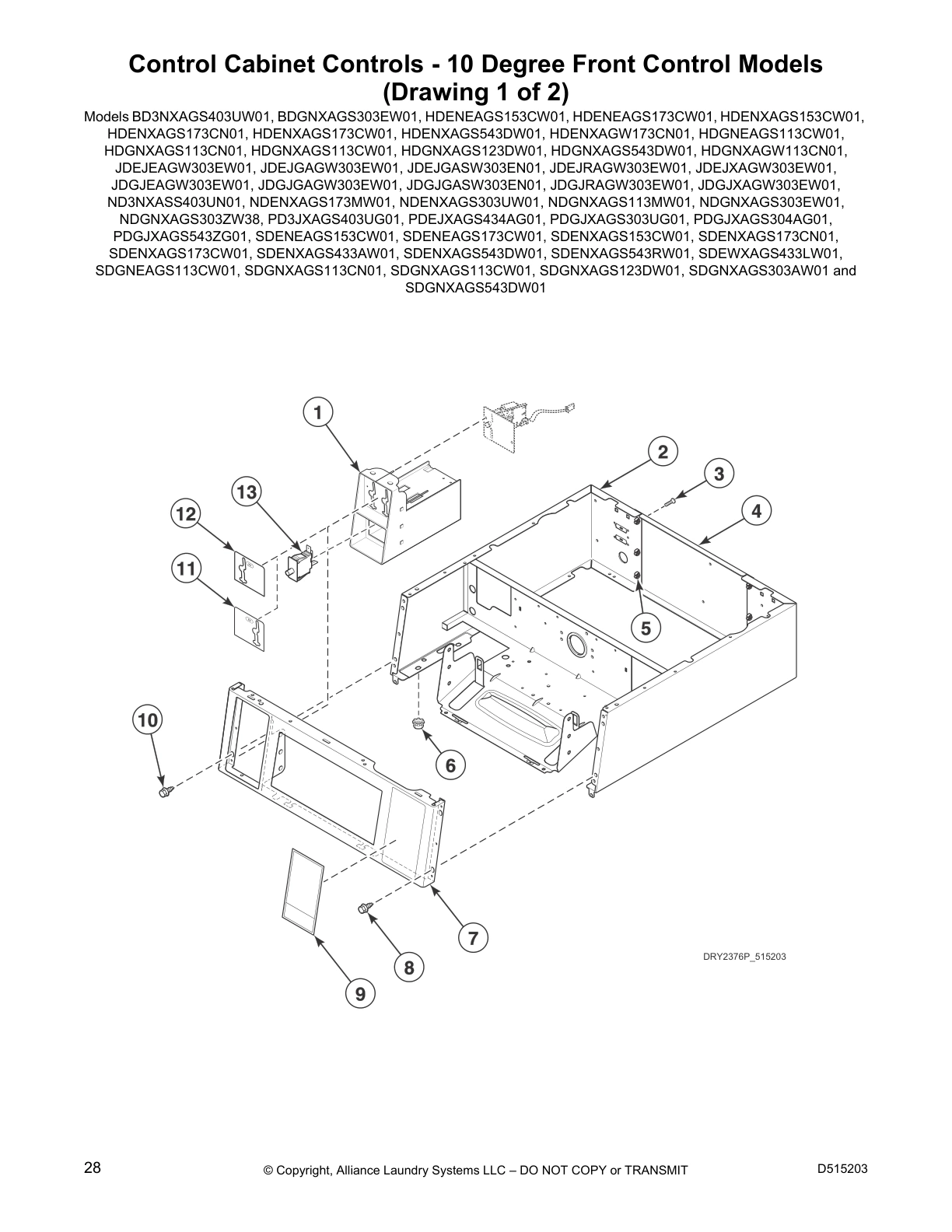

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

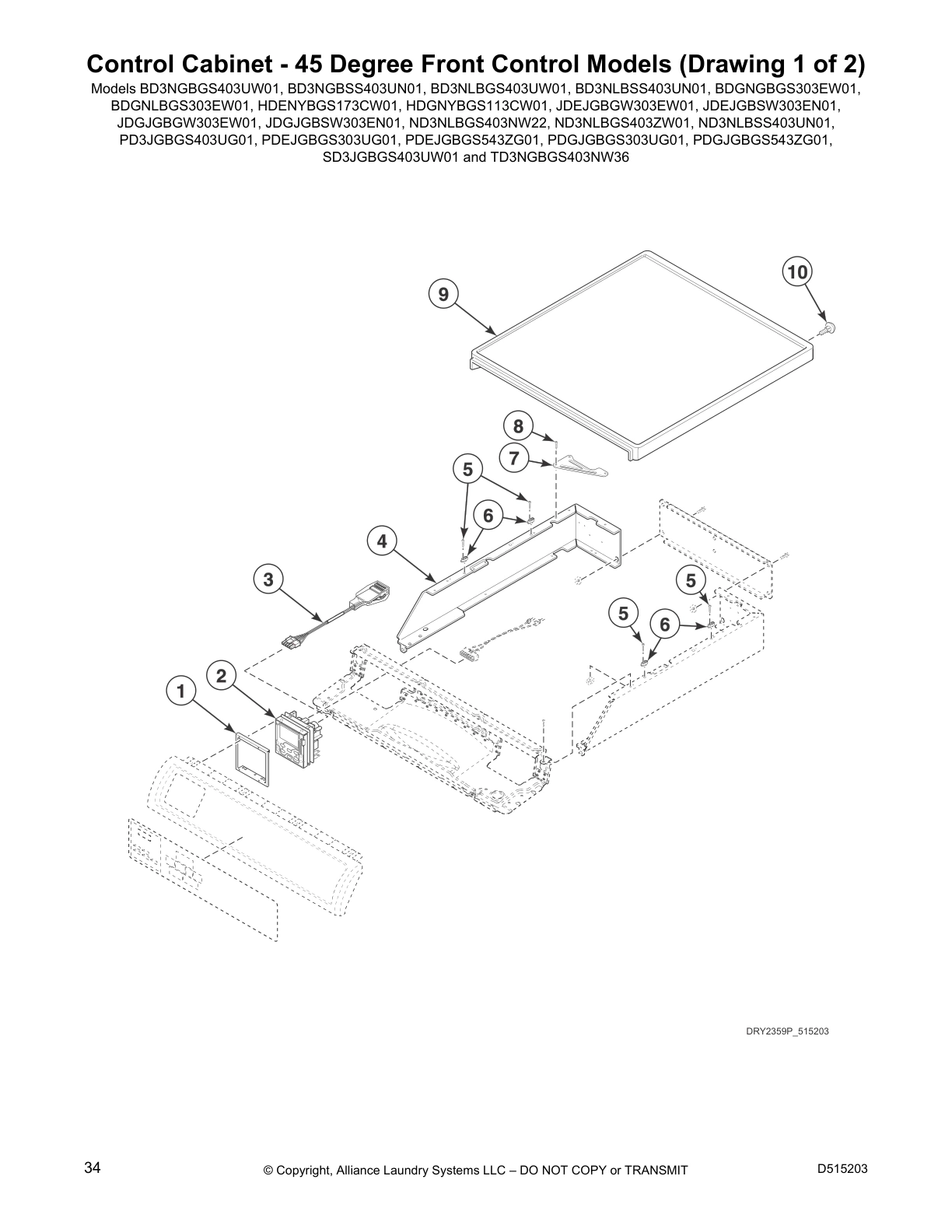

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)

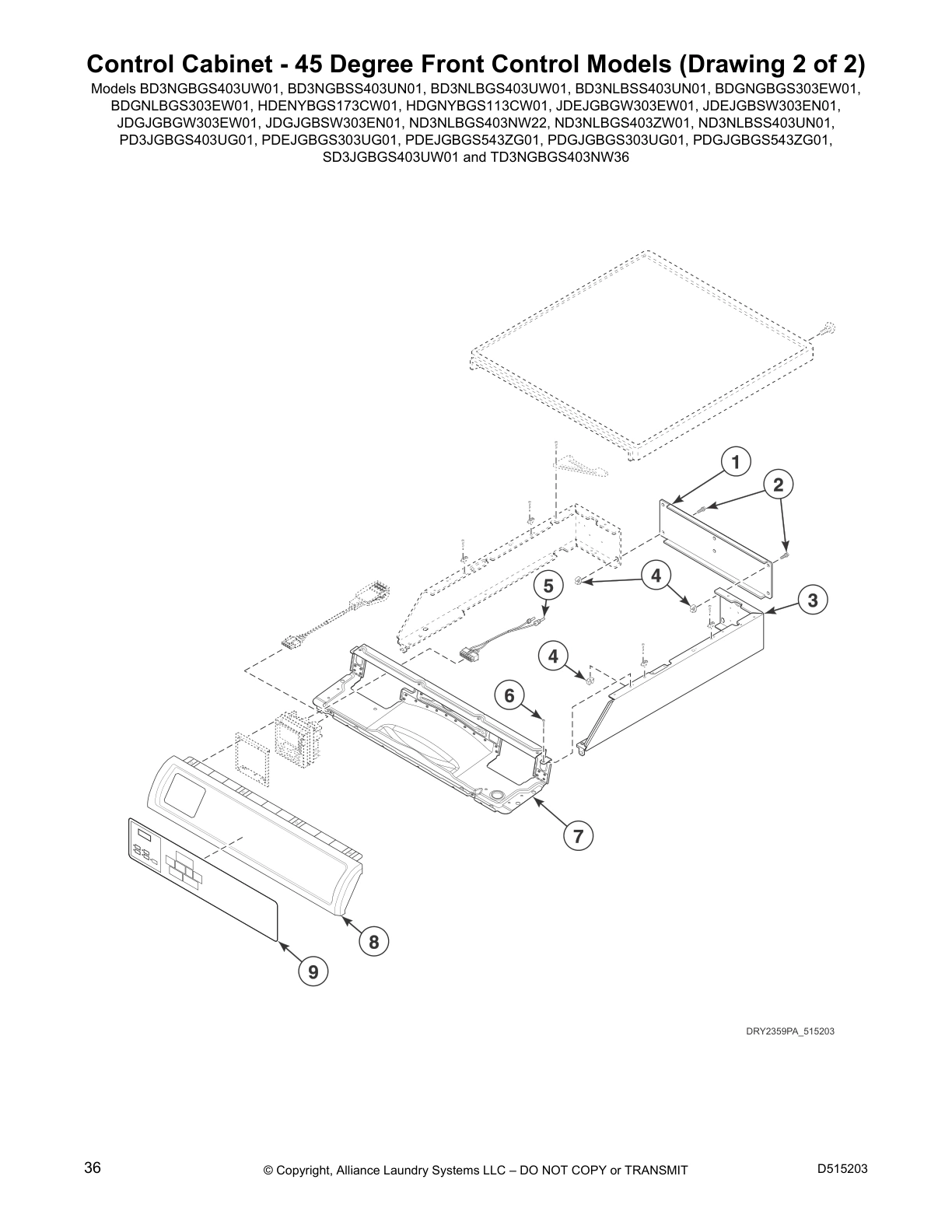

Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)

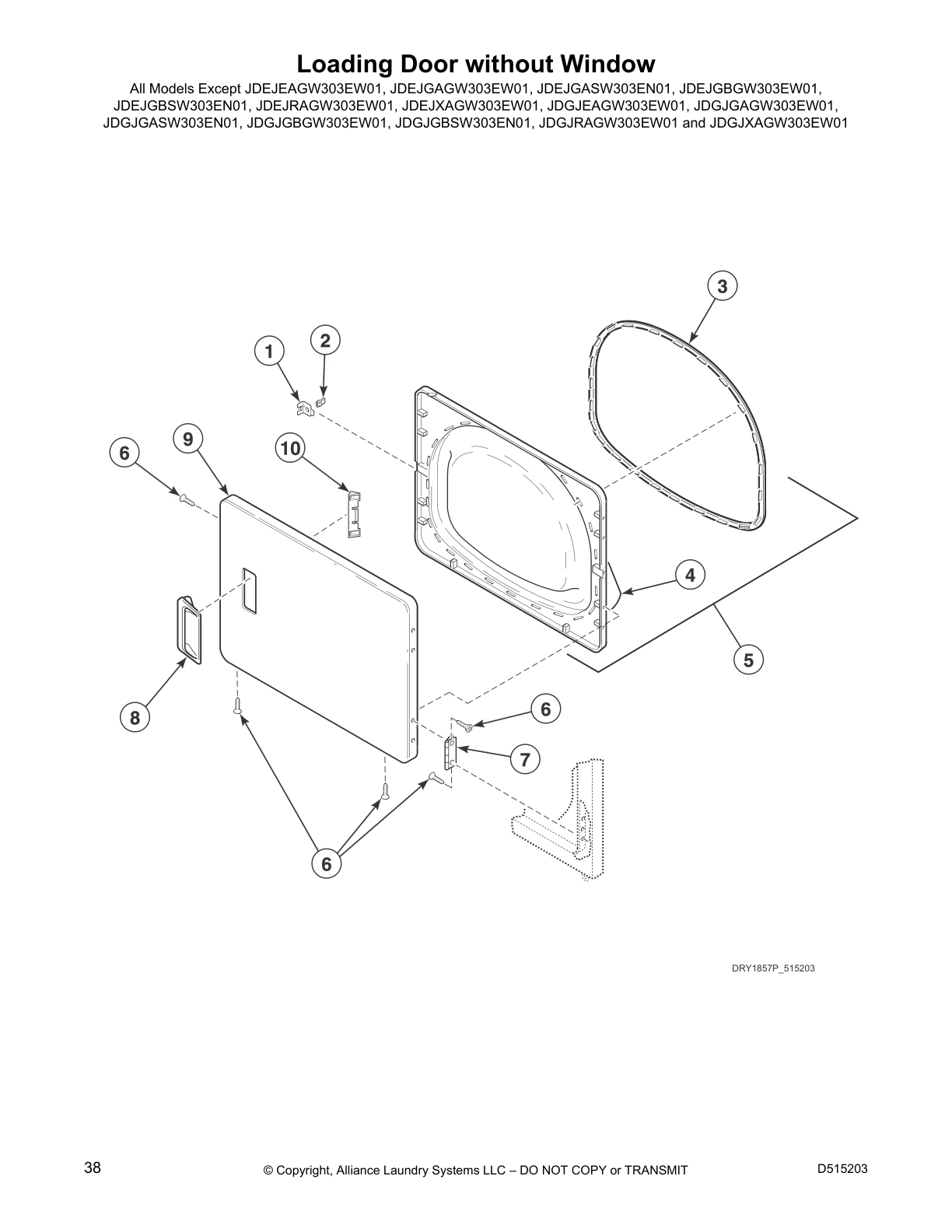

Loading Door without Window

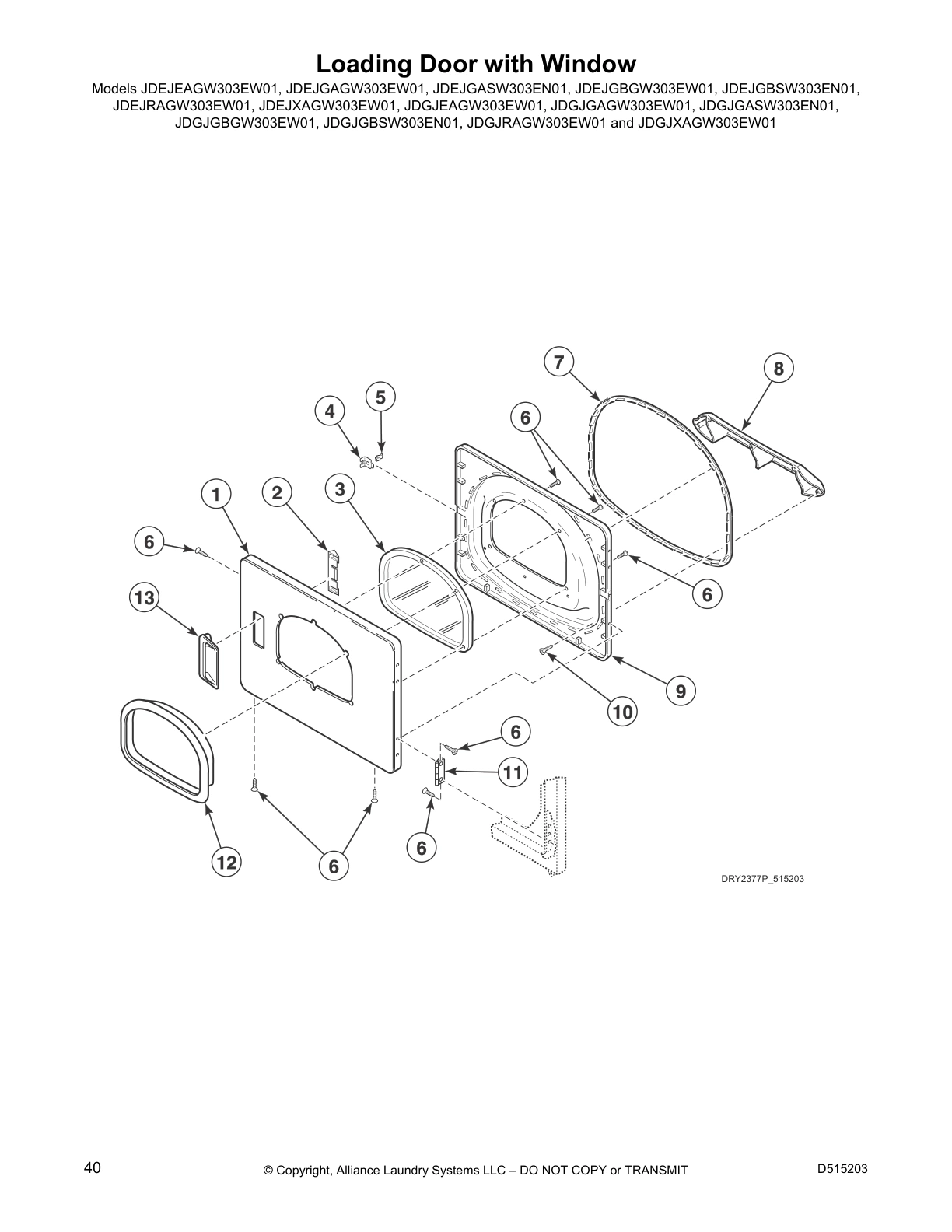

Loading Door with Window

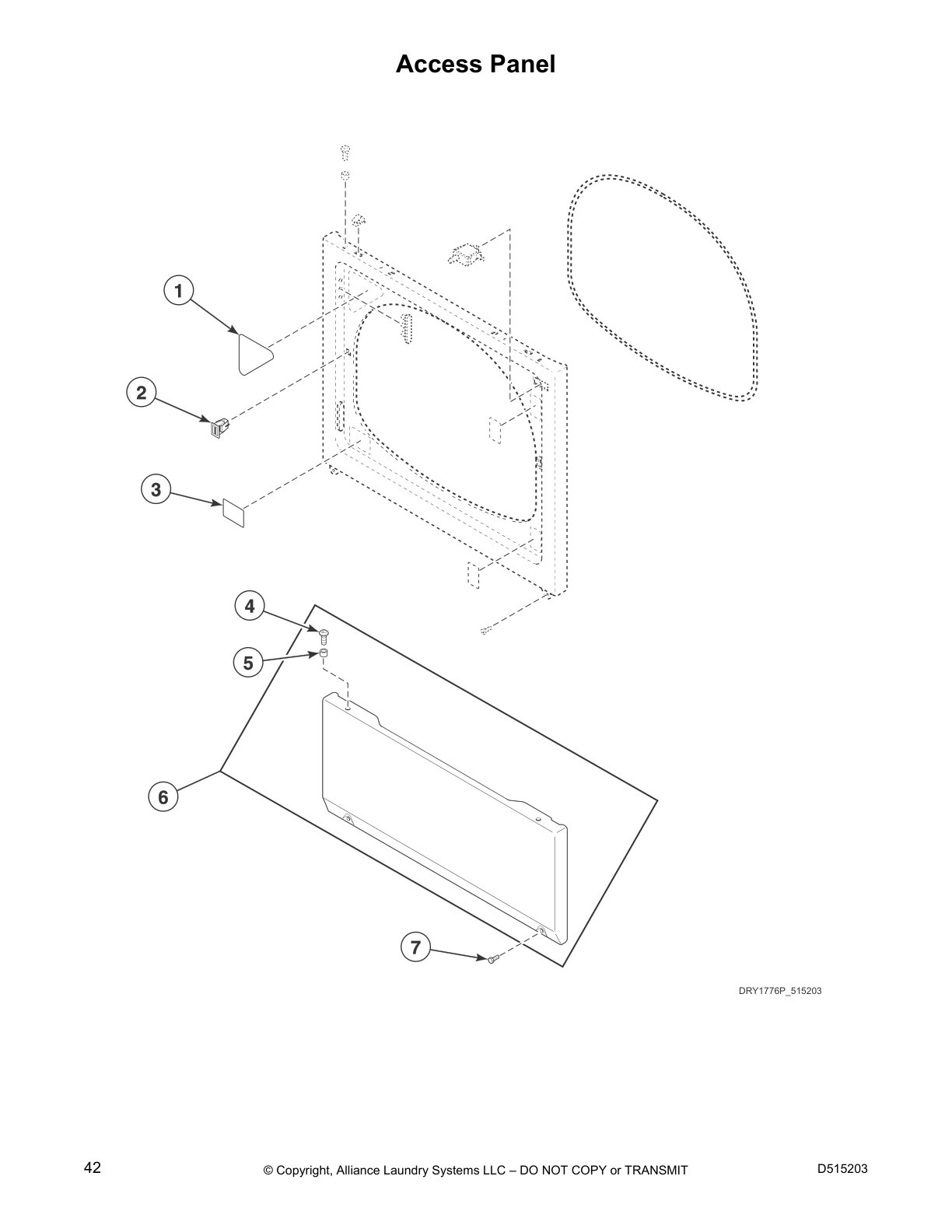

Access Panel

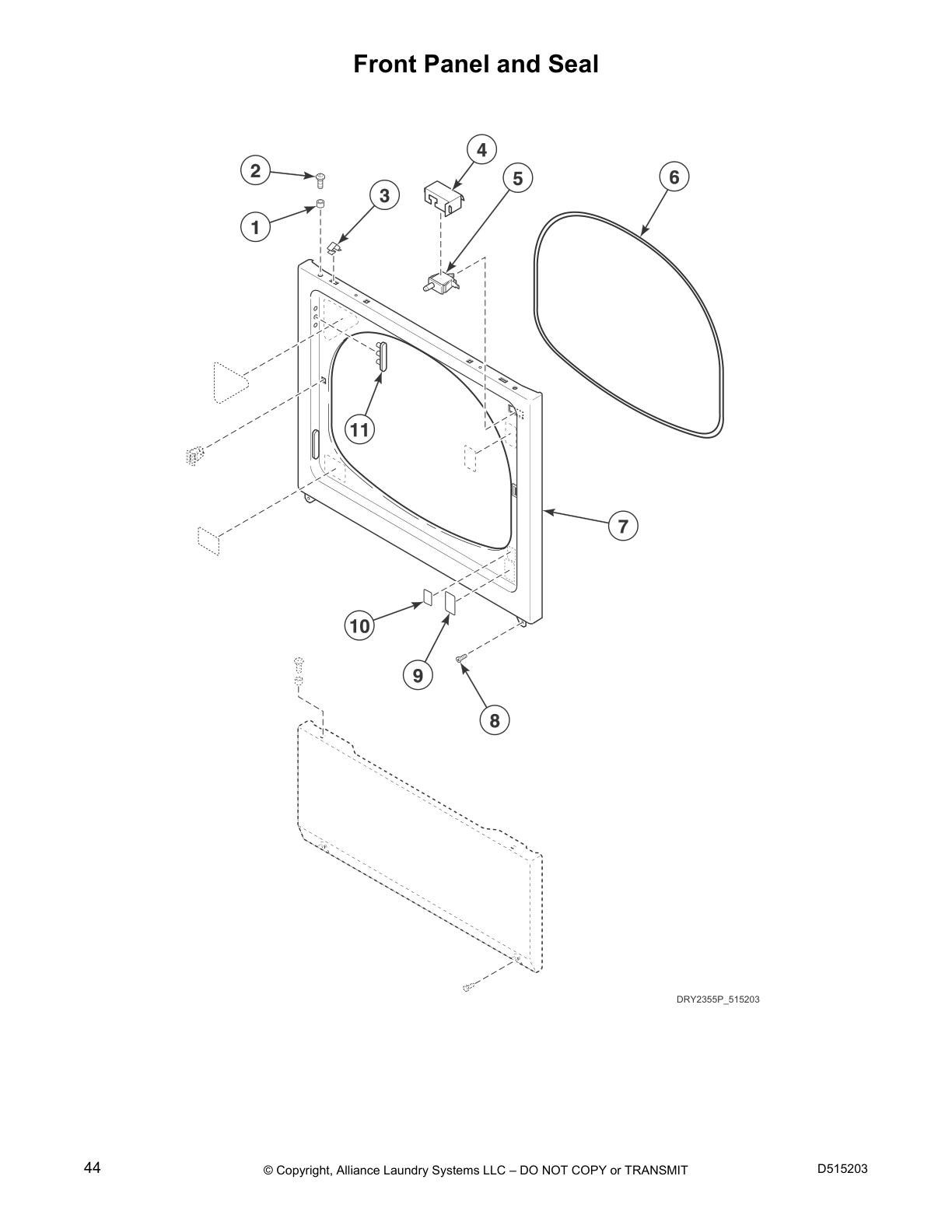

Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler
Thermistor

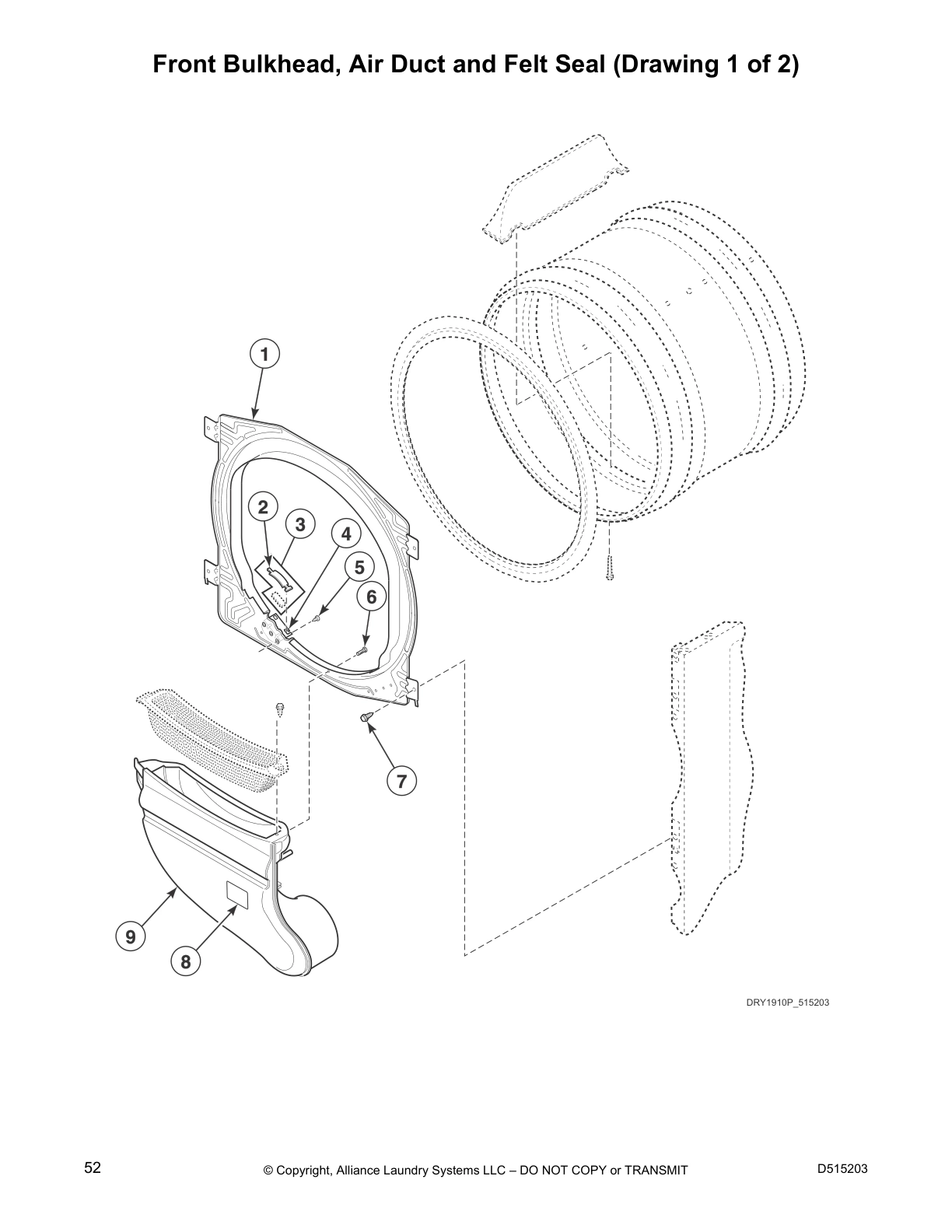

Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

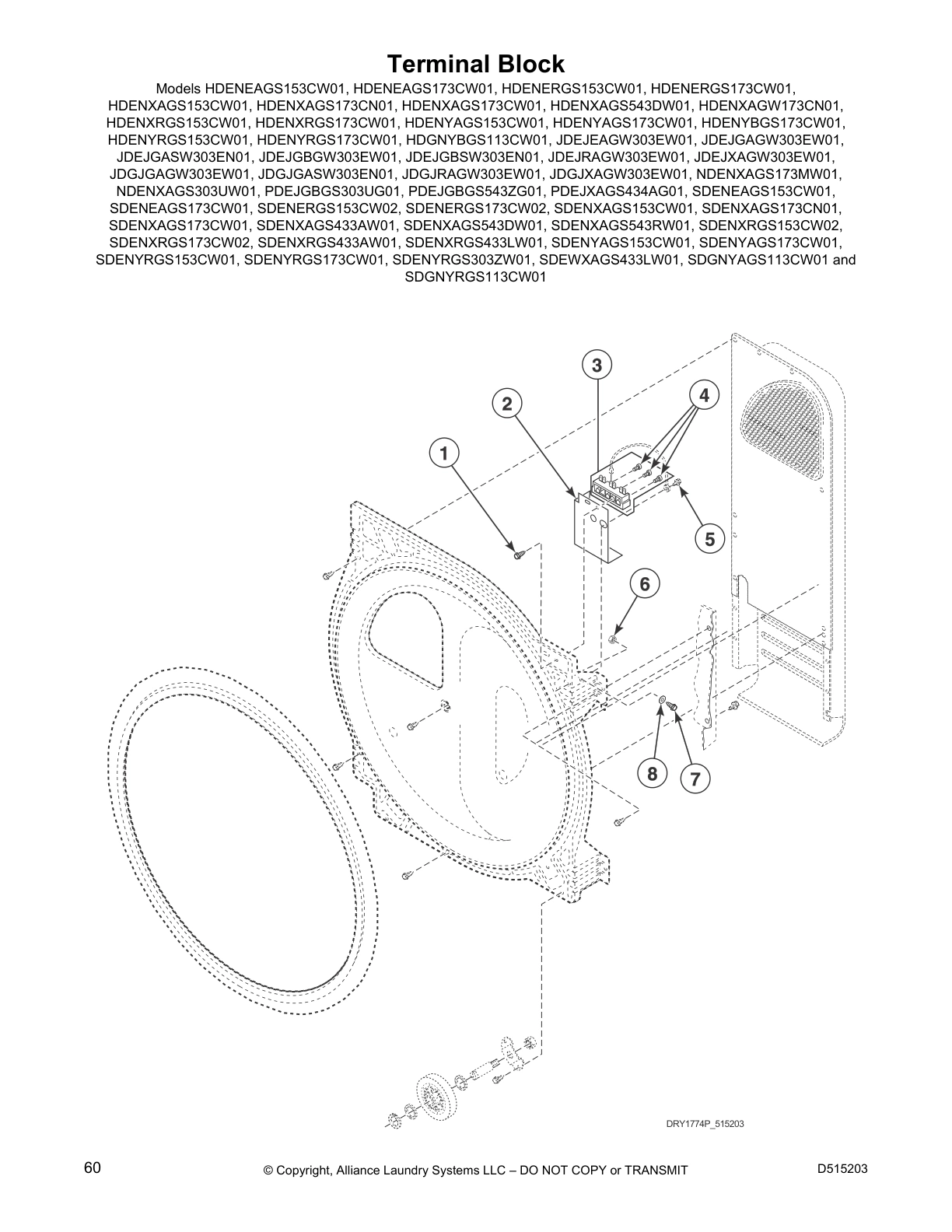

Terminal Block

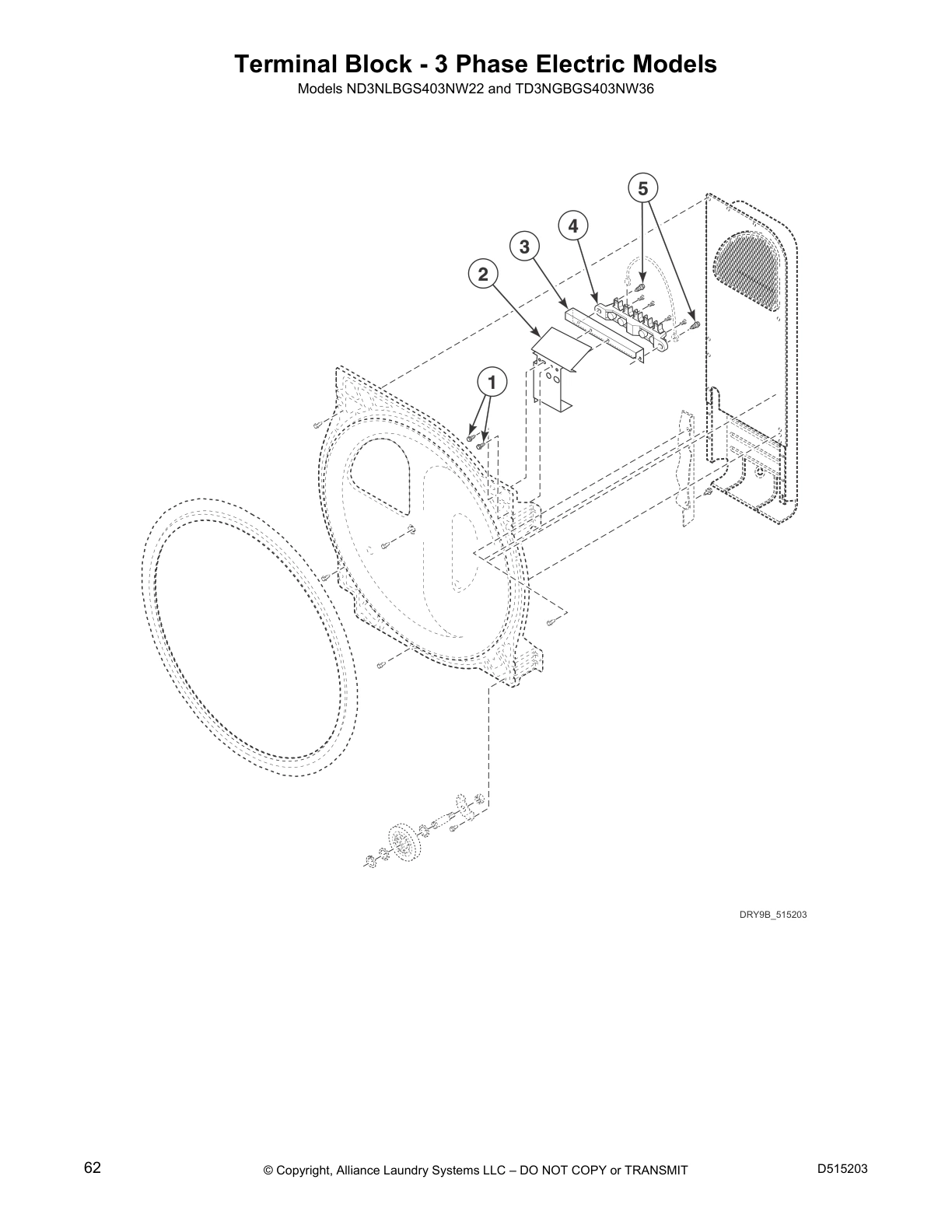

Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models

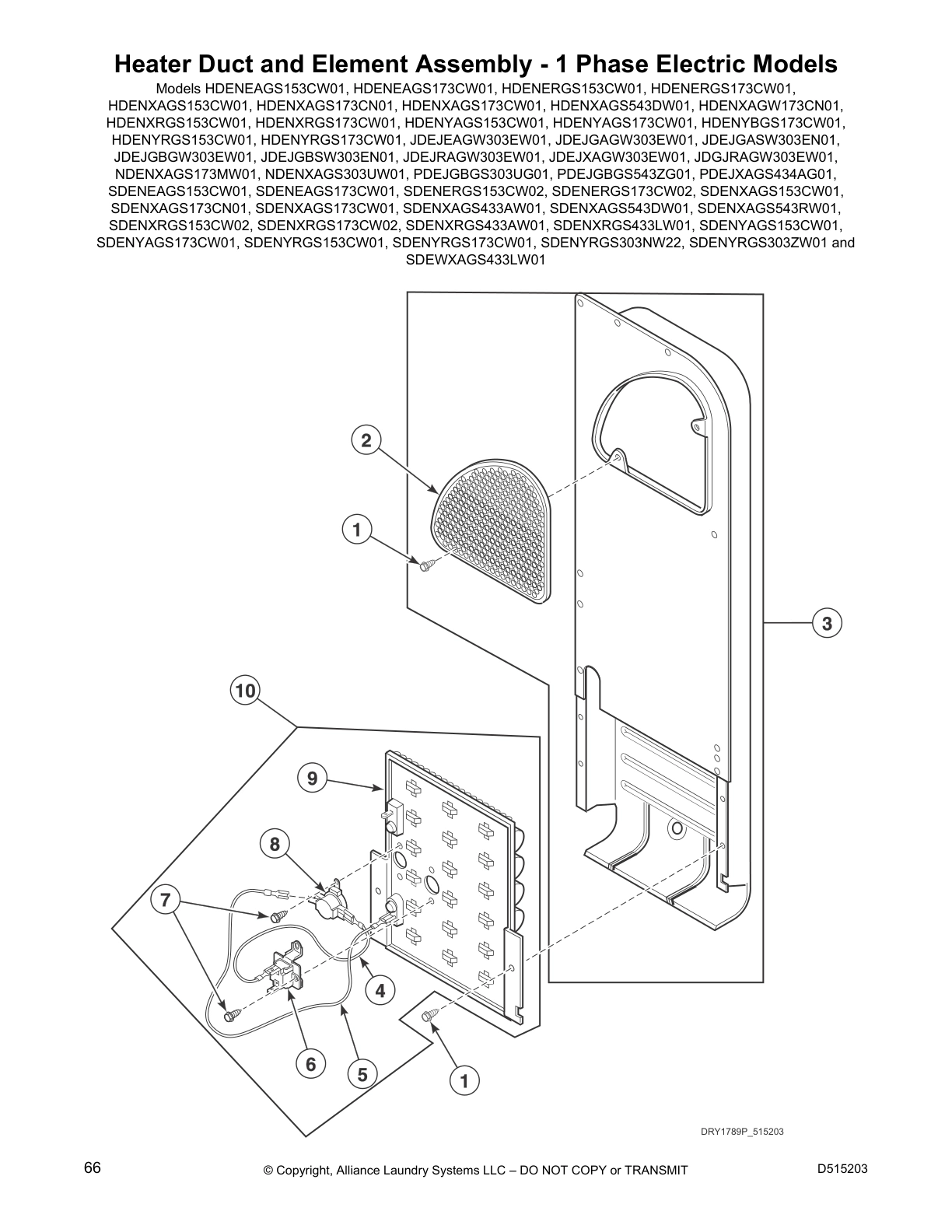

Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly

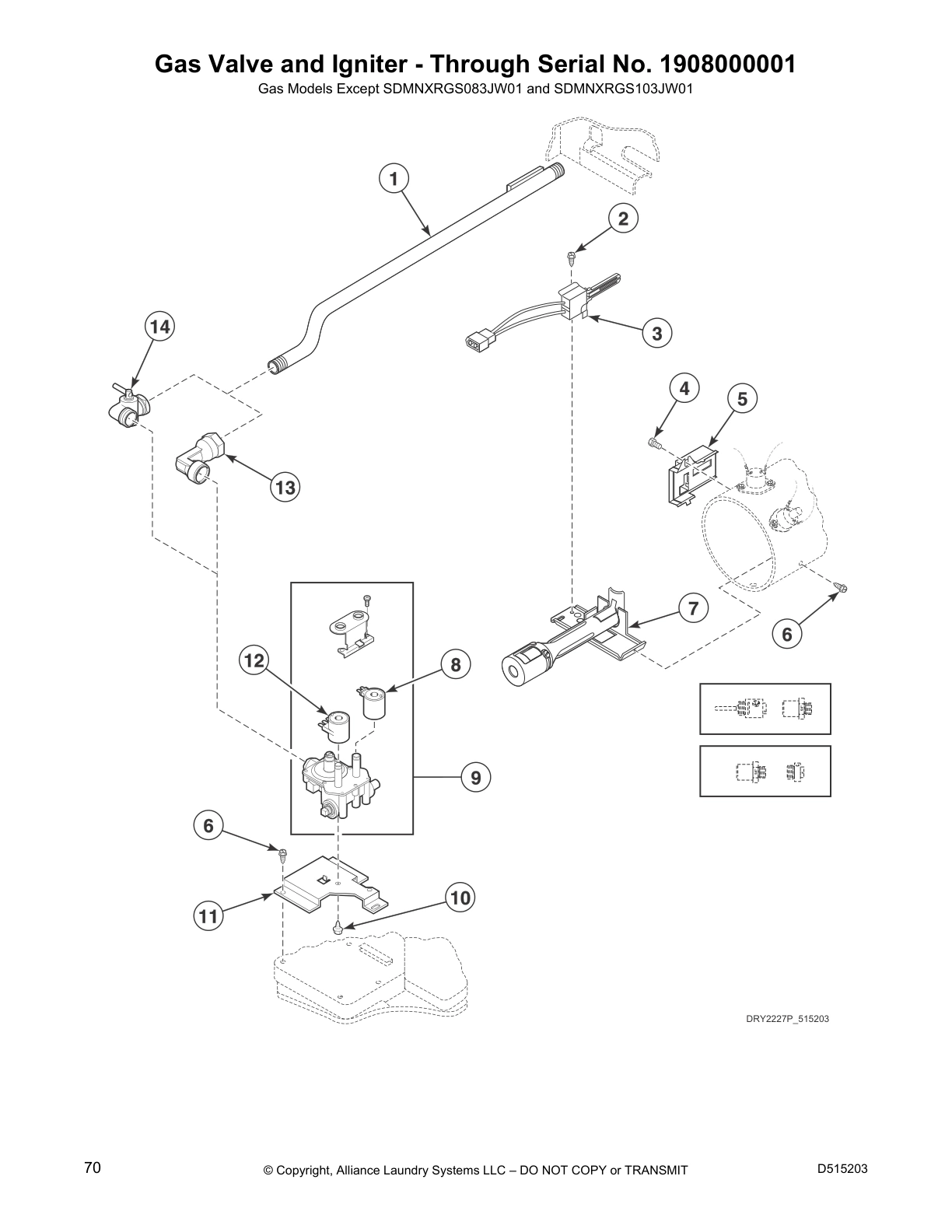

Gas Valve and Igniter - Through Serial No. 1908000001

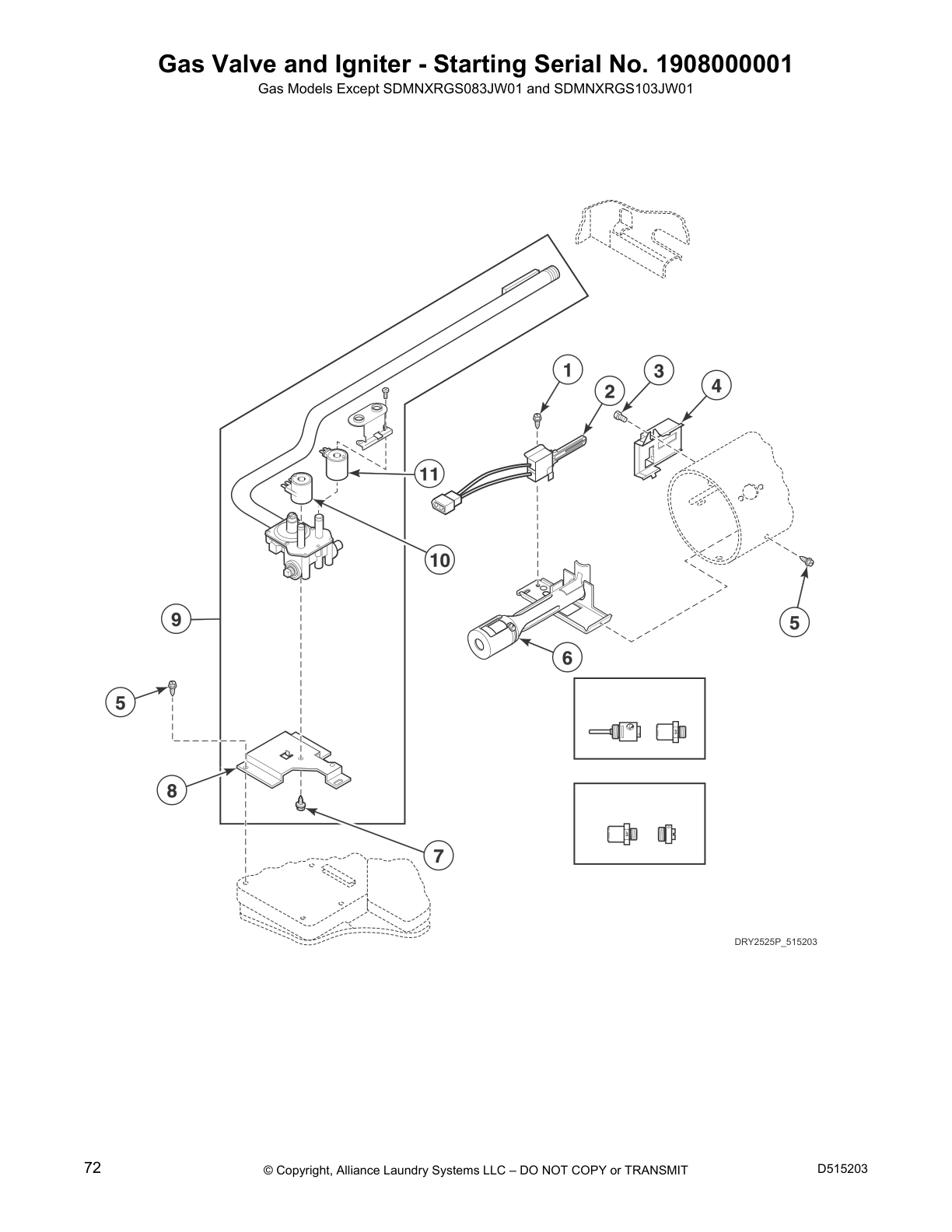

Gas Valve and Igniter - Starting Serial No. 1908000001

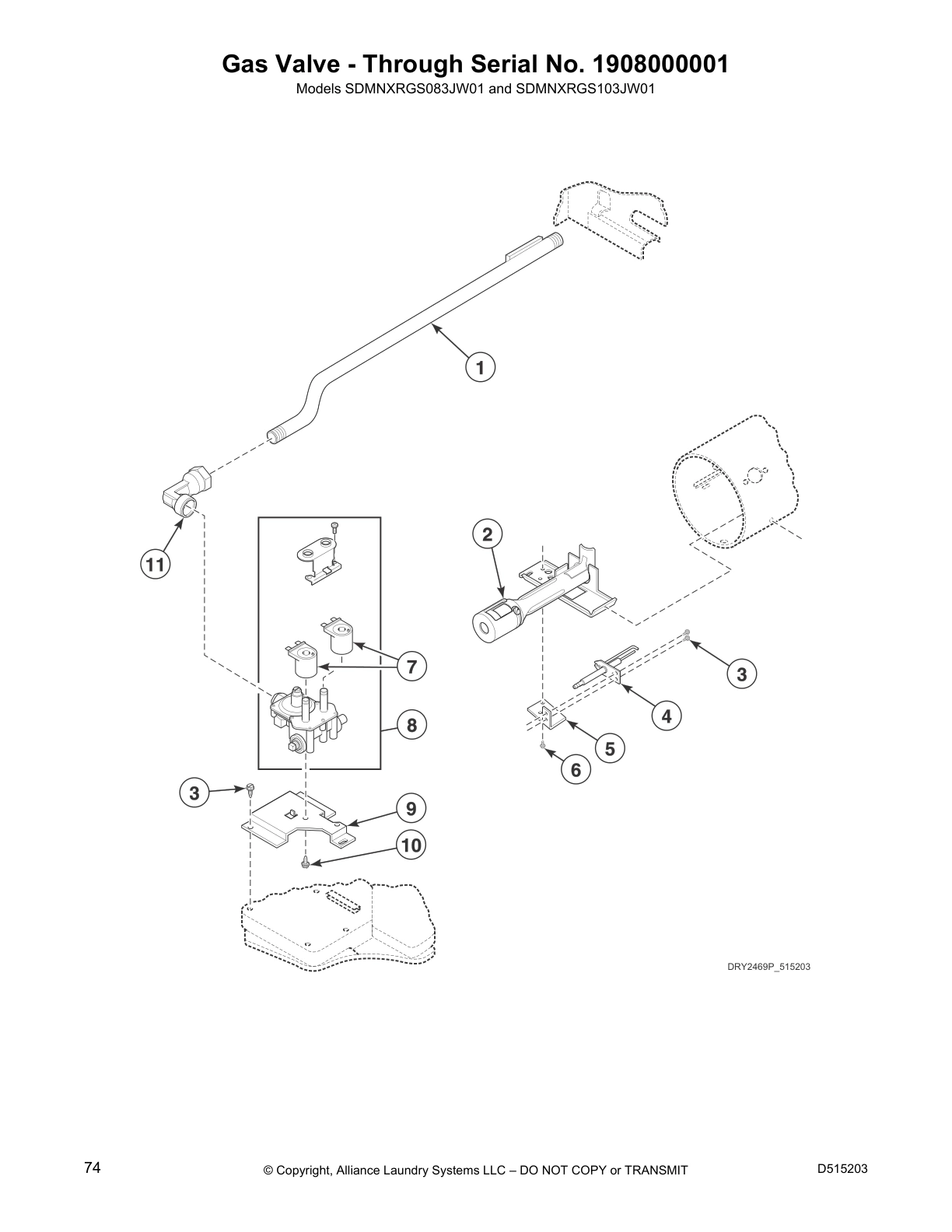

Gas Valve - Through Serial No. 1908000001

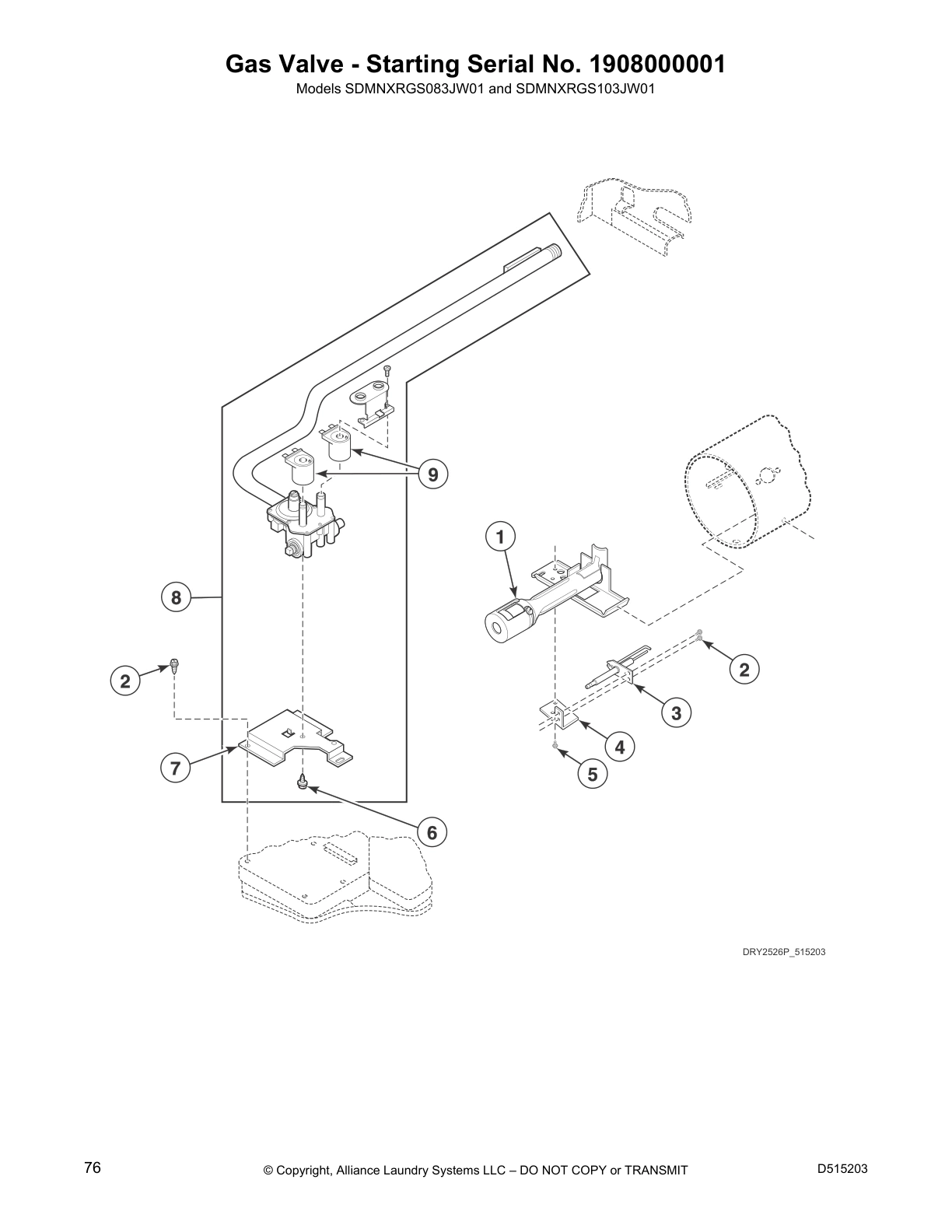

Gas Valve - Starting Serial No. 1908000001

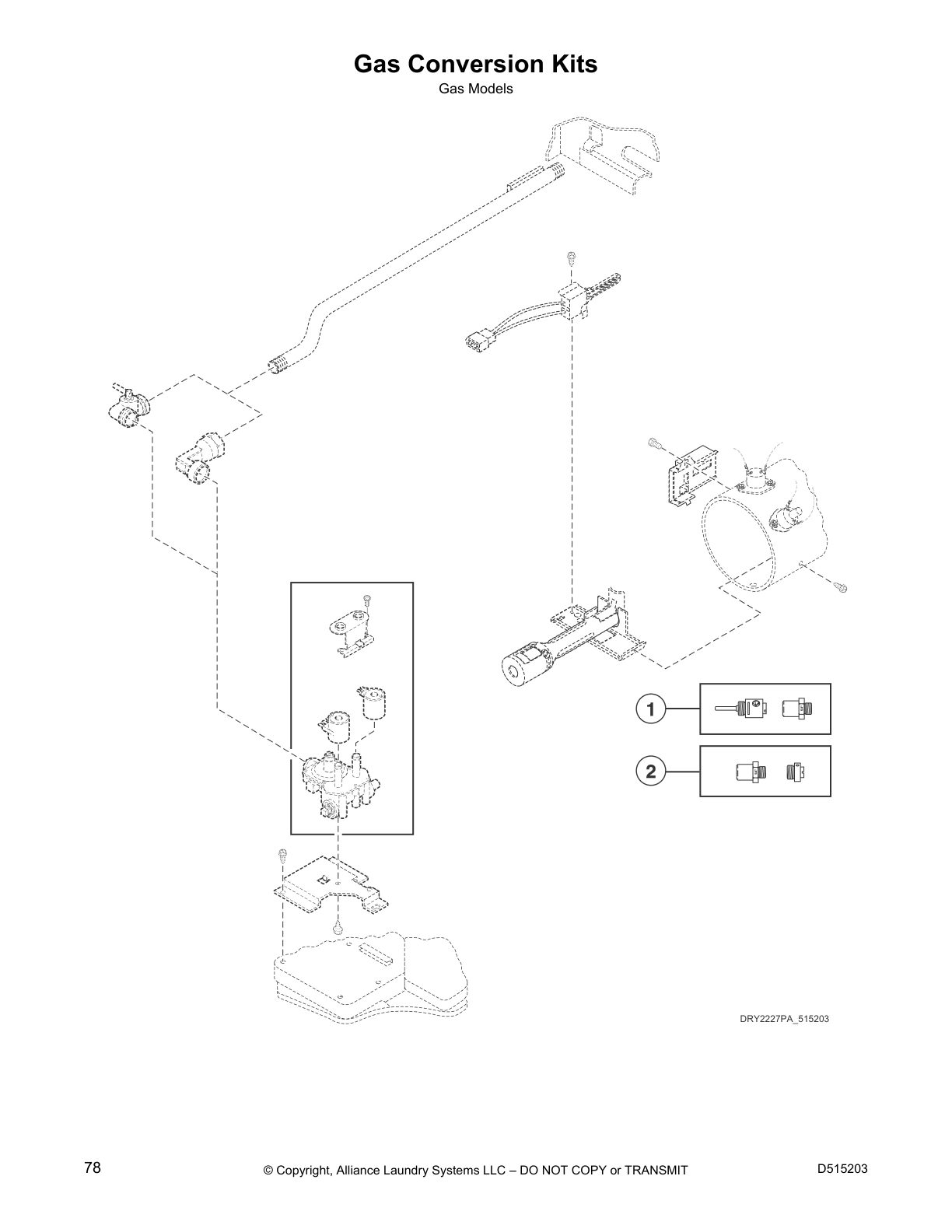

Gas Conversion Kits

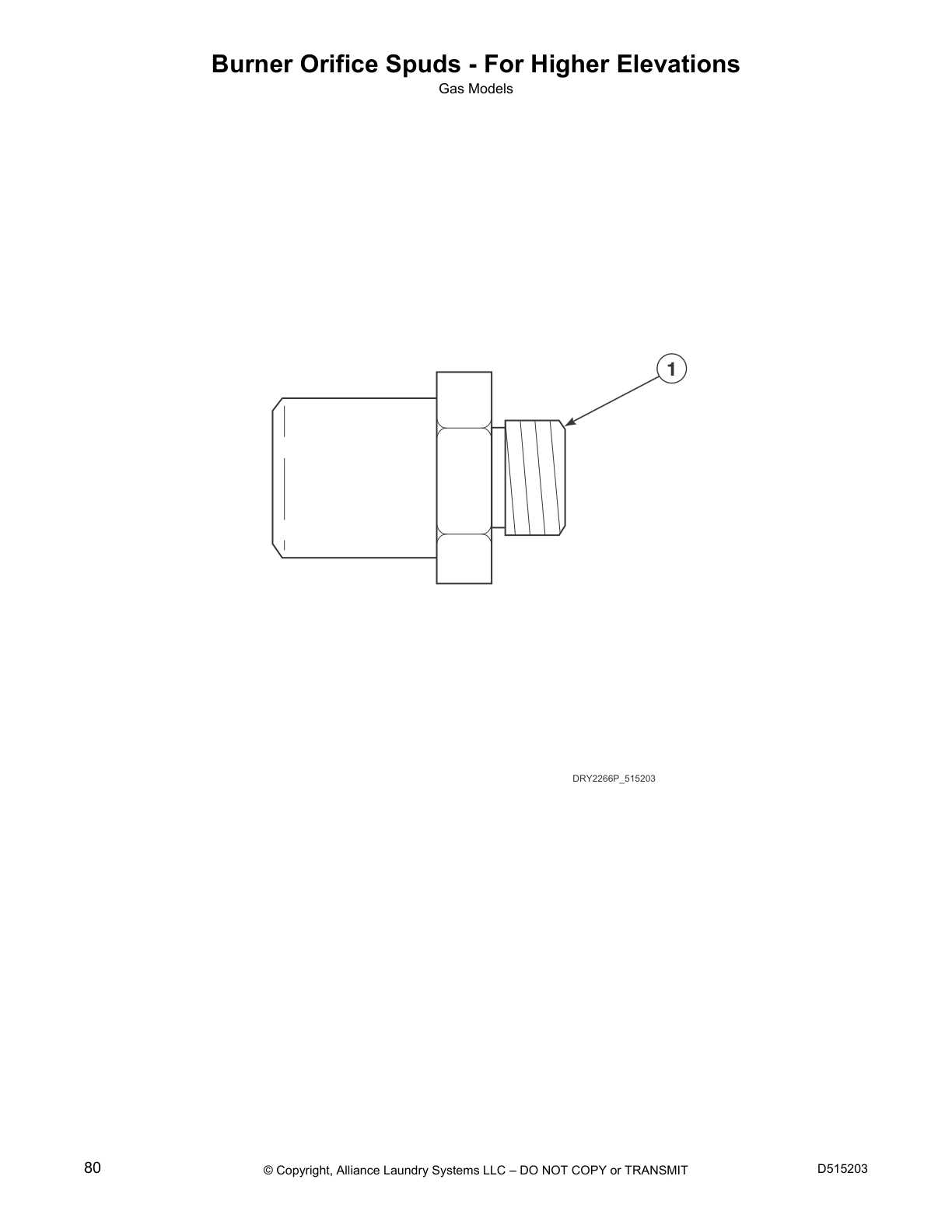

Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base

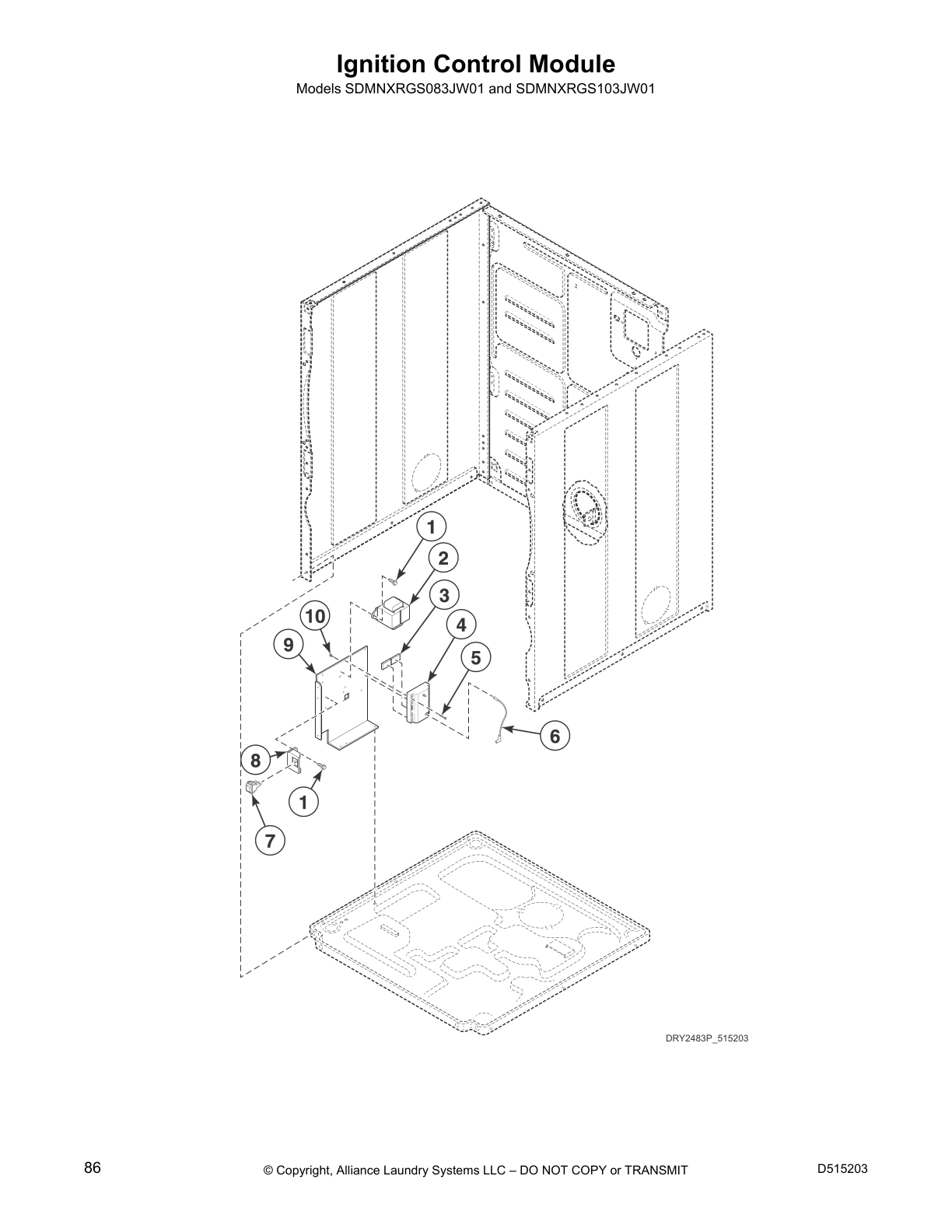

Ignition Control Module

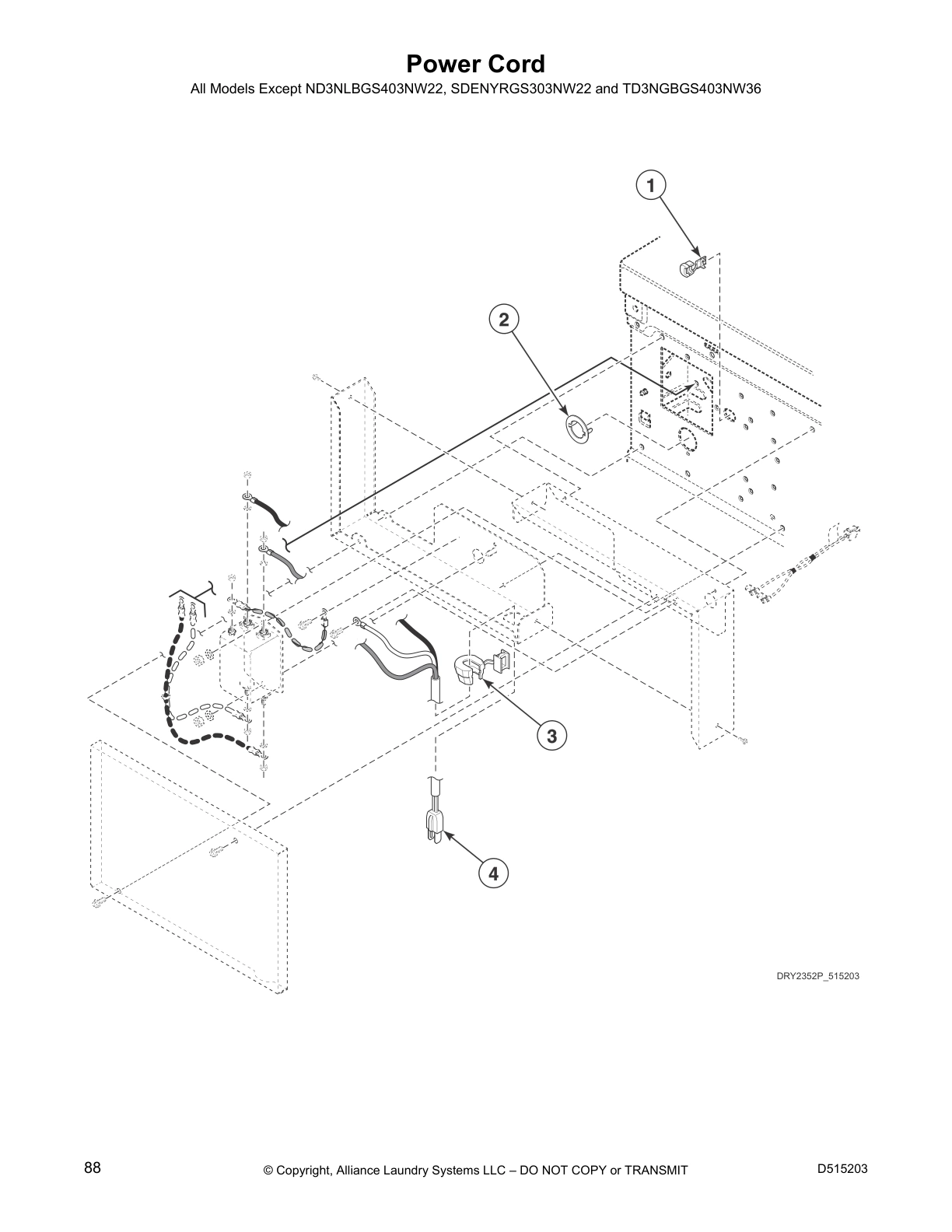

Power Cord
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

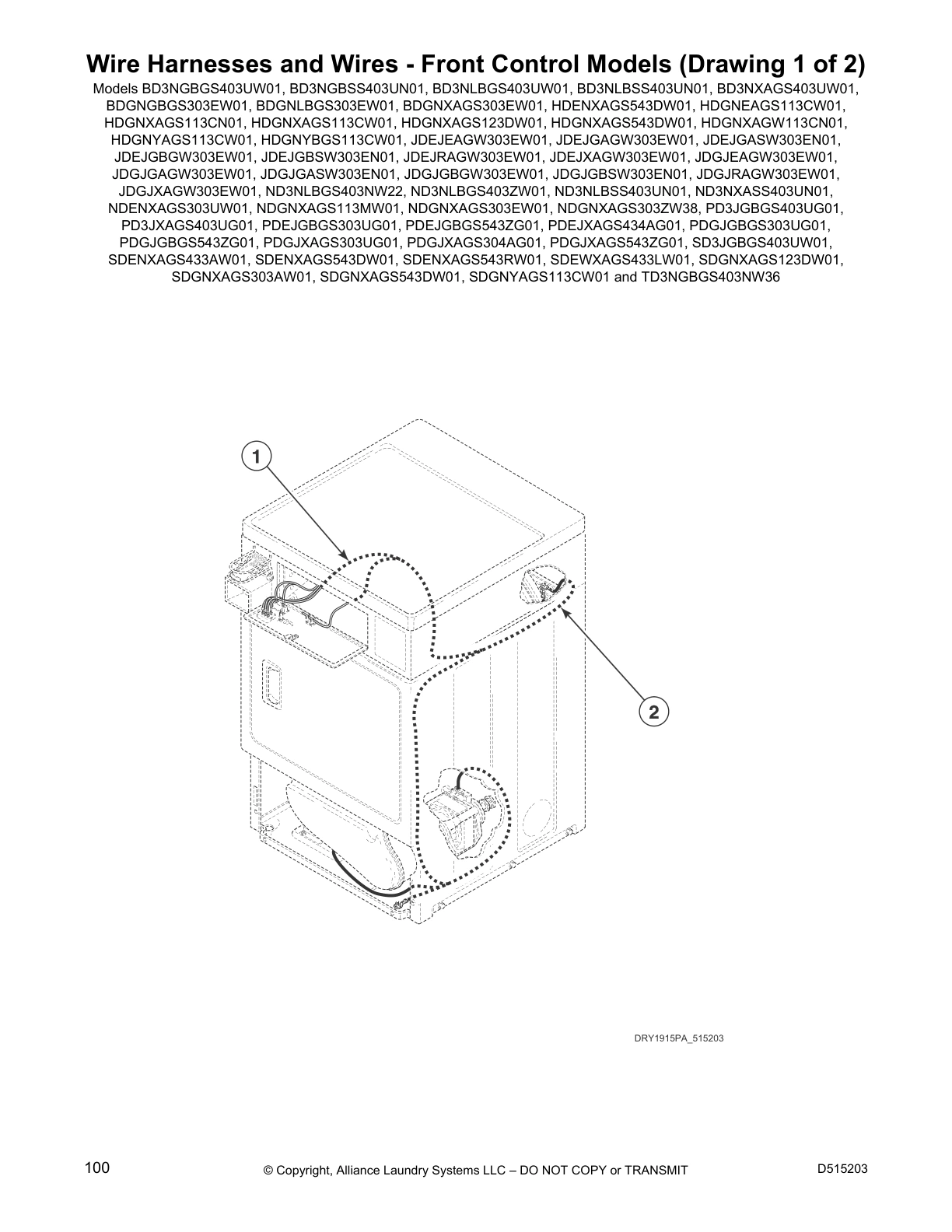

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

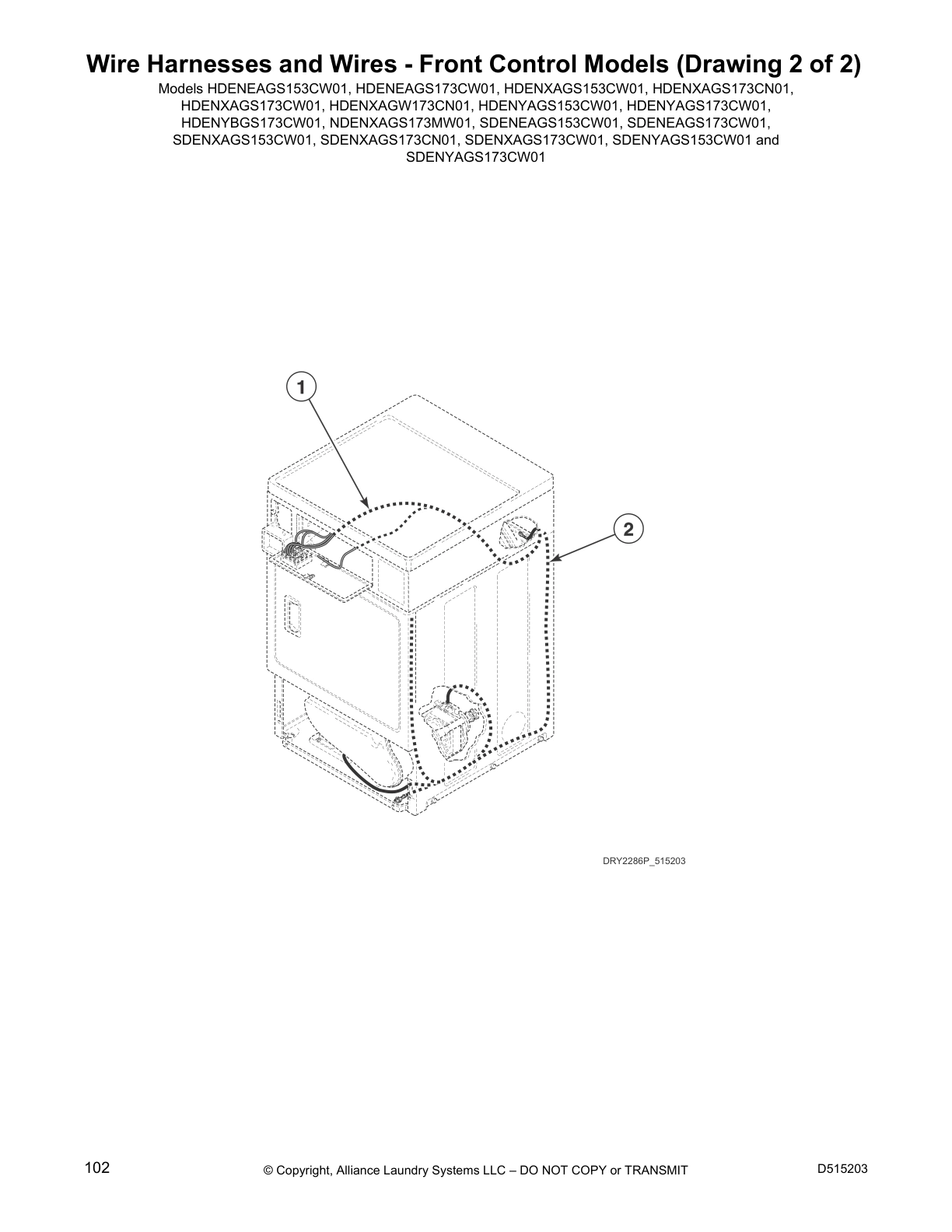

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)

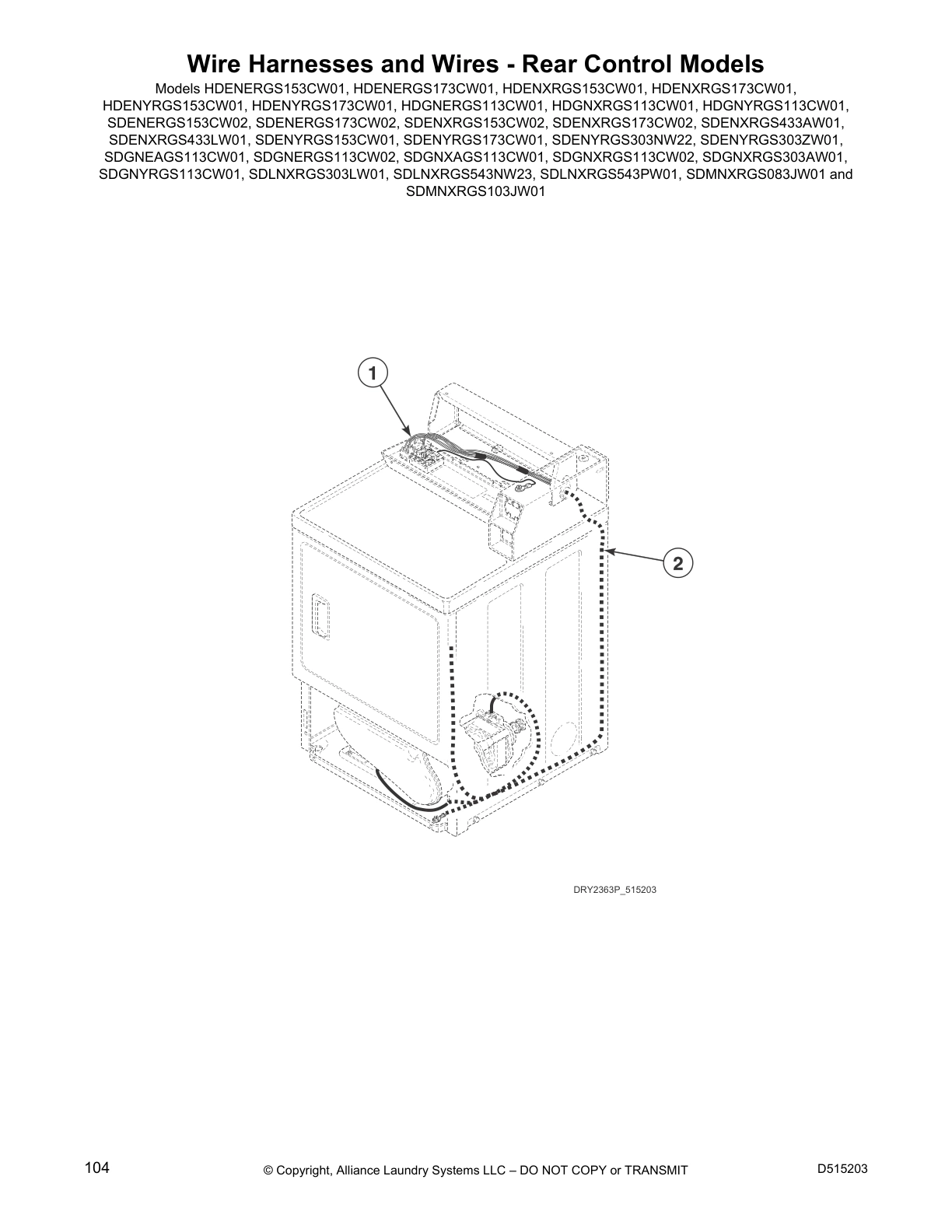

Wire Harnesses and Wires - Rear Control Models
Common parts from model Speed Queen SDGNXRGS113CW02 Dryer
SPQ D514250WP SPQ D514250WP Contact Us For Availability
SPQ 282P4 SPQ 282P4 Contact Us For Availability
1
Motor and Pulley Assembly SPQ D511629P Contact Us For Availability
1
Felt Pad SPQ D510189 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
L.P. Conversion Kit SPQ 458P3 Contact Us For Availability
1
Burner Assembly SPQ D510149P Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Lead-In Pipe Assembly SPQ D510204 Contact Us For Availability
1
Screw SPQ D502535 Contact Us For Availability
1
Coin Drop Assembly SPQ 70441602 Contact Us For Availability
1
Wire Clip SPQ 687500 Contact Us For Availability
1
Screw SPQ D503673 Contact Us For Availability
1
Strain Relief SPQ 38384 Contact Us For Availability
1
10 Position Housing SPQ D500338 Contact Us For Availability
2
Igniter and Bracket Assembly SPQ D510184P Contact Us For Availability
2
Thermistor Assembly SPQ D510523 Contact Us For Availability
2
Cylinder Glide SPQ D513710 Contact Us For Availability
2
Screw SPQ D501285 Contact Us For Availability
2
Motor Mount Clamp SPQ D510180 Contact Us For Availability
2
Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability
2
Bracket SPQ D510146 Contact Us For Availability
2
Door Handle Wedge SPQ D510129W Contact Us For Availability
2
Female Terminal SPQ 00256 Contact Us For Availability
2
Gas Harness SPQ D517253 Contact Us For Availability
3
Cylinder Belt SPQ D511255P Contact Us For Availability
3
Lint Filter SPQ D503980W Contact Us For Availability
3
Speed Clip SPQ 28835 Contact Us For Availability
3
Bumper Pad SPQ 56128 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
Motor Pulley SPQ D500011 Contact Us For Availability
4
Burner Assembly SPQ D510213 Contact Us For Availability
4
Door Pull and Wedge Kit SPQ D510103WP Contact Us For Availability
4
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
4
Cylinder Baffle SPQ D510102W Contact Us For Availability
4
Damper SPQ D514632P Contact Us For Availability
4
Machine ID Control Assembly SPQ D515807P Contact Us For Availability
4
Ratchet Extension Tool SPQ 00188 Contact Us For Availability
5
Door Strike Mount SPQ D510127 Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Blower Fan Assembly SPQ D511969LG Contact Us For Availability
5
Flexible Venting Kit SPQ D510136 Contact Us For Availability
5
Meter Case Gasket SPQ 807401W Contact Us For Availability
5
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
5
Screw SPQ 51782 Contact Us For Availability
6
Door Strike SPQ D510181 Contact Us For Availability
6
Torx Bit SPQ 310P4 Contact Us For Availability
6
Liner, Seal and Grill Assembly SPQ D516508 Contact Us For Availability
6
Front Panel Seal SPQ D511056 Contact Us For Availability
6
Cylinder Roller Bracket SPQ D510100 Contact Us For Availability
6
Electrical Shock Label SPQ D500226 Contact Us For Availability
6
Meter Case Lockdown Bracket SPQ 26354 Contact Us For Availability
6
SPQ 00360 SPQ 00360 Contact Us For Availability
7
Cylinder Roller SPQ D510708P Contact Us For Availability
7
Idler Spring SPQ D511969WP Contact Us For Availability
7
Front Panel SPQ D510066WP Contact Us For Availability
7
Screw SPQ D510163WP Contact Us For Availability
7
Porcelain Touch-Up Paint SPQ D510903 Contact Us For Availability
7
SPQ D510128 SPQ D510128 Contact Us For Availability
8
Anti-Seize Compound SPQ D510139P Contact Us For Availability
8
Screw SPQ D512973 Contact Us For Availability
8
Washer SPQ 52549 Contact Us For Availability
8
Liner Door Seal SPQ D510147P Contact Us For Availability
9
Retaining Ring SPQ 23748 Contact Us For Availability
9
SPQ D510185 SPQ D510185 Contact Us For Availability
9
SPQ D518433 SPQ D518433 Contact Us For Availability
10
Adhesive SPQ D511637P Contact Us For Availability
10
Single Overlay SPQ 38717 Contact Us For Availability
10
Exhaust Duct SPQ D516196 Contact Us For Availability
11
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
11
Hinge SPQ D511036 Contact Us For Availability
11
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
11
Hinge Hole Plug SPQ D510186 Contact Us For Availability
13
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
13
Switch SPQ 70529301 Contact Us For Availability
14
Dryer Base SPQ D514245 Contact Us For Availability
15
Idler Lever and Wheel Assembly SPQ D516792 Contact Us For Availability
15
Leveling Leg SPQ D510135 Contact Us For Availability
16
Rubber Foot SPQ D501855 Contact Us For Availability
16
Screw SPQ D500824 Contact Us For Availability
17
Switch SPQ D516391 Contact Us For Availability
20
Cabinet Rear Panel SPQ 804667 Contact Us For Availability
21
Top Hinge SPQ D510001WP Contact Us For Availability
NI
SPQ 70441601P No Longer Available
NI
SPQ 56461P SPQ 56461P Contact Us For Availability
NI
SPQ D510177 SPQ D510177 Contact Us For Availability
NI
Cylinder Assembly SPQ D510265WP Contact Us For Availability
NI
SPQ D503980LG SPQ D503980LG Contact Us For Availability
NI
SPQ D510013WP SPQ D510013WP Contact Us For Availability
NI
Shaft SPQ D504082 Contact Us For Availability
NI
Door Liner Grill SPQ D503870W Contact Us For Availability
NI
SPQ D503778 SPQ D503778 Contact Us For Availability
NI
SPQ 33562 SPQ 33562 Contact Us For Availability
NI
SPQ D503786 SPQ D503786 Contact Us For Availability
NI
Screw SPQ 62588 Contact Us For Availability
NI
USB IR Interface Kit SPQ D501086 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
NI
Screw Orifice SPQ 58719 Contact Us For Availability
NI
SPQ 00121 SPQ 00121 Contact Us For Availability
NI
SPQ 00124 SPQ 00124 Contact Us For Availability
NI
SPQ 00347 SPQ 00347 Contact Us For Availability
NI
SPQ 00115 SPQ 00115 Contact Us For Availability
NI
SPQ 281P4 SPQ 281P4 Contact Us For Availability
NI
SPQ 93501 SPQ 93501 Contact Us For Availability
NI
SPQ 292P4 SPQ 292P4 Contact Us For Availability
NI
SPQ D517236 SPQ D517236 Contact Us For Availability
NI
12 Gauge Wire SPQ D517102 Contact Us For Availability
× ![]()
