Model Speed Queen SDG109*A5412 Dryer – Common Parts & Diagrams

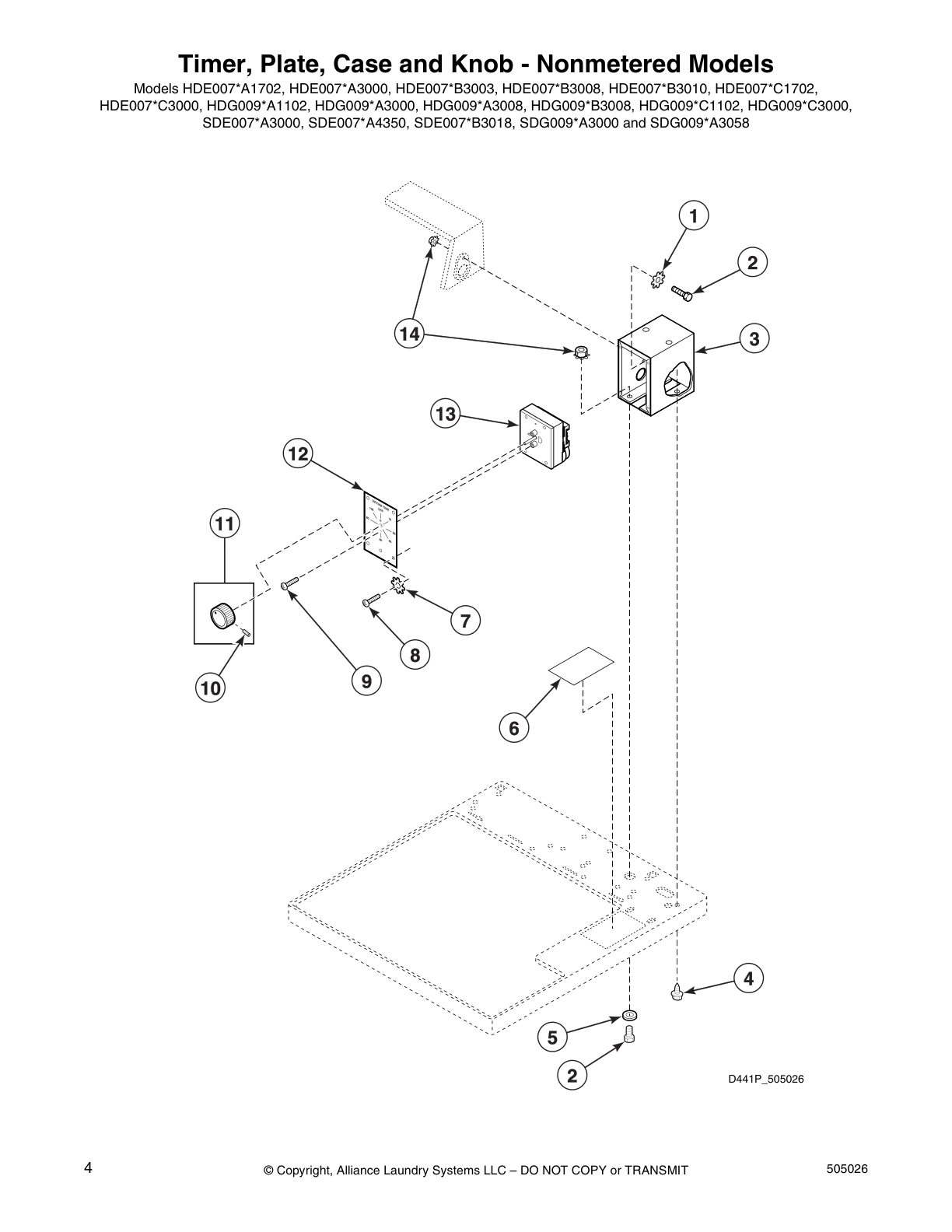

Timer, Plate, Case and Knob - Nonmetered Models

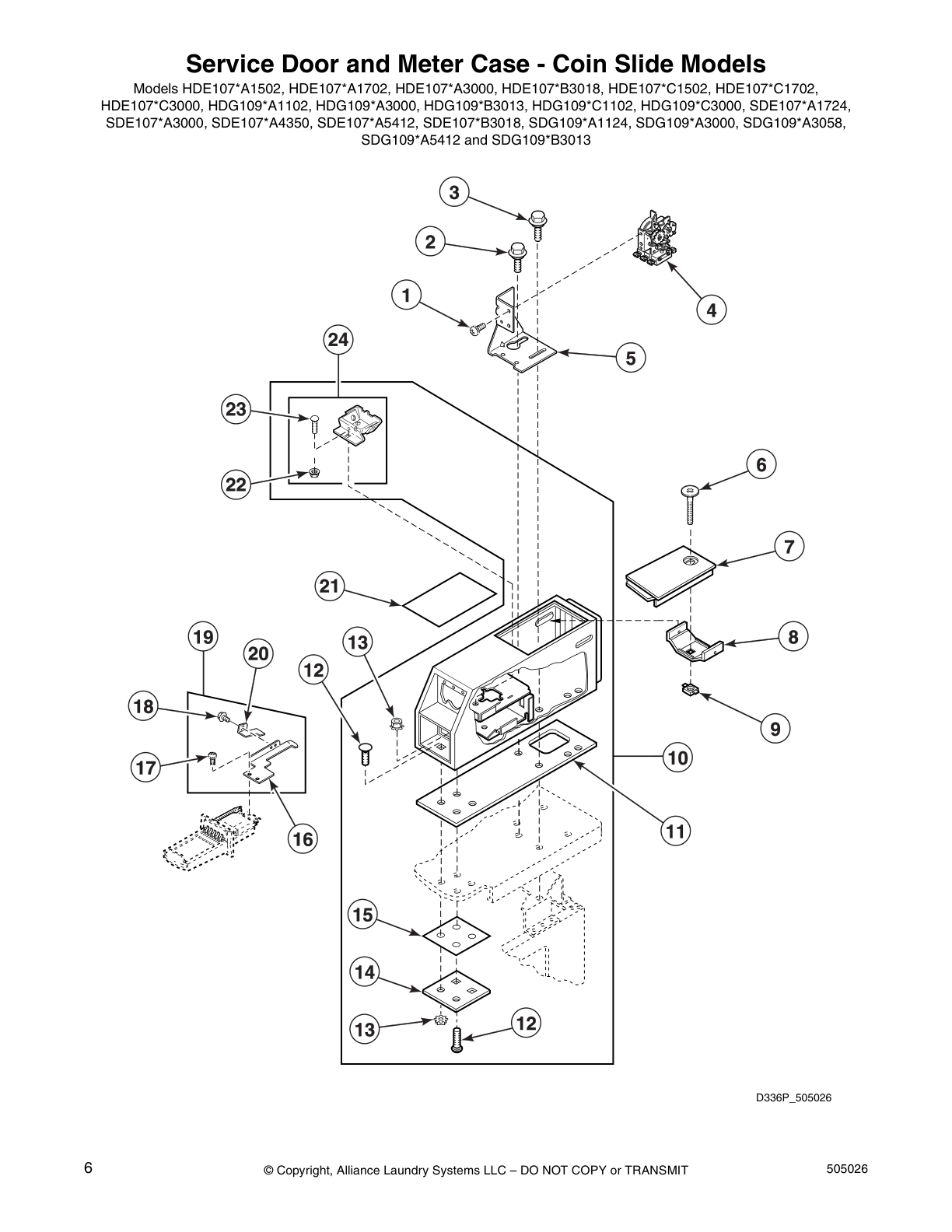

Service Door and Meter Case - Coin Slide Models

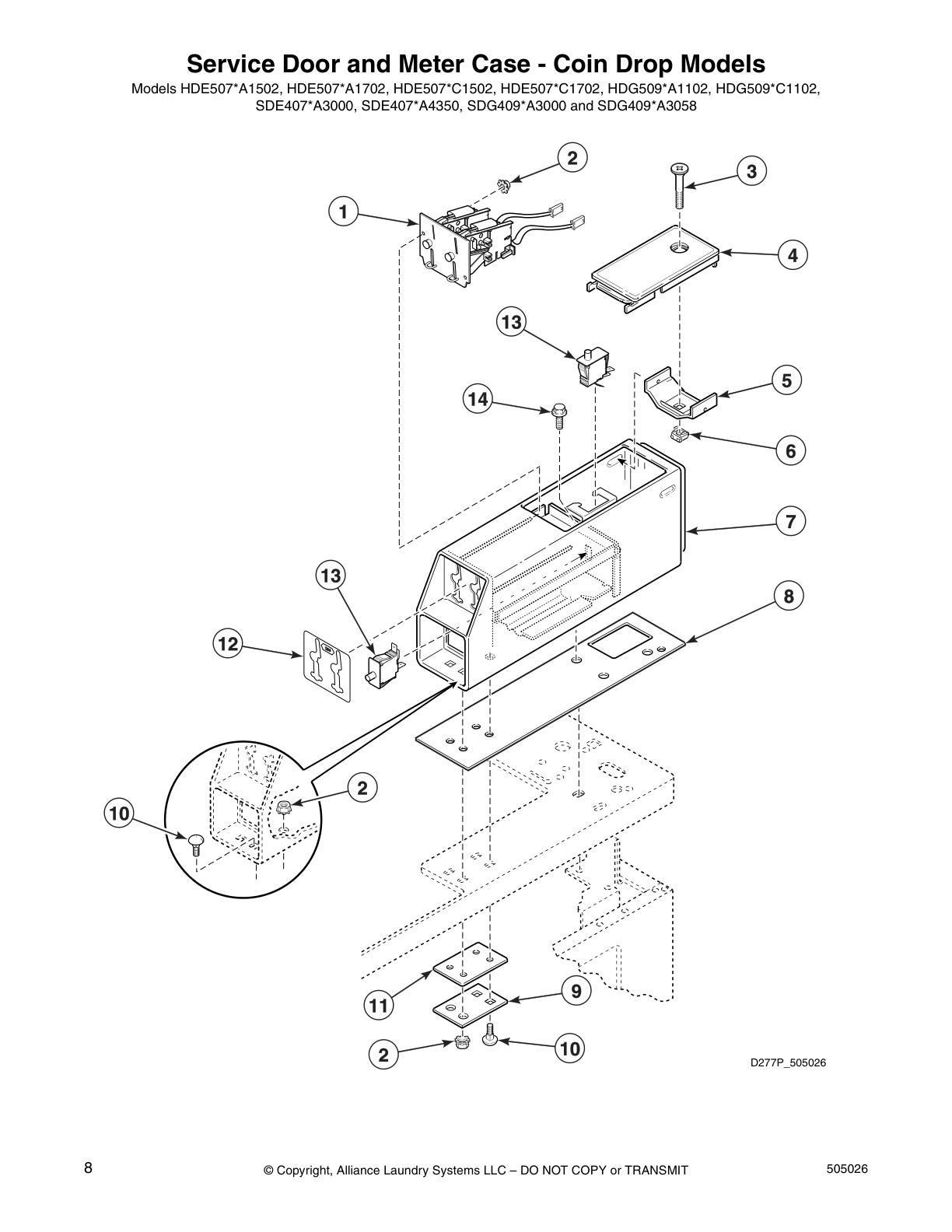

Service Door and Meter Case - Coin Drop Models

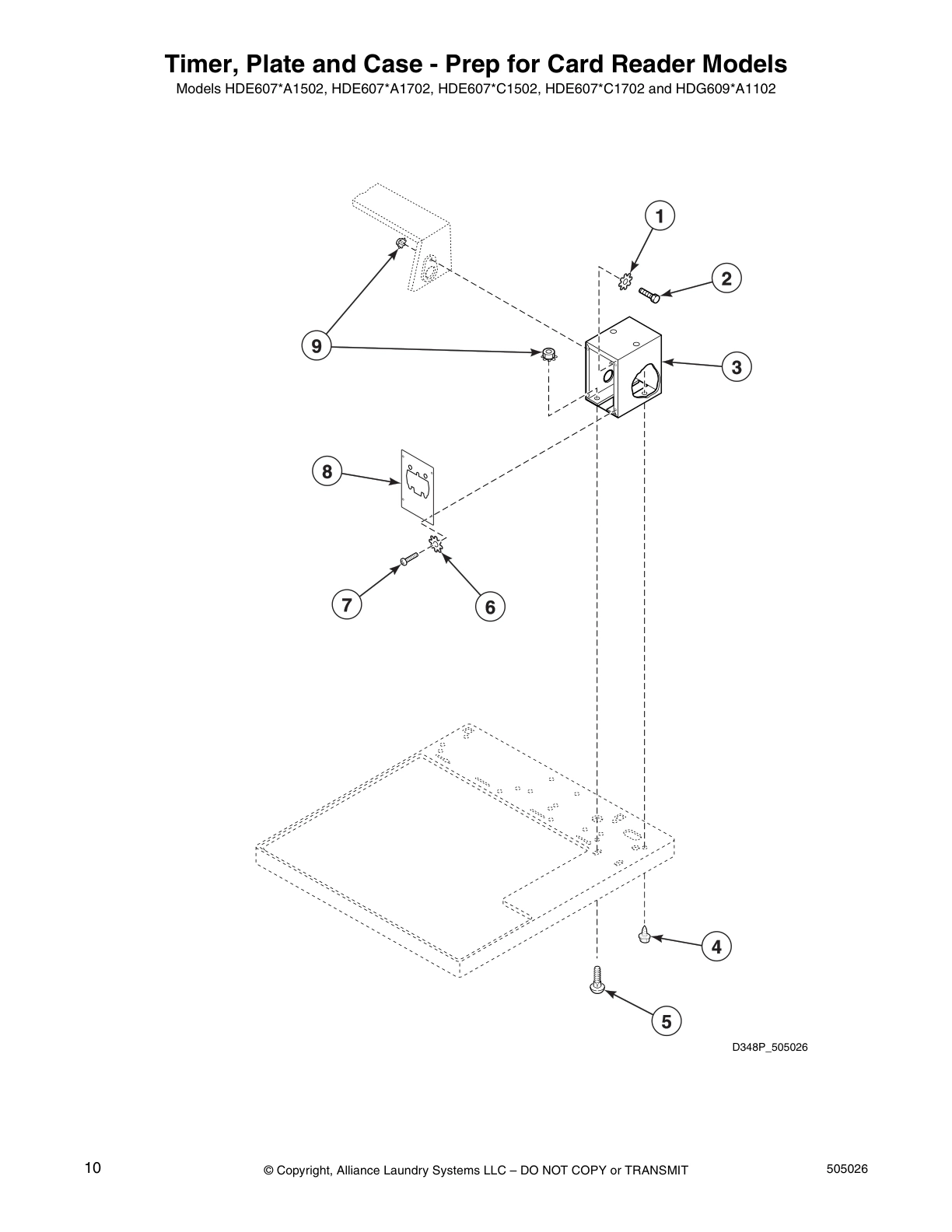

Timer, Plate and Case - Prep for Card Reader Models

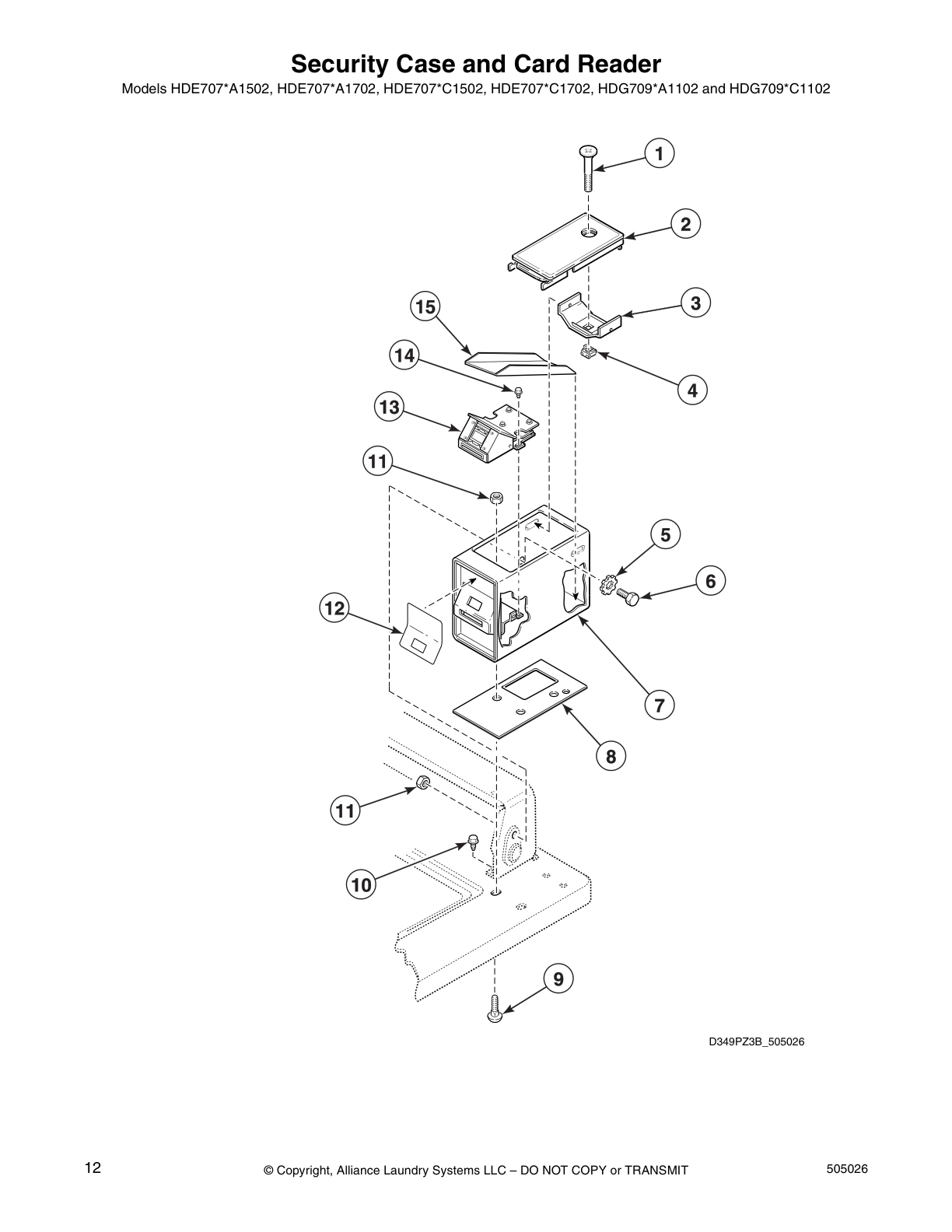

Security Case and Card Reader

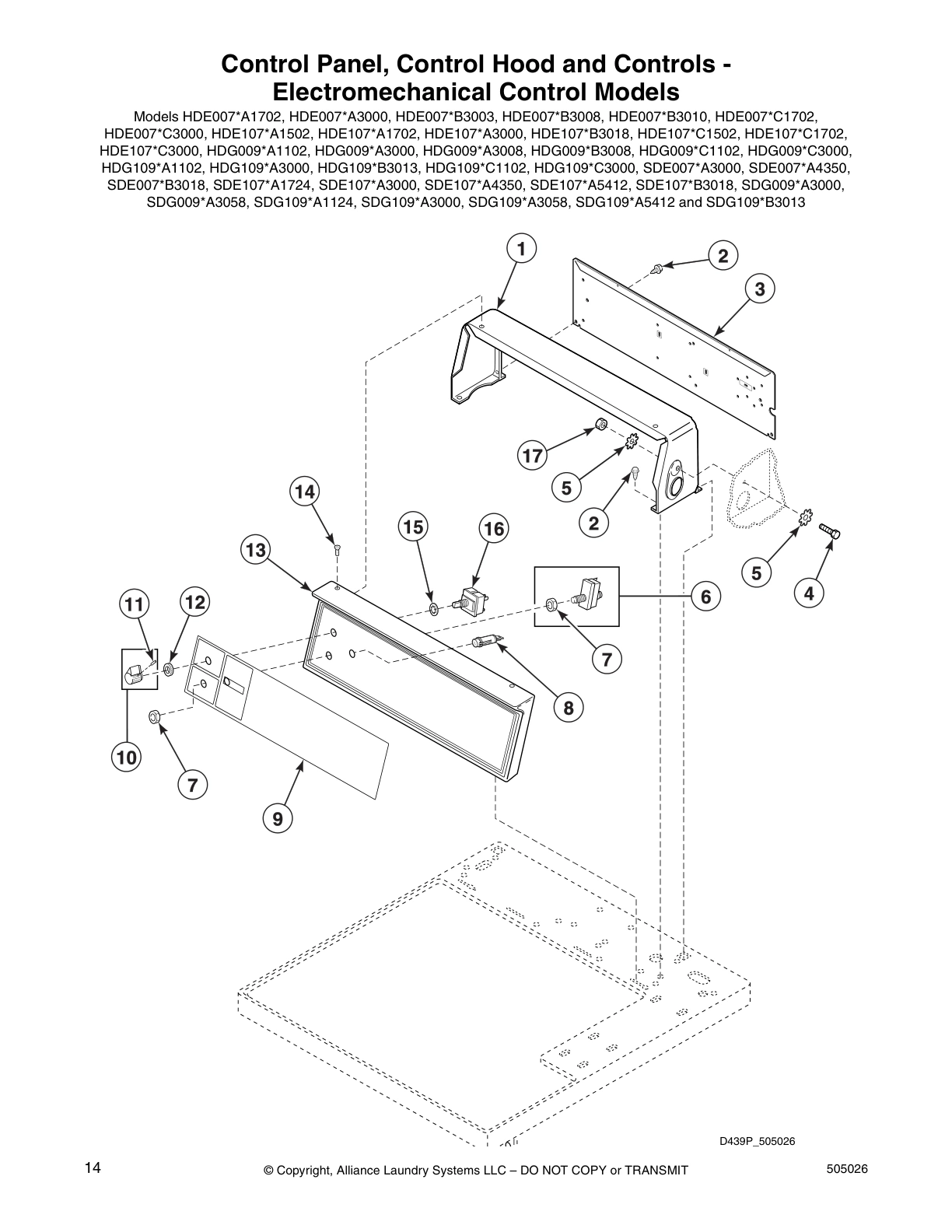

Control Panel, Control Hood and Controls - Electromechanical Control Models

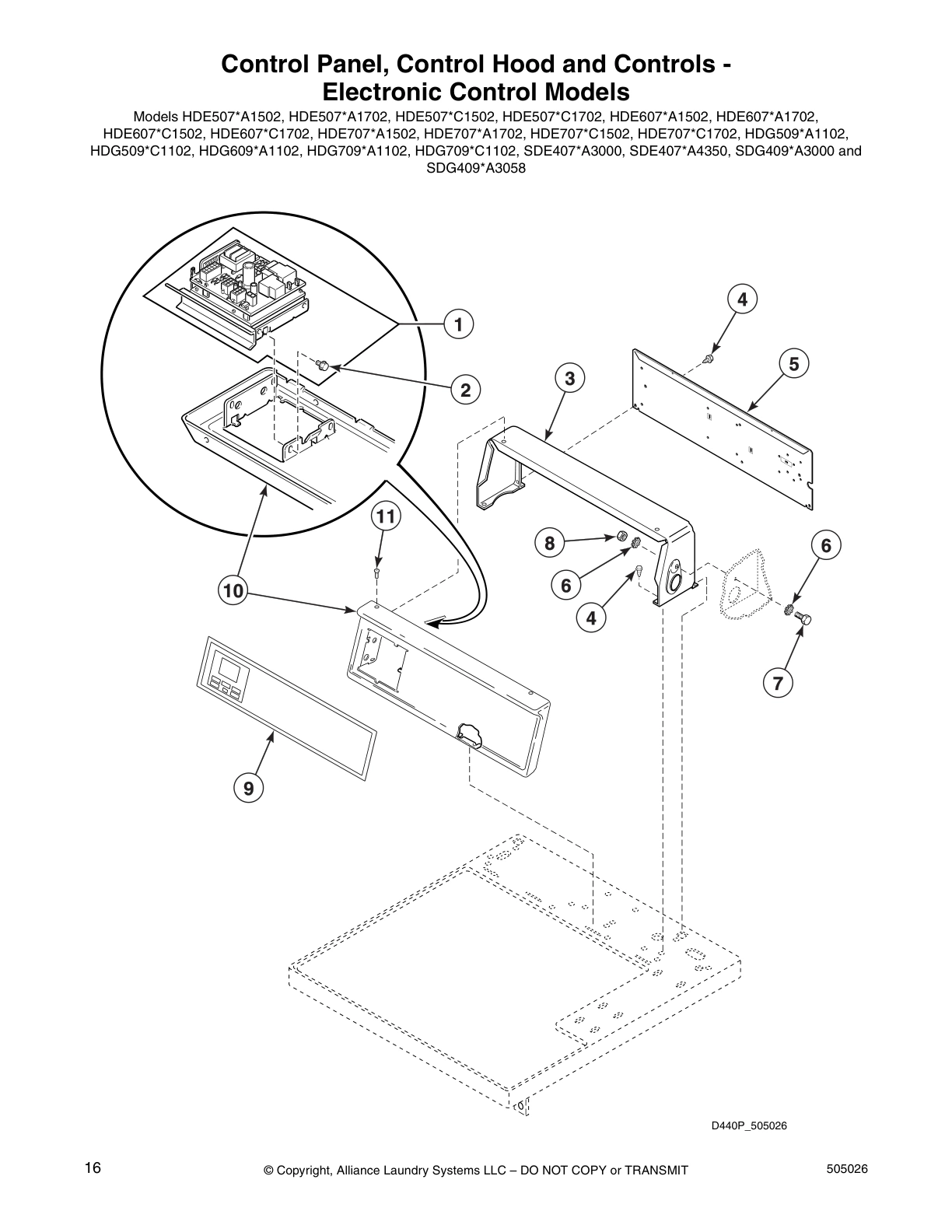

Control Panel, Control Hood and Controls - Electronic Control Models

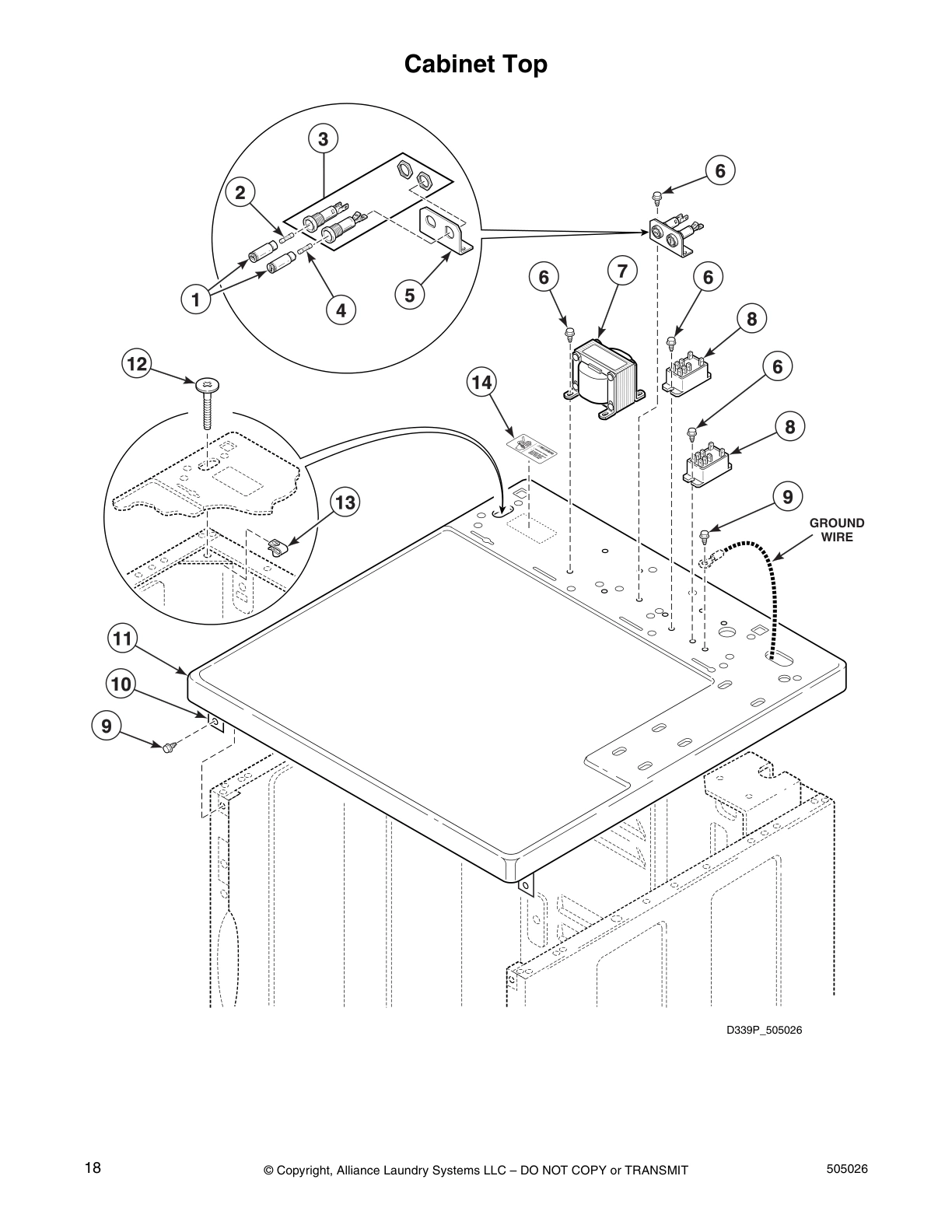

Cabinet Top

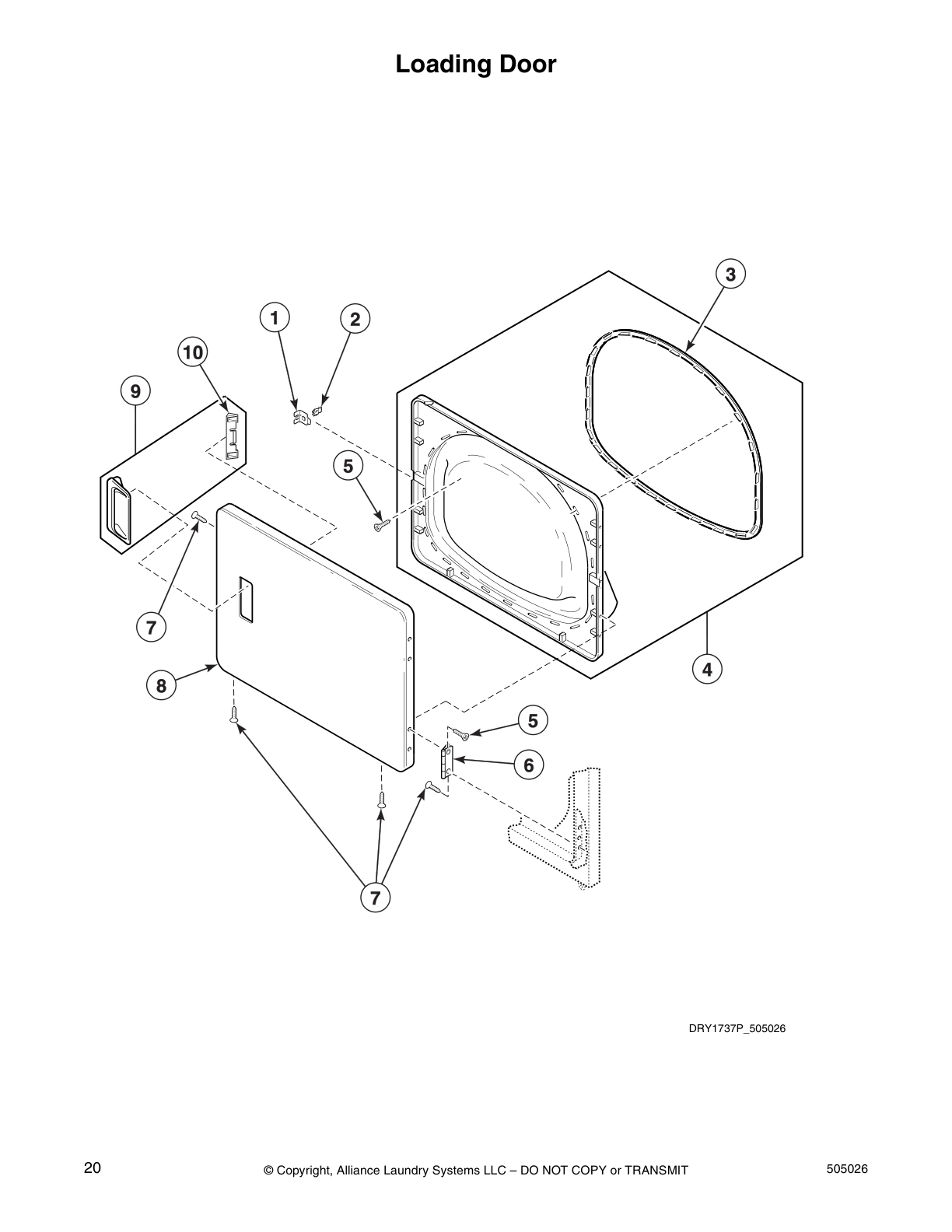

Loading Door

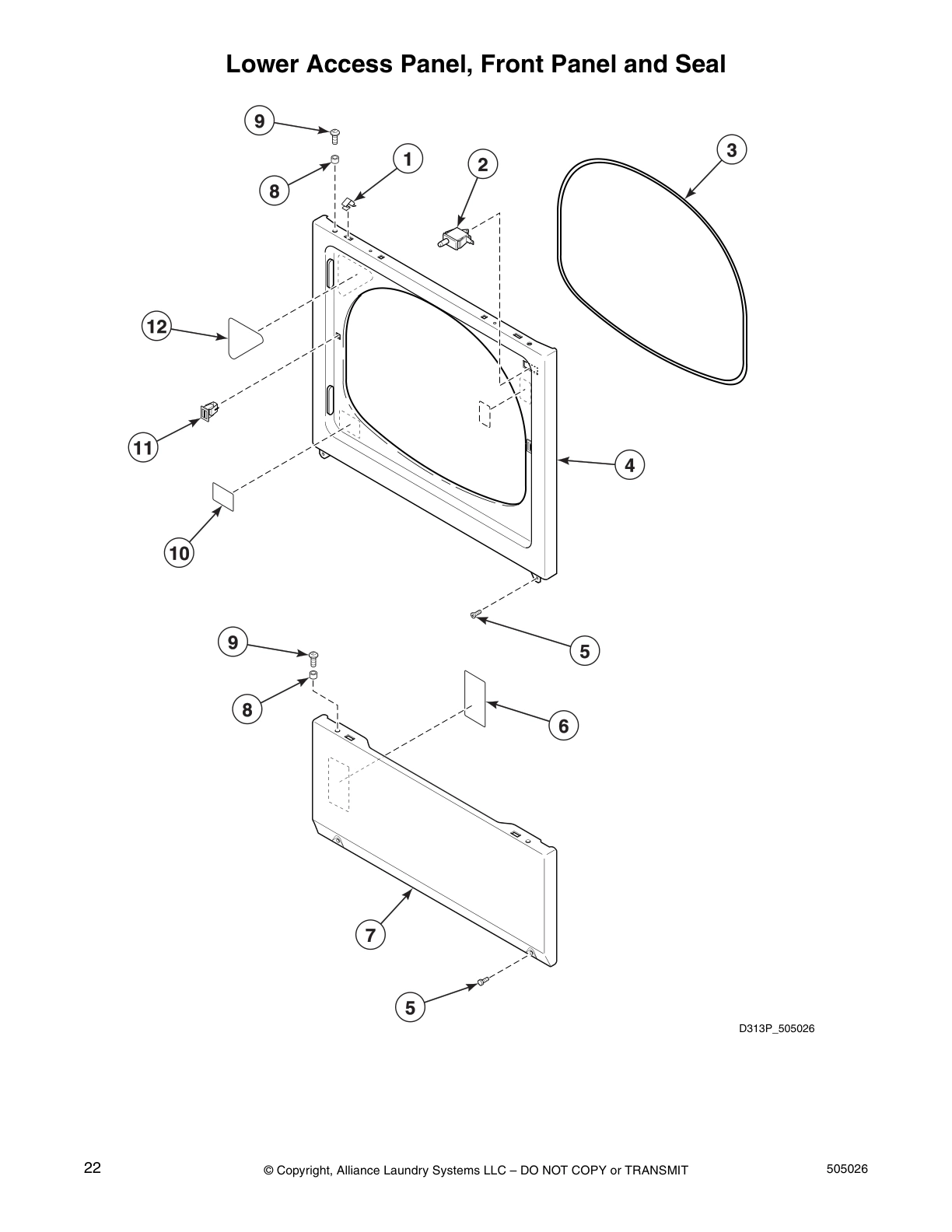

Lower Access Panel, Front Panel and Seal

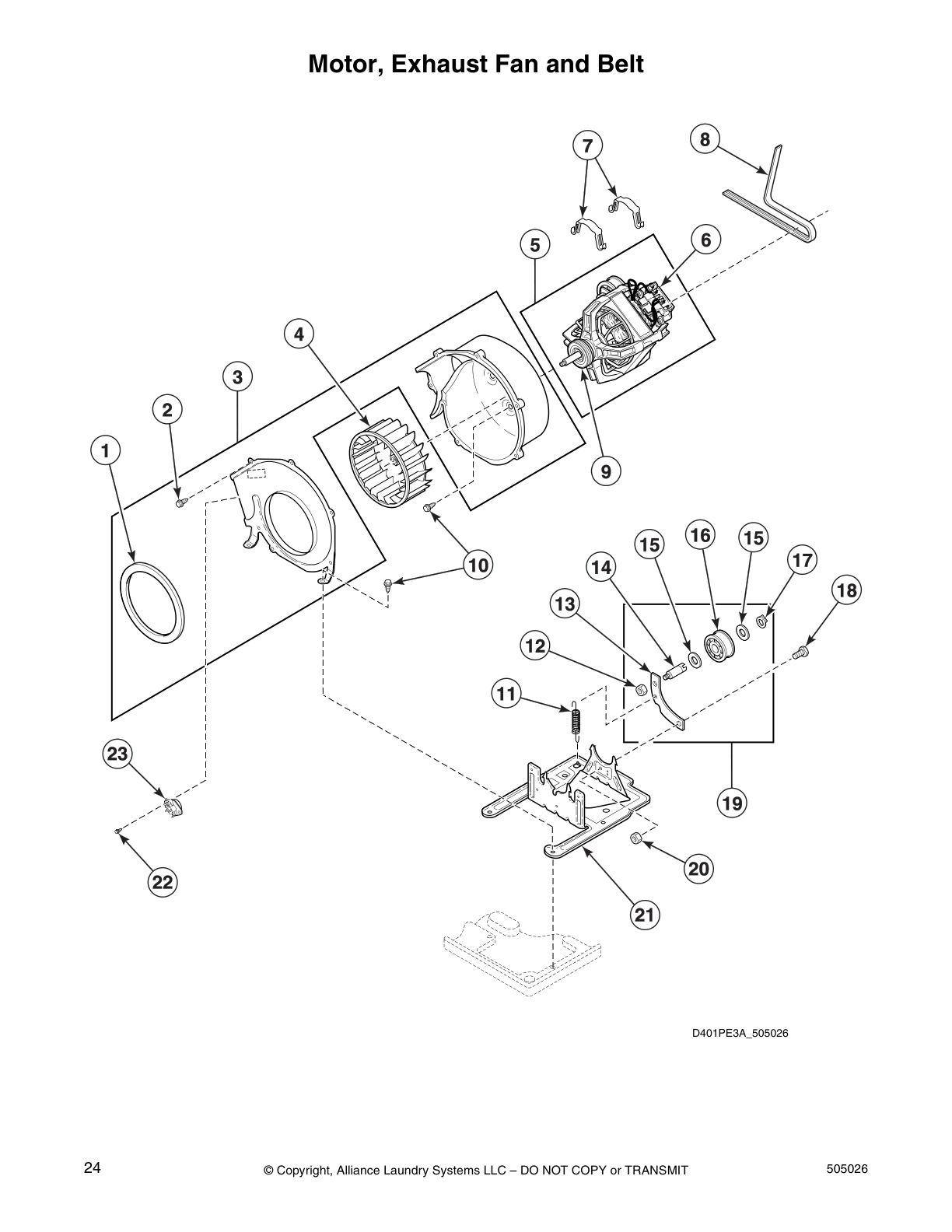

Motor, Exhaust Fan and Belt

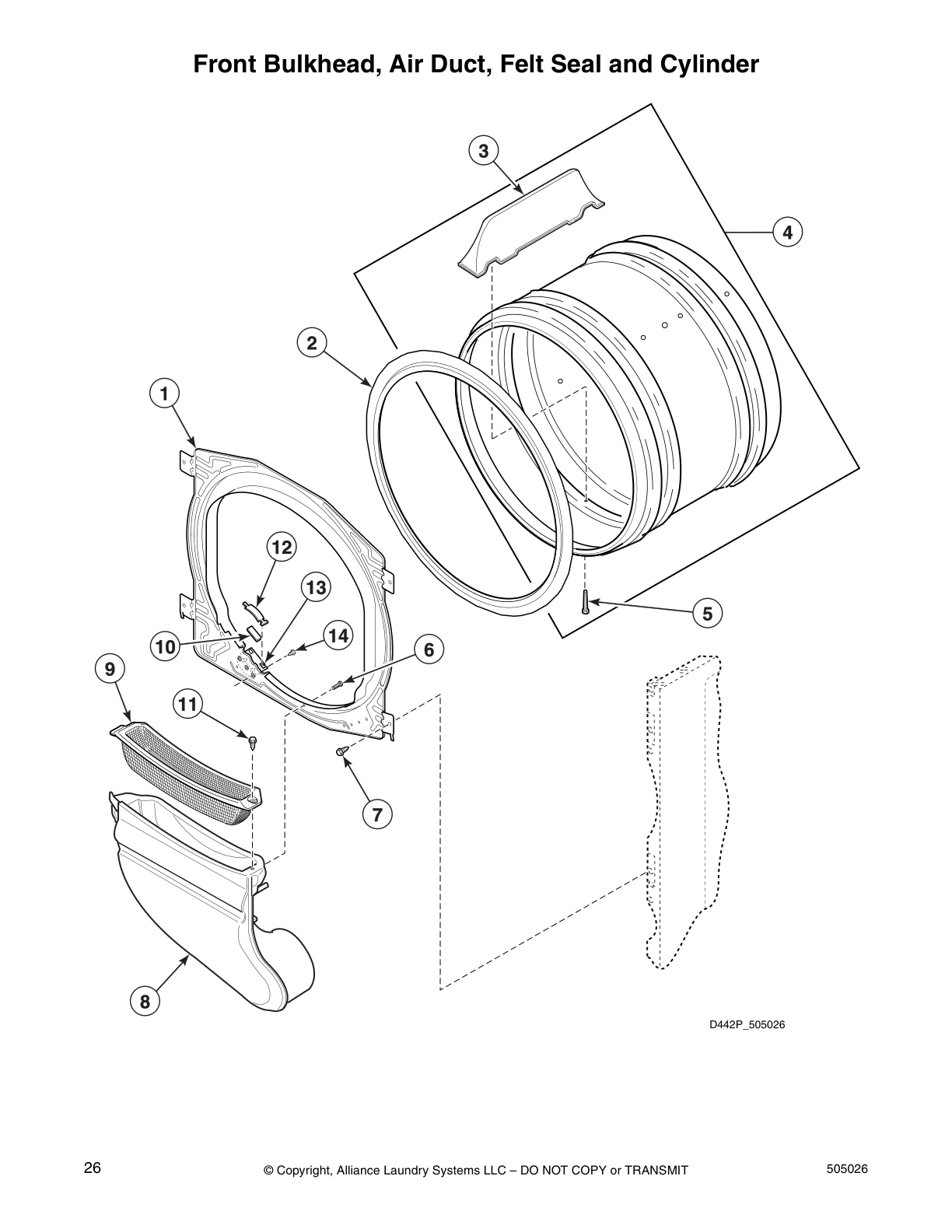

Front Bulkhead, Air Duct, Felt Seal and Cylinder

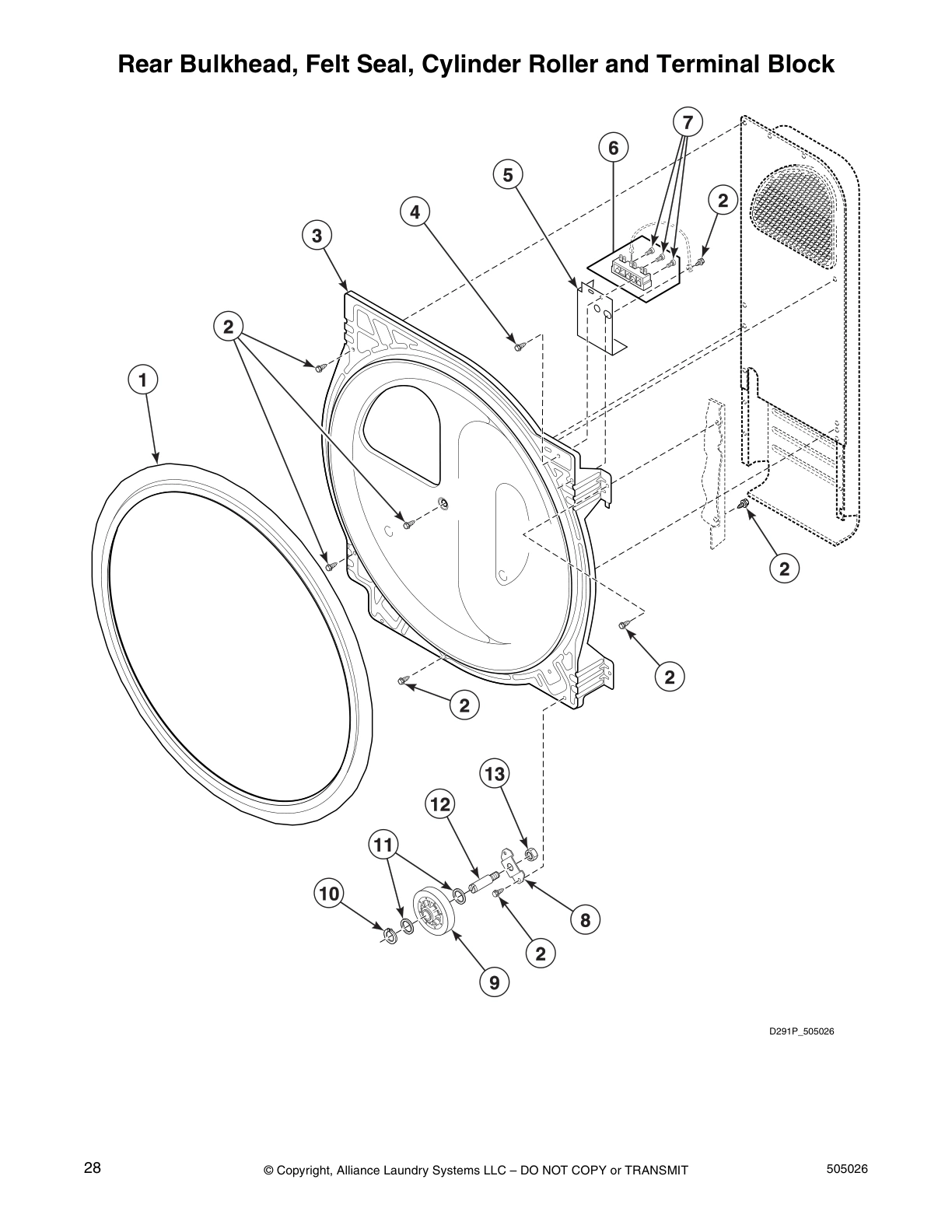

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

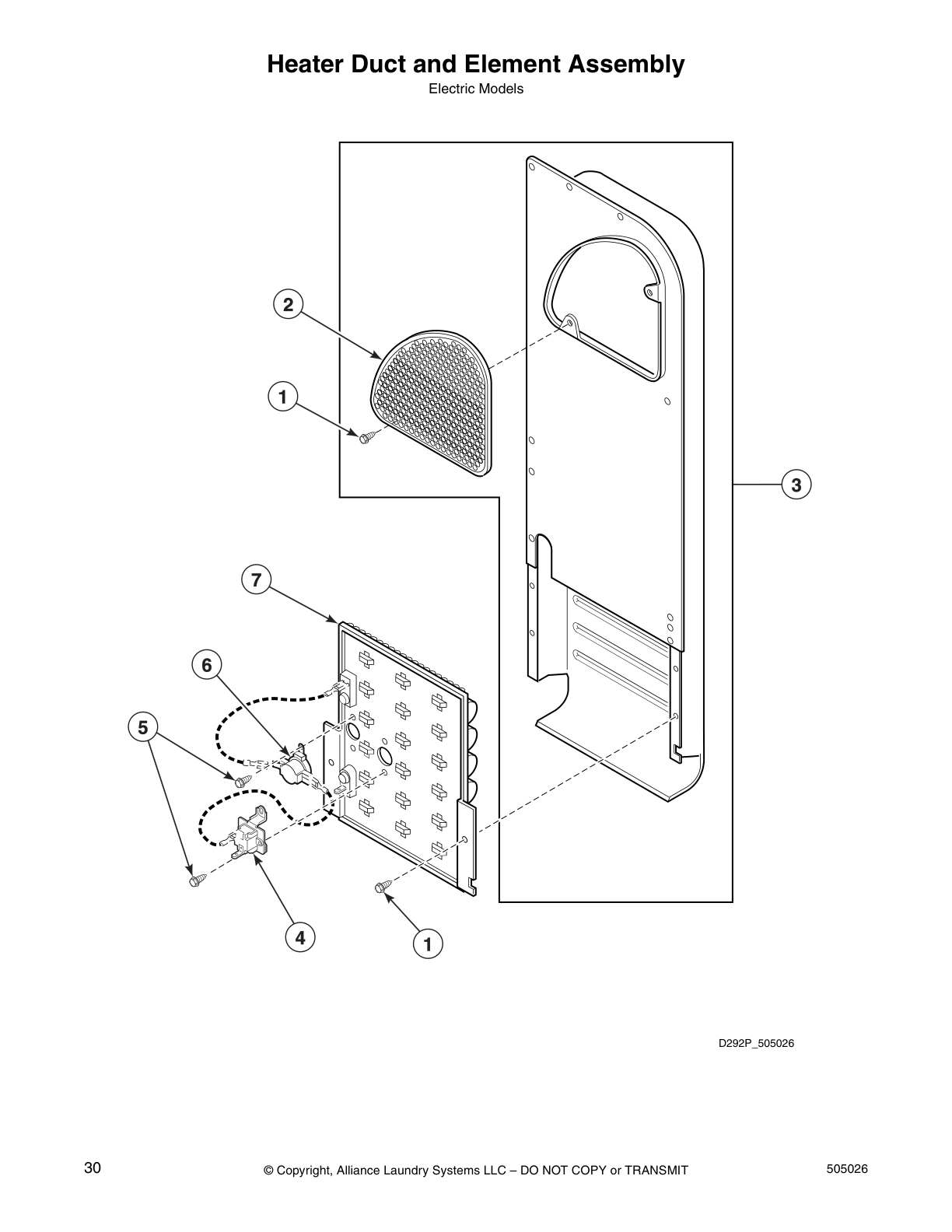

Heater Duct and Element Assembly

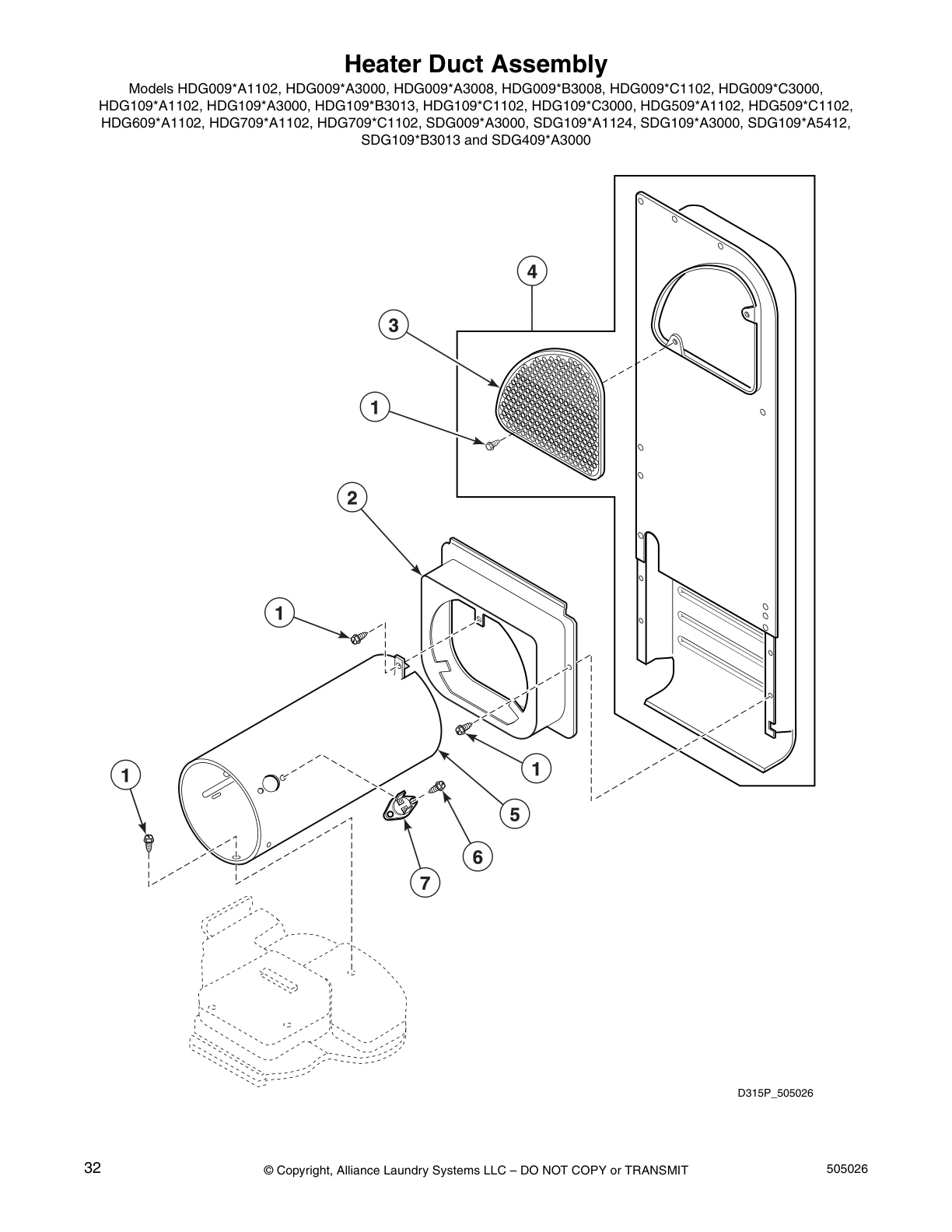

Heater Duct Assembly

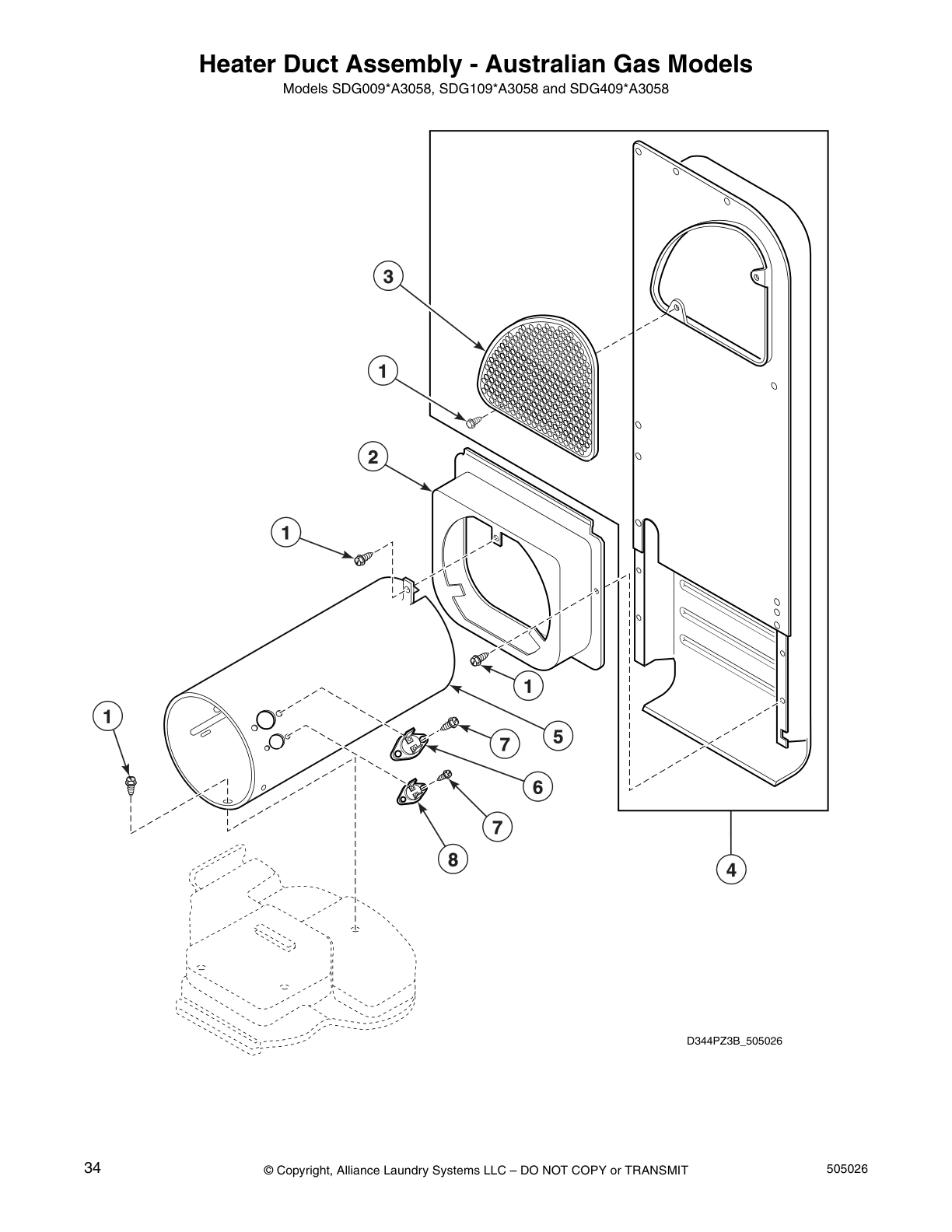

Heater Duct Assembly - Australian Gas Models

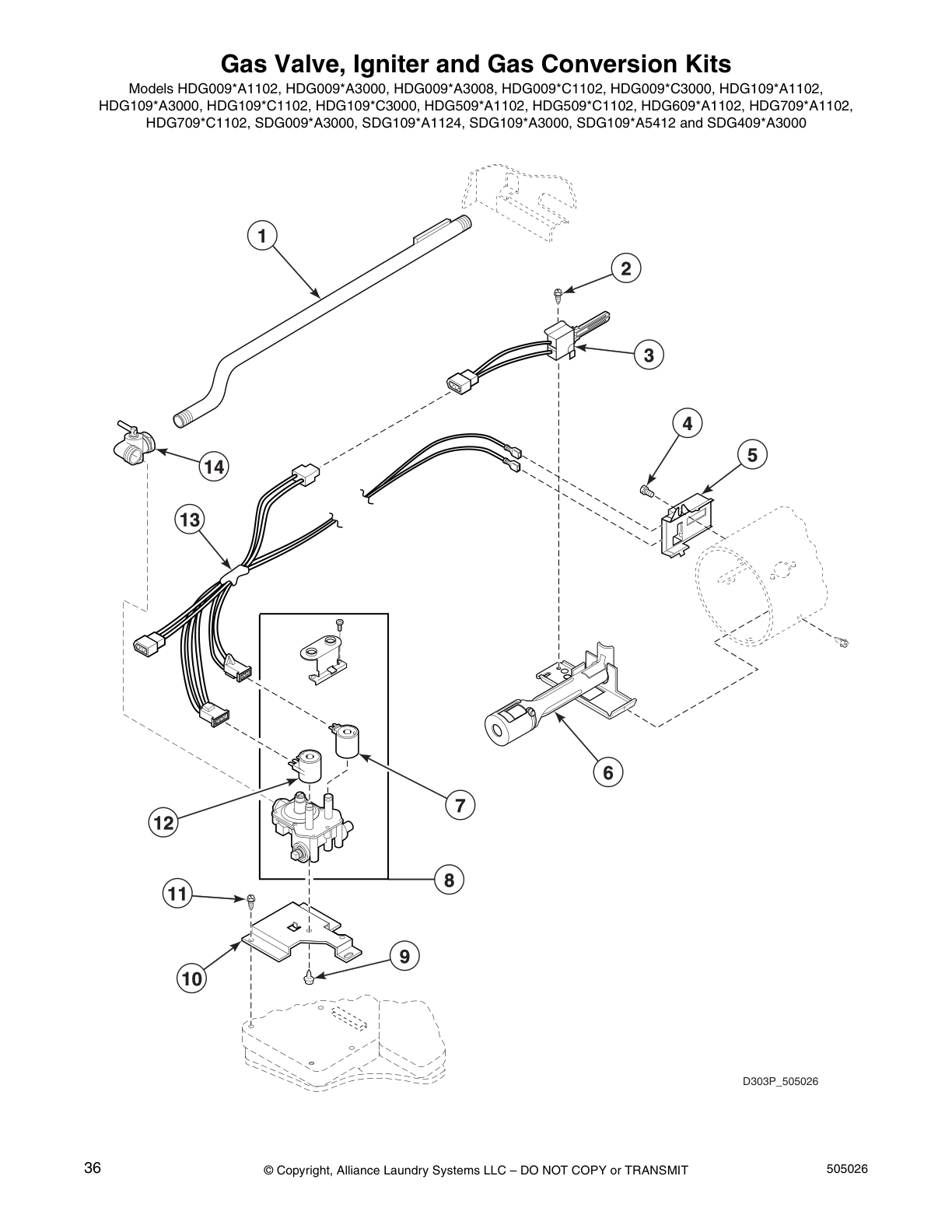

Gas Valve, Igniter and Gas Conversion Kits

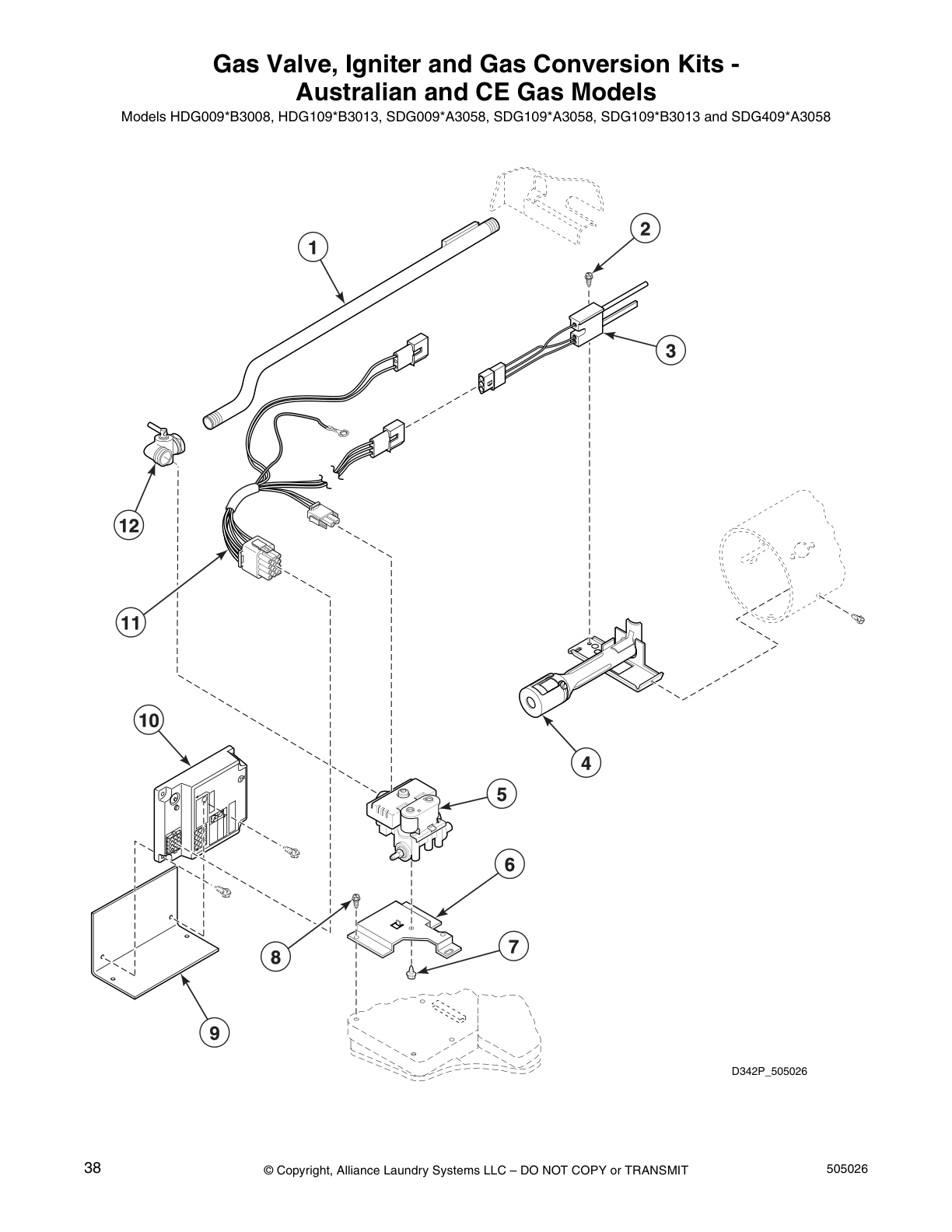

Gas Valve, Igniter and Gas Conversion Kits - Australian and CE Gas Models

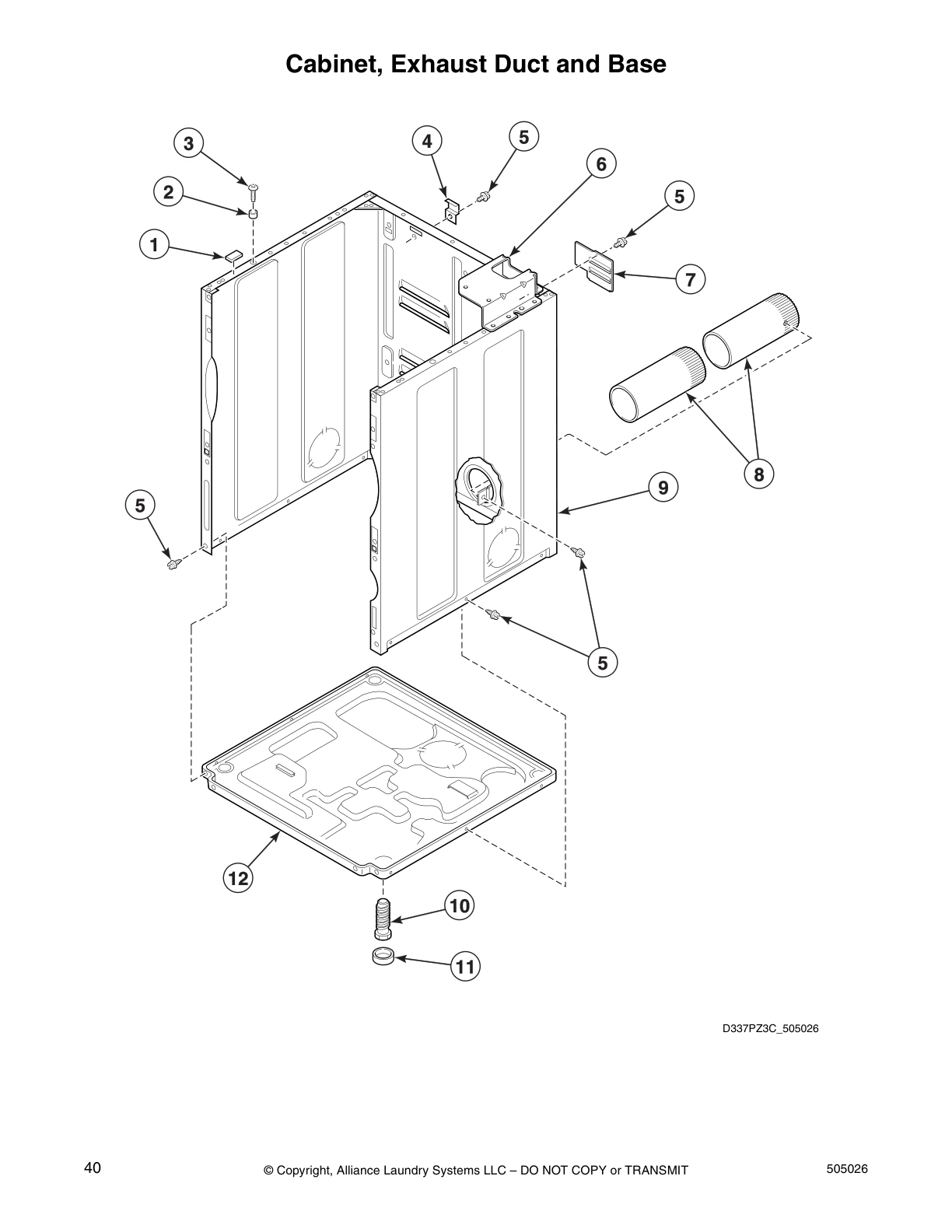

Cabinet, Exhaust Duct and Base

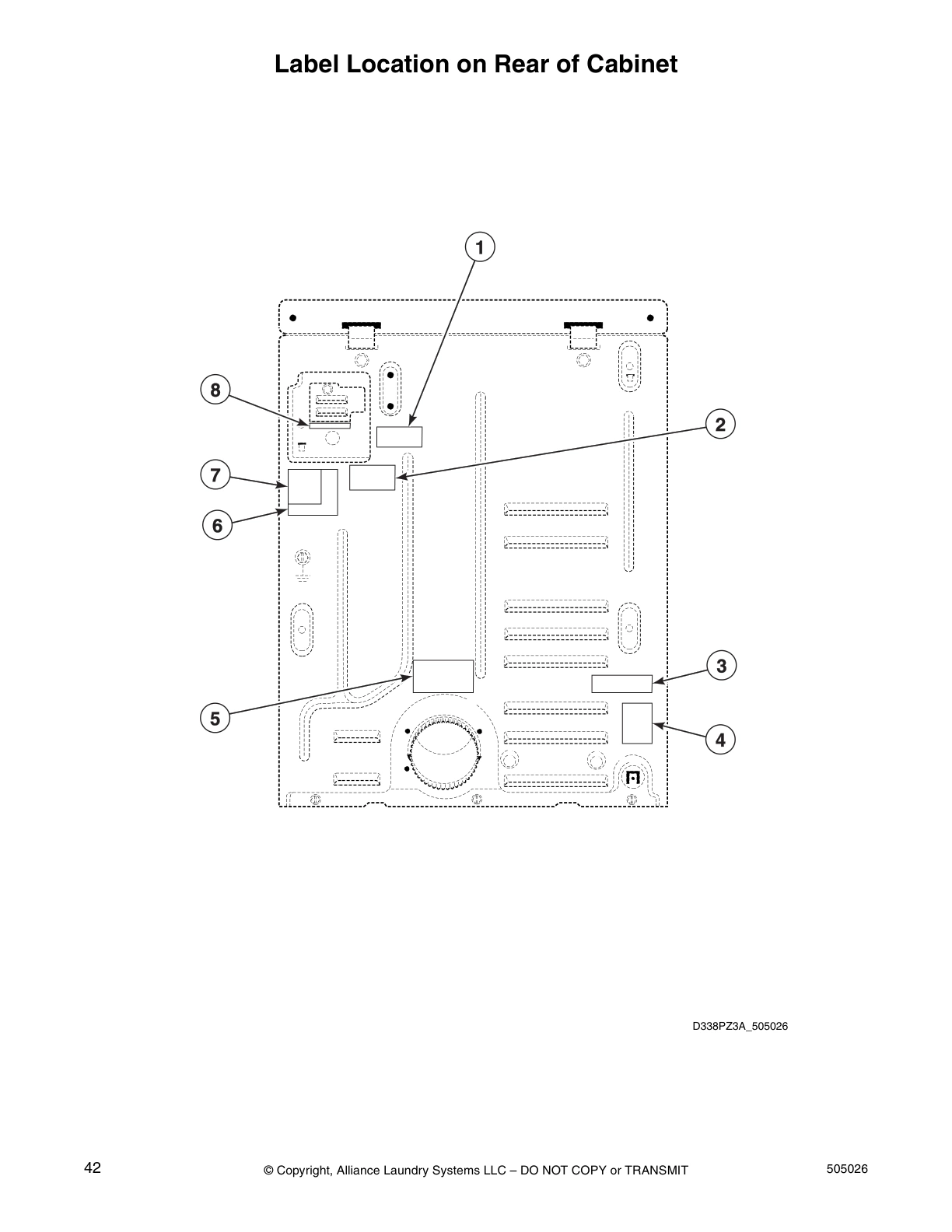

Label Location on Rear of Cabinet

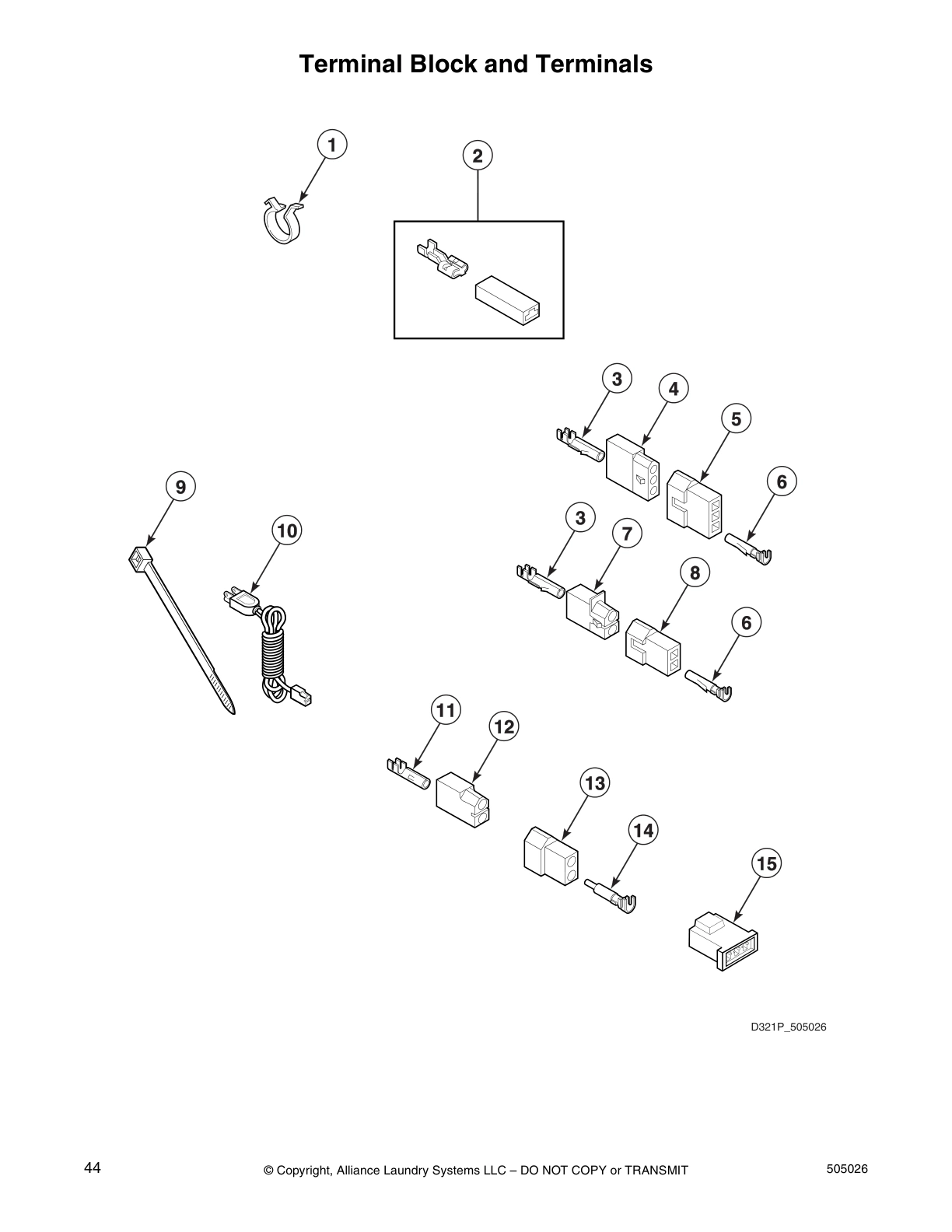

Terminal Block and Terminals

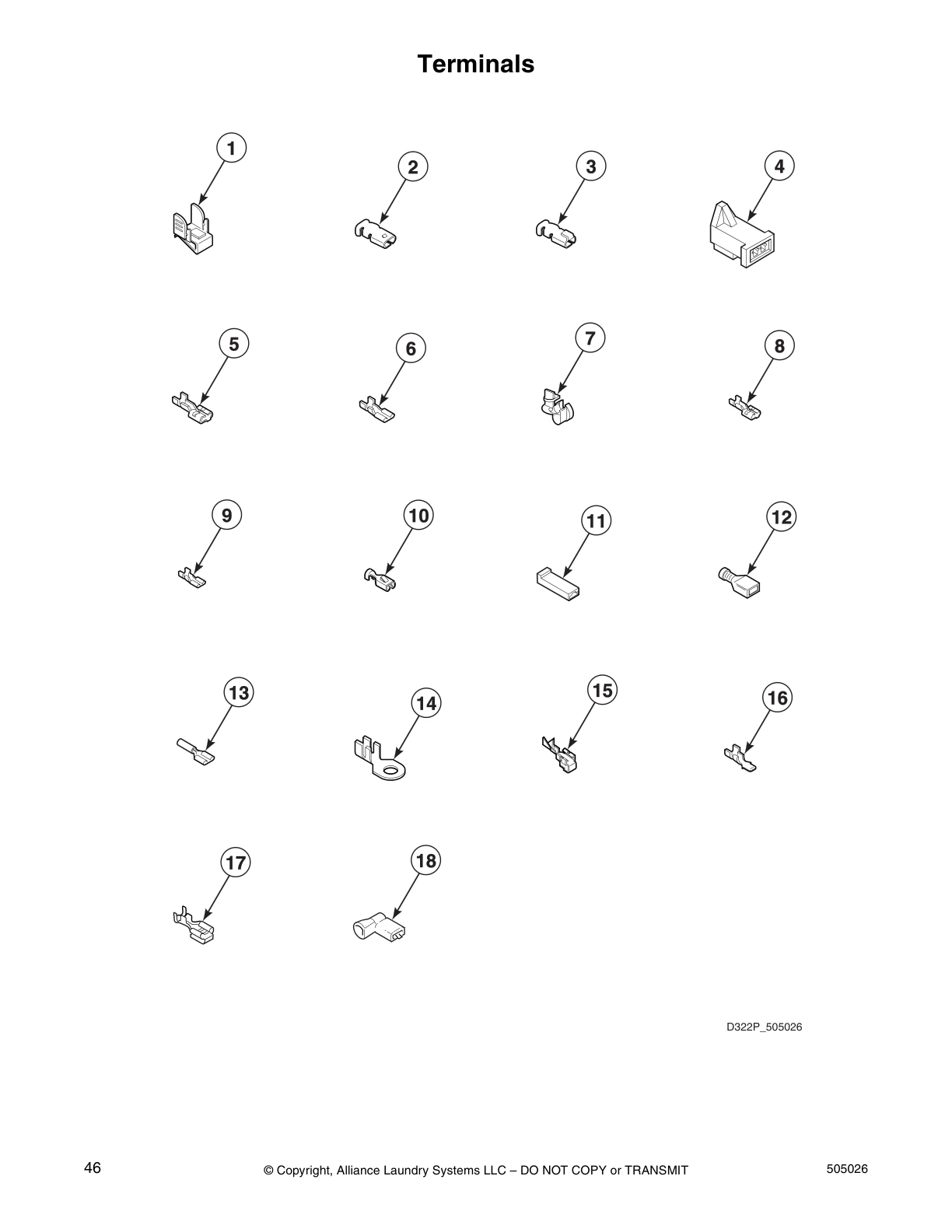

Terminals

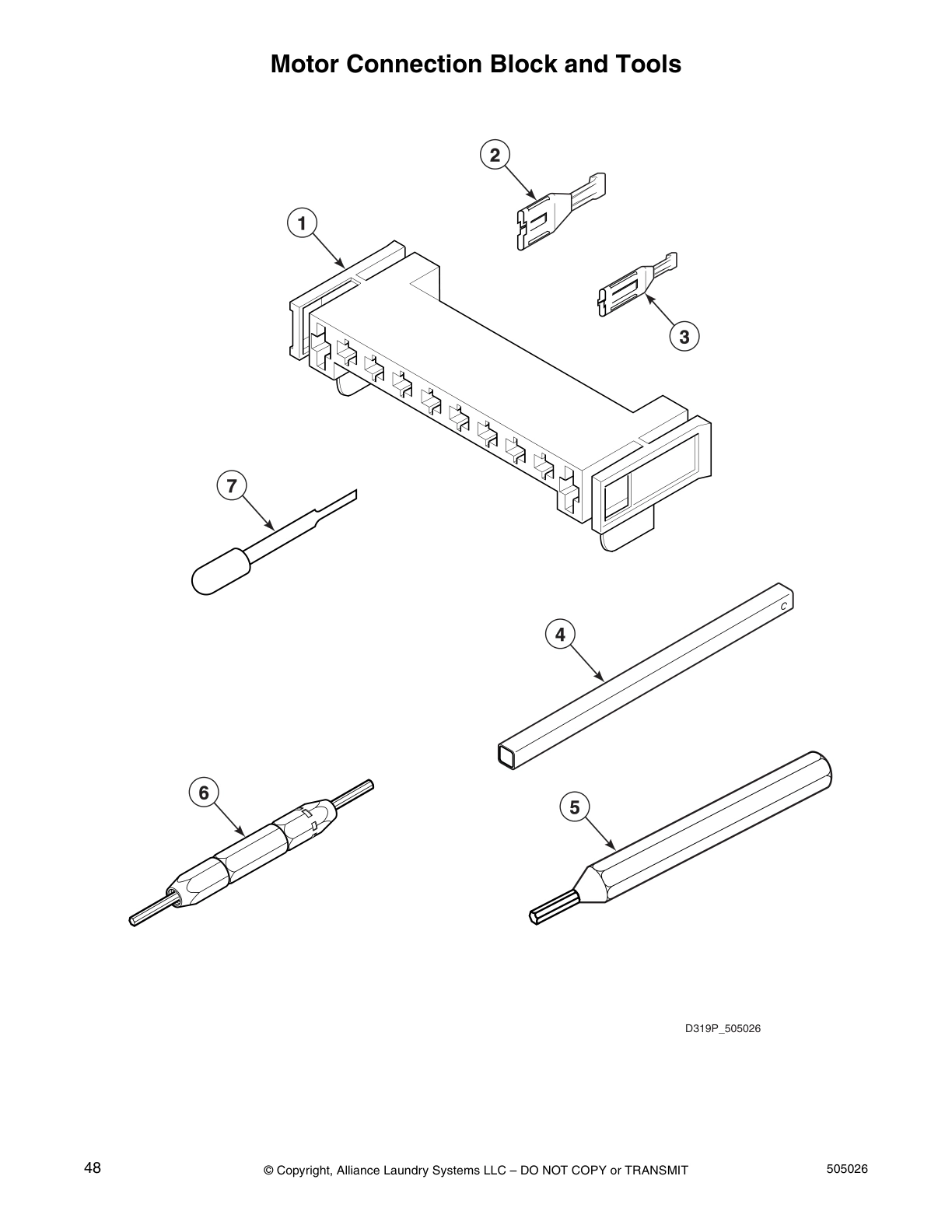

Motor Connection Block and Tools

Common parts from model Speed Queen SDG109*A5412 Dryer

00121 Speed Queen Spade Terminal 1/4" Female Backorder SPQ 00121 $4.58

View on Model

402P3 Speed Queen Conversion Kit Backorder SPQ 402P3 $38.48

View on Model

SPQ 00156 SPQ 00156 Contact Us For Availability

View on Model

SPQ 00209 SPQ 00209 Contact Us For Availability

View on Model

00161 Speed Queen Grounding Blade Clip Backorder SPQ 00161 $1.50

View on Model

28835 Speed Queen Washer Clip In Stock SPQ 28835 $4.70

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $4.70

View on Model

D510127 Speed Queen Washer Dryer Door Strike In Stock SPQ D510127 $2.18

View on Model

D510204 Speed Queen Lead-In Pipe Assembly Backorder SPQ D510204 $80.38

View on Model

10 Position Housing SPQ 500338 Contact Us For Availability

View on Model

00360 Speed Queen 1/4" Female Insulated Termi Backorder SPQ 00360 $0.88

View on Model

D510101 Speed Queen Heat Duct Shroud Backorder SPQ D510101 $23.37

View on Model

D510181 Speed Queen Dryer Metal Door Strike In Stock SPQ D510181 $2.85

View on Model

D510207P Speed Queen Dryer Drum Felt Seal In Stock SPQ D510207P $32.76

View on Model

Coin Funnel Kit SPQ 553P3 Contact Us For Availability

View on Model

Female Piggyback Terminal SPQ 00114 Contact Us For Availability

View on Model

Female Terminal SPQ 00256 Contact Us For Availability

View on Model

00139 Speed Queen Male Terminal Tab 1/4 Backorder SPQ 00139 $0.60

View on Model

523P3 Speed Queen Coin Funnel Kit In Stock SPQ 523P3 $16.91

View on Model

D500820 Speed Queen Washer Dryer Perforated O In Stock SPQ D500820 $16.45

View on Model

D511056 Speed Queen Washer Dryer Front Seal P In Stock SPQ D511056 $8.56

View on Model

Ratchet Extension Tool SPQ 00255 Contact Us For Availability

View on Model

00344 Speed Queen Terminal 1/4 Female with Ta Backorder SPQ 00344 $4.58

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $4.70

View on Model

D510163WP Speed Queen Liner Seal and Grill As Backorder SPQ D510163WP $153.63

View on Model

D510184P Speed Queen Dryer Igniter and Bracke In Stock SPQ D510184P $46.35

View on Model

D510705P Speed Queen Heater Duct Assembly Backorder SPQ D510705P $63.28

View on Model

Extractor Tool SPQ 00188 Contact Us For Availability

View on Model

00189 Speed Queen Spade Terminal Backorder SPQ 00189 $0.44

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $39.22

View on Model

62588 Speed Queen Tapping Screw 10BT-12 X 1 Backorder SPQ 62588 $4.70

View on Model

D516196 Speed Queen One-Piece Exhaust Duct Backorder SPQ D516196 $16.63

View on Model

Blower and Fan Kit SPQ 505869P Contact Us For Availability

View on Model

00361 Speed Queen Female Piggyback Terminal Backorder SPQ 00361 $0.44

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $4.70

View on Model

D505295 Speed Queen Screw 8AB-16 X 3/4 PHIL In Stock SPQ D505295 $1.01

View on Model

D510190P Speed Queen Dryer Terminal Block Ass In Stock SPQ D510190P $5.71

View on Model

D511036 Speed Queen Door Hinge In Stock SPQ D511036 $2.85

View on Model

Gas Clearance Label SPQ 62853 Contact Us For Availability

View on Model

128P4 Speed Queen Tool Extractor HT-2038 Backorder SPQ 128P4 $62.25

View on Model

51782 Speed Queen Hex Head Screw 6B-20X.31 Backorder SPQ 51782 $1.81

View on Model

55882 Speed Queen Switch Assembly In Stock SPQ 55882 $41.76

View on Model

61199 Speed Queen Mach-HXWAHD 10-32 ST Screw Backorder SPQ 61199 $5.86

View on Model

D510213 Speed Queen Sensor In Stock SPQ D510213 $51.97

View on Model

D510702 Speed Queen Dryer High Limit Thermost In Stock SPQ D510702 $19.20

View on Model

D510903 Speed Queen Access Cover Plate - 3 Lo In Stock SPQ D510903 $3.73

View on Model

52947 Speed Queen Hex Nut 15/32-32 Backorder SPQ 52947 $1.54

View on Model

56448 Speed Queen 2-Circuit Plug Backorder SPQ 56448 $0.44

View on Model

D510100 Speed Queen Cylinder Roller Bracket In Stock SPQ D510100 $4.70

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.70

View on Model

58799 Speed Queen 2 Circuit Connector Backorder SPQ 58799 $1.06

View on Model

58804B Speed Queen Dryer Secondary Coil In Stock SPQ 58804B $14.72

View on Model

590P3 Speed Queen Motor Hub Ring Kit Backorder SPQ 590P3 $46.01

View on Model

D510708P Speed Queen Cylinder Roller with Ins In Stock SPQ D510708P $13.73

View on Model

00115 Speed Queen Terminal Spade, 1/4" Female Backorder SPQ 00115 $0.60

View on Model

524P3W Speed Queen Metercase and Funnel Kit Backorder SPQ 524P3W $326.16

View on Model

D510128 Speed Queen Gas Valve Mounting Bracke Backorder SPQ D510128 $4.30

View on Model

D510135 Speed Queen Leveling Leg Backorder SPQ D510135 $5.71

View on Model

D510146 Speed Queen Top Mount Bracket Backorder SPQ D510146 $4.70

View on Model

Door Handle Wedge SPQ 510129 Contact Us For Availability

View on Model

00130 Speed Queen Knob Backorder SPQ 00130 $0.27

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx Backorder SPQ D501285 $1.87

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $5.71

View on Model

D510177 Speed Queen Dryer Door Catch Assembly In Stock SPQ D510177 $5.71

View on Model

D510185 Speed Queen Idler Spring In Stock SPQ D510185 $1.99

View on Model

Receptacle Housing SPQ 00321 Contact Us For Availability

View on Model

26354 Speed Queen Metercase Gasket Backorder SPQ 26354 $6.57

View on Model

39897 Speed Queen Switch Knob Backorder SPQ 39897 $8.16

View on Model

58804A Speed Queen Dryer Booster and Holding In Stock SPQ 58804A $18.92

View on Model

2 Circuit Receptacle SPQ 56265 Contact Us For Availability

View on Model

Ultra Pod Terminal SPQ 90789 Contact Us For Availability

View on Model

24205 Speed Queen Knurled Nut 3/8-24 In Stock SPQ 24205 $4.70

View on Model

56156 Speed Queen Serrated Nut 3/8-16 In Stock SPQ 56156 $4.70

View on Model

56266 Speed Queen Plug Backorder SPQ 56266 $0.90

View on Model

D510145 Speed Queen Cylinder Glide Bracket In Stock SPQ D510145 $9.50

View on Model

Idler Lever SPQ 510133 Contact Us For Availability

View on Model

00127 Speed Queen Terminal Pin 1/8 Male Backorder SPQ 00127 $0.27

View on Model

00359 Speed Queen Terminal Ultra POD .250 X Backorder SPQ 00359 $4.58

View on Model

D501738W Speed Queen Control Panel and Bracke In Stock SPQ D501738W $85.07

View on Model

00165 Speed Queen 3/16" Female Insulated Term Backorder SPQ 00165 $0.60

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $2.85

View on Model

58800 Speed Queen 3 Circuit Connector Backorder SPQ 58800 $1.06

View on Model

Fabric Selector Switch SPQ 91176 Contact Us For Availability

View on Model

Male Tab Terminal SPQ 00111 Contact Us For Availability

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $4.70

View on Model

61512 Speed Queen Fabric Selector Switch In Stock SPQ 61512 $27.18

View on Model

Female Tab Terminal SPQ 00110 Contact Us For Availability

View on Model

D500824 Speed Queen Screw Backorder SPQ D500824 $4.70

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $4.70

View on Model

D516792 Speed Queen Dryer Idler Lever Pulley In Stock SPQ D516792 $27.27

View on Model

Motor Mount Clamp SPQ 510060 Contact Us For Availability

View on Model

00223 Speed Queen Terminal Backorder SPQ 00223 $4.58

View on Model

00347 Speed Queen Female Terminal Backorder SPQ 00347 $0.88

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $57.97

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.70

View on Model

528P3 Speed Queen Directional Exhaust Kit In Stock SPQ 528P3 $72.24

View on Model

D510717P Speed Queen Blower and Fan Kit 120/6 Backorder SPQ D510717P $526.38

View on Model

SPQ 00245 SPQ 00245 Contact Us For Availability

View on Model

SPQ 00124 SPQ 00124 Contact Us For Availability
