Model Speed Queen SDENYAGS173TW01 Dryer – Common Parts & Diagrams

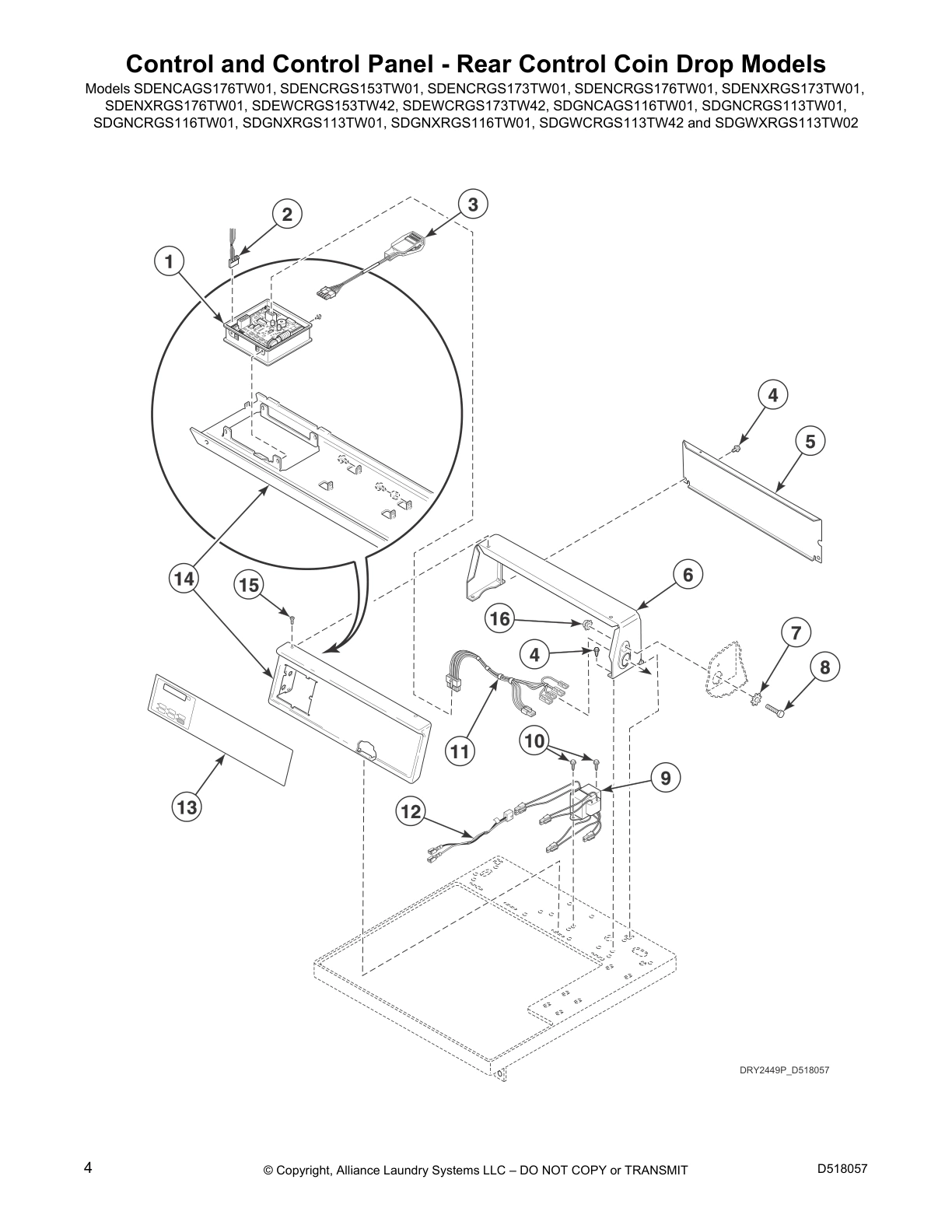

Control and Control Panel - Rear Control Coin Drop Models

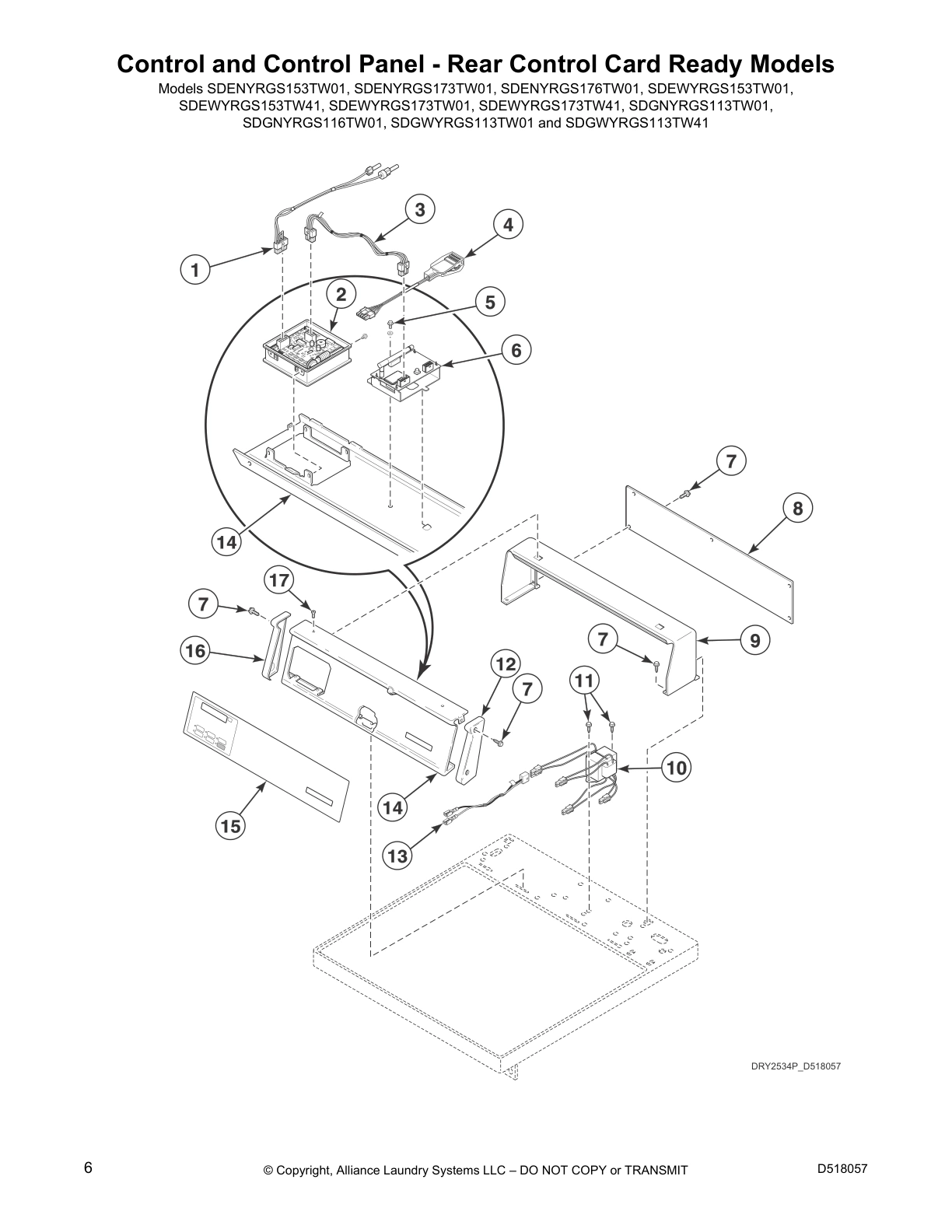

Control and Control Panel - Rear Control Card Ready Models
Control Panel and Controls -
Coin Drop and Card Front Control Models (Drawing 1 of 2)
Control Panel and Controls -
Coin Drop and Card Front Control Models (Drawing 2 of 2)
Control Cabinet Controls - Front Control Coin Drop Models
Electronic Coin Drop - Front Control Models
Control Cabinet Controls - Front Control Card Ready Models
Cabinet Top - Front Control Models
Loading Door
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly - Electric Model Dryers
Heater Duct Assembly - Gas Model Dryers
Gas Valve, Igniter and Gas Conversion Kits
Cabinet, Exhaust Duct and Base
Terminal Block and Terminals (Drawing 1 of 2)
Terminal Block and Terminals (Drawing 2 of 2)
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Rear Control Models
Label Location on Rear of Cabinet
Common parts from model Speed Queen SDENYAGS173TW01 Dryer
× ![]()
