Model Whirlpool RS22AWXEW00 – Common Parts & Diagrams
10 - AIR FLOW

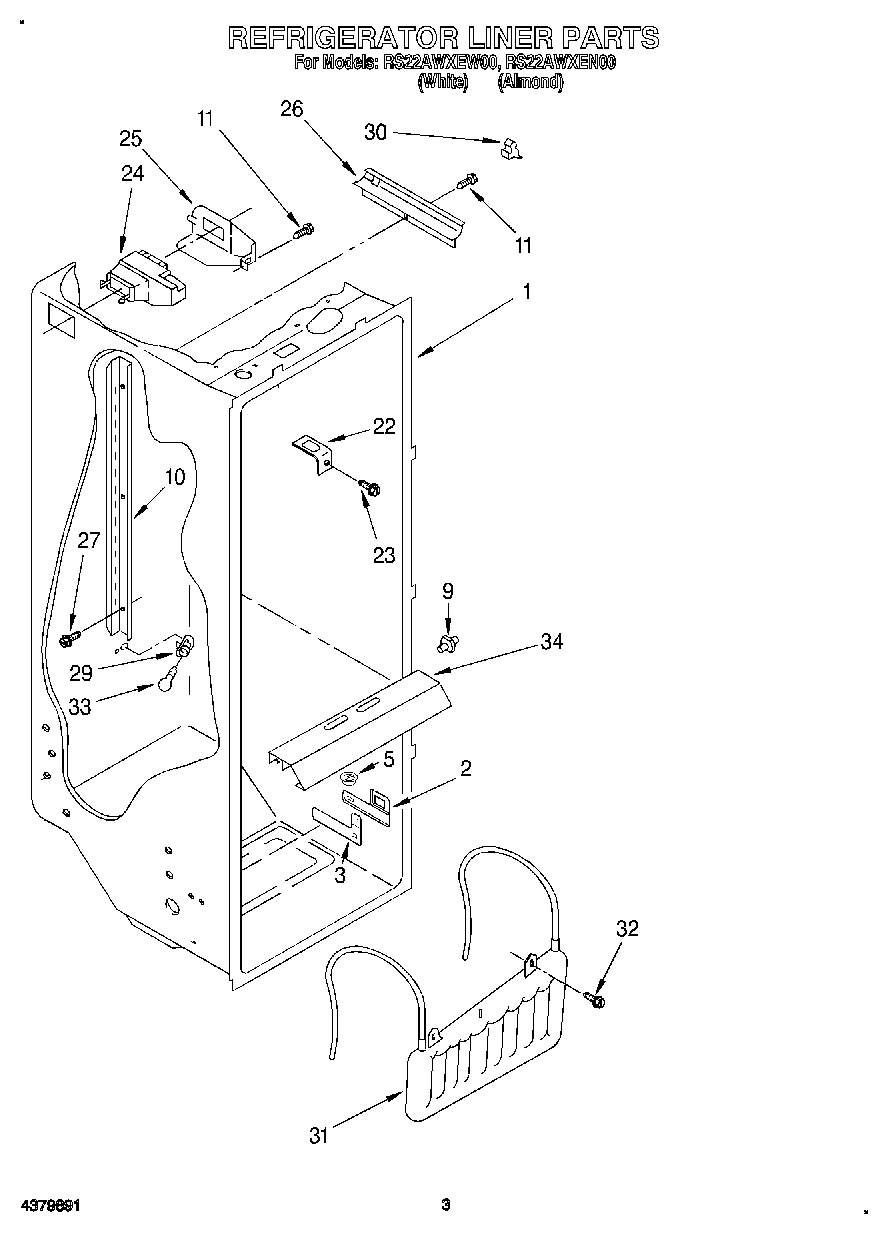

02 - REFRIGERATOR LINER

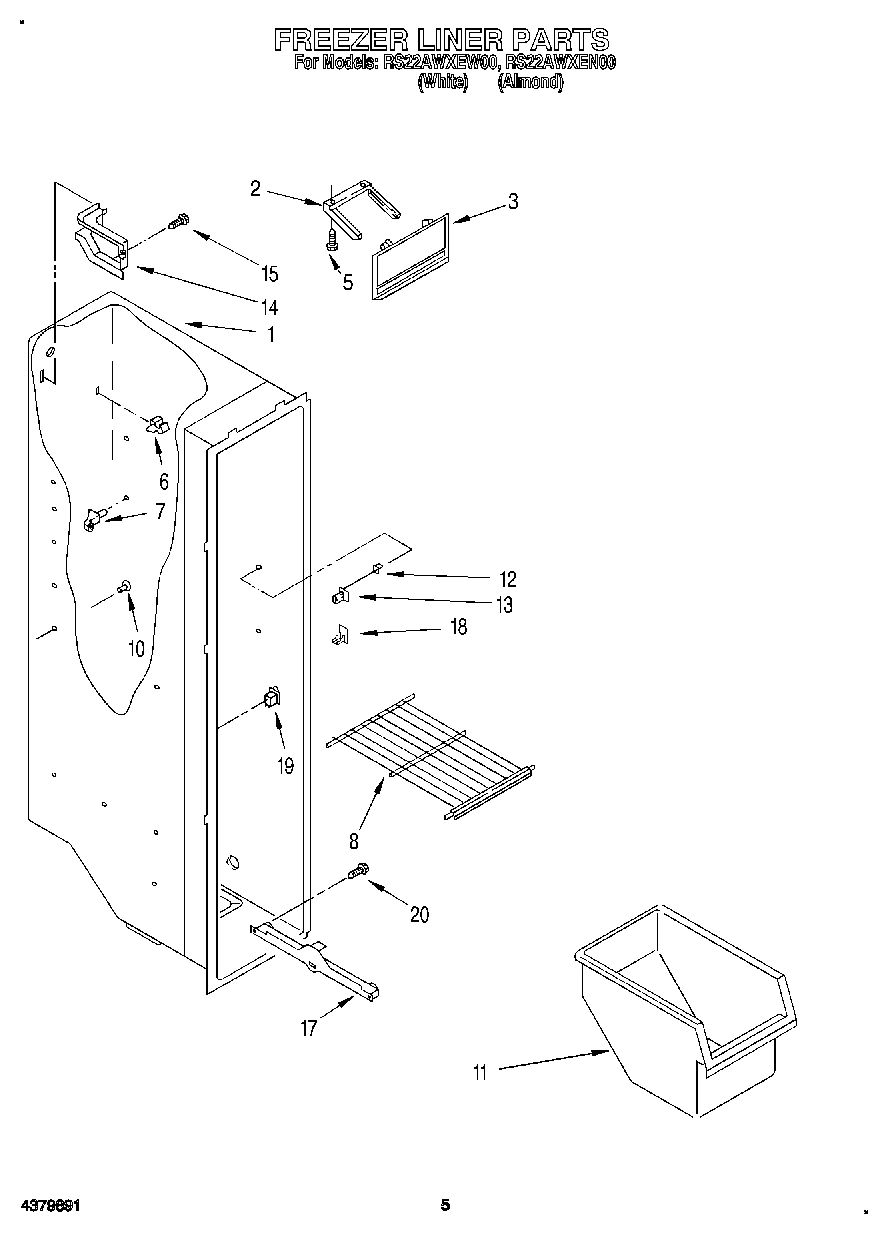

04 - FREEZER LINER

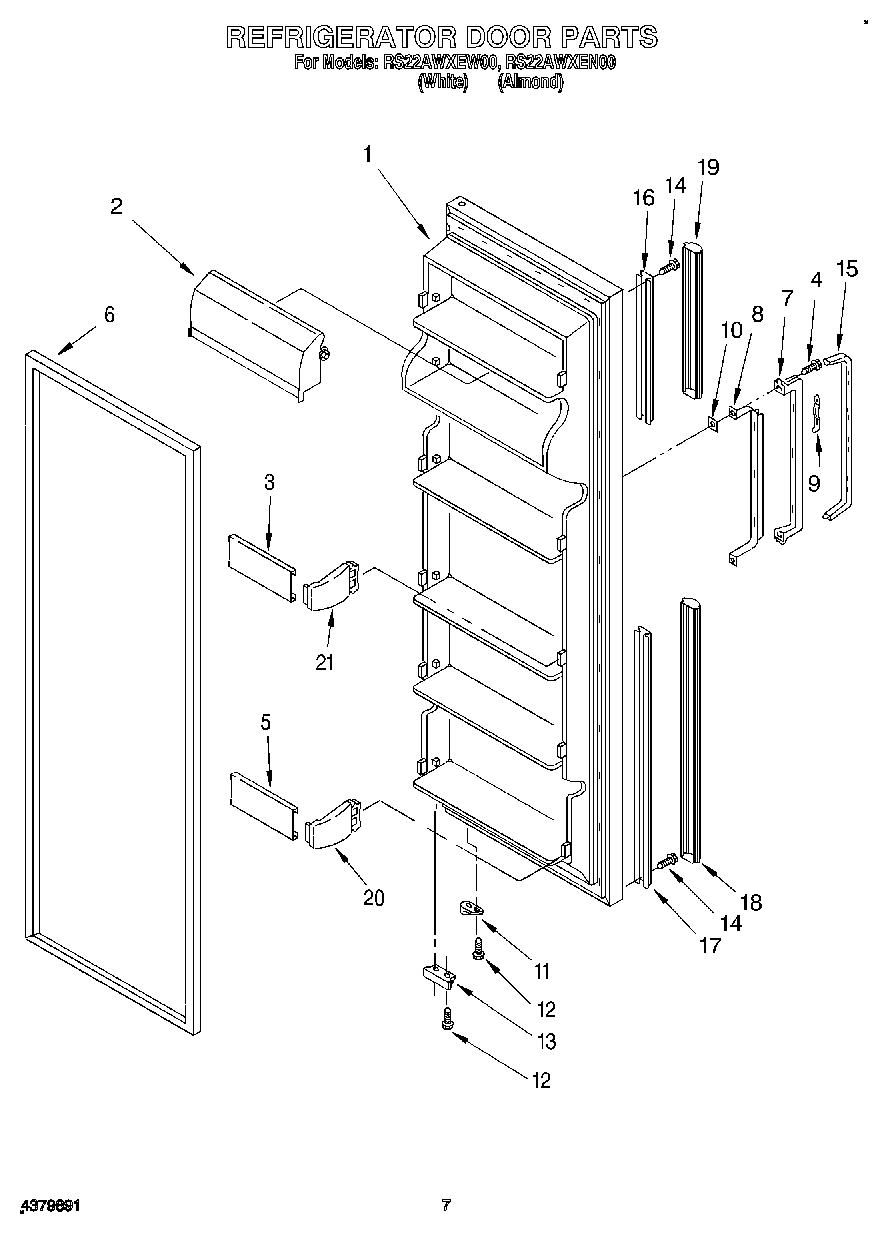

06 - REFRIGERATOR DOOR

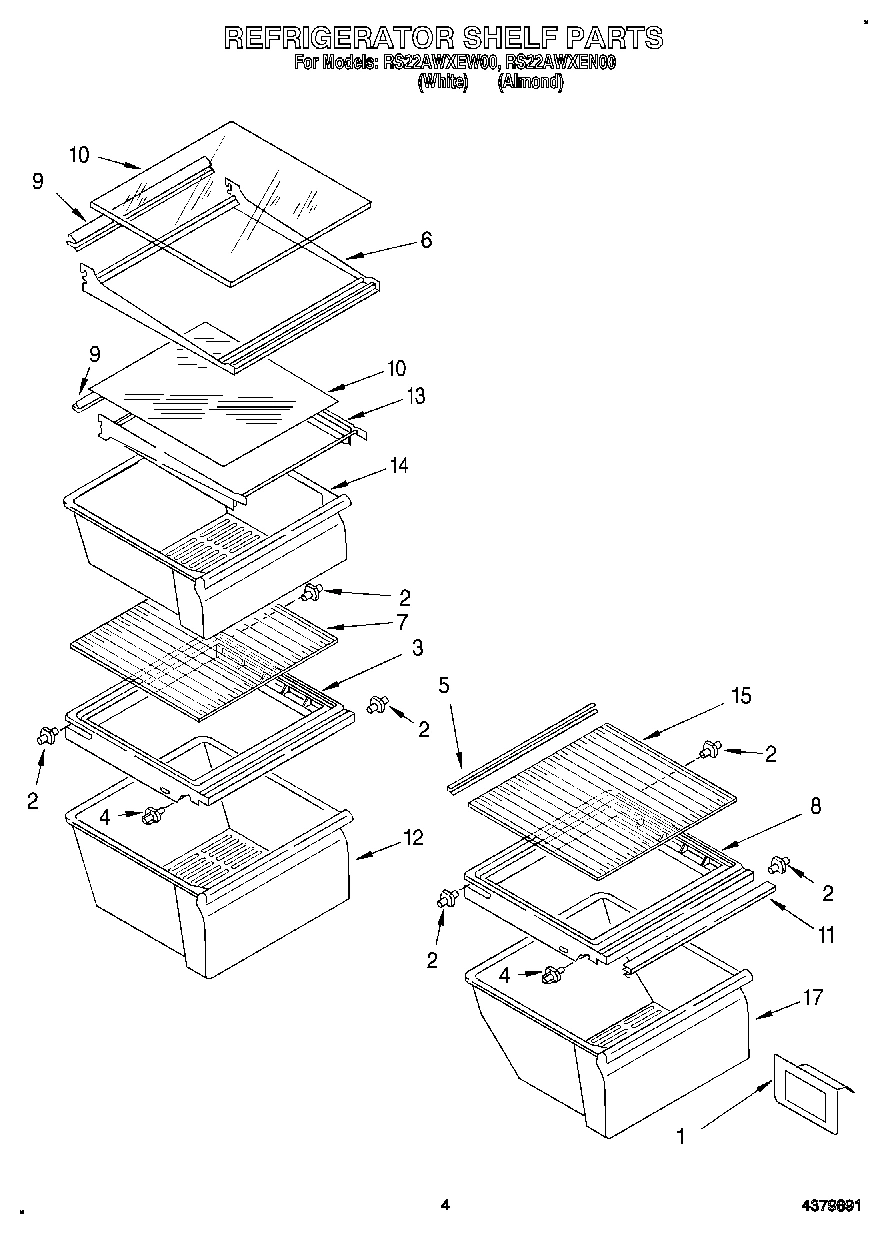

03 - REFRIGERATOR SHELF

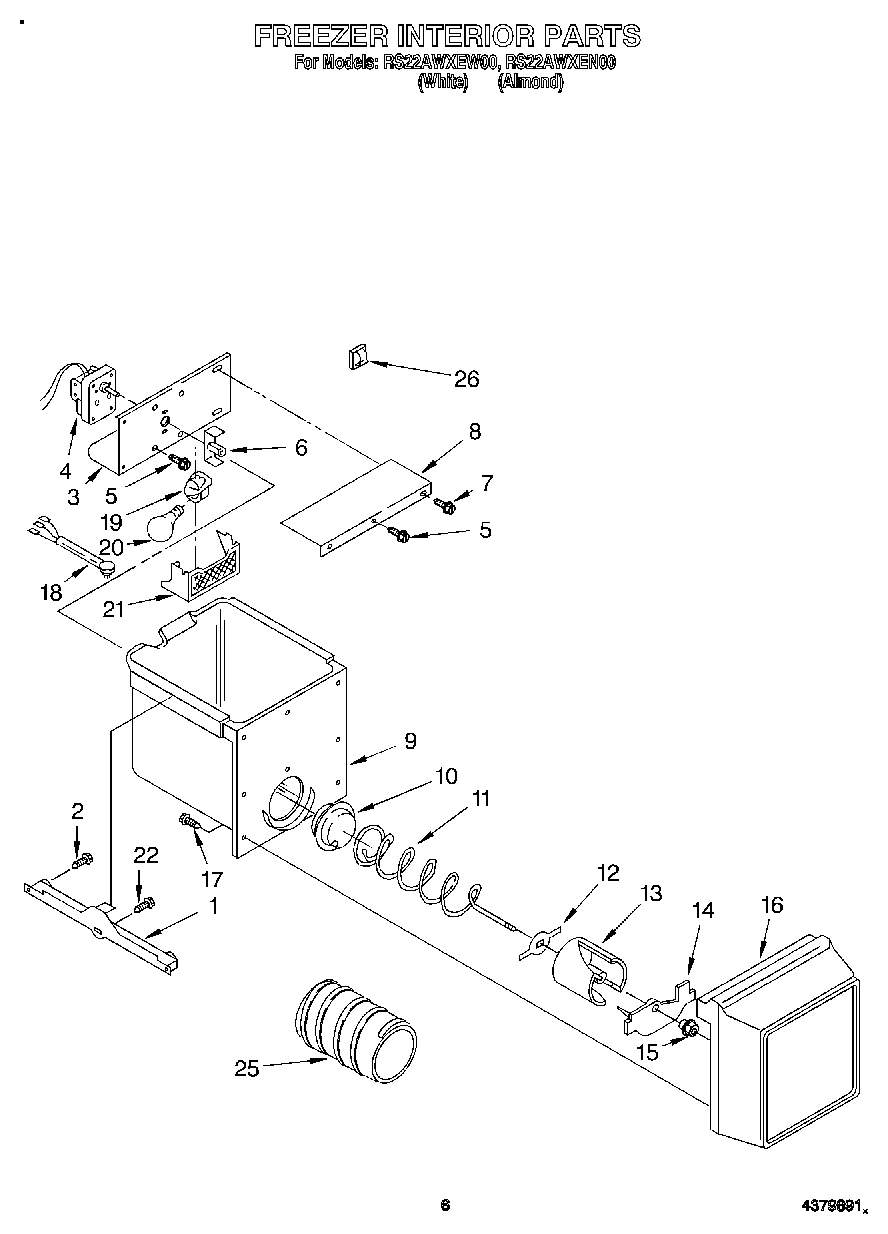

05 - FREEZER INTERIOR

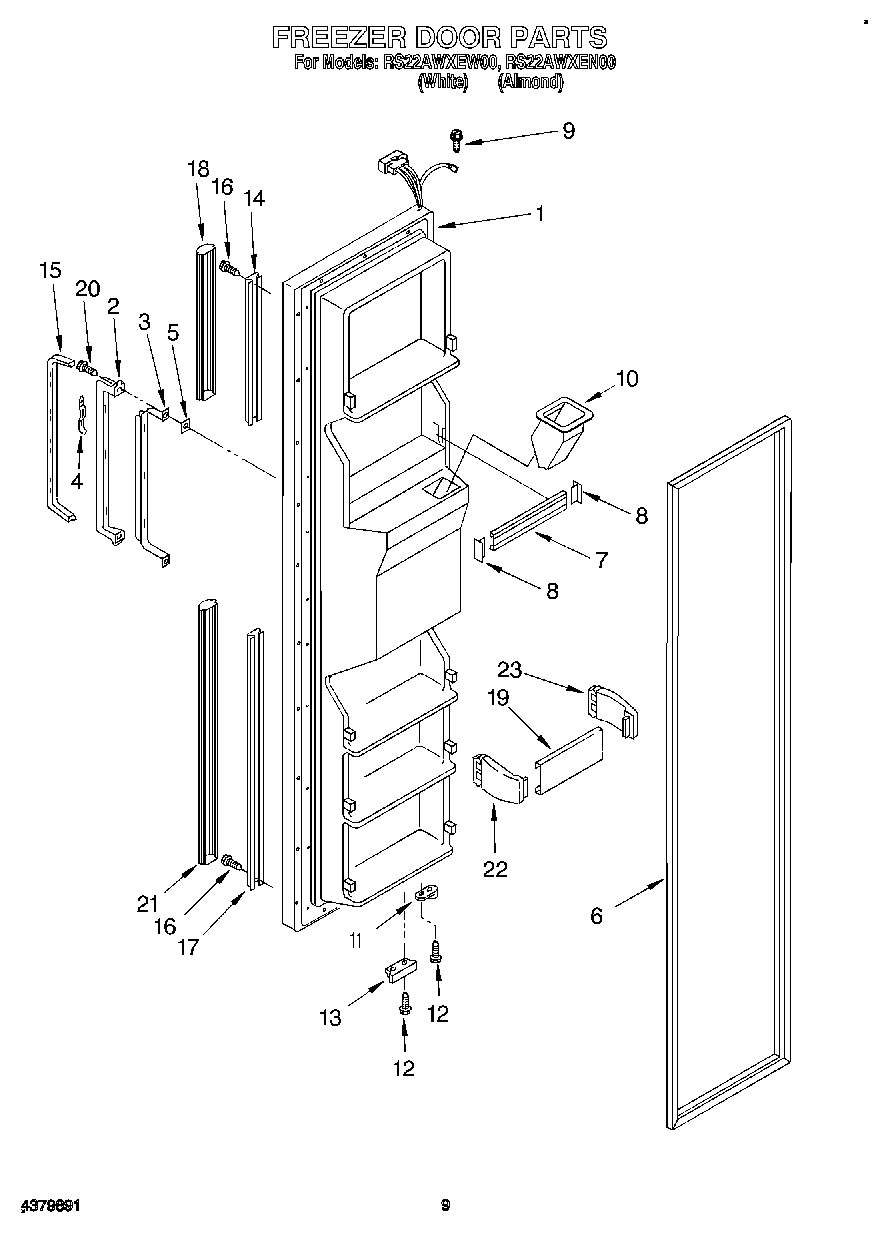

07 - FREEZER DOOR

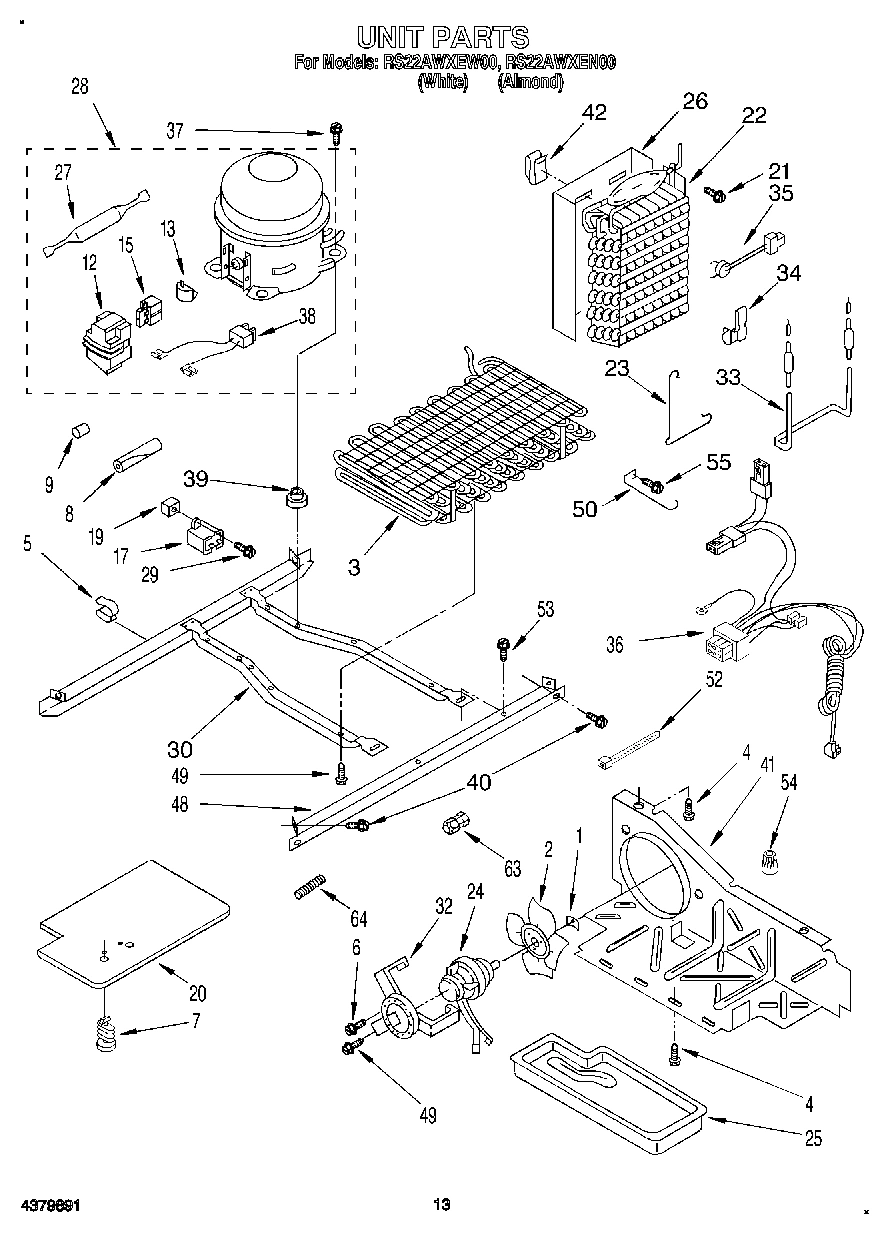

09 - UNIT

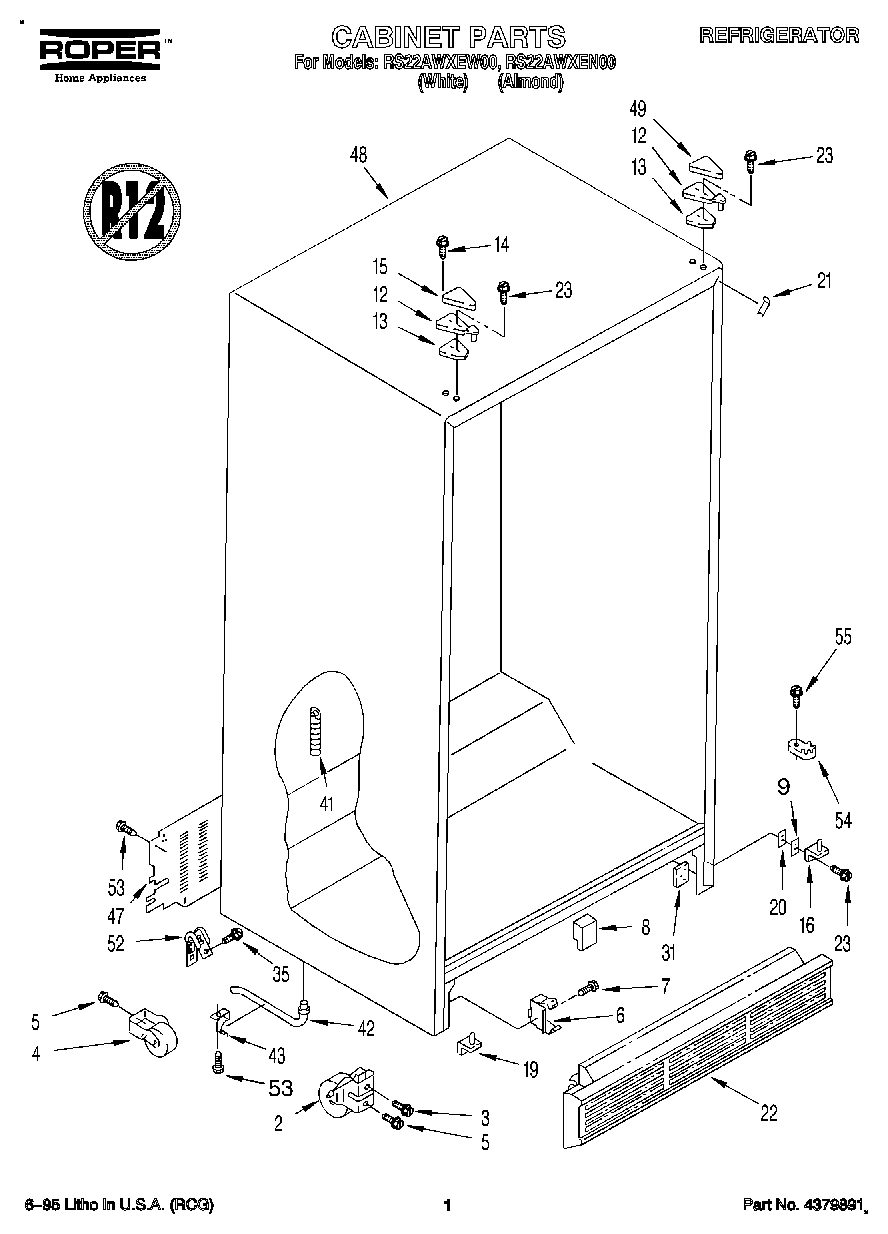

01 - CABINET

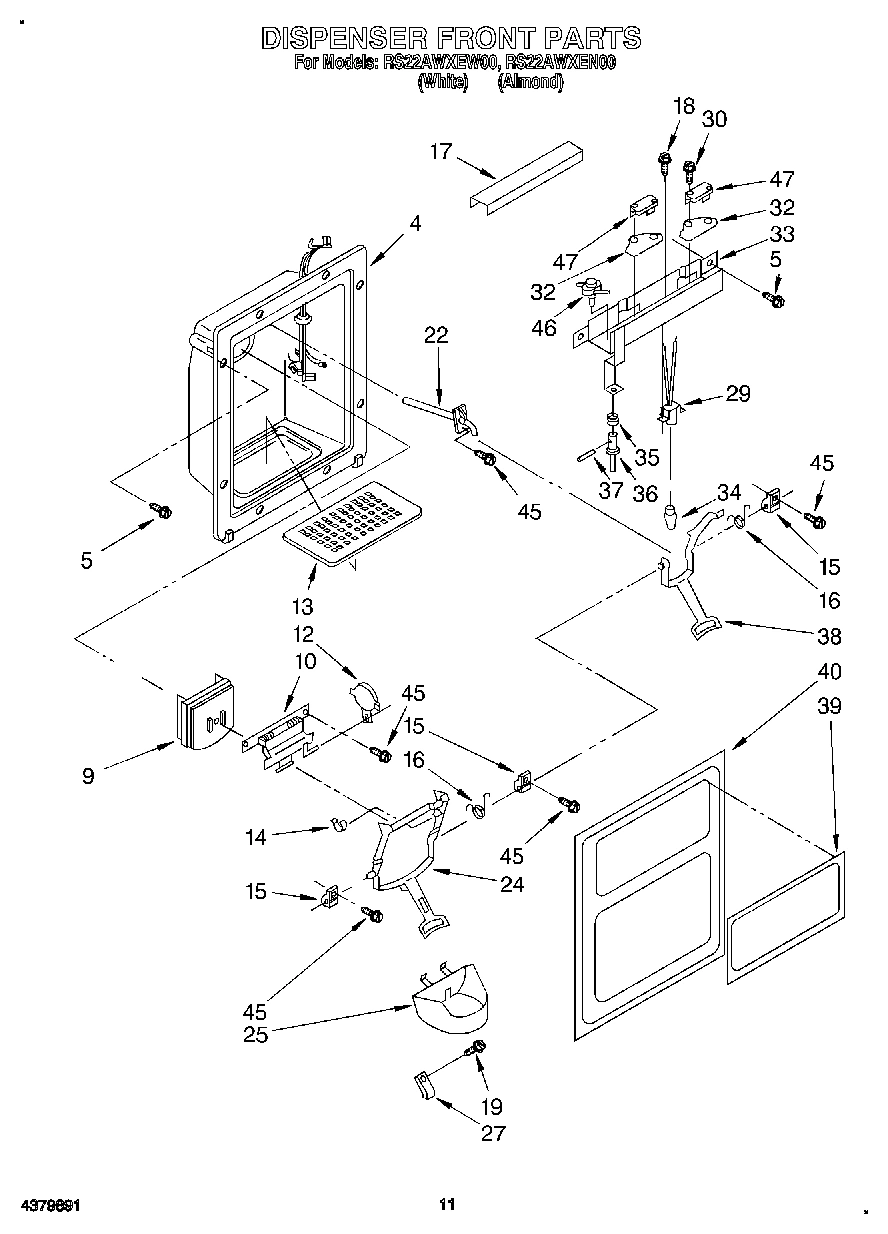

08 - DISPENSER FRONT

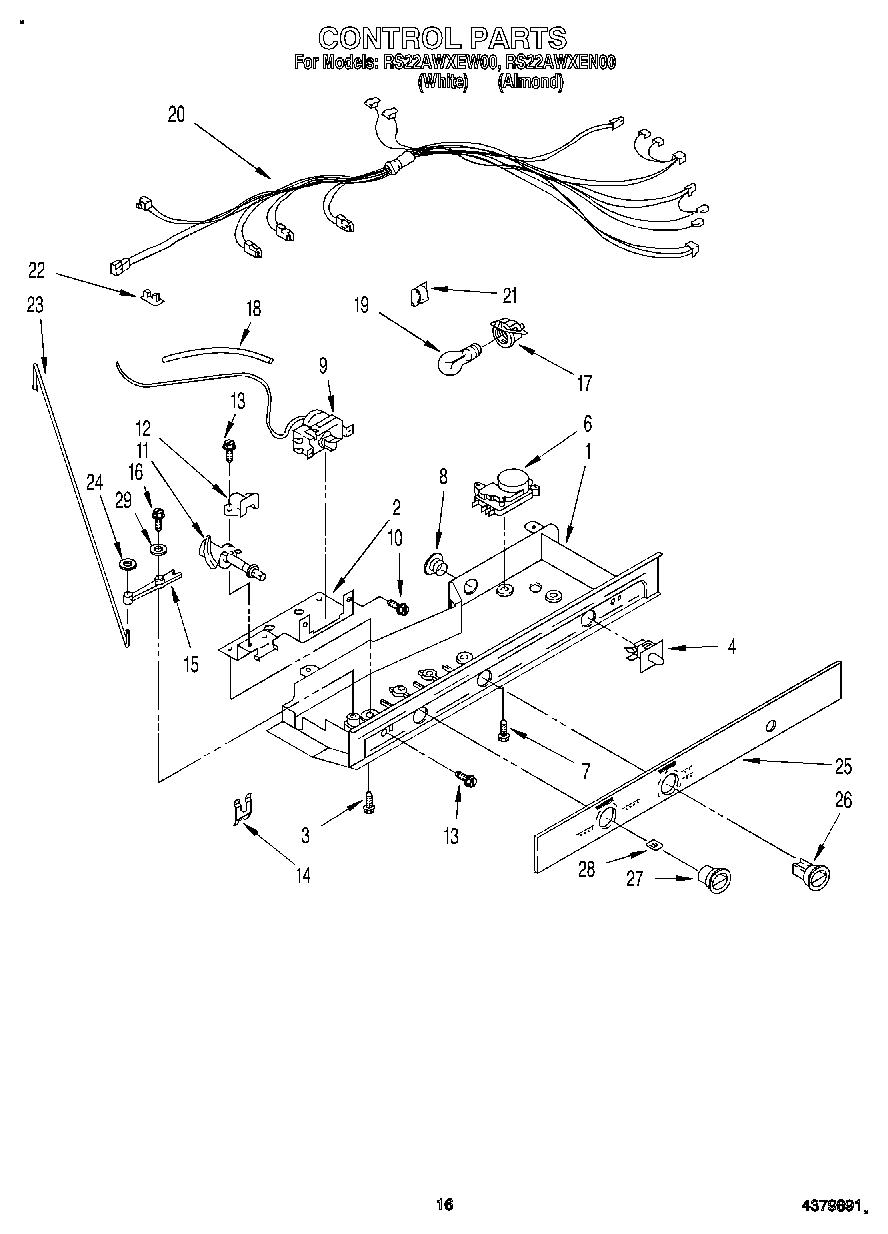

11 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool RS22AWXEW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173306 WPL LIT2173306 Contact Us For Availability
WPL LIT2176837 WPL LIT2176837 Contact Us For Availability
WPL LIT2182781 WPL LIT2182781 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (White) WPL 2173424 Contact Us For Availability
1
Freezer Door (Almond (Includes Item No.6 And WPL 2173425 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2147470 Contact Us For Availability
2
Handle, Center (Almond) WPL 2170066 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Reinforcement, Handle WPL 1127465 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Clip, Handle WPL 849445 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI124089A Contact Us For Availability
5
Shim WPL 2147097 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Chute, Ice WPL 2156146 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Retainer, Top WPL 2147898 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Relay (See Overload) WPL ARI124090A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2174351 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Retainer (Bottom) WPL 2147896 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Extension, Top (White) WPL 2147472 Contact Us For Availability
18
Extension, Top (Almond) WPL 2170067 Contact Us For Availability
19
Trim, Shelf (4) WPL 2182786 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Screw WPL 489197 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
21
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Glass Stop (Almond) WPL 1125978 Contact Us For Availability
27
Glass Stop (White) WPL 2147480 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Unit, Harness WPL 2181709 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174326 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2174333 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173408 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2174304 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
46
Light Switch WPL 851386 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI124086A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Spring-Tube WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
100
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
100
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
100
CEMENT, ALUMI WPL 542639 Contact Us For Availability
100
WPL 72112 WPL 72112 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
