Model GE PS960BL3TS Electric Range – Common Parts & Diagrams
CONTROL PANEL
COOKTOP

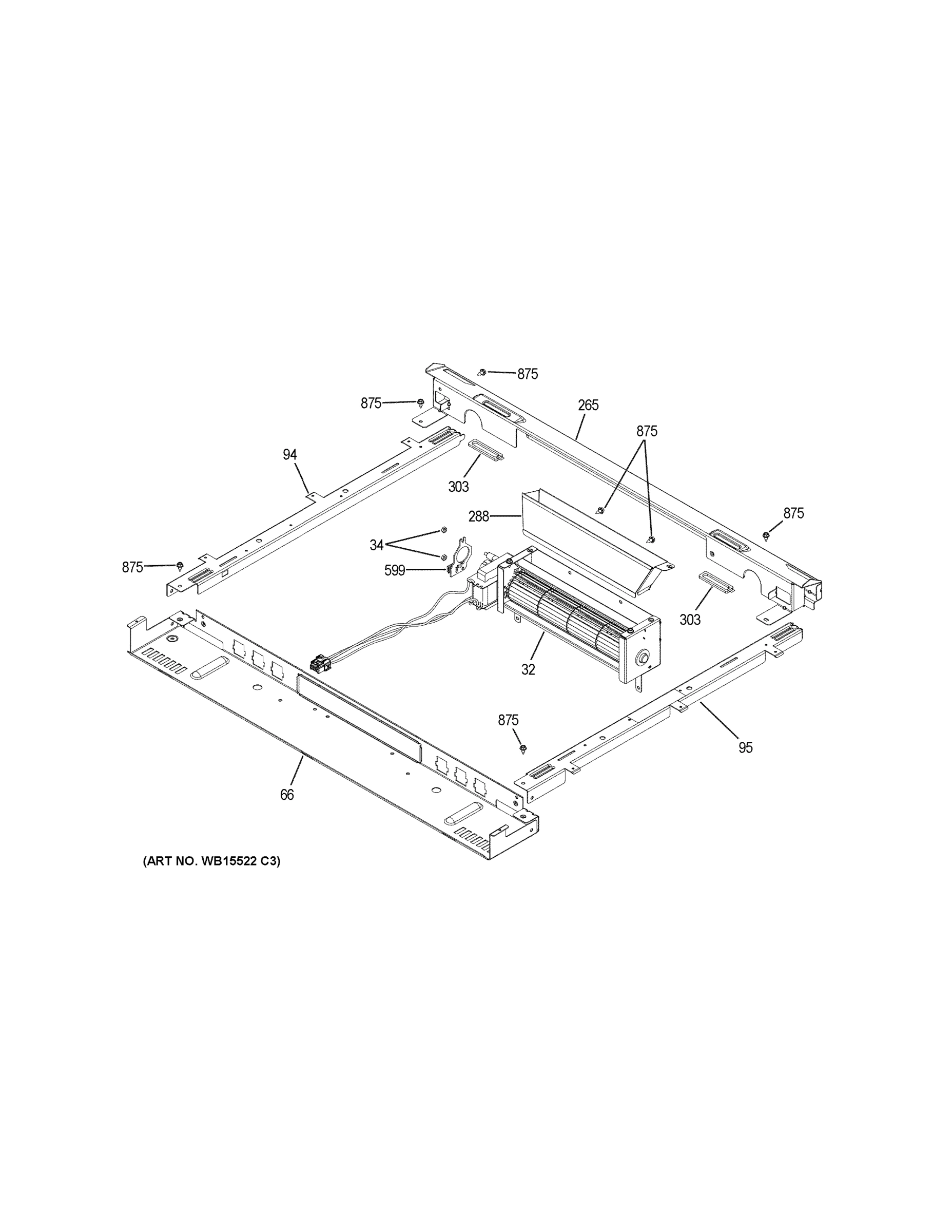

COOLING FAN

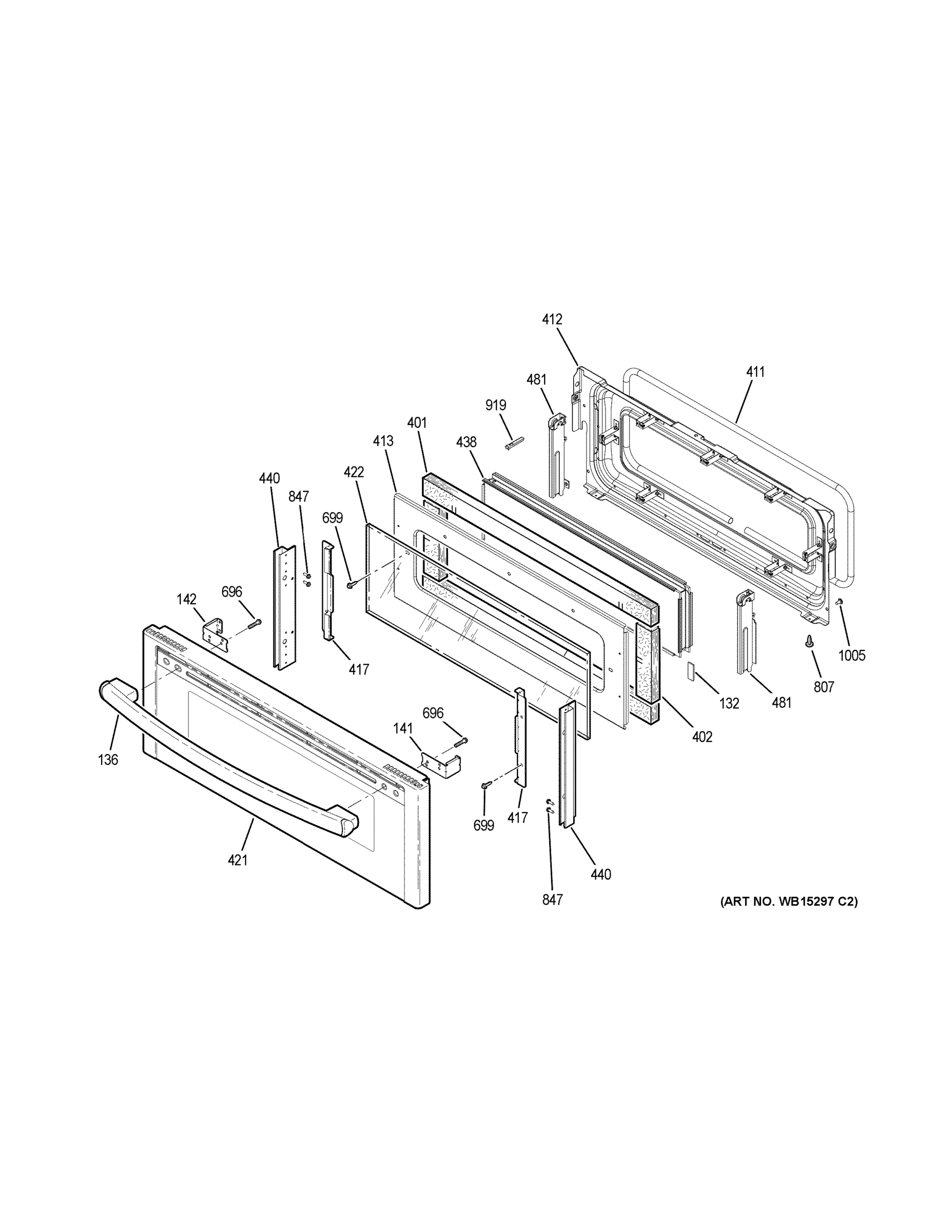

UPPER DOOR

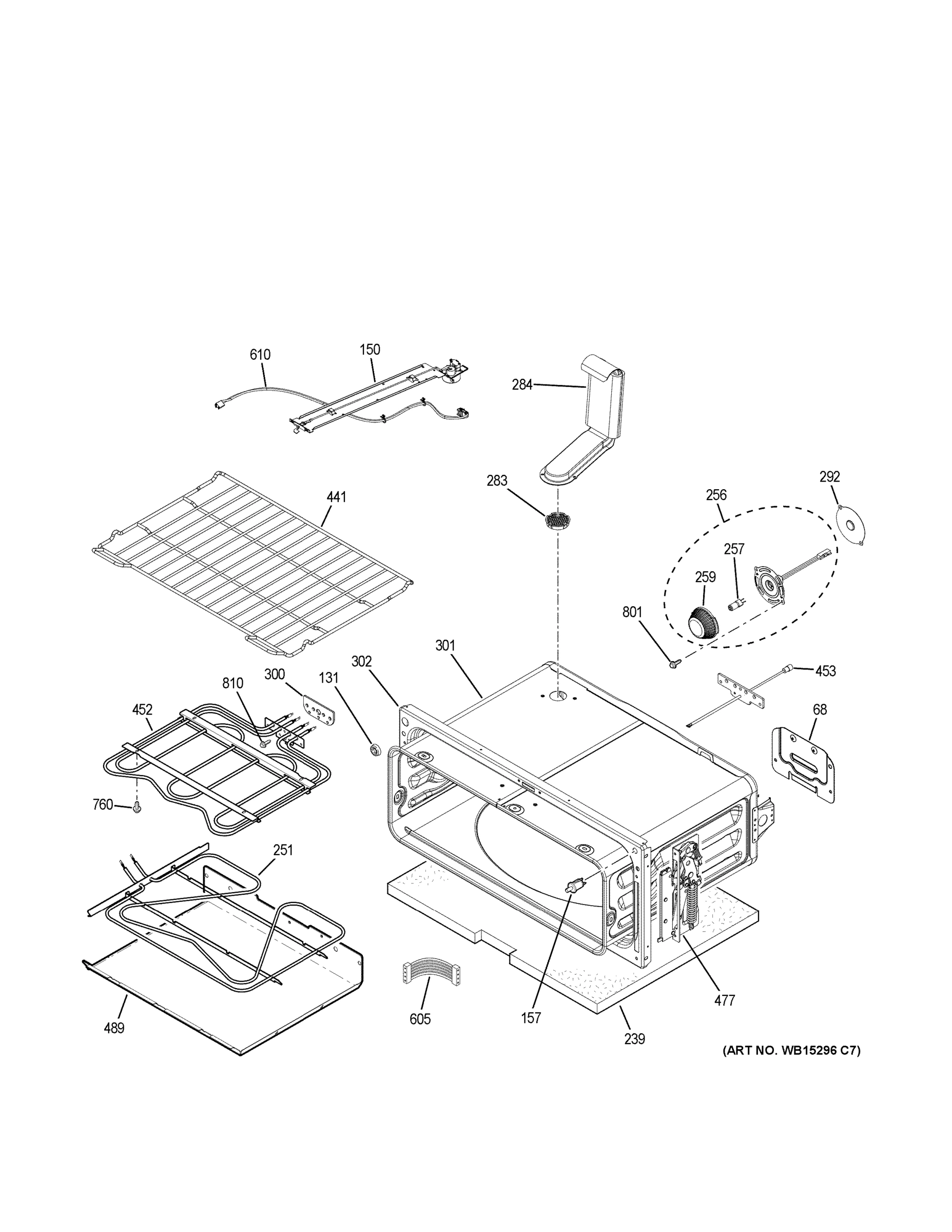

UPPER OVEN

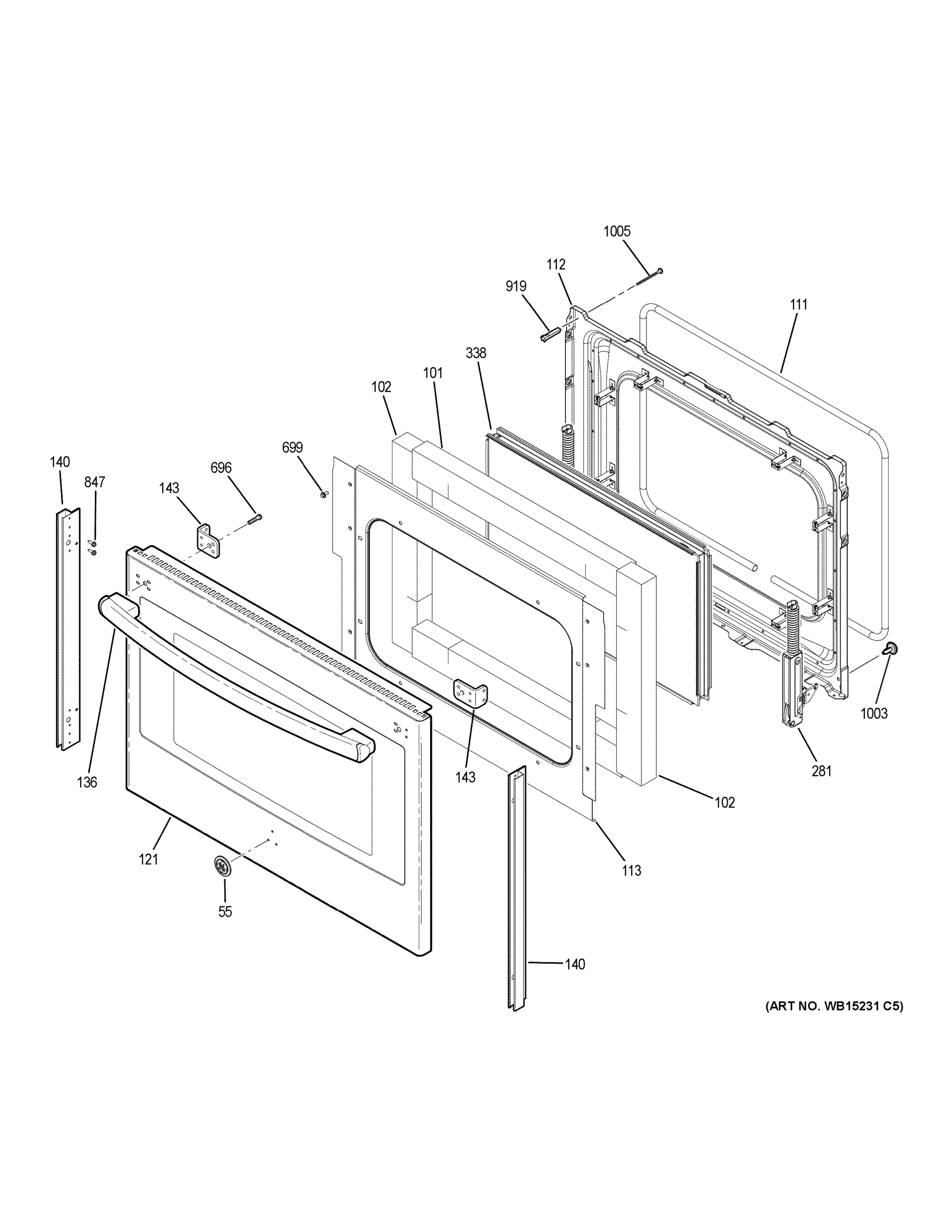

LOWER DOOR

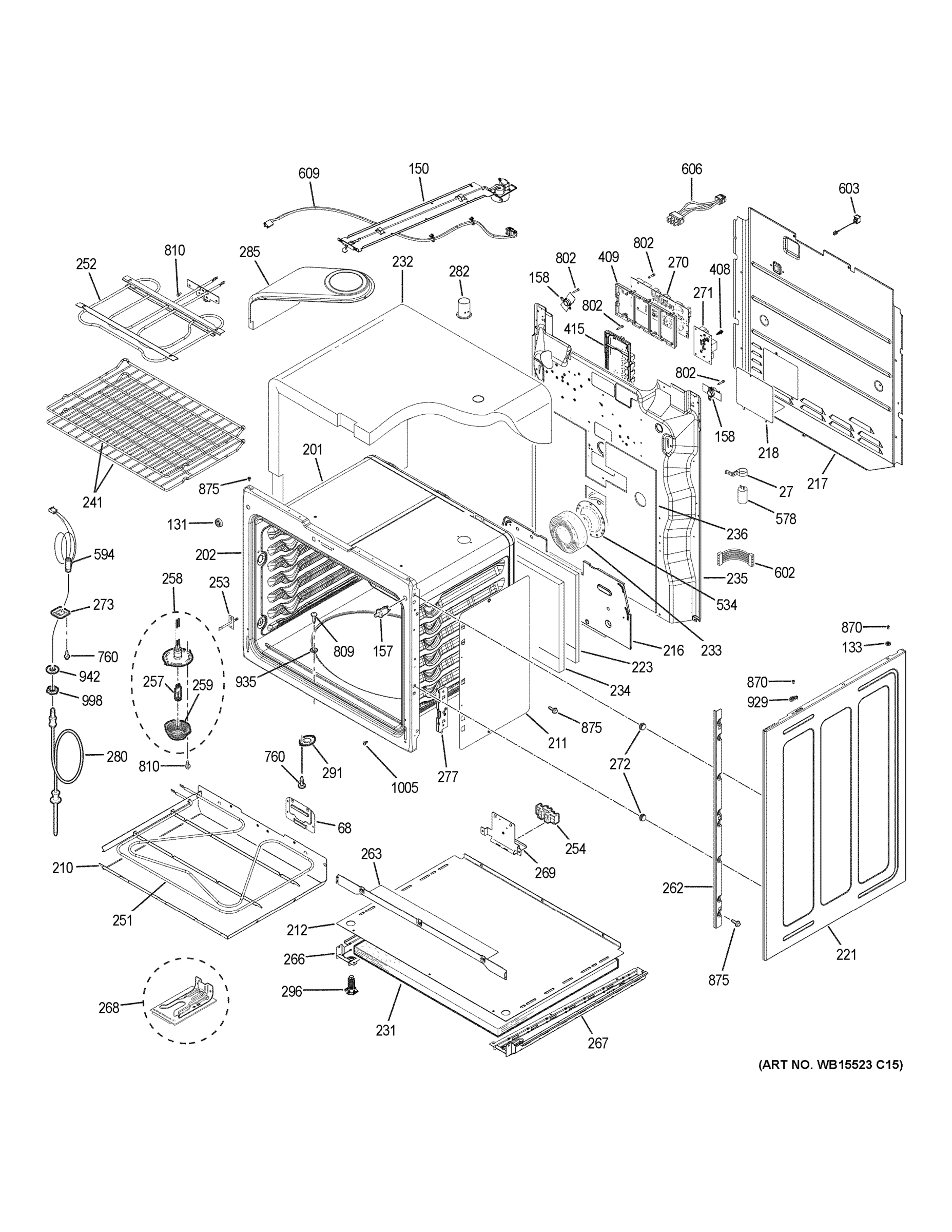

LOWER OVEN

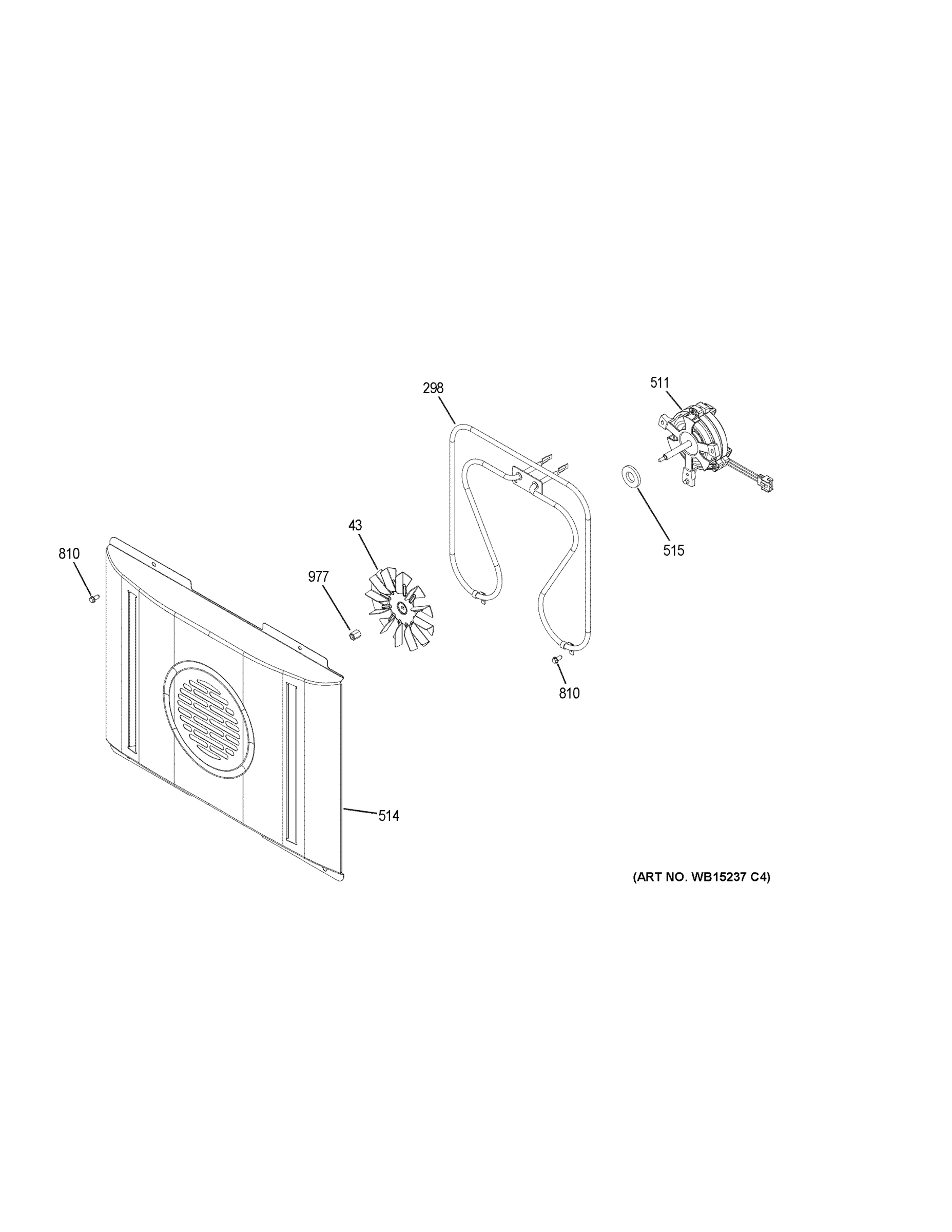

CONVECTION FAN
Common parts from model GE PS960BL3TS Electric Range
1
CONTROL PANEL TRIM ASM GEN WB07X29238 Contact Us For Availability
5
CONTROL LIGHTS GUIDE GEN WB63X29528 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB35X29473 Contact Us For Availability
32
BLOWER AND FAD ASM GEN WB26X29203 Contact Us For Availability
55
BADGE ASM GEN WB02X29637 Contact Us For Availability
57
ELEMENT WARMER LOW PRF GEN WB30X10035 Contact Us For Availability
71
REAR VENT TRIM AND GASKET ASM GEN WB07X29475 Contact Us For Availability
131
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
132
TAPE FOAM GEN WB01T10052 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X29162 Contact Us For Availability
140
FRAME DOOR SIDE GEN WB56X21397 Contact Us For Availability
143
BRACKET DOOR HANDLE (BK) GEN WB34X25638 Contact Us For Availability
150
LATCH ASM GEN WB10X29243 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10564 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
223
INSULATION BACK GEN WB35X25048 Contact Us For Availability
231
INSULATION BOTTOM GEN WB35X25077 Contact Us For Availability
234
INSULATION BACK GEN WB35X25122 Contact Us For Availability
235
INSULATION BACK GEN WB35X25301 Contact Us For Availability
236
INSULATION BACK GEN WB35T10180 Contact Us For Availability
252
BROIL ELEMENT ASM GEN WB44X29240 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25X24909 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
262
TRIM VERTICAL SIDES GEN WB07T10621 Contact Us For Availability
263
COVER FRONT GEN WB02T10571 Contact Us For Availability
266
BASE RAIL GEN WB02T10353 Contact Us For Availability
267
BASE RAIL GEN WB02T10352 Contact Us For Availability
269
BRACKET STRAIN RELIEF GEN WB02T10542 Contact Us For Availability
270
MACHINE CONTROL RELAY BOARD GEN WB27X29202 Contact Us For Availability
271
RELAY DAUGHTER BOARD GEN WB27X29201 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
273
PROBE COVER GEN WB02X8309 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X30495 Contact Us For Availability
285
LOWER VENT TUBE ASM GEN WB34X29237 Contact Us For Availability
291
COVER HOLE GEN WB02T10487 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
408
PCB STANDOFF GEN WB02T10477 Contact Us For Availability
409
MACHINE CONTROL FRAME GEN WB02X30450 Contact Us For Availability
411
GASKET OVN DOOR GEN WB04T10077 Contact Us For Availability
453
SENSOR ASM GEN WB23T10015 Contact Us For Availability
534
SUPPORT OVN CAV (BK) GEN WB02X20947 Contact Us For Availability
594
MEAT PROBE RCPTK W/ HARN GEN WB18X25985 Contact Us For Availability
599
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
602
JUMPER HARNESS WIRE GEN WB18X32741 Contact Us For Availability
603
RJ45 CONNECTOR HARNESS GEN WB18X29523 Contact Us For Availability
606
TEMPERATURE SENSOR HARNESS WIRE GEN WB18X32742 Contact Us For Availability
609
PLUNGER SWITCH HARNESS WIRE GEN WB18X29530 Contact Us For Availability
696
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
802
SCRE GEN WB01X30451 Contact Us For Availability
809
GEN WB01X21735 GEN WB01X21735 Contact Us For Availability
828
INSERT PLUG GEN WB01X29474 Contact Us For Availability
919
SPACER DOOR GEN WB02X25272 Contact Us For Availability
977
NUT GEN WB02T10017 Contact Us For Availability
1003
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1005
GEN WB01X27933 GEN WB01X27933 Contact Us For Availability
× ![]()
