Model GE PHB920BJ8TS – Common Parts & Diagrams

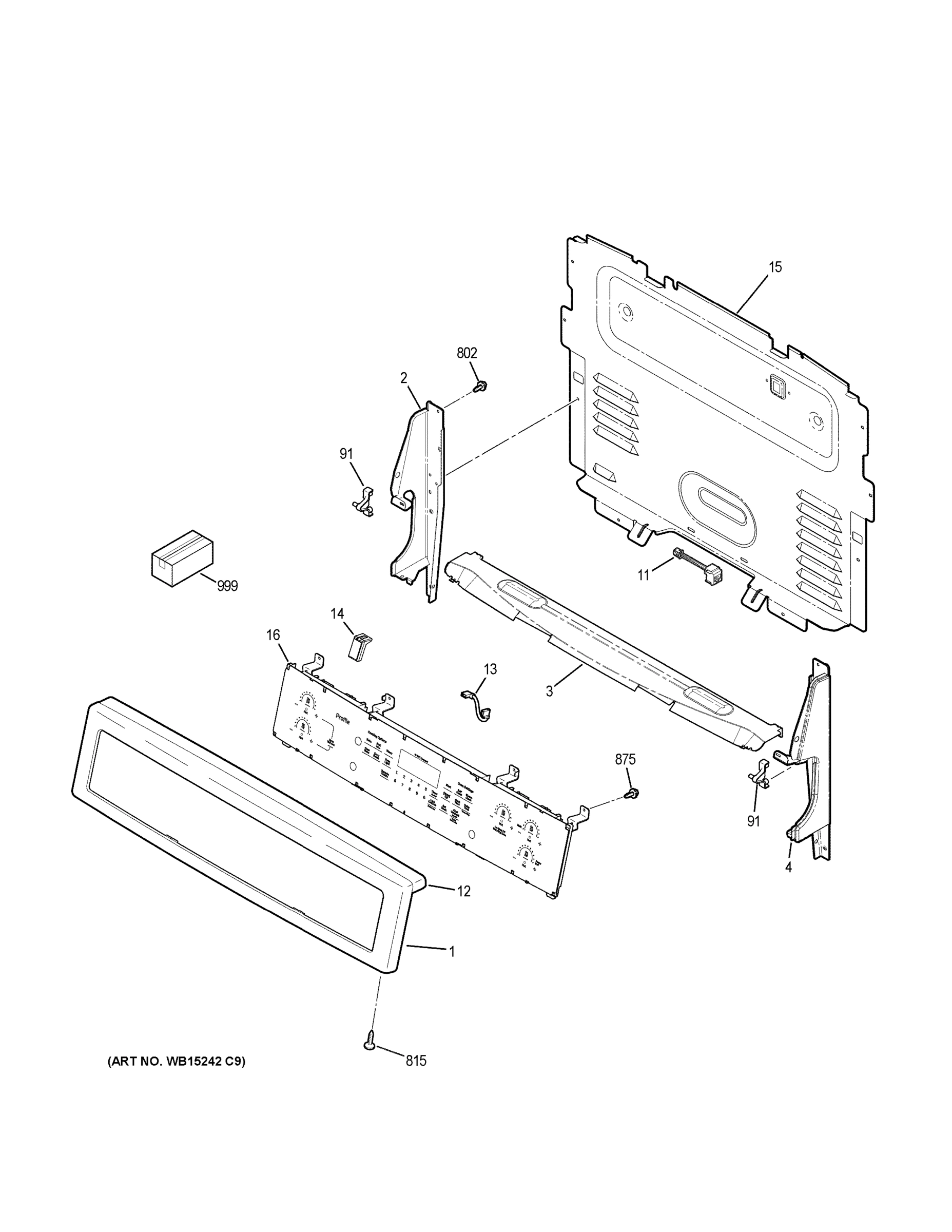

CONTROL PANEL

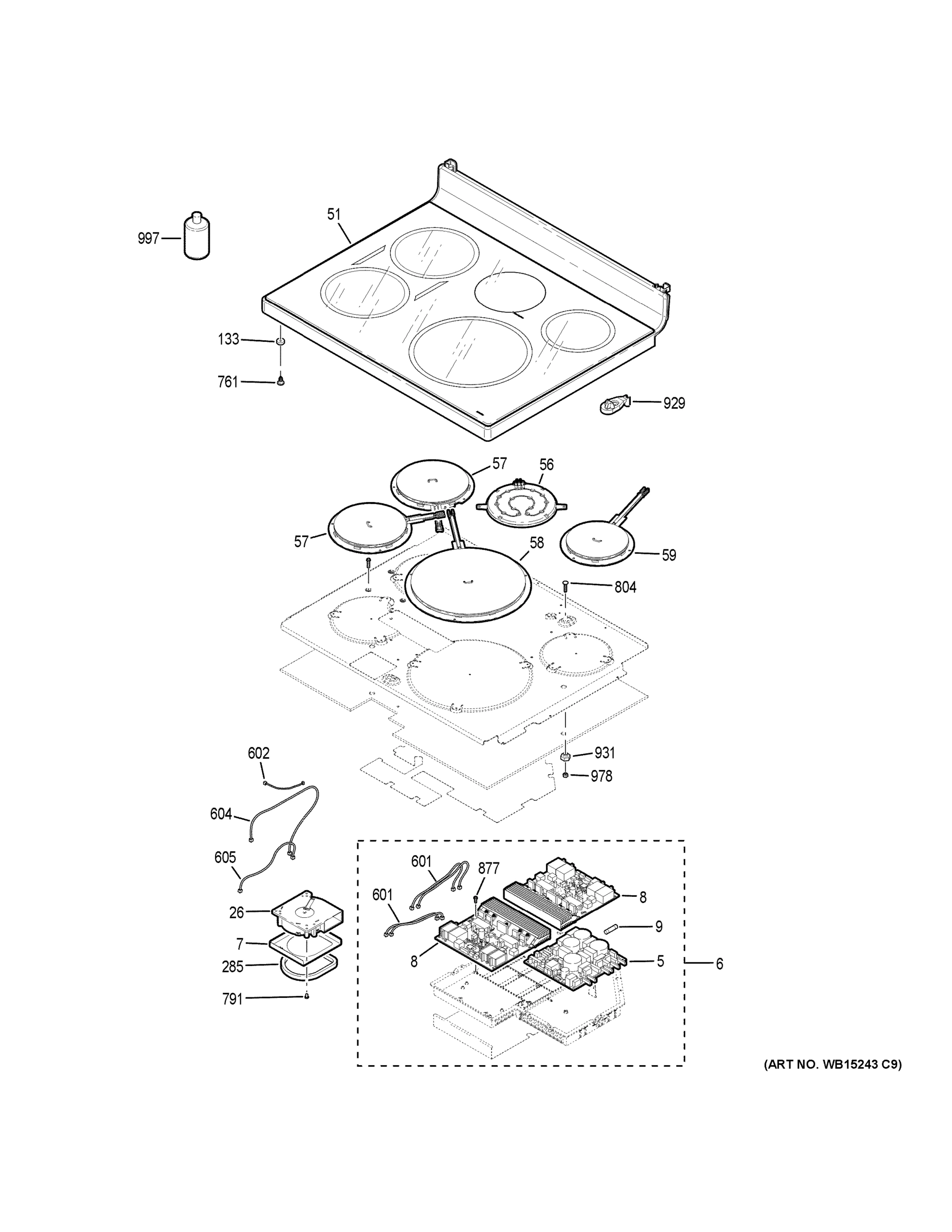

COOKTOP
BODY PARTS
DRAWER
DOOR
CONVECTION FAN
Common parts from model GE PHB920BJ8TS
2
END PLATE LH DG GEN WB07X29534 Contact Us For Availability
3
BACKGUARD SHIELD HEAT GEN WB34X28565 Contact Us For Availability
4
END PLATE RH DG GEN WB07X29535 Contact Us For Availability
5
BOARD FILTER GEN WB27X21421 Contact Us For Availability
6
INDUCTION CONTROL ASM GEN WB27X31302 Contact Us For Availability
8
GENERATOR BOARD ASM GEN WB27X27182 Contact Us For Availability
9
FUSE 250V, 20A FB GEN WB27X27316 Contact Us For Availability
12
TOP TRIM ASM GEN WB07X28582 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
15
CONTROL PANEL BACK COVER GEN WB34X29576 Contact Us For Availability
16
OVEN CONTROL AND OVERLAY ASM GEN WB27X33128 Contact Us For Availability
26
BLOWER CENTRIFUGAL 12V GEN WB26X10272 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X26501 Contact Us For Availability
55
BADGE ASM GEN WB02X29637 Contact Us For Availability
56
ELEMENT WARMER LOW PRF GEN WB30X10035 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10134 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10135 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
111
GASKET OVEN GEN WB04T10086 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
150
LATCH ASM GEN WB10X25007 Contact Us For Availability
220
WIRE COVER BACK GEN WB34X29563 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
241
RACK OVEN (SC) GEN WB48T10082 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
257
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
TERMINAL BLOCK MOUNT GEN WB34X29565 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X29566 Contact Us For Availability
281
HINGE DOOR GEN WB10T10071 Contact Us For Availability
285
GASKET FOAM TAPE GEN WB02T10591 Contact Us For Availability
292
REAR SUPPORT GEN WB02X33180 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
294
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
PACK WINDOW ASM GEN WB56T10105 Contact Us For Availability
511
CONVECTION MOTOR GEN WB26X29157 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
684
WZ04X0408 GEN WZ4X416 Contact Us For Availability
696
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1005
SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability
× ![]()
