Model GE PFE28PYNHFS Refrigerator – Common Parts & Diagrams
DISPENSER DOOR
FREEZER DOOR

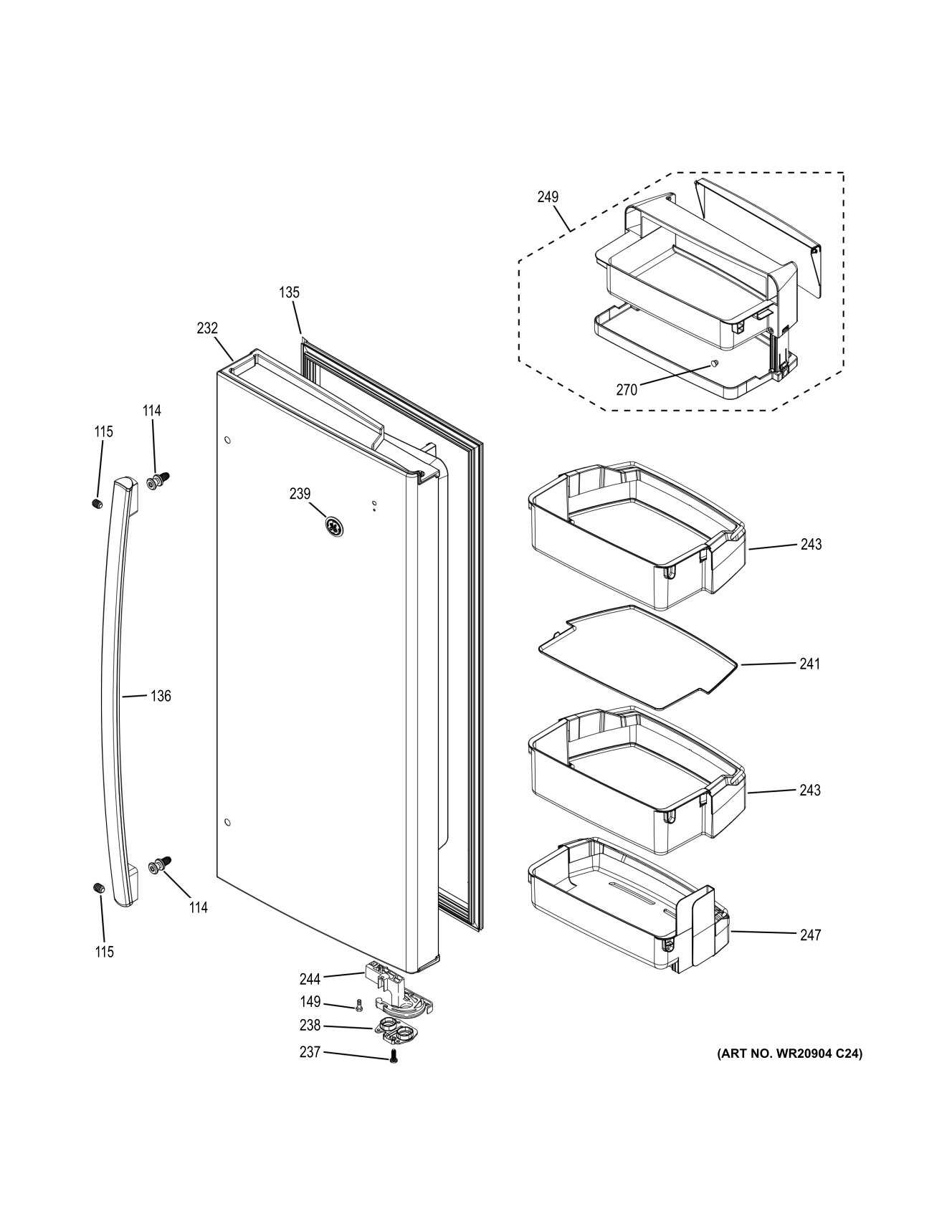

FRESH FOOD DOOR - RH

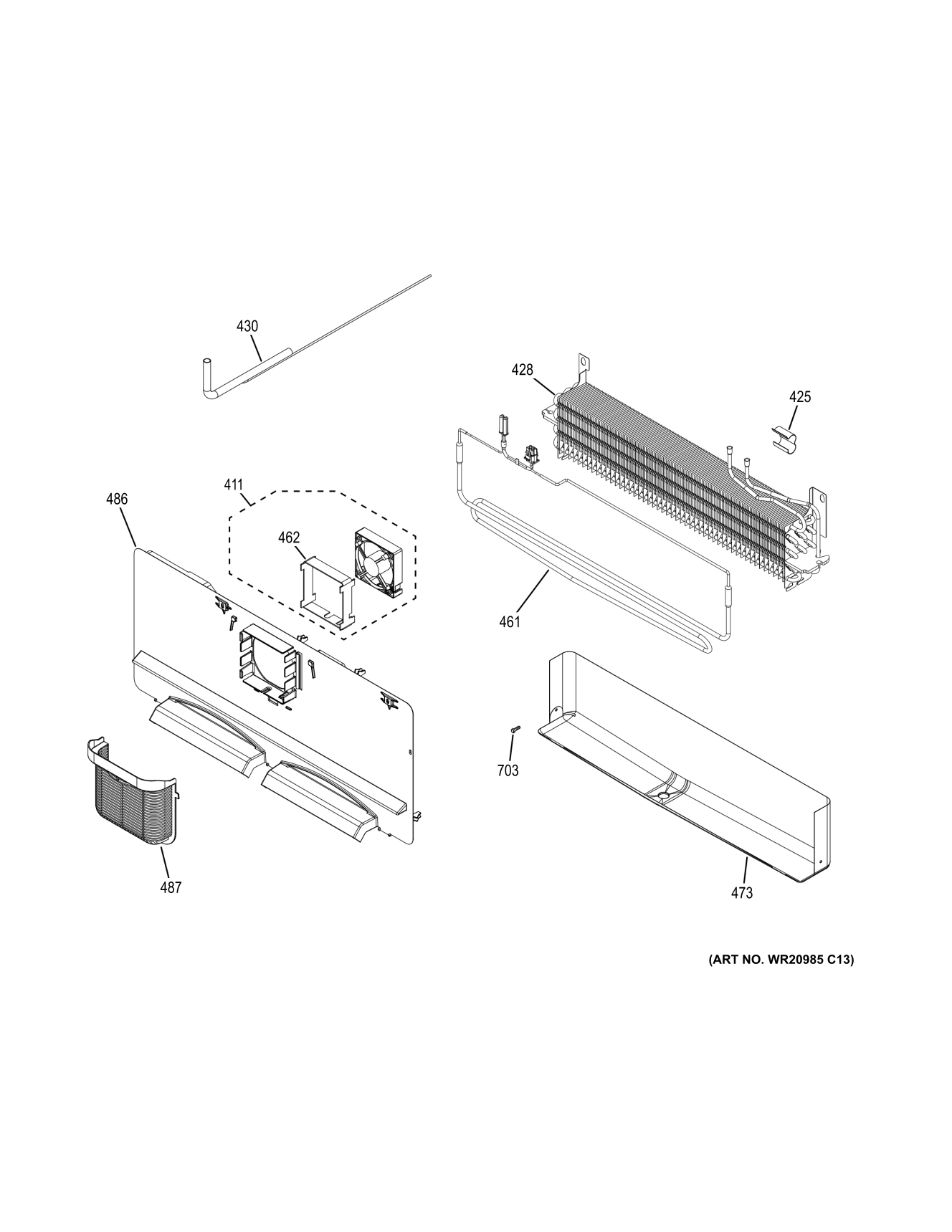

FREEZER SECTION
FREEZER SHELVES

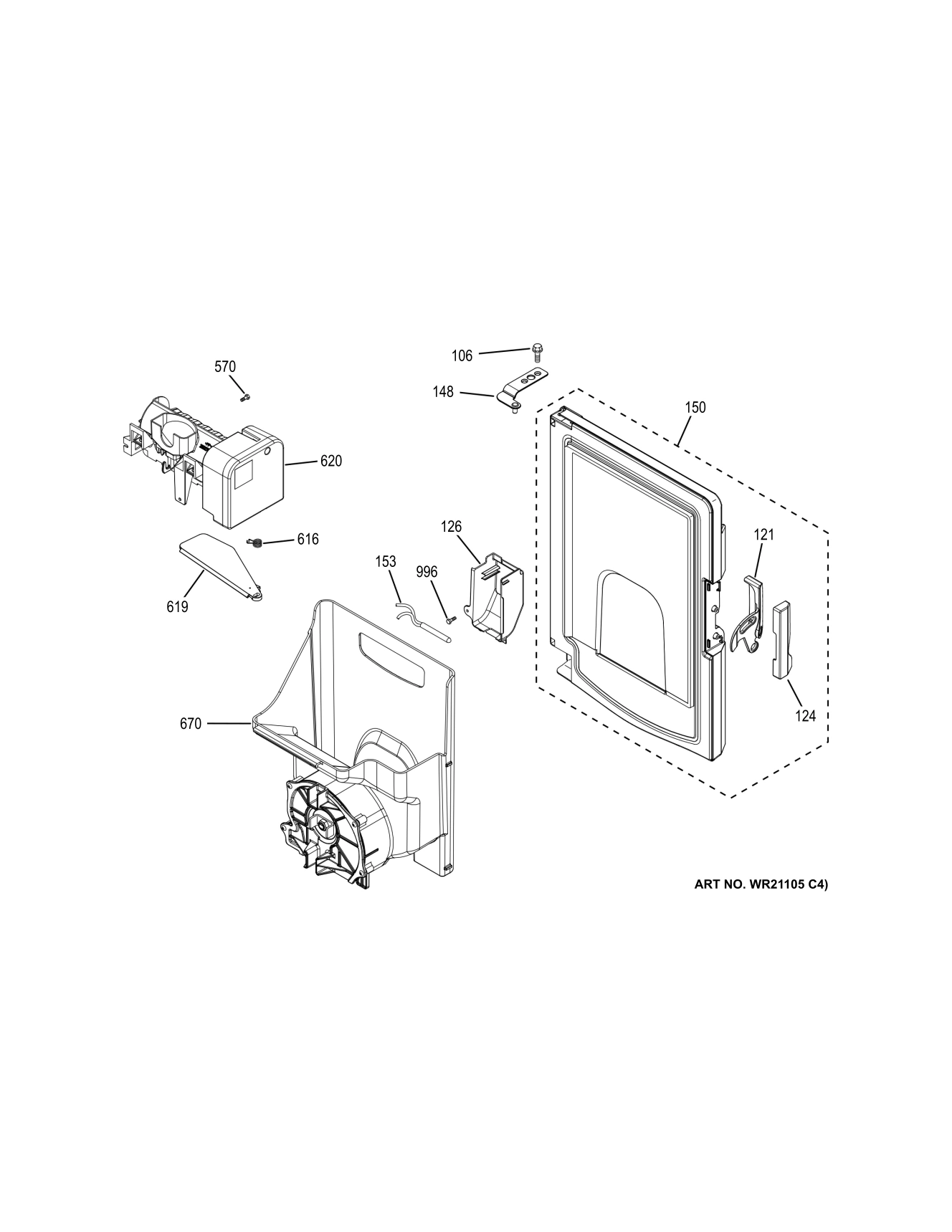

ICE MAKER & DISPENSER

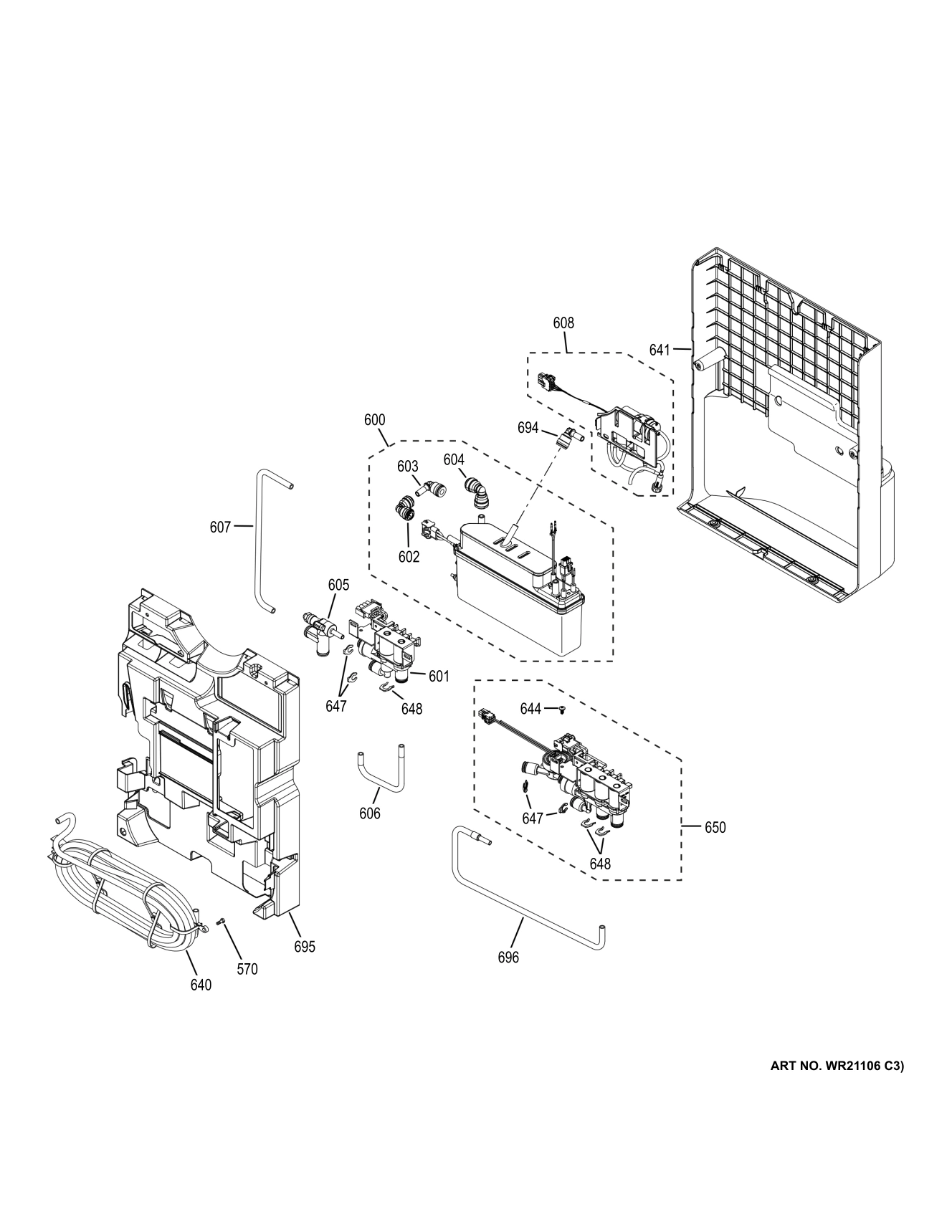

BEVERAGE DISPENSER

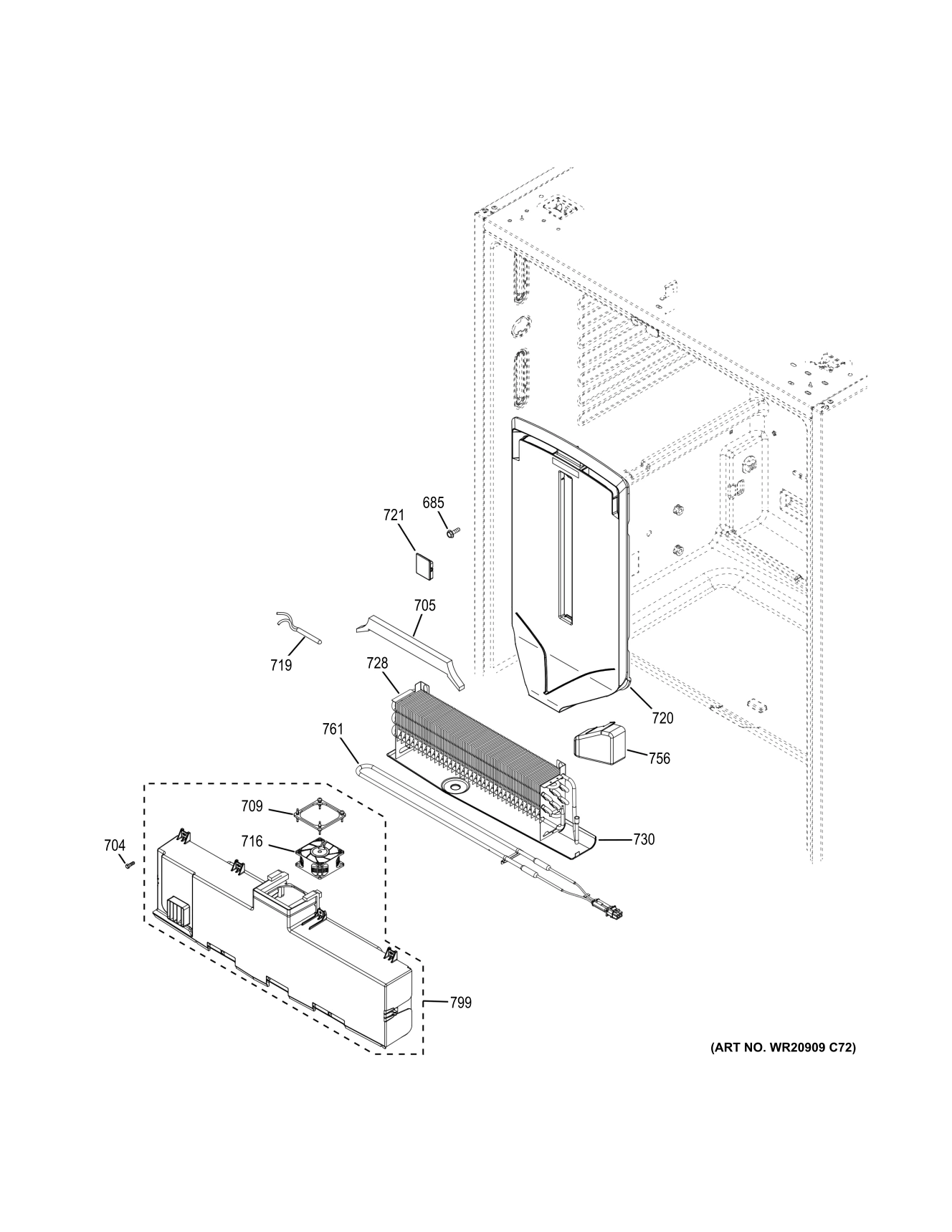

FRESH FOOD SECTION

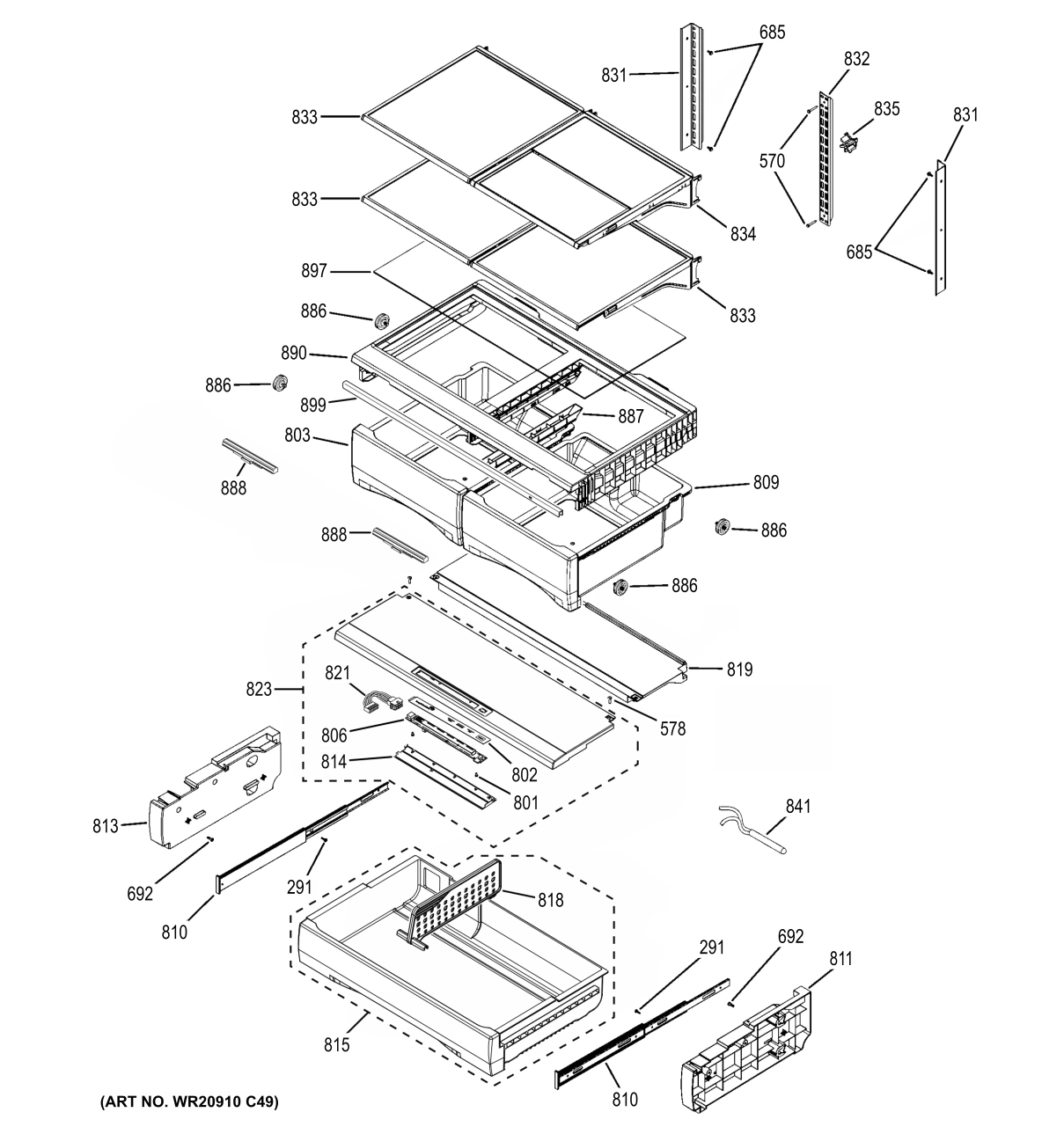

FRESH FOOD SHELVES

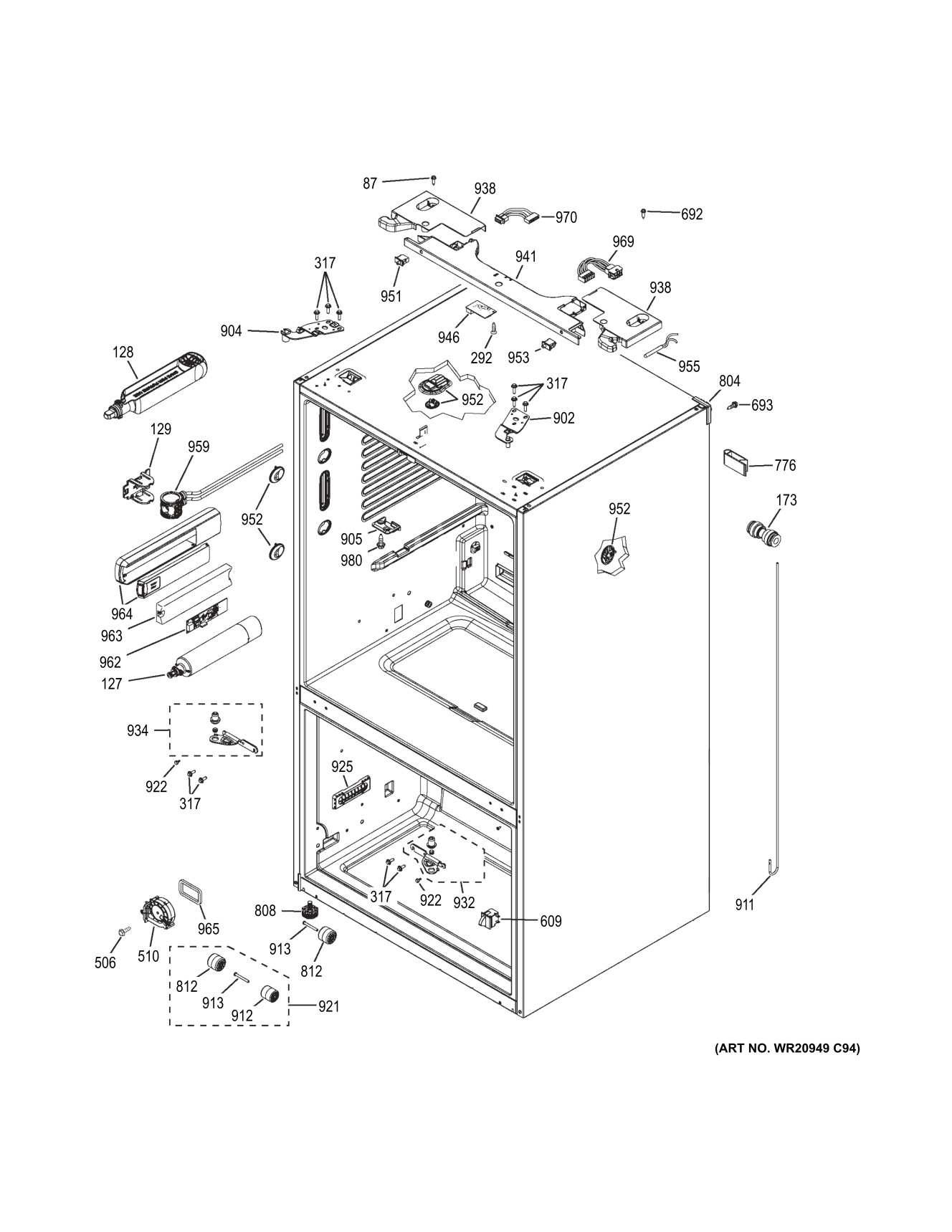

CASE PARTS

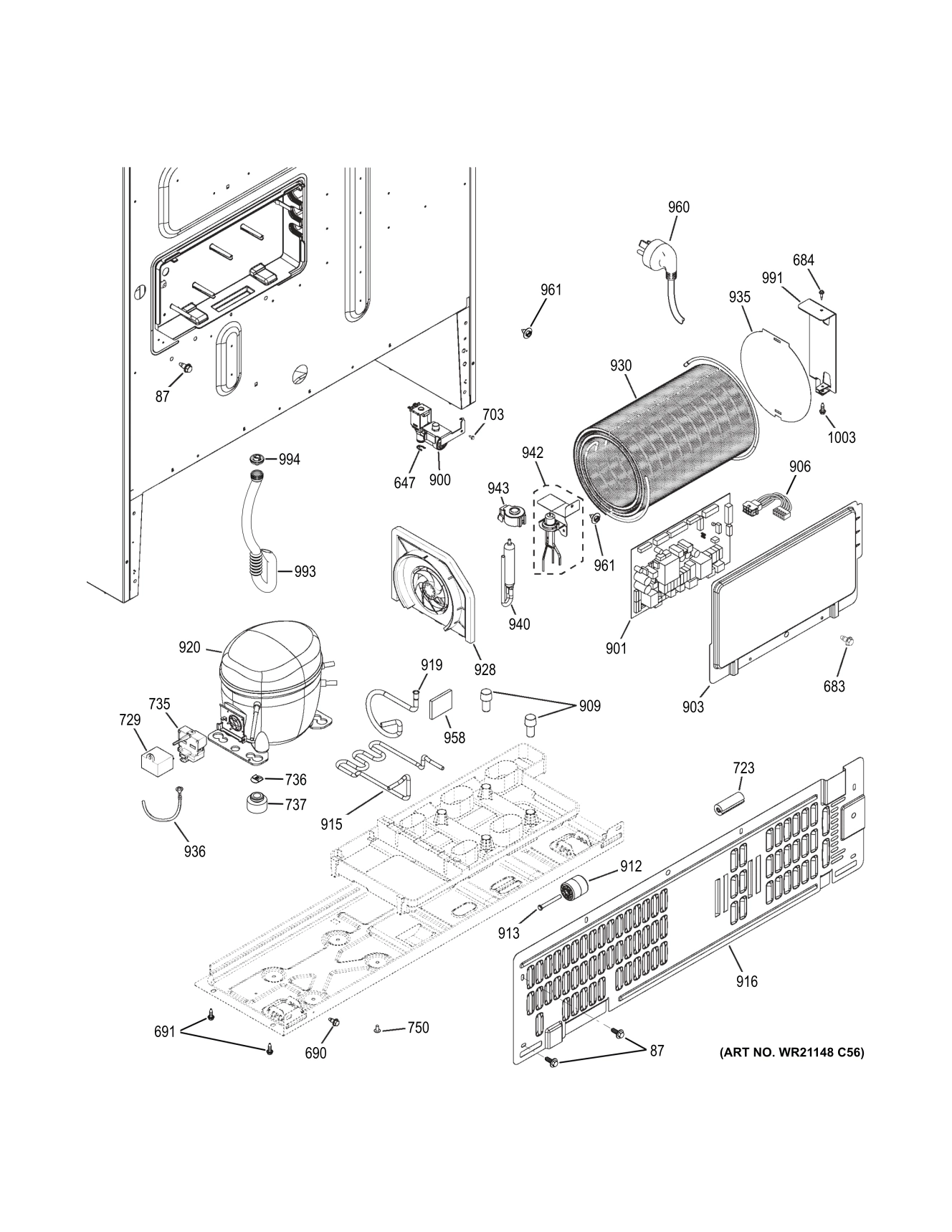

MACHINE COMPARTMENT

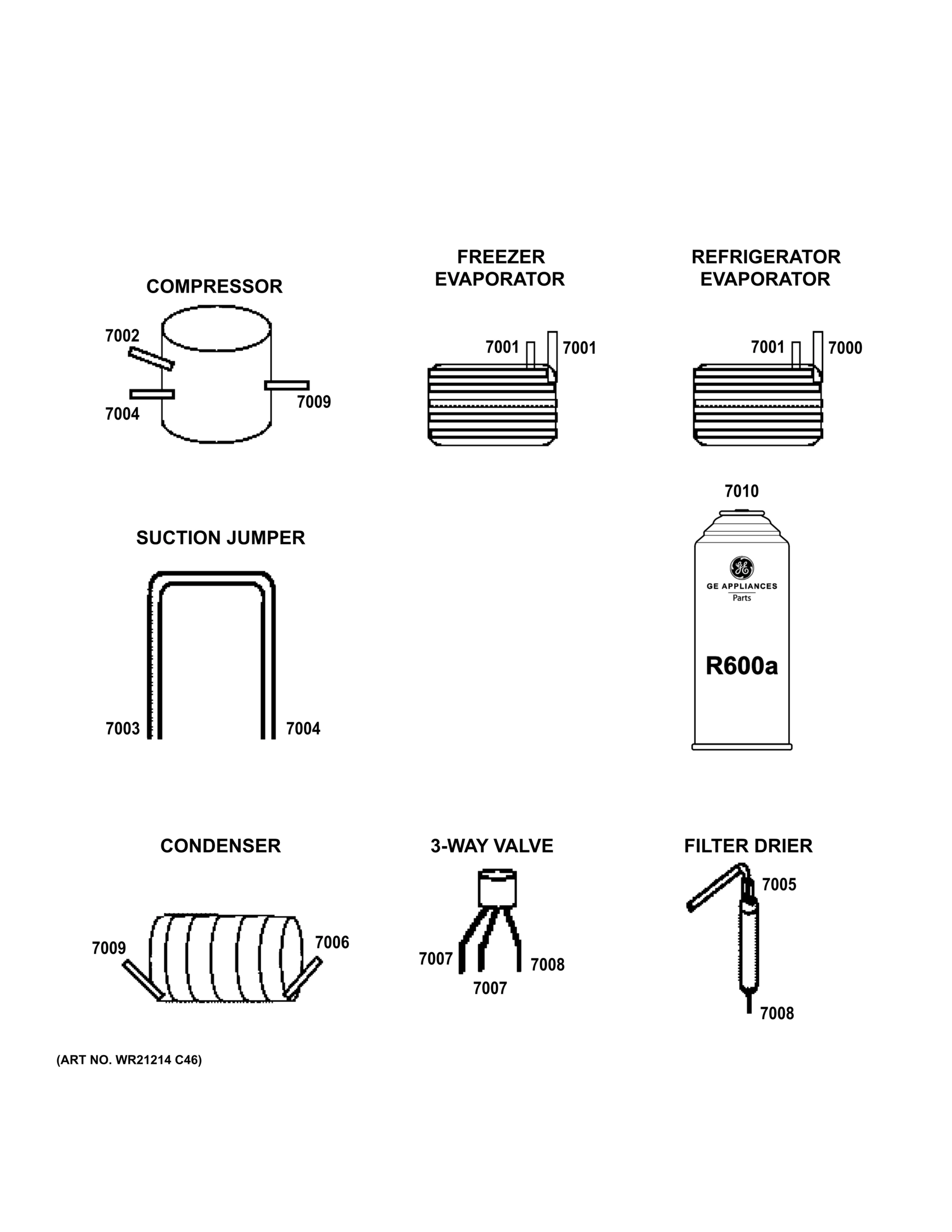

LOKRING CONNECTORS
Common parts from model GE PFE28PYNHFS Refrigerator
1
SINGLE SERVE BREW MODULE GEN WR02X30247 Contact Us For Availability
2
PCB ASM FEATURE BOARD GEN WR55X26546 Contact Us For Availability
7
REAR LCD PCB COVER GEN WR02X26578 Contact Us For Availability
78
SPRING HINGE MULLION GEN WR01X11052 Contact Us For Availability
79
SLEEVE SPRING MULLION GEN WR01X11053 Contact Us For Availability
80
HINGE CAP GEN WR02X13739 Contact Us For Availability
100
COVER LED FZ ASM GEN WR55X23636 Contact Us For Availability
102
CAP TOUCH KCUP SS GEN WR17X26571 Contact Us For Availability
104
SPRING GEN WR01X11027 Contact Us For Availability
105
COVER PADDLE ASM SS GEN WR17X13060 Contact Us For Availability
110
DUCT DOOR ASM PS GEN WR17X13241 Contact Us For Availability
111
SPRING DUCT DOOR GEN WR01X11017 Contact Us For Availability
112
MOTOR DUCT DOOR GEN WR60X10344 Contact Us For Availability
113
SINGLE TUBE ICE FUNNEL GEN WR17X30651 Contact Us For Availability
114
DOOR HANDLE FASTENER GEN WR01X11007 Contact Us For Availability
115
SET SCREW GEN WR01X11014 Contact Us For Availability
116
BIN DOOR ICE BTM GEN WR71X24976 Contact Us For Availability
117
BIN ICE DOOR TOP LH GEN WR71X11045 Contact Us For Availability
118
BIN ICE DOOR MID LH GEN WR71X11046 Contact Us For Availability
121
LATCH ICEBOX DOOR GEN WR11X10031 Contact Us For Availability
124
COVER LATCH GEN WR02X23032 Contact Us For Availability
127
REFER WATER FILTER (RFID) GEN RPWFE Contact Us For Availability
128
WATER FILTER BYPASS PLUG GEN WR01X29059 Contact Us For Availability
129
BRKT FILTER MANIFOLD GEN WR17X13069 Contact Us For Availability
131
PCB COVER ASM DGY GEN WR17X13205 Contact Us For Availability
132
COLLAR PORT GEN WR14X25124 Contact Us For Availability
134
PORT GASKET GEN WR14X10364 Contact Us For Availability
135
FRESH FOOD DOOR GASKET DORIAN GRAY GEN WR14X29300 Contact Us For Availability
136
STAINLESS REFRIGERATOR HANDLE GEN WR12X31641 Contact Us For Availability
146
SHIELD LED LIGHT GEN WR02X13655 Contact Us For Availability
148
HINGE TOP DOOR ICEBOX GEN WR13X10972 Contact Us For Availability
150
ICEBOX DOOR ASM GEN WR78X26087 Contact Us For Availability
153
SENSOR TEMP FF GEN WR55X10025 Contact Us For Availability
161
SPRING CLUTCH AM GEN WR02X13645 Contact Us For Availability
163
CLUTCH COUPLING AM GEN WR02X13647 Contact Us For Availability
164
E CLIP GEN WR02X13648 Contact Us For Availability
166
DORIAN GRAY ARTICULATING MULLION GEN WR17X13240 Contact Us For Availability
168
HINGE MULLION GEN WR13X10985 Contact Us For Availability
173
COUPLER STRAIGHT 1/4 GEN WR02X13738 Contact Us For Availability
174
CONNECTOR 90 DEG 5/16 GEN WR02X13737 Contact Us For Availability
238
STOP DOOR RH/LH ASM GEN WR02X13634 Contact Us For Availability
239
GEA BADGE FLAT CHROME GEN WR04X29375 Contact Us For Availability
241
MAT MODULE GEN WR17X13250 Contact Us For Availability
243
BIN GAL RH FF ASM GEN WR71X11044 Contact Us For Availability
247
BIN COND RH FF ASM GEN WR71X11040 Contact Us For Availability
249
BIN DAIRY RH FF ASM GEN WR71X11063 Contact Us For Availability
313
STAINLESS PROFILE FREEZER HANDLE GEN WR12X34828 Contact Us For Availability
315
CAM VERT ADJUSTMENT GEN WR02X13627 Contact Us For Availability
350
SUPPORT BIN FZ GEN WR02X13628 Contact Us For Availability
351
BIN FREEZER GEN WR71X11038 Contact Us For Availability
425
CLIP EVAP THERMISTOR GEN WR02X10879 Contact Us For Availability
430
REFRIGERATOR SUCTION CAP TUBE REPAIR KIT GEN WR84X10113 Contact Us For Availability
473
TROUGH DRAIN FZ GEN WR17X13080 Contact Us For Availability
487
FREEZER FAN COVER GEN WR17X35246 Contact Us For Availability
500
BASKET BOTTOM ASM GEN WR21X10249 Contact Us For Availability
501
GEAR LWR DRW RH GEN WR02X13629 Contact Us For Availability
502
GEAR LWR DRW LH GEN WR02X13630 Contact Us For Availability
503
CONNNECTOR GEAR PINION GEN WR02X13631 Contact Us For Availability
504
CROSSBAR PINION GEN WR02X13670 Contact Us For Availability
505
PIN CROSS BAR GEN WR01X11023 Contact Us For Availability
507
SCREW SET DOOR FZ GEN WR01X11036 Contact Us For Availability
518
SLIDE BRACKET ASM RH GEN WR17X13144 Contact Us For Availability
519
SLIDE BRACKET ASM LH GEN WR17X13145 Contact Us For Availability
520
GLIDE SUPPORT LH & RH GEN WR72X27635 Contact Us For Availability
527
SLIDE LOWER FZ RH GEN WR72X10427 Contact Us For Availability
528
SLIDE LOWER FZ LH GEN WR72X10428 Contact Us For Availability
543
PS 29/28 FZ BASKET & GLIDE KIT GEN WR32X26451 Contact Us For Availability
556
HOLDER SLIDE FZ RH GEN WR72X20645 Contact Us For Availability
557
HOLDER SLIDE FZ LH GEN WR72X20644 Contact Us For Availability
578
SCR 10-24 AB RNT 20 5/8 GEN WR01X11032 Contact Us For Availability
580
SCR 10-18 FLT20 3/4 S GEN WR01X11013 Contact Us For Availability
581
STRIKER LIGHT SWITCH GEN WR02X13632 Contact Us For Availability
600
SINGLE SERVE HOT WATER TANK GEN WR17X25782 Contact Us For Availability
601
VALVE DUAL WATER GEN WR57X10098 Contact Us For Availability
604
CONNECTOR 90 3/8-5/16 HT GEN WR02X13755 Contact Us For Availability
605
CONTROL FLOW SS ASM GEN WR01X24982 Contact Us For Availability
606
TUBE SS FC TO VLC GEN WR01X24987 Contact Us For Availability
607
TUBE SS FC TO HW TANK GEN WR01X24990 Contact Us For Availability
640
COILED COLD WATER TANK GEN WR17X27627 Contact Us For Availability
647
QUICK CLIP CONNECTOR 1/4 GEN WR01X11041 Contact Us For Availability
648
QUICK CLIP CONN 5/16 GEN WR01X11040 Contact Us For Availability
650
TRI DUMMY VALVE W FM ASM GEN WR57X25390 Contact Us For Availability
670
ICE BUCKET & CRUSHER GEN WR30X10174 Contact Us For Availability
685
SCREW 8-18 AB HXW 1/2 S GEN WR02X29370 Contact Us For Availability
692
SCR 8-18 AB HXW 9/16 S GEN WR01X11012 Contact Us For Availability
695
HOUSING TRAY VALVE TANK GEN WR13X25912 Contact Us For Availability
696
TUBE SS VLV TO VLV GEN WR01X24985 Contact Us For Availability
704
SCR 8-18 HI/LO HWX 3/4 GEN WR01X11061 Contact Us For Availability
709
FRESH FOOD FAN MOUNTING GASKET GEN WR02X30166 Contact Us For Availability
729
KIT CAPACITOR 12 uF GEN WR55X24064 Contact Us For Availability
802
OVERLAY MEAT PAN ASM GEN WR04X23038 Contact Us For Availability
804
CAP CASE CORNER ASM DGY GEN WR02X13759 Contact Us For Availability
808
SCREW LEVELING ASM GEN WR01X11046 Contact Us For Availability
809
PAN VEG RH ASM GEN WR32X10866 Contact Us For Availability
811
SUPPORT SIDE RH GEN WR72X10432 Contact Us For Availability
813
SUPPORT SIDE LH GEN WR72X10434 Contact Us For Availability
814
DIFFUSER MEAT PAN GEN WR32X23048 Contact Us For Availability
815
PAN MEAT ASM GEN WR32X10868 Contact Us For Availability
818
DIVIDER MEAT PAN GEN WR17X13074 Contact Us For Availability
819
DELI PAN TOP REAR COVER GEN WR72X31329 Contact Us For Availability
831
TRACK SIDE FF GEN WR72X21071 Contact Us For Availability
832
TRACK CENTER FF GEN WR72X10429 Contact Us For Availability
834
SHELF ASM TUCKAWAY GEN WR32X23648 Contact Us For Availability
835
SPACER TRACK GEN WR02X13679 Contact Us For Availability
886
ROLLER ASM GEN WR02X13658 Contact Us For Availability
887
GUIDE ROLLER VEG PAN GEN WR72X10431 Contact Us For Availability
888
DAMPER VEG PAN GEN WR17X24925 Contact Us For Availability
890
VEG TOP FRAME ASM GEN WR32X10864 Contact Us For Availability
897
GLASS VEG PAN GEN WR32X10865 Contact Us For Availability
899
BAR REINFORCEMENT GEN WR02X21803 Contact Us For Availability
900
VALVE WATER ISO ASM GEN WR57X27487 Contact Us For Availability
902
HINGE TOP PIN ASM RH GEN WR13X25910 Contact Us For Availability
903
COVER MAINBOARD GEN WR02X25126 Contact Us For Availability
904
HINGE TOP PIN ASM LH GEN WR13X25911 Contact Us For Availability
905
MULLION STRIKER GEN WR01X31733 Contact Us For Availability
912
WHEEL GEN WR02X13685 Contact Us For Availability
913
AXLE WHEEL GEN WR01X11008 Contact Us For Availability
915
JUMPER COMPRESSOR DISCHARGE TUBE GEN WR84X34173 Contact Us For Availability
921
FRONT/REAR WHEEL & AXLE GEN WR49X10268 Contact Us For Availability
932
REFRIGERATOR CENTER HINGE RIGHT GEN WR13X32036 Contact Us For Availability
934
REFRIGERATOR CENTER HINGE LEFT GEN WR13X32039 Contact Us For Availability
938
HINGE ENDCAP ASM DGY GEN WR17X20164 Contact Us For Availability
946
WIFI AND HUMIDITY BOARD GEN WR55X34645 Contact Us For Availability
951
FRESH FOOD DOOR LIGHT SWITCH GEN WR23X29161 Contact Us For Availability
958
MASTIC SOUND DEADENING GEN WR02X13724 Contact Us For Availability
959
FILTER MANIFOLD GEN WR02X13684 Contact Us For Availability
960
HARNESS POWER CORD GEN WR23X24390 Contact Us For Availability
963
COVER FILTER RFID GEN WR02X23748 Contact Us For Availability
964
COVER WATER FILTER ASM GEN WR02X26526 Contact Us For Availability
965
GASKET DUCT FAN IM GEN WR14X10384 Contact Us For Availability
970
HARNESS DOOR CASE GEN WR23X10777 Contact Us For Availability
993
REFRIGERATOR DRAIN TUBE GEN WR02X28514 Contact Us For Availability
994
REFRIGERATOR DRAIN VACUUM BREAK VALVE GEN WR01X28515 Contact Us For Availability
995
SCREW GEN WR02X31885 Contact Us For Availability
1003
SCR 8-18 TPT 1/4 GEN WR01X10618 Contact Us For Availability
7003
8MM X 8MM LOKRING GEN WR97X10021 Contact Us For Availability
7005
6MM X 4MM LOKRING GEN WR97X10033 Contact Us For Availability
7009
7MM X 5MM LOKRING GEN WR97X25268 Contact Us For Availability
× ![]()
