Model Alliance NSENXAGW453ZW01 Dryer – Common Parts & Diagrams

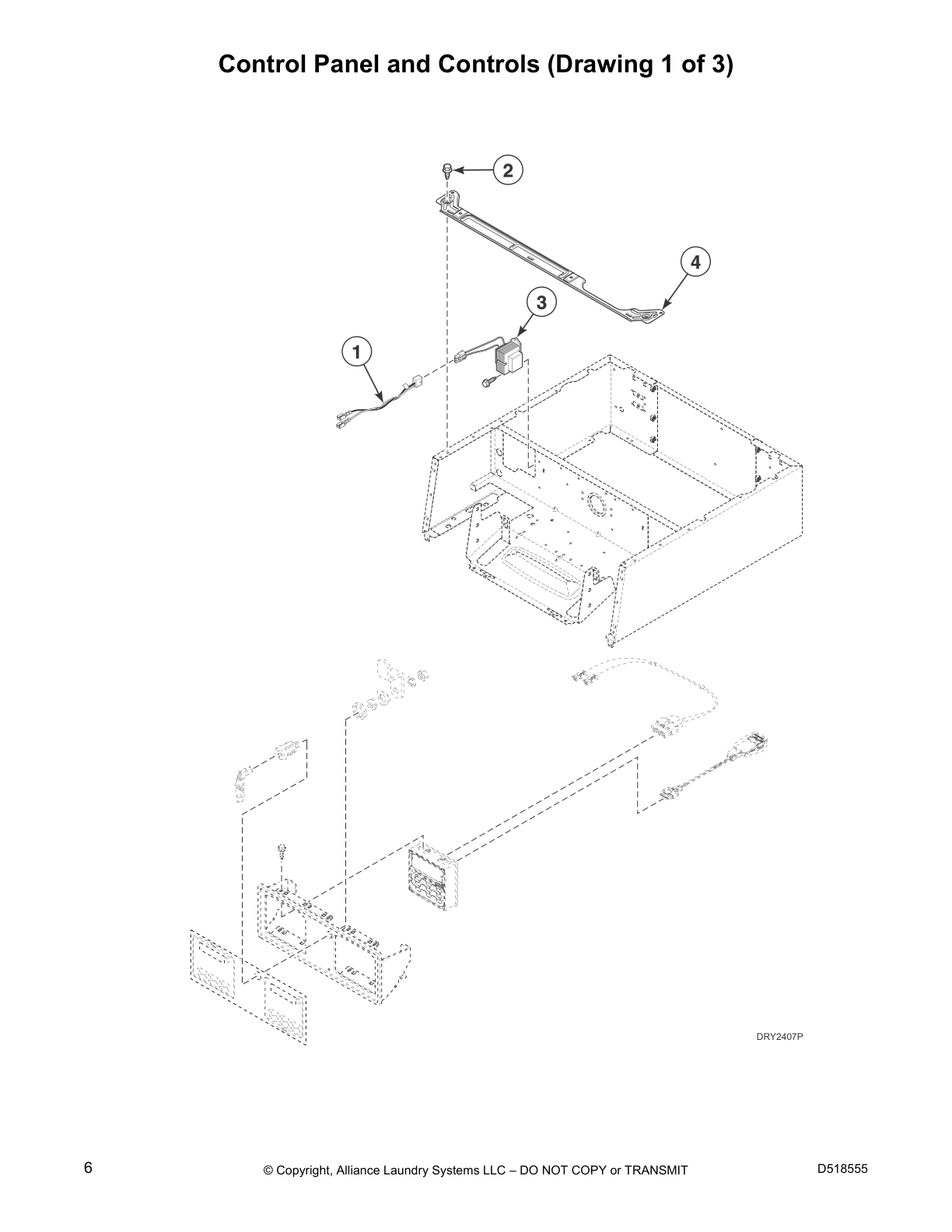

Control Panel and Controls (Drawing 1 of 3)

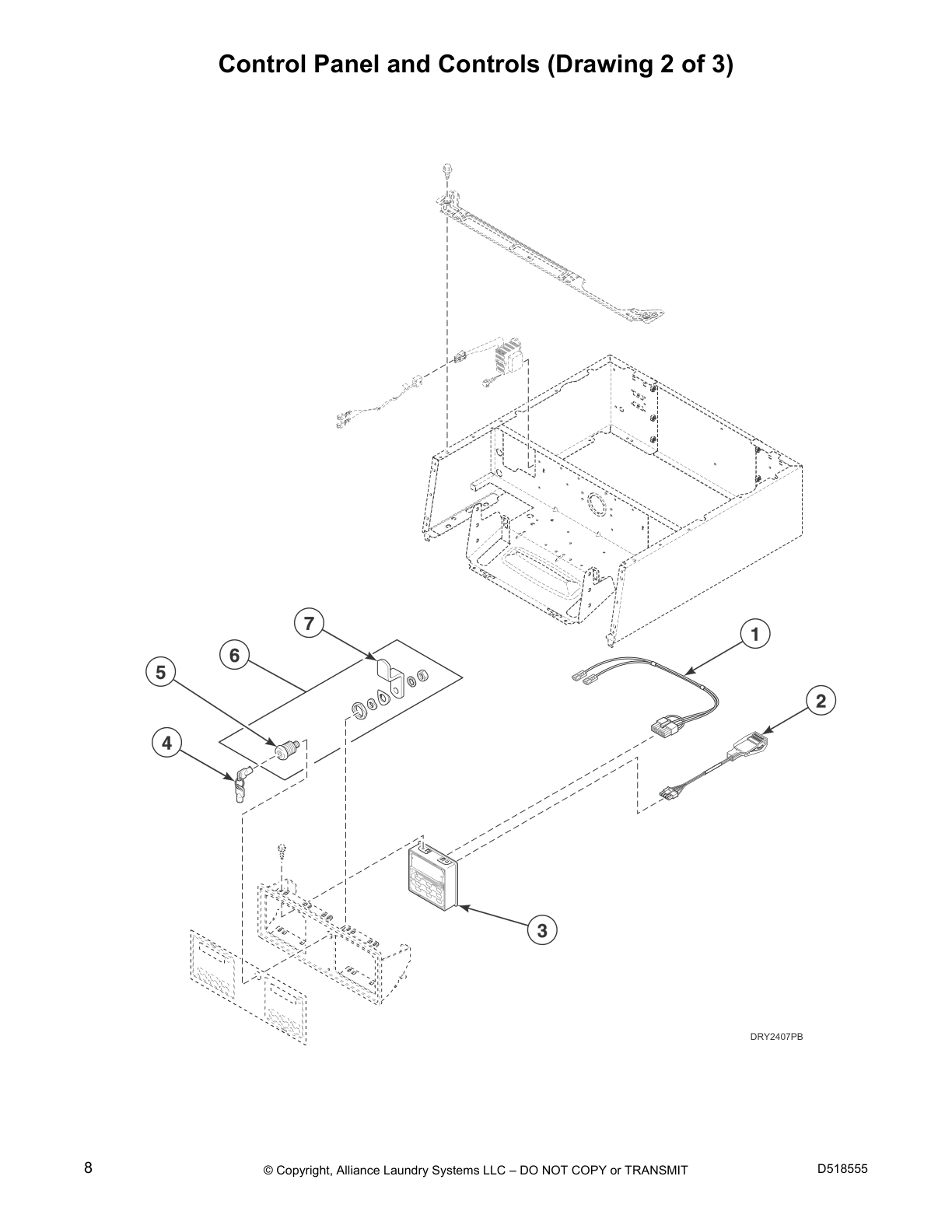

Control Panel and Controls (Drawing 2 of 3)
Control Panel and Controls (Drawing 3 of 3)
Network Board Assembly
Non-Electronic Coin Drop
Electronic Coin Drop
Control Cabinet Controls - Coin Drop Models
Control Cabinet - Card Reader Ready and Non-Vend Models
Loading Door with Window (Drawing 1 of 2)
Loading Door with Window (Drawing 2 of 2)
Loading Door without Window
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt (Drawing 1 of 3)
Motor, Exhaust Fan and Belt (Drawing 2 of 3)
Motor, Exhaust Fan and Belt (Drawing 3 of 3)
Blower Housing
Front Bulkhead, Felt Seal and Cylinder
Air Duct
Lint Filter
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
(Drawing 1 of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
(Drawing 2 of 2)
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly - Gas Models
Gas Valve, Igniter and Gas Conversion Kits
Gas Valve Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base (Drawing 1 of 2)
Cabinet, Exhaust Duct and Base (Drawing 2 of 2)
Contactor and Transformer
Ignition Control Module
Cabinet Top
Power Cord
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Gas Models (Drawing 1 of 2)
Wire Harnesses and Wires - Gas Models (Drawing 2 of 2)
Wire Harnesses and Wires - Electric Models
Common parts from model Alliance NSENXAGW453ZW01 Dryer
× ![]()
