Model Alliance NDESXRGS543NW22 Dryer – Common Parts & Diagrams

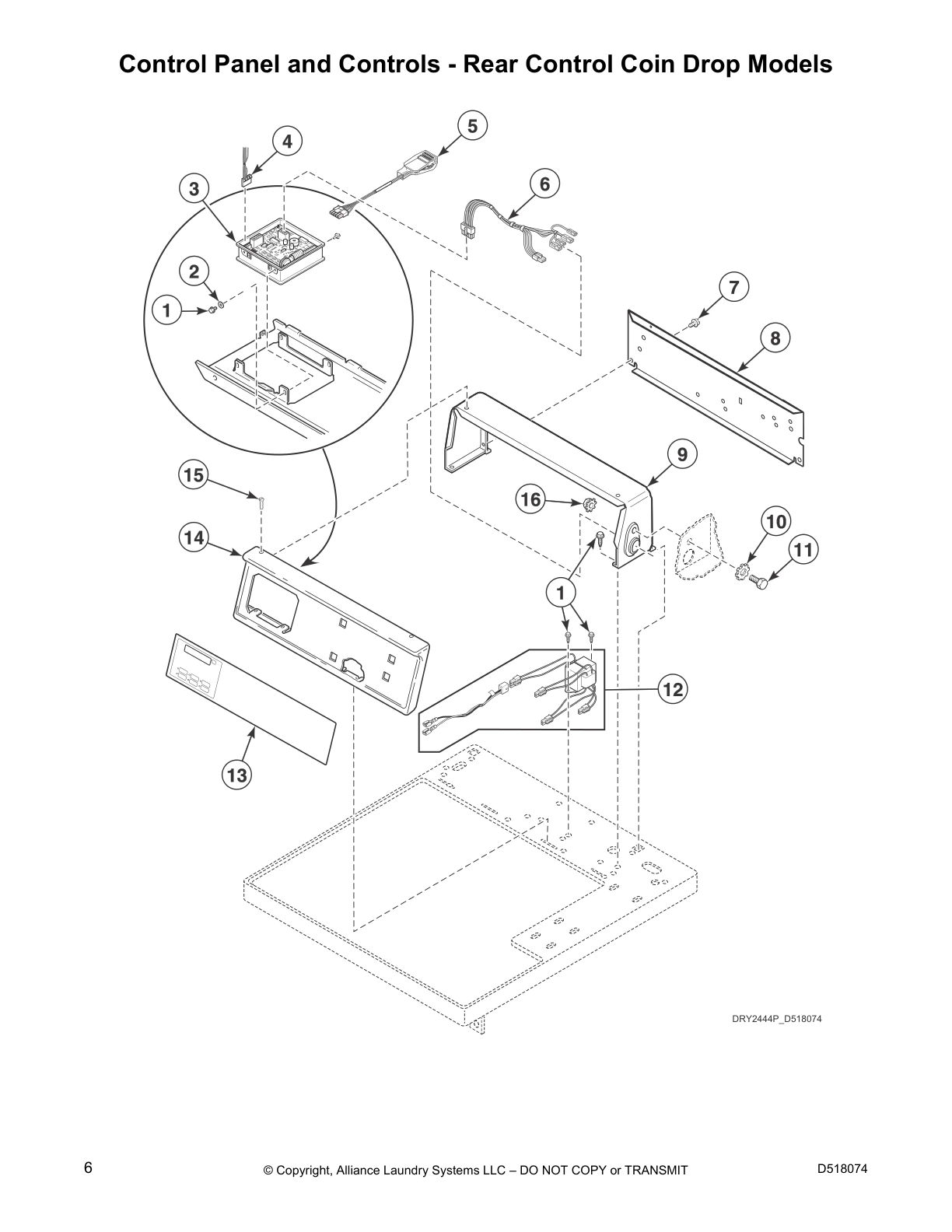

Control Panel and Controls - Rear Control Coin Drop Models

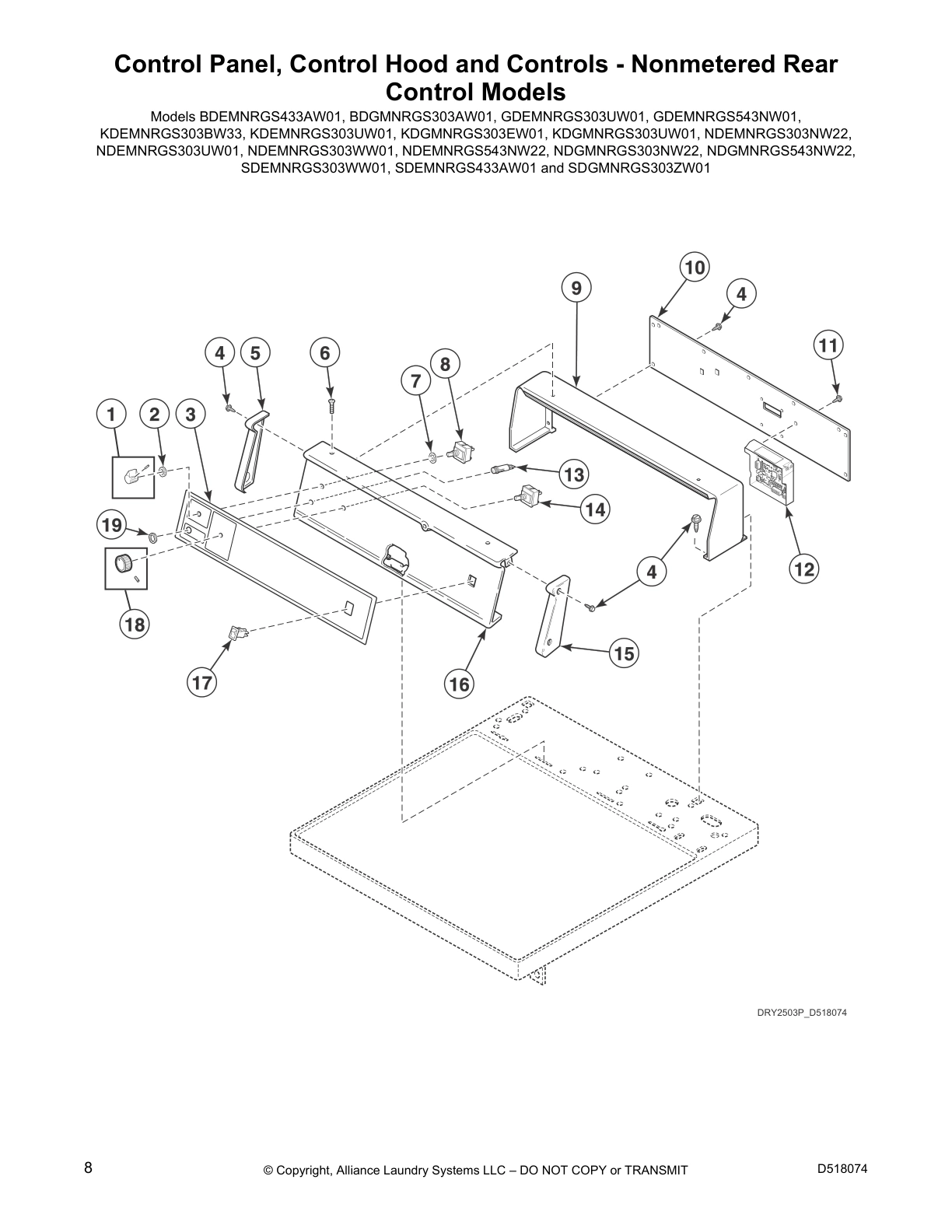

Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models
Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models

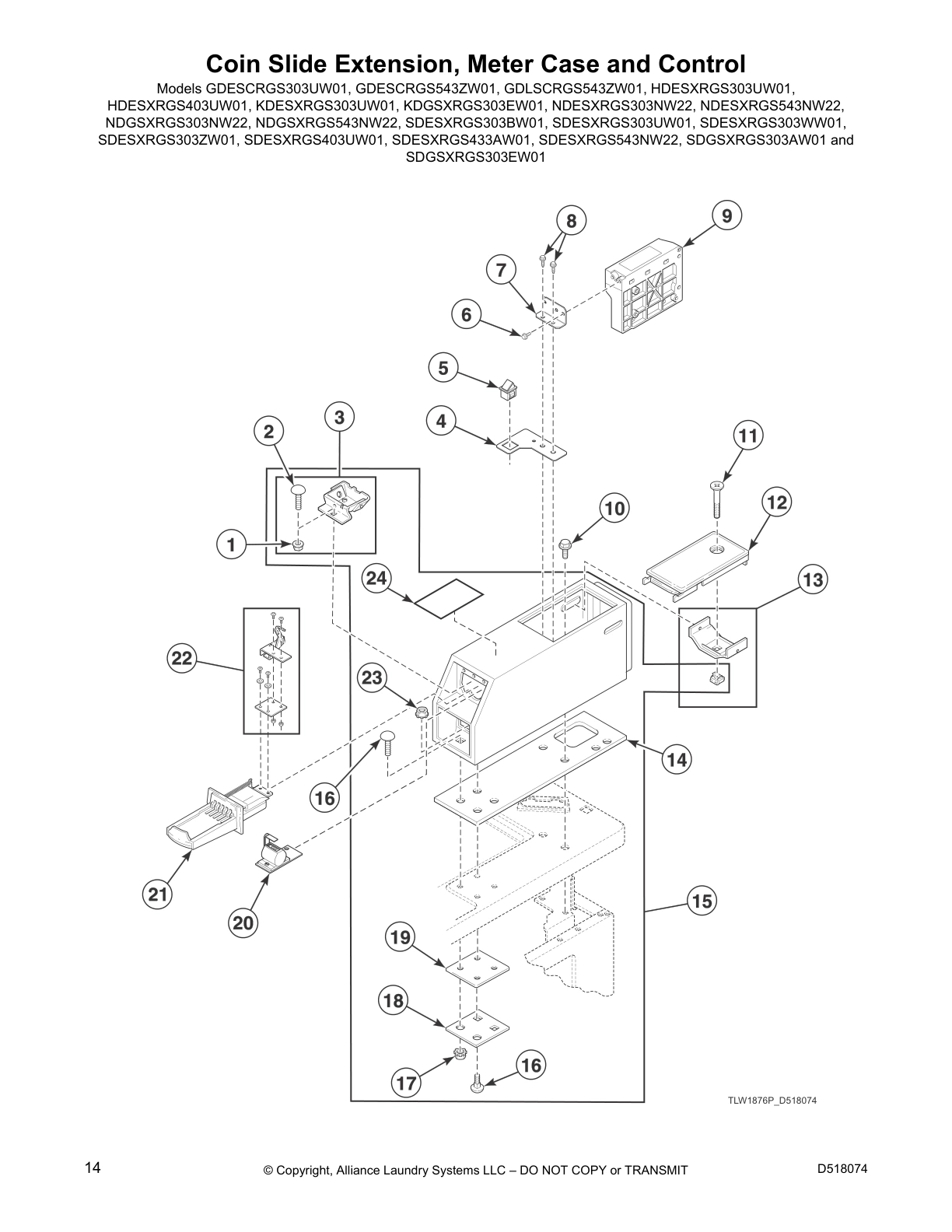

Coin Slide Extension, Meter Case and Control

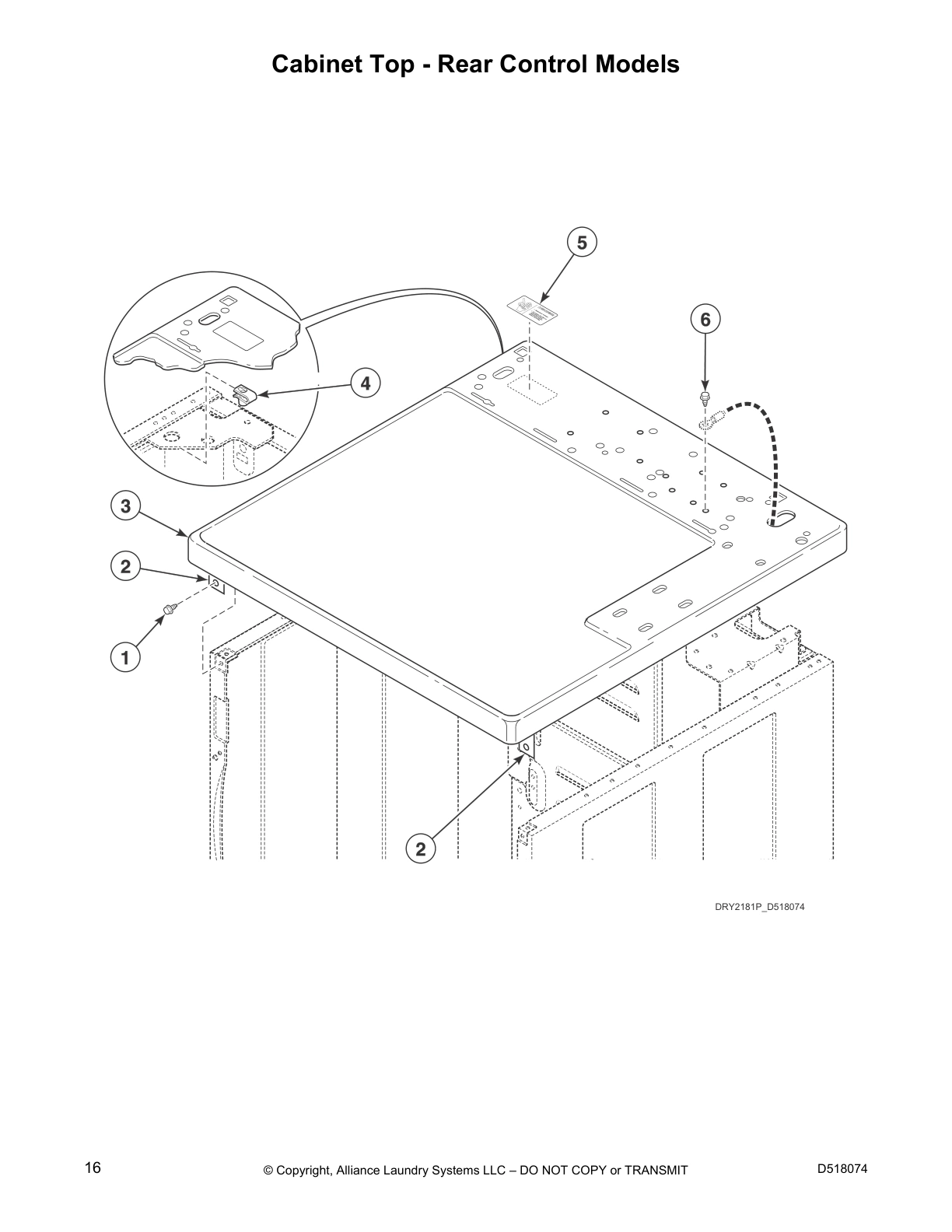

Cabinet Top - Rear Control Models
Non-Electronic Coin Drop
Electronic Coin Drop

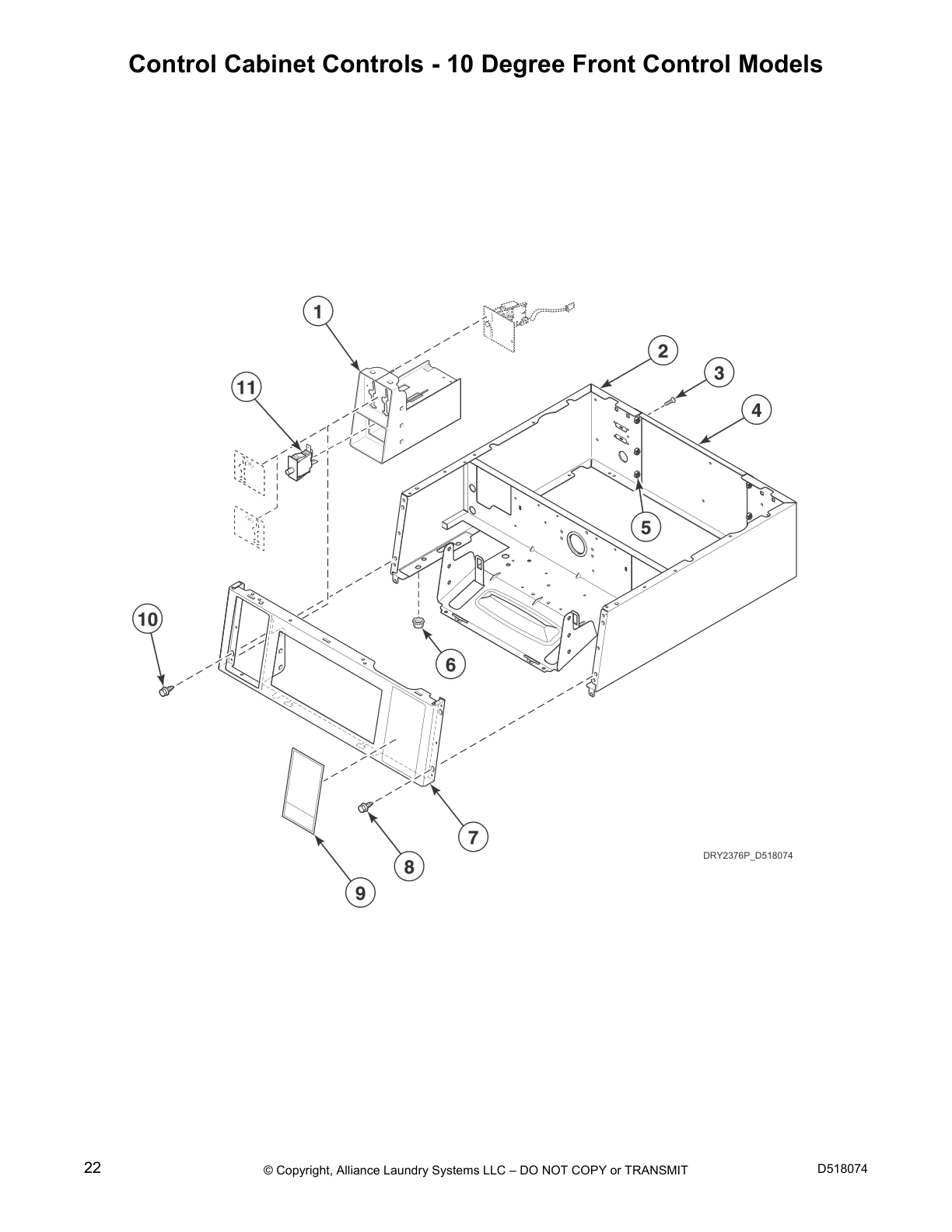

Control Cabinet Controls - 10 Degree Front Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

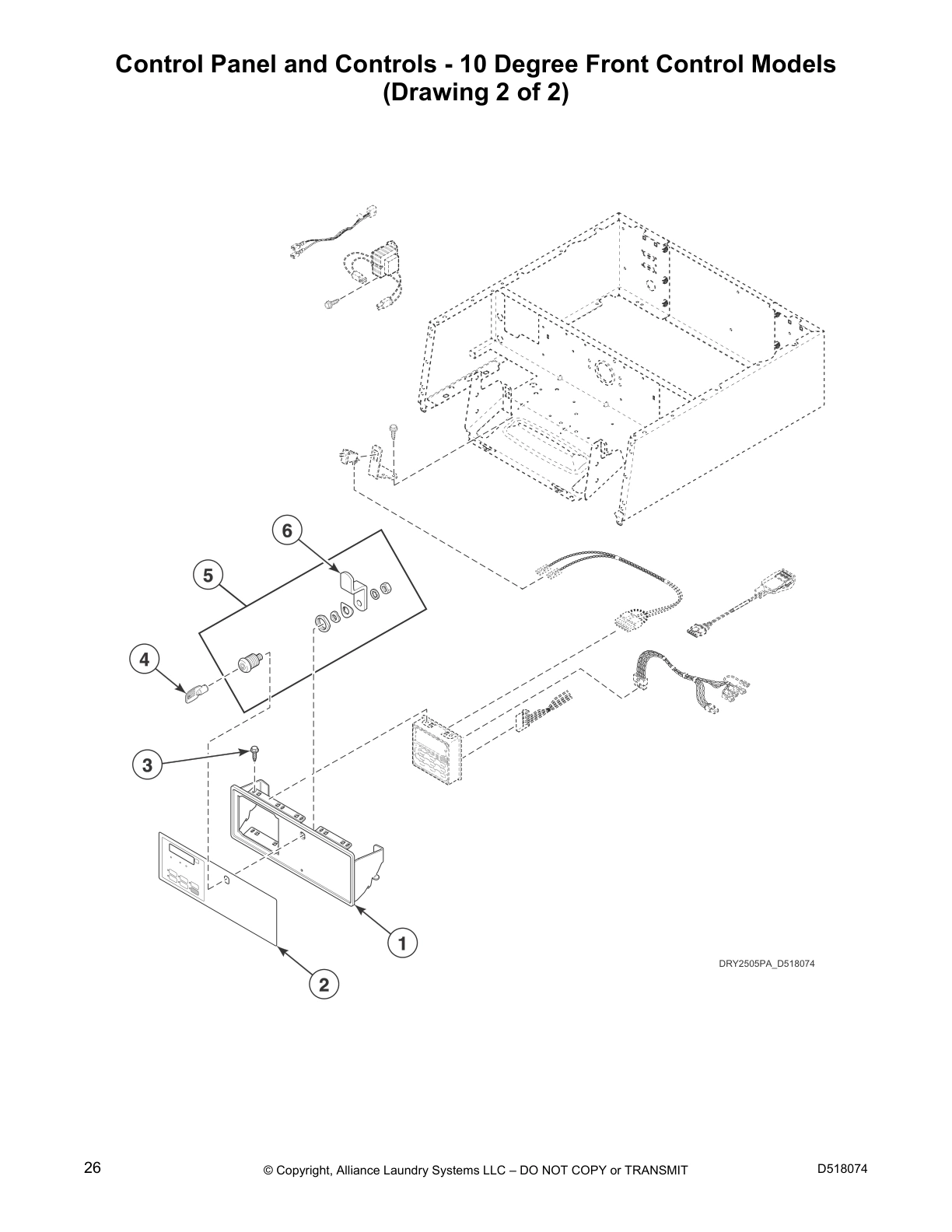

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

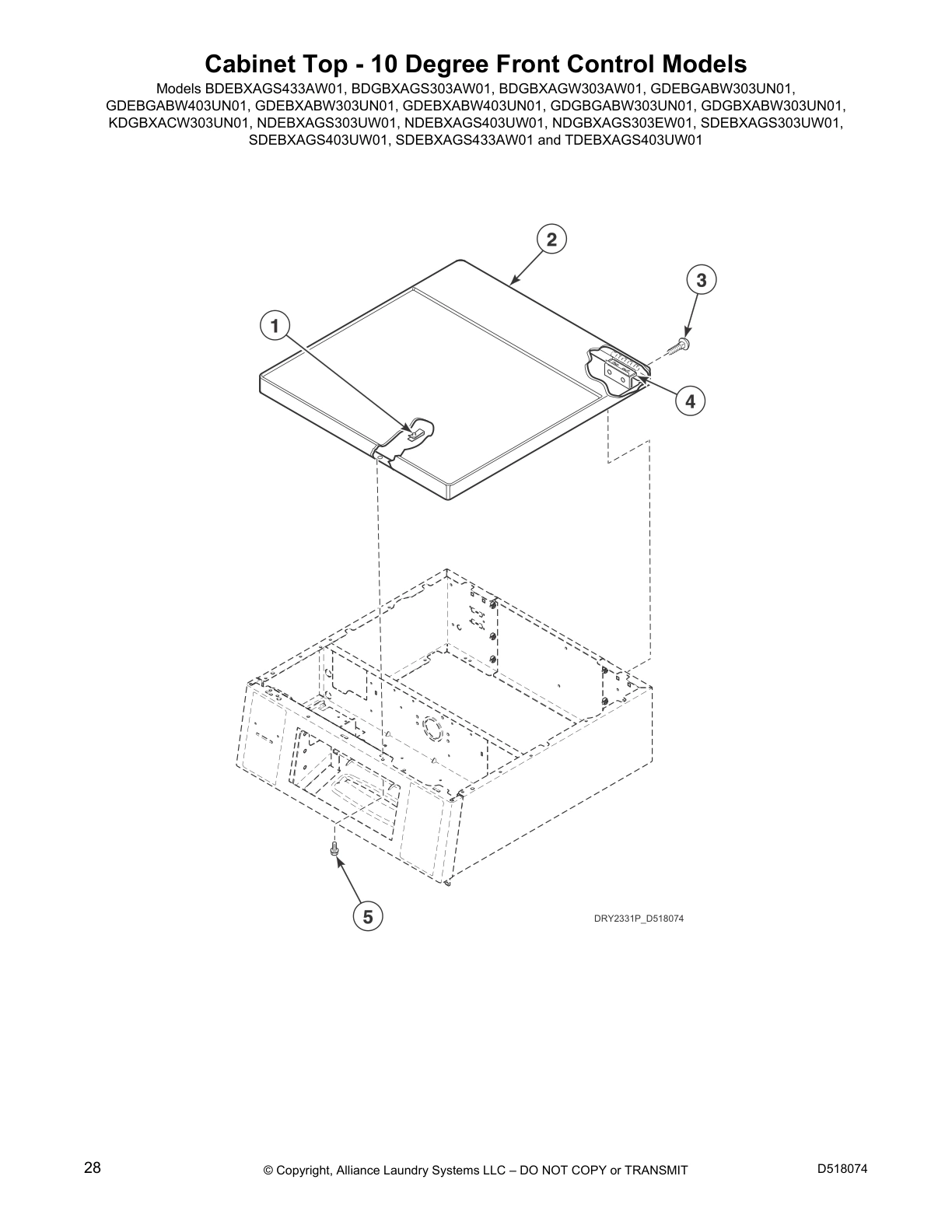

Cabinet Top - 10 Degree Front Control Models
Control Panel and Controls - 45 Degree Front Control Models
Loading Door Without Window
Loading Door With Window
Loading Door With Window

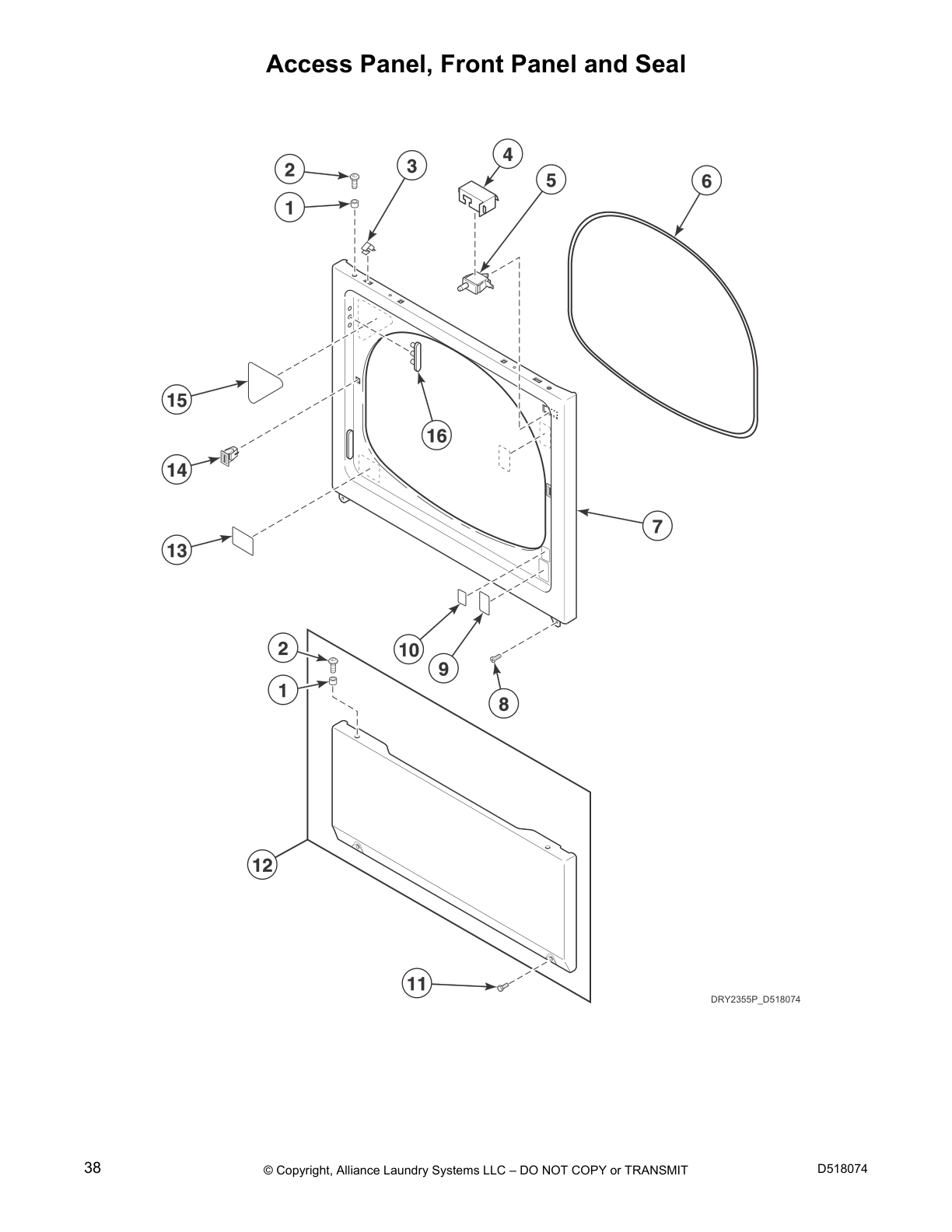

Access Panel, Front Panel and Seal
Motor and Belt

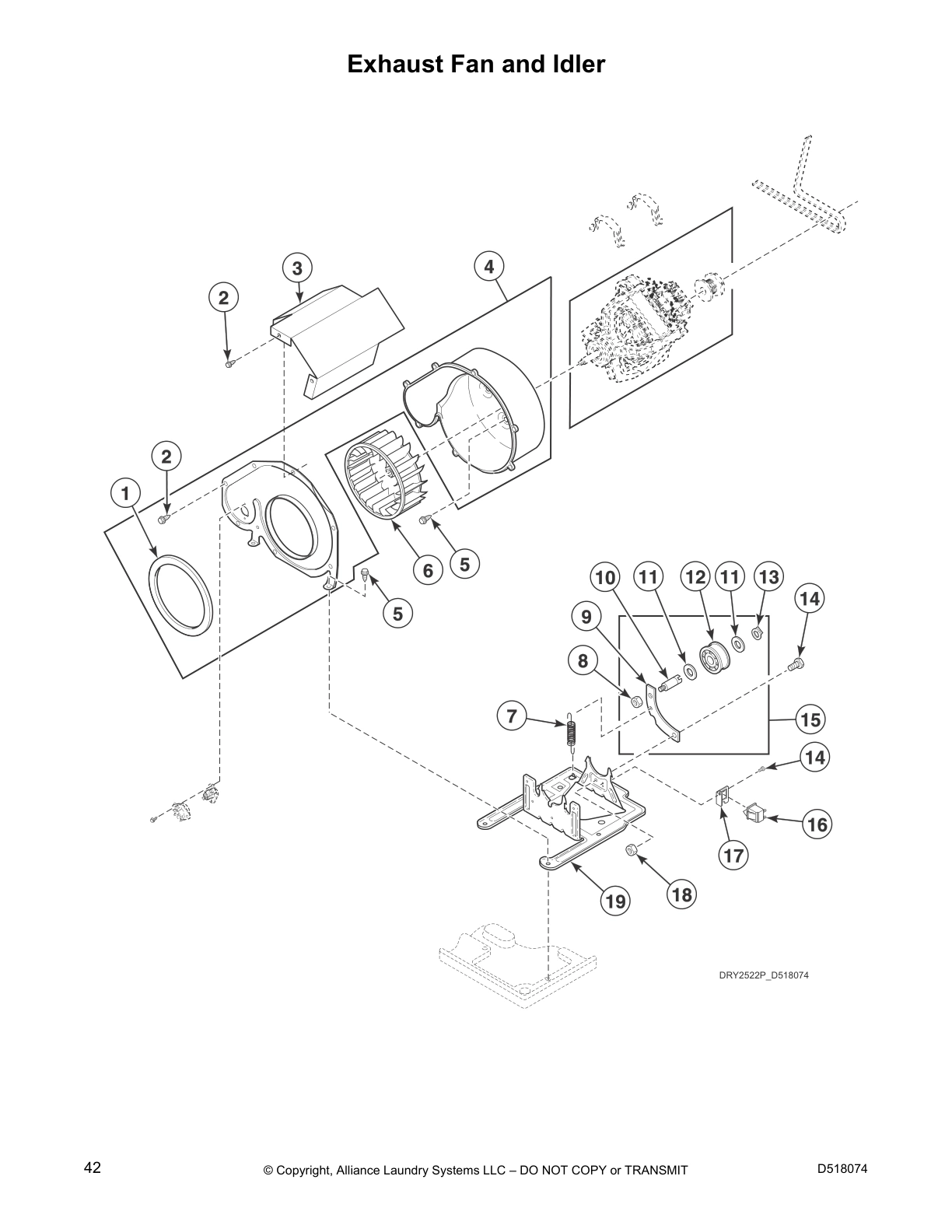

Exhaust Fan and Idler

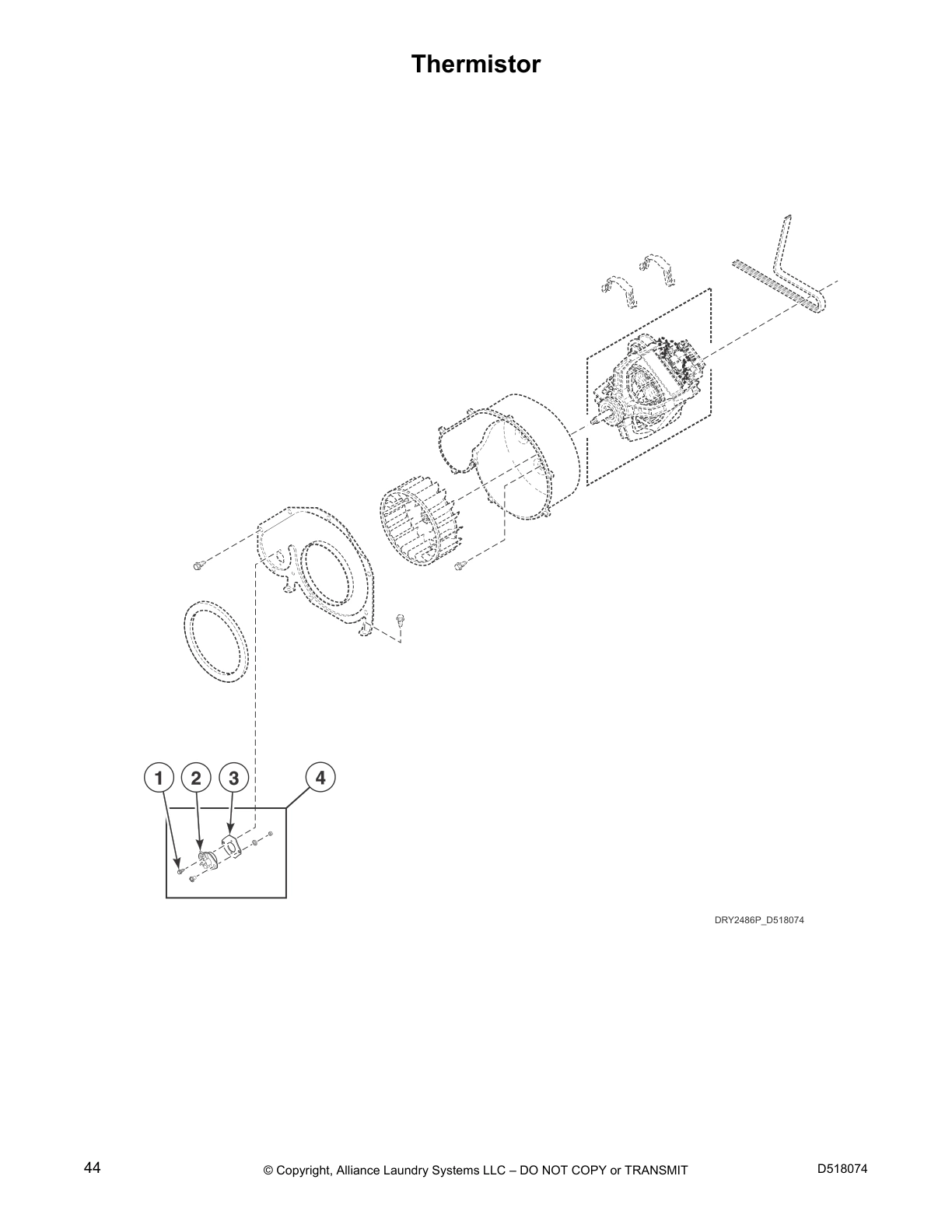

Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

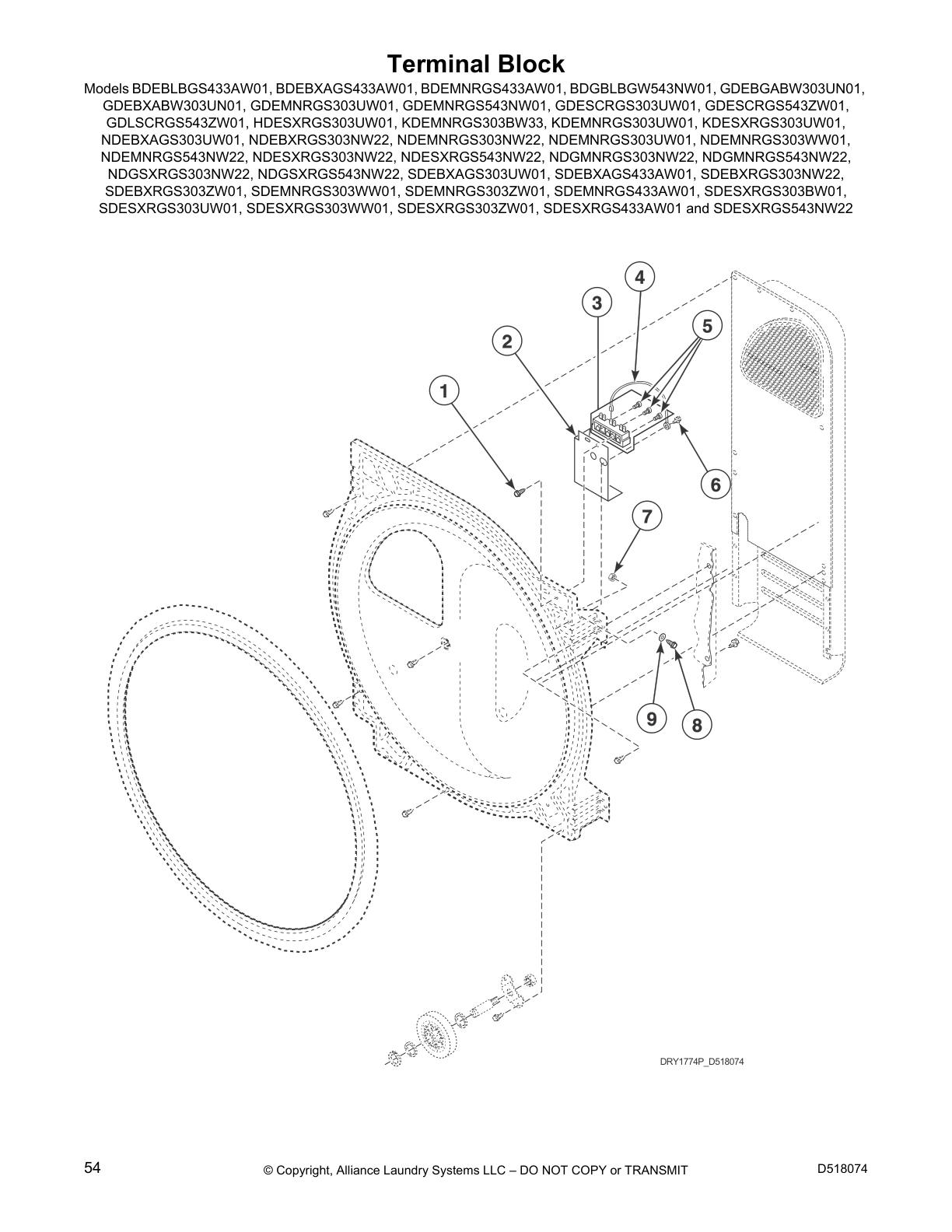

Terminal Block

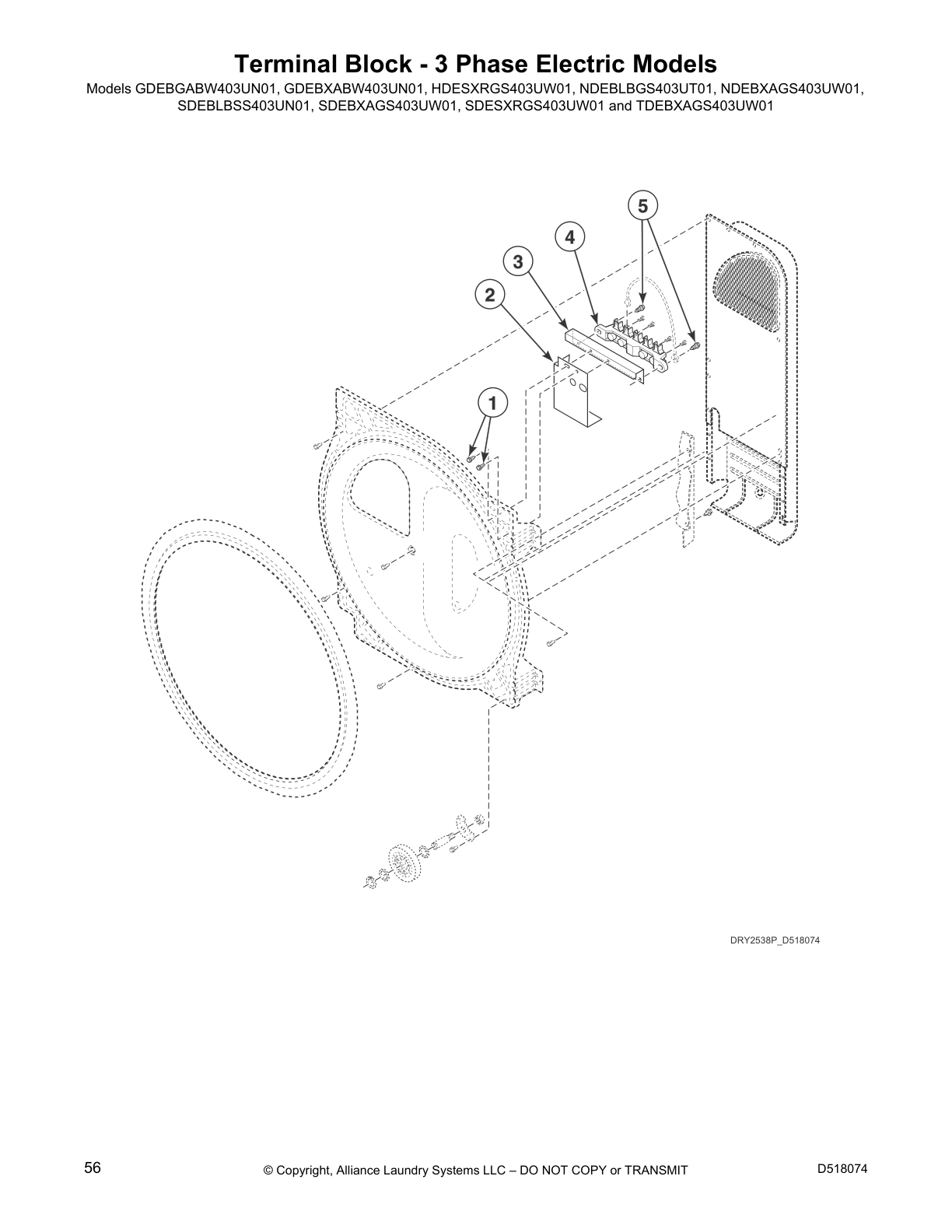

Terminal Block - 3 Phase Electric Models

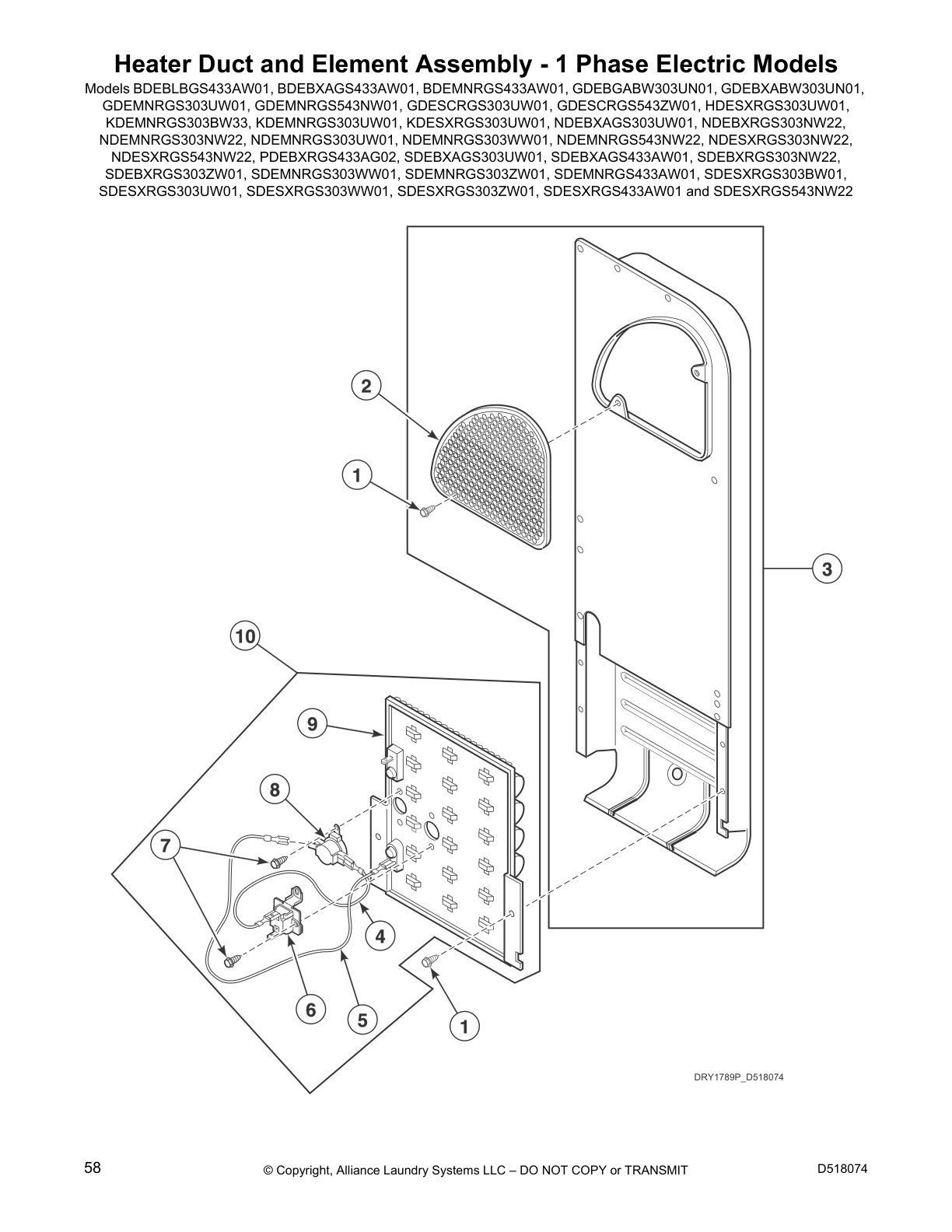

Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct Assembly

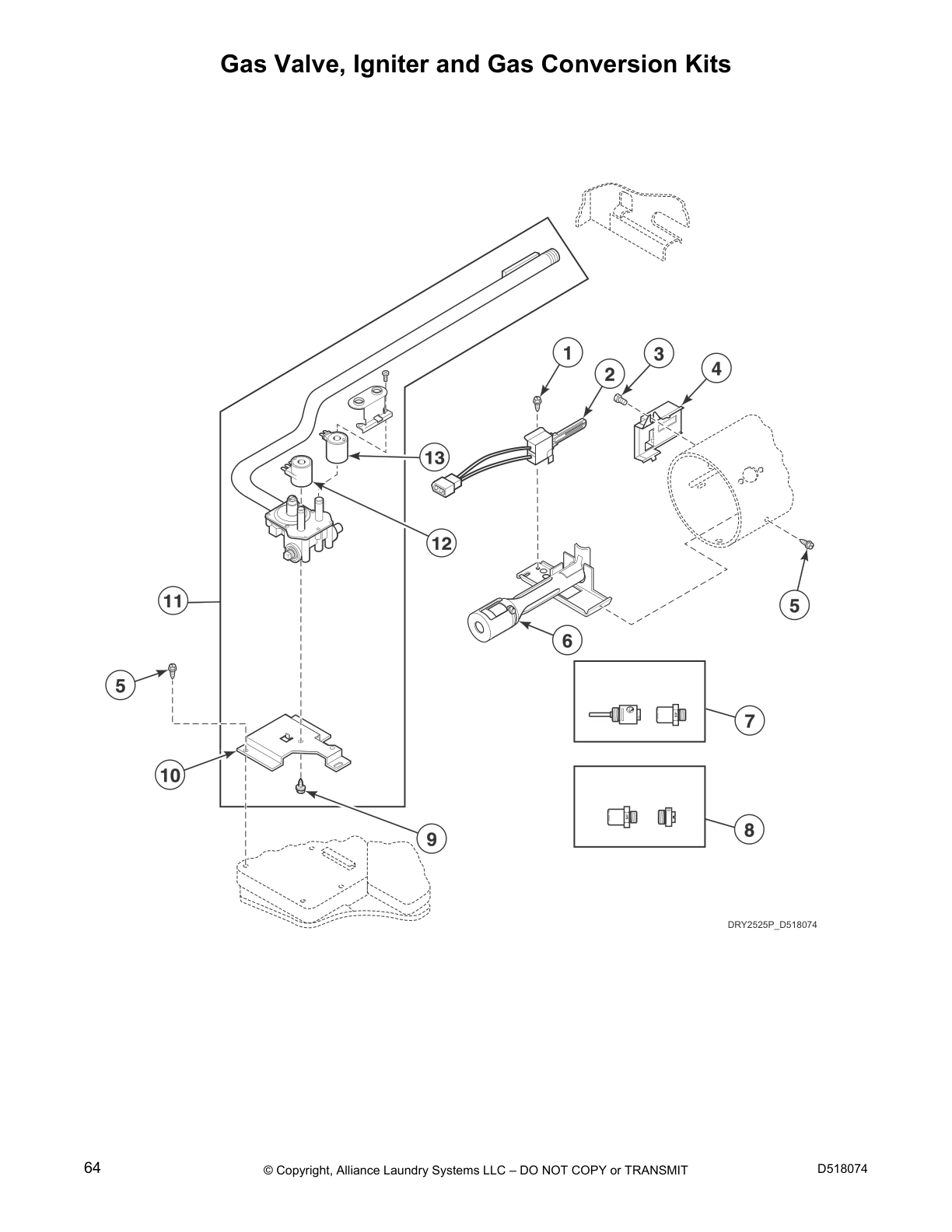

Gas Valve, Igniter and Gas Conversion Kits
Cabinet, Exhaust Duct and Base

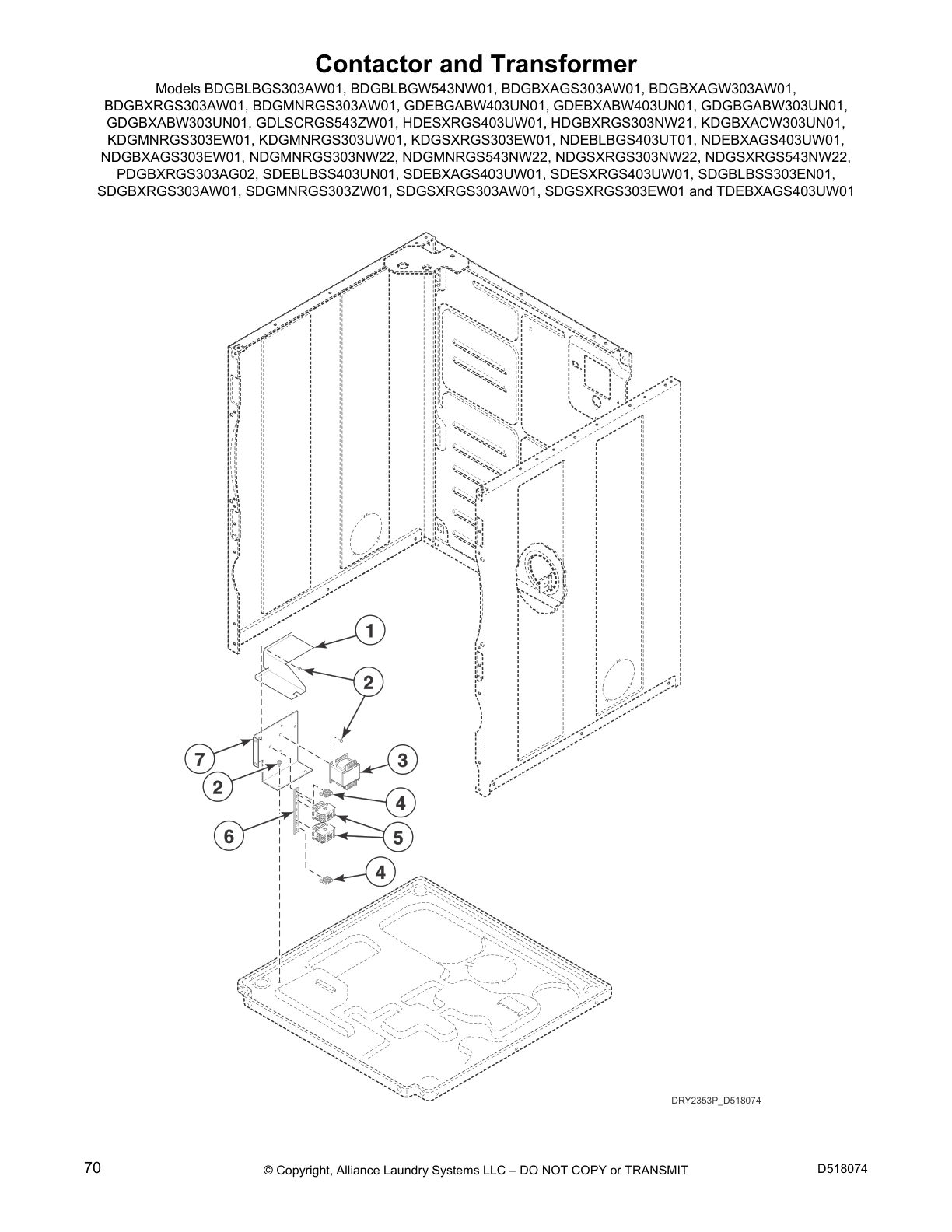

Contactor and Transformer
Power Cord
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

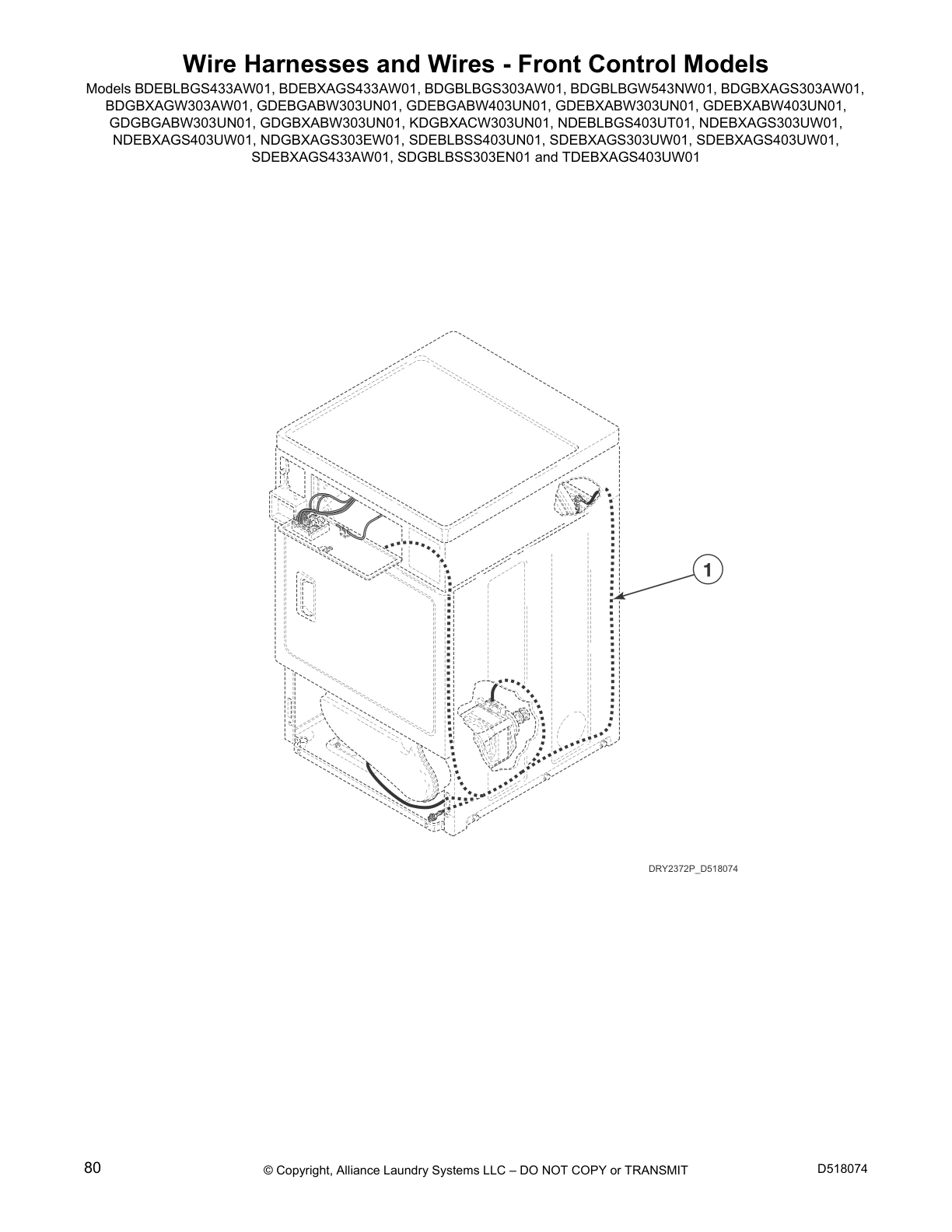

Wire Harnesses and Wires - Front Control Models

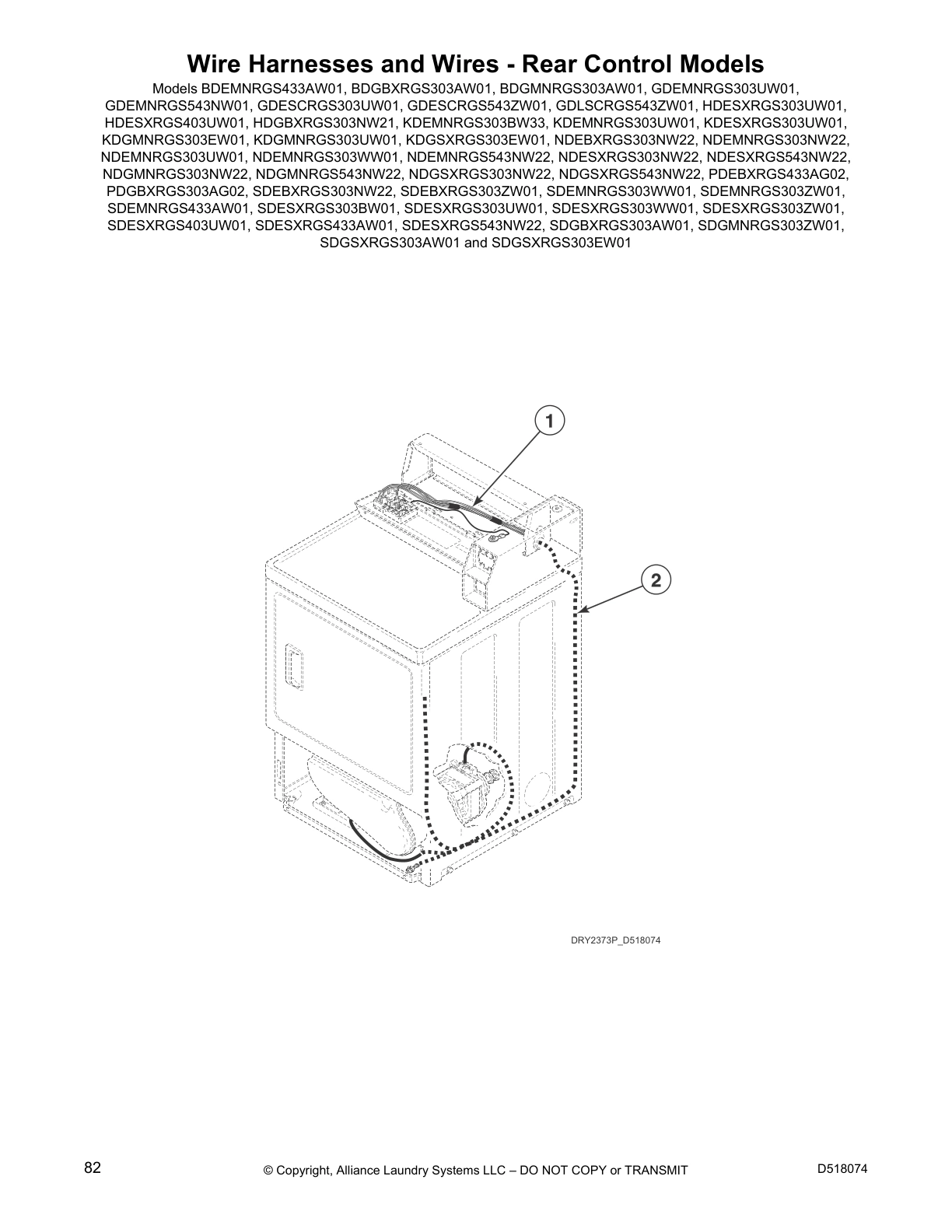

Wire Harnesses and Wires - Rear Control Models

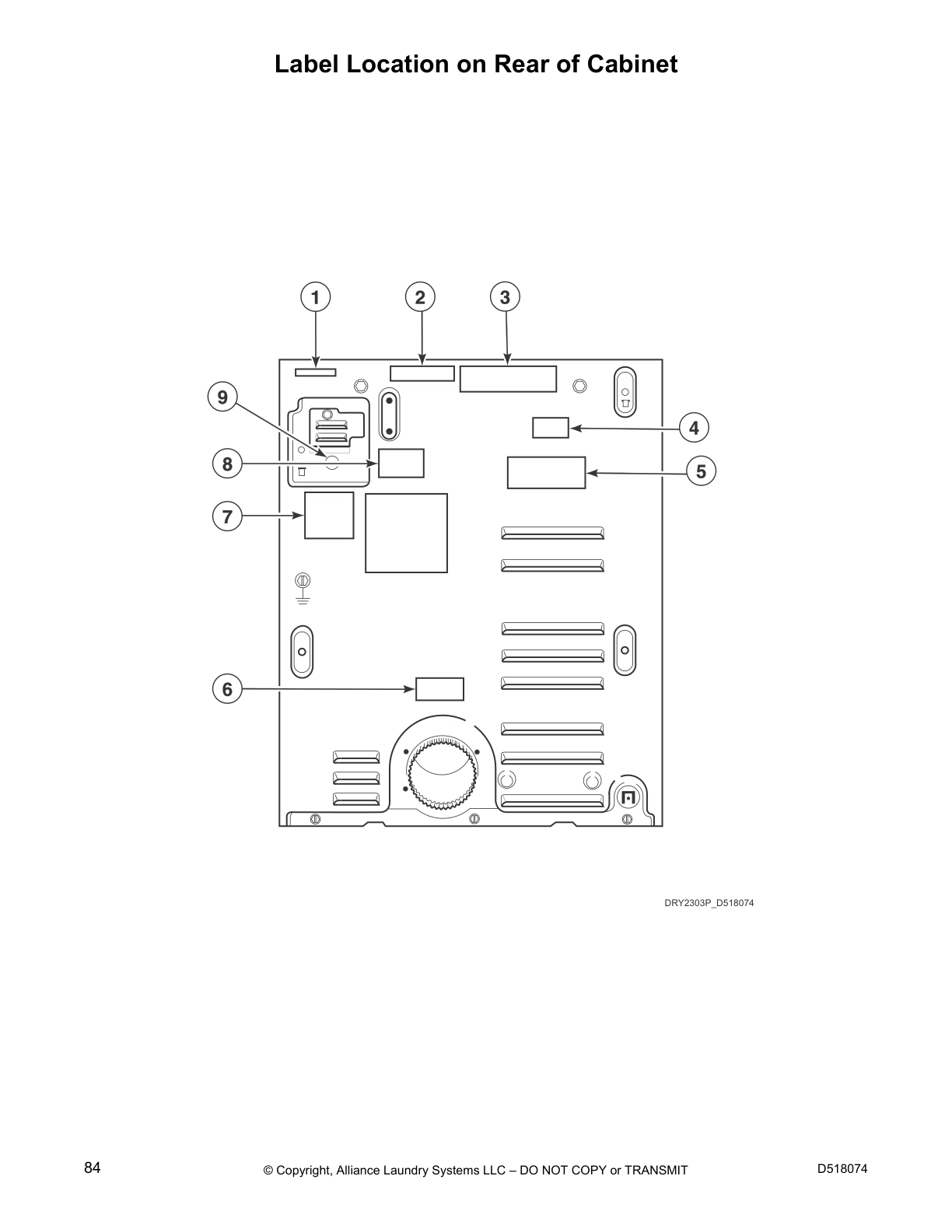

Label Location on Rear of Cabinet
Common parts from model Alliance NDESXRGS543NW22 Dryer
1
Switch SPQ D512973 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Switch Knob SPQ 39897 Contact Us For Availability
1
Door Strike Mount SPQ D510127 Contact Us For Availability
1
Screw SPQ D501285 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Panel Locator SPQ 56079 Contact Us For Availability
1
Motor and Pulley Assembly SPQ D505869P Contact Us For Availability
1
Screw SPQ D502535 Contact Us For Availability
1
Wire Clip SPQ 687500 Contact Us For Availability
1
Screw SPQ D503673 Contact Us For Availability
2
Outlet Cover SPQ D500820 Contact Us For Availability
2
Door Strike SPQ D510181 Contact Us For Availability
2
Cylinder Glide SPQ D513710 Contact Us For Availability
2
Adhesive SPQ D511637P Contact Us For Availability
2
Screw SPQ D503688 Contact Us For Availability
2
Thermistor SPQ M414704 Contact Us For Availability
2
Motor Mount Clamp SPQ D510180 Contact Us For Availability
2
Screw SPQ 24205 Contact Us For Availability
2
Bracket SPQ D510146 Contact Us For Availability
3
Cylinder Belt SPQ D511255P Contact Us For Availability
3
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
3
Terminal Block Assembly SPQ D510190P Contact Us For Availability
3
Liner Door Seal SPQ D510147P Contact Us For Availability
3
Speed Clip SPQ D510186 Contact Us For Availability
4
Thermistor Assembly SPQ D510523 Contact Us For Availability
4
Motor Pulley SPQ D500011 Contact Us For Availability
4
Blower Fan Assembly SPQ D511969WP Contact Us For Availability
4
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
4
Cylinder Baffle SPQ D510102W Contact Us For Availability
4
Door Liner Grill SPQ D503870W Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Liner, Seal and Grill Assembly SPQ D510163WP Contact Us For Availability
5
Flexible Venting Kit SPQ D510001WP Contact Us For Availability
5
Switch SPQ 28835 Contact Us For Availability
5
Meter Case Lockdown Bracket SPQ 26354 Contact Us For Availability
5
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
5
SPQ D501738W SPQ D501738W Contact Us For Availability
6
Idler Lever SPQ D510139P Contact Us For Availability
6
Torx Drive Tool SPQ 310P4 Contact Us For Availability
6
Cylinder Roller Bracket SPQ D510100 Contact Us For Availability
6
SPQ D500226 SPQ D500226 Contact Us For Availability
6
SPQ 00360 SPQ 00360 Contact Us For Availability
7
Cylinder Roller SPQ D510708P Contact Us For Availability
7
Hinge SPQ D511036 Contact Us For Availability
7
Anti-Seize Compound SPQ D510185 Contact Us For Availability
7
SPQ 56128 SPQ 56128 Contact Us For Availability
8
Washer SPQ 52549 Contact Us For Availability
8
Door Pull and Wedge Kit SPQ D510103WP Contact Us For Availability
8
SPQ D511056 SPQ D511056 Contact Us For Availability
8
SPQ D510136 SPQ D510136 Contact Us For Availability
8
SPQ D501086 SPQ D501086 Contact Us For Availability
9
SPQ D510329P SPQ D510329P Contact Us For Availability
9
Retaining Ring SPQ 23748 Contact Us For Availability
9
Dryer Door SPQ D510013WP Contact Us For Availability
9
SPQ 431159 SPQ 431159 Contact Us For Availability
10
Exhaust Duct SPQ D516196 Contact Us For Availability
10
Door Handle Wedge SPQ D510129W Contact Us For Availability
11
Lint Filter SPQ D503980W Contact Us For Availability
11
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
11
Screw SPQ 33562 Contact Us For Availability
12
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
12
Felt Pad SPQ D510189 Contact Us For Availability
12
Access Panel Assembly SPQ D514250WP Contact Us For Availability
14
Door Catch Assembly SPQ D510177 Contact Us For Availability
14
Temperature Selector Switch SPQ D511711 Contact Us For Availability
14
Screw SPQ D500824 Contact Us For Availability
15
Idler Lever and Wheel Assembly SPQ D516792 Contact Us For Availability
15
Leveling Leg SPQ D514245 Contact Us For Availability
15
Screw SPQ 804667 Contact Us For Availability
16
Rubber Foot SPQ D510135 Contact Us For Availability
16
Switch SPQ D516391 Contact Us For Availability
17
Output Board Shield SPQ D501855 Contact Us For Availability
NI
SPQ 56461P SPQ 56461P Contact Us For Availability
NI
Cylinder Assembly SPQ D510265WP Contact Us For Availability
NI
SPQ D510066WP SPQ D510066WP Contact Us For Availability
NI
Shaft SPQ D504082 Contact Us For Availability
NI
SPQ D517526 SPQ D517526 Contact Us For Availability
NI
Screw SPQ 62588 Contact Us For Availability
NI
SPQ D512542 SPQ D512542 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
