Model Maytag MVW6200KW0 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

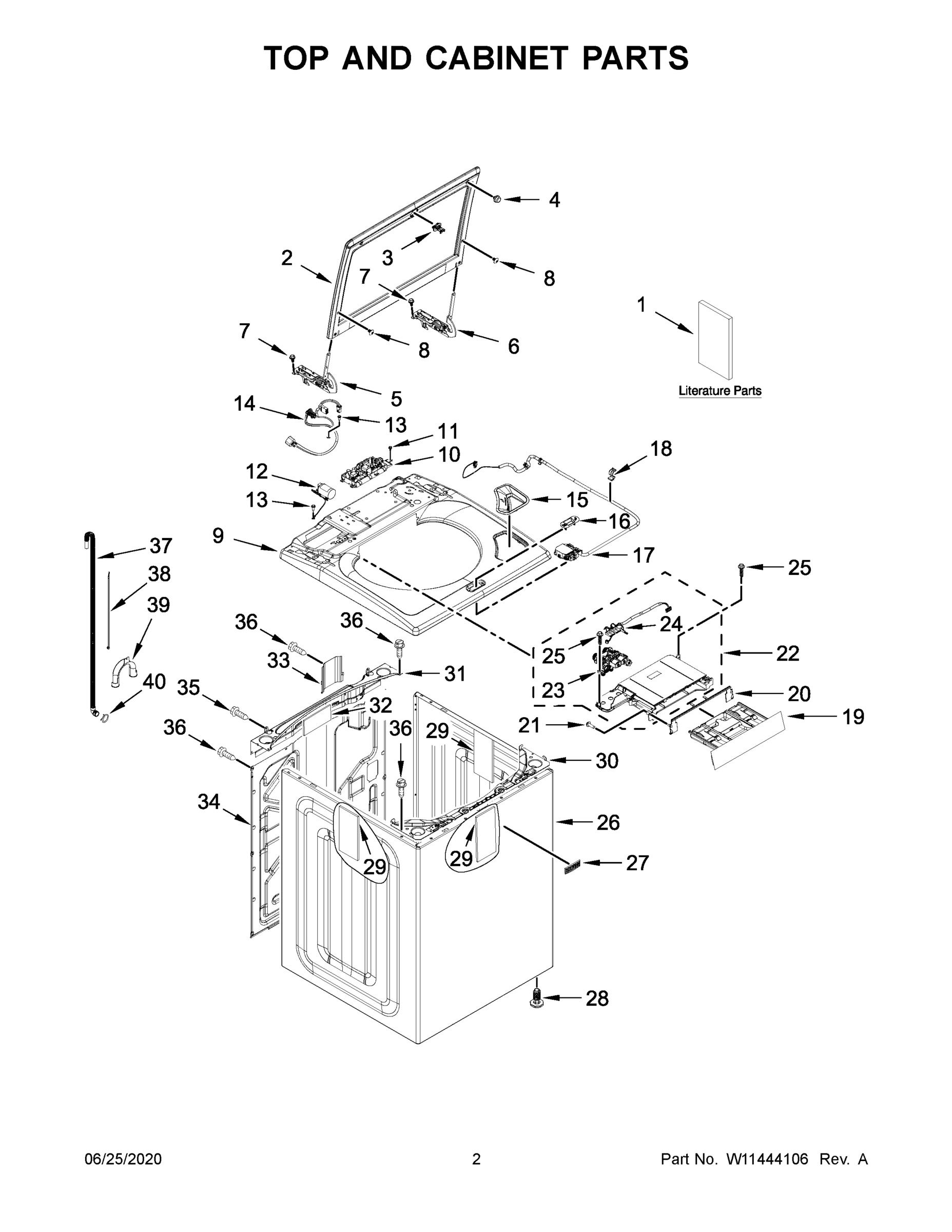

02 - TOP AND CABINET PARTS

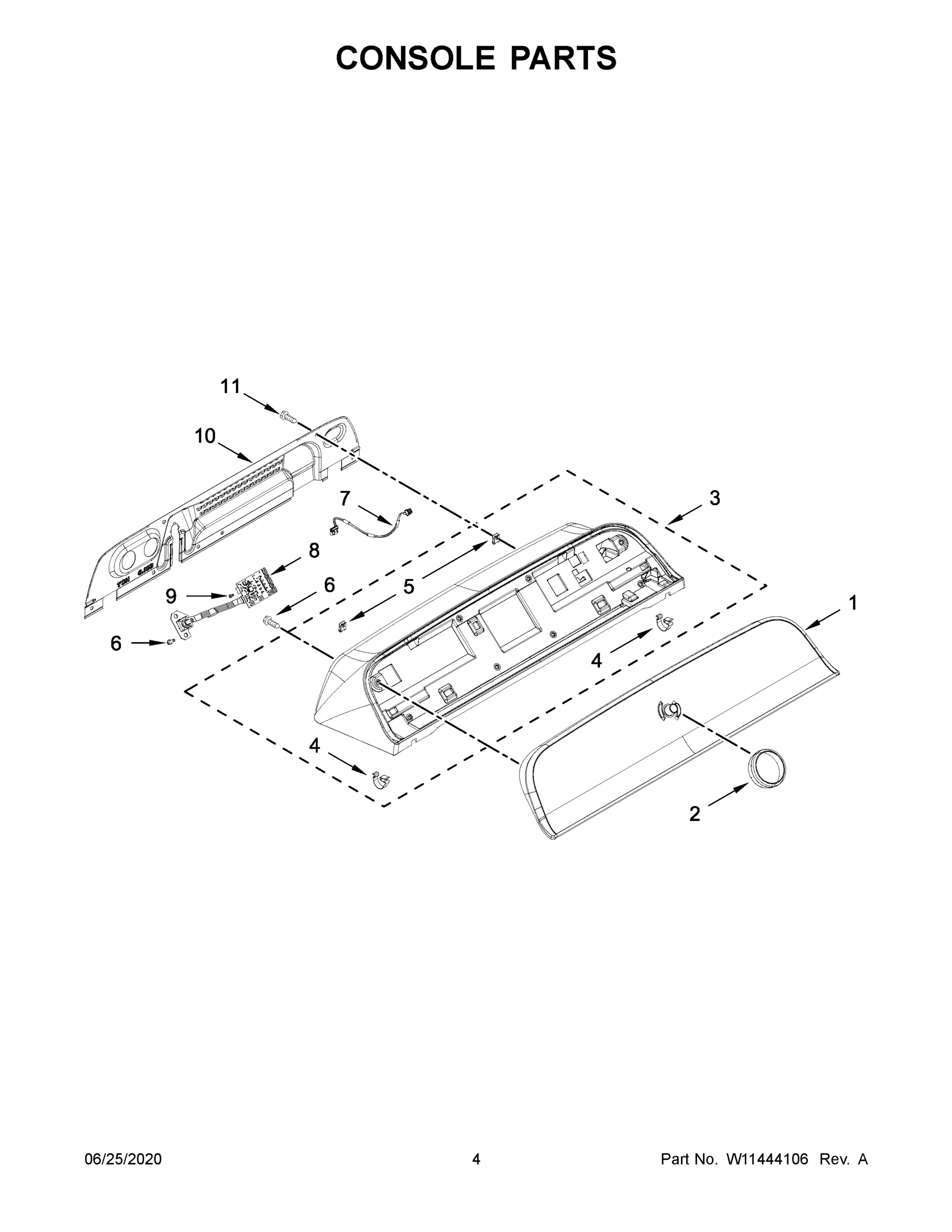

03 - CONSOLE PARTS

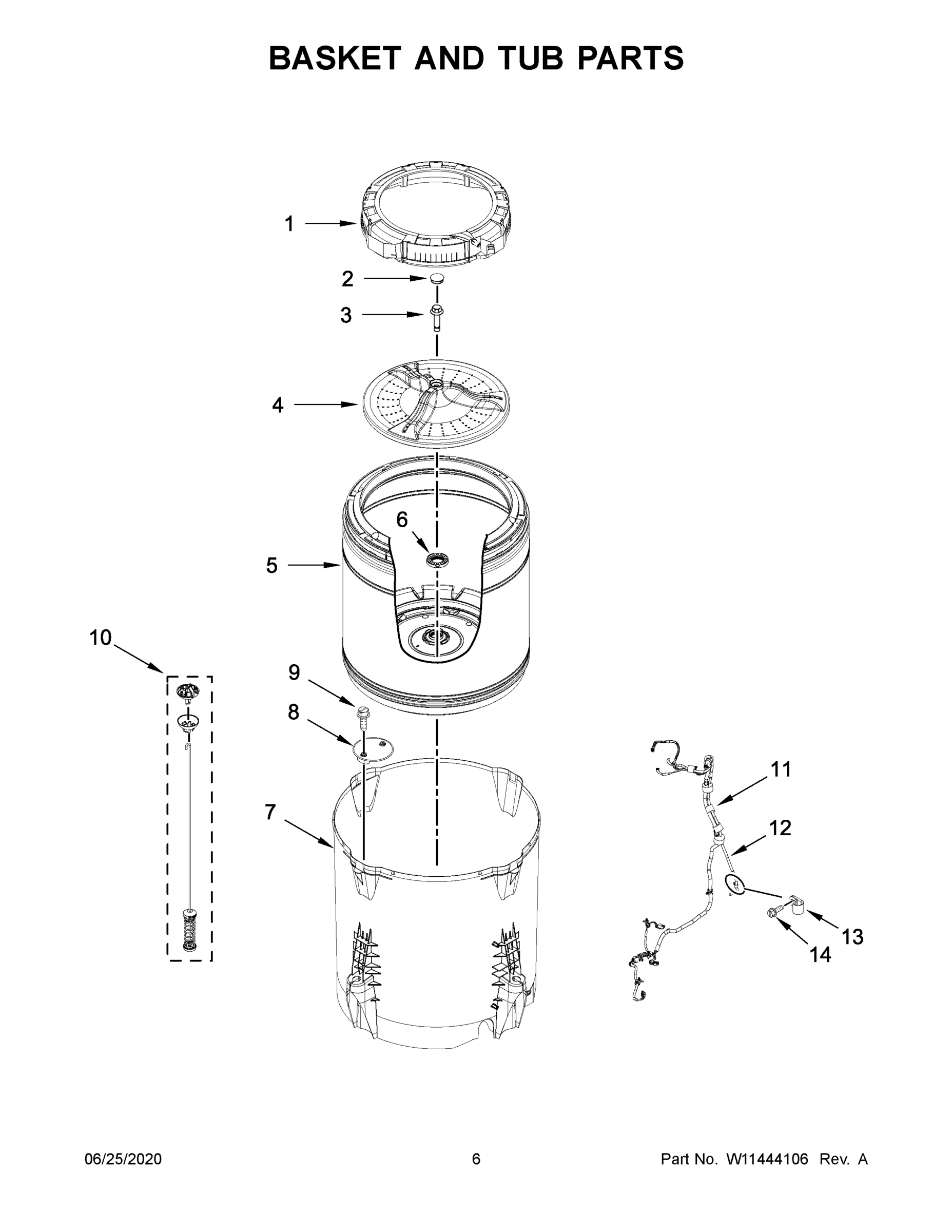

04 - BASKET AND TUB PARTS

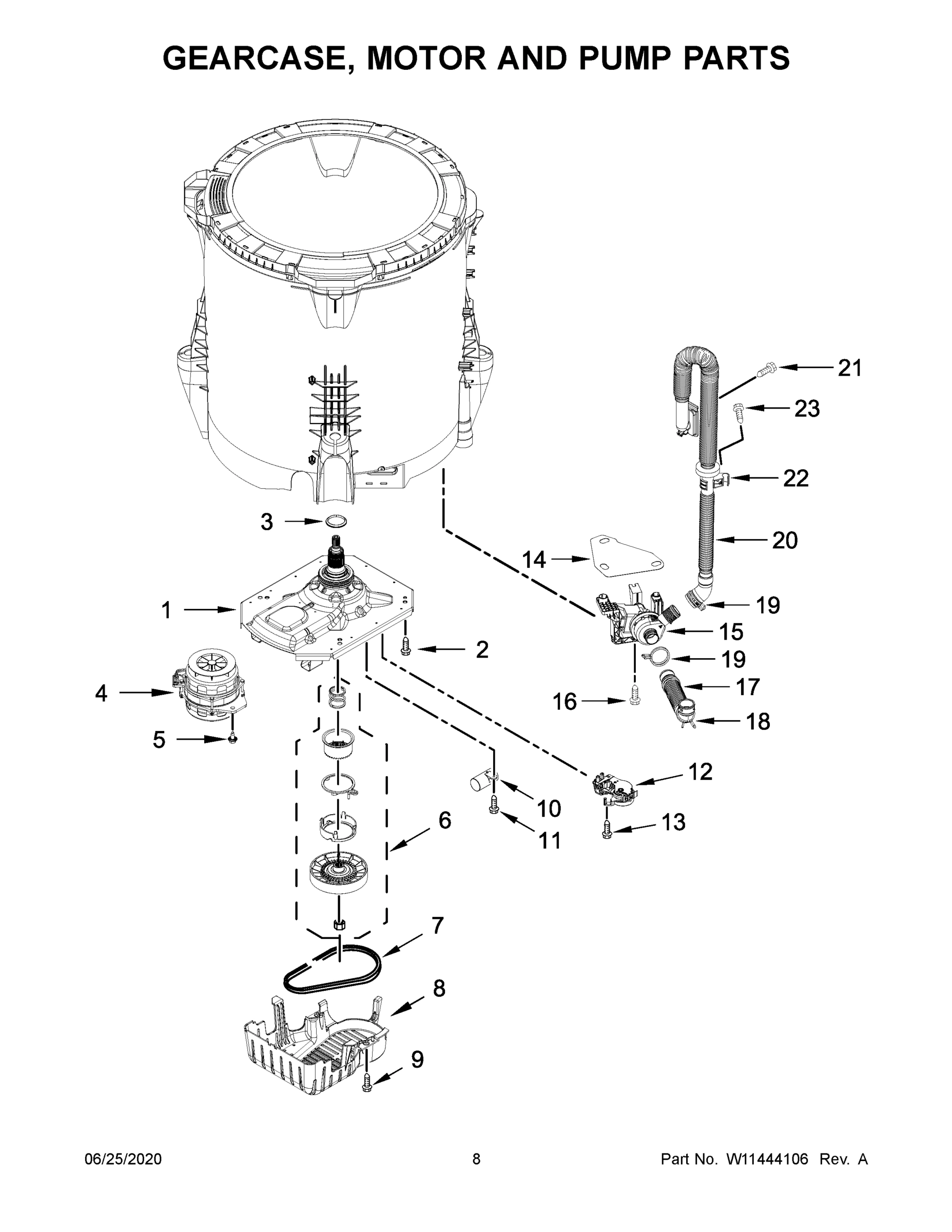

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVW6200KW0 LAUNDRY, RESIDENTIAL, WASHER
1
OWNERS MANUAL MAY W11354658 Contact Us For Availability
1
MAY W11406492 MAY W11406492 Contact Us For Availability
1
TUB RING MAY W11094300 Contact Us For Availability
1
GEARCASE ASSEMBLY MAY W11164183 Contact Us For Availability
1A
MAY W11416400 MAY W11416400 Contact Us For Availability
1B
MAY W11416398 MAY W11416398 Contact Us For Availability
2
ASSEMBLY, LID (GLASS) (TEMPEST GREY) MAY W11113665 Contact Us For Availability
2
MAY W11406489 MAY W11406489 Contact Us For Availability
2
CAP, IMPELLER MAY W10609549 Contact Us For Availability
2
SCREW MAY W10249633 Contact Us For Availability
3
STRIKE ASSEMBLY MAY W11091027 Contact Us For Availability
3
MAY W11447379 MAY W11447379 Contact Us For Availability
3
SCREW MAY W10625252 Contact Us For Availability
3
WASHER, THRUST MAY W11218170 Contact Us For Availability
4
BUMPER, LID MAY W10631074 Contact Us For Availability
4
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
4
IMPELLER (WASHPLATE) MAY W10834917 Contact Us For Availability
4
MOTOR, DRIVE MAY W10677723 Contact Us For Availability
5
HINGE, LID (LEFT) MAY W11128305 Contact Us For Availability
5
NUT, "U" MAY W10298336 Contact Us For Availability
5
BASKET ASSEMBLY MAY W11178224 Contact Us For Availability
5
SCREW MAY W10094780 Contact Us For Availability
6
HINGE, LID (RIGHT) MAY W11128306 Contact Us For Availability
6
BASKET, LOCK NUT MAY W11183985 Contact Us For Availability
6
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
7
MAY W11414312 MAY W11414312 Contact Us For Availability
7
TUB MAY W11219115 Contact Us For Availability
7
BELT, DRIVE MAY W10808317 Contact Us For Availability
8
SCREW MAY W11183686 Contact Us For Availability
8
MAY W11374900 MAY W11374900 Contact Us For Availability
8
FILTER, DRAIN PUMP MAY W11089264 Contact Us For Availability
8
SHIELD, PULLEY COVER MAY W11087188 Contact Us For Availability
9
TOP (WHITE) MAY W11126896 Contact Us For Availability
9
SCREW MAY 8540727 Contact Us For Availability
9
SCREW MAY 8533928 Contact Us For Availability
9
SCREW MAY 357640 Contact Us For Availability
10
MAY W11419692 MAY W11419692 Contact Us For Availability
10
PANEL, CONSOLE REAR MAY W11129559 Contact Us For Availability
10
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W11171694 Contact Us For Availability
10
CAPACITOR, MOTOR RUN MAY W11162560 Contact Us For Availability
11
SCREW MAY W10142728 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
SCREW MAY W10660565 Contact Us For Availability
11
HARNESS, LOWER MAY W11183910 Contact Us For Availability
12
ASSEMBLY, LINE FILTER MAY W11033573 Contact Us For Availability
12
HOSE, PRESSURE SWITCH MAY W10590949 Contact Us For Availability
12
ACTUATOR- SHIFT MAY W10815026 Contact Us For Availability
13
SCREW MAY 3400076 Contact Us For Availability
13
CLAMP, CABLE MAY W10005430 Contact Us For Availability
13
SCREW MAY 9741052 Contact Us For Availability
14
POWER CORD MAY W11112935 Contact Us For Availability
14
SCREW MAY W10238319 Contact Us For Availability
14
SHIELD, HEAT MAY W10894129 Contact Us For Availability
15
BEZEL, BLEACH DISPENSER (WHITE) MAY W11175757 Contact Us For Availability
15
PUMP ASSEMBLY, DRAIN MAY W11263349 Contact Us For Availability
16
BEZEL, LID LOCK (WHITE) MAY W11215078 Contact Us For Availability
16
SCREW MAY W10004910 Contact Us For Availability
17
ASSEMBLY, LID LOCK MAY W11032875 Contact Us For Availability
17
HOSE, TUB TO PUMP MAY W10763259 Contact Us For Availability
18
CLIP, HARNESS MAY 90016 Contact Us For Availability
18
CLAMP, HOSE MAY 8317496 Contact Us For Availability
19
ASSEMBLY, DISPENSER DRAWER (WHITE) MAY W10794820 Contact Us For Availability
19
CLAMP, HOSE MAY W11375994 Contact Us For Availability
20
ASSEMBLY, DISPENSER BEZEL (WHITE) MAY W10601841 Contact Us For Availability
20
HOSE, INTERNAL DRAIN MAY W11291620 Contact Us For Availability
21
SCREW MAY 9740848 Contact Us For Availability
22
ASSEMBLY, DISPENSER HOUSING & INLET VALVE MAY W11198975 Contact Us For Availability
22
CLIP, HOSE MAY W10652932 Contact Us For Availability
23
VALVE, WATER INLET MAY W11096268 Contact Us For Availability
23
SCREW MAY 8533943 Contact Us For Availability
24
HARNESS, VALVE MAY W11198271 Contact Us For Availability
25
SCREW MAY 97787 Contact Us For Availability
26
CABINET (WHITE) MAY W10676680 Contact Us For Availability
27
BADGE MAY W10612925 Contact Us For Availability
28
FOOT ASSEMBLY, LEVELING MAY W11179235 Contact Us For Availability
29
ABSORBER, IMPACT MAY W10688364 Contact Us For Availability
30
MAY W11384398 MAY W11384398 Contact Us For Availability
31
CHANNEL, TOP REAR MAY W10512626 Contact Us For Availability
32
ABSORBER, IMPACT MAY 8564458 Contact Us For Availability
33
COVER, HARNESS MAY W10676061 Contact Us For Availability
34
PANEL, REAR MAY W10612644 Contact Us For Availability
35
SCREW MAY W10567155 Contact Us For Availability
37
TIE, CABLE MAY W10339879 Contact Us For Availability
38
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
39
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
40
CLAMP, HOSE MAY 356138 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, SIPHON BREAK KIT MAY 285320 Contact Us For Availability
NI
ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP MAY 285666 Contact Us For Availability
NI
ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT MAY 40922 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RC Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RC Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY 8318155 MAY 8318155 Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10180464RP MAY W10180464RP Contact Us For Availability
NI
MAY W10214580RP MAY W10214580RP Contact Us For Availability
NI
MAY W10355053 MAY W10355053 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
NI
MAY W10575888 MAY W10575888 Contact Us For Availability
NI
MAY W10921681 MAY W10921681 Contact Us For Availability
NI
MAY W10921682 MAY W10921682 Contact Us For Availability
NI
MAY XHS1000XX MAY XHS1000XX Contact Us For Availability
× ![]()
