Model Maytag MSS25N4MKZ01 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

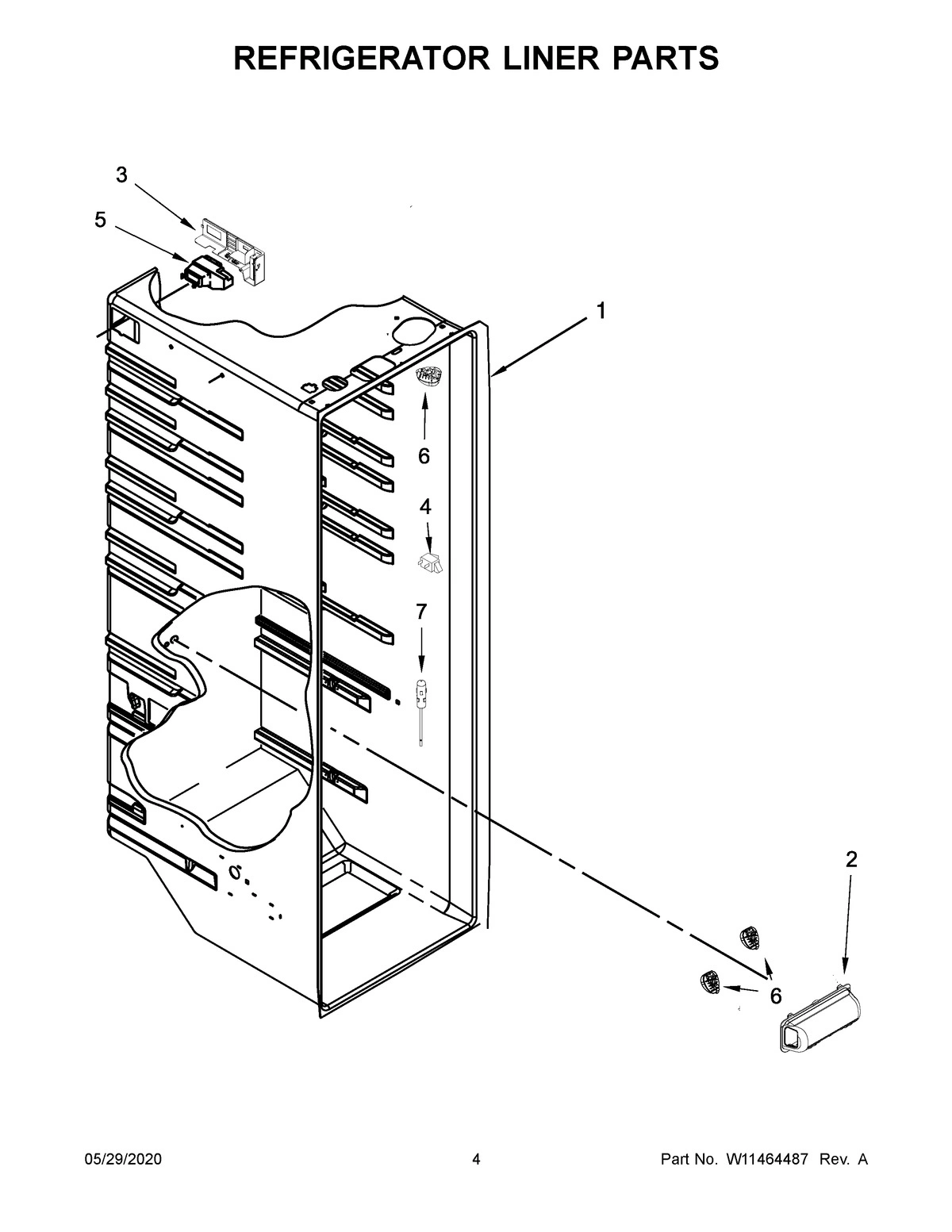

03 - REFRIGERATOR LINER PARTS

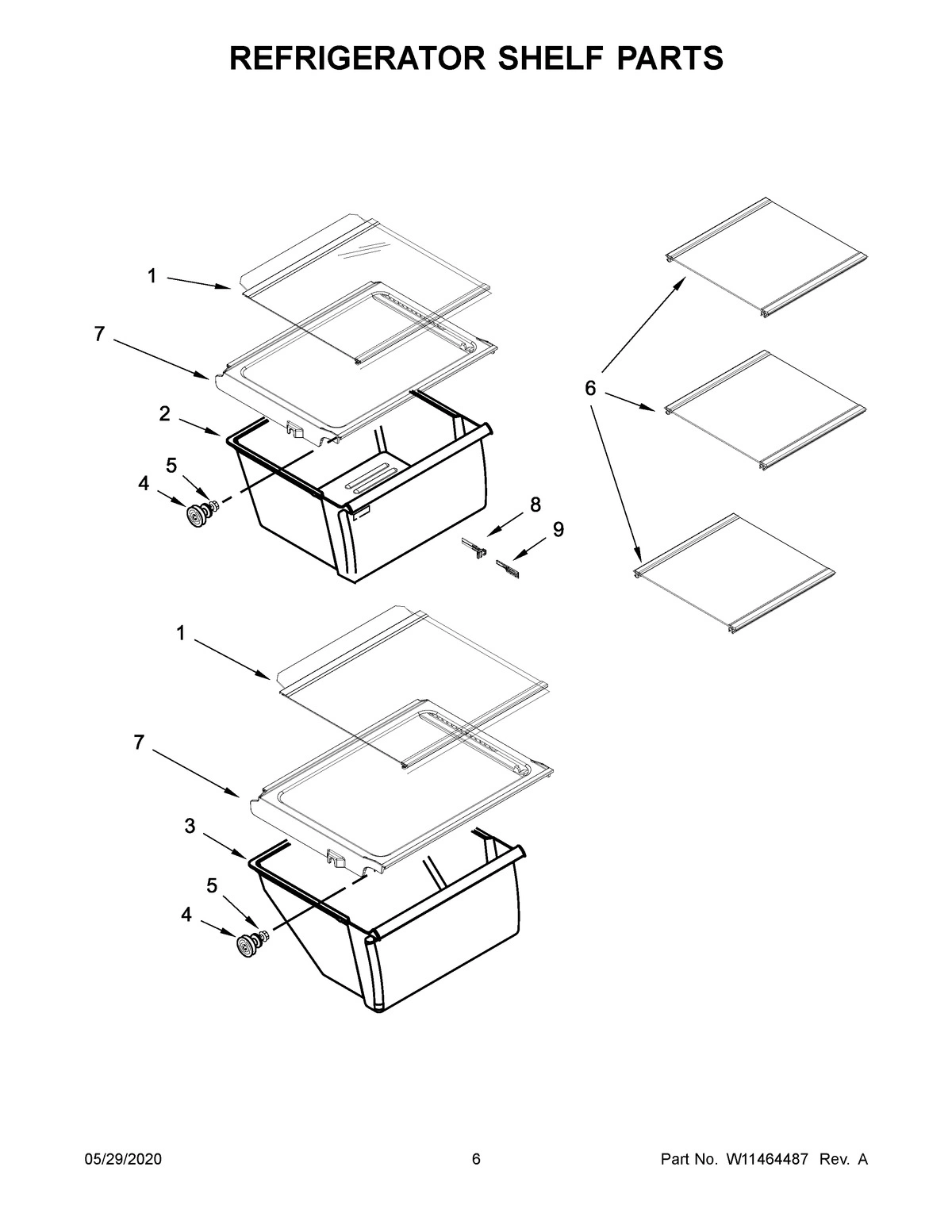

04 - REFRIGERATOR SHELF PARTS

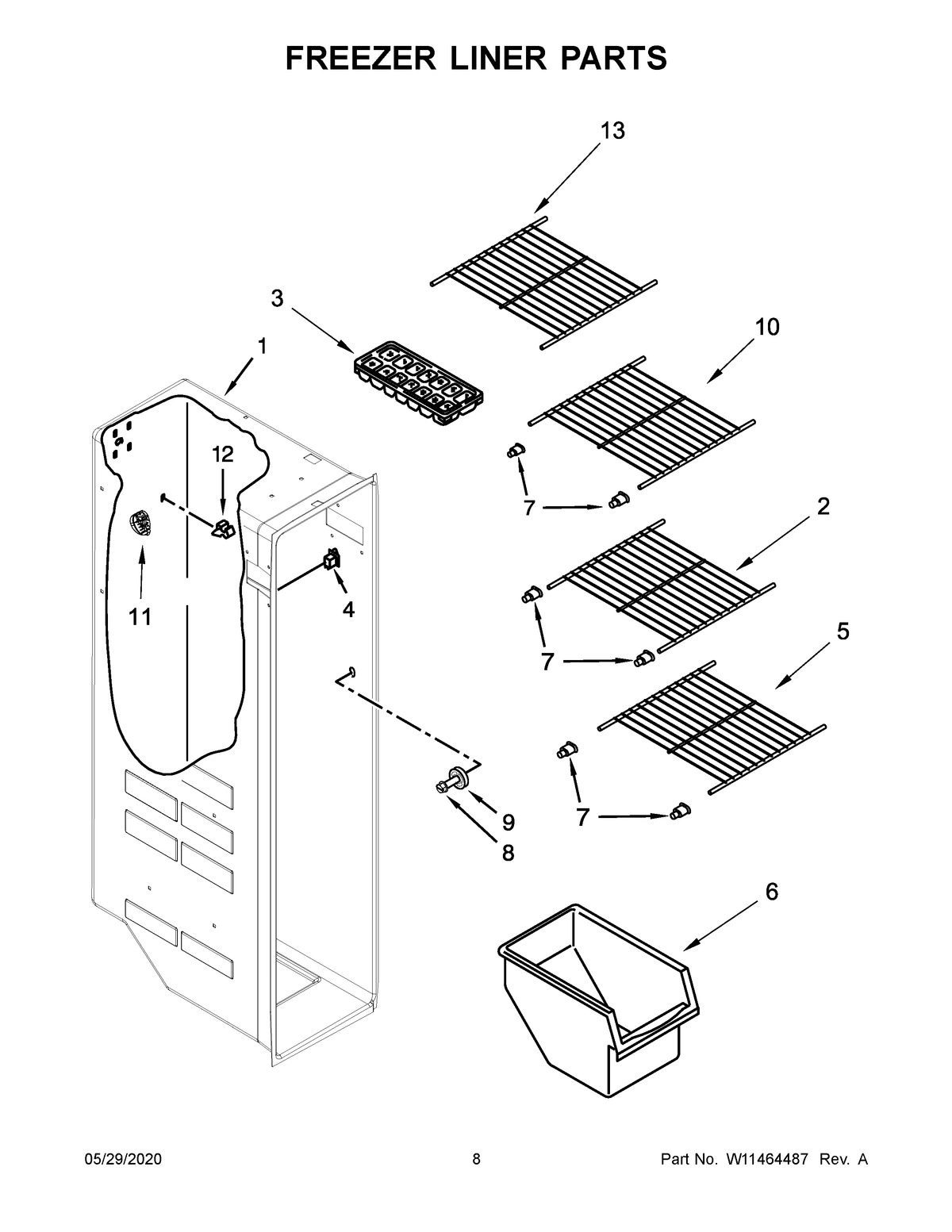

05 - FREEZER LINER PARTS

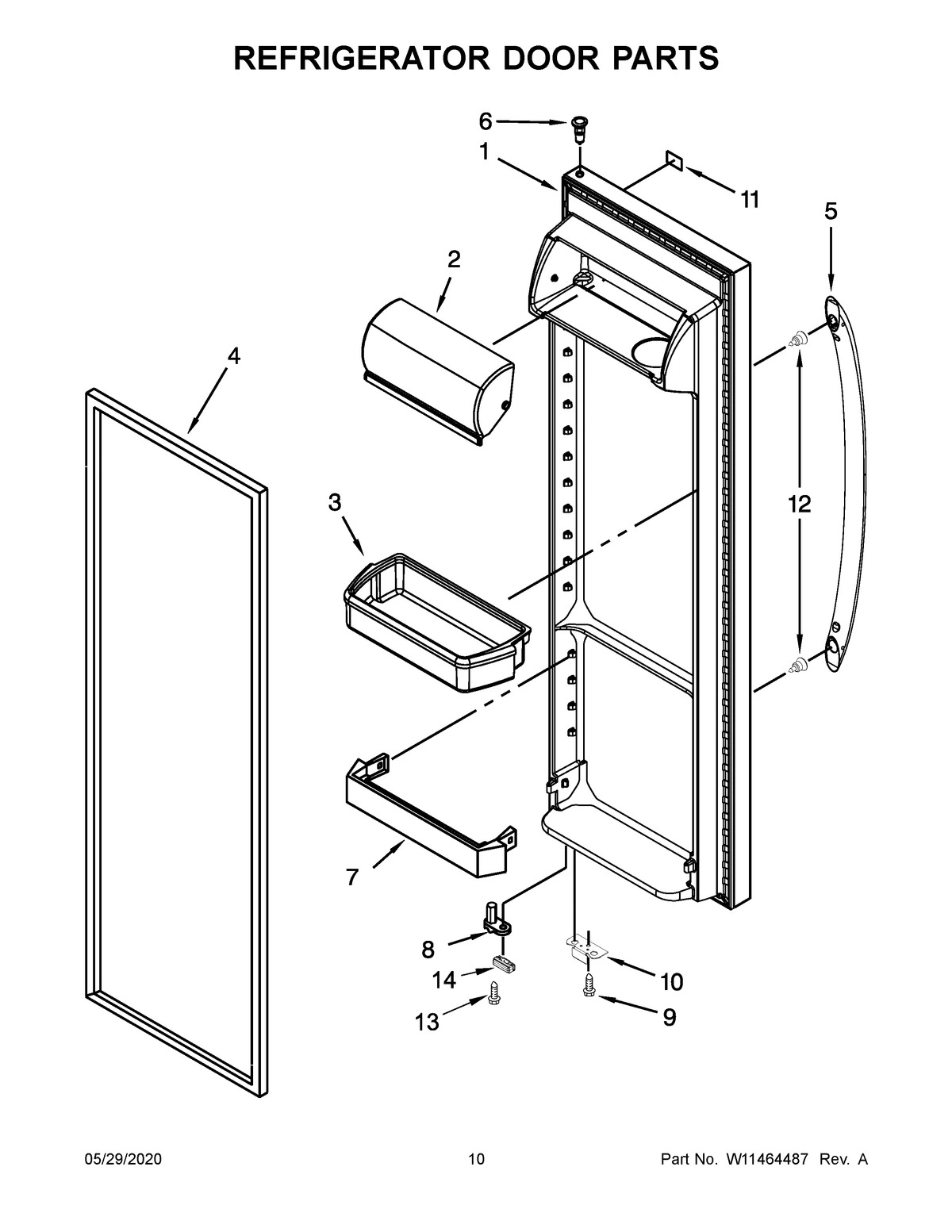

06 - REFRIGERATOR DOOR PARTS

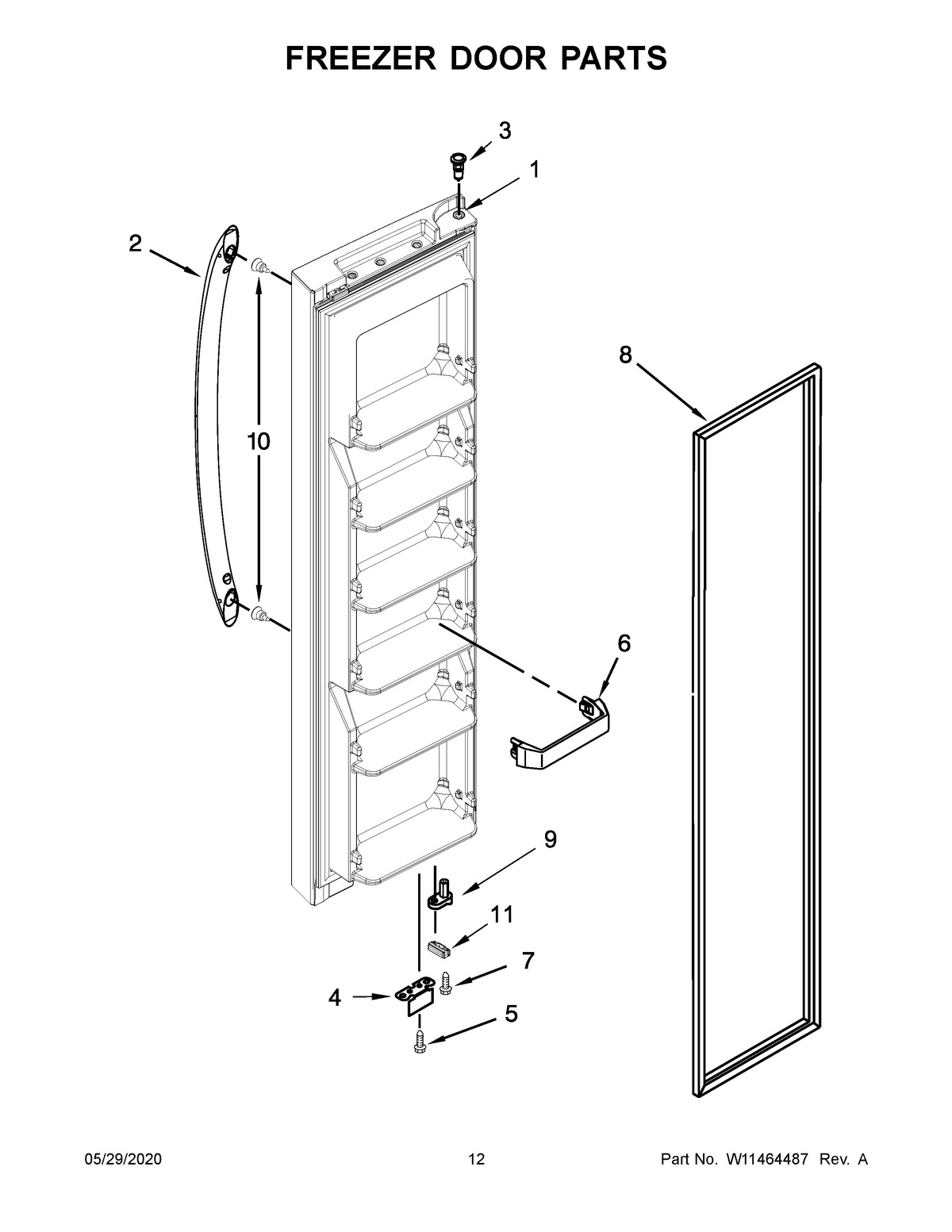

07 - FREEZER DOOR PARTS

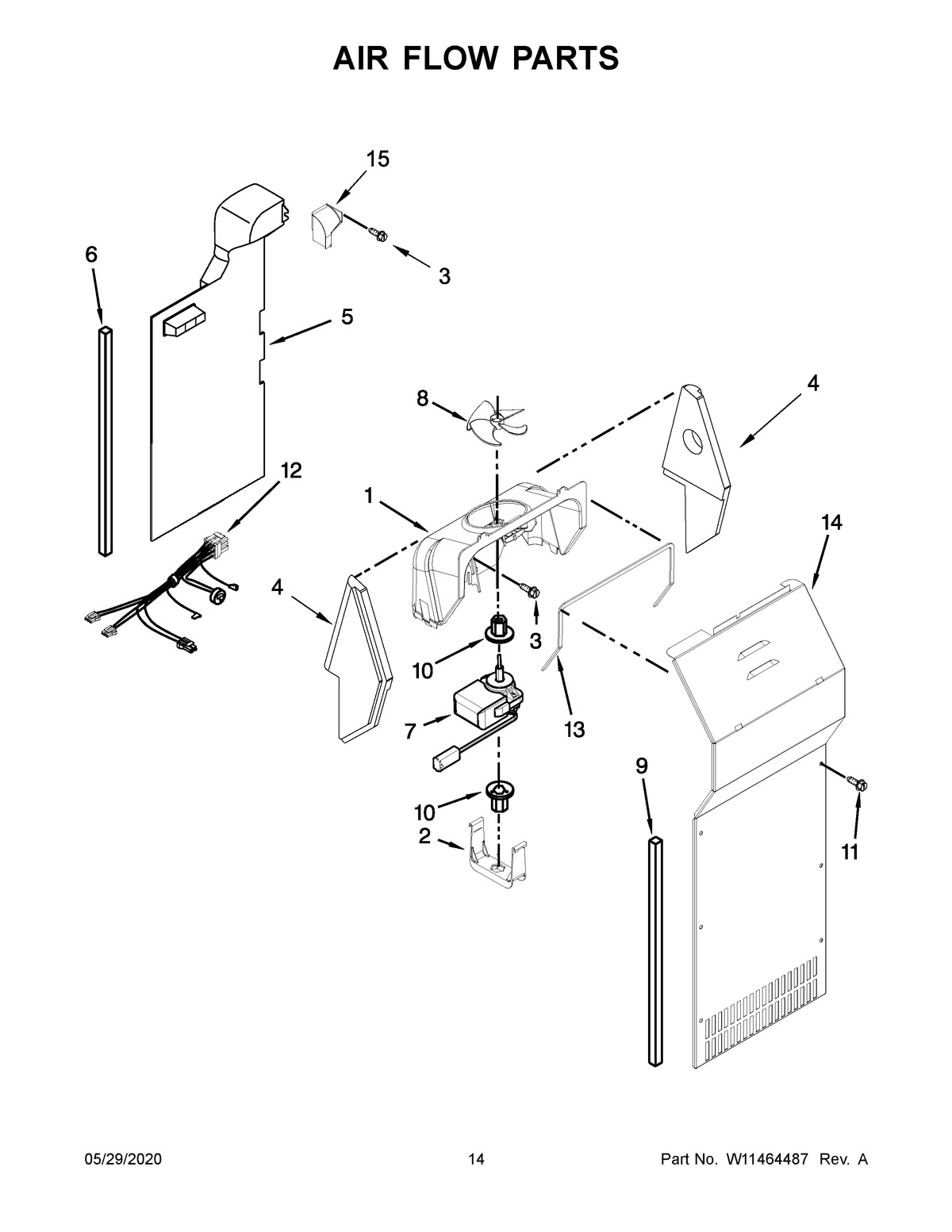

08 - AIR FLOW PARTS

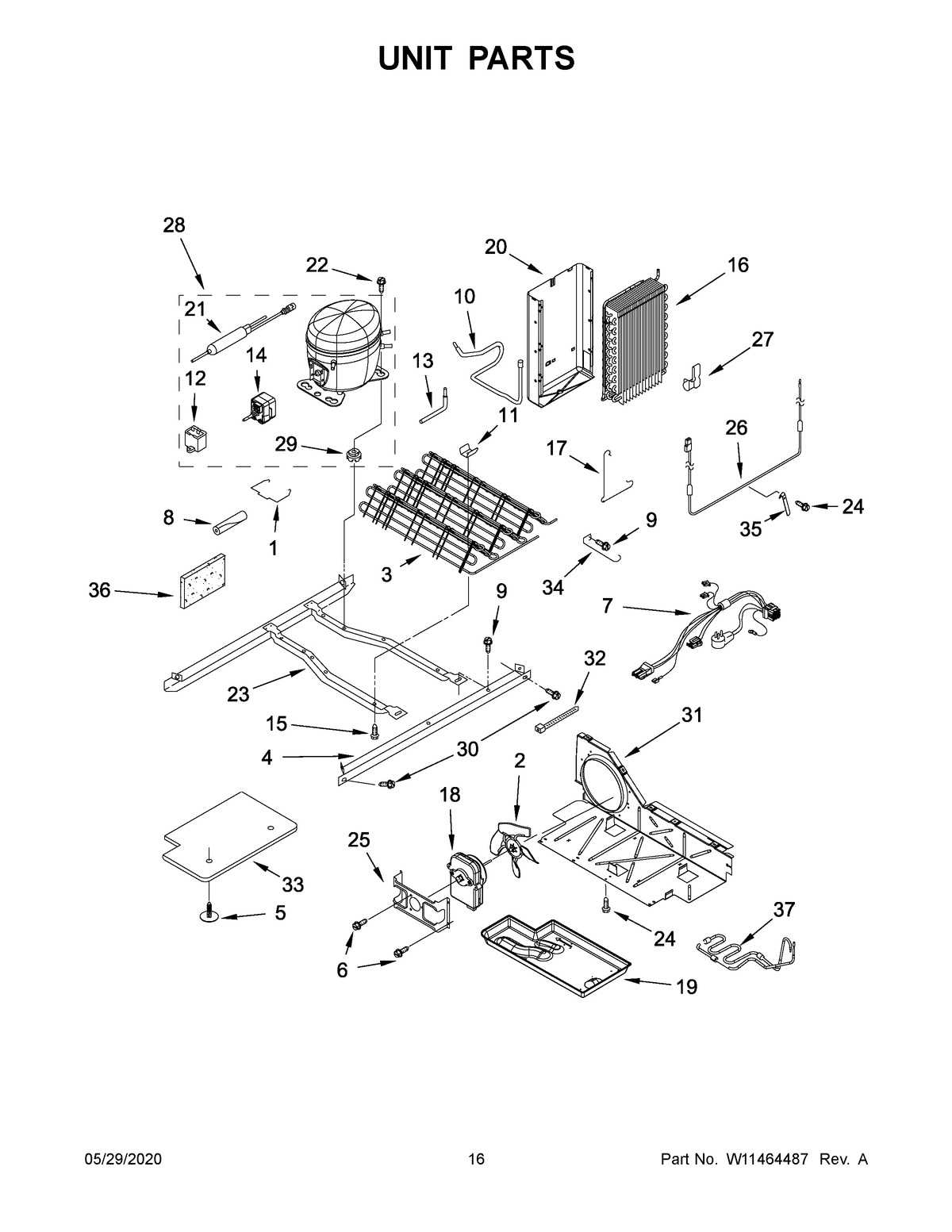

09 - UNIT PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MSS25N4MKZ01 REFRIGERATOR, SIDE-BY-SIDE
1
USE AND CARE GUIDE MAY W11392878 Contact Us For Availability
1
ASSEMBLY, COVER MAY W11351248 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (ST MAY W10912110 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES ITEM 8) (STAINLESS ST MAY W10911757 Contact Us For Availability
1
SCROLL, FAN MAY W11228713 Contact Us For Availability
1
STRAP, BALE MAY W10174384 Contact Us For Availability
1A
TECH SHEET MAY W11267096 Contact Us For Availability
1B
USE AND CARE GUIDE MAY W11366704 Contact Us For Availability
1C
MAY W11395878 MAY W11395878 Contact Us For Availability
2
ASSEMBLY, ROLLER (LEFT HAND) MAY W10304660 Contact Us For Availability
2
LENS, LIGHT (INCLUDES GASKET) MAY W10166130 Contact Us For Availability
2
PAN, CRISPER MAY W11046494 Contact Us For Availability
2
SHELF, WIRE MAY W10318948 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10838130 Contact Us For Availability
2
RETAINER, FAN MOTOR MAY W10188846 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
3
SCREW MAY 2152958 Contact Us For Availability
3
ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CO MAY W11026013 Contact Us For Availability
3
PAN, MEAT MAY W11046495 Contact Us For Availability
3
TRAY, ICE CUBE MAY 841180 Contact Us For Availability
3
BIN, DOOR MAY W11034658 Contact Us For Availability
3
THIMBLE MAY 2200087 Contact Us For Availability
3
SCREW MAY 489478 Contact Us For Availability
3
ASSEMBLY, CONDENSER MAY W10904626 Contact Us For Availability
4
ROLLER MAY 2150304 Contact Us For Availability
4
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
4
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
4
GASKET, DOOR (GREY) MAY W10912081 Contact Us For Availability
4
BRACKET, DOOR STOP (BLACK) MAY W10900531 Contact Us For Availability
4
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
4
RAIL, UNIT MOUNTING MAY W10900442 Contact Us For Availability
4A
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
5
MAY W11365774 MAY W11365774 Contact Us For Availability
5
DIFFUSER, AIR MAY W11264792 Contact Us For Availability
5
SHELF, WIRE MAY W10318947 Contact Us For Availability
5
SCREW MAY W10296816 Contact Us For Availability
5
DUCT, FREEZER AIR MAY 2203594 Contact Us For Availability
5
CLIP MAY 489396 Contact Us For Availability
6
CLIP, GRILLE MAY 2155013 Contact Us For Availability
6
ASSEMBLY, SHELF MAY W11135529 Contact Us For Availability
6
BIN, FREEZER MAY 2309757 Contact Us For Availability
6
TRIVET MAY 2309718 Contact Us For Availability
6
GASKET MAY 2203876 Contact Us For Availability
6
SCREW MAY 8533993 Contact Us For Availability
7
PLATE, SCREW (REFRIGERATOR) MAY W11036715 Contact Us For Availability
7
THERMISTOR MAY W10384183 Contact Us For Availability
7
HOLDER, PAN MAY W10904001 Contact Us For Availability
7
CUP, SHELF MAY W10130299 Contact Us For Availability
7
TRIVET MAY 2309941 Contact Us For Availability
7
SCREW MAY W10296804 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
HARNESS, UNIT (INCLUDES POWER CORD) MAY W11229008 Contact Us For Availability
7A
PLATE, SCREW (FREEZER) MAY W10904380 Contact Us For Availability
8
CLIP, ROLLER MAY W11087168 Contact Us For Availability
8
SCREW MAY W10191954 Contact Us For Availability
8
SLIDE, HUMIDITY MAY W10282883 Contact Us For Availability
8
THIMBLE, CAM MAY W10900464 Contact Us For Availability
8
GASKET, DOOR (GREY) MAY W10911389 Contact Us For Availability
8
BLADE, FAN MAY 2169142 Contact Us For Availability
8
SLEEVE MAY 2264838 Contact Us For Availability
9
HINGE, TOP (LEFT HAND) MAY W11167022 Contact Us For Availability
9
HOUSING, HUMIDITY MAY W10282880 Contact Us For Availability
9
ASSEMBLY, STUD MAY 2196208 Contact Us For Availability
9
THIMBLE, CAM MAY W10900532 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9
SCREW MAY 489427 Contact Us For Availability
9A
HINGE, TOP (RIGHT HAND) MAY W11167023 Contact Us For Availability
10
CLOSER, DOOR (FREEZER) MAY W11095731 Contact Us For Availability
10
SCREW MAY W10460893 Contact Us For Availability
10
SHELF, WIRE MAY W10318961 Contact Us For Availability
10
BRACKET, DOOR STOP (BLACK) MAY W10900463 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
TUBE, SUCTION MAY W11183387 Contact Us For Availability
11
SCREW MAY 488500 Contact Us For Availability
11
LIGHT MODULE, LED MAY W11251749 Contact Us For Availability
11
BADGE MAY W10612926 Contact Us For Availability
11
BUMPER, DOOR (GREY) MAY W10407188 Contact Us For Availability
11
SCREW MAY W10142292 Contact Us For Availability
11
CLIP, CONDENSER MAY 2311725 Contact Us For Availability
12
SCREW MAY W10142234 Contact Us For Availability
12
CLIP, AIR DUCT MAY 2315163 Contact Us For Availability
12
HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUS MAY W11342162 Contact Us For Availability
12
CAPACITOR MAY W10350564 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W11093938 Contact Us For Availability
13
SHELF, WIRE MAY W10318945 Contact Us For Availability
13
SCREW (GREY) MAY W10308489 Contact Us For Availability
13
GASKET MAY 2155789 Contact Us For Availability
13
TUBE, PROCESS MAY W11239207 Contact Us For Availability
14
SCREW MAY 3400113 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10463013 Contact Us For Availability
14
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
15
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10304659 Contact Us For Availability
15
SCOOP, AIR ASSEMBLY MAY W10803597 Contact Us For Availability
15
SCREW MAY 8281232 Contact Us For Availability
16
FILLER, WRAPPER (GREY) MAY W11219642 Contact Us For Availability
16
EVAPORATOR MAY 2188823 Contact Us For Availability
17
GRILLE (GREY) MAY W11226348 Contact Us For Availability
18
SCREW, HINGE MAY W10290781 Contact Us For Availability
18
MOTOR, CONDENSER FAN MAY W10522629 Contact Us For Availability
19
TRAY, EVAPORATOR MAY W10897557 Contact Us For Availability
20
CLOSER, LOWER CAM DOOR (REFRIGERATOR) MAY W10905504 Contact Us For Availability
20
ASSEMBLY, HEAT SHIELD AND DRAIN PAN MAY W10194475 Contact Us For Availability
21
DRIER MAY W10771114 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
SCREW MAY 489473 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
FRAME, UNIT MOUNTING MAY W10900445 Contact Us For Availability
24
SCREW MAY 489464 Contact Us For Availability
24
COVER, UNIT MAY W10904634 Contact Us For Availability
25
ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) MAY W11097327 Contact Us For Availability
25
BRACKET, FAN MOUNTING MAY 2181929 Contact Us For Availability
26
CLAMP, POWER CORD MAY W11242280 Contact Us For Availability
26
HEATER, DEFROST MAY 2188175 Contact Us For Availability
27
SCREW MAY W10141645 Contact Us For Availability
27
CLIP, DEFROST HEATER MAY 2161324 Contact Us For Availability
28
COMPRESSOR MAY W10879296 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
BOLT MAY 489340 Contact Us For Availability
31
BAFFLE, AIR MAY W10897567 Contact Us For Availability
32
TIE, WIRE MAY 2263990 Contact Us For Availability
33
ASSEMBLY, UNIT COVER (BOTTOM) MAY W10897560 Contact Us For Availability
34
GUARD, FAN MAY 1110663 Contact Us For Availability
35
PROBE, HEAT MAY W10895163 Contact Us For Availability
36
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
37
ASSEMBLY, PRECOOLER FORMED MAY W11189542 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
NI
MISCELLANEOUS, KIT, HANDLE INSTALLATION MAY W10300794 Contact Us For Availability
NI
MISCELLANEOUS, ICE MAKER ASSEMBLY (ECKMF95) MAY W10715708 Contact Us For Availability
× ![]()
