Model Maytag MSF22C2EXM01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

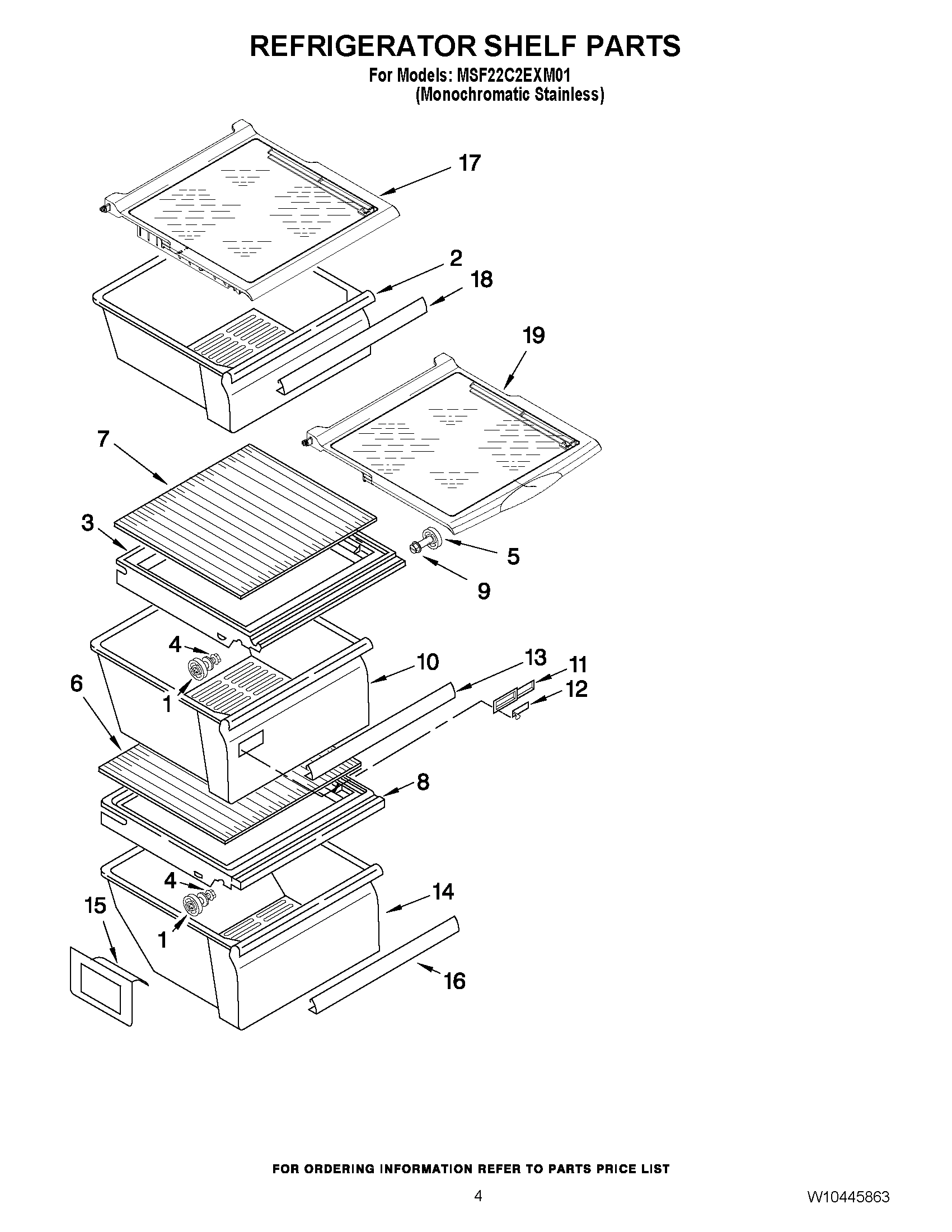

03 - REFRIGERATOR SHELF PARTS

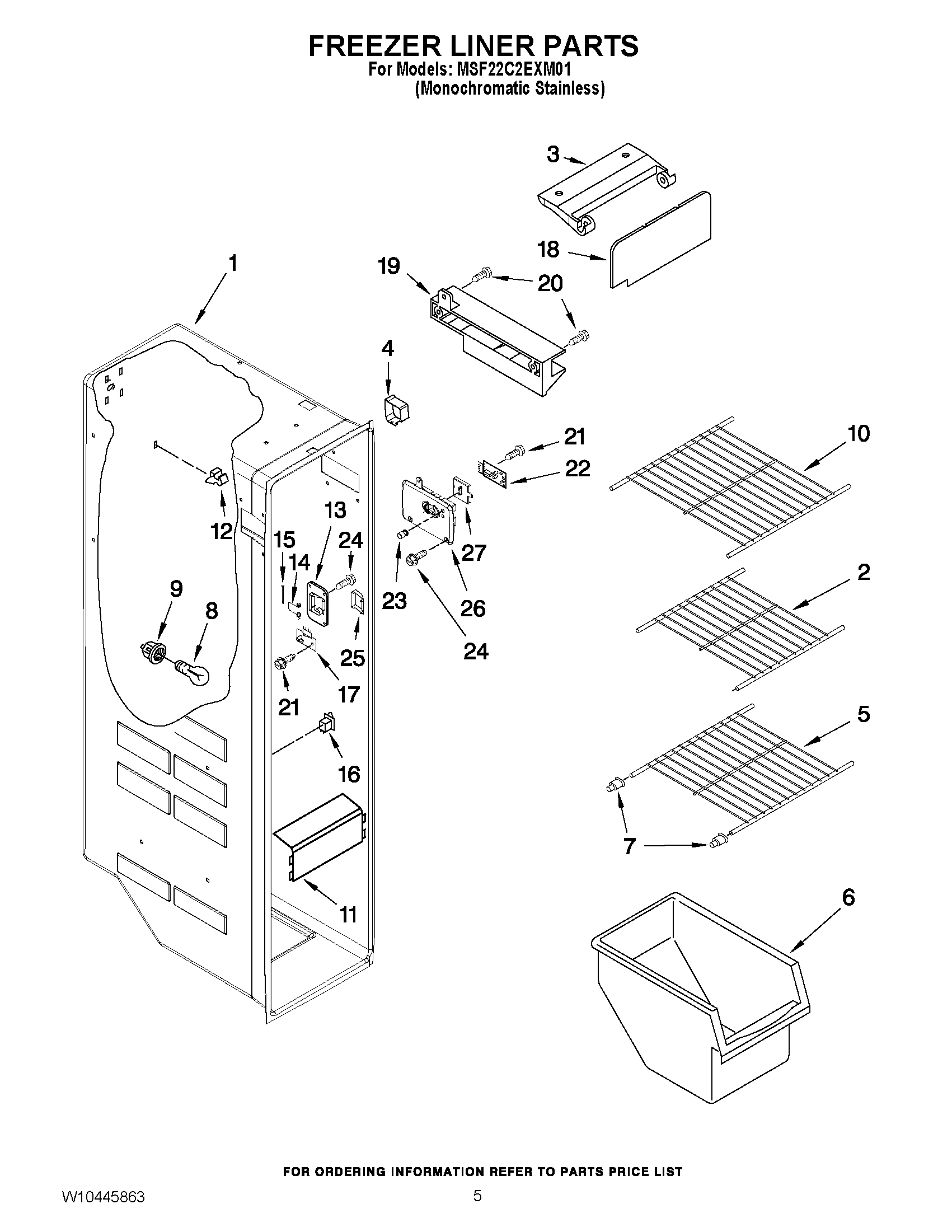

04 - FREEZER LINER PARTS

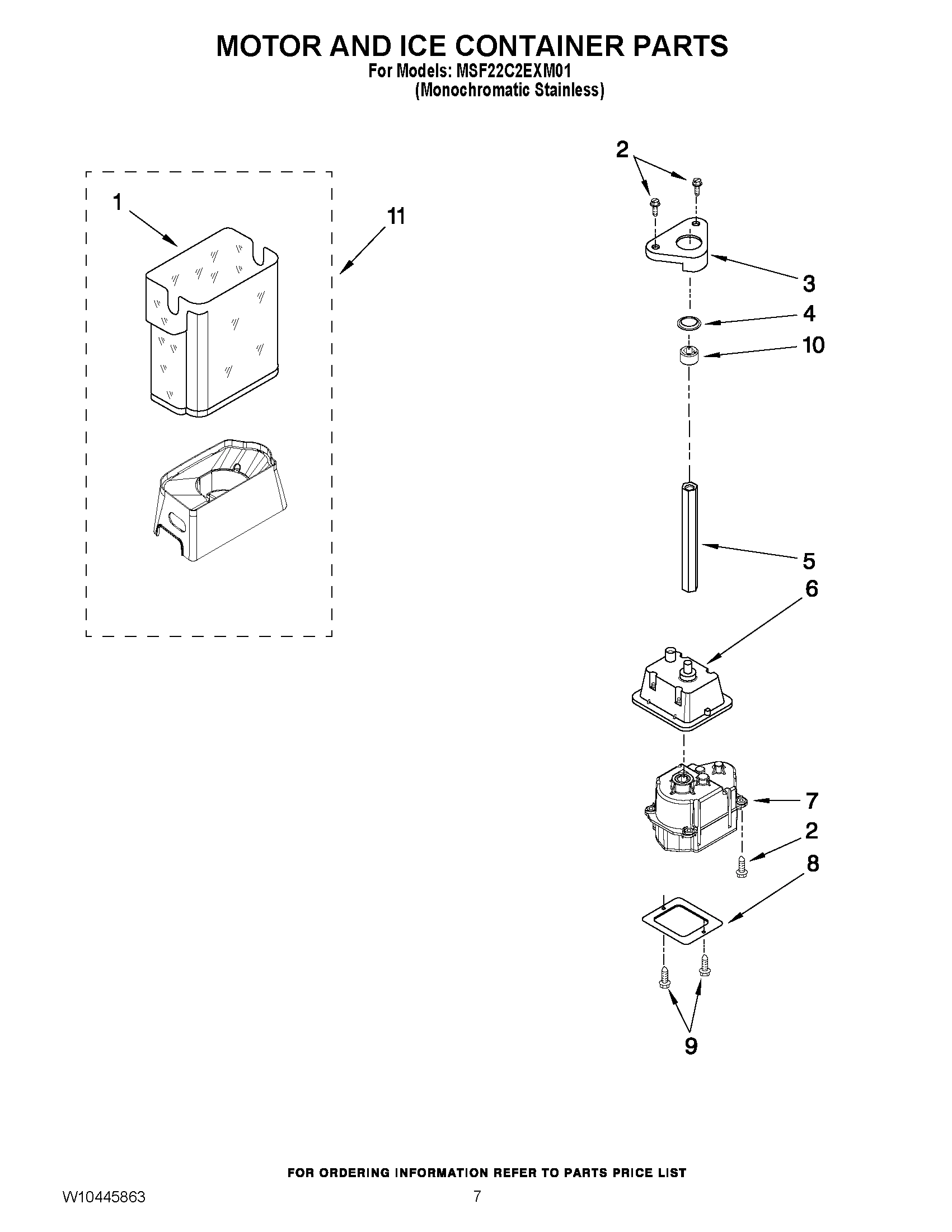

05 - MOTOR AND ICE CONTAINER PARTS

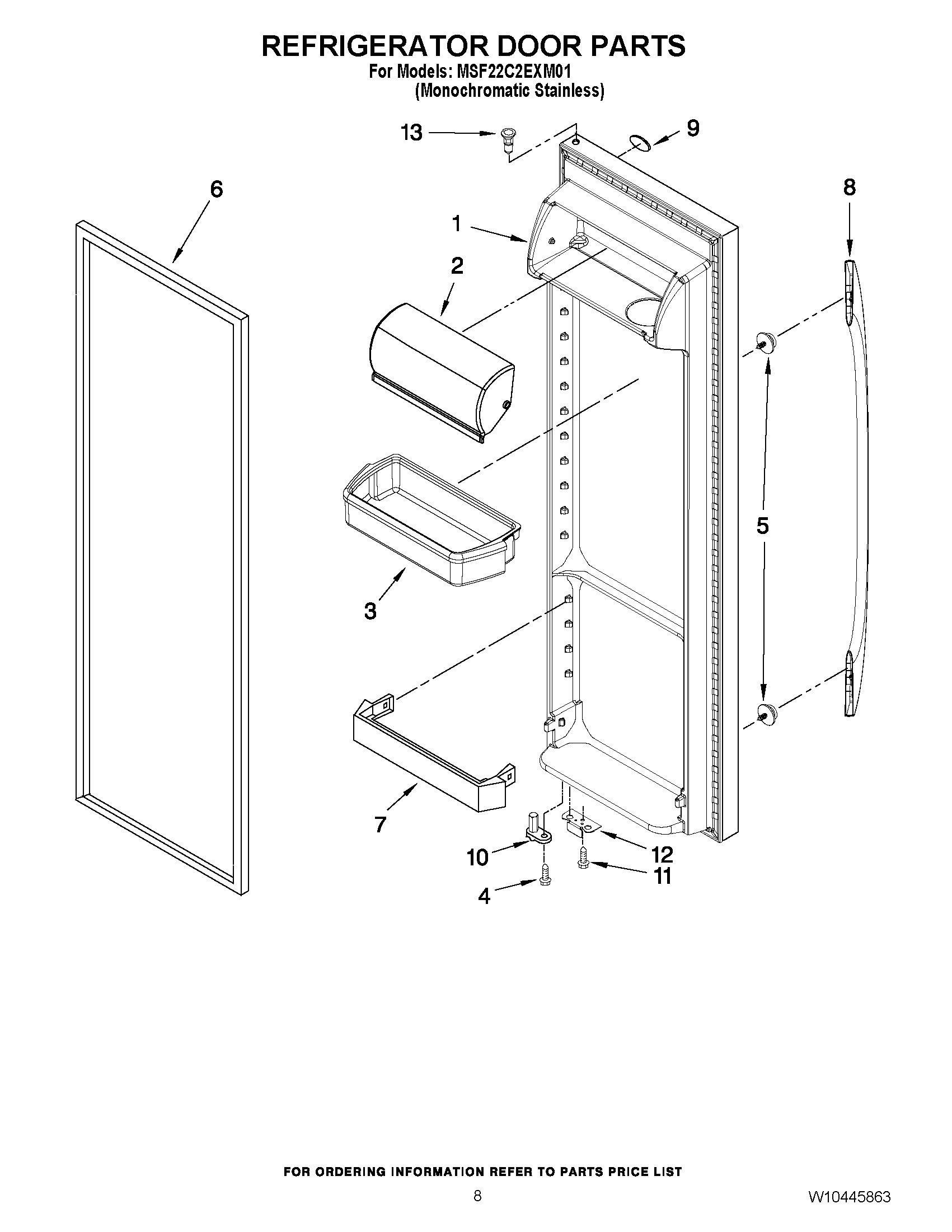

06 - REFRIGERATOR DOOR PARTS

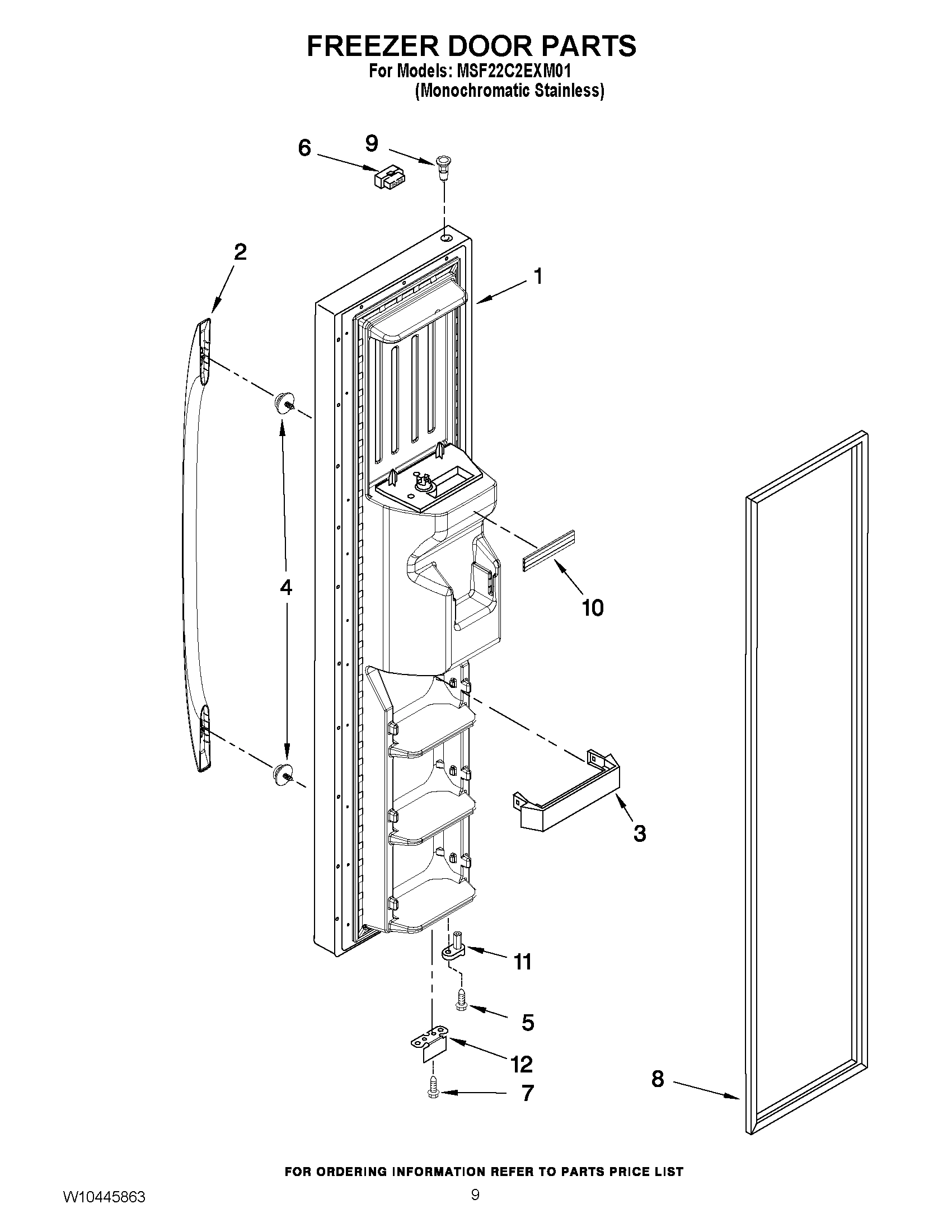

07 - FREEZER DOOR PARTS

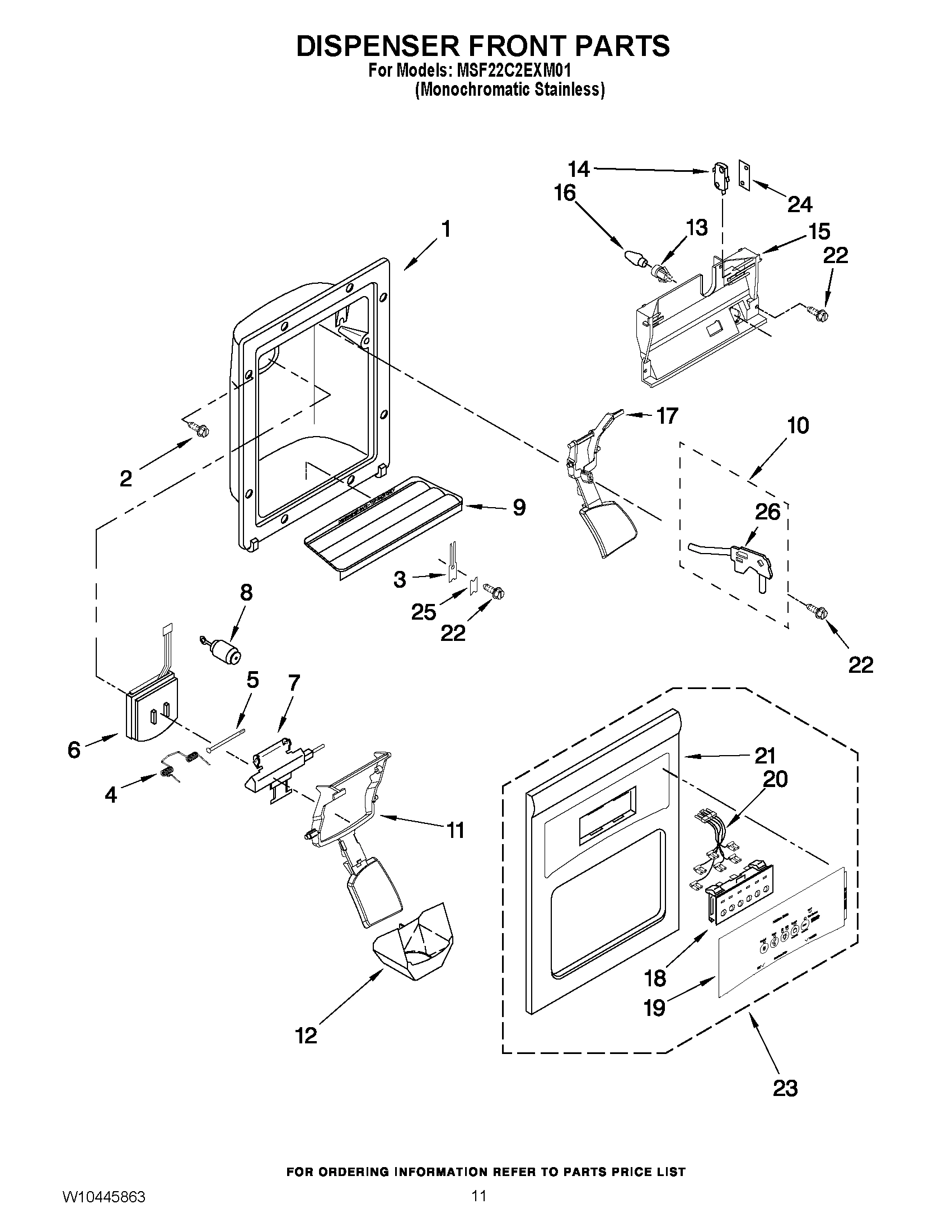

08 - DISPENSER FRONT PARTS

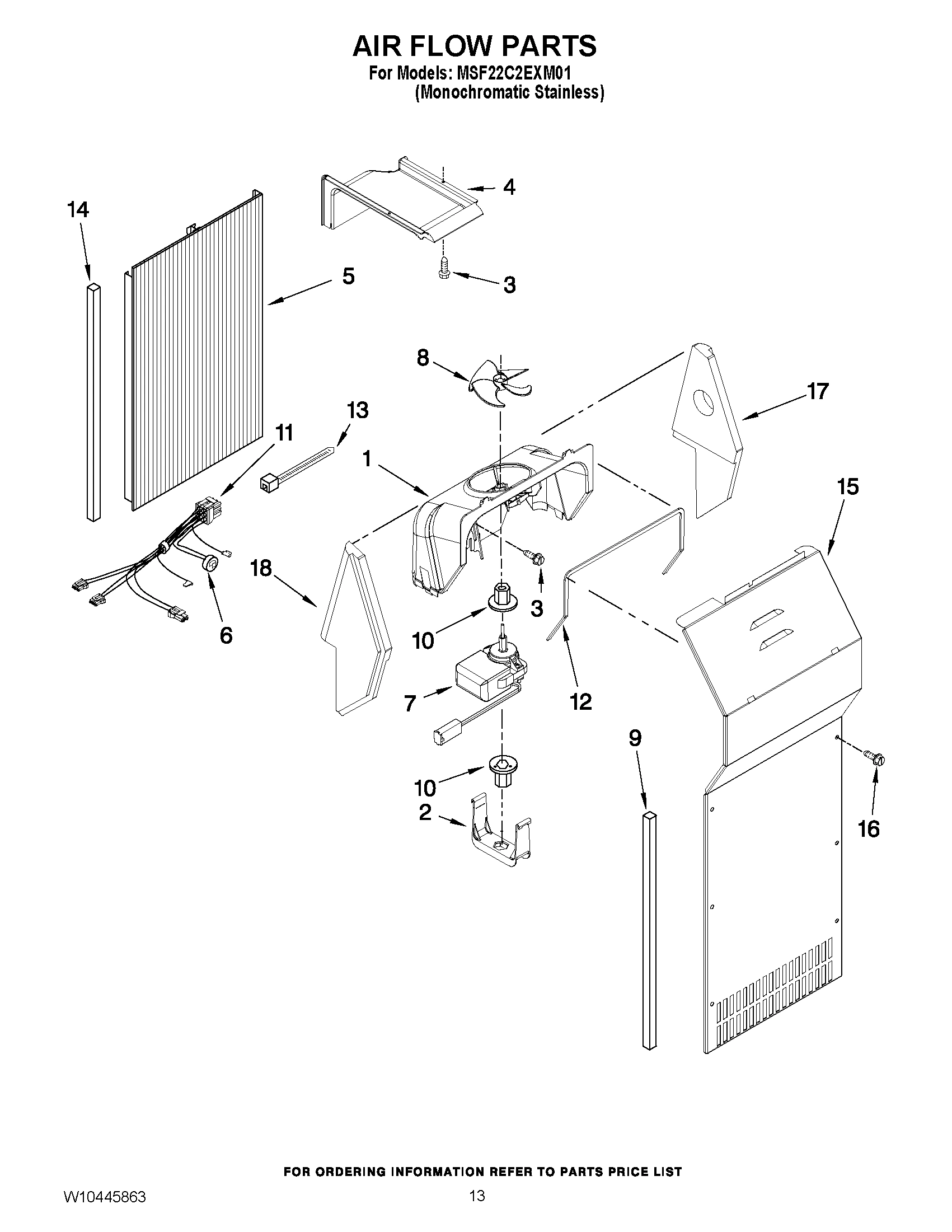

09 - AIR FLOW PARTS

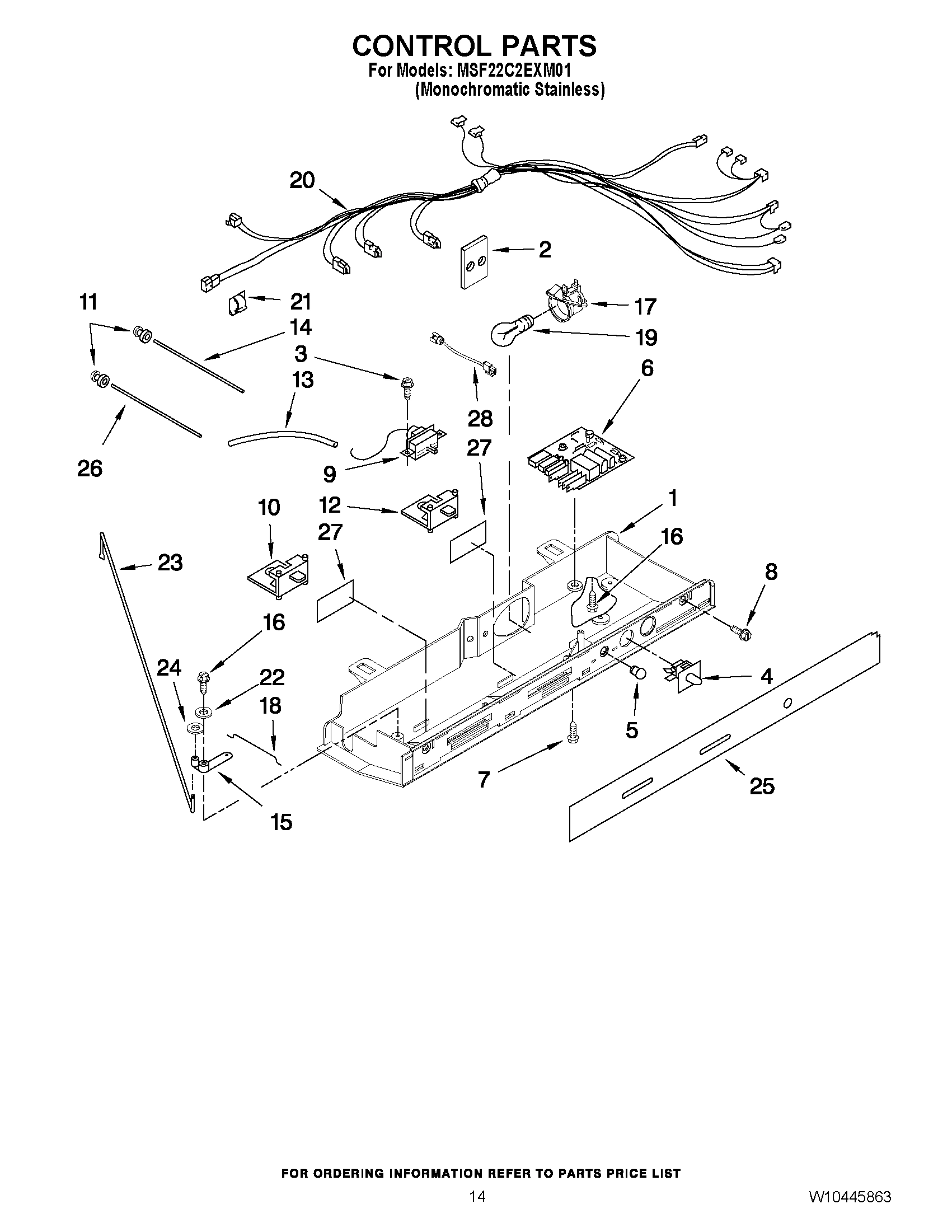

10 - CONTROL PARTS

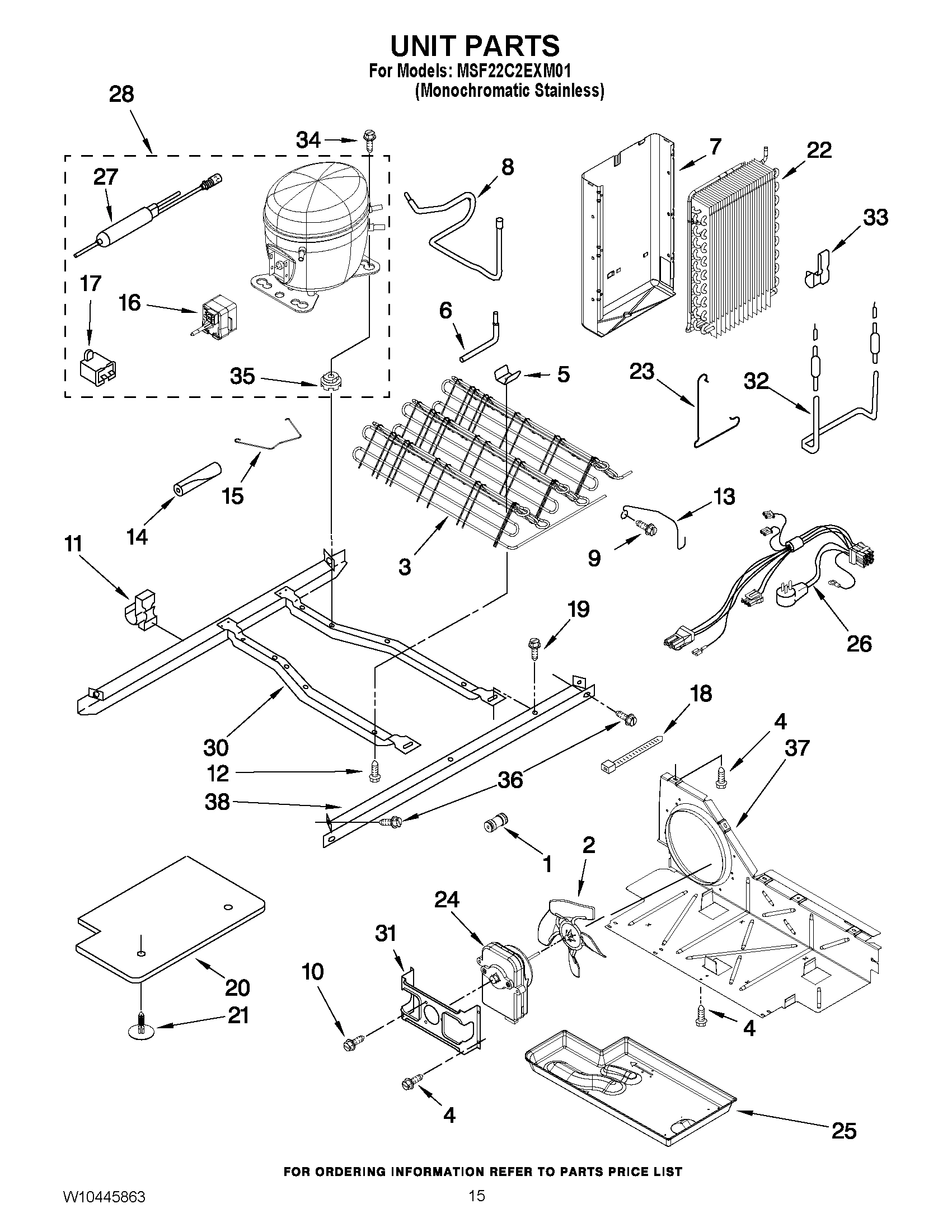

11 - UNIT PARTS

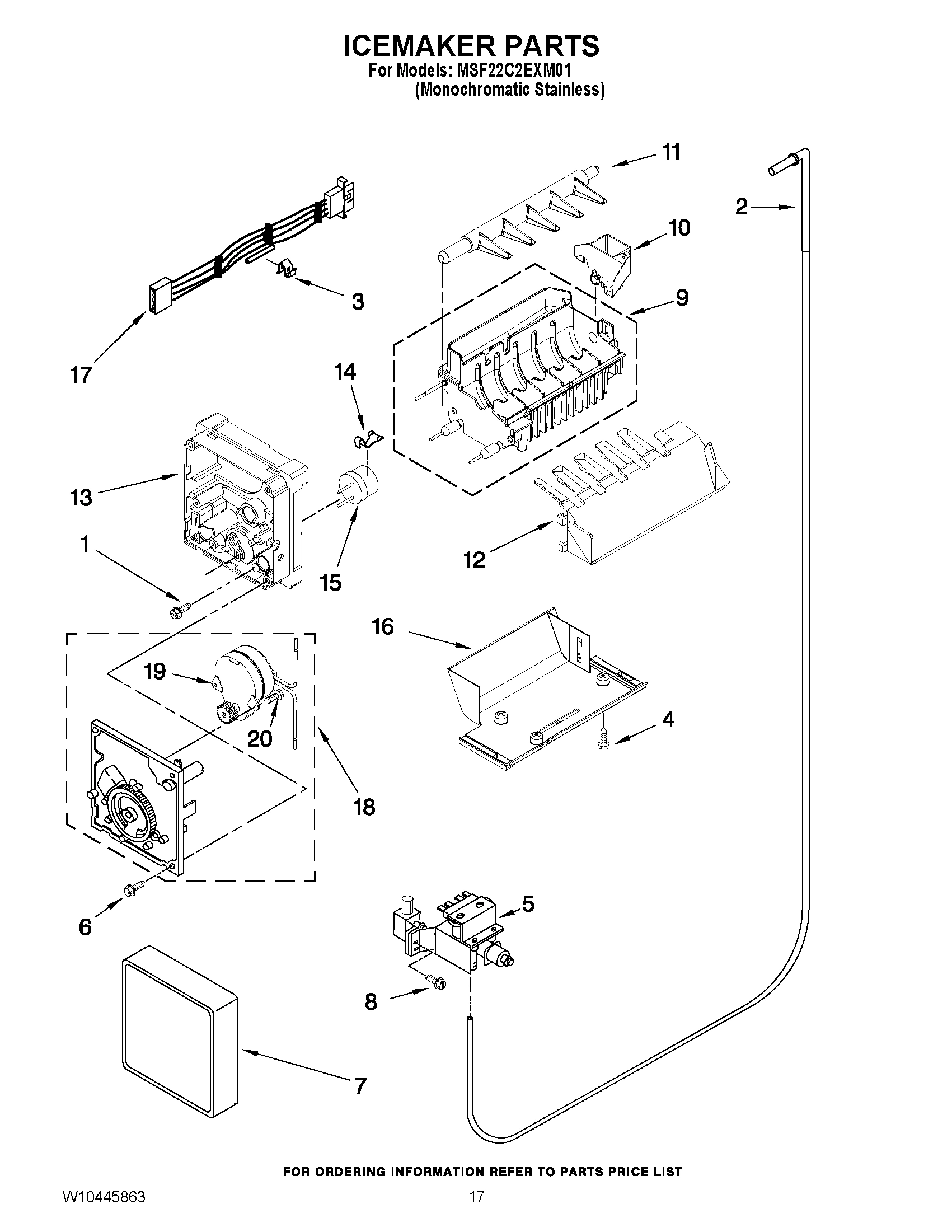

12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSF22C2EXM01 REFRIGERATOR
1
SERVICE AND WIRING SHEET MAY W10191404 Contact Us For Availability
1
OWNER’S MANUAL MAY W10321474 Contact Us For Availability
1
ENERGY GUIDE MAY W10360113 Contact Us For Availability
1
MAY W10173126 MAY W10173126 Contact Us For Availability
1
Ice Bin MAY 2317246 Contact Us For Availability
1
MAY W10382674 MAY W10382674 Contact Us For Availability
1
MAY W10365712 MAY W10365712 Contact Us For Availability
1
MAY 2182119 MAY 2182119 Contact Us For Availability
1
MAY 2311721 MAY 2311721 Contact Us For Availability
1
CONNECTOR MAY W10334458 Contact Us For Availability
1
MAY 8533917 MAY 8533917 Contact Us For Availability
2
FRONT ROLLER, LEFT MAY W10304660 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
Snack Bin MAY 2309518 Contact Us For Availability
2
SHELF UPPER MAY W10318960 Contact Us For Availability
2
Screw MAY 8281163 Contact Us For Availability
2
MAY 2256101 MAY 2256101 Contact Us For Availability
2
HANDLE MAY W10170743 Contact Us For Availability
2
Screw MAY 3196537 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
MAY 2172931 MAY 2172931 Contact Us For Availability
2
MAY 2225834 MAY 2225834 Contact Us For Availability
2
Fitting, Water Tube MAY W10140630 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
3
Screw (2) MAY 489214 Contact Us For Availability
3
MAY 2188919 MAY 2188919 Contact Us For Availability
3
SHELF BIN MAY W10321304 Contact Us For Availability
3
Trivet MAY 2309717 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10222349 MAY W10222349 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
ROLLER, REAR MAY 2150304 Contact Us For Availability
4
MAY 489478 MAY 489478 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY W10191954 MAY W10191954 Contact Us For Availability
4
MAY 2303234 MAY 2303234 Contact Us For Availability
4
MAY 2198628 MAY 2198628 Contact Us For Availability
4
Screw MAY W10129563 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY W10272514 MAY W10272514 Contact Us For Availability
4
Switch, Light MAY 2149705 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
MAY W10166019 MAY W10166019 Contact Us For Availability
5
MAY W10173127 MAY W10173127 Contact Us For Availability
5
SHELF MAY W10318953 Contact Us For Availability
5
MAY 2188916 MAY 2188916 Contact Us For Availability
5
MAY 3400012 MAY 3400012 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2312009 MAY 2312009 Contact Us For Availability
5
Cover, Light Lens MAY 2200096 Contact Us For Availability
5
MAY 2311725 MAY 2311725 Contact Us For Availability
5
MAY 2188709 MAY 2188709 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Screw MAY 488280 Contact Us For Availability
6
MAY 2309758 MAY 2309758 Contact Us For Availability
6
MAY 2256154 MAY 2256154 Contact Us For Availability
6
DOOR GASKET, MAGNETIC MAY 2327161 Contact Us For Availability
6
Connector MAY 2154473 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY W10225581 MAY W10225581 Contact Us For Availability
6
CONTROL BOARD ASSY/DEFROST MAY W10366605 Contact Us For Availability
6
Tube, Condenser to Heat Loop MAY 2325479 Contact Us For Availability
6
MAY 489276 MAY 489276 Contact Us For Availability
7
RESERVOIR MAY W10276792 Contact Us For Availability
7
GLASS COVER MAY 2179259 Contact Us For Availability
7
Cup, Shelf (16) MAY W10130299 Contact Us For Availability
7
MAY 2315546 MAY 2315546 Contact Us For Availability
7
Shelf Bin MAY 2156022 Contact Us For Availability
7
MAY 489420 MAY 489420 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
7
Screw MAY 489398 Contact Us For Availability
7
MAY W10194474 MAY W10194474 Contact Us For Availability
7
COVER MAY W10289690 Contact Us For Availability
8
CLIP, AXLE MAY 2174706 Contact Us For Availability
8
MAY 489084 MAY 489084 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
MAY 2212305 MAY 2212305 Contact Us For Availability
8
DOOR GASKET MAGNETIC MAY 2327162 Contact Us For Availability
8
MAY W10467899 MAY W10467899 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 2220642 MAY 2220642 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
9
HINGE, TOP RC MAY W10287684 Contact Us For Availability
9
Screw (2) MAY 486298 Contact Us For Availability
9
MAY W10191952 MAY W10191952 Contact Us For Availability
9
Socket, Light MAY 2155597 Contact Us For Availability
9
Nameplate MAY W10170766 Contact Us For Availability
9
MAY 2182181 MAY 2182181 Contact Us For Availability
9
GRILLE, OVERFLOW MAY 2206671AP Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
Thermostat MAY 2315562 Contact Us For Availability
9
MAY W10122550 MAY W10122550 Contact Us For Availability
10
MAY 3400113 MAY 3400113 Contact Us For Availability
10
MAY 2256085 MAY 2256085 Contact Us For Availability
10
MAY 2188652 MAY 2188652 Contact Us For Availability
10
SHELF (2) MAY W10318952 Contact Us For Availability
10
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY W10307492 MAY W10307492 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
MAY 8533993 MAY 8533993 Contact Us For Availability
10
FILL CUP MAY W10272168 Contact Us For Availability
11
MAY 8281227 MAY 8281227 Contact Us For Availability
11
Screw MAY 489290 Contact Us For Availability
11
Body, Humidity Control MAY 2179343 Contact Us For Availability
11
MAY 2212376 MAY 2212376 Contact Us For Availability
11
MAY W10204457 MAY W10204457 Contact Us For Availability
11
MAY 2182179 MAY 2182179 Contact Us For Availability
11
LEVER, ICE DISPENSER MAY 2203562AP Contact Us For Availability
11
HARNESS, FAN EVAPORATOR (INCLUDES No.6) MAY W10297480 Contact Us For Availability
11
Grommet, Light Bar (4) MAY 2172906 Contact Us For Availability
11
MAY 2208280 MAY 2208280 Contact Us For Availability
11
MAY 626753 MAY 626753 Contact Us For Availability
12
HINGE COVER FC MAY 2203407AP Contact Us For Availability
12
MAY W10151375 MAY W10151375 Contact Us For Availability
12
MAY 2179342 MAY 2179342 Contact Us For Availability
12
CLIP, AIR DUCT (2) MAY 2315163 Contact Us For Availability
12
MAY W10219811 MAY W10219811 Contact Us For Availability
12
BRACKET, DOOR STOP MAY W10185566 Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
MAY 2155788 MAY 2155788 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
MAY 8281232 MAY 8281232 Contact Us For Availability
12
ICE STRIPPER MAY W10272164 Contact Us For Availability
13
HINGE, BOTTOM MAY W10251408 Contact Us For Availability
13
Air Diffuser Cover MAY 2152019 Contact Us For Availability
13
Trim, Handle MAY 2255593 Contact Us For Availability
13
MAY 2198587 MAY 2198587 Contact Us For Availability
13
MAY 2308091 MAY 2308091 Contact Us For Availability
13
MAY 2180200 MAY 2180200 Contact Us For Availability
13
Tube Barrier MAY 2196001 Contact Us For Availability
13
MAY 2260516 MAY 2260516 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
FILLER, WRAPPER MAY W10283961 Contact Us For Availability
14
COVER, WIRING MAY W10252495 Contact Us For Availability
14
MAY 2188654 MAY 2188654 Contact Us For Availability
14
MAY 2198635 MAY 2198635 Contact Us For Availability
14
Switch MAY 2162361 Contact Us For Availability
14
MAY 2203875 MAY 2203875 Contact Us For Availability
14
MAY 2179920 MAY 2179920 Contact Us For Availability
14
MAY 2161302 MAY 2161302 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
GRILLE MAY W10179949 Contact Us For Availability
15
MAY 2179350 MAY 2179350 Contact Us For Availability
15
MAY 2198634 MAY 2198634 Contact Us For Availability
15
MAY W10282667 MAY W10282667 Contact Us For Availability
15
MAY W10207507 MAY W10207507 Contact Us For Availability
15
Pivot Arm MAY 2161306 Contact Us For Availability
15
Clip, Retaining MAY W10174384 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 627985 Contact Us For Availability
16
MAY 489497 MAY 489497 Contact Us For Availability
16
Trim, Handle MAY 2255592 Contact Us For Availability
16
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
16
MAY 3406124 MAY 3406124 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
MAY 627068 MAY 627068 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY 2188831 Contact Us For Availability
16
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10240344 Contact Us For Availability
16
MAY W10131253 MAY W10131253 Contact Us For Availability
17
Light Socket MAY 2162085 Contact Us For Availability
17
SHELF, SNACK BIN MAY W10276341 Contact Us For Availability
17
MAY W10193840 MAY W10193840 Contact Us For Availability
17
LEVER, WATER DISPENSER MAY 2203561AP Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
17
MAY 2252799 MAY 2252799 Contact Us For Availability
17
MAY W10309401 MAY W10309401 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
Trim, Handle MAY 2309519 Contact Us For Availability
18
MAY W10180062 MAY W10180062 Contact Us For Availability
18
MAY W10243997 MAY W10243997 Contact Us For Availability
18
Wire Tie MAY 2263990 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
18
MODULE ASSEMBLY (INCLUDES ITEMS 19 & 20) MAY 626691 Contact Us For Availability
19
MAY 489427 MAY 489427 Contact Us For Availability
19
MAY W10153550 MAY W10153550 Contact Us For Availability
19
MAY W10311505 MAY W10311505 Contact Us For Availability
19
SHELF ASSEMBLY, SPILLGUARD (2) MAY W10276348 Contact Us For Availability
19
MAY 2212321 MAY 2212321 Contact Us For Availability
19
MAY 626683 MAY 626683 Contact Us For Availability
20
FRONT ROLLER, RIGHT MAY W10304659 Contact Us For Availability
20
MAY 2187406 MAY 2187406 Contact Us For Availability
20
MAY W10354806 MAY W10354806 Contact Us For Availability
20
UNIT COVER BOTTOM MAY 2304898 Contact Us For Availability
20
Screw MAY 489136 Contact Us For Availability
21
MAY 2188734 MAY 2188734 Contact Us For Availability
21
MAY 1115374 MAY 1115374 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
22
MAY W10290817 MAY W10290817 Contact Us For Availability
22
MAY 489000 MAY 489000 Contact Us For Availability
22
Spring Washer MAY 489203 Contact Us For Availability
22
MAY 2188822 MAY 2188822 Contact Us For Availability
23
HINGE COVER MAY 2203408AP Contact Us For Availability
23
MAY 2198643 MAY 2198643 Contact Us For Availability
23
MAY W10360662 MAY W10360662 Contact Us For Availability
23
Connecting Rod MAY 2161308 Contact Us For Availability
24
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
24
MAY 8281185 MAY 8281185 Contact Us For Availability
24
MAY 625834 MAY 625834 Contact Us For Availability
24
Fastner, Push-On MAY 489391 Contact Us For Availability
24
MOTOR, FAN MAY W10204250 Contact Us For Availability
25
MAY 2198633 MAY 2198633 Contact Us For Availability
25
MAY 2195051 MAY 2195051 Contact Us For Availability
25
ESCUTCHEON, CONTROL BOX MAY W10242640 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
26
MAY 2155311 MAY 2155311 Contact Us For Availability
26
MAY W10173569 MAY W10173569 Contact Us For Availability
26
MAY 2304673 MAY 2304673 Contact Us For Availability
26
LIGHT BAR FC MAY 2179921 Contact Us For Availability
26
HARNESS, UNIT MAY W10281341 Contact Us For Availability
27
MAY 489483 MAY 489483 Contact Us For Availability
27
MAY 2315398 MAY 2315398 Contact Us For Availability
27
MAY 2175513 MAY 2175513 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
28
Housing, Water Filter MAY W10121138 Contact Us For Availability
28
MAY 2213462 MAY 2213462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 16, 17, 27, & 35) MAY W10144769 Contact Us For Availability
29
MAY 4396508 MAY 4396508 Contact Us For Availability
30
CAP, WATER FILTER MAY 2260502MG Contact Us For Availability
30
MAY 2304903 MAY 2304903 Contact Us For Availability
31
MAY 489500 MAY 489500 Contact Us For Availability
31
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
32
BUTTON, WATER FILTER MAY 2260503MG Contact Us For Availability
32
MAY 2188174 MAY 2188174 Contact Us For Availability
33
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
33
Clip, Heater MAY 2161324 Contact Us For Availability
34
MAY W10281289 MAY W10281289 Contact Us For Availability
34
MAY 489373 MAY 489373 Contact Us For Availability
35
HINGE TOP FC MAY W10287685 Contact Us For Availability
35
MAY 1100826 MAY 1100826 Contact Us For Availability
35
Grommet (4) (Service) MAY 2183042 Contact Us For Availability
36
MAY 489340 MAY 489340 Contact Us For Availability
37
AIR BAFFLE MAY W10332806 Contact Us For Availability
38
MAY W10207512 MAY W10207512 Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10190961 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 350930 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 350939 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Primer, White) MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
MAY 8129 MAY 8129 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Graphite) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
