Model Maytag MSD2576VEM00 REFRIGERATOR – Common Parts & Diagrams

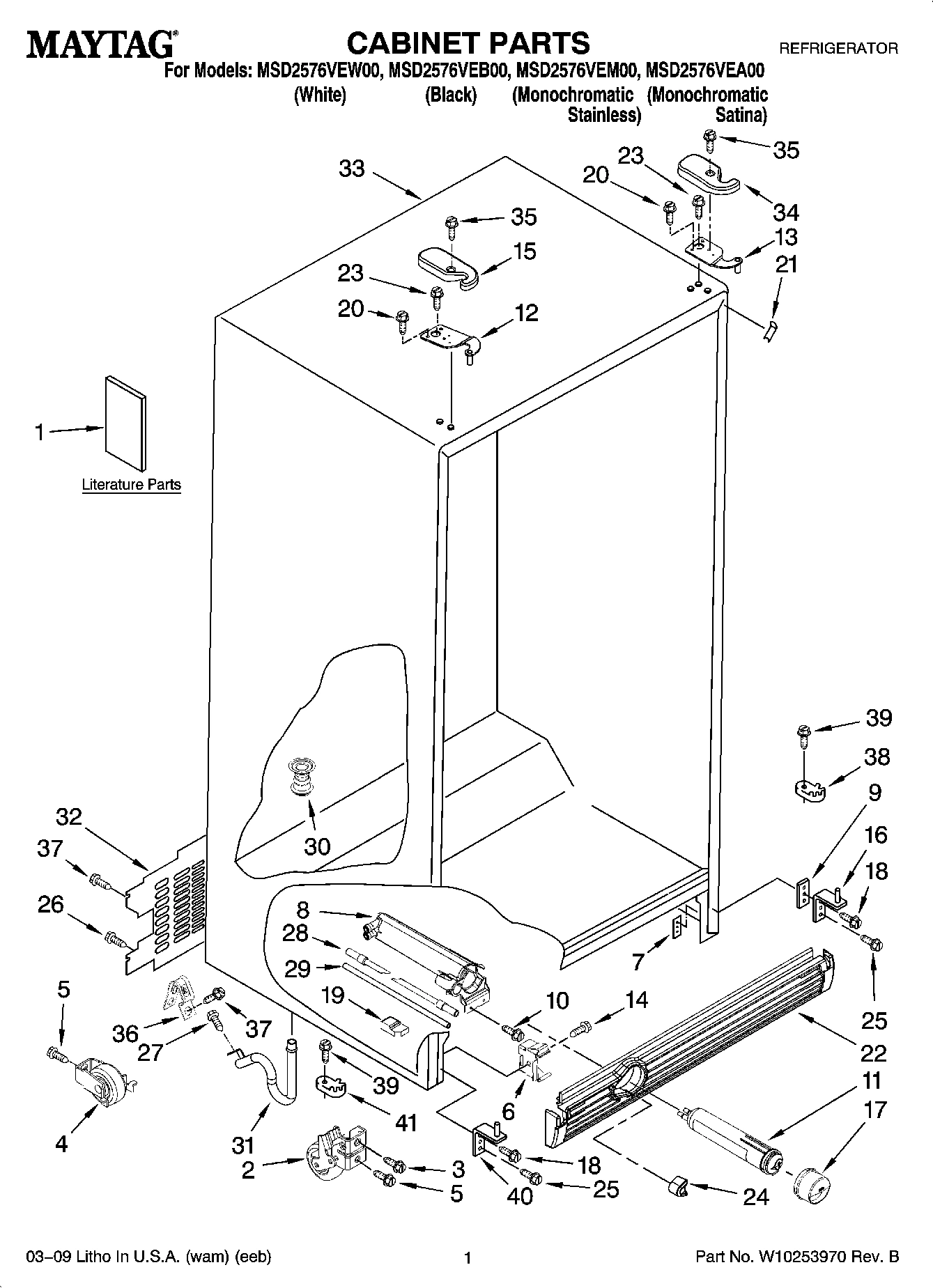

01 - CABINET PARTS

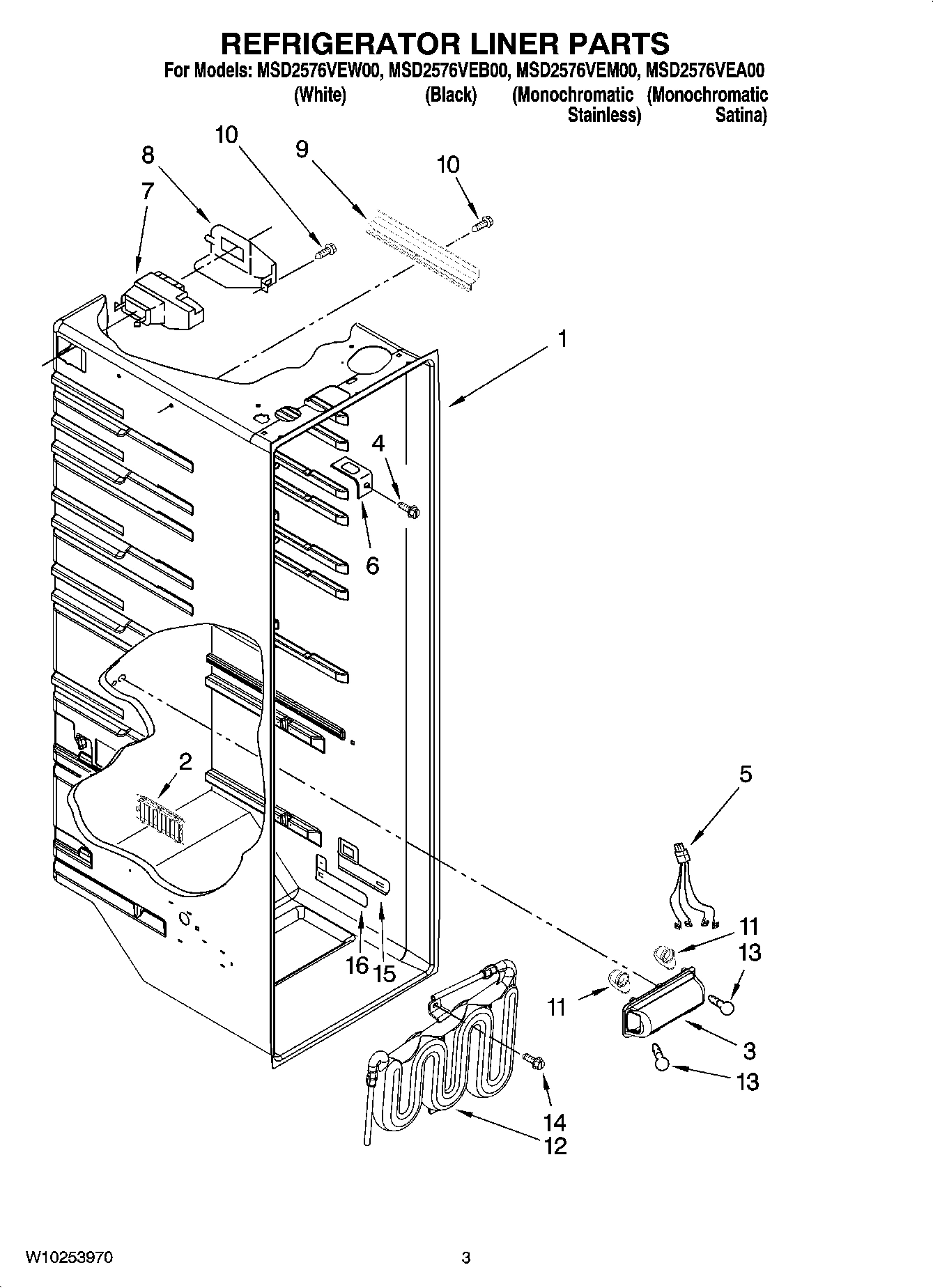

02 - REFRIGERATOR LINER PARTS

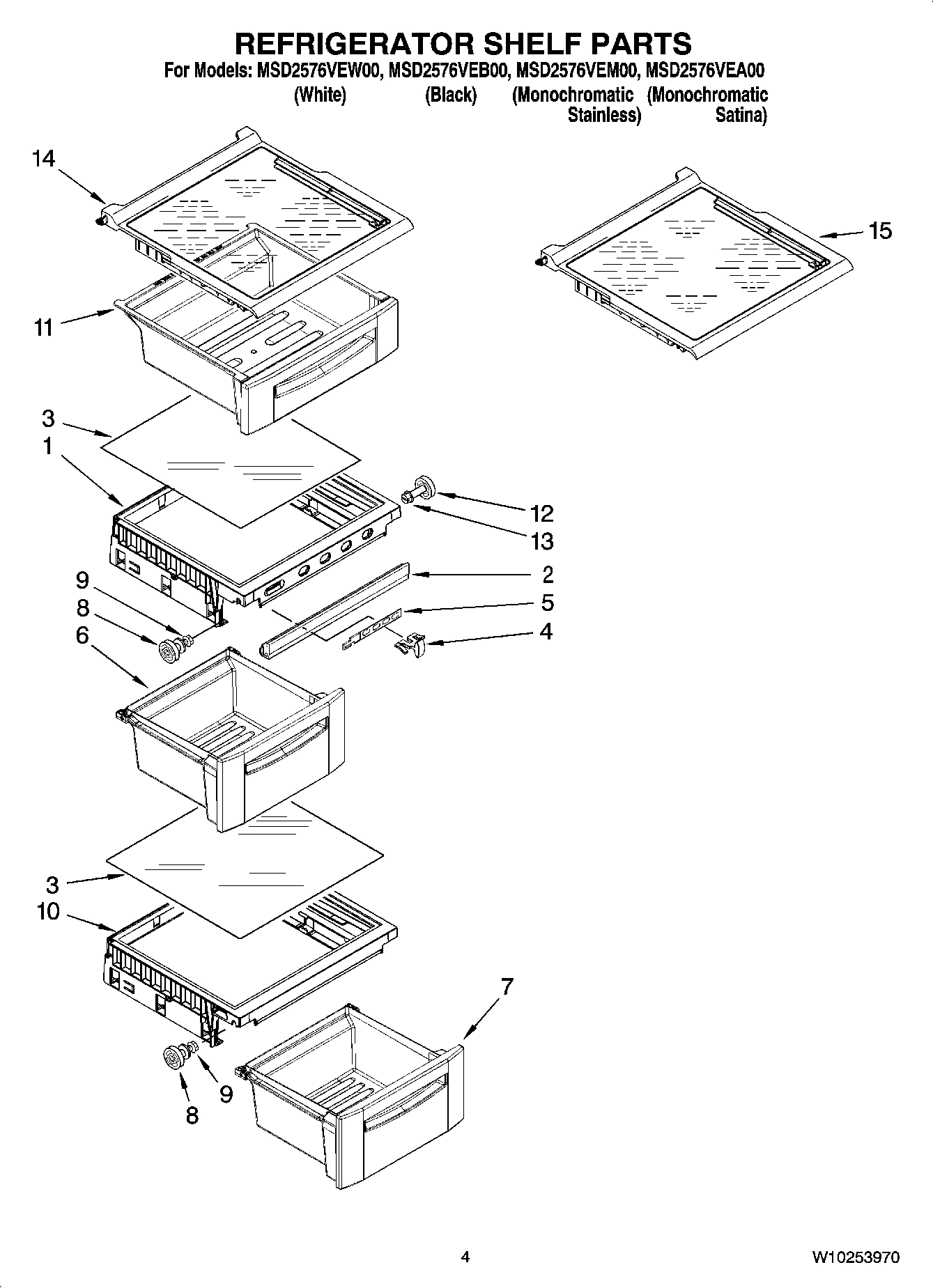

03 - REFRIGERATOR SHELF PARTS

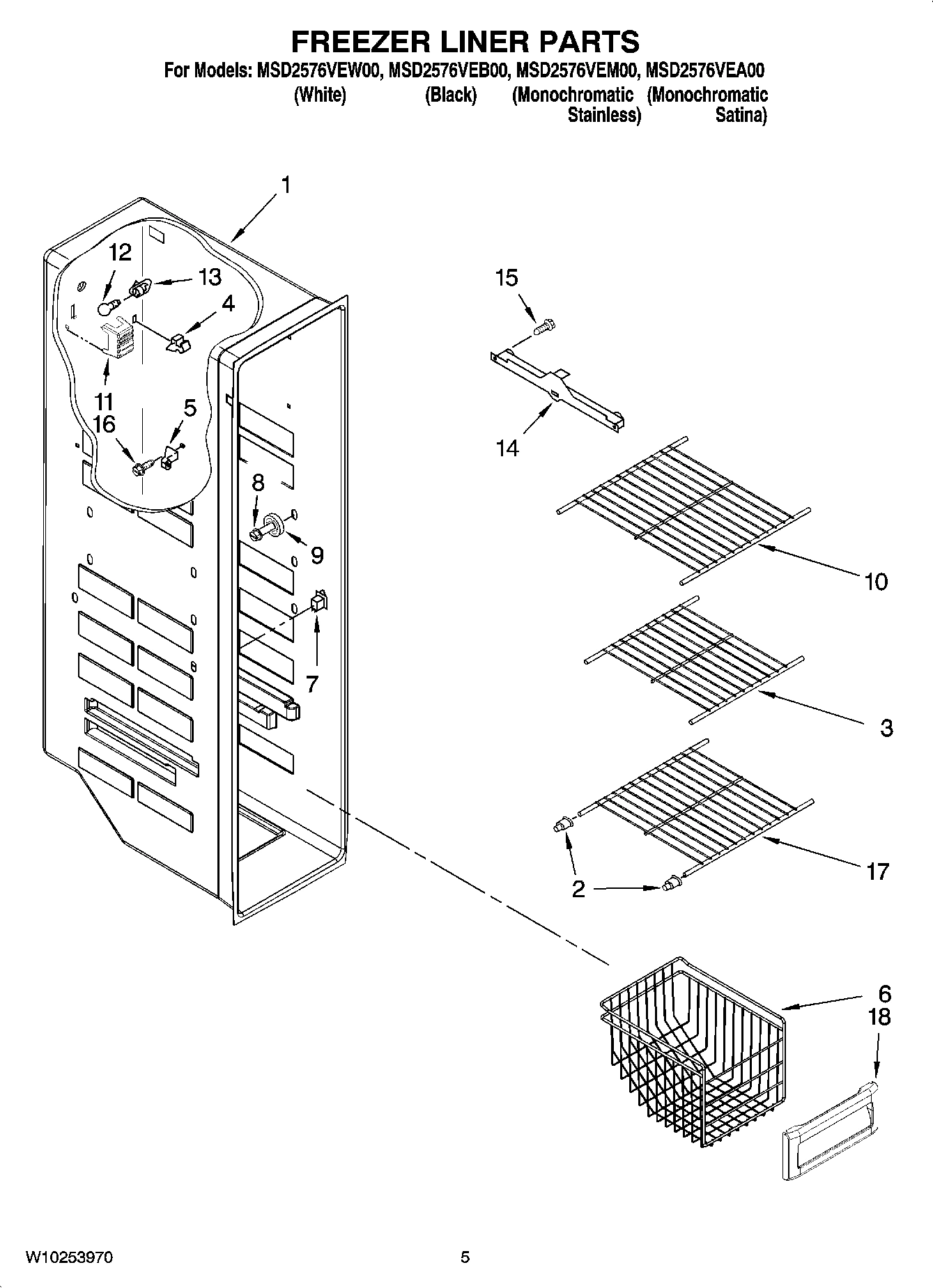

04 - FREEZER LINER PARTS

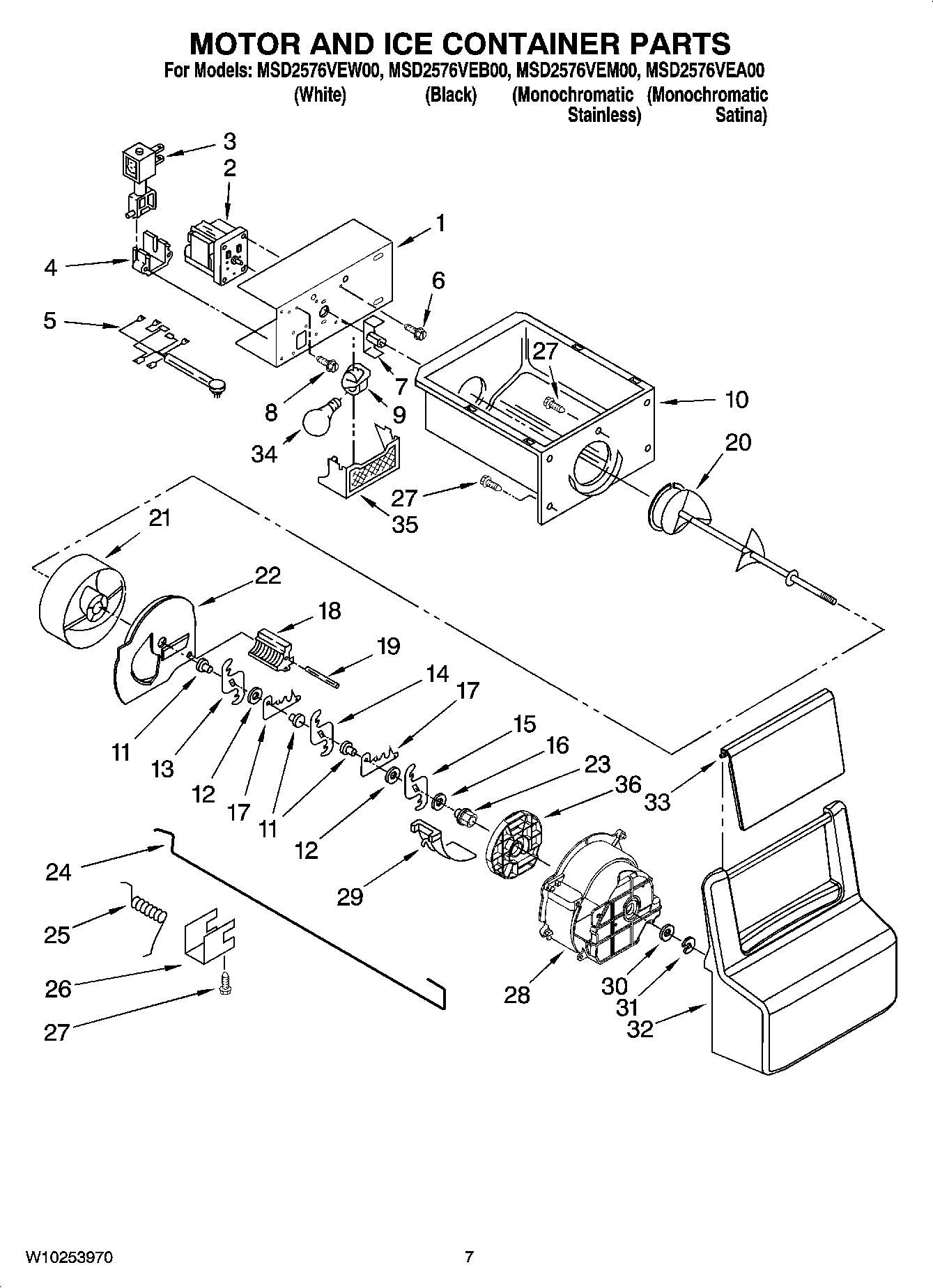

05 - MOTOR AND ICE CONTAINER PARTS

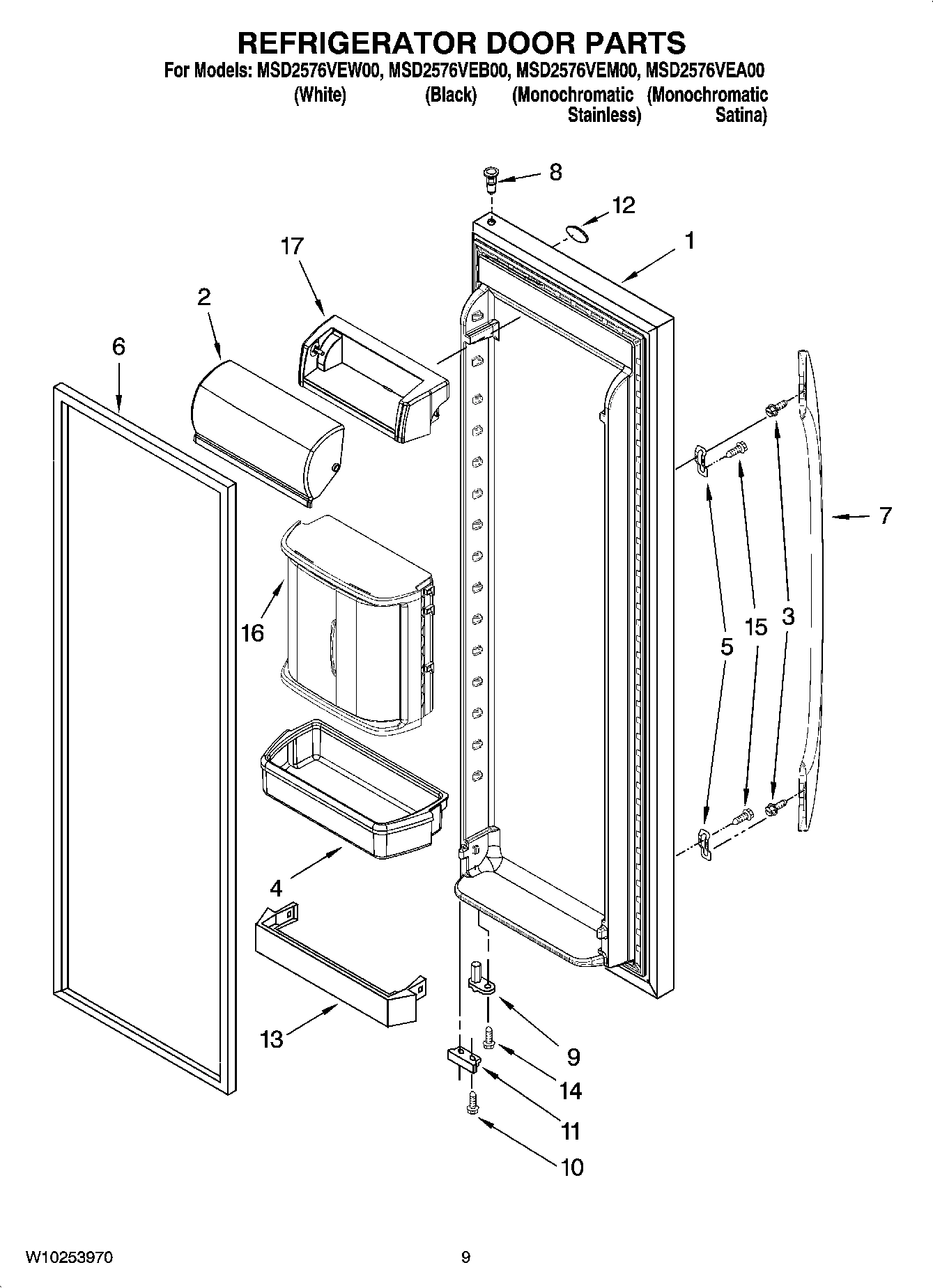

06 - REFRIGERATOR DOOR PARTS

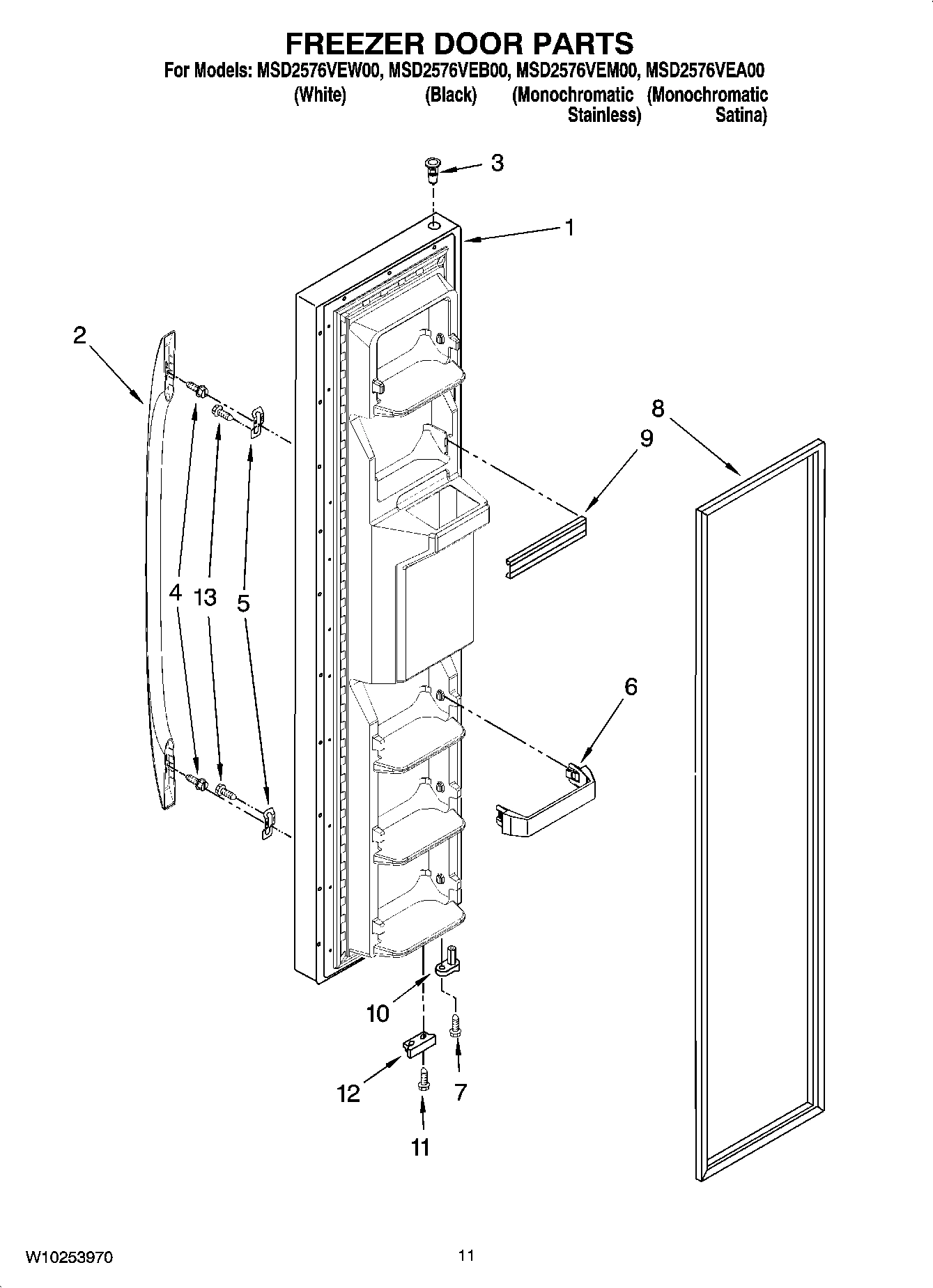

07 - FREEZER DOOR PARTS

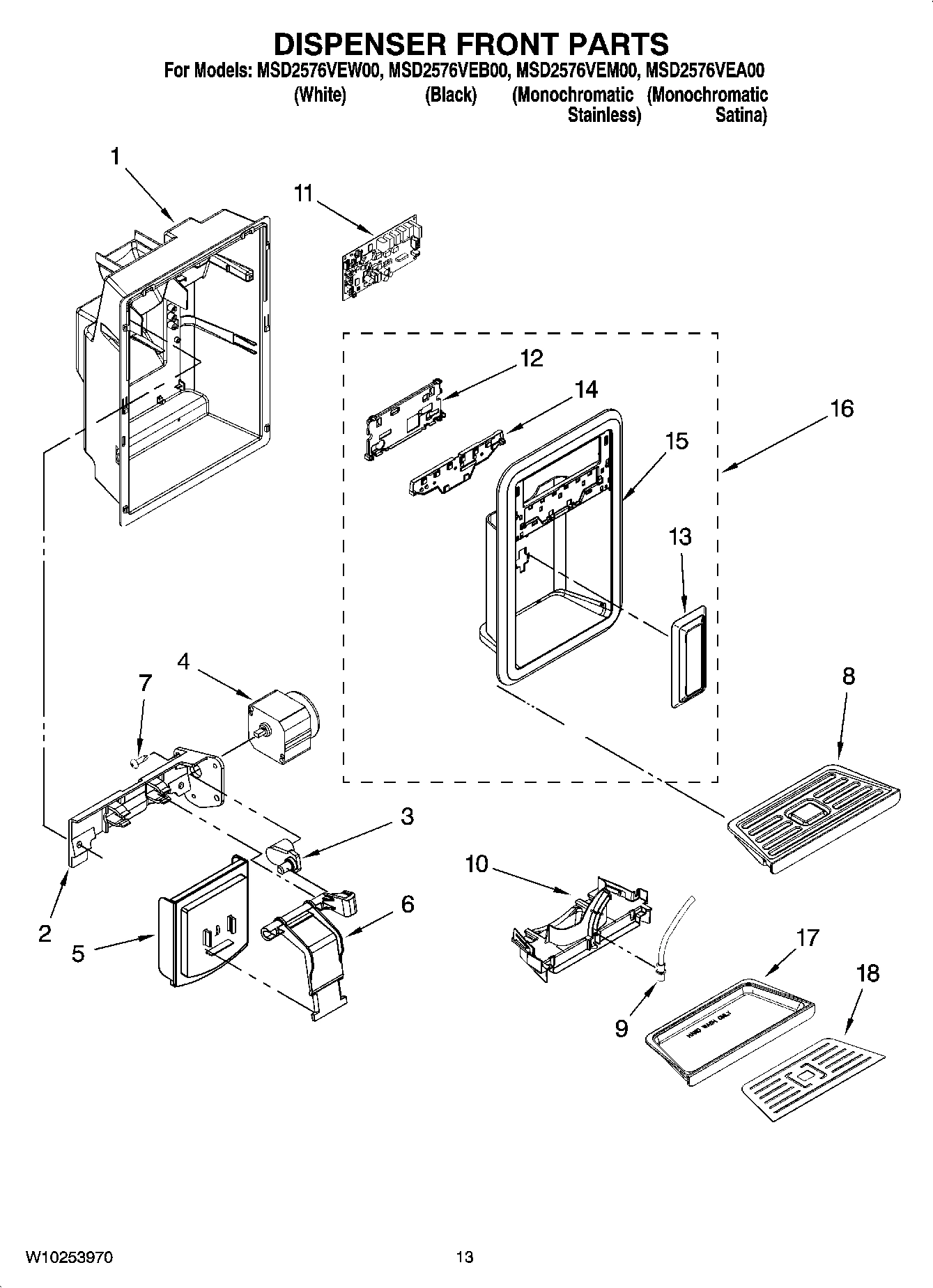

08 - DISPENSER FRONT PARTS

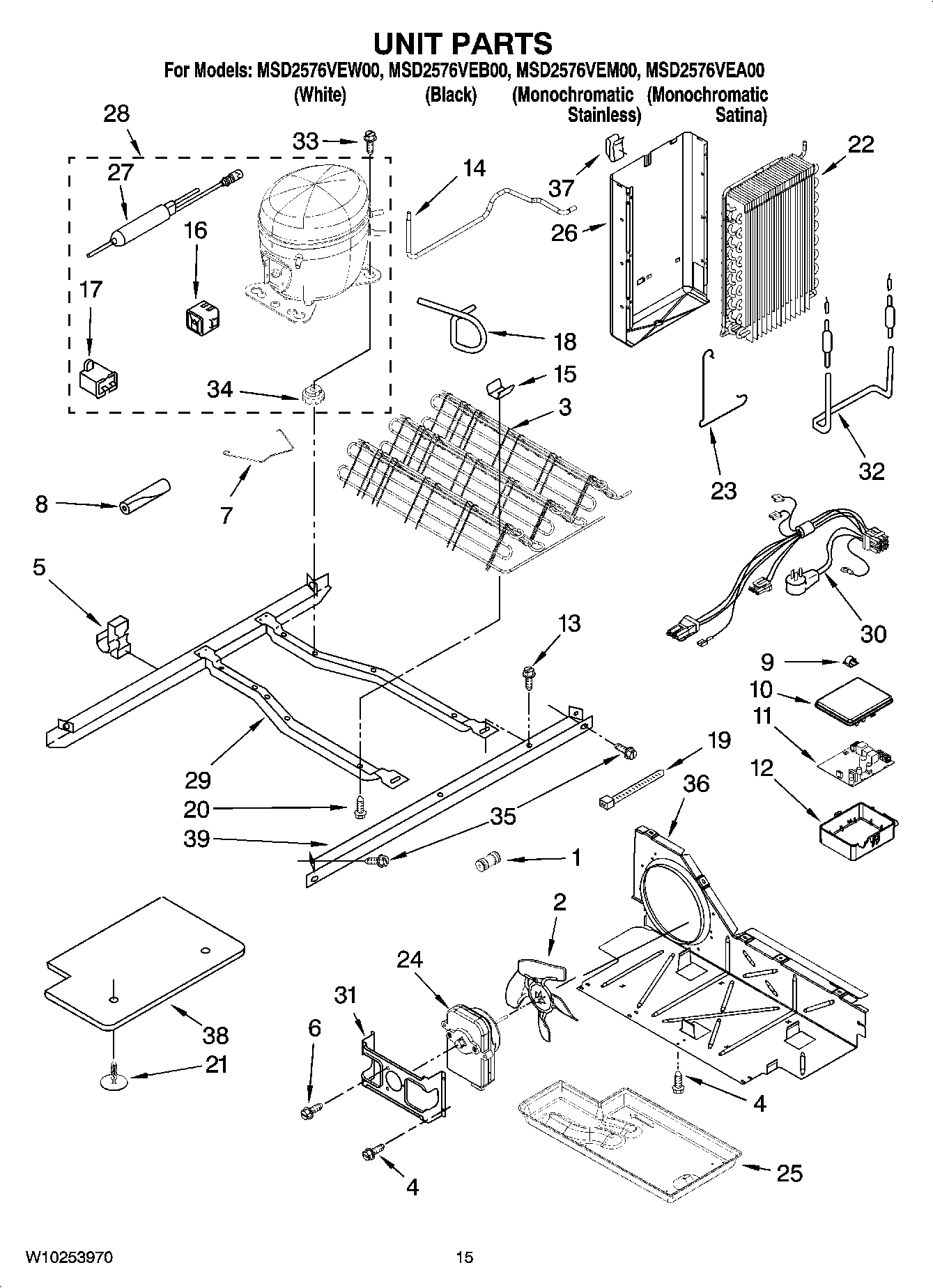

09 - UNIT PARTS

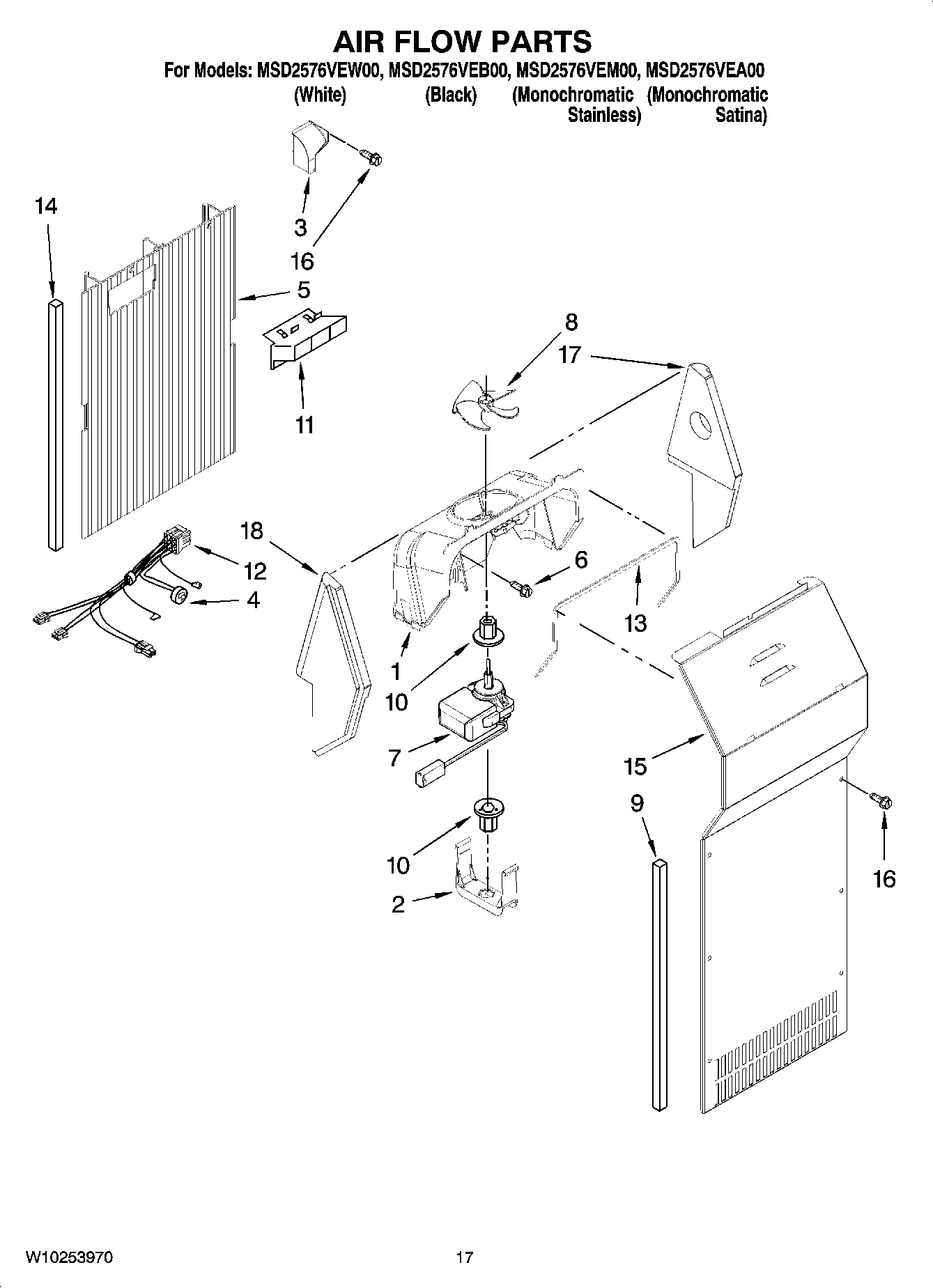

10 - AIR FLOW PARTS

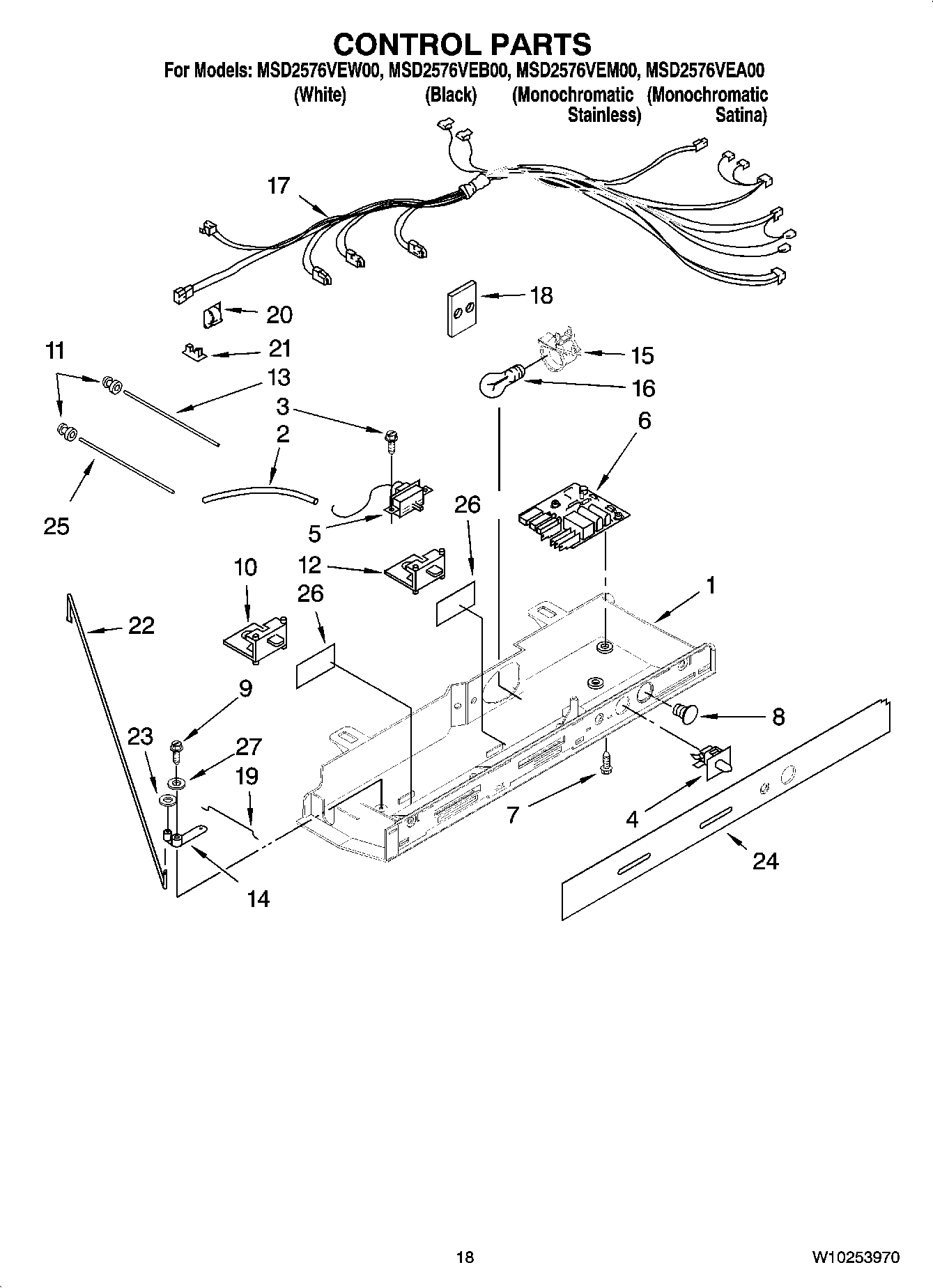

11 - CONTROL PARTS
12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2576VEM00 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10216883 MAY W10216883 Contact Us For Availability
1
MAY W10216884 MAY W10216884 Contact Us For Availability
1
MAY W10235230 MAY W10235230 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
MAY W10207535 MAY W10207535 Contact Us For Availability
1
MAY 2254587 MAY 2254587 Contact Us For Availability
1
MAY W10170817 MAY W10170817 Contact Us For Availability
1
MAY W10170819 MAY W10170819 Contact Us For Availability
1
MAY W10170820 MAY W10170820 Contact Us For Availability
1
MAY W10170821 MAY W10170821 Contact Us For Availability
1
MAY W10202786 MAY W10202786 Contact Us For Availability
1
MAY W10216875 MAY W10216875 Contact Us For Availability
1
MAY W10216876 MAY W10216876 Contact Us For Availability
1
MAY W10216877 MAY W10216877 Contact Us For Availability
1
Connector MAY 2320322 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY 2257741 MAY 2257741 Contact Us For Availability
2
Gasket MAY 2301116 Contact Us For Availability
2
Cup, Shelf Mounting (12) MAY W10130299 Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
MAY W10128150 MAY W10128150 Contact Us For Availability
2
Handle (Stainless & Satina) MAY W10170739 Contact Us For Availability
2
MAY W10170745 MAY W10170745 Contact Us For Availability
2
MAY W10170746 MAY W10170746 Contact Us For Availability
2
MAY W10170748 MAY W10170748 Contact Us For Availability
2
MAY 2305202 MAY 2305202 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
Shield, Dual Crisper Light MAY W10188421 Contact Us For Availability
3
Glass, Cover MAY 2301028 Contact Us For Availability
3
MAY 2309597 MAY 2309597 Contact Us For Availability
3
Soleniod Assembly MAY 2152713 Contact Us For Availability
3
MAY 2200087 MAY 2200087 Contact Us For Availability
3
MAY 2305242 MAY 2305242 Contact Us For Availability
3
MAY W10211163 MAY W10211163 Contact Us For Availability
3
MAY 2161229 MAY 2161229 Contact Us For Availability
3
Screw MAY 489214 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY 2196236 MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
Button Hunidity Control MAY 2301025 Contact Us For Availability
4
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
MAY W10184500 MAY W10184500 Contact Us For Availability
4
MAY W10128129 MAY W10128129 Contact Us For Availability
4
MAY W10144517 MAY W10144517 Contact Us For Availability
4
MAY 2321799 MAY 2321799 Contact Us For Availability
4
MAY 2149705 MAY 2149705 Contact Us For Availability
4
Tube, Water MAY W10175644 Contact Us For Availability
5
MAY 2301026 MAY 2301026 Contact Us For Availability
5
Support, Stud (4) MAY 2196206 Contact Us For Availability
5
MAY 2325303 MAY 2325303 Contact Us For Availability
5
MAY 2255411 MAY 2255411 Contact Us For Availability
5
MAY 2328020 MAY 2328020 Contact Us For Availability
5
Clip, Wire MAY 2208280 Contact Us For Availability
5
MAY W10138219 MAY W10138219 Contact Us For Availability
5
Thermostat MAY 2315562 Contact Us For Availability
5
Screw MAY 488208 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Clip, Control Box (2) MAY 2256085 Contact Us For Availability
6
MAY W10128132 MAY W10128132 Contact Us For Availability
6
MAY W10153523 MAY W10153523 Contact Us For Availability
6
Screw (6) MAY 489399 Contact Us For Availability
6
Door Gasket, Magnetic (Mist Beige) MAY 2309528 Contact Us For Availability
6
MAY 2309529 MAY 2309529 Contact Us For Availability
6
Door Gasket, Magnetic (Apollo Grey) MAY 2327163 Contact Us For Availability
6
Trivet MAY 2171157 Contact Us For Availability
6
MAY 2328018 MAY 2328018 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY 2303824 MAY 2303824 Contact Us For Availability
6
Filter Valve Asm MAY W10179146 Contact Us For Availability
7
Screw Plate (2) MAY 2304249 Contact Us For Availability
7
MAY W10151374 MAY W10151374 Contact Us For Availability
7
MAY W10128133 MAY W10128133 Contact Us For Availability
7
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
7
MAY W10169511 MAY W10169511 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY 4449745 MAY 4449745 Contact Us For Availability
7
Clip, Retaining MAY W10174384 Contact Us For Availability
7
MAY W10131845 MAY W10131845 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
Tube Clip MAY 2208136 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
Air Diffuser Cover MAY 2152019 Contact Us For Availability
8
MAY 2196485 MAY 2196485 Contact Us For Availability
8
MAY 8281158 MAY 8281158 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) MAY 2309532 Contact Us For Availability
8
MAY 2309533 MAY 2309533 Contact Us For Availability
8
Door Gasket, Magnetic (Apollo Grey) MAY 2327164 Contact Us For Availability
8
Tray Assembly (White) MAY W10192669 Contact Us For Availability
8
Tray Assembly (Black) MAY W10192687 Contact Us For Availability
8

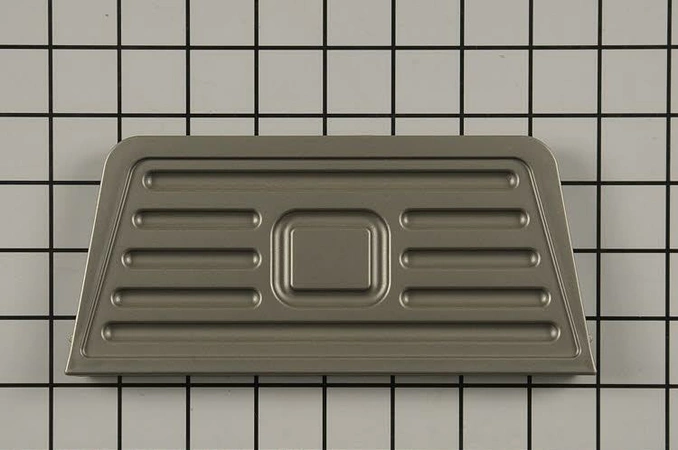

MAY W10192689 MAY W10192689 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 940014 MAY 940014 Contact Us For Availability
8
MAY W10216906 MAY W10216906 Contact Us For Availability
9
Shim (2) MAY 2209697 Contact Us For Availability
9
Cover, Conduit MAY 2150331 Contact Us For Availability
9
MAY 3400894 MAY 3400894 Contact Us For Availability
9
MAY 2196483 MAY 2196483 Contact Us For Availability
9
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
9
MAY 2209681 MAY 2209681 Contact Us For Availability
9
MAY 2328033 MAY 2328033 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
MAY 627068 MAY 627068 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
10
Screw (2) MAY 489500 Contact Us For Availability
10
MAY 486298 MAY 486298 Contact Us For Availability
10
Cover, Meat Pan MAY 2301033 Contact Us For Availability
10
Shelf, Wire MAY 2309596 Contact Us For Availability
10
MAY 2196091 MAY 2196091 Contact Us For Availability
10
MAY 2323535 MAY 2323535 Contact Us For Availability
10

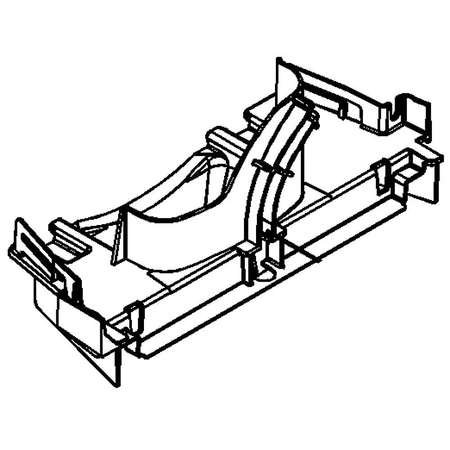

MAY 2328015 MAY 2328015 Contact Us For Availability
10
Box Cover MAY 2255624 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
Mold & Heater Assembly (Also Order 542638) MAY W10136595 Contact Us For Availability
11
MAY 4396841 MAY 4396841 Contact Us For Availability
11
MAY W10170856 MAY W10170856 Contact Us For Availability
11
MAY 2212340 MAY 2212340 Contact Us For Availability
11
Spacer, Step (3) MAY W10189661 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
Bracket, Door Stop (Chrome) MAY 2206629 Contact Us For Availability
11
MAY 2206629B MAY 2206629B Contact Us For Availability
11
MAY W10144584 MAY W10144584 Contact Us For Availability
11
MAY 2322547 MAY 2322547 Contact Us For Availability
11
MAY 2182146 MAY 2182146 Contact Us For Availability
11
MAY 2172906 MAY 2172906 Contact Us For Availability
11
CUP, WATER FILL MAY 628515 Contact Us For Availability
12
HINGE TOP, FC MAY 2203770 Contact Us For Availability
12
MAY W10204356 MAY W10204356 Contact Us For Availability
12
Spacer, Flat (2) MAY W10189658 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
Bracket, Door Stop (Chrome) MAY 2323534 Contact Us For Availability
12
Bracket, Door Stop (Black) MAY 2323534B Contact Us For Availability
12

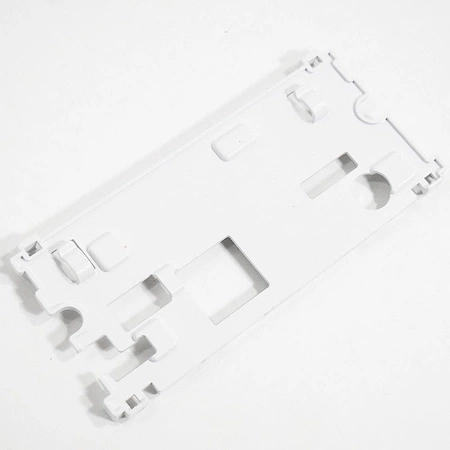

MAY W10144040 MAY W10144040 Contact Us For Availability
12
MAY 2326982 MAY 2326982 Contact Us For Availability
12
Harness, Fan Evaporator (Includes 4) MAY W10129821 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
MAY 2323524 MAY 2323524 Contact Us For Availability
13
MAY 489427 MAY 489427 Contact Us For Availability
13
HINGE TOP RC MAY 2203771 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
MAY 2309941 MAY 2309941 Contact Us For Availability
13
Screw MAY W10129563 Contact Us For Availability
13
MAY W10144511 MAY W10144511 Contact Us For Availability
13
MAY W10176454 MAY W10176454 Contact Us For Availability
13
MAY W10176455 MAY W10176455 Contact Us For Availability
13
MAY W10176456 MAY W10176456 Contact Us For Availability
13
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
13
MAY 2179920 MAY 2179920 Contact Us For Availability
13
Ice Striper MAY 2182124 Contact Us For Availability
14
MAY 488500 MAY 488500 Contact Us For Availability
14
MAY 488280 MAY 488280 Contact Us For Availability
14
MAY W10170861 MAY W10170861 Contact Us For Availability
14
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
14
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
14
MAY 2257023 MAY 2257023 Contact Us For Availability
14

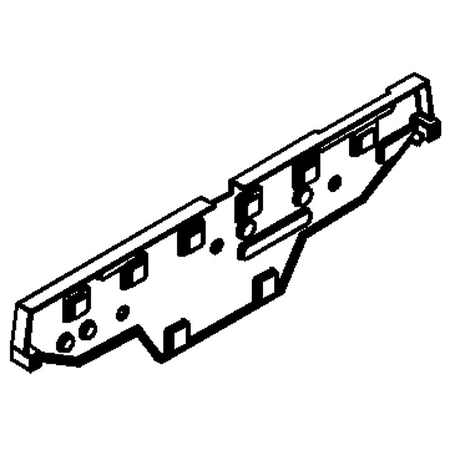

MAY W10182888 MAY W10182888 Contact Us For Availability
14
MAY W10210786 MAY W10210786 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
14
Pivot Arm MAY 2161306 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
Hinge Cover (White) MAY W10138581 Contact Us For Availability
15
Hinge Cover (Black) MAY W10138582 Contact Us For Availability
15
Hinge Cover (Apollo Grey) MAY W10138584 Contact Us For Availability
15
Light Socket MAY 2162085 Contact Us For Availability
15
MAY W10175967 MAY W10175967 Contact Us For Availability
15
MAY W10159183 MAY W10159183 Contact Us For Availability
15
Screw (4) MAY 489100 Contact Us For Availability
15
MAY 2257024 MAY 2257024 Contact Us For Availability
15
Clip, Condenser(2) MAY 2311725 Contact Us For Availability
15
MAY W10194476 MAY W10194476 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY 2217075 MAY 2217075 Contact Us For Availability
16
Light Bulb MAY W10194422 Contact Us For Availability
16
MAY 2182757 MAY 2182757 Contact Us For Availability
16
MAY 3400893 MAY 3400893 Contact Us For Availability
16
MAY W10189660 MAY W10189660 Contact Us For Availability
16
MAY W10128142 MAY W10128142 Contact Us For Availability
16
MAY W10144041 MAY W10144041 Contact Us For Availability
16
MAY W10179004 MAY W10179004 Contact Us For Availability
16
MAY W10179005 MAY W10179005 Contact Us For Availability
16
MAY W10179006 MAY W10179006 Contact Us For Availability
16
Start Device, Combination (Start Relay and ov MAY W10189190 Contact Us For Availability
16
Start Device, Combination (Start Relay and ov MAY W10197427 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
MAY 628532 MAY 628532 Contact Us For Availability
17
MAY 2260502B MAY 2260502B Contact Us For Availability
17
MAY 2260502MG MAY 2260502MG Contact Us For Availability
17
MAY 2260502W MAY 2260502W Contact Us For Availability
17
SHELF WIRE MAY 2309522 Contact Us For Availability
17
Blade, Fixed (2) MAY W10181990 Contact Us For Availability
17
MAY W10128148 MAY W10128148 Contact Us For Availability
17
Drip Tray, Stainless MAY W10177382 Contact Us For Availability
17
Capacitor (Production) MAY 2264017 Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
17
MAY 2187868 MAY 2187868 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
Screw (4) MAY 3400113 Contact Us For Availability
18
MAY W10153254 MAY W10153254 Contact Us For Availability
18
MAY 489478 MAY 489478 Contact Us For Availability
18
MAY W10189708 MAY W10189708 Contact Us For Availability
18
Grill, Stainless MAY W10144018 Contact Us For Availability
18
Process Tube MAY W10171238 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
MAY 2172931 MAY 2172931 Contact Us For Availability
19
Block, Housing Support MAY 2260519 Contact Us For Availability
19
MAY 489229 MAY 489229 Contact Us For Availability
19
MAY 2263990 MAY 2263990 Contact Us For Availability
19
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
19
MAY 2304354 MAY 2304354 Contact Us For Availability
20
MAY 3400858 MAY 3400858 Contact Us For Availability
20
MAY 2196295 MAY 2196295 Contact Us For Availability
20
MAY 1115374 MAY 1115374 Contact Us For Availability
20
MAY 8281232 MAY 8281232 Contact Us For Availability
20
Module Assembly (Includes 21) MAY 626691 Contact Us For Availability
21
Filler, Wrapper (White) MAY 2201014 Contact Us For Availability
21
Filler, Wrapper (Black) MAY 2201017 Contact Us For Availability
21
Filler, Wrapper (Apollo Grey) MAY 2254507 Contact Us For Availability
21
MAY 2305377 MAY 2305377 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
21
Clip-Wiring MAY 1115375 Contact Us For Availability
22
MAY W10153178 MAY W10153178 Contact Us For Availability
22
MAY W10168144 MAY W10168144 Contact Us For Availability
22
MAY W10201138 MAY W10201138 Contact Us For Availability
22
MAY 2171682 MAY 2171682 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
22
Connecting Rod MAY 2161308 Contact Us For Availability
23
MAY 489497 MAY 489497 Contact Us For Availability
23
MAY 1119018 MAY 1119018 Contact Us For Availability
23
Clamp MAY 2161324 Contact Us For Availability
23
MAY 489391 MAY 489391 Contact Us For Availability
24
MAY 2260503B MAY 2260503B Contact Us For Availability
24
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
24
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
24
MAY 2155231 MAY 2155231 Contact Us For Availability
24
Fan, Motor MAY 2188874 Contact Us For Availability
24
MAY W10185695 MAY W10185695 Contact Us For Availability
25
Screw (2) MAY 3400103 Contact Us For Availability
25
MAY 1119020 MAY 1119020 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
25
LIGHT BAR FC MAY 2179921 Contact Us For Availability
26
Screw MAY 489290 Contact Us For Availability
26
MAY 1119021 MAY 1119021 Contact Us For Availability
26
Heat Shield MAY W10194475 Contact Us For Availability
26
MAY 2175513 MAY 2175513 Contact Us For Availability
27
SCREW MAY 488886 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
27
Spring Washer MAY 489203 Contact Us For Availability
28
MAY 2319867 MAY 2319867 Contact Us For Availability
28
MAY W10185018 MAY W10185018 Contact Us For Availability
28
Compressor (Includes Items 16, 17, 27, & 34) MAY W10183575 Contact Us For Availability
29
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
29
MAY 1119017 MAY 1119017 Contact Us For Availability
29
Unit Mounting Frame MAY W10196321 Contact Us For Availability
30
MAY 2304888 MAY 2304888 Contact Us For Availability
30
MAY 489234 MAY 489234 Contact Us For Availability
30
MAY 2310425 MAY 2310425 Contact Us For Availability
31
MAY W10153550 MAY W10153550 Contact Us For Availability
31
MAY 489236 MAY 489236 Contact Us For Availability
31
MAY 2181929 MAY 2181929 Contact Us For Availability
32
MAY 2188735 MAY 2188735 Contact Us For Availability
32
Front Cover, Ice Container MAY W10189191 Contact Us For Availability
32
MAY 2188175 MAY 2188175 Contact Us For Availability
33
MAY W10189202 MAY W10189202 Contact Us For Availability
33
MAY 489373 MAY 489373 Contact Us For Availability
34
Hinge Cover (White) MAY W10138576 Contact Us For Availability
34
Hinge Cover (Black) MAY W10138577 Contact Us For Availability
34
Hinge Cover (Apollo Grey) MAY W10138579 Contact Us For Availability
34
MAY 1100826 MAY 1100826 Contact Us For Availability
35
MAY 8281227 MAY 8281227 Contact Us For Availability
35
MAY 2171706 MAY 2171706 Contact Us For Availability
35
Screw (5) MAY 489340 Contact Us For Availability
36
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
36
MAY W10138206 MAY W10138206 Contact Us For Availability
36
MAY W10196306 MAY W10196306 Contact Us For Availability
37
MAY 2155547 MAY 2155547 Contact Us For Availability
38
MAY 2155311 MAY 2155311 Contact Us For Availability
38
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
39
Screw (2) MAY 489483 Contact Us For Availability
39
MAY W10196323 MAY W10196323 Contact Us For Availability
40
Hinge Bottom (FC) MAY 2323833 Contact Us For Availability
41
DOOR CLOSER LOWER CAM (FC) MAY 2223751 Contact Us For Availability
100
MAY W10138192 MAY W10138192 Contact Us For Availability
100
MAY W10122556 MAY W10122556 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
