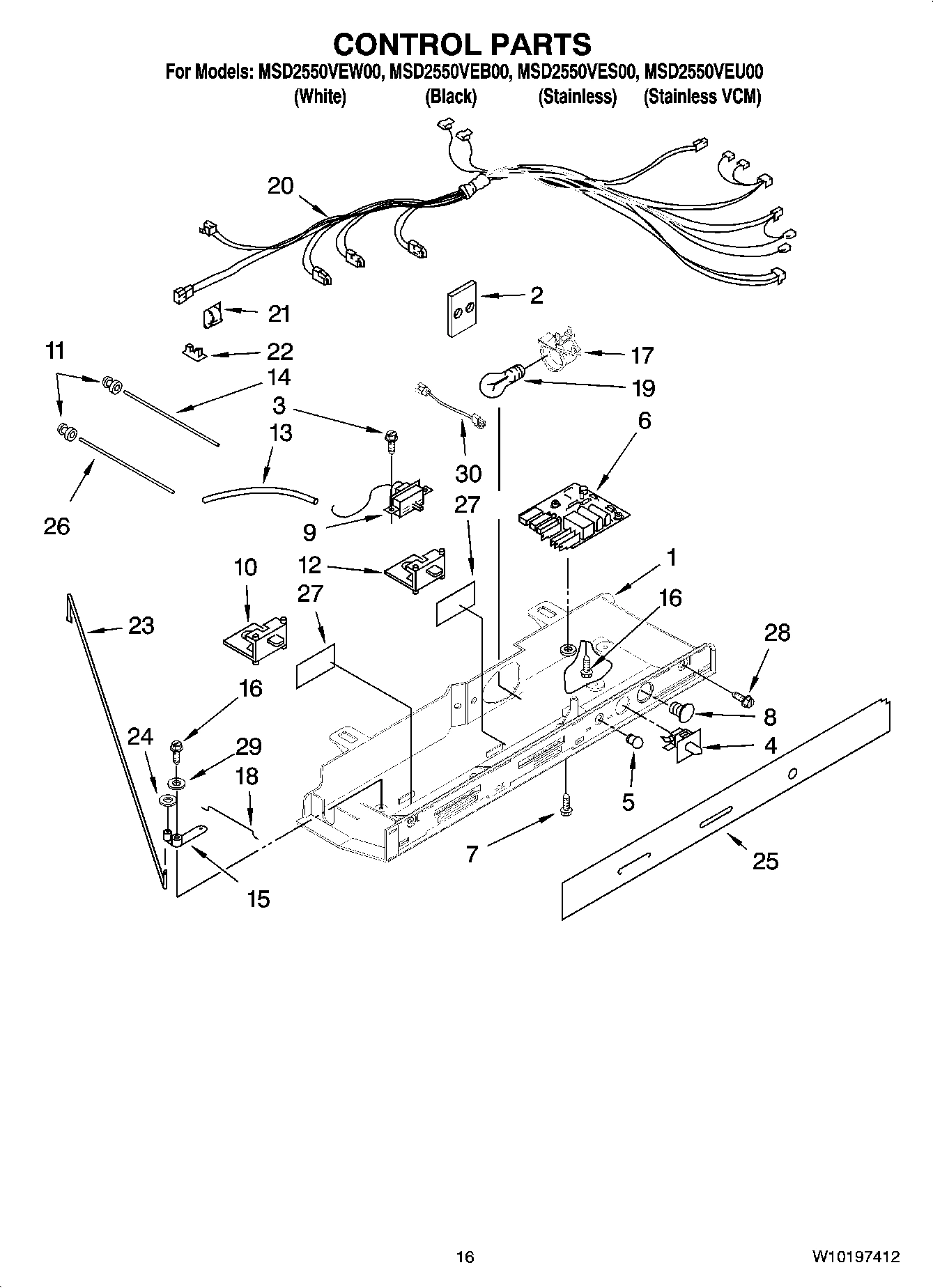

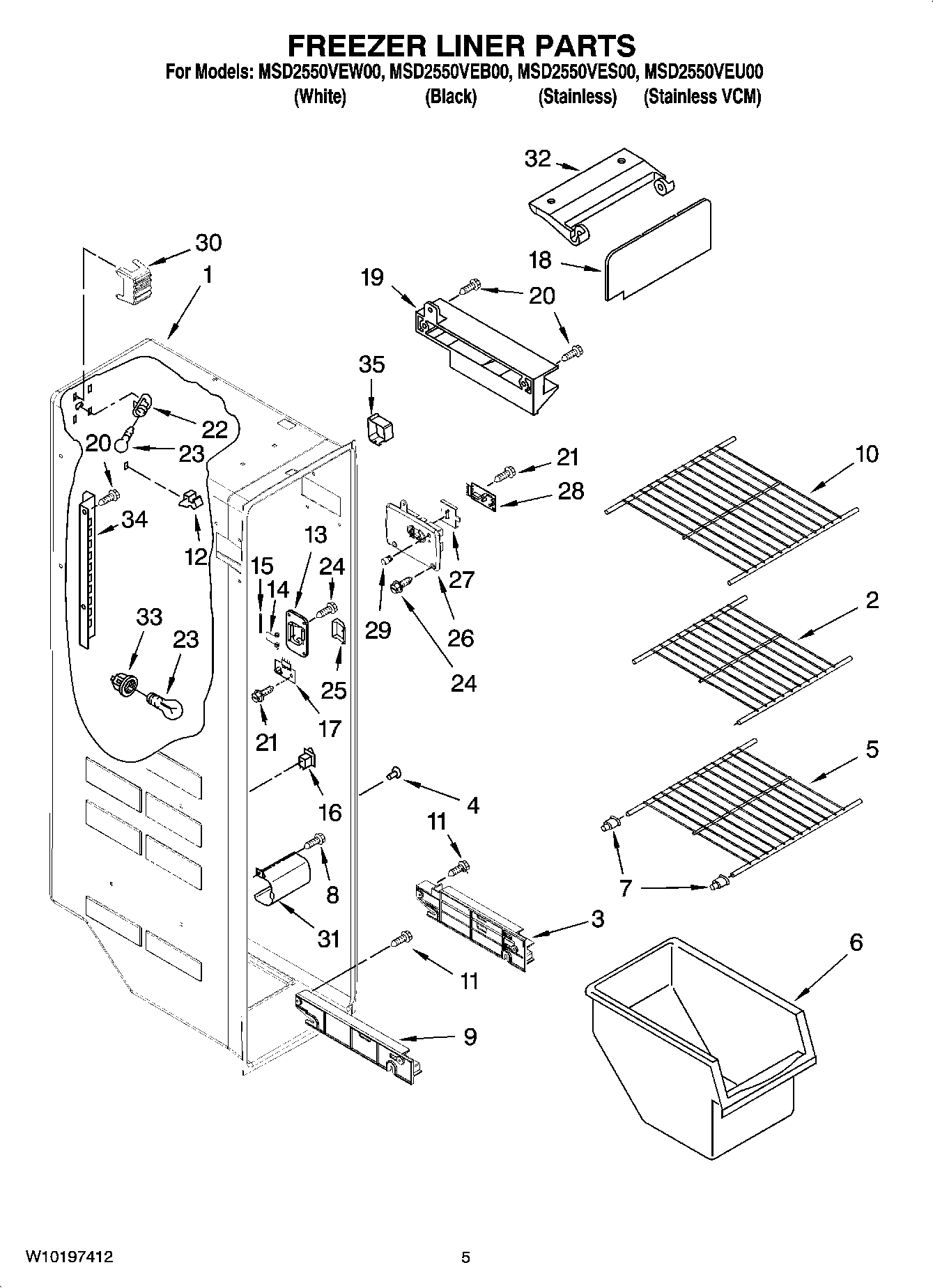

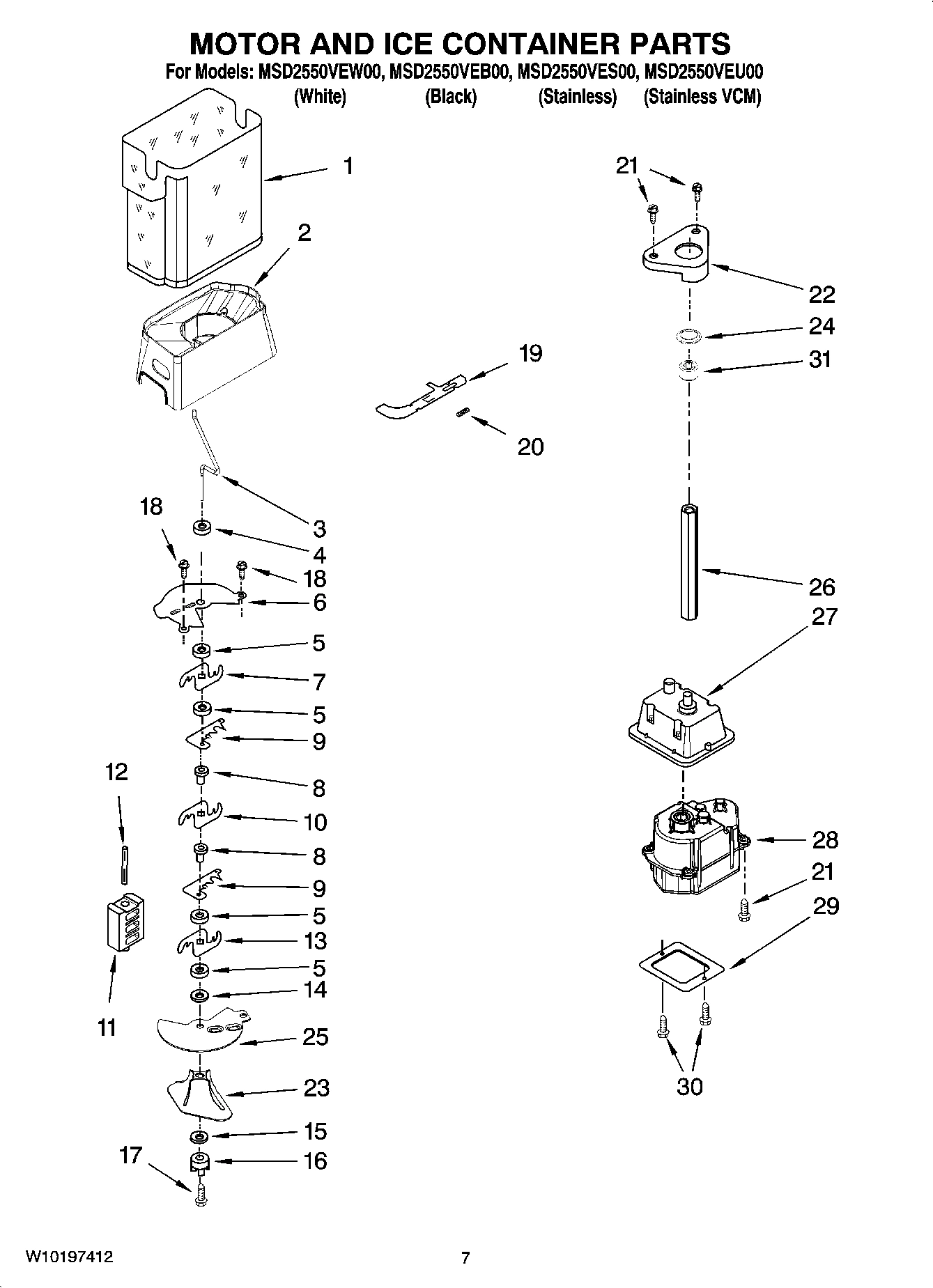

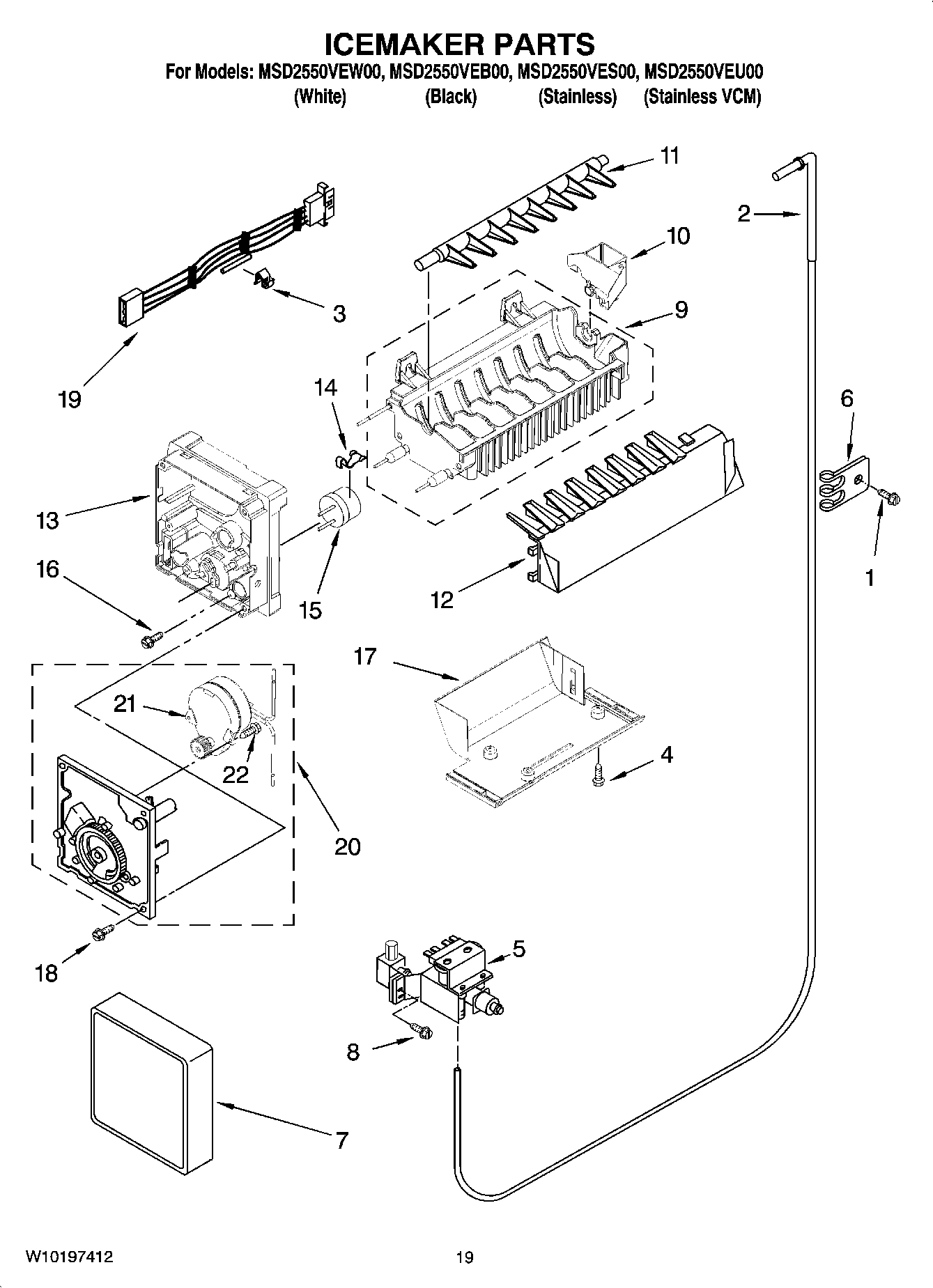

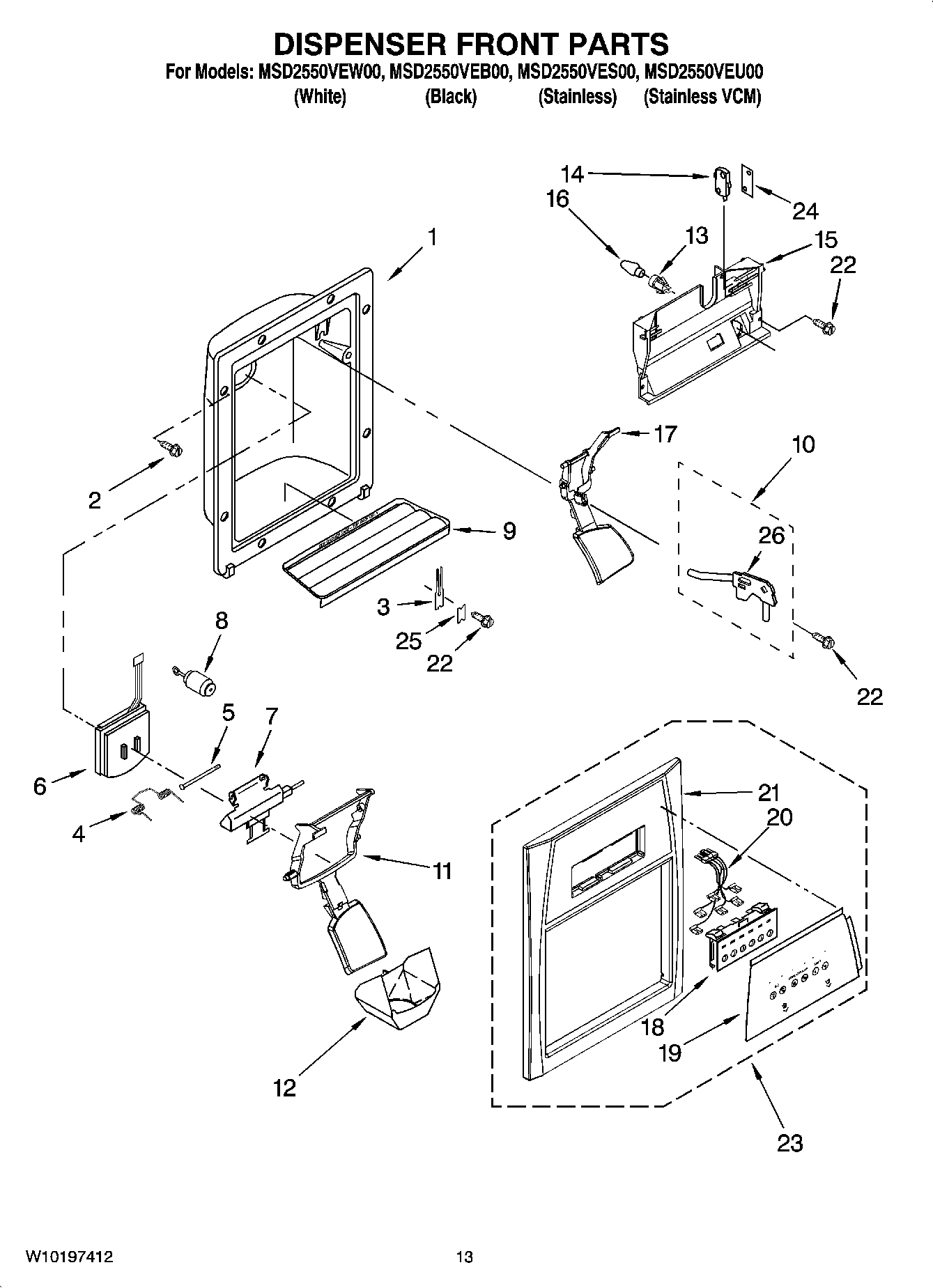

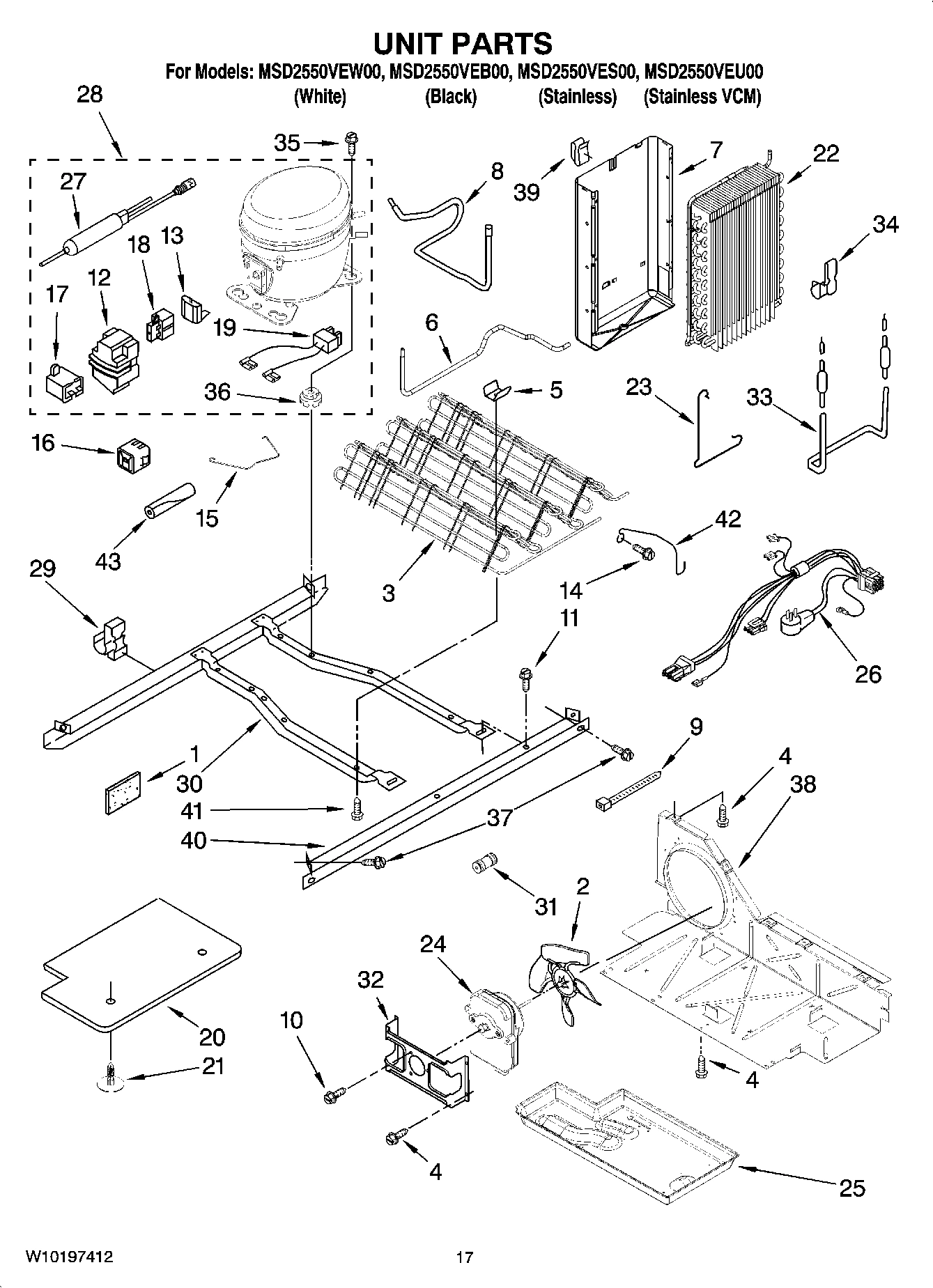

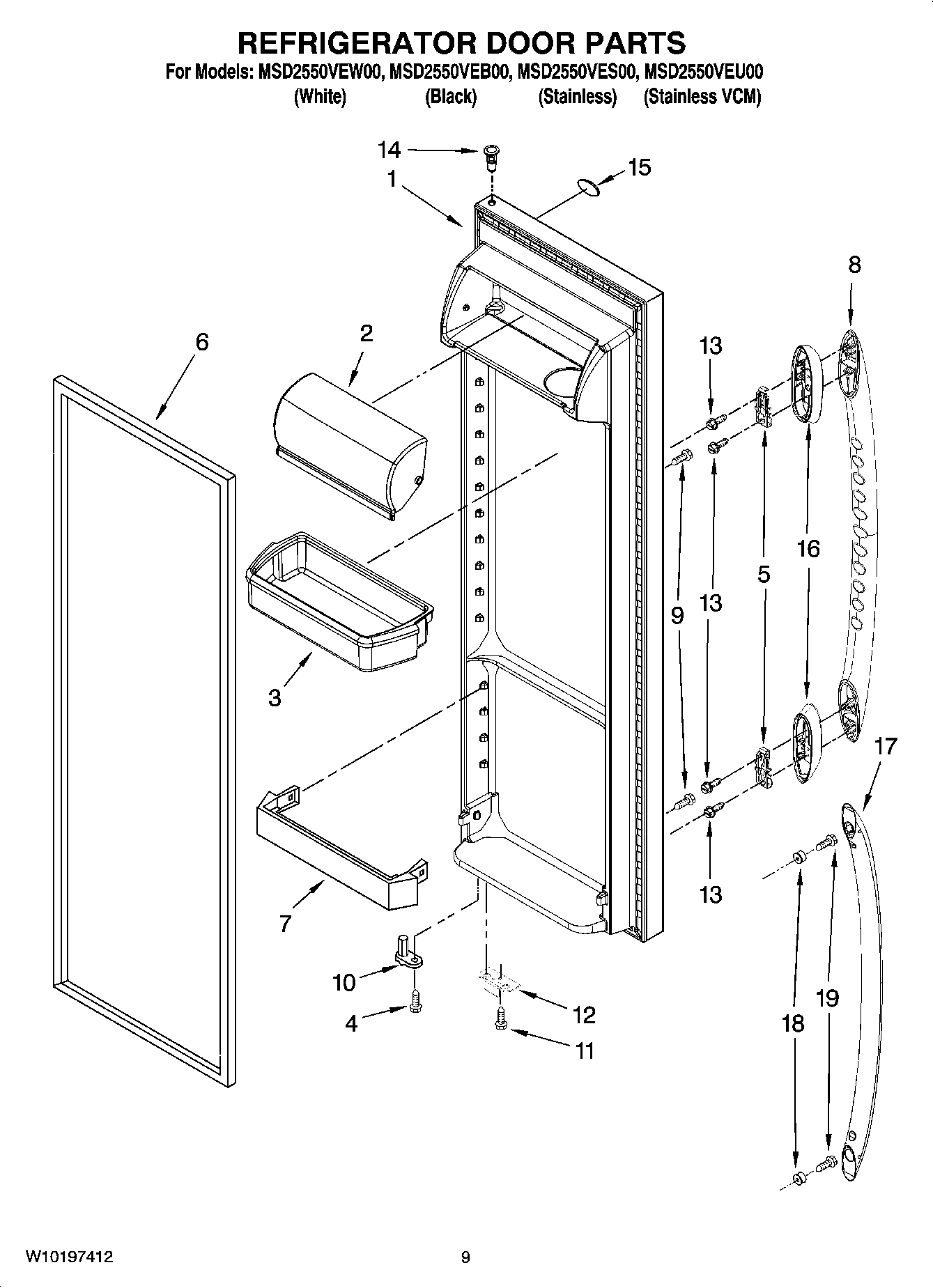

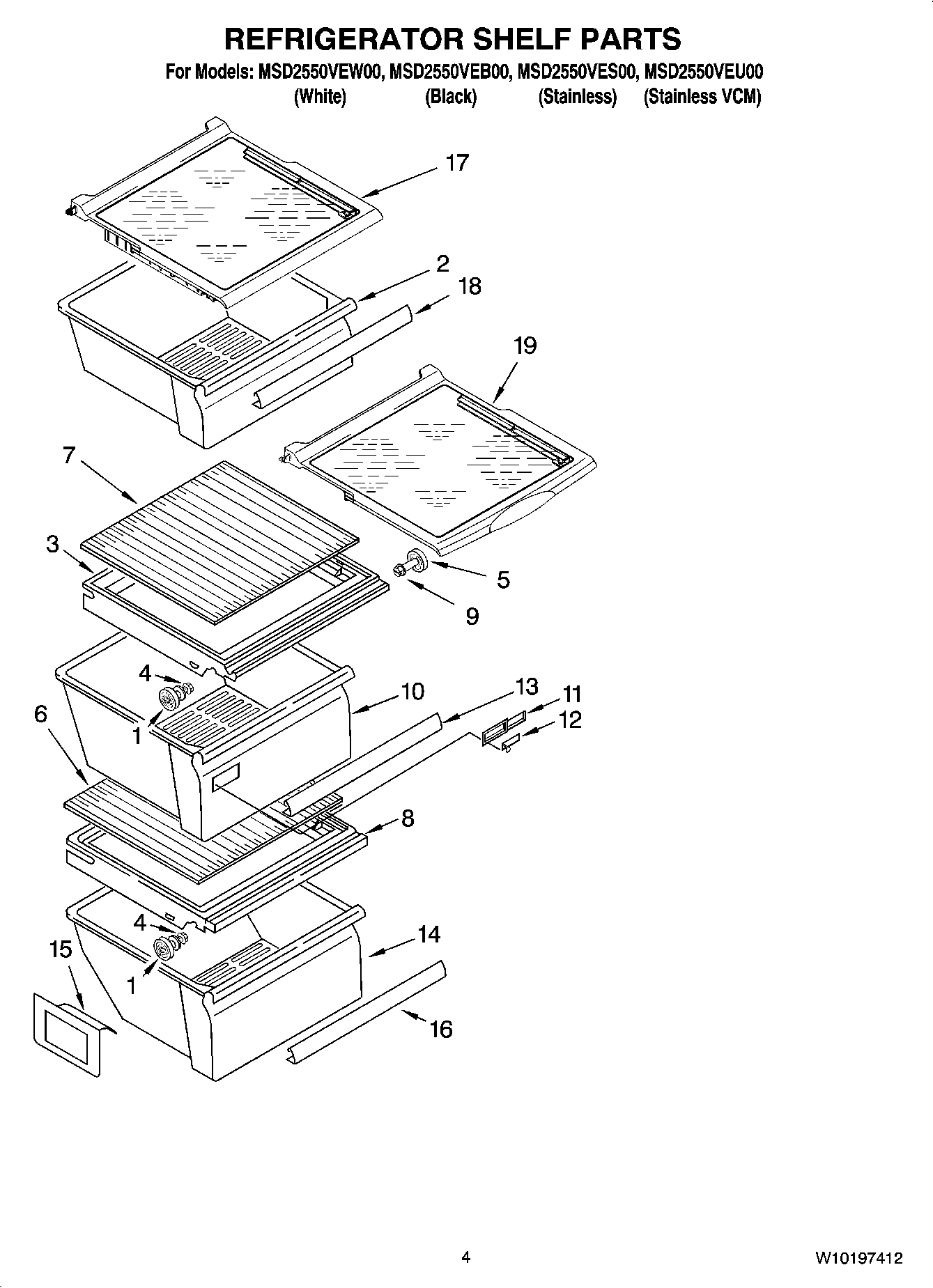

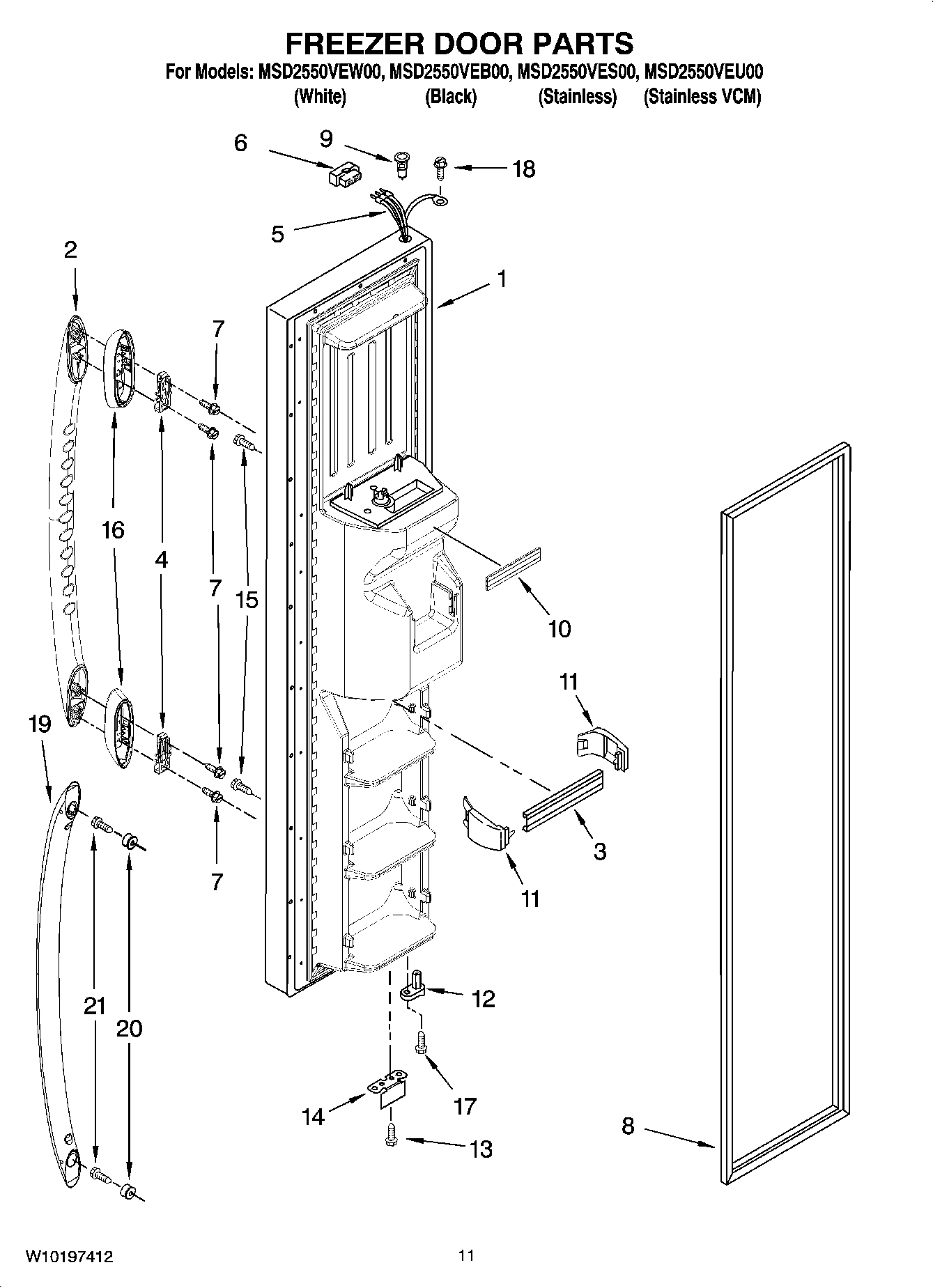

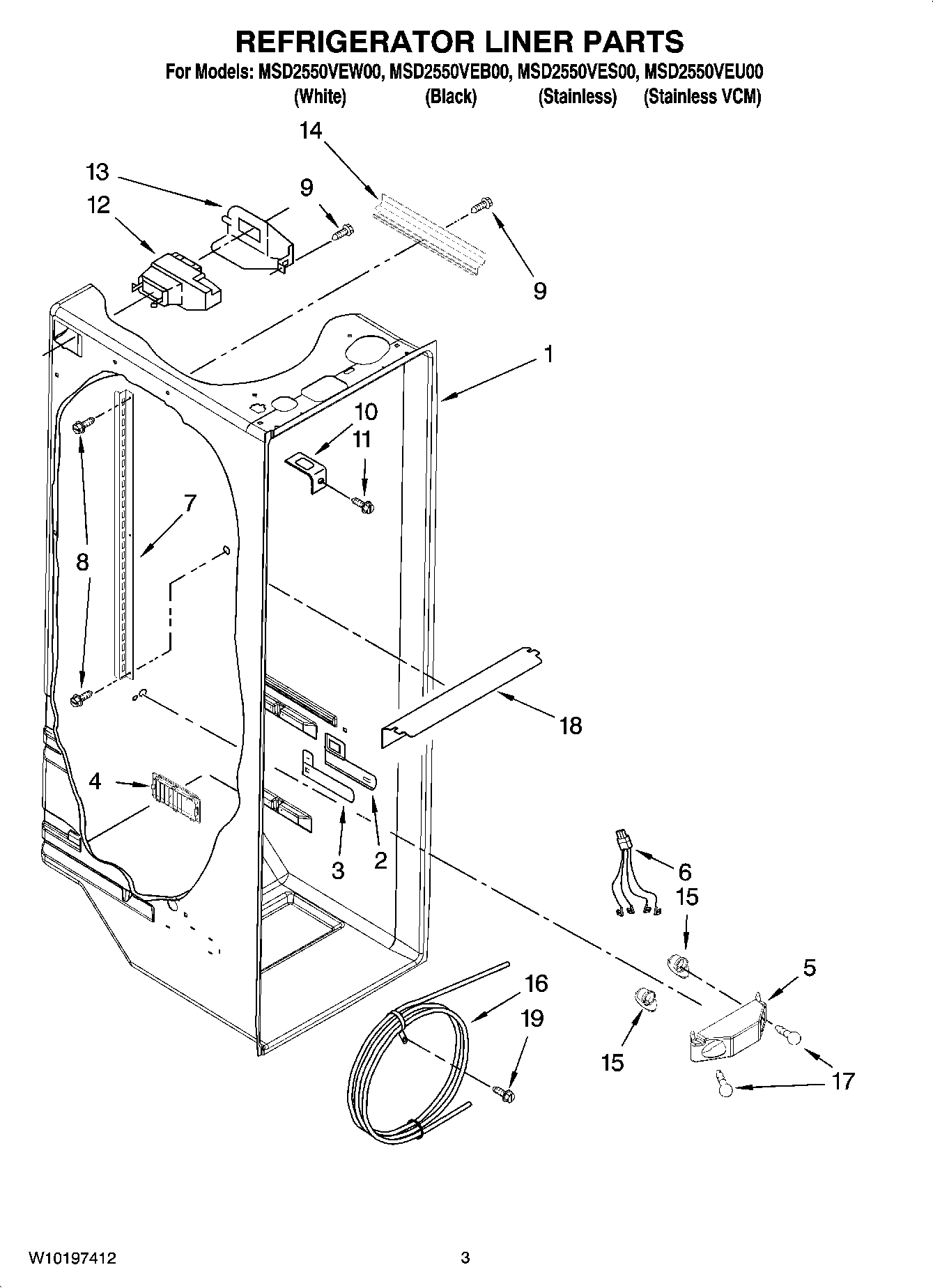

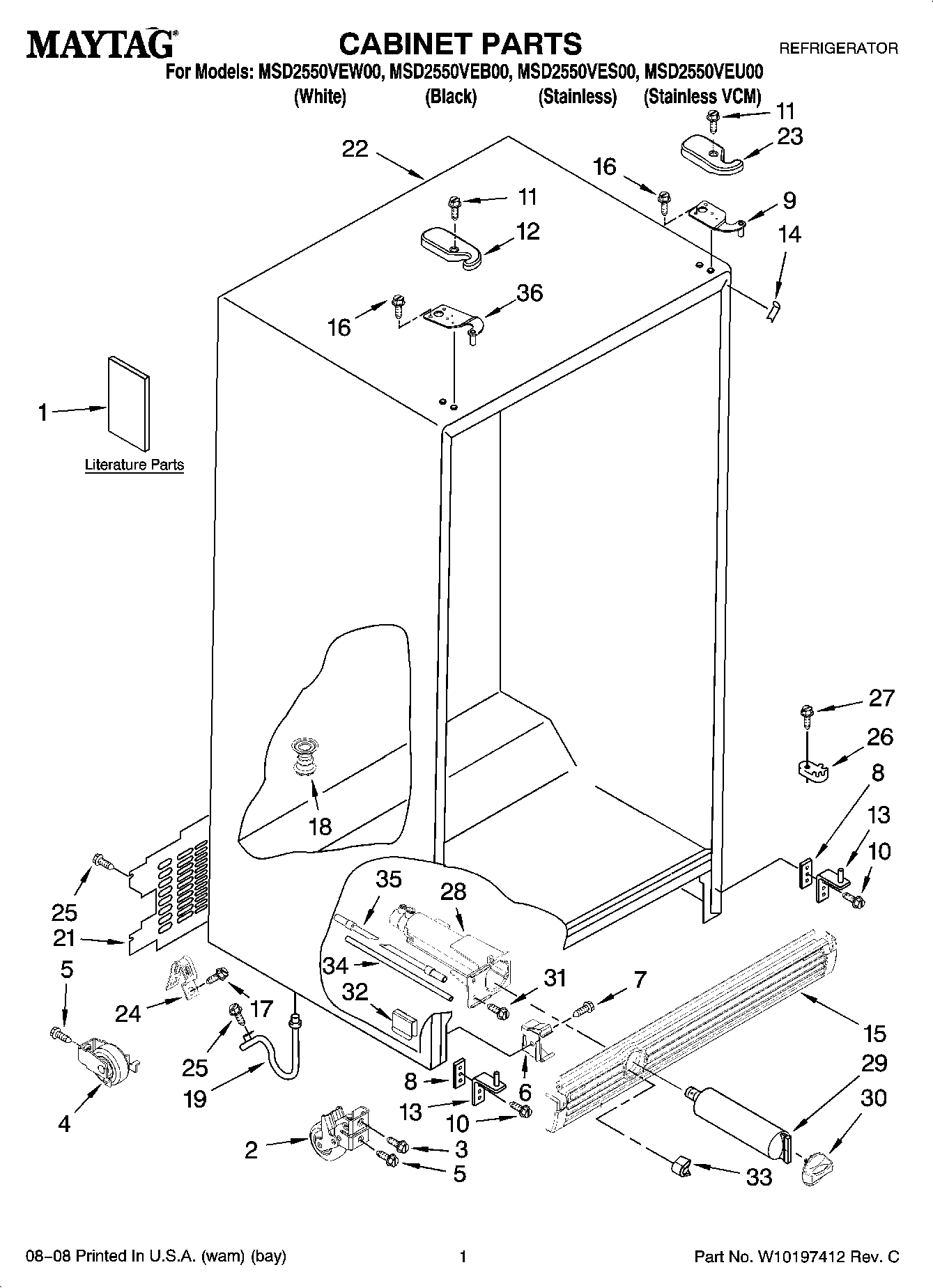

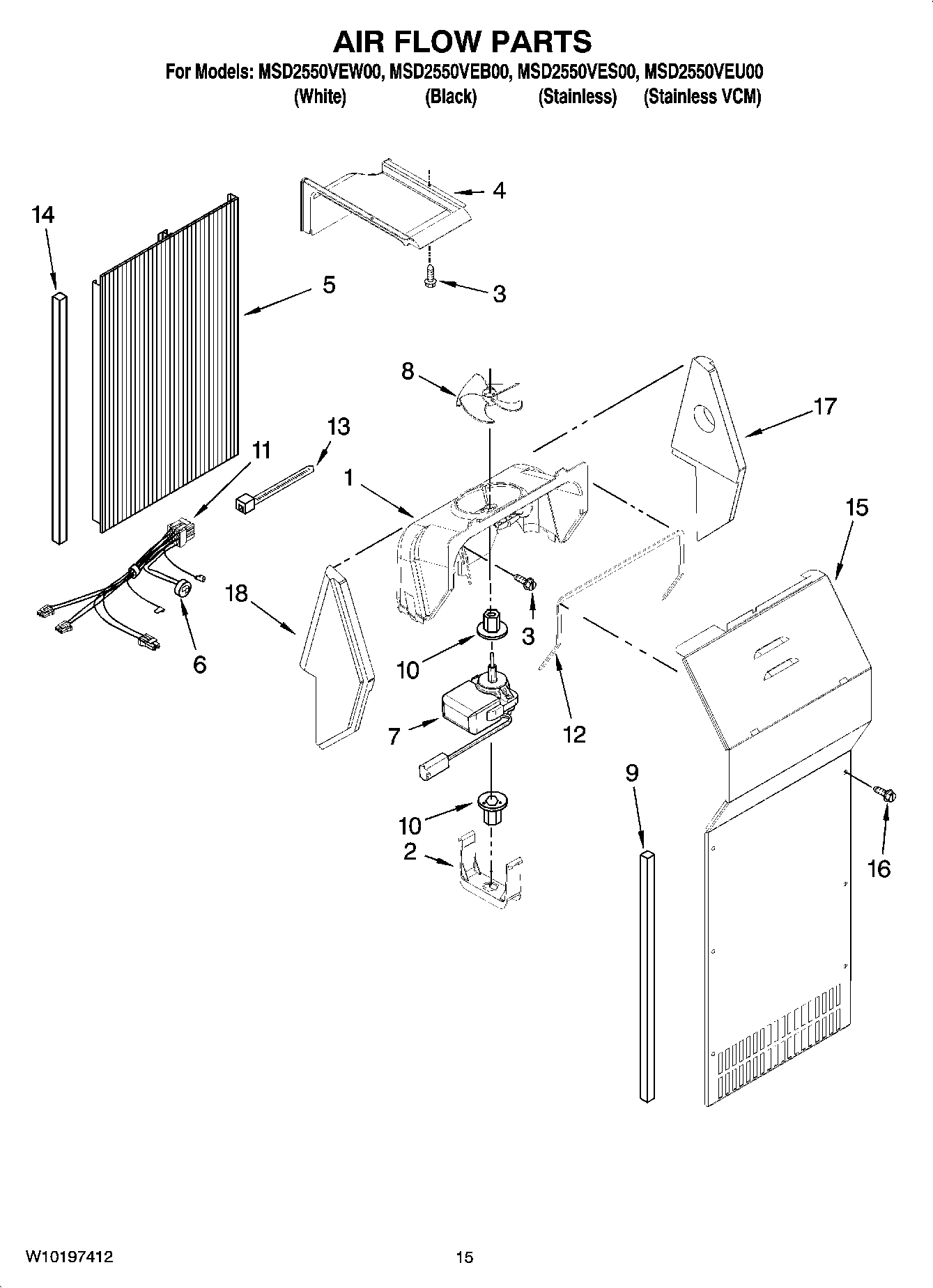

Model Whirlpool MSD2550VES00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $38.08

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $151.40

1

Liner (Not A Serviceable Part) WPL ARI5995A73 Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $35.64

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $33.29

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $51.10

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $38.46

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $5.24

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $46.23

3

WP2317240 Whirlpool Refrigerator Ice Auger Backorder WPL WP2317240 $66.55

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.79

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $47.56

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.84

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $15.05

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $60.71

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $5.05

5

WP2196195 Whirlpool Refrigerator Door Pin Backorder WPL WP2196195 $7.98

5

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.50

5

Clip WPL 13067101 Contact Us For Availability

5

Cover, Light Lens WPL 2200096 Contact Us For Availability

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $57.21

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $11.17

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.84

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.94

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.25

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.48

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $41.25

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $155.97

7

Shelf Ladder WPL 2319866 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.85

8

WP12743701W Whirlpool Refrigerator Handle Backorder WPL WP12743701W $110.53

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.96

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Shim WPL 2209697 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.60

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.03

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $37.15

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $22.21

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $30.29

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $58.20

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $43.70

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $35.02

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.84

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $14.25

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $90.54

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.96

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $14.52

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.84

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.84

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $33.29

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.75

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $11.17

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.33

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.84

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.66

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.72

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.30

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.95

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $64.11

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $38.11

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $36.29

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $53.22

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $35.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.60

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.53

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $30.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.14

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.52

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $14.33

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.84

Washer, Plain WPL 489235 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $31.35

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $35.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.64

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.79

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $48.45

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.14

Pivot Arm WPL 2161306 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2206314 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.96

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.21

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $67.09

Accent (White) WPL 12834803W Contact Us For Availability

Accent (Black) WPL 12834803B Contact Us For Availability

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $39.43

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $13.13

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.60

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $4.73

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

Bracket, Ice Maker Mounting WPL 2303583 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.81

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $37.62

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $47.42

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.60

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $53.37

Extension Tube WPL 2304937 Contact Us For Availability

Latch, Bin WPL 2317277 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.84

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.90

21

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.73

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.73

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $256.71

22

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.84

23

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.13

23

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $12.10

23

Wiper WPL 2317243 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.21

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.73

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.51

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $5.00

25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.66

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.59

26

Cover, Receiver WPL W10173569 Contact Us For Availability

27

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.75

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $57.82

29

WP2198643 Whirlpool Refrigerator Lens Backorder WPL WP2198643 $2.60

30

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $53.66

30

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.60

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $30.86

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.60

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.89

32

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.60

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.81

34

Clip, Heater WPL 2161324 Contact Us For Availability

35

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $33.29

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $34.85

36

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.84

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.73

38

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $41.72

39

Clip, Heat WPL 2155547 Contact Us For Availability

40

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $30.29

41

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.96

42

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $30.29

43

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.64

100

Ice Container (Complete) WPL W10170129 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $47.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI6001A76 Contact Us For Availability

WPL ARI6002A84 WPL ARI6002A84 Contact Us For Availability
