Model Whirlpool MLG23PDHGW ELECTRIC DRYER – Common Parts & Diagrams
11 - WIRING INFORMATION(GAS)

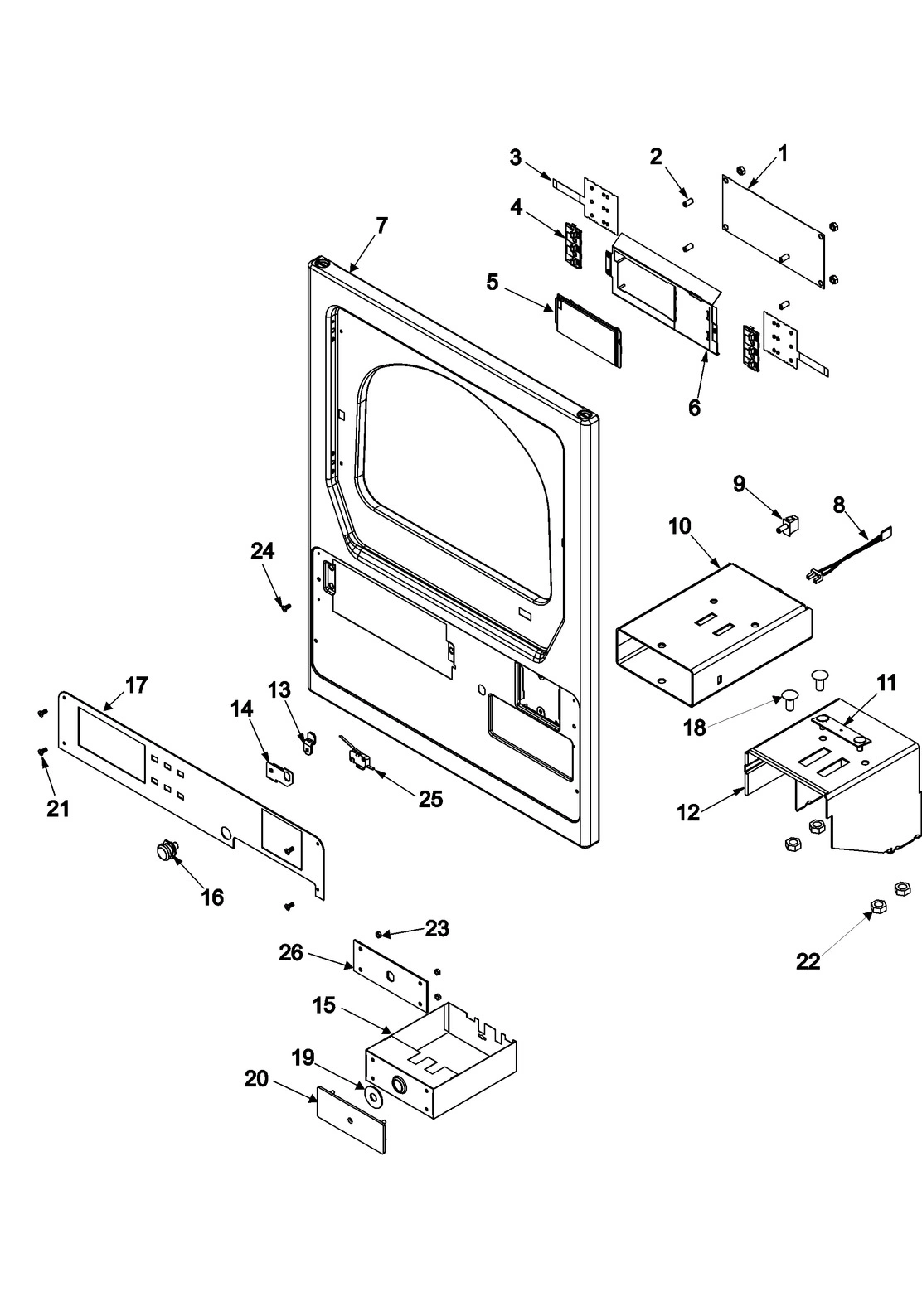

01 - CONTROL PANEL
12 - SERIES 18 WIRING INFO(GAS)
07 - GAS VALVE

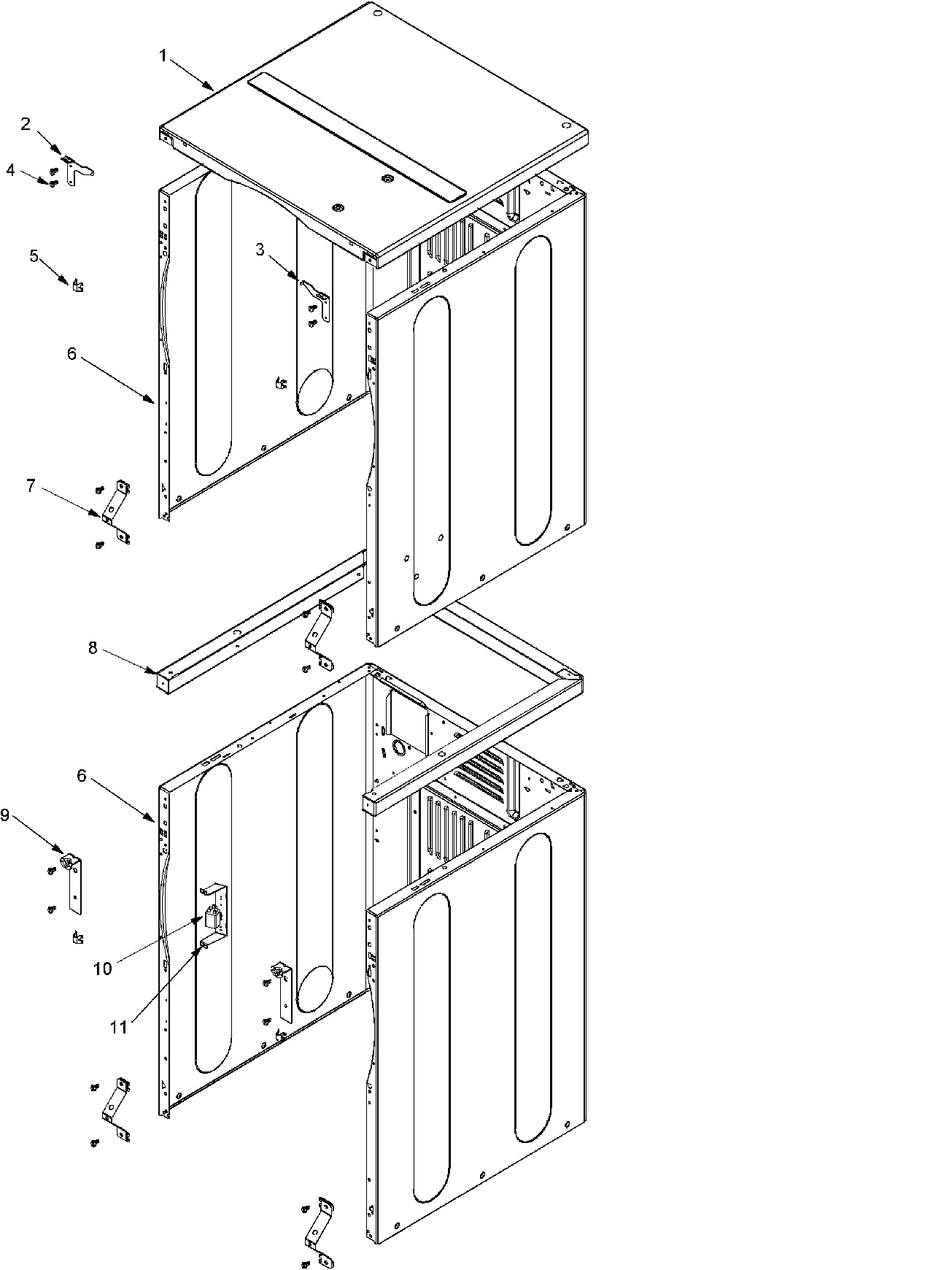

02 - CABINET FRONT

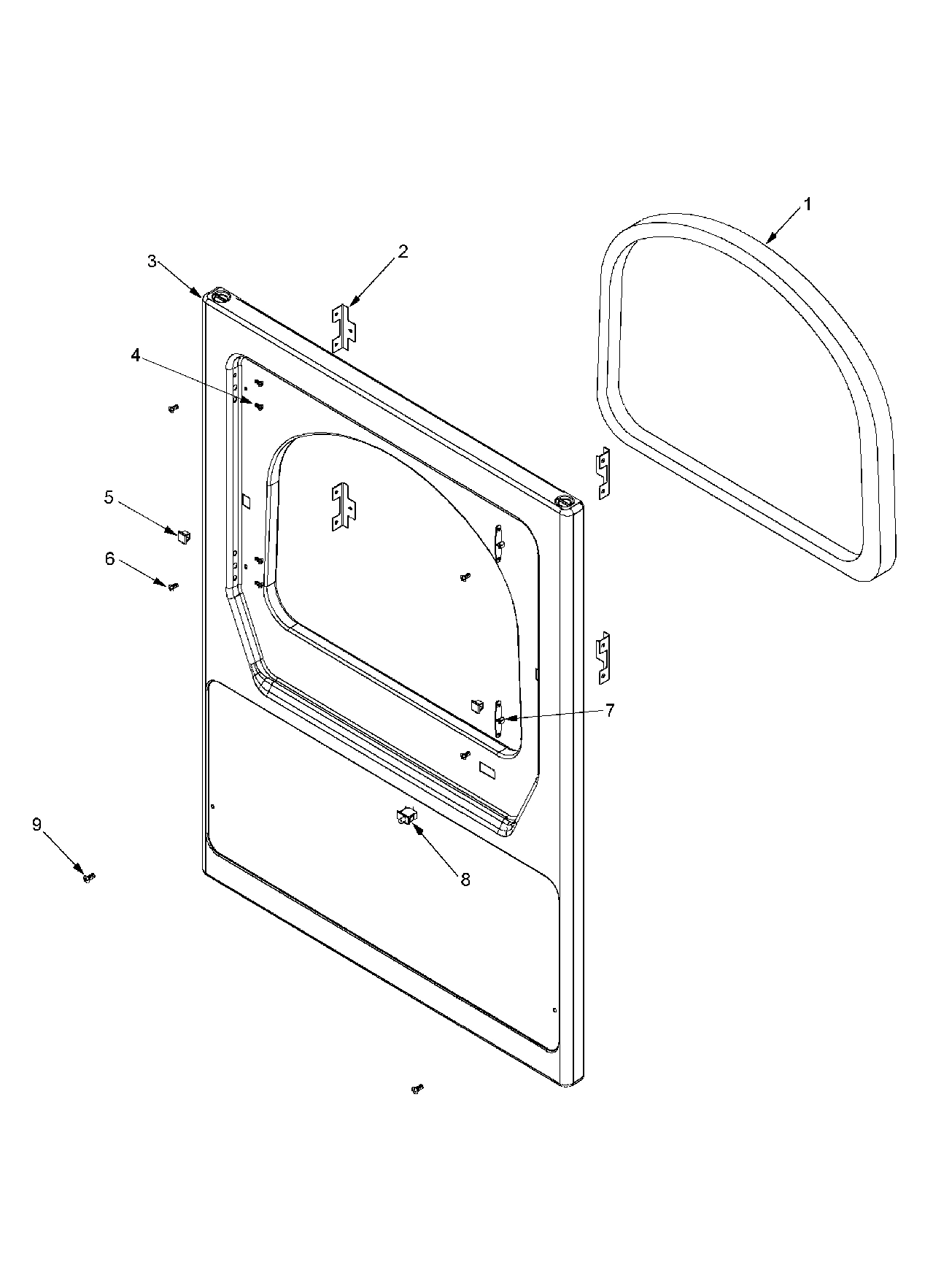

04 - FRONT PANEL

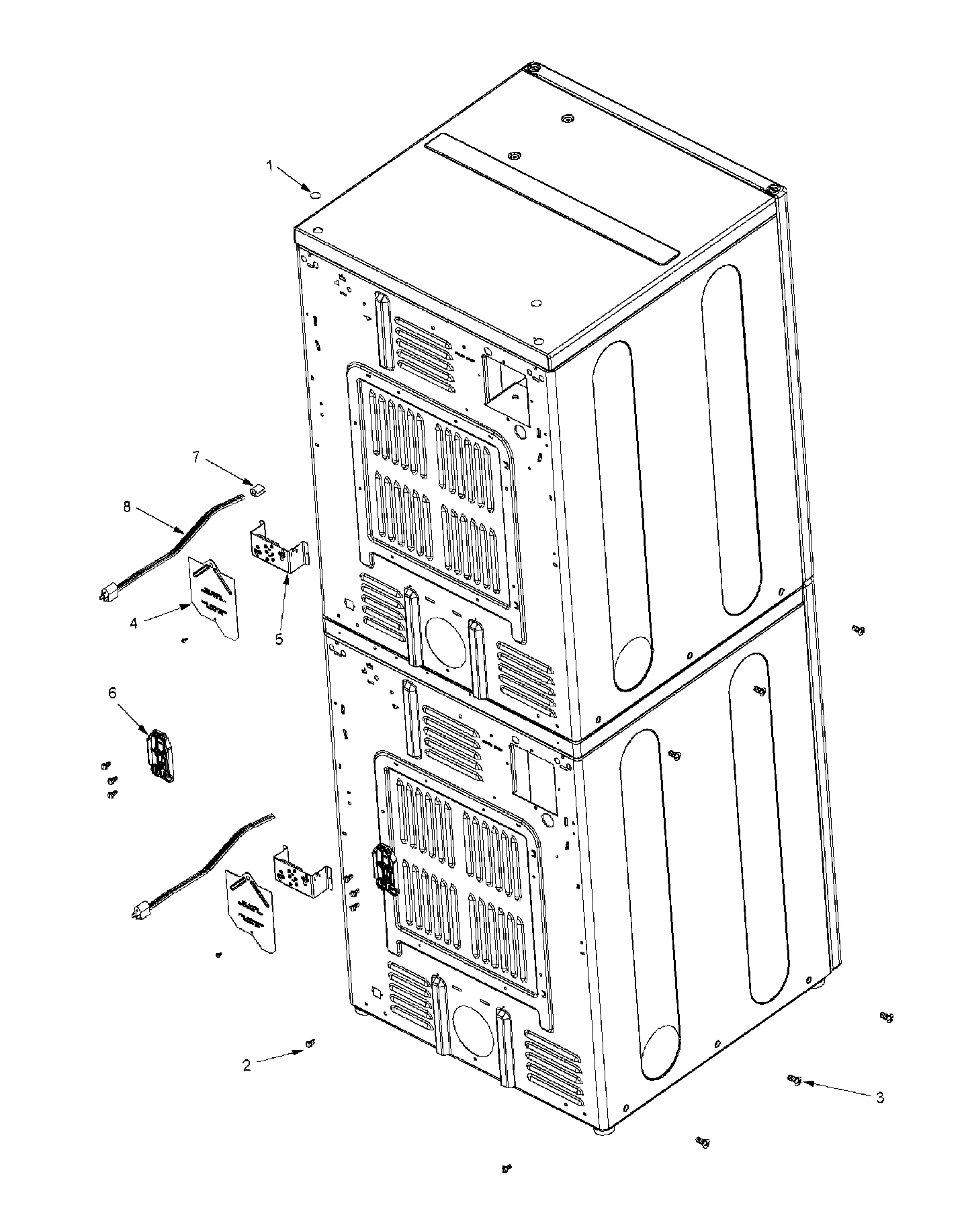

03 - CABINET REAR

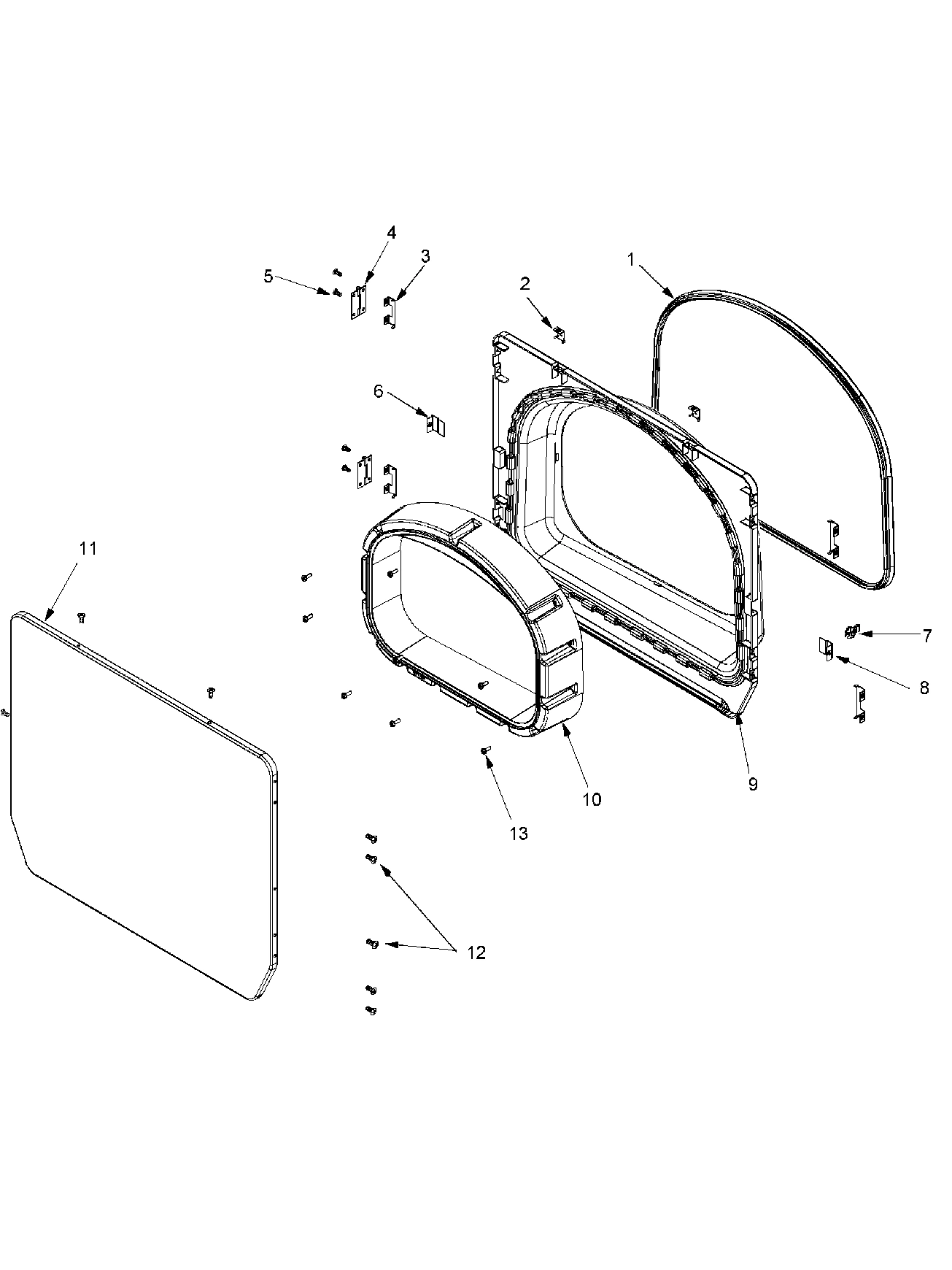

05 - DOOR

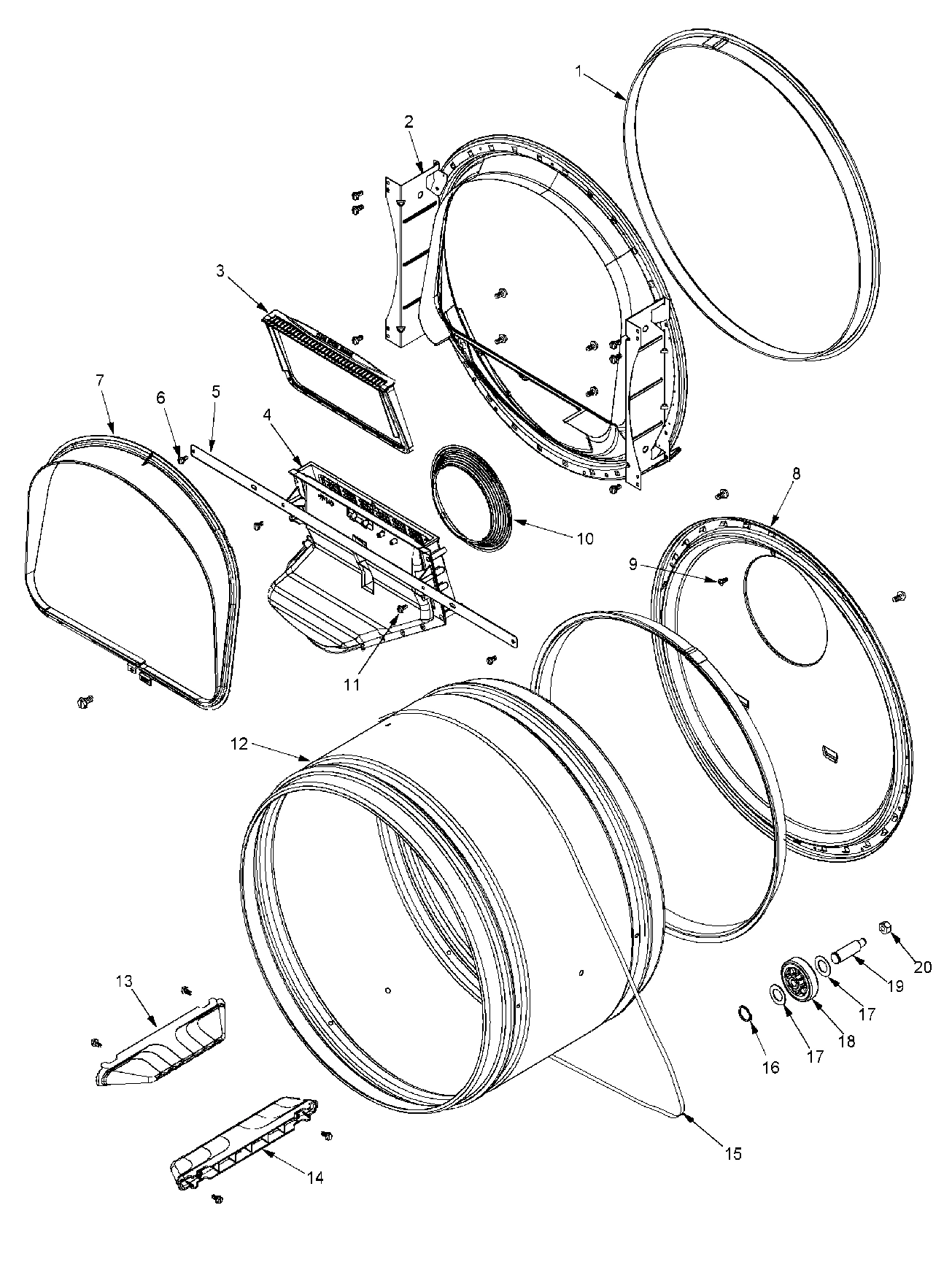

06 - TUMBLER

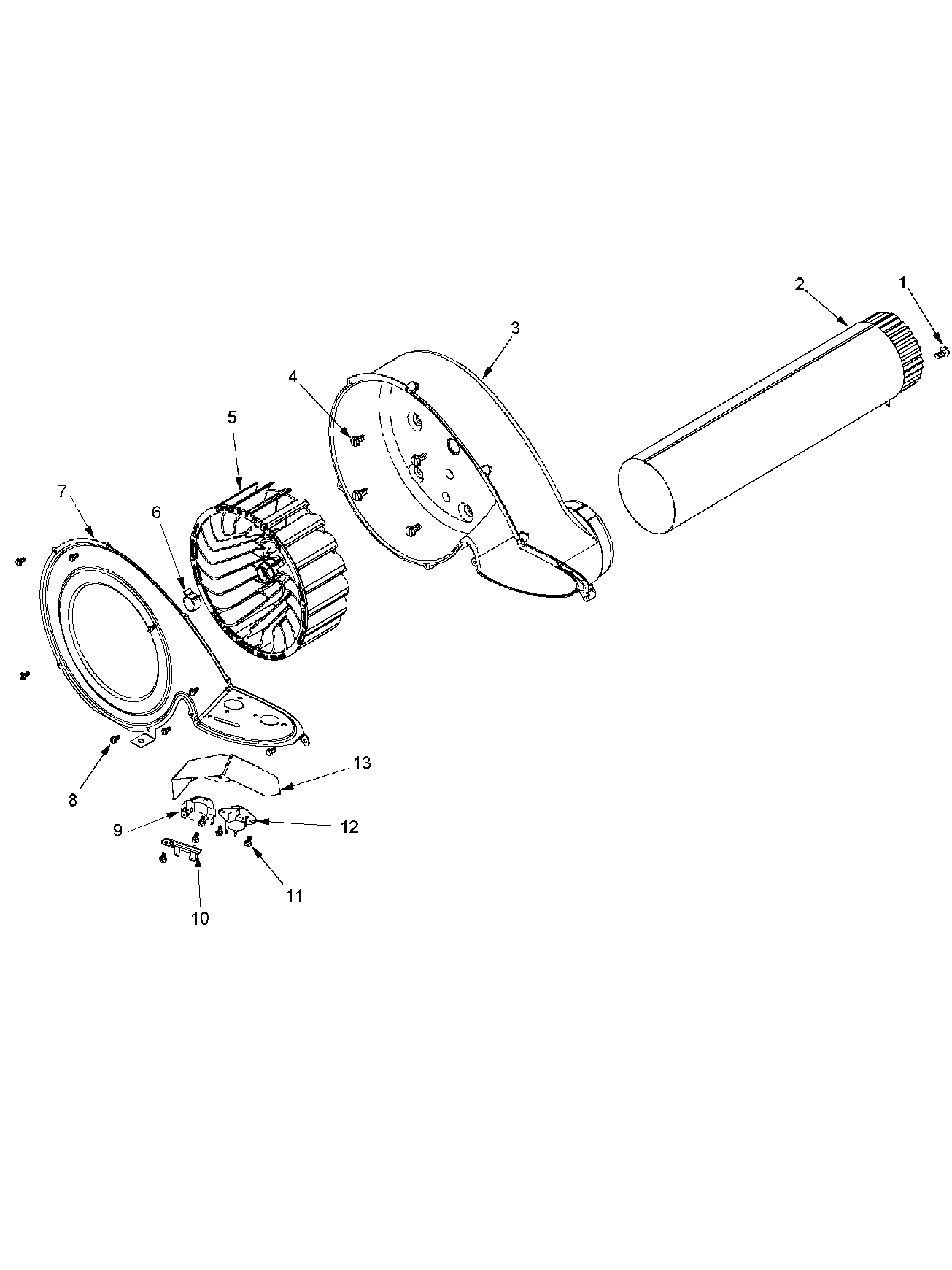

08 - BLOWER
10 - SUPPLEMENTAL INFORMATION

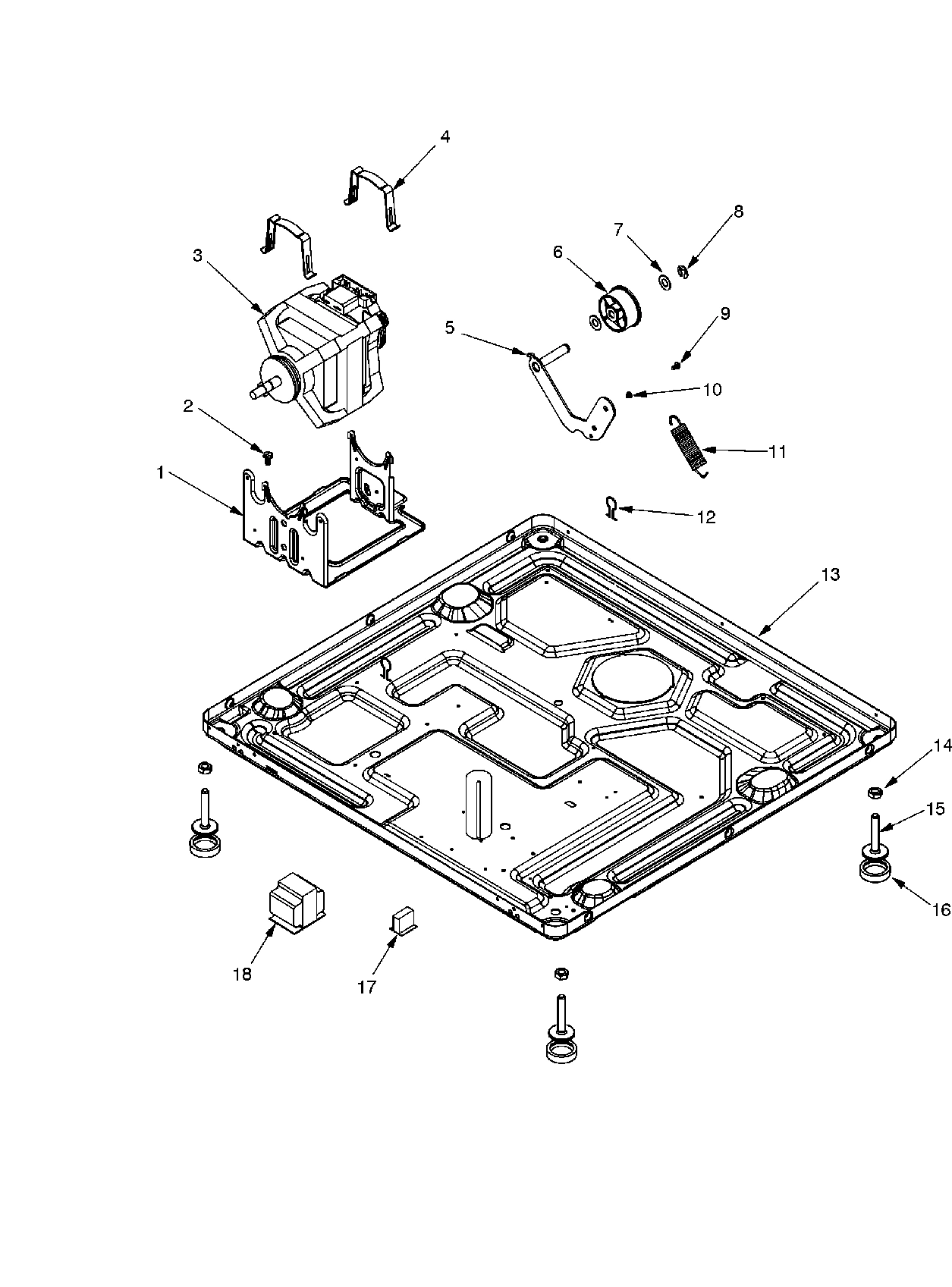

09 - BASE
Common parts from model Whirlpool MLG23PDHGW ELECTRIC DRYER
001
BOARD, CONTROL SUB WPL 33002951 Contact Us For Availability
001
CONTROL BOARD (STACK COMM) WPL 33003008 Contact Us For Availability
001
SCHEMATIC, ELEC PD/GAS/EX WPL 15003940 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33002124 Contact Us For Availability
001
SEAL, SHROUD WPL 33001767 Contact Us For Availability
001
PLUG, HOLE WPL 33001997 Contact Us For Availability
001
HARNESS, WIRE UPPER WPL 33002912 Contact Us For Availability
001
HARNESS, WIRE LOWER WPL 33002913 Contact Us For Availability
001
HARNESS, WIRE UPPER WPL 33002914 Contact Us For Availability
001
HARNESS, WIRE LOWER WPL 33002915 Contact Us For Availability
001
HARN,WIRE UPPER PD GAS-EX WPL 33003040 Contact Us For Availability
001
HARN, WIRE LWR PD GAS EXP WPL 33003041 Contact Us For Availability
001
MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability
002
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
002
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
SCREW----NA WPL Y313561 Contact Us For Availability
002
BRACKET, LH UPPER FRONT PANEL WPL 33002818 Contact Us For Availability
002
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
002
LENS WPL 33002607 Contact Us For Availability
002
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
002
INSTRUCTIONS, OPERATING WPL 33002903 Contact Us For Availability
003
PANEL, FRONT STRAIGHT -PD WPL 33002978 Contact Us For Availability
003
SCREW WPL 304971 Contact Us For Availability
003
BRACKET, RH UPPER FRONT PANEL WPL 33002819 Contact Us For Availability
003
PANEL, FRONT LOWER EXPORT WPL 33002910 Contact Us For Availability
003
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
004
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
004
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
004
SCREW WPL Y310632 Contact Us For Availability
005
CLIP, ACCESS PANEL WPL 33001980 Contact Us For Availability
005
HINGE, DOOR WPL 33002017 Contact Us For Availability
005
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
006
PLATE, CONTROL MOUNTING WPL 33002155 Contact Us For Availability
006
GAS VALVE - 120V-50HZ WPL 307927 Contact Us For Availability
006
BRACKET, REAR SUPPORT WPL 33002829 Contact Us For Availability
006
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
006
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
007
PLATE, COVER WPL 33002510 Contact Us For Availability
007
BRACKET, ``V`` WPL 22002425 Contact Us For Availability
007
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
007
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
007
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
007
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
007
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
008
SCREW WPL 22001402 Contact Us For Availability
008
SUPPORT WELD ASS`Y WPL 33002820 Contact Us For Availability
008
CORD, POWER (EXPORT) WPL 22003540 Contact Us For Availability
008
CORD ADAPTER ASSY WPL 22004405 Contact Us For Availability
008
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
008
TUMBLER BACK & SEAL WPL 33003037 Contact Us For Availability
009
SWITCH, SENSOR - EXPORT WPL 22003064 Contact Us For Availability
009
BRACKET, FRONT LOWER PANEL WPL 33002821 Contact Us For Availability
009
DOOR, INNER (WHT) WPL 33002020 Contact Us For Availability
010
ASSEMBLY, COIN VAULT WPL 33002977 Contact Us For Availability
010
BRACKET, GAS CONTROL WPL 33002710 Contact Us For Availability
010
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
010
RELAY, HEATER WPL 306199 Contact Us For Availability
010
DOOR TUNNEL W` HANDLE (WHT) WPL 33002780 Contact Us For Availability
010
SEAL, BLOWER WPL 33002560 Contact Us For Availability
010
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
011
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
011
LOCK WASHER WPL 910181 Contact Us For Availability
011
RELAY BRACKET WPL 314627 Contact Us For Availability
011
BRACKET, RELAY (UPR) WPL 33002002 Contact Us For Availability
011
DOOR, OUTER W/MED. AS PK WHT T WPL 33002887 Contact Us For Availability
011
SCREW, SHROUD WPL 33001768 Contact Us For Availability
012
BRACKET,VAULT - PRIME WPL 33002974 Contact Us For Availability
012
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
012
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
013
BASE, (LWR)----NA WPL NLA Contact Us For Availability
013
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
013
BASE----NA WPL 33002975 Contact Us For Availability
014
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
016
INLET DUCT ASSEMBLY (GAS) WPL 33002765 Contact Us For Availability
016
ASSY,INLET DUCT-GAS WPL 33003039 Contact Us For Availability
017
FACIA, COMERCIAL PD, D/D WPL 33002976 Contact Us For Availability
018
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
018
TRANSFORMER WPL 33001821 Contact Us For Availability
018
TRANSFORMER WPL 33001948 Contact Us For Availability
019
WASHER,SPINNING SECURITY WPL 33002982 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
020
ASSY, SECURITY PLATE WPL 2206814 Contact Us For Availability
020
ASSY, SECURITY PLATE----SUB WPL 33002979 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
NUT WPL Y052734 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
024
SCREW, TORX WPL 33002051 Contact Us For Availability
025
SWITCH, SENSOR WPL 22002536 Contact Us For Availability
026
LOCK PLATE WPL 2206813 Contact Us For Availability
026
LOCK PLATE----SUB WPL 33002981 Contact Us For Availability
× ![]()
