Model Whirlpool MLG15PDCXQ GAS DRYER – Common Parts & Diagrams

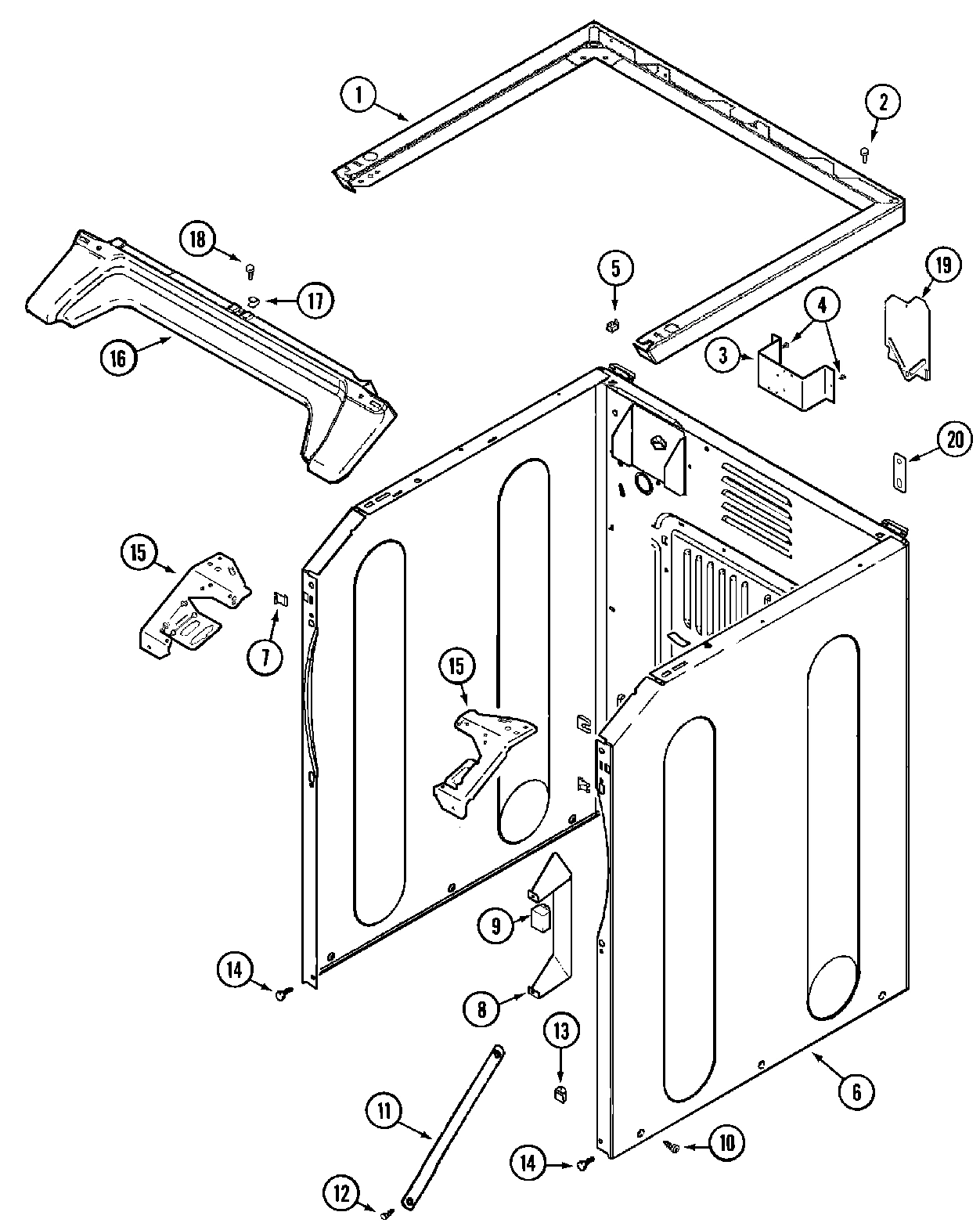

04 - CABINET-FRONT (LOWER)

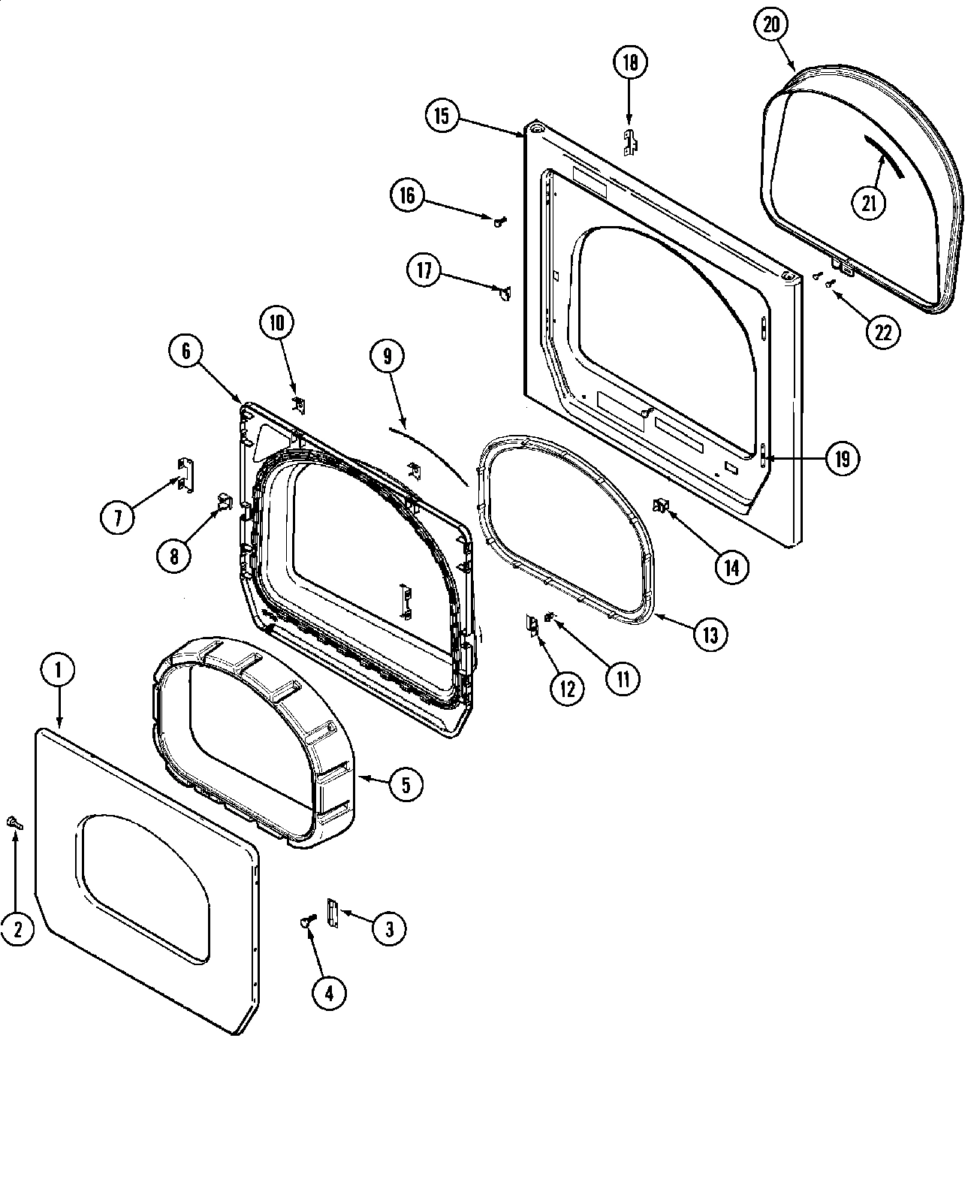

05 - DOOR (UPPER)

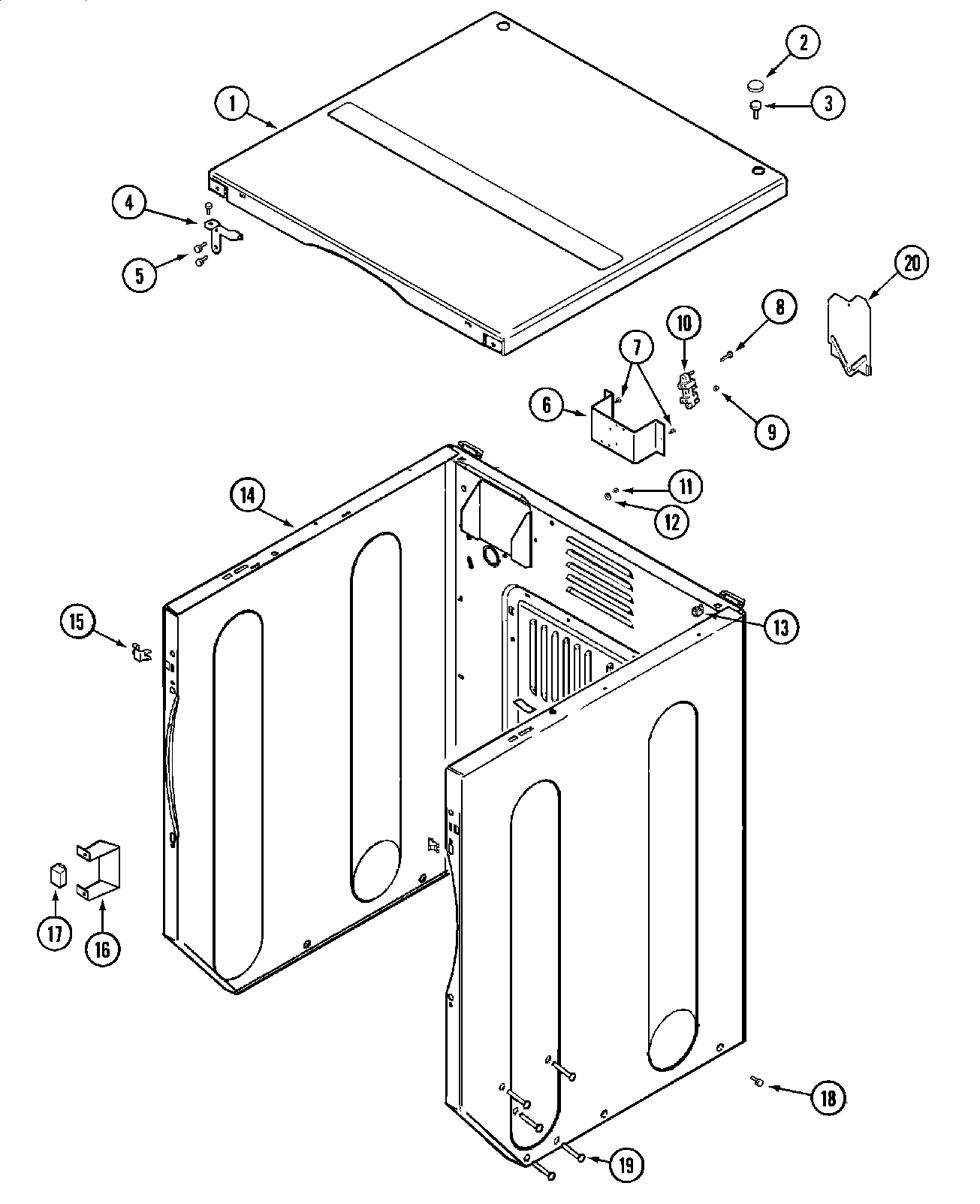

03 - CABINET-FRONT (UPPER)

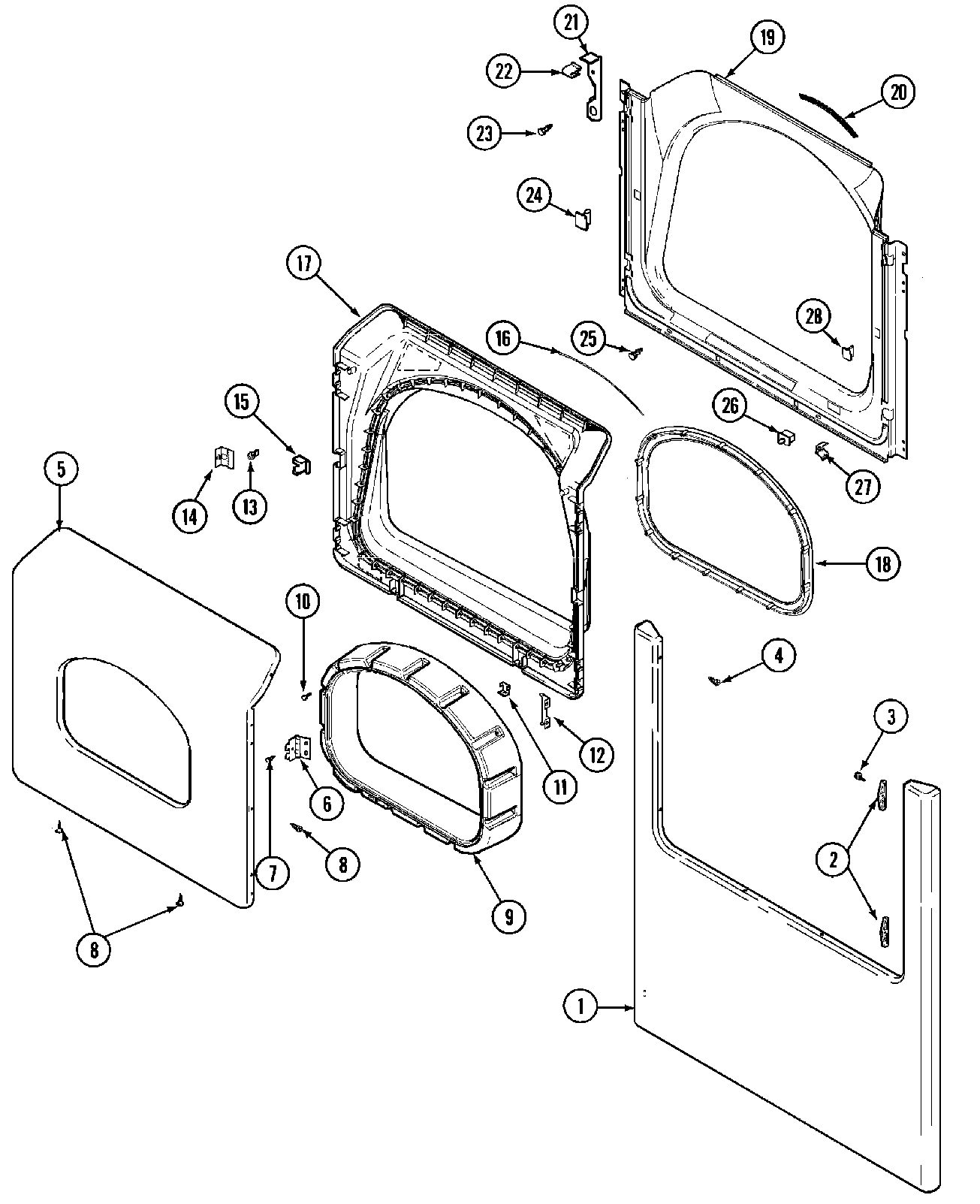

06 - DOOR (LOWER)
02 - CONTROL CENTER (UPPER)
07 - GAS VALVE

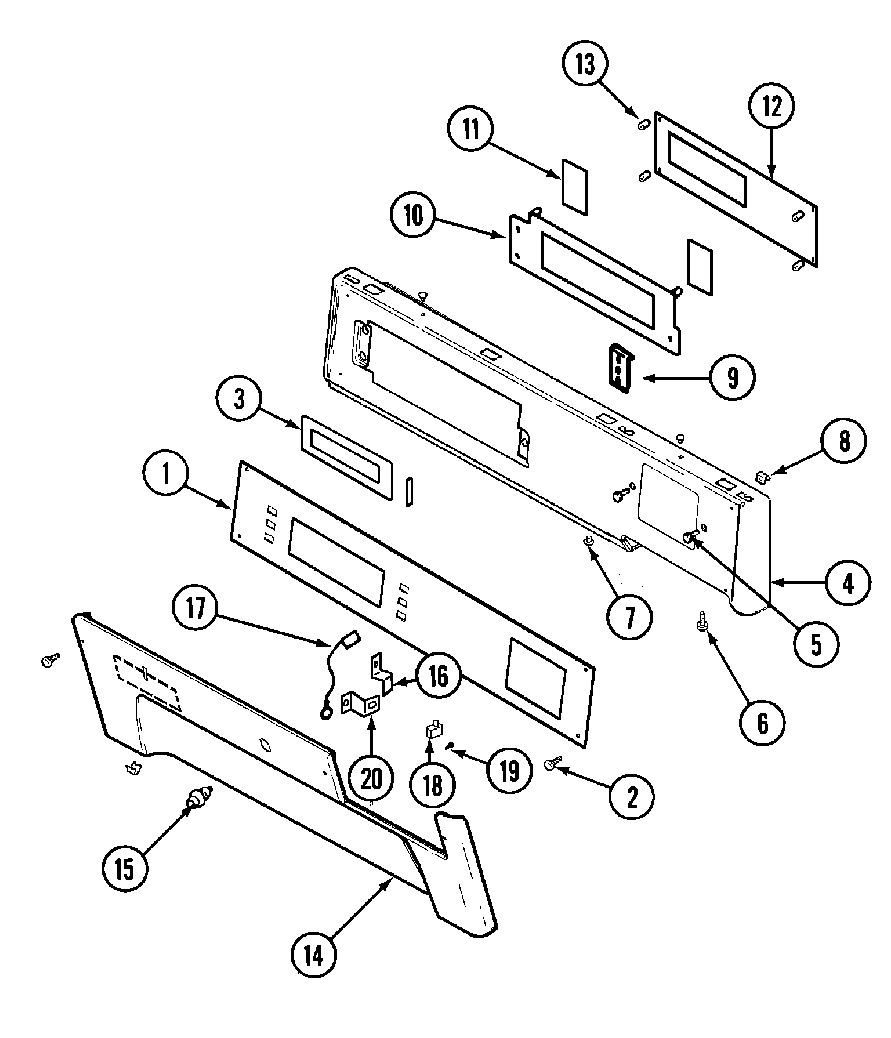

01 - CONTROL PANEL (UPPER)

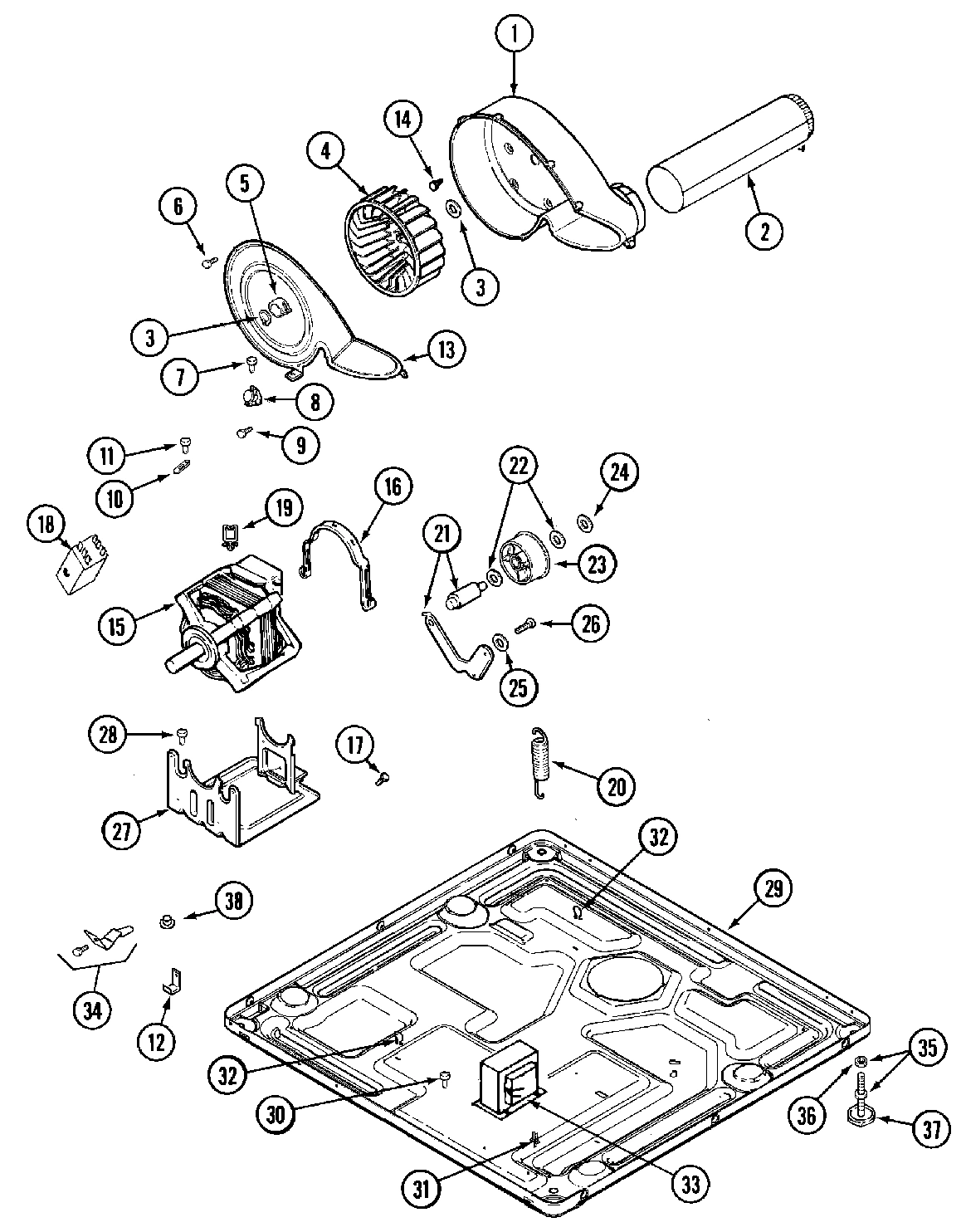

08 - MOTOR DRIVE

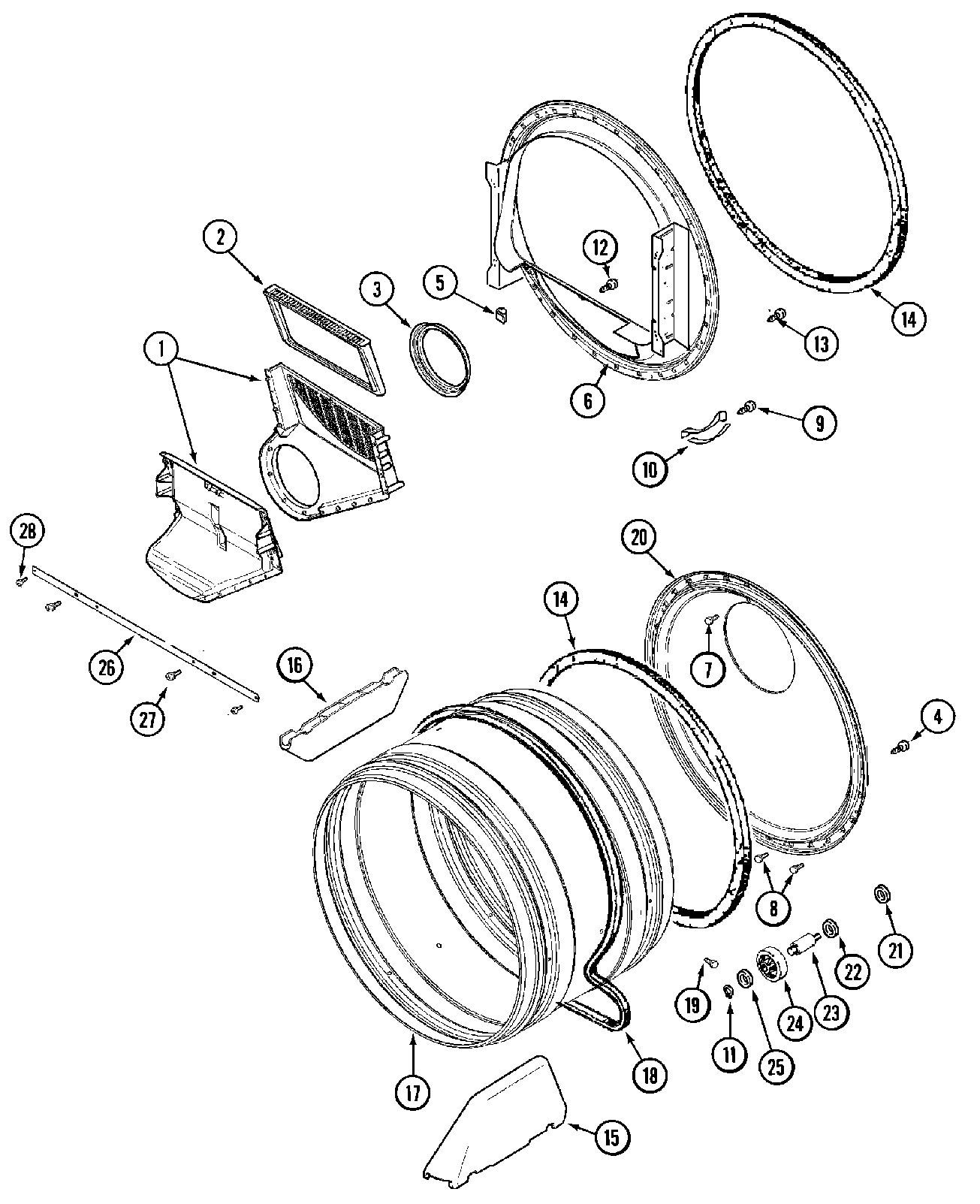

09 - TUMBLER
Common parts from model Whirlpool MLG15PDCXQ GAS DRYER
001
DOOR, OUTER (WHT) WPL 33002015 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33002124 Contact Us For Availability
001
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
001
(ALM) WPL 22002242 Contact Us For Availability
001
(BSQ) WPL 22002663 Contact Us For Availability
001
(ALM) WPL 33001984 Contact Us For Availability
001
(BSQ) WPL 33002443 Contact Us For Availability
001
BOX, COIN (WHT) WPL Y33001983 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
OVERLAY, CONTROL PANEL WPL 33001974 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
002
PLUG, HOLE WPL 33001997 Contact Us For Availability
002
(ALM) WPL 33001765 Contact Us For Availability
002
(BSQ) WPL 33002349 Contact Us For Availability
002
(ALM) WPL 33001987 Contact Us For Availability
002
(BSQ) WPL 33002444 Contact Us For Availability
002
VAULT, COIN (WHT) WPL Y33001986 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
003
HINGE, DOOR WPL 33002017 Contact Us For Availability
003
SCREW, TOP COVER WPL 22001883 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
COVER, DISPLAY WPL 33001209 Contact Us For Availability
003
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
BRACKET, TOP COVER (LT) WPL 33001998 Contact Us For Availability
004
(RT) WPL 33001999 Contact Us For Availability
004
PANEL, CONTROL (WHT) WPL 33001975 Contact Us For Availability
004
(ALM) WPL 33001976 Contact Us For Availability
004
FASTENER CLIP, CONTROL PANEL WPL 33002003 Contact Us For Availability
004
(BSQ) WPL 33002377 Contact Us For Availability
004
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
005
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
005
DOOR, OUTER (WHT) WPL 33002028 Contact Us For Availability
005
NUT, CARRAGE BOLTS & BRACKET WPL Y052734 Contact Us For Availability
005
SCREW, CONTROL PANEL WPL 910186 Contact Us For Availability
006
FRONT, TUMBLER (W/SEAL) (INCL. SENSOR/ LIGHT WPL 33001802 Contact Us For Availability
006
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
006
DOOR, INNER (WHT) WPL 33002020 Contact Us For Availability
006
PLUG, HOLE (UPR) WPL 33002056 Contact Us For Availability
007
CHUTE, COIN WPL 314635 Contact Us For Availability
007
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
007
(ALM) WPL 33001168 Contact Us For Availability
007
(BSQ) WPL 33002342 Contact Us For Availability
007
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
008
BRACKET, RELAY WPL 314627 Contact Us For Availability
008
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
008
(BSQ) WPL 33002351 Contact Us For Availability
008
FASTENER, CONTROL PANEL WPL 33001977 Contact Us For Availability
008
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
009
(ALM) WPL 33002019 Contact Us For Availability
010
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
010
PLATE, CONTROL MOUNTING WPL 33001201 Contact Us For Availability
011
BRACE, CROSS WPL 22002259 Contact Us For Availability
011
RETAINER, WIRE WPL 33001989 Contact Us For Availability
011
CLIP, INNER DOOR WPL 22002039 Contact Us For Availability
012
SCREW, OUTLET DUCT (PHILLIPS) WPL NLA Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
012
FASTENER, GROUND LUG WPL 310933 Contact Us For Availability
012
BRACKET, MOUNTING VAULT WPL 33001990 Contact Us For Availability
012
CIRCUIT BOARD ASSEMBLY WPL 33001747 Contact Us For Availability
012
CLIP, FRONT PANEL (LWR-BASE) WPL 22002239 Contact Us For Availability
013
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
013
LENS WPL 33002607 Contact Us For Availability
013
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
013
VALVE, ANGLE GAS WPL 306086 Contact Us For Availability
013
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
CABINET ASSY. (WHT. AS PK) WPL 22003646 Contact Us For Availability
014
FASTENER, ACCESS PANEL WPL 33001980 Contact Us For Availability
014
BUTTON, RETURN WPL 216200 Contact Us For Availability
014
COIN DROP ASY (CAN) WPL 22001875 Contact Us For Availability
014
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
014
DUAL FACEPLATE WPL 22003815 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
PANEL, ACCESS (WHT) WPL 33001978 Contact Us For Availability
014
(ALM) WPL 33001979 Contact Us For Availability
014
CLIP, FASTENER WPL 33002004 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BRACKET, CORNER (LT) WPL 33002009 Contact Us For Availability
015
(RT) WPL 33002010 Contact Us For Availability
015
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
015
NAMEPLATE WPL 33001711 Contact Us For Availability
015
SCREW, FRONT PANEL WPL 33002051 Contact Us For Availability
015
PANEL, FRONT (WHT) WPL 33002130 Contact Us For Availability
015
(ALM) WPL 33002131 Contact Us For Availability
015
(BSQ) WPL 33002381 Contact Us For Availability
015
SWITCH, OPTIC WPL 33001985 Contact Us For Availability
016
SCREW, RELAY BRACKET WPL Y310632 Contact Us For Availability
016
COVER, ACCESS (BSQ) WPL 22002664 Contact Us For Availability
016
(WHT) WPL 33002011 Contact Us For Availability
016
(ALM) WPL 33002012 Contact Us For Availability
016
BRACKET, RELAY (UPR) WPL 33002002 Contact Us For Availability
016
BRACKET, MOUNTING (WHT) WPL 33001992 Contact Us For Availability
016
(ALM) WPL 33001993 Contact Us For Availability
016
(BSQ) WPL 33002445 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
017
TUMBLER WPL 33001889 Contact Us For Availability
017
RELAY WPL 206824 Contact Us For Availability
017
FASTENER, ACCESS COVER WPL 33002013 Contact Us For Availability
017
DOOR, INNER (LWR-WHT) WPL 33002030 Contact Us For Availability
017
(LWR-ALM) WPL 33002031 Contact Us For Availability
017
WASHER, LOCK WPL 910181 Contact Us For Availability
017
WIRE, GROUND WPL 33001981 Contact Us For Availability
018
LENS WPL 33002022 Contact Us For Availability
018
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
019
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
019
(ALM) WPL 33001176 Contact Us For Availability
019
(BSQ) WPL 33002343 Contact Us For Availability
019
SHROUD (WHT) WPL 33002033 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
SCREW WPL 912012 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
019
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
020
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
020
BRACKET, SECURITY WPL 33002060 Contact Us For Availability
020
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
020
SEAL, SHROUD WPL 33001767 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
020
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
020
GROMMET WPL 33002157 Contact Us For Availability
020
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
020
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
021
WIRE HARNESS, MAIN (LWR) WPL 33002064 Contact Us For Availability
021
KIT, ACCESS COVER HOOK WPL 22002991 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
WIRE HARNESS, MAIN (UPR) WPL 33002063 Contact Us For Availability
022
FASTENER, ACCESS COVER HOOK WPL 33002037 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
023
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
026
SWITCH, DOOR (LWR) WPL 33002038 Contact Us For Availability
026
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
027
SCREW, BRACE (No.8) WPL 33001768 Contact Us For Availability
027
BRACKET, HINGE WPL 33001760 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
028
SCREW, MOTOR SUPPORT WPL Y313561 Contact Us For Availability
029
BASE (UPR) WPL 33002041 Contact Us For Availability
029
FASTENER, PUSH (UPR) WPL 33002048 Contact Us For Availability
029
PROTECTOR, HARNESS (UPR) WPL 33002050 Contact Us For Availability
029
BASE (UPR) WPL 33002467 Contact Us For Availability
031
RETAINER, WIRE WPL 315471 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
SHIELD, TRANSFORMER (LWR) WPL 315218 Contact Us For Availability
033
TRANSFORMER (LWR) WPL 33001205 Contact Us For Availability
034
WPL 22002244 WPL 22002244 Contact Us For Availability
034
WPL 33002042 WPL 33002042 Contact Us For Availability
034
WPL 33002043 WPL 33002043 Contact Us For Availability
038
WPL 33002044 WPL 33002044 Contact Us For Availability
× ![]()
