Model Maytag MLE24PNAGW2 ELECTRIC DRYER – Common Parts & Diagrams

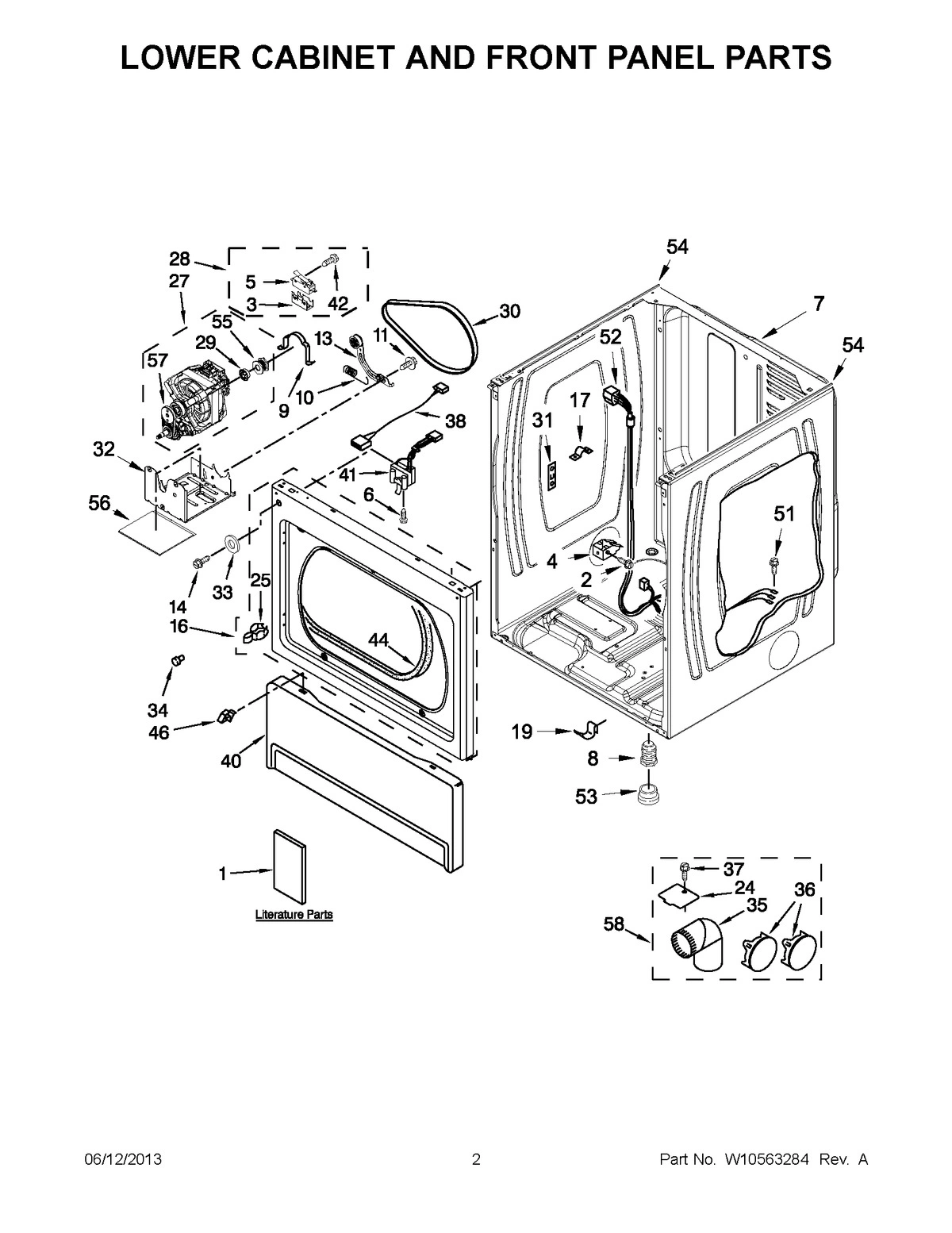

01 - LOWER CABINET AND FRONT PANEL PARTS

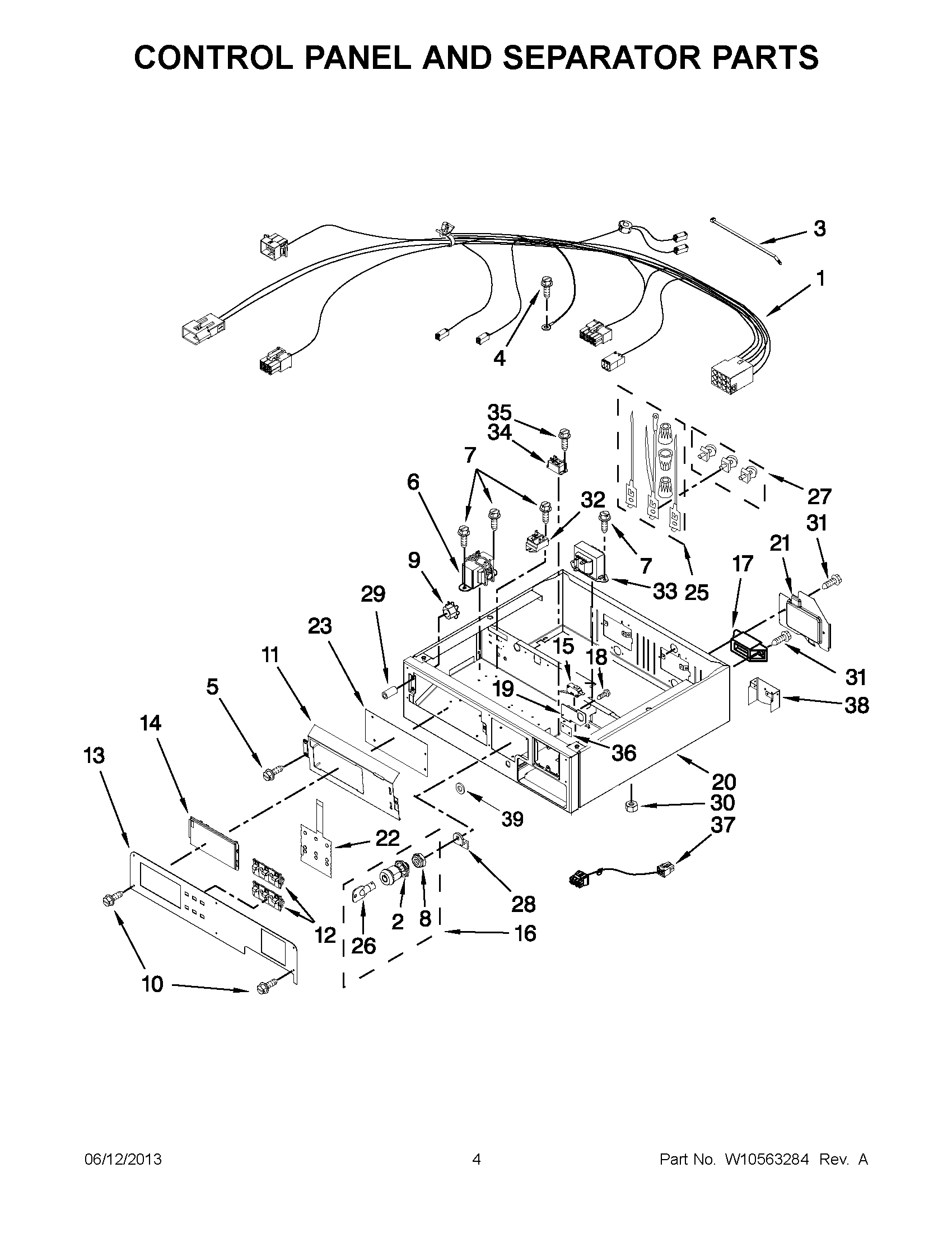

02 - CONTROL PANEL AND SEPARATOR PARTS

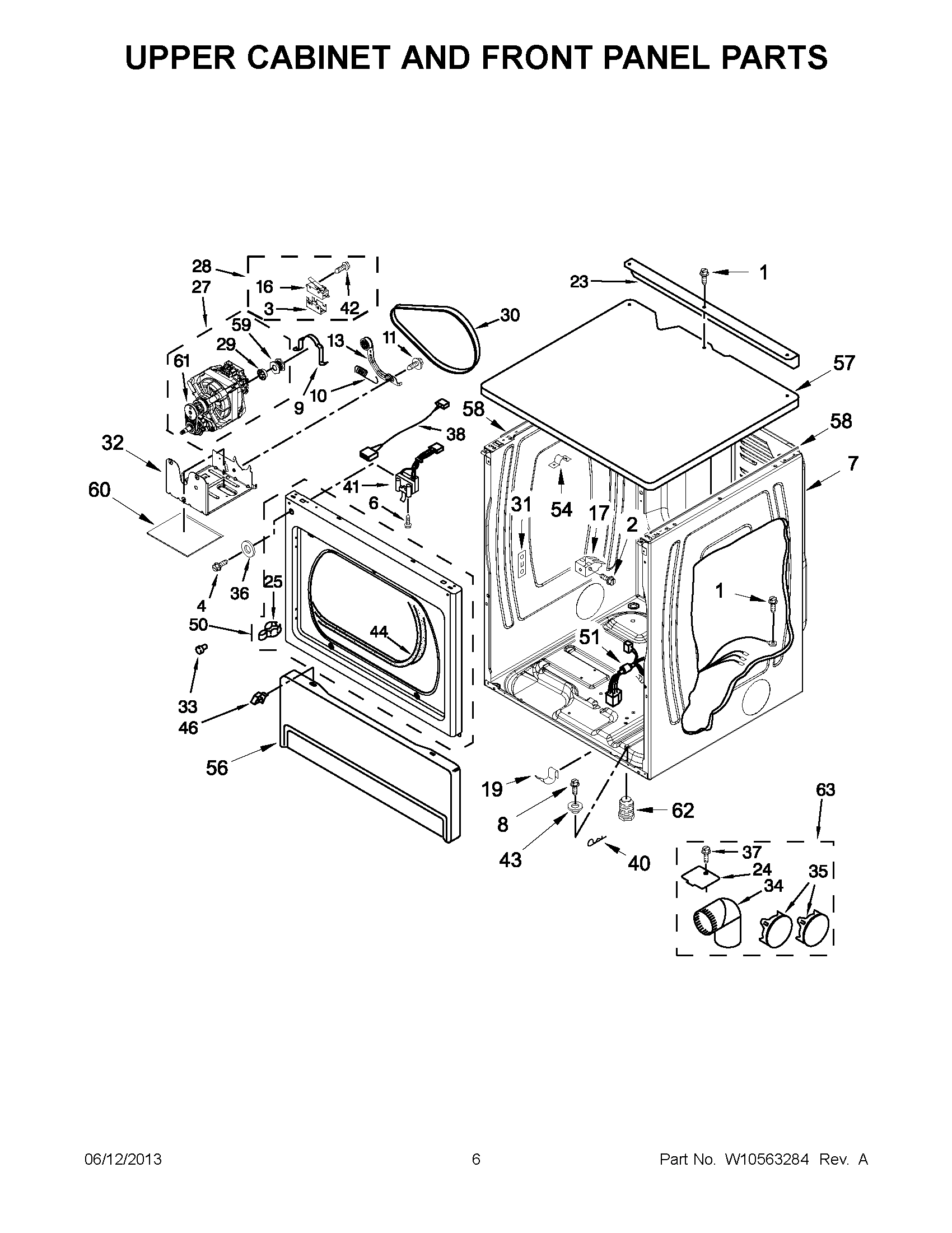

03 - UPPER CABINET AND FRONT PANEL PARTS

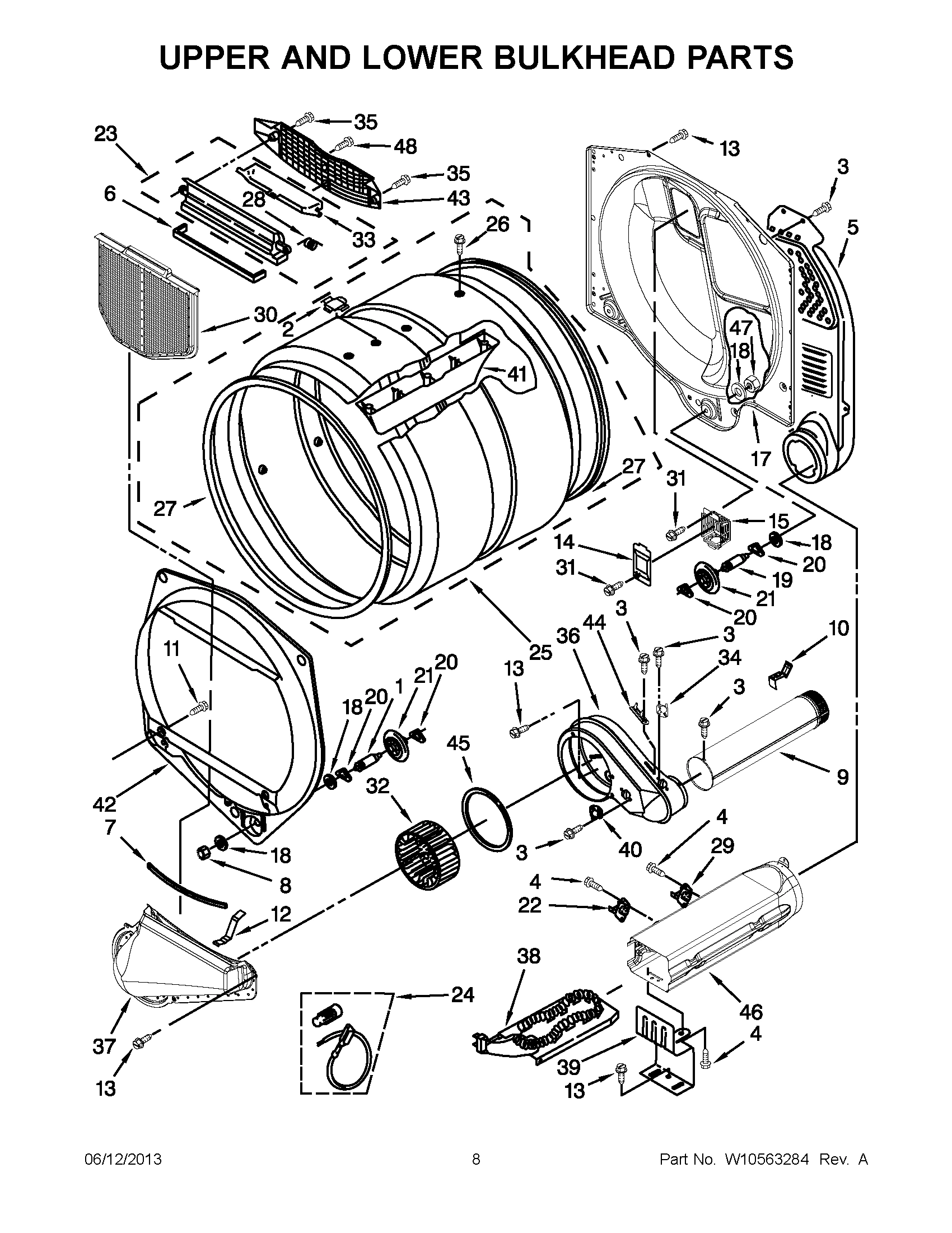

04 - UPPER AND LOWER BULKHEAD PARTS

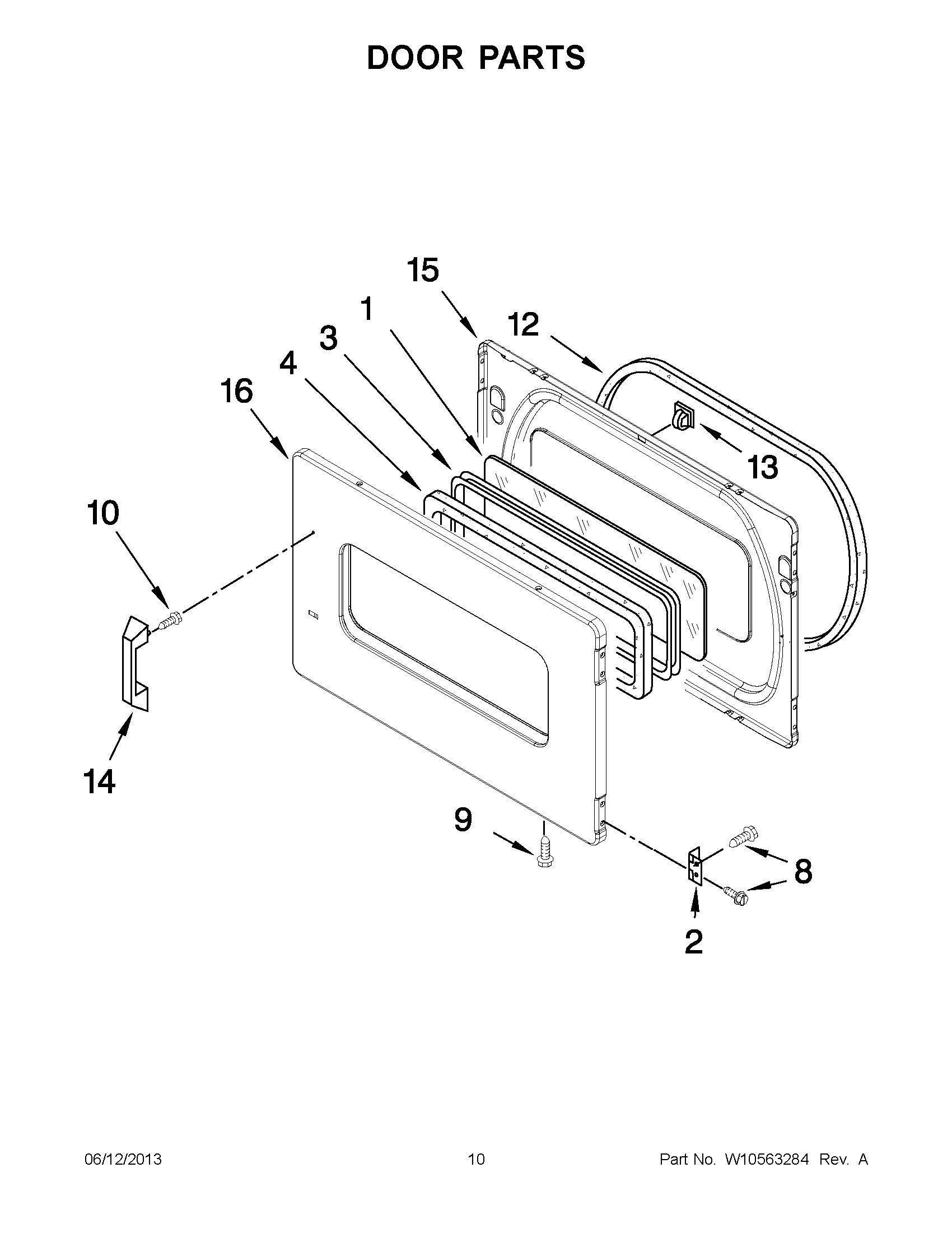

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE24PNAGW2 ELECTRIC DRYER
1
MAY W10184545 MAY W10184545 Contact Us For Availability
1
MAY W10184546 MAY W10184546 Contact Us For Availability
1
MAY W10169694 MAY W10169694 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
WINDOW MAY 3392918 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
CAP, PLUG MAY W10128544 Contact Us For Availability
2
ASSEMBLY, HINGE AND PIN MAY W10279703 Contact Us For Availability
3
MAY 8564011 MAY 8564011 Contact Us For Availability
3
MAY 8529895 MAY 8529895 Contact Us For Availability
3
Screw MAY 693995 Contact Us For Availability
3
MAY 3392914 MAY 3392914 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 8533974 MAY 8533974 Contact Us For Availability
4
MAY 3392915 MAY 3392915 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY W10237957 MAY W10237957 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
Screw MAY 8533971 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
BOLT, SECURITY MAY 3400523 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY 342055 MAY 342055 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
SCREW MAY W10080300 Contact Us For Availability
9
MAY W10121167 MAY W10121167 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10386302 MAY W10386302 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
10
Screw MAY 9742177 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10163677 MAY W10163677 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
12
BUTTON, PUSH MAY W10131113 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
12
MAY 3390735 MAY 3390735 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
MAY W10135193 MAY W10135193 Contact Us For Availability
13
Screw MAY 489463 Contact Us For Availability
13
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
14
MAY W10133268 MAY W10133268 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
14
MAY W10213202 MAY W10213202 Contact Us For Availability
15
MAY W10133281 MAY W10133281 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
15
MAY W10323063 MAY W10323063 Contact Us For Availability
16
ASSEMBLY, SWITCH & ACTUATOR MAY W10410873 Contact Us For Availability
16
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
16
MAY W10322548 MAY W10322548 Contact Us For Availability
17
Clip, Front Panel MAY 3391846 Contact Us For Availability
17
MAY W10237321 MAY W10237321 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
MAY 3400408 MAY 3400408 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY W10160652 MAY W10160652 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY W10165714 MAY W10165714 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10196677 MAY W10196677 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10133278 MAY W10133278 Contact Us For Availability
22
THERMOSTAT MAY W10168175 Contact Us For Availability
23
MAY W10167611 MAY W10167611 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
24
MAY 3394331 MAY 3394331 Contact Us For Availability
24
MAY 279457 MAY 279457 Contact Us For Availability
25
MAY 696144 MAY 696144 Contact Us For Availability
25
MAY 279318 MAY 279318 Contact Us For Availability
25
MAY W10545922 MAY W10545922 Contact Us For Availability
26
Key, Access Door MAY W10140858 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
ASSEMBLY, MOTOR 50 HZ. MAY W10289662 Contact Us For Availability
27
MAY 279393 MAY 279393 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
28
MAY W10233256 MAY W10233256 Contact Us For Availability
28
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
29
MAY 3393657 MAY 3393657 Contact Us For Availability
29
Standoff, Circuit Board MAY W10133514 Contact Us For Availability
29
CUT-OFF, THERMAL MAY W10141623 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10596627 MAY W10596627 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 3390647 Contact Us For Availability
31
SCREW MAY 3400000 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10133335 MAY W10133335 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
TRANSFORMER, 240 - 120 VAC MAY W10237958 Contact Us For Availability
33
MAY W10181925 MAY W10181925 Contact Us For Availability
34
ELBOW (4``) MAY 279731 Contact Us For Availability
34
MAY W10258680 MAY W10258680 Contact Us For Availability
34
THERMOSTAT, CYCLING (140F) MAY W10194158 Contact Us For Availability
35
MULTIVENT PLUG (WHITE) MAY 49252 Contact Us For Availability
35
SCREW MAY 3387230 Contact Us For Availability
36
MAY W10223794 MAY W10223794 Contact Us For Availability
36
MAY W10151156 MAY W10151156 Contact Us For Availability
36
MAY W10119255 MAY W10119255 Contact Us For Availability
37
MAY 488729 MAY 488729 Contact Us For Availability
37
MAY W10111027 MAY W10111027 Contact Us For Availability
37
ASSEMBLY, LINT DUCT MAY W10286419 Contact Us For Availability
38
MAY W10231861 MAY W10231861 Contact Us For Availability
38
MAY W10192090 MAY W10192090 Contact Us For Availability
38
Element, Heater MAY 3387749 Contact Us For Availability
39
MAY 2006252 MAY 2006252 Contact Us For Availability
39
MAY W10119253 MAY W10119253 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
THERMOSTAT, ELECTRONIC (155F) MAY W10206206 Contact Us For Availability
41
MAY W10237959 MAY W10237959 Contact Us For Availability
41
Baffle, Drum MAY 697693 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
42
MAY 697557 MAY 697557 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
43
MAY W10181926 MAY W10181926 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
LIMITER, THERMAL (192F) MAY W10167627 Contact Us For Availability
45
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
47
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
48
SCREW MAY 695240 Contact Us For Availability
50
UPPER FRONT PANEL MAY W10234293 Contact Us For Availability
51
MAY W10386324 MAY W10386324 Contact Us For Availability
52
MAY W10386325 MAY W10386325 Contact Us For Availability
53
MAY 3391943 MAY 3391943 Contact Us For Availability
54
Clip MAY 98997 Contact Us For Availability
56
MAY 697215 MAY 697215 Contact Us For Availability
57
TOP (WHITE) MAY 3389351 Contact Us For Availability
58
Seal, Foam MAY 8318396 Contact Us For Availability
59
MAY W10167237 MAY W10167237 Contact Us For Availability
60
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
61
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
62
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
63
MAY 279818 MAY 279818 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
× ![]()
