Model Maytag MLE24PDAGW1 ELECTRIC DRYER – Common Parts & Diagrams
01 - LOWER CABINET AND FRONT PANEL PARTS
02 - CONTROL PANEL AND SEPARATOR PARTS

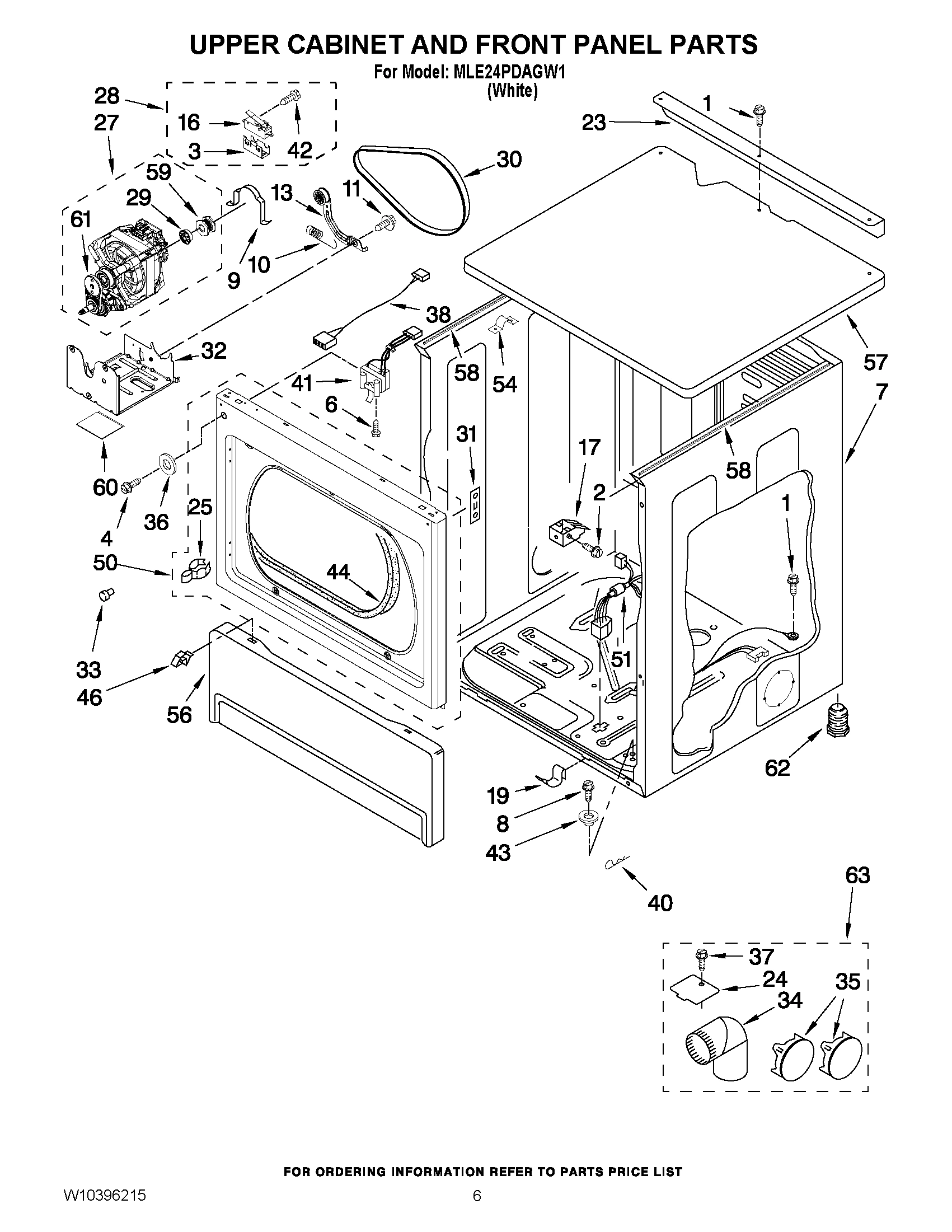

03 - UPPER CABINET AND FRONT PANEL PARTS

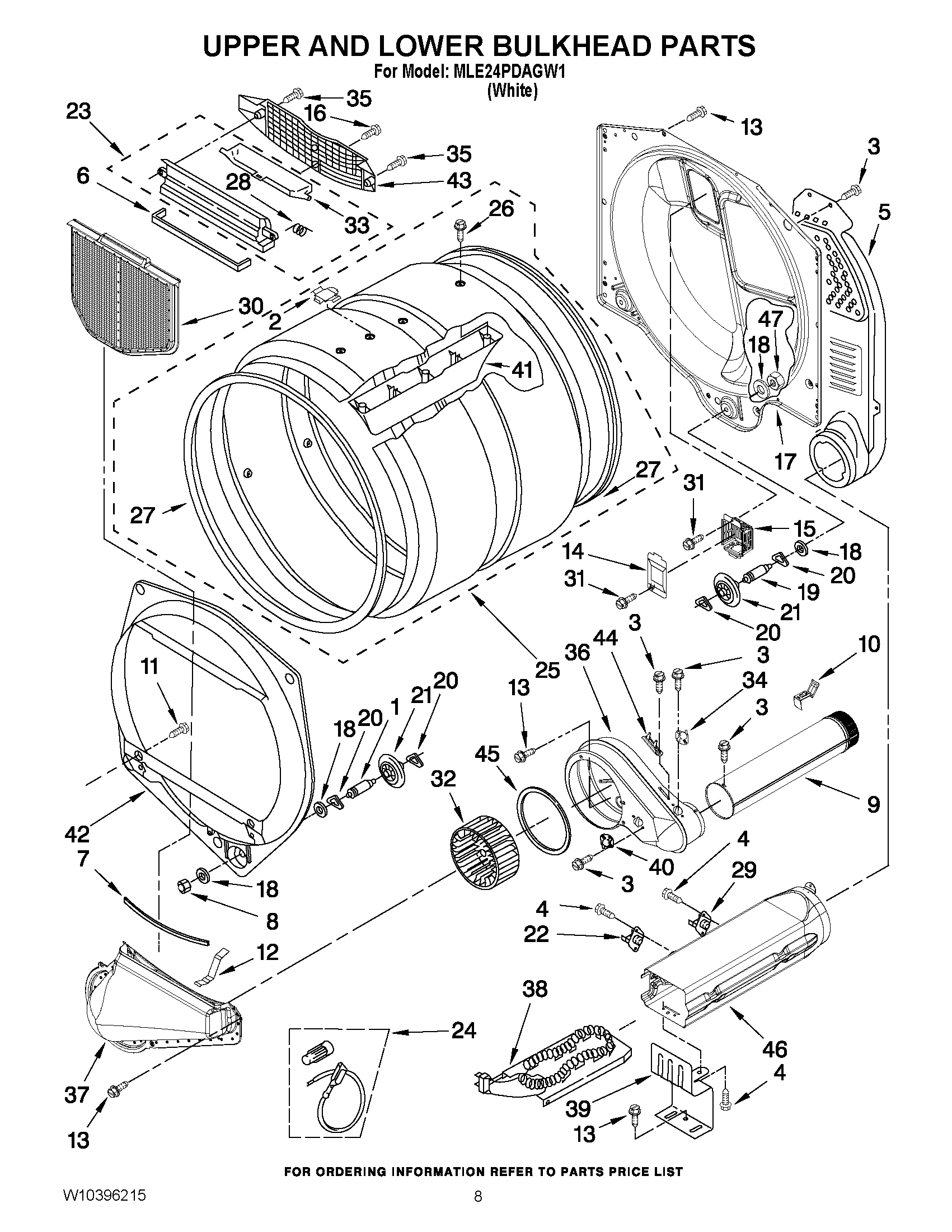

04 - UPPER AND LOWER BULKHEAD PARTS

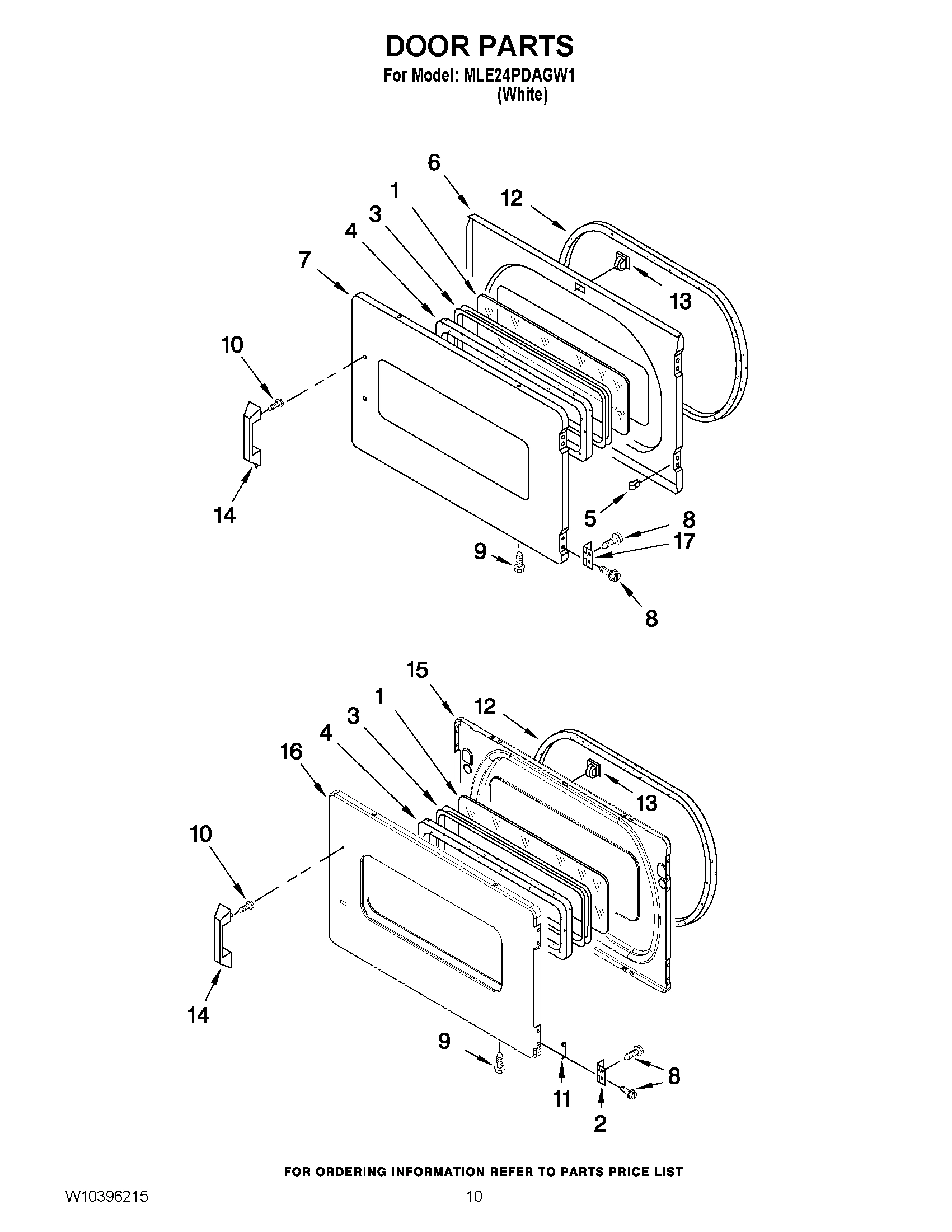

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE24PDAGW1 ELECTRIC DRYER
1
MAY W10184545 MAY W10184545 Contact Us For Availability
1
MAY W10184546 MAY W10184546 Contact Us For Availability
1
MAY W10396215 MAY W10396215 Contact Us For Availability
1
MAY W10169691 MAY W10169691 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
WINDOW MAY 3392918 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
Hex Nut, 3/4-27 MAY W10139762 Contact Us For Availability
2
DRUM CAPLUG MAY W10128544 Contact Us For Availability
2
HINGE & PIN MAY W10279703 Contact Us For Availability
3
MAY 8564011 MAY 8564011 Contact Us For Availability
3
MAY 8529895 MAY 8529895 Contact Us For Availability
3
Screw MAY 693995 Contact Us For Availability
3
MAY 3392914 MAY 3392914 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
SCREW MAY 697776 Contact Us For Availability
4
MAY 3392915 MAY 3392915 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
5
U NUT MAY 3389249 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY W10237957 MAY W10237957 Contact Us For Availability
6
FOAM-SEAL MAY 697813 Contact Us For Availability
6
INNER DOOR MAY W10205622 Contact Us For Availability
7
Cabinet, Lower MAY 8310656 Contact Us For Availability
7
MAY 8533971 MAY 8533971 Contact Us For Availability
7
MAY 3978859 MAY 3978859 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
OUTER DOOR MAY W10205649 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
Hex-Nut 9/32 - 28 MAY W10177242 Contact Us For Availability
8
5/16-18 X 1.00 MAY 3400523 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
MAY 342055 MAY 342055 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
NUT, 6-32 MAY W10139046 Contact Us For Availability
9
SCREW MAY W10080300 Contact Us For Availability
9
Exhaust Pipe MAY W10121167 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
SCREW MAY W10131119 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
10
Screw MAY 9742177 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY W10163677 MAY W10163677 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
11
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
12
Push Button MAY W10131113 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
12
Door Seal MAY 3390735 Contact Us For Availability
13
MAY W10344192 MAY W10344192 Contact Us For Availability
13
MAY W10135192 MAY W10135192 Contact Us For Availability
13
Screw MAY 489463 Contact Us For Availability
13
Catch, Door MAY 3392538 Contact Us For Availability
14
MAY W10192090 MAY W10192090 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
14
MAY W10213202 MAY W10213202 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
15
DOOR, INNER MAY W10323063 Contact Us For Availability
16
ASSEMBLY, SWITCH & ACTUATOR MAY W10410873 Contact Us For Availability
16
MAY W10133281 MAY W10133281 Contact Us For Availability
16
SCREW MAY 695240 Contact Us For Availability
16
DOOR, OUTER MAY W10322548 Contact Us For Availability
17
Clip, Front Panel MAY 3391846 Contact Us For Availability
17
Mounting Strap Assembly MAY W10159907 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
HINGE & PIN MAY 3389247 Contact Us For Availability
18
Lock Assembly MAY W10133264 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY W10237321 MAY W10237321 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY 2006252 MAY 2006252 Contact Us For Availability
22
THERMOSTAT HIGH LIMIT MAY W10168175 Contact Us For Availability
23
MAY W10159849 MAY W10159849 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
MAY W10181928 MAY W10181928 Contact Us For Availability
24
PLATE, COVER (BOTTOM EXHAUST) MAY 3394331 Contact Us For Availability
24
MAY W10196677 MAY W10196677 Contact Us For Availability
24
Terminal Wire Kit (For Heater Element Wiring MAY 279457 Contact Us For Availability
25
MAY 696144 MAY 696144 Contact Us For Availability
25
VAULT BODY, ASSEMBLY MAY W10133258 Contact Us For Availability
25
Drum Complete MAY 8528998 Contact Us For Availability
26
MAY W10133278 MAY W10133278 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10289662 MAY W10289662 Contact Us For Availability
27
MAY W10167611 MAY W10167611 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
28
MAY W10151156 MAY W10151156 Contact Us For Availability
28
MAY 3394986 MAY 3394986 Contact Us For Availability
29
RESTRAINT, BELT MAY 3393657 Contact Us For Availability
29
MAY W10226074 MAY W10226074 Contact Us For Availability
29
THERMAL-CUTOFF (INCLUDES ITEM. 22 ) MAY W10141623 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10111027 MAY W10111027 Contact Us For Availability
30
MAY W10049370 MAY W10049370 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 3390647 Contact Us For Availability
31
MAY W10165297 MAY W10165297 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10133289 MAY W10133289 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
TERMINAL BRASS TINNED (3) (INCLUDES ITEM. 35 MAY 279318 Contact Us For Availability
33
MAY W10181925 MAY W10181925 Contact Us For Availability
34
MAY 279731 MAY 279731 Contact Us For Availability
34
Key, Access Door MAY W10140858 Contact Us For Availability
34
THERMOSTAT, 140° F CYCLING MAY W10194158 Contact Us For Availability
35
MAY 49252 MAY 49252 Contact Us For Availability
35
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
SCREW MAY 3387230 Contact Us For Availability
36
MAY W10223794 MAY W10223794 Contact Us For Availability
36
LOCKING CAM MAY W10233256 Contact Us For Availability
36
MAY W10119255 MAY W10119255 Contact Us For Availability
37
MAY 488729 MAY 488729 Contact Us For Availability
37
Standoff, Circuit Board MAY W10133514 Contact Us For Availability
37
Lint Duct Assembly MAY 8066168 Contact Us For Availability
38
MAY W10231861 MAY W10231861 Contact Us For Availability
38
SCREW MAY 3400000 Contact Us For Availability
38
MAY 3387749 MAY 3387749 Contact Us For Availability
39
RELAY-SPT MAY W10133335 Contact Us For Availability
39
MAY W10119253 MAY W10119253 Contact Us For Availability
40
Kit-Coin Box Security MAY W10169579 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
MAY W10206206 MAY W10206206 Contact Us For Availability
41
SWITCH, LEADED DOOR MAY W10237959 Contact Us For Availability
41
COIN BOX MAY W10133248 Contact Us For Availability
41
Baffle, Drum MAY 697693 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
42
TRANSFORMER, 240 - 120 VAC MAY W10237958 Contact Us For Availability
42
MAY 697557 MAY 697557 Contact Us For Availability
43
MAY W10258680 MAY W10258680 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
43
MAY W10181926 MAY W10181926 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
SCREW MAY W10080700 Contact Us For Availability
44
MAY W10167627 MAY W10167627 Contact Us For Availability
45
MAY W10181918 MAY W10181918 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
46
HEATER BOX, MAY 3392537 Contact Us For Availability
47
MAY W10001120 MAY W10001120 Contact Us For Availability
50
UPPER FRONT PANEL MAY W10234293 Contact Us For Availability
50
MAY 3391943 MAY 3391943 Contact Us For Availability
51
MAY W10386324 MAY W10386324 Contact Us For Availability
52
MAY W10386325 MAY W10386325 Contact Us For Availability
54
Clip MAY 98997 Contact Us For Availability
56
Panel, Toe (Includes Illus. 33) MAY 697215 Contact Us For Availability
57
Top (Upper) MAY 3389351 Contact Us For Availability
58
Foam-Seal MAY 8318396 Contact Us For Availability
59
MAY W10167237 MAY W10167237 Contact Us For Availability
60
MAY W10212660 MAY W10212660 Contact Us For Availability
61
MAY 3405160 MAY 3405160 Contact Us For Availability
62
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
WINDOW PACK INCLUDES ILLUS. 1 & 4 MAY 3396122 Contact Us For Availability
NI
MAY 285875 MAY 285875 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 350938 MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
