Model Maytag MGD5801TW0 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

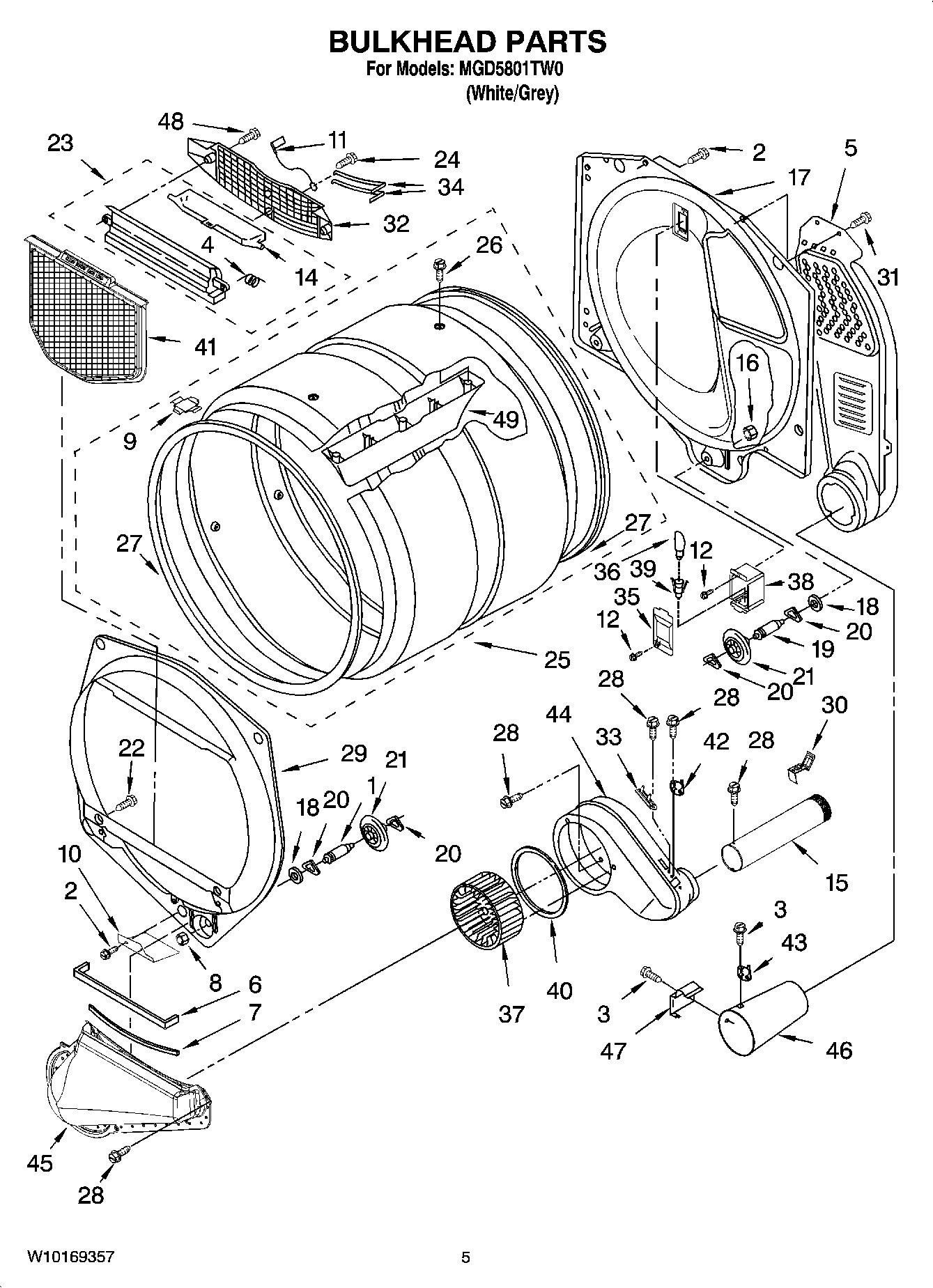

03 - BULKHEAD PARTS

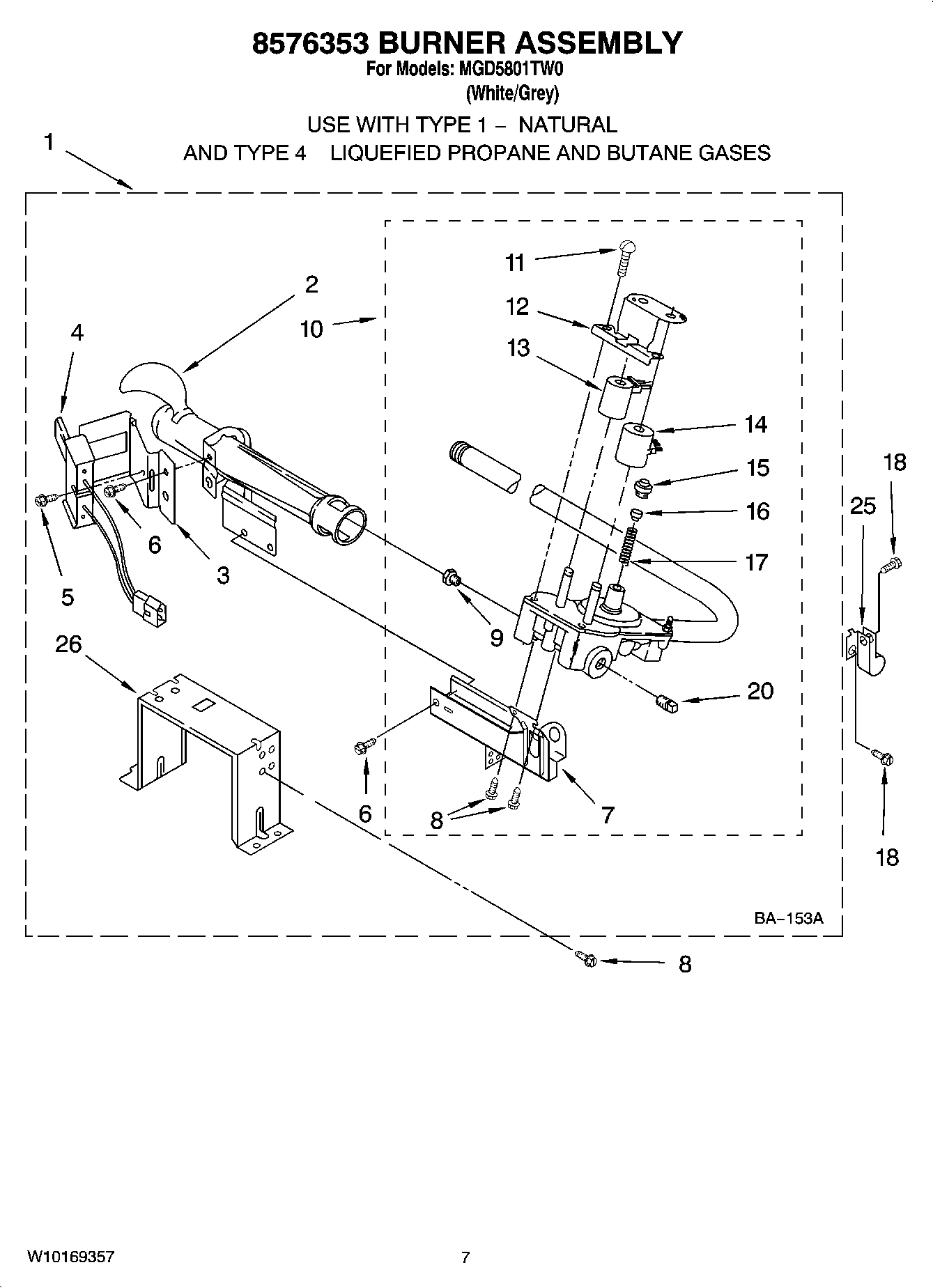

04 - 8576353 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGD5801TW0 GAS DRYER
1
MAY W10151000 MAY W10151000 Contact Us For Availability
1
MAY W10155111 MAY W10155111 Contact Us For Availability
1
MAY W10155113 MAY W10155113 Contact Us For Availability
1
MAY 697773 MAY 697773 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS MAY 8576353 Contact Us For Availability
2
MAY 8317305 MAY 8317305 Contact Us For Availability
2
MAY 8529757 MAY 8529757 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 8566184 MAY 8566184 Contact Us For Availability
3
MAY 488729 MAY 488729 Contact Us For Availability
3
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
Badge MAY W10112569 Contact Us For Availability
4
MAY 3394331 MAY 3394331 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
Switch, Push-To-Start MAY 3398094 Contact Us For Availability
5
MAY 3394881 MAY 3394881 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
5
Screw & Washer (8-32 x 7/8) MAY 3393909 Contact Us For Availability
6
MAY 3391885 MAY 3391885 Contact Us For Availability
6
MAY 344020 MAY 344020 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
Switch, Rotary Temperature MAY 8530169 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
MAY 3387057 MAY 3387057 Contact Us For Availability
9
Switch, Rotary MAY 3405156 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
MAY 8066086 MAY 8066086 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 15418 Contact Us For Availability
9
Orifice, Burner (Type 4 (Butane)) MAY 15422 Contact Us For Availability
9
Orifice, Burner (Type 4 (Propane)) MAY 234867 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
Shield, Blower Housing MAY W10128629 Contact Us For Availability
10
Valve, Gas 60 Hz. (Complete) (Includes Pipe & MAY W10118347 Contact Us For Availability
11
Mini-Buzzer MAY 694419 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
Wire MAY 3392258 Contact Us For Availability
11
MAY 694421 MAY 694421 Contact Us For Availability
12
Terminal MAY 94614 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 487909 MAY 487909 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
Connector 6-Circuit MAY 3347243 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY 3391018 MAY 3391018 Contact Us For Availability
14
MAY 3394984 MAY 3394984 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
MAY 8312709 MAY 8312709 Contact Us For Availability
15
SCREW GROUND MAY 8533974 Contact Us For Availability
15
MAY 8066224 MAY 8066224 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
Connector-Timer MAY 3397269 Contact Us For Availability
16
Wire, Jumper (Broken Belt Switch) MAY 3398948 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
Receptacle, 2-Way MAY 717252 Contact Us For Availability
17
MAY 8563747 MAY 8563747 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
CONNECTOR, 2-POSITION (GAS VALVE) MAY 3403499 Contact Us For Availability
18
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
18
MAY 233520 MAY 233520 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10150998 MAY W10150998 Contact Us For Availability
19
Clip (2) MAY 297092 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
Knob, Timer Assembly MAY W10110036 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
21
Knob Assembly Push-To-Start MAY W10110037 Contact Us For Availability
21
Hinge, Door (L.H.) MAY 3387559 Contact Us For Availability
21
Hinge, Door (R.H.) MAY 3387560 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
Strap, Console MAY 8568314 Contact Us For Availability
22
Spring, Door (2) MAY 3387565 Contact Us For Availability
22
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
23
CLIP, HARNESS MAY 3394427 Contact Us For Availability
23
MAY 8066120 MAY 8066120 Contact Us For Availability
23
Outlet Housing Assembly MAY 3394985 Contact Us For Availability
24
MAY 8274462 MAY 8274462 Contact Us For Availability
24
MAY 3394081 MAY 3394081 Contact Us For Availability
24
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
25
MAY 3936144 MAY 3936144 Contact Us For Availability
25
MAY 49026 MAY 49026 Contact Us For Availability
25
Complete Drum Assembly MAY 8318215 Contact Us For Availability
25
MAY 3387561 MAY 3387561 Contact Us For Availability
26
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
26
MAY W10116360 MAY W10116360 Contact Us For Availability
26
MAY W10109200 MAY W10109200 Contact Us For Availability
26
MAY 3389889 MAY 3389889 Contact Us For Availability
27
MAY 8317340 MAY 8317340 Contact Us For Availability
27
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
27
MAY 697694 MAY 697694 Contact Us For Availability
28
Screw MAY 8533971 Contact Us For Availability
28
MAY 3403498 MAY 3403498 Contact Us For Availability
28
MAY 8563750 MAY 8563750 Contact Us For Availability
29
MAY 8558178 MAY 8558178 Contact Us For Availability
29
MAY 8578220 MAY 8578220 Contact Us For Availability
29
MAY 697557 MAY 697557 Contact Us For Availability
30
Knob, Control Assembly (3) MAY W10110035 Contact Us For Availability
30
MAY 3387610 MAY 3387610 Contact Us For Availability
30
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
31
Console & Control Panel Assembly (Includes It MAY W10112601 Contact Us For Availability
31
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
Grille, Outlet MAY 8299979 Contact Us For Availability
33
CLIP, SPRING MAY 8536939 Contact Us For Availability
33
MAY 8563749 MAY 8563749 Contact Us For Availability
33
Thermal Fuse MAY 3392519 Contact Us For Availability
34
Screw, 8-18 x 3/8 MAY 8281212 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
Screw, 6-20 x 1 3/8 MAY 98129 Contact Us For Availability
35
MAY 3402841 MAY 3402841 Contact Us For Availability
36
MAY 693152 MAY 693152 Contact Us For Availability
36
MAY 3406124 MAY 3406124 Contact Us For Availability
37
Door Seal MAY 3390736 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 690081 MAY 690081 Contact Us For Availability
38
BRACKET, LIGHT MAY 3977373 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
MAY W10136369 MAY W10136369 Contact Us For Availability
40
MAY 3357011 MAY 3357011 Contact Us For Availability
40
MAY 697770 MAY 697770 Contact Us For Availability
41
MAY 3406107 MAY 3406107 Contact Us For Availability
41
Screen, Lint MAY 8066170 Contact Us For Availability
42
Toe, Panel (Includes Item. 36) MAY 697215 Contact Us For Availability
42
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
43
MAY 3387242 MAY 3387242 Contact Us For Availability
43
Thermostat, High-Limit 205 F (96 C) MAY 3403140 Contact Us For Availability
44
Retainer MAY 3388229 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY 697655 MAY 697655 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY 694091 MAY 694091 Contact Us For Availability
46
MAY 8066047 MAY 8066047 Contact Us For Availability
47
MAY 697221 MAY 697221 Contact Us For Availability
47
MAY 338906 MAY 338906 Contact Us For Availability
48
Upper Front Panel MAY 697227 Contact Us For Availability
48
Screw, 10-16 x 13/16 MAY 3387230 Contact Us For Availability
49
MAY 696144 MAY 696144 Contact Us For Availability
49
Baffle, Drum MAY 697693 Contact Us For Availability
50
MAY 279818 MAY 279818 Contact Us For Availability
NI
Dry Rack MAY 3406911 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
Conversion Kit (Type (1) to Type (4) LPG). MAY 8576846 Contact Us For Availability
× ![]()
