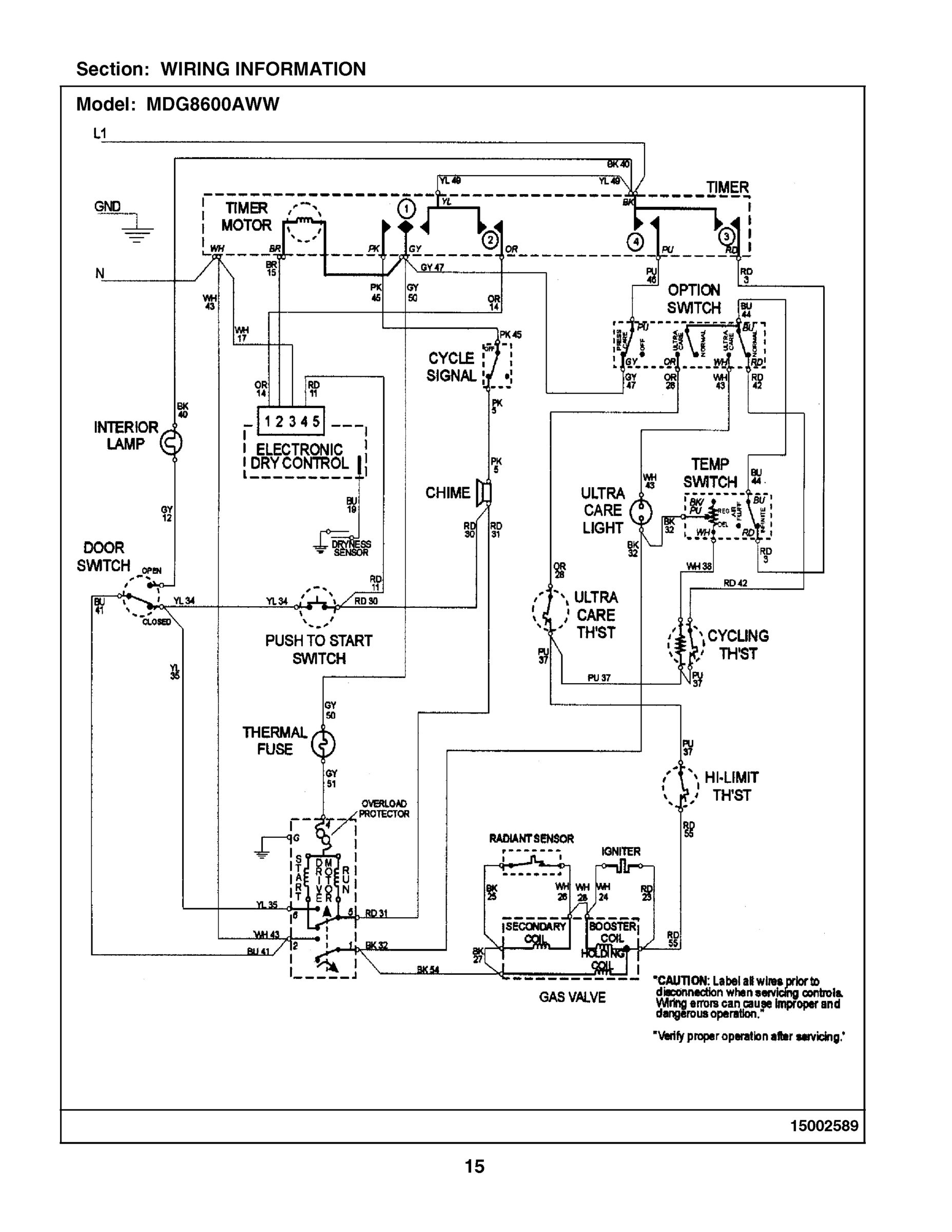

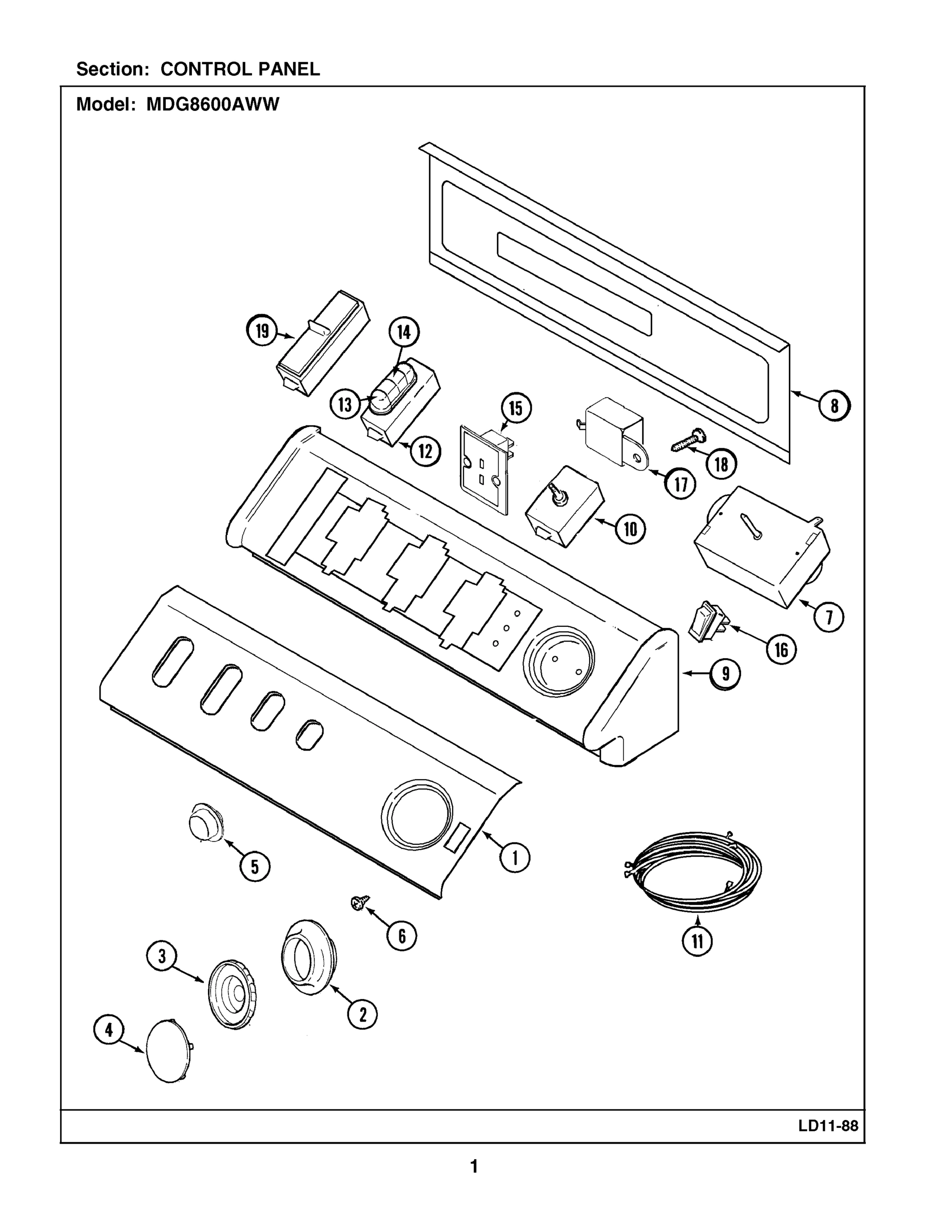

Model Maytag MDG8600AWW GAS DRYER – Common Parts &amp; Diagrams

1

WP33001789 Whirlpool Blower Housing Assembly In Stock WPL WP33001789 $63.01

1

MAY 33001767 MAY 33001767 Contact Us For Availability

1

OUTLET DUCT ASSEMBLY NOTE: OUTLET DUCT ASSEMB MAY 33001799 Contact Us For Availability

2

WP33001621 Whirlpool Dial Knob In Stock WPL WP33001621 $12.43

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $28.53

2

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $50.76

2

MAY 33001800 MAY 33001800 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $14.48

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

3

MAY 33001778 MAY 33001778 Contact Us For Availability

3

MAY 33001758 MAY 33001758 Contact Us For Availability

3

SCREW NOTE: SCREW, IGNITER MAY 304971 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $20.29

4

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $14.26

4

WP22001664 Whirlpool Timer Knob In Stock WPL WP22001664 $3.70

4

MAY 33002190 MAY 33002190 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.78

5

WP33002793 Whirlpool Burner Assembly In Stock WPL WP33002793 $93.03

5

CLIP, WIRE HARNESS MAY 310376 Contact Us For Availability

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $175.40

6

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

6

FRONT, TUMBLER FRONT W/SENSOR NOTE: FRONT, TU MAY 33001868 Contact Us For Availability

7

WP33001730 Whirlpool Timer In Stock WPL WP33001730 $122.05

7

WP33002676 Whirlpool Element Timer Backorder WPL WP33002676 $181.07

7

MAY 33001869 MAY 33001869 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

HOLDER, LAMP (W/HOUSING) NOTE: LAMP (W/HOUSIN MAY 33001870 Contact Us For Availability

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

PALNUT, END CAP NOTE: NUT, LAMP HOLDER MAY 214872 Contact Us For Availability

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $29.47

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $60.02

MAY 303711 MAY 303711 Contact Us For Availability

MAY 33001834 MAY 33001834 Contact Us For Availability

MAY 22002038 MAY 22002038 Contact Us For Availability

MAY 33001809 MAY 33001809 Contact Us For Availability

SCREW NOTE: SCREW, GAS VALVE MAY 314082 Contact Us For Availability

SCREW-GAS VALVE TO BRACKET NOTE: SCREW, GAS V MAY 314568 Contact Us For Availability

SCREW NOTE: SCREW, THERMAL CUT-OFF MAY 314848 Contact Us For Availability

12

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $3.70

12

SCREW----NA NOTE: SCREW, OUTLET DUCT (PHILLIP MAY 312311 Contact Us For Availability

12

MAY 22002244 MAY 22002244 Contact Us For Availability

13

3406051 Whirlpool Elbow Backorder WPL 3406051 $39.03

13

MAY 33001761 MAY 33001761 Contact Us For Availability

13

MAY 33001796 MAY 33001796 Contact Us For Availability

WP22002049 Whirlpool Washer/Dryer Clip Backorder WPL WP22002049 $4.78

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $8.31

MAY 33001735 MAY 33001735 Contact Us For Availability

SCREW NOTE: SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $94.92

WP33002795 Whirlpool Drive Motor In Stock WPL WP33002795 $136.05

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

DRYNESS DISPLAY CONTROL (WHT) NOTE: DISPLAY, MAY 33002389 Contact Us For Availability

MAY 33001763 MAY 33001763 Contact Us For Availability

MAY 33001756 MAY 33001756 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $16.36

WPY015825 Whirlpool Motor Clip In Stock WPL WPY015825 $9.20

MAY 33001750 MAY 33001750 Contact Us For Availability

DUCT ASSY., INLET (GAS) NOTE: INLET DUCT ASSE MAY 33001810 Contact Us For Availability

17

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $20.83

17

MAY 33001889 MAY 33001889 Contact Us For Availability

17

MAY 33001854 MAY 33001854 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $2.51

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $39.67

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $12.52

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $33.27

SWITCH, TEMP (ELEC)(WHT) NOTE: SWITCH, INF. T MAY 33001656 Contact Us For Availability

MAY 33001788 MAY 33001788 Contact Us For Availability

MAY 33001835 MAY 33001835 Contact Us For Availability

20

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $4.04

20

MAY 33001801 MAY 33001801 Contact Us For Availability

20

MAY Y303841 MAY Y303841 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $2.51

WP6-3700340 Whirlpool Belt Tension Pulley Whe In Stock WPL WP6-3700340 $7.40

MAY 33001764 MAY 33001764 Contact Us For Availability

MAY Y312890 MAY Y312890 Contact Us For Availability

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

22

MAY 33001693 MAY 33001693 Contact Us For Availability

23

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $4.78

23

SHAFT, TUMBLER ROLLER MAY 312948 Contact Us For Availability

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.51

24

BEARING & ROLLER ASSEMBLY NOTE: ROLLER (W/BEA MAY Y303373 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $4.94

25

MAY 33002466 MAY 33002466 Contact Us For Availability

27

SCREW, No.8 X 9/16 CTSK NOTE: SCREW, INLET DU MAY 210932 Contact Us For Availability

27

MAY 33002465 MAY 33002465 Contact Us For Availability

27

MAY 33002622 MAY 33002622 Contact Us For Availability

28

MAY 410490 MAY 410490 Contact Us For Availability

29

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.59

29

ADJUSTABLE LEG & NUT MAY 305086 Contact Us For Availability

30

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $4.74

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

31

MAY 314137 MAY 314137 Contact Us For Availability

32

MAY 22002239 MAY 22002239 Contact Us For Availability

32

RACK, DRYING NOTE: RACK, DRYING MAY 33001917 Contact Us For Availability

33

SCREW NOTE: SCREW, CLIP MAY 310632 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

WP22001948 Whirlpool Indicator Lens In Stock WPL WP22001948 $5.31

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

MAY 22002039 MAY 22002039 Contact Us For Availability

MAY 22001817 MAY 22001817 Contact Us For Availability

MAY 22002063 MAY 22002063 Contact Us For Availability

SCREW NOTE: SCREW, DRUM LIGHT MAY 33001871 Contact Us For Availability

SCREW----NA NOTE: SCREW, MOUNT TO BASE MAY 313561 Contact Us For Availability

MAY 33002461 MAY 33002461 Contact Us For Availability
