Model Whirlpool MDG7500AWQ GAS DRYER – Common Parts &amp; Diagrams

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

1

HINGE, PLASTIC WPL 22003367 Contact Us For Availability

1

CABINET ASSY. (WHT AS PK) WPL 22003643 Contact Us For Availability

1

CONSOLE, LCD W/MEMBRANE (BSQ) WPL 22003241 Contact Us For Availability

1

MEDALLION, CONSOLE (WHT) WPL 22003806 Contact Us For Availability

1

MEDALLION, CONSOLE (BSQ) WPL 22003807 Contact Us For Availability

1

LCD CONSOLE ASSY-BSQ - AS PACK WPL 22004443 Contact Us For Availability

2

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.96

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $29.62

2

SECURITY HOOK WPL 33002386 Contact Us For Availability

2

GUARD, EXHAUST DUCT WPL 33002283 Contact Us For Availability

2

PANEL, BACK WPL 22003255 Contact Us For Availability

2

BACK, CONSOLE PANEL WPL 22003581 Contact Us For Availability

2

DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.13

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

3

SHROUD (BSQ) WPL 33002379 Contact Us For Availability

3

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

3

COVER, TOP (BSQ) WPL 33002367 Contact Us For Availability

3

COVER, TOP (BSQ-AS PK) WPL 33002628 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.07

4

WP33002789 Whirlpool Igniter In Stock WPL WP33002789 $53.56

4

WP33002797 Whirlpool Wheel In Stock WPL WP33002797 $57.65

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

COVER, CONSOLE PLUG (BSQ) WPL 22003323 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.96

5

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $102.42

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

5

GROMMET, CORD WPL 211881 Contact Us For Availability

5

CONTROL BOARD/TOUCHSCREEN(LCD) WPL 33002562 Contact Us For Availability

5

BOARD, CONTROL WPL 33002641 Contact Us For Availability

5

CONTROL BOARD/LCD/TOUCH WPL 33002684 Contact Us For Availability

5

CONTROL BOARD AS PACK WPL 33002716 Contact Us For Availability

5

LCD CONTROL BOARD ASSEMBLY WPL 33002761 Contact Us For Availability

5

CONTROL BOARD - LCD AS PACK WPL 33002799 Contact Us For Availability

5

CONTROL BOARD ASSY/LCD AS PK T WPL 33002886 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $11.51

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $180.10

6

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.60

6

FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability

6

CABINET ASSY. (BSQ) WPL 22002659 Contact Us For Availability

6

CABINET, ASSY. (BSQ-AS PK) WPL 22003583 Contact Us For Availability

6

CABINET ASSY. (BSQ AS PK) WPL 22003644 Contact Us For Availability

7

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.63

7

LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability

7

SCREW WPL 33001871 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

8

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $12.27

8

HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability

8

FLAP, PIPE WPL 33001702 Contact Us For Availability

8

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

8

THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.73

9

PALNUT, END CAP WPL 214872 Contact Us For Availability

9

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $38.06

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $66.08

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

HARNESS, WIRE WPL 33002549 Contact Us For Availability

HARNESS, WIRE WPL 33002613 Contact Us For Availability

HARNESS, WIRE LCD WPL 33002955 Contact Us For Availability

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.60

RETAINER, WIRE WPL 22003298 Contact Us For Availability

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $3.84

SCREW----NA WPL 312311 Contact Us For Availability

PIN, LOCATOR WPL 33001872 Contact Us For Availability

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.71

3406051 Whirlpool Elbow Backorder WPL 3406051 $42.96

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $8.63

PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability

MANUAL, USE & CARE (TRI-LCD) WPL 33002551 Contact Us For Availability

MANUAL, USE & CARE WPL Y2201891 Contact Us For Availability

SCREW WPL 314818 Contact Us For Availability

15

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $12.51

15

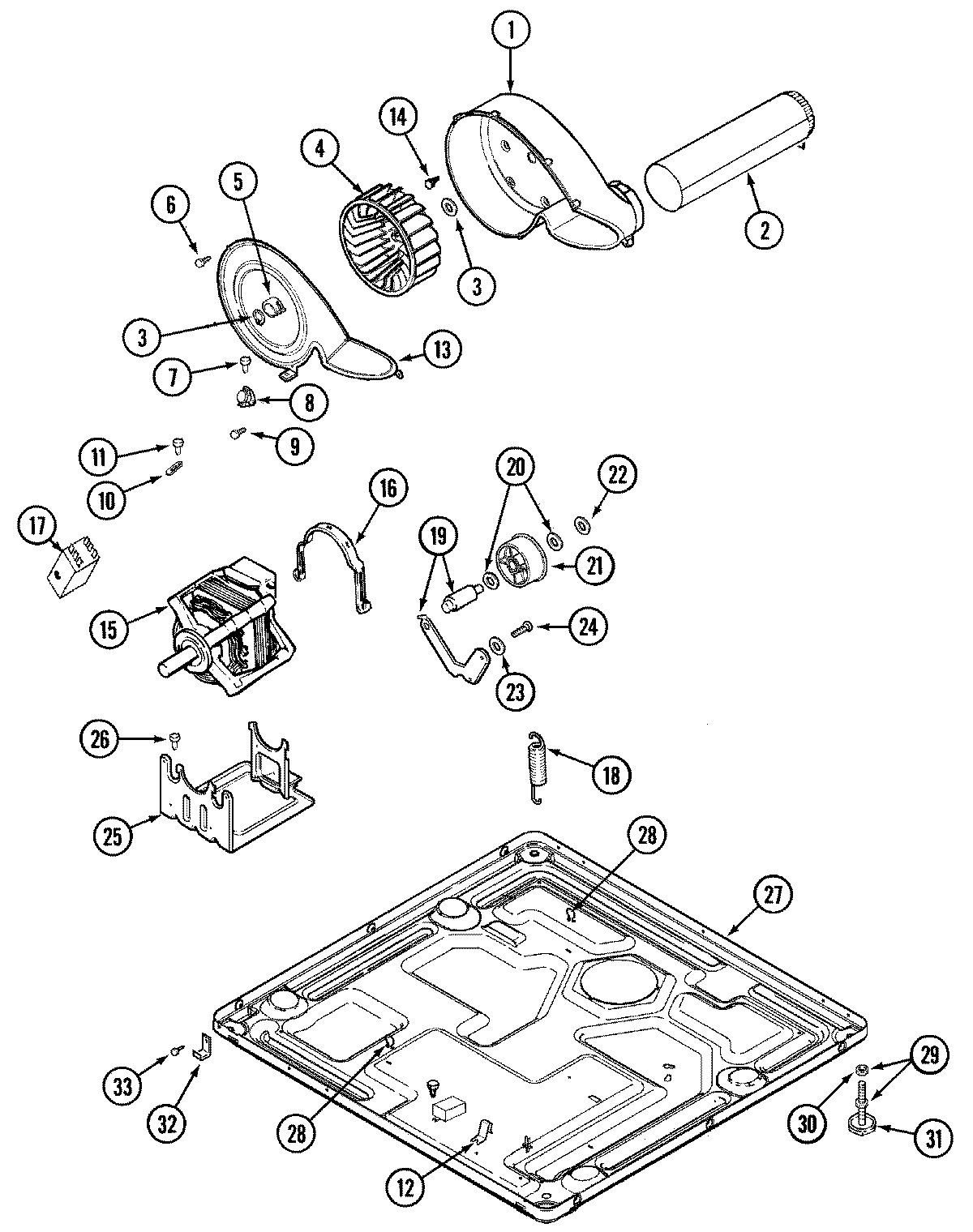

WP33002795 Whirlpool Drive Motor In Stock WPL WP33002795 $136.05

15

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $16.99

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $9.56

DUCT ASSY., INLET (GAS) WPL 33001810 Contact Us For Availability

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

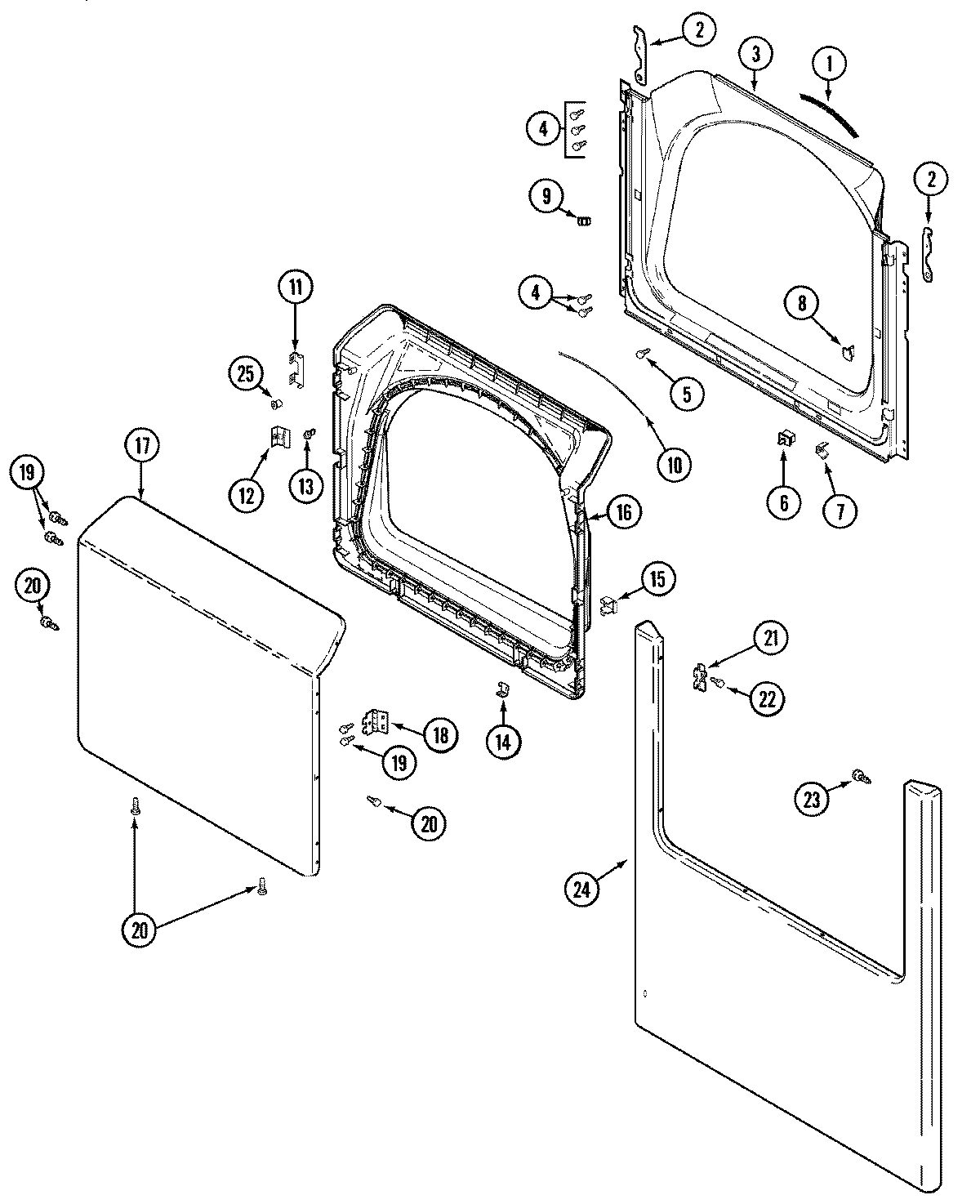

DOOR, INNER W/SEAL (BSQ) WPL 33002546 Contact Us For Availability

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $94.92

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $22.91

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $28.14

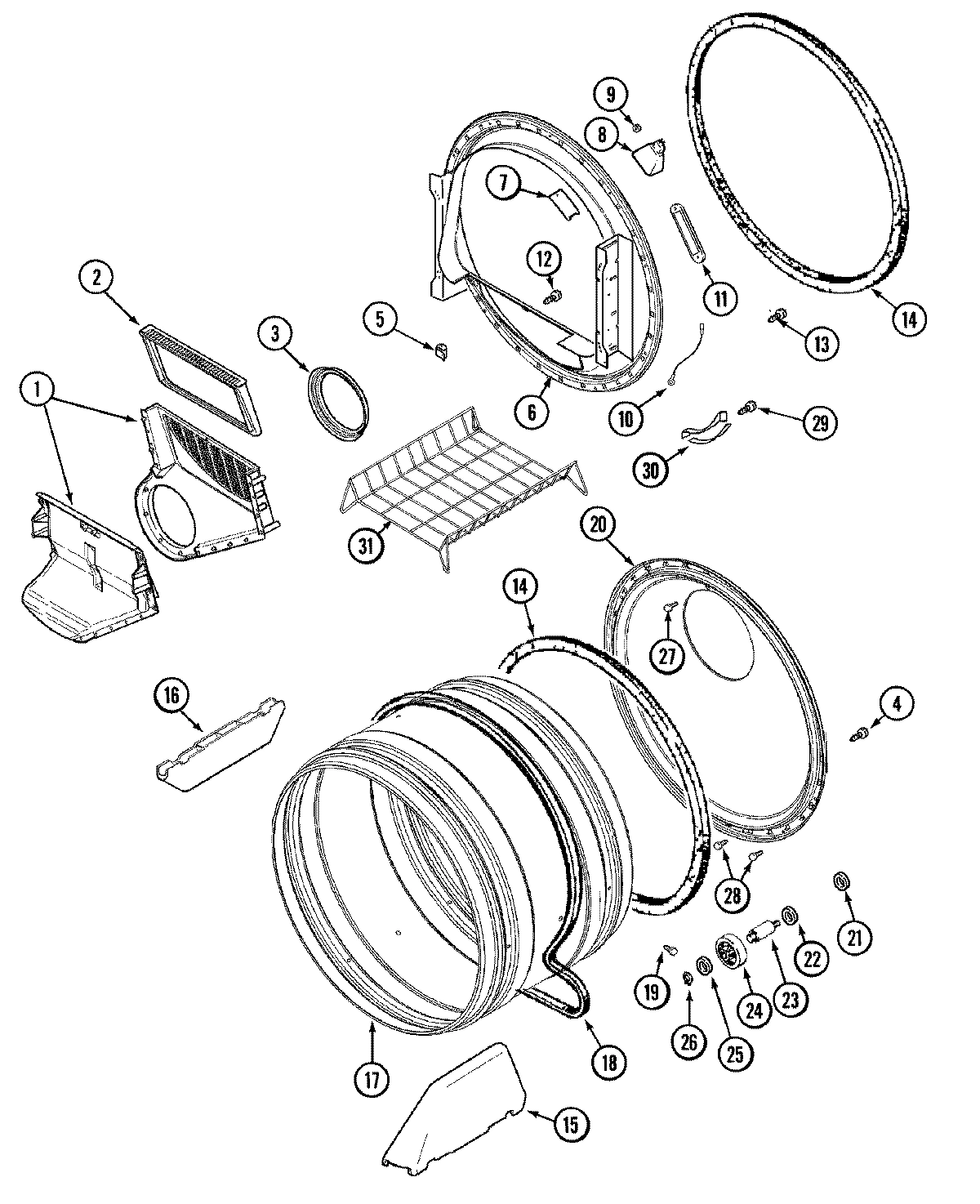

TUMBLER WPL 33001889 Contact Us For Availability

DOOR, OUTER W/MEDALLION (BSQ) WPL 22003243 Contact Us For Availability

PAD, FRONT WPL 33001867 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $2.60

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $43.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $13.00

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $18.66

GROMMET WPL 33002157 Contact Us For Availability

PLUG FOR SPRING WPL 33002461 Contact Us For Availability

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $36.61

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.60

CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $4.04

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

SCREW (No.8-18 OUTER DOOR (BSQ) WPL 33002351 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $2.60

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

COVER, HINGE HOLE (BSQ) WPL 33002349 Contact Us For Availability

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $5.89

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.13

22

CAP, GAS PIPE WPL 33001693 Contact Us For Availability

23

6-3129480CM Choice Shaft-Tumblr In Stock CMP 6-3129480CM $3.31

23

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $4.96

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $8.00

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.60

24

PANEL, FRONT (BSQ) WPL 33002396 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $5.13

25

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

25

SUPPORT, MOTOR WPL 33002466 Contact Us For Availability

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

27

BASE, (LWR)----NA WPL 33002465 Contact Us For Availability

27

BASE, (LWR) WPL 33002622 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

29

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.96

30

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $5.49

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.60

31

RACK, DRYING WPL 33001917 Contact Us For Availability

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

SCREW WPL Y310632 Contact Us For Availability

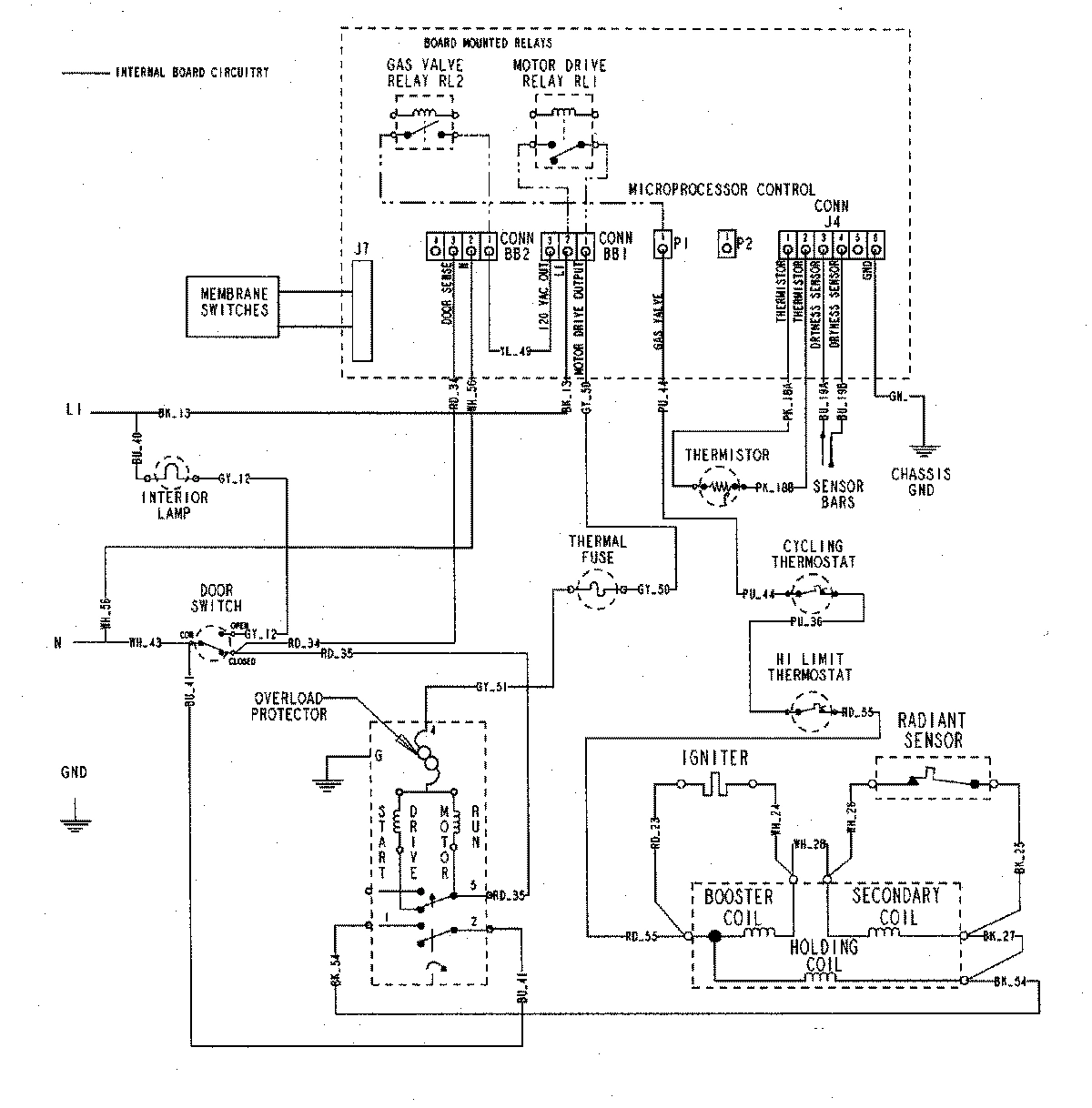

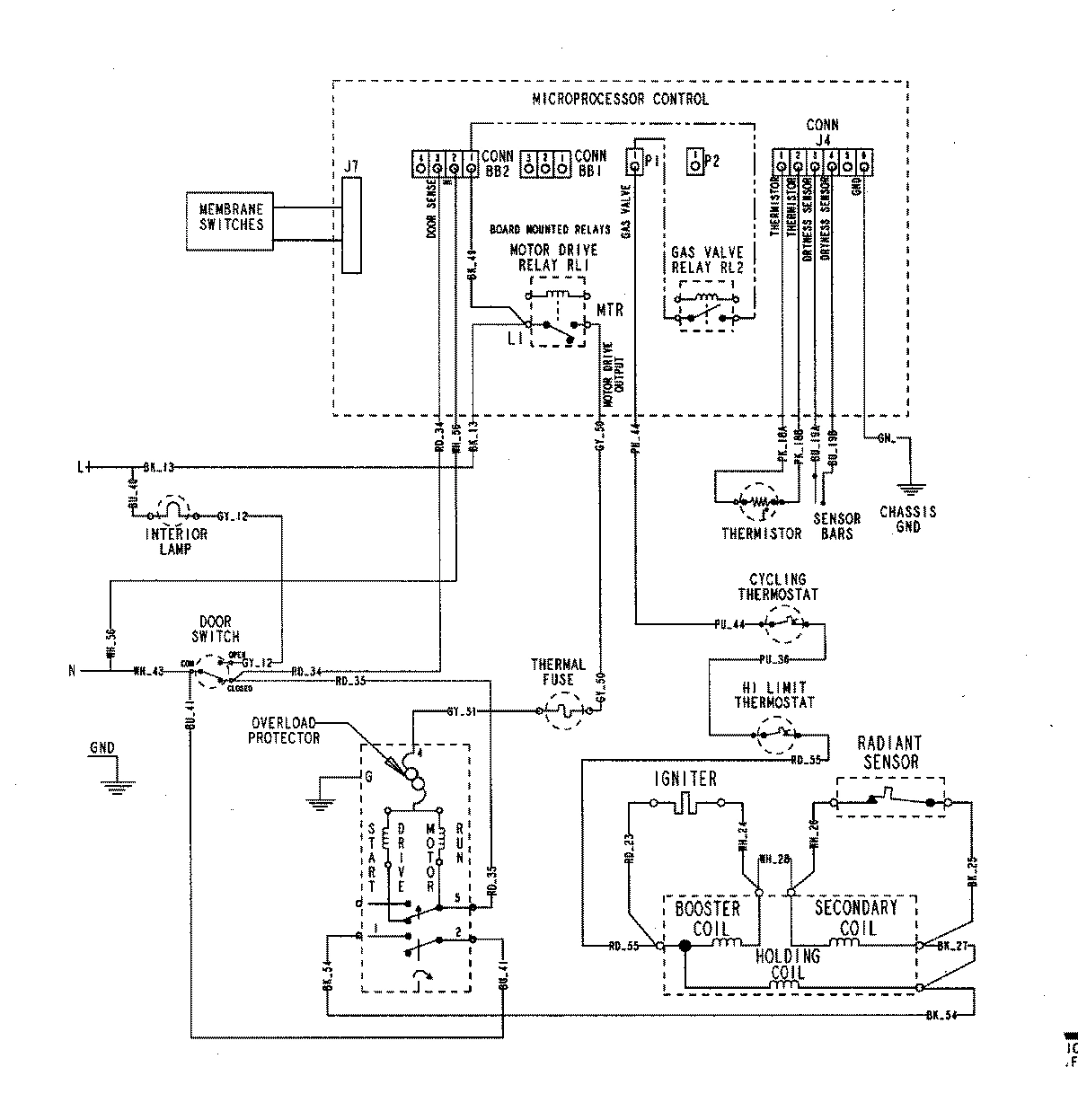

WIRING INFORMATION WPL 15002719 Contact Us For Availability

WIRING INFORMATION WPL 15003165 Contact Us For Availability

WIRING INFORMATION WPL 15003537 Contact Us For Availability

WIRING INFORMATION WPL 15002814 Contact Us For Availability
