Model Maytag MDG25PNAGW1 GAS DRYER – Common Parts & Diagrams

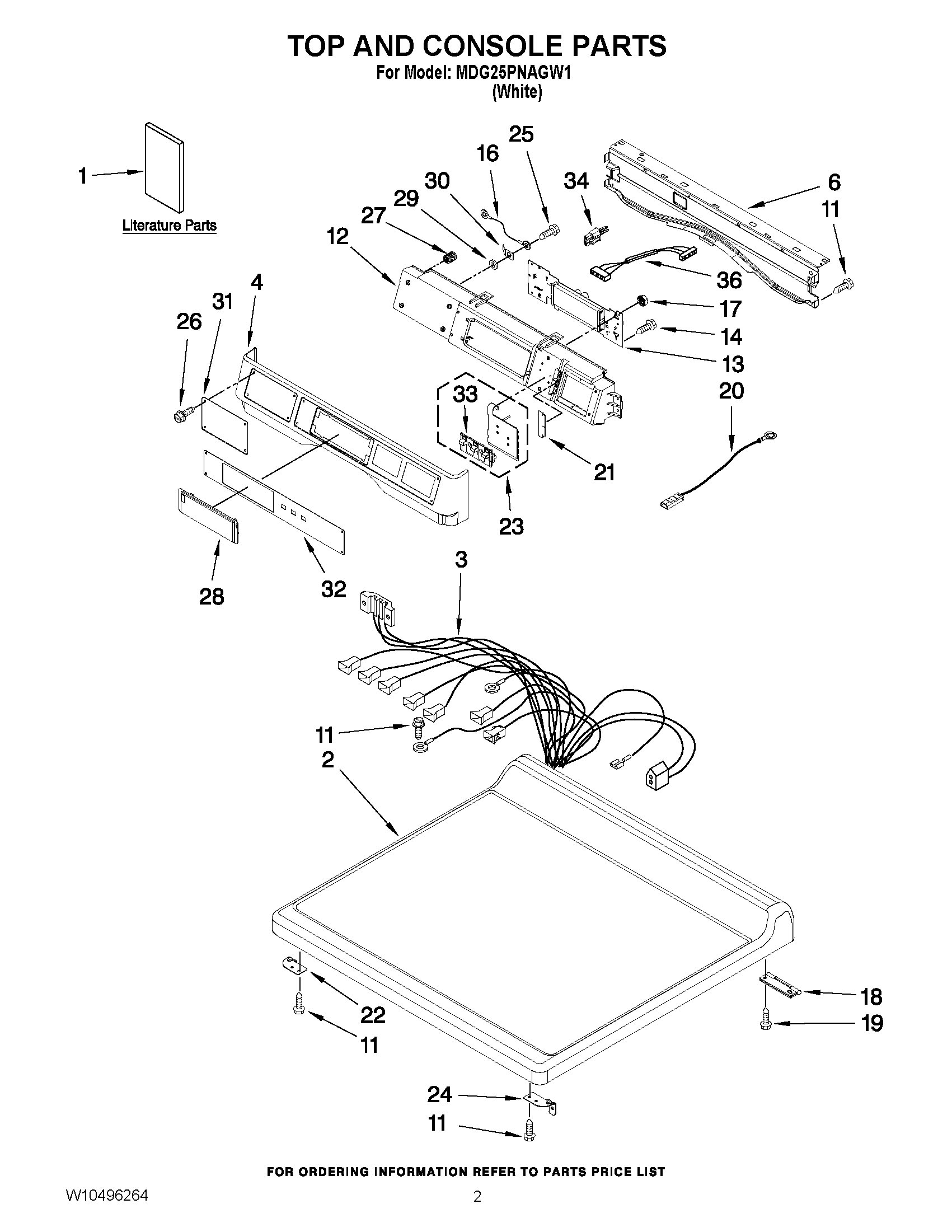

01 - TOP AND CONSOLE PARTS

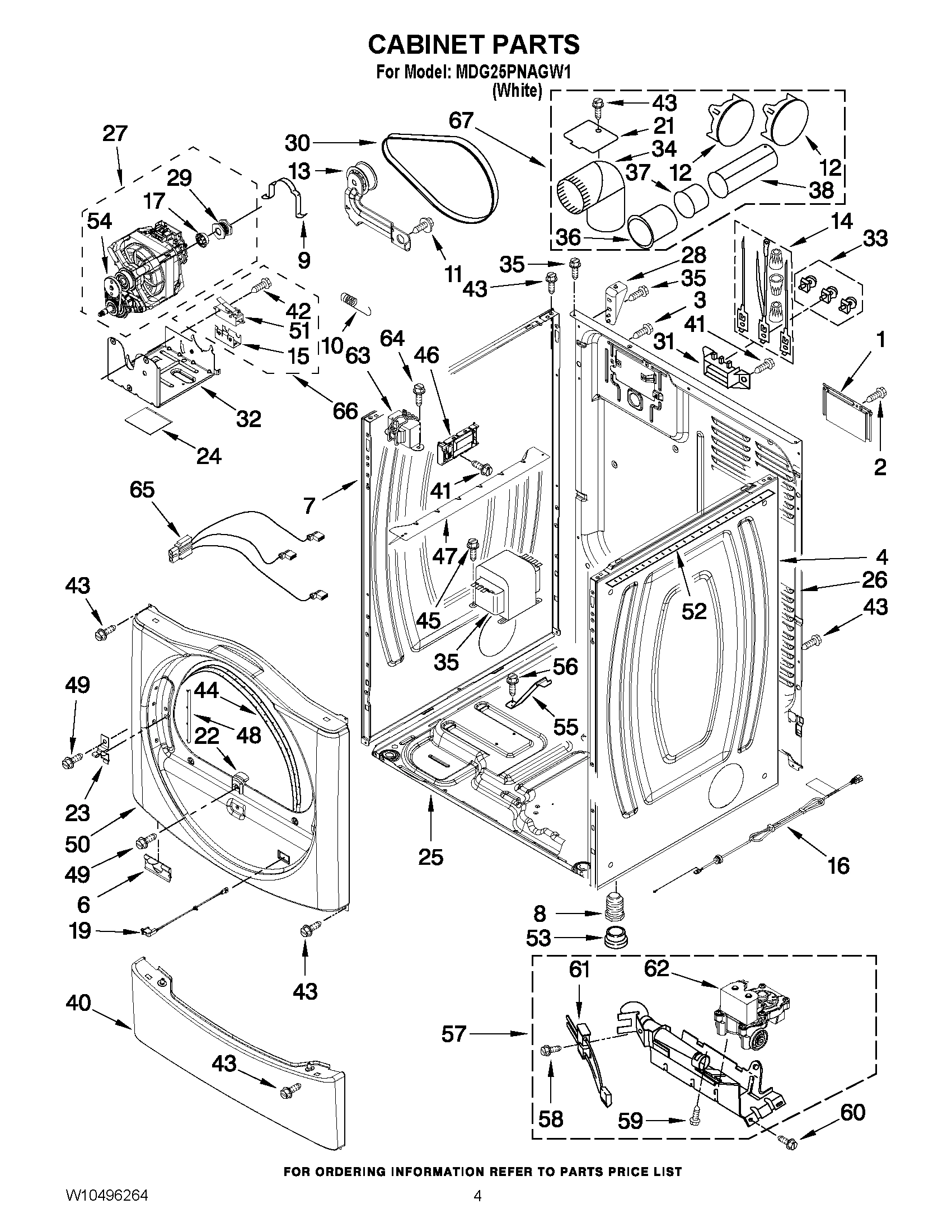

02 - CABINET PARTS

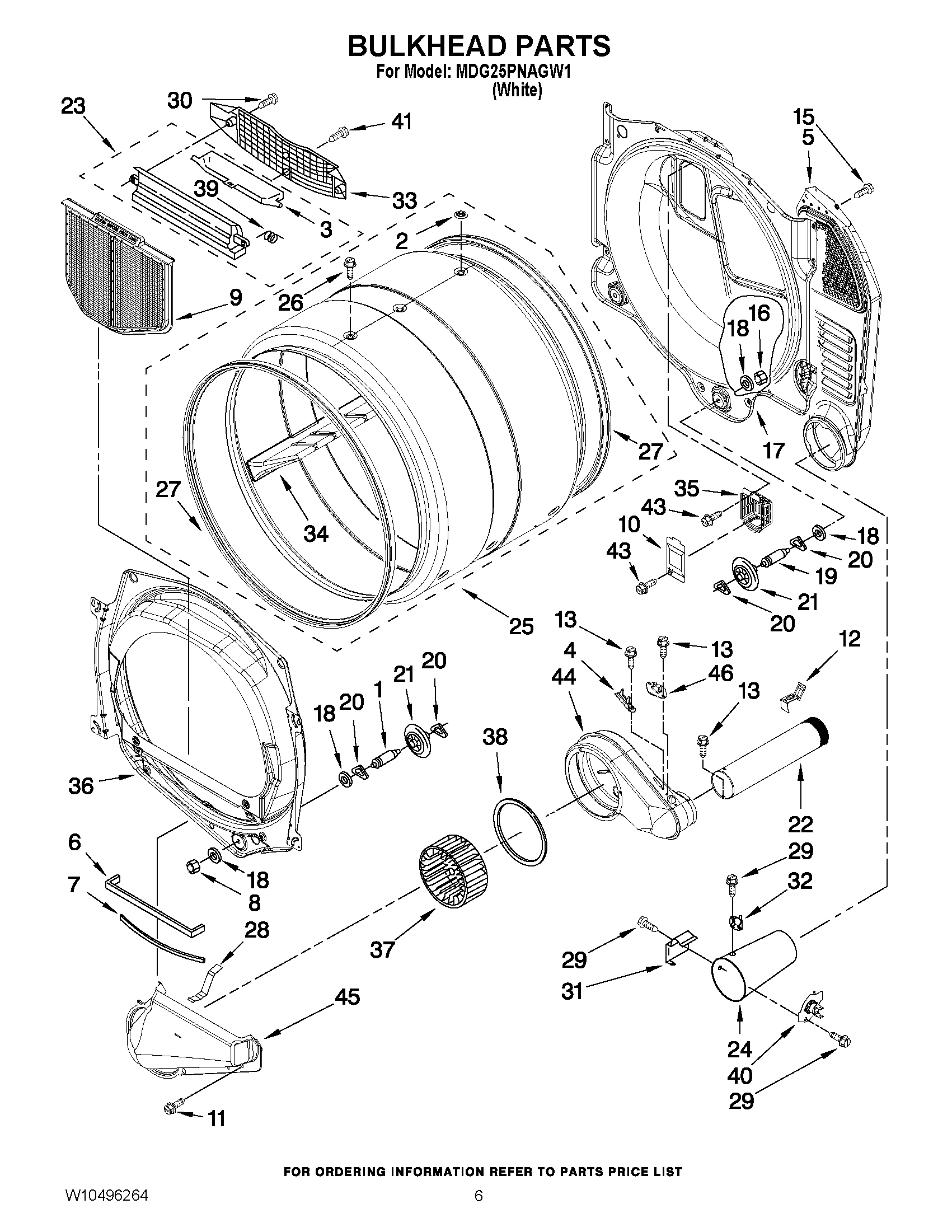

03 - BULKHEAD PARTS

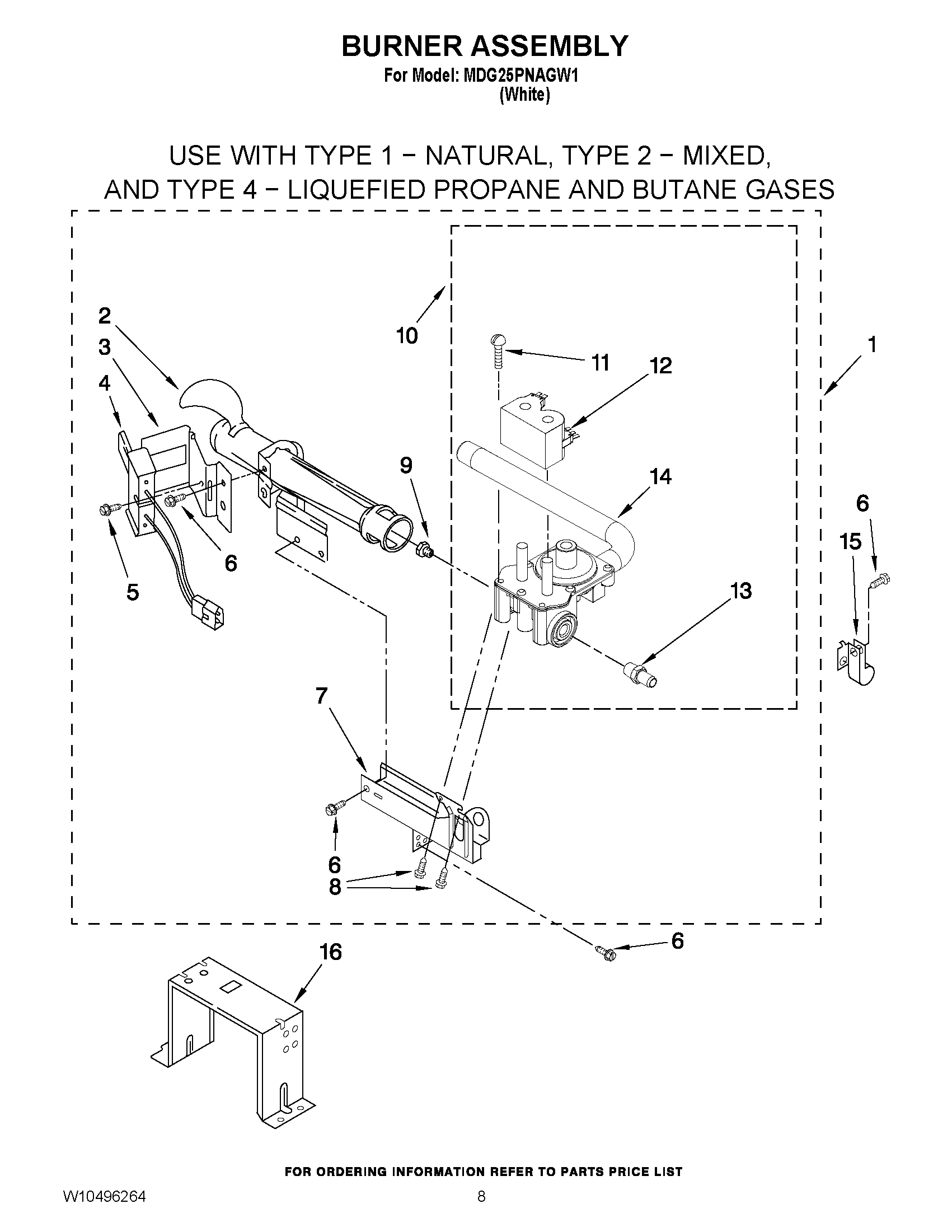

04 - BURNER ASSEMBLY

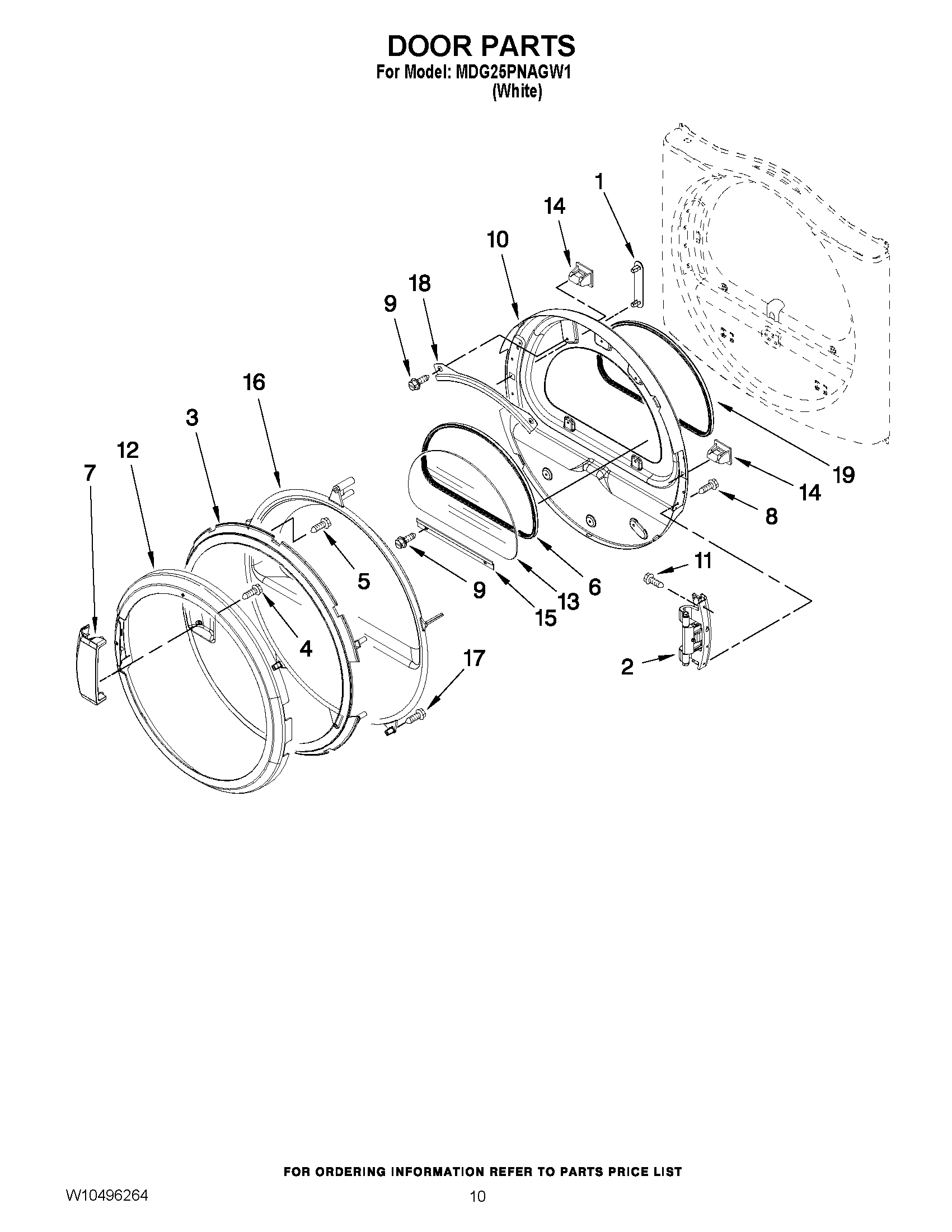

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG25PNAGW1 GAS DRYER
1
MAY W10233253 MAY W10233253 Contact Us For Availability
1
MAY W10239197 MAY W10239197 Contact Us For Availability
1
MAY W10379555 MAY W10379555 Contact Us For Availability
1
MAY W10496264 MAY W10496264 Contact Us For Availability
1
MAY W10096918 MAY W10096918 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1, 2 & 3) (COPRE MAY W10469829 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
1
MAY 8565119 MAY 8565119 Contact Us For Availability
2
MAY W10137410 MAY W10137410 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
DRUM CAPLUG MAY W10128544 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10304672 MAY W10304672 Contact Us For Availability
3
MAY W10423405 MAY W10423405 Contact Us For Availability
3
SCREW GROUND MAY 8533974 Contact Us For Availability
3
MAY W10181925 MAY W10181925 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
4
MAY W10137459 MAY W10137459 Contact Us For Availability
4
MAY 8565048 MAY 8565048 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
THERMAL LIMITER MAY 3392519 Contact Us For Availability
4
Screw MAY 9742177 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
FOAM-SEAL MAY 697813 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
7
MAY 8565054 MAY 8565054 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
HANDLE, DOOR (INCLUDES ILLUS. 20.) MAY W10112976 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3387057 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10049370 MAY W10049370 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 234660 Contact Us For Availability
9
Orifice, Burner (Type 2) MAY 234868 Contact Us For Availability
9
Screw MAY 3393258 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10304603 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10259901 MAY W10259901 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
Screw MAY 489463 Contact Us For Availability
11
SCREW, COIL MAY 326049536 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
MAY W10137427 MAY W10137427 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
MAY W10340251 MAY W10340251 Contact Us For Availability
12
Door, Outer Ring MAY W10112916 Contact Us For Availability
13
MAY W10166387 MAY W10166387 Contact Us For Availability
13
MAY W10344192 MAY W10344192 Contact Us For Availability
13
MAY W10304608 MAY W10304608 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
Screw MAY 489136 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Item. MAY 279318 Contact Us For Availability
14
MAY W10097610 MAY W10097610 Contact Us For Availability
14
Door Catch Assembly MAY 690081 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
Screw MAY 693995 Contact Us For Availability
15
MAY 3387561 MAY 3387561 Contact Us For Availability
15
MAY 8519354 MAY 8519354 Contact Us For Availability
16
MAY W10188087 MAY W10188087 Contact Us For Availability
16
CORD-POWER MAY W10476824 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
MAY 3389889 MAY 3389889 Contact Us For Availability
16
DOOR,INTERMEDIATE MAY 8580059 Contact Us For Availability
17
NUT, 6-32 MAY W10139046 Contact Us For Availability
17
MAY 3393657 MAY 3393657 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
MAY 8565018 MAY 8565018 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
18
MAY 8519356 MAY 8519356 Contact Us For Availability
19
SCREW MAY W10142290 Contact Us For Availability
19
MAY W10251066 MAY W10251066 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
19
MAY W10163915 MAY W10163915 Contact Us For Availability
20
MAY W10257051 MAY W10257051 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
SEAL-CONSOLE MAY W10187276 Contact Us For Availability
21
MAY 8066115 MAY 8066115 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
BRACKET, TOP PANEL (LEFT) MAY W10137445 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
MAY W10225179 MAY W10225179 Contact Us For Availability
23
MAY W10135255 MAY W10135255 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
MAY W10181928 MAY W10181928 Contact Us For Availability
24
BRACKET, TOP PANEL (RIGHT) MAY W10137444 Contact Us For Availability
24
MAY W10212660 MAY W10212660 Contact Us For Availability
24
MAY 8573824 MAY 8573824 Contact Us For Availability
25
SCREW MAY 488234 Contact Us For Availability
25
MAY W10225178 MAY W10225178 Contact Us For Availability
25
MAY W10233255 MAY W10233255 Contact Us For Availability
26
SCREW MAY W10137457 Contact Us For Availability
26
MAY W10225180 MAY W10225180 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
Insert MAY W10189313 Contact Us For Availability
27
MAY W10289662 MAY W10289662 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY W10267645 MAY W10267645 Contact Us For Availability
28
MAY W10137398 MAY W10137398 Contact Us For Availability
28
CLIP-SPRING MAY 8066208 Contact Us For Availability
29
MAY W10189075 MAY W10189075 Contact Us For Availability
29
MAY W10167237 MAY W10167237 Contact Us For Availability
29
SCREW MAY W10080280 Contact Us For Availability
30
MAY 3373818 MAY 3373818 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
SCREW MAY 3387230 Contact Us For Availability
31
FACIA-DISPENSER MAY W10137461 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
31
MAY 338906 MAY 338906 Contact Us For Availability
32
FACIA-CONSOLE MAY W10334891 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
THERMOSTAT 255° F HIGH LIMIT MAY W10206703 Contact Us For Availability
33
Push Button MAY W10131113 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY W10181926 MAY W10181926 Contact Us For Availability
34
SERVICE/VAULT, SWITCH JUMPER MAY W10133282 Contact Us For Availability
34
MAY 49026 MAY 49026 Contact Us For Availability
34
MAY W10153409 MAY W10153409 Contact Us For Availability
35
AUTOTRANSFORMER MAY 3977633 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY W10166307 MAY W10166307 Contact Us For Availability
36
MAY 8563747 MAY 8563747 Contact Us For Availability
36
MAY 8565061 MAY 8565061 Contact Us For Availability
37
MAY 8563750 MAY 8563750 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
MAY W10181918 MAY W10181918 Contact Us For Availability
39
MAY 3394986 MAY 3394986 Contact Us For Availability
40
MAY 8540621 MAY 8540621 Contact Us For Availability
40
MAY W10181549 MAY W10181549 Contact Us For Availability
41
Screw MAY 8533971 Contact Us For Availability
41
SCREW MAY 695240 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
43
SCREW MAY W10080700 Contact Us For Availability
43
SCREW MAY 3390647 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10119255 MAY W10119255 Contact Us For Availability
45
SCREW MAY W10080740 Contact Us For Availability
45
MAY W10286419 MAY W10286419 Contact Us For Availability
46
CONTROL BOARD MAY W10166377 Contact Us For Availability
46
THERMISTOR MAY 8577274 Contact Us For Availability
47
MAY 8563727 MAY 8563727 Contact Us For Availability
48
MAY 8565043 MAY 8565043 Contact Us For Availability
49
SCREW MAY 3357011 Contact Us For Availability
50
MAY W10255282 MAY W10255282 Contact Us For Availability
51
SWITCH & ACTUATOR ASSEMBLY MAY W10410873 Contact Us For Availability
52
MAY 8318396 MAY 8318396 Contact Us For Availability
53
MAY 3391943 MAY 3391943 Contact Us For Availability
54
MAY 3405160 MAY 3405160 Contact Us For Availability
55
MAY W10181903 MAY W10181903 Contact Us For Availability
56
SCREW MAY W10080390 Contact Us For Availability
58
MAY W10080730 MAY W10080730 Contact Us For Availability
59
MAY W10080320 MAY W10080320 Contact Us For Availability
60
MAY W10080630 MAY W10080630 Contact Us For Availability
63
TRANSFORMER, 120 - 22.5 VAC MAY W10205520 Contact Us For Availability
64
SCREW MAY W10080820 Contact Us For Availability
65
MAY W10250903 MAY W10250903 Contact Us For Availability
66
MAY W10259136 MAY W10259136 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
MAY W10476818 MAY W10476818 Contact Us For Availability
NI
10A CORD ADAPTERS: (BRITISH) MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTERS: (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
MAY W10233219 MAY W10233219 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
× ![]()
