Model Whirlpool MDG16MNAGW GAS DRYER – Common Parts & Diagrams

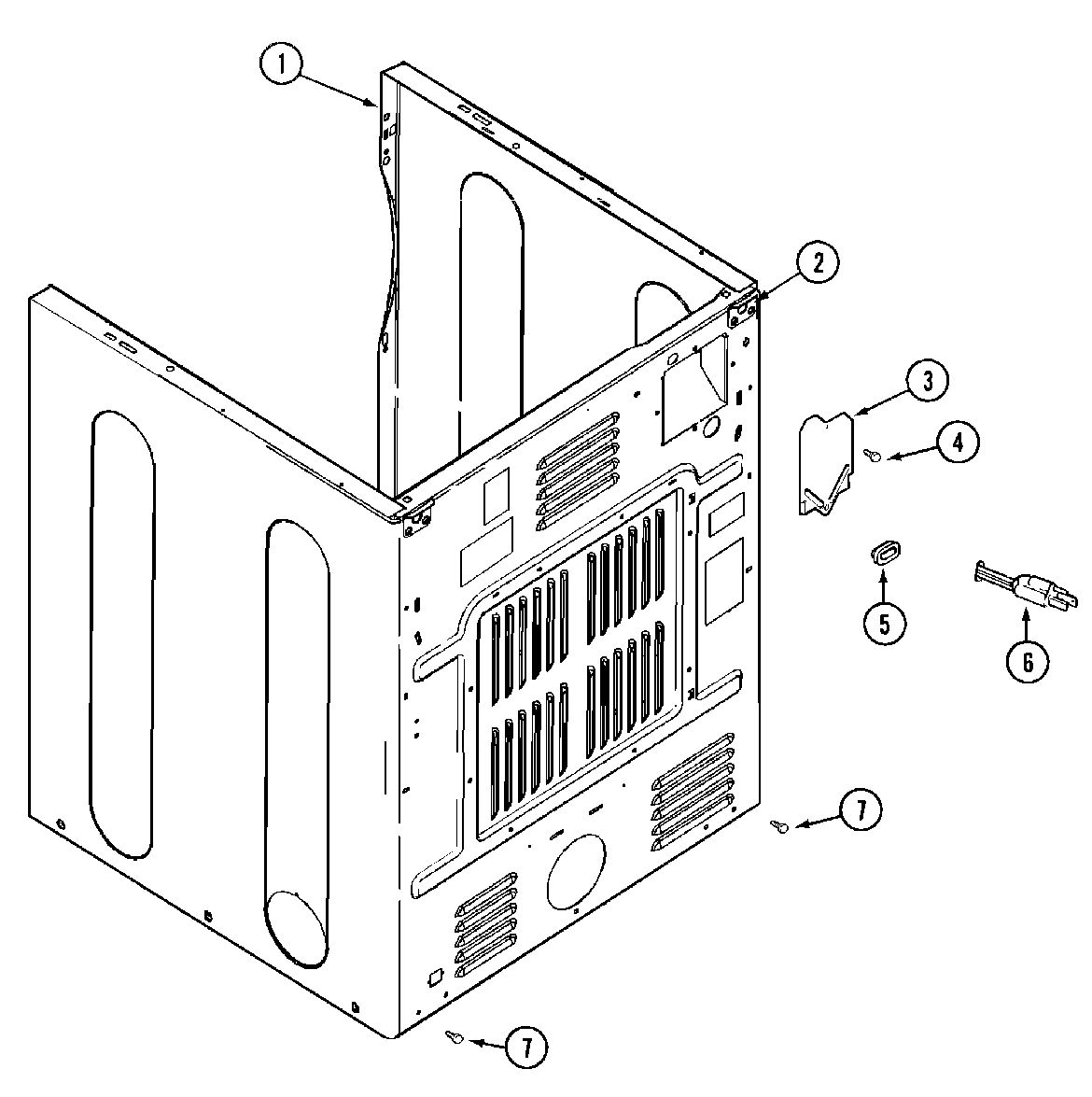

04 - CABINET-REAR

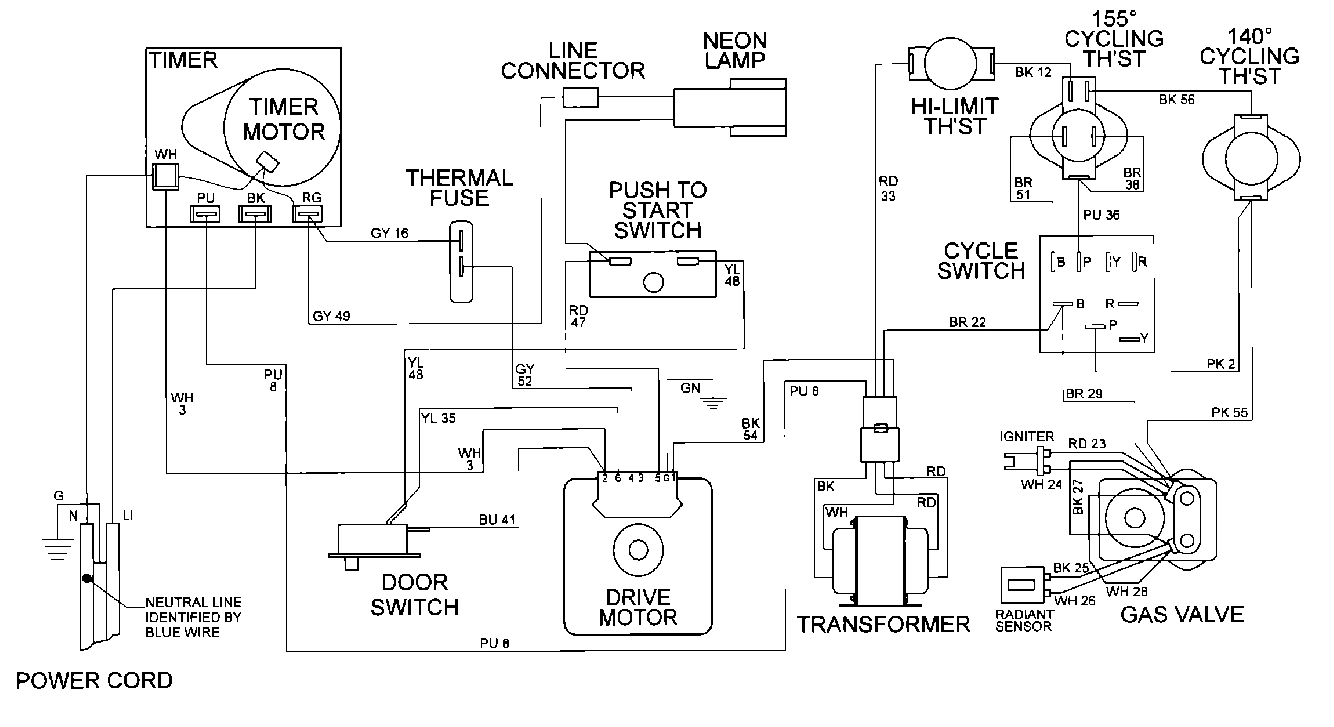

07 - WIRING INFORMATION

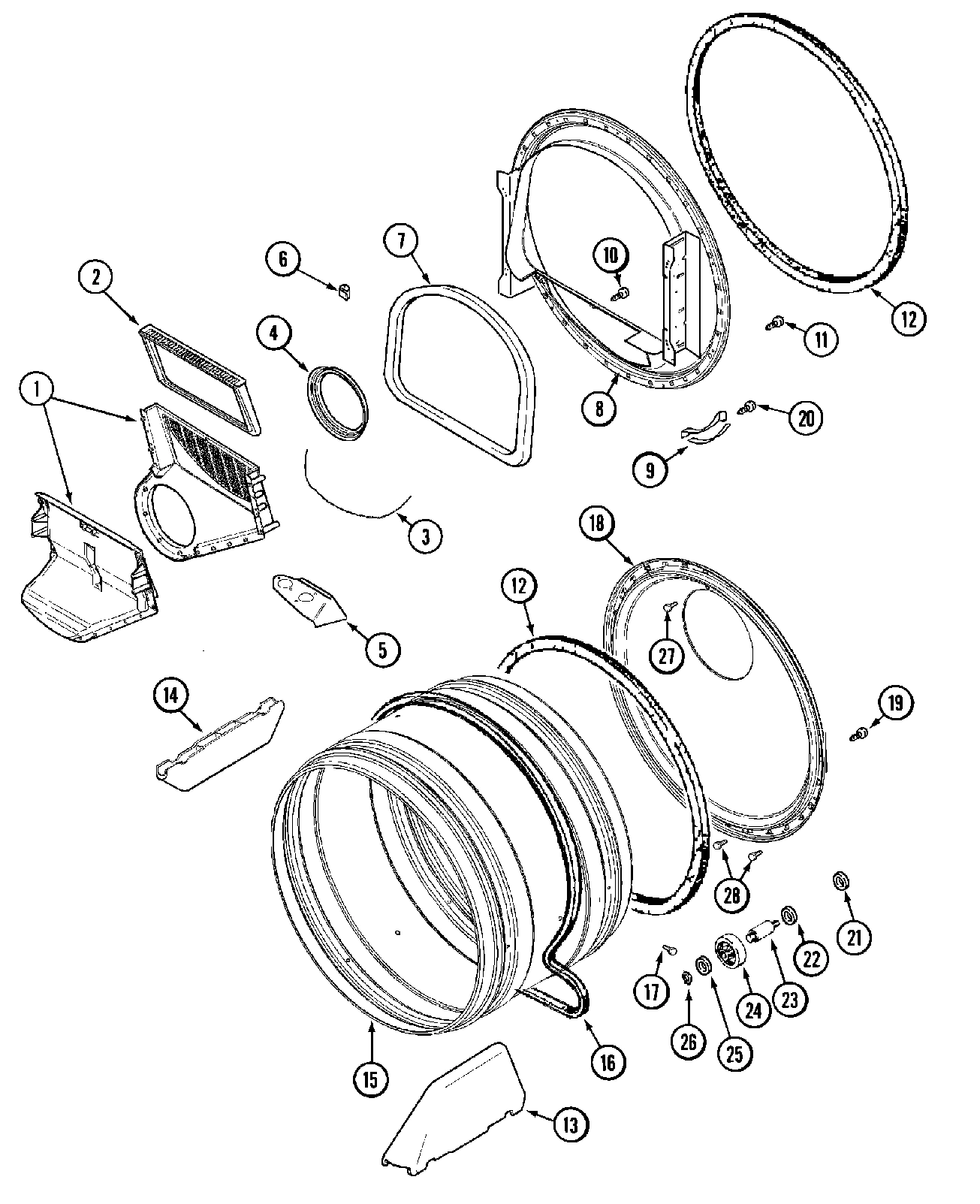

08 - TUMBLER

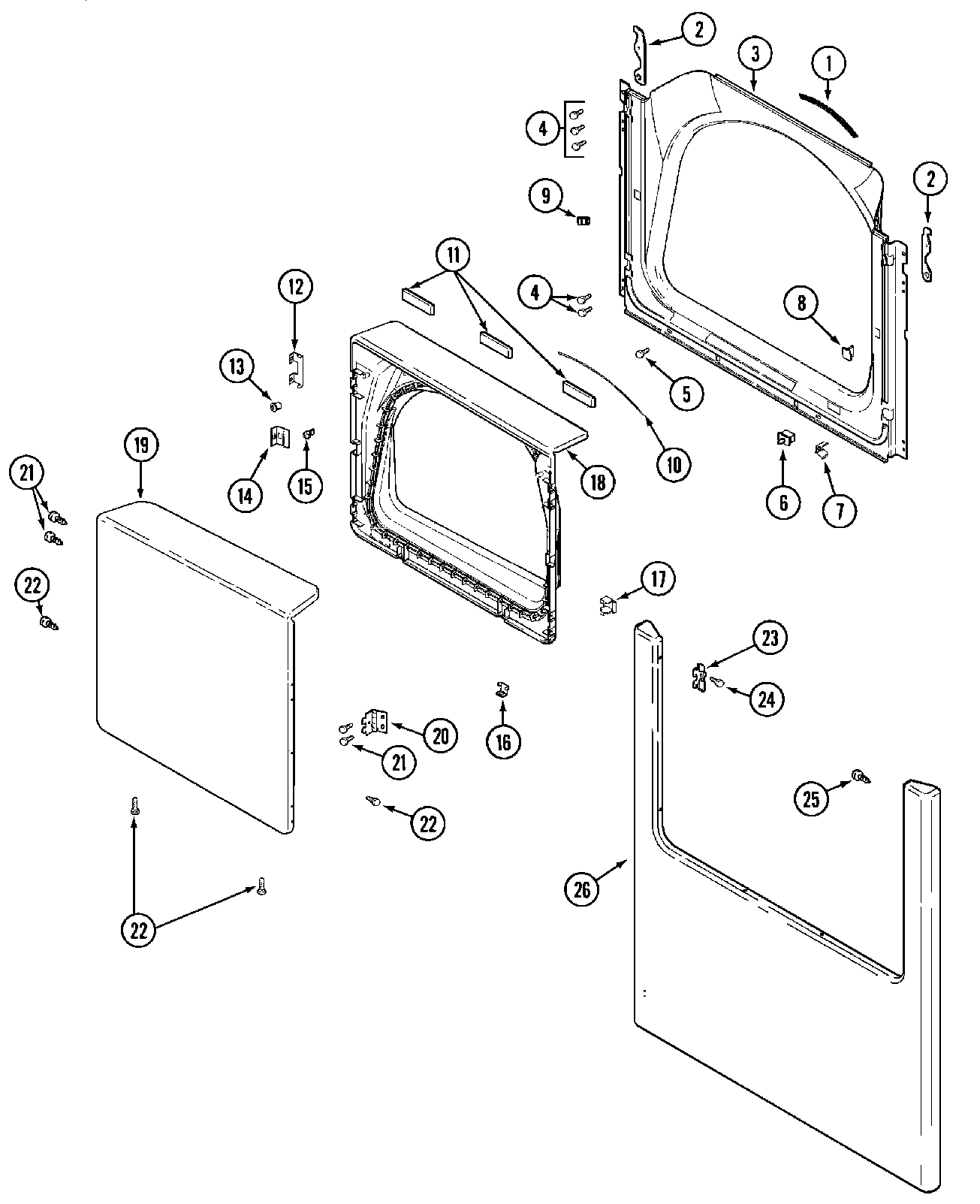

03 - DOOR
05 - GAS VALVE

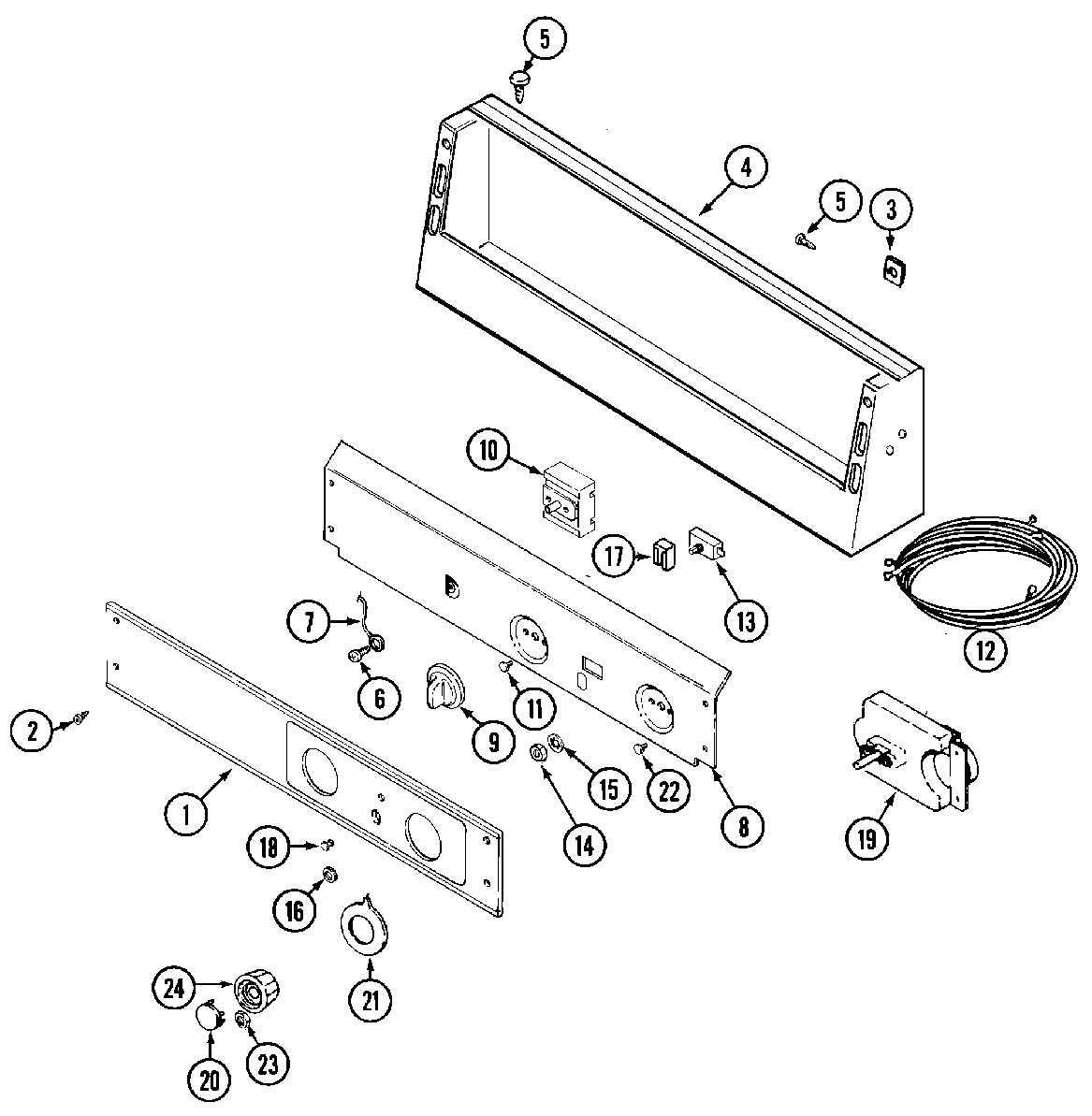

01 - CONTROL PANEL

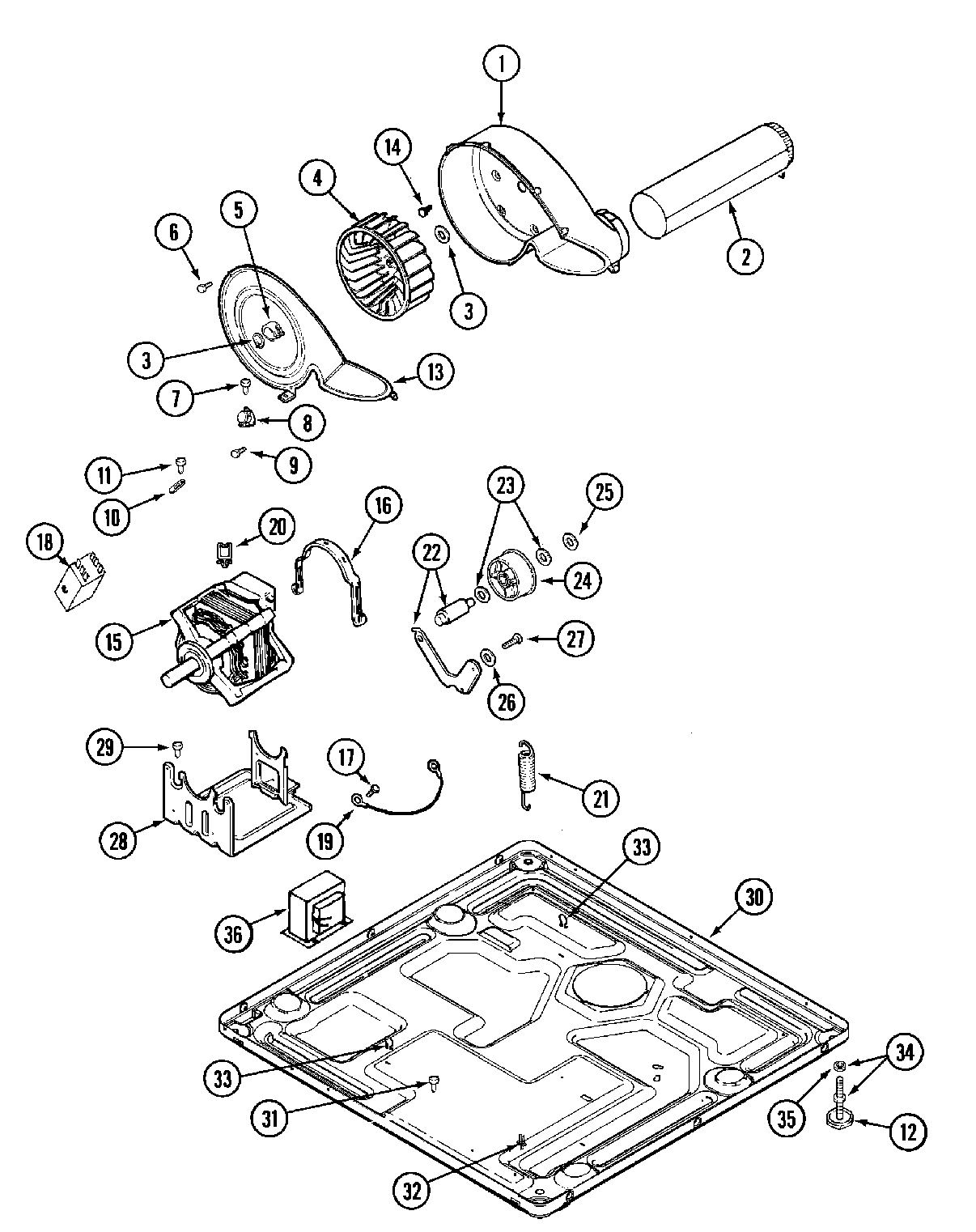

06 - MOTOR DRIVE

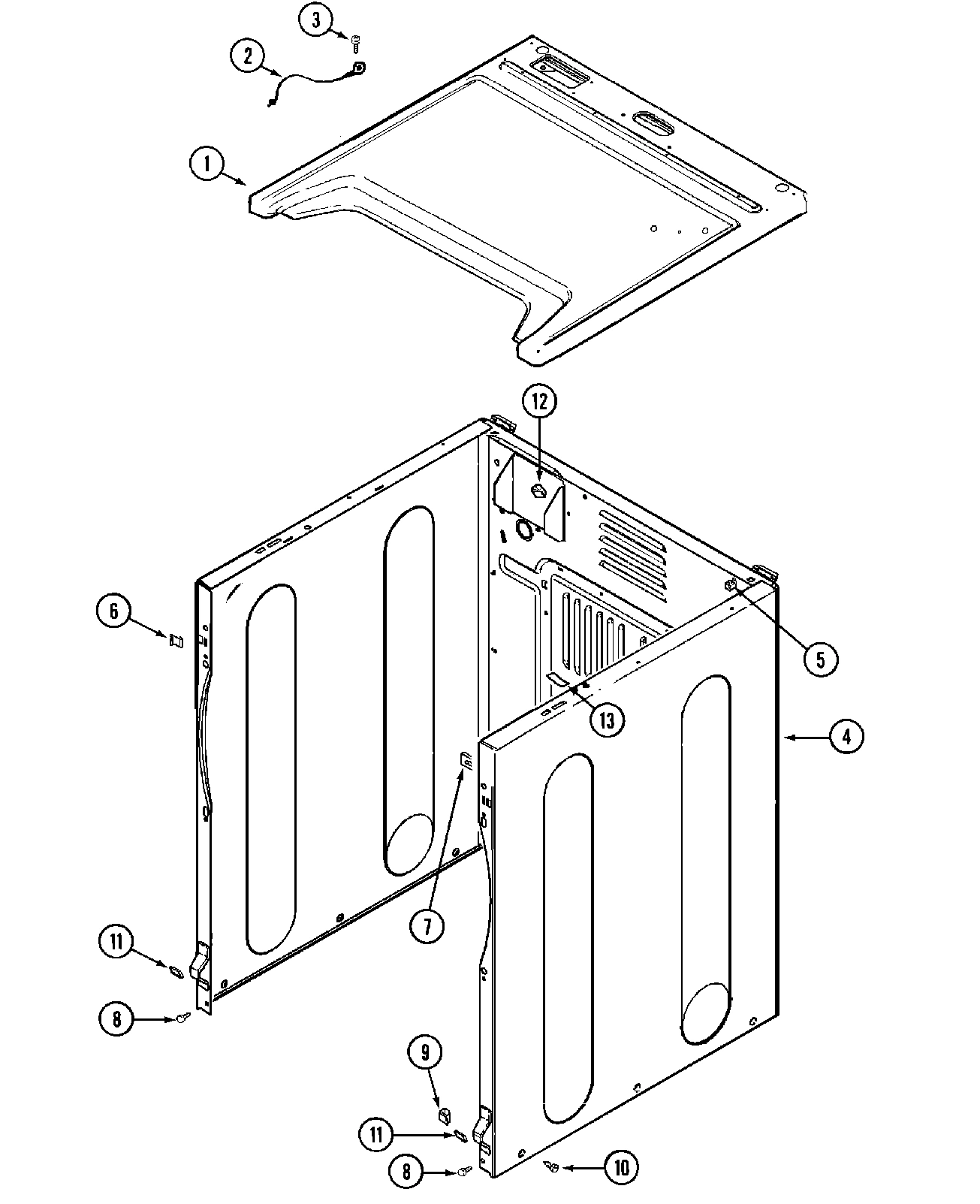

02 - CABINET-FRONT
Common parts from model Whirlpool MDG16MNAGW GAS DRYER
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
SEAL, SHROUD WPL 33001767 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
PANEL, CONTROL WPL 33001967 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001896 Contact Us For Availability
001
COVER, TOP (WHT-AS PK) WPL 33002631 Contact Us For Availability
002
HOOK, SECURITY WPL 33002597 Contact Us For Availability
002
HOOK, SECURITY WPL 22002247 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
WIRE, GROUND WPL 205810 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
003
SHROUD (WHT) WPL 33001900 Contact Us For Availability
003
(WHT) WPL 33001954 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
CLIP, SCREW WPL 215003 Contact Us For Availability
004
CABINET (WHT) WPL NLA Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
SEAL, BLOWER WPL 33002560 Contact Us For Availability
004
CONSOLE (WHT) WPL 22003101 Contact Us For Availability
004
CONSOLE (WHT) WPL 33001957 Contact Us For Availability
005
GROMMET, CORD WPL 22002532 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
FASTENER WPL 310933 Contact Us For Availability
006
CORD, POWER (EXPORT) WPL 22003540 Contact Us For Availability
006
ADAPTER (AUSTRALIA) 10 AMP WPL 22003541 Contact Us For Availability
006
CORD, POWER (EXPORT) WPL 308966 Contact Us For Availability
006
CORD, POWER WPL 33001284 Contact Us For Availability
006
CORD, POWER WPL 33001285 Contact Us For Availability
006
CORD, POWER (AS WRAPPED) WPL 33001689 Contact Us For Availability
006
SWITCH, DOOR WPL 33002167 Contact Us For Availability
006
SWITCH, DOOR WPL 33002239 Contact Us For Availability
006
VALVE, GAS (240V-50HZ) WPL 307927 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
RETAINER, SHROUD WPL 213280 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
BRACKET, BACK (WHT) WPL 33001968 Contact Us For Availability
008
BRACKET, BACK (WHT) WPL 33002524 Contact Us For Availability
008
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
009
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
009
RETAINER, WIRE WPL 22003298 Contact Us For Availability
010
BRACKET, GAS CONTROL WPL 33002710 Contact Us For Availability
010
SWITCH, CYCLE SELECTOR WPL 33002276 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
012
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001971 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001972 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33002246 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33002247 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33002773 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
013
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
016
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
018
DOOR, INNER (WHT) WPL 33001899 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
019
DOOR, OUTER (WHT) WPL 33001904 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001946 Contact Us For Availability
019
TIMER WPL 305214 Contact Us For Availability
019
TIMER 240-50 WPL Y305758 Contact Us For Availability
019
WIRE, GROUND WPL 901220 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
SKIRT, TIMER DIAL WPL 33001500 Contact Us For Availability
021
GROMMET WPL 33002157 Contact Us For Availability
021
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
024
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
025
MANUAL, OWNERS WPL 33002712 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 33001901 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
029
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
030
BASE, (LWR) WPL 33002622 Contact Us For Availability
032
RETAINER, WIRE WPL 315471 Contact Us For Availability
033
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
034
ADJUSTABLE LEG & NU WPL W10176519 No Longer Available
036
WPL 33001948 WPL 33001948 Contact Us For Availability
× ![]()
