Model Maytag MDE18PRAZW0 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

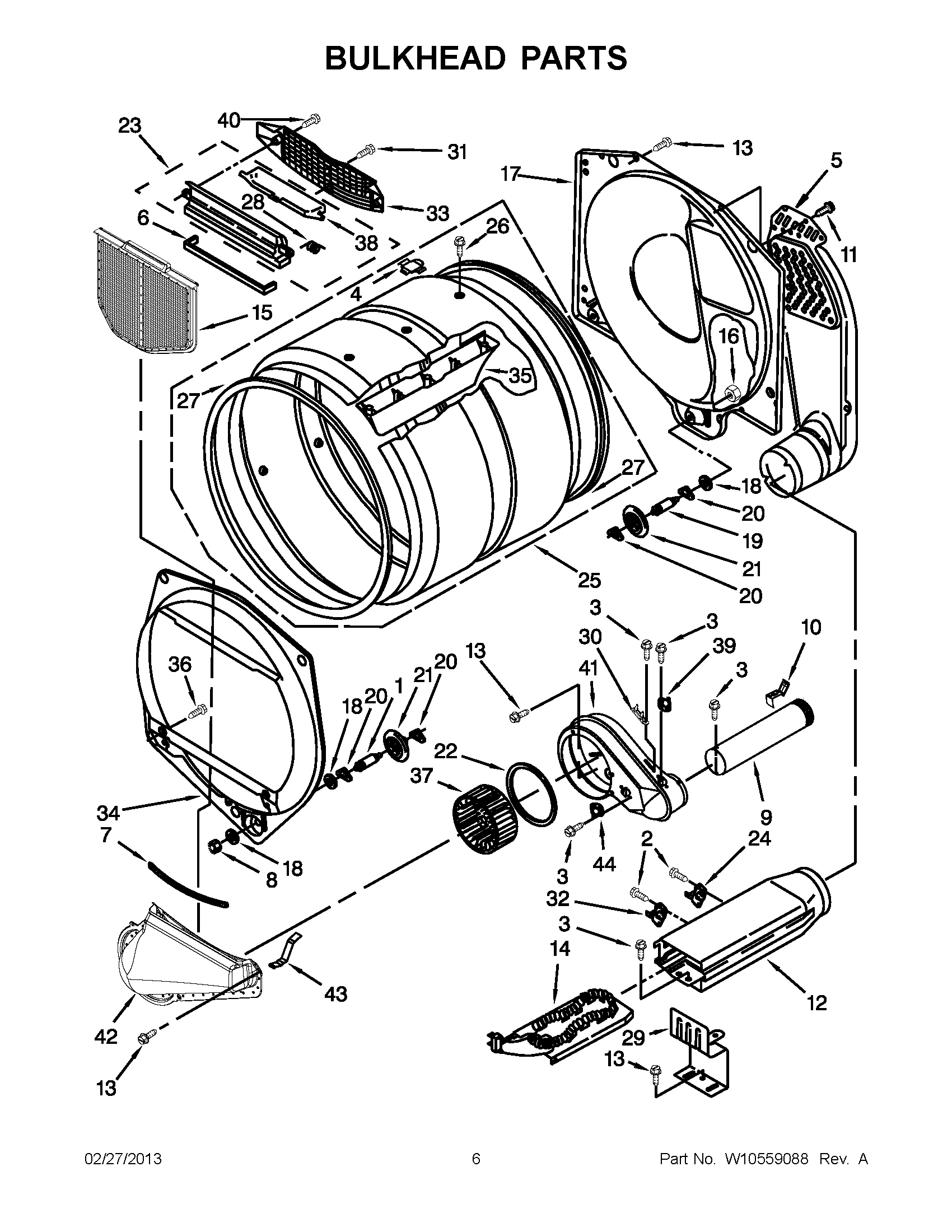

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE18PRAZW0 ELECTRIC DRYER
1
INSTRUCTIONS, INSTALLATION (CARD READER) MAY W10135291 Contact Us For Availability
1
MAY W10183571 MAY W10183571 Contact Us For Availability
1
MAY W10474273 MAY W10474273 Contact Us For Availability
1
MAY 3393008 MAY 3393008 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
2
COVER, DISPLAY MAY W10267645 Contact Us For Availability
2
NUT, ``U`` MAY W10131123 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
3
Clip, Front Panel MAY 3391846 Contact Us For Availability
4
FASCIA MAY N/P Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
Plug, Drum Hole MAY 8066086 Contact Us For Availability
5
MAY W10136704 MAY W10136704 Contact Us For Availability
5
MAY 8564010 MAY 8564010 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
SCREW MAY W10137322 Contact Us For Availability
6
MAY 3397659 MAY 3397659 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
CARD READER, HARNESS MAY W10133304 Contact Us For Availability
7
WHITE MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY W10461122 MAY W10461122 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
MAY W10133515 MAY W10133515 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
10
MAY W10135415 MAY W10135415 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
SCREW MAY W10143462 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
12
MAY W10471563 MAY W10471563 Contact Us For Availability
12
MAY 697750 MAY 697750 Contact Us For Availability
12
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
13
Standoff, Circuit Board MAY W10133514 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
14
NUT, 6-32 MAY W10139046 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
MAY 3387748 MAY 3387748 Contact Us For Availability
15
MAY W10161476 MAY W10161476 Contact Us For Availability
15
COVER PLATE, EXHAUST PLATE MAY 3394331 Contact Us For Availability
15
Screen, Lint MAY W10049370 Contact Us For Availability
16
MAY W10461095 MAY W10461095 Contact Us For Availability
16
MAY W10167613 MAY W10167613 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
Plug-Hinge MAY W10191265 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10131115 MAY W10131115 Contact Us For Availability
18
MAY 8539892 MAY 8539892 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY 8317305 MAY 8317305 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
LOCK-TOP MAY 345670 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
21
MAY W10286180 MAY W10286180 Contact Us For Availability
21
MAY W10279703 MAY W10279703 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10386302 MAY W10386302 Contact Us For Availability
22
Screw MAY 98139 Contact Us For Availability
22
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
23
MAY W10137770 MAY W10137770 Contact Us For Availability
23
MAY 3391943 MAY 3391943 Contact Us For Availability
23
MAY W10181928 MAY W10181928 Contact Us For Availability
24
SCREW MAY 3400618 Contact Us For Availability
24
SCREW MAY 697773 Contact Us For Availability
24
MAY 8318314 MAY 8318314 Contact Us For Availability
25
MAY W10137769 MAY W10137769 Contact Us For Availability
25
MAY 693152 MAY 693152 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10133335 MAY W10133335 Contact Us For Availability
27
MAY W10396034 MAY W10396034 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
28
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
29
MAY W10131839 MAY W10131839 Contact Us For Availability
29
MAY 8533974 MAY 8533974 Contact Us For Availability
29
MAY 8066099 MAY 8066099 Contact Us For Availability
30
MAY W10130183 MAY W10130183 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
MAY 359625 MAY 359625 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
MAY W10181926 MAY W10181926 Contact Us For Availability
34
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
34
MAY 697557 MAY 697557 Contact Us For Availability
35
MAY 279393 MAY 279393 Contact Us For Availability
35
Baffle, Drum MAY 697693 Contact Us For Availability
36
SCREW, DOOR SWITCH MOUNTING MAY 3390663 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
37
ELBOW MAY 49026 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY 8564011 MAY 8564011 Contact Us For Availability
38
MAY W10181925 MAY W10181925 Contact Us For Availability
39
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
39
MAY W10131836 MAY W10131836 Contact Us For Availability
40
MAY W10155571 MAY W10155571 Contact Us For Availability
40
SCREW MAY 3387230 Contact Us For Availability
41
Switch, Door MAY 3406109 Contact Us For Availability
41
MAY W10135254 MAY W10135254 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
MAY 8066168 MAY 8066168 Contact Us For Availability
43
WHITE MAY 697215 Contact Us For Availability
43
MAY W10345456 MAY W10345456 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
THERMOSTAT 155° F (ELECTRONIC) MAY W10193019 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY W10323061 MAY W10323061 Contact Us For Availability
48
SCREW MAY 695240 Contact Us For Availability
49
MAY W10322546 MAY W10322546 Contact Us For Availability
50
MAY W10116360 MAY W10116360 Contact Us For Availability
51
PANEL, FRONT (WHITE) MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
54
Door Catch Assembly MAY 3392538 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
× ![]()
