Model Maytag MDE16CSDYW ELECTRIC DRYER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CONTROL CENTER

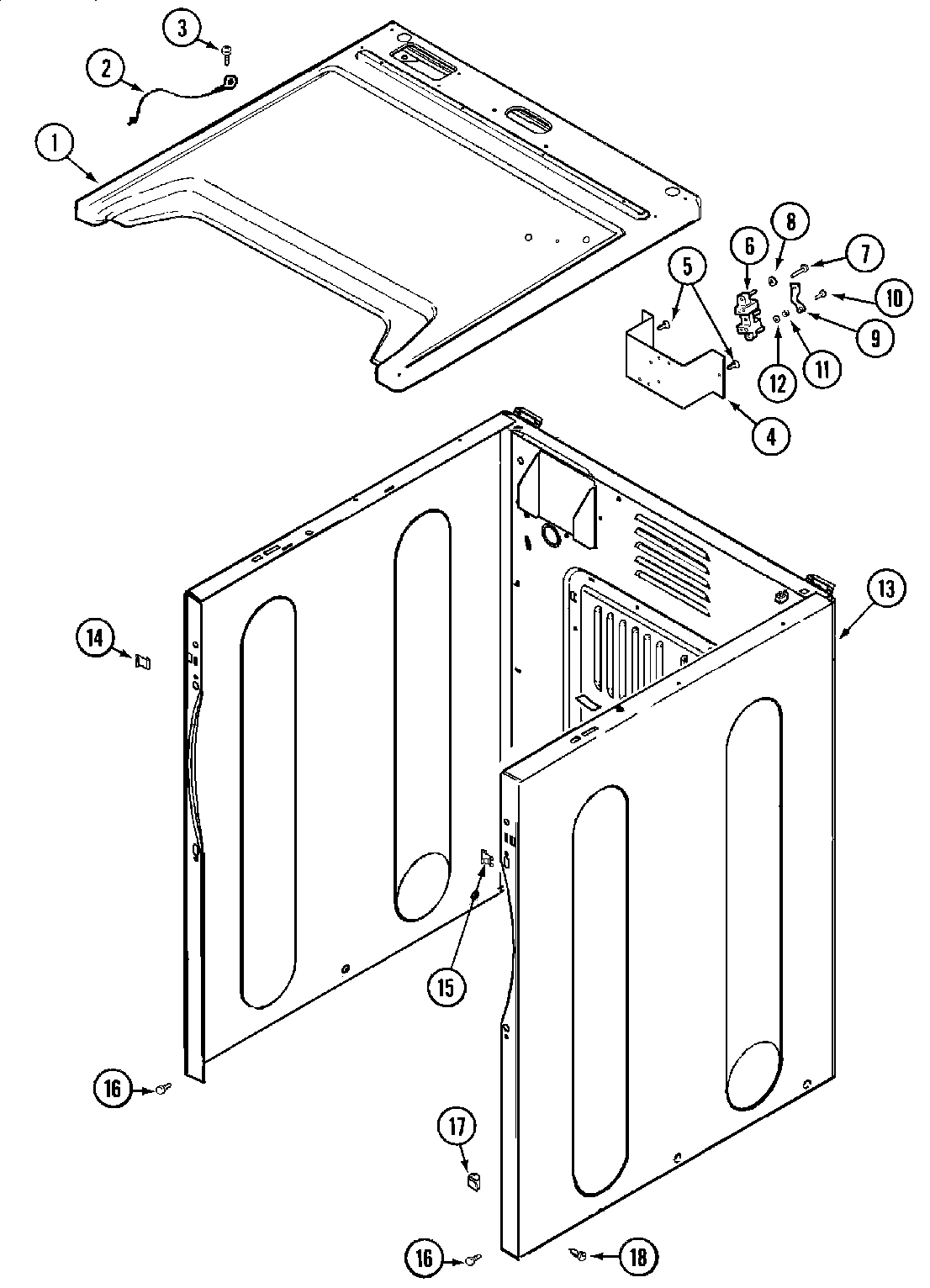

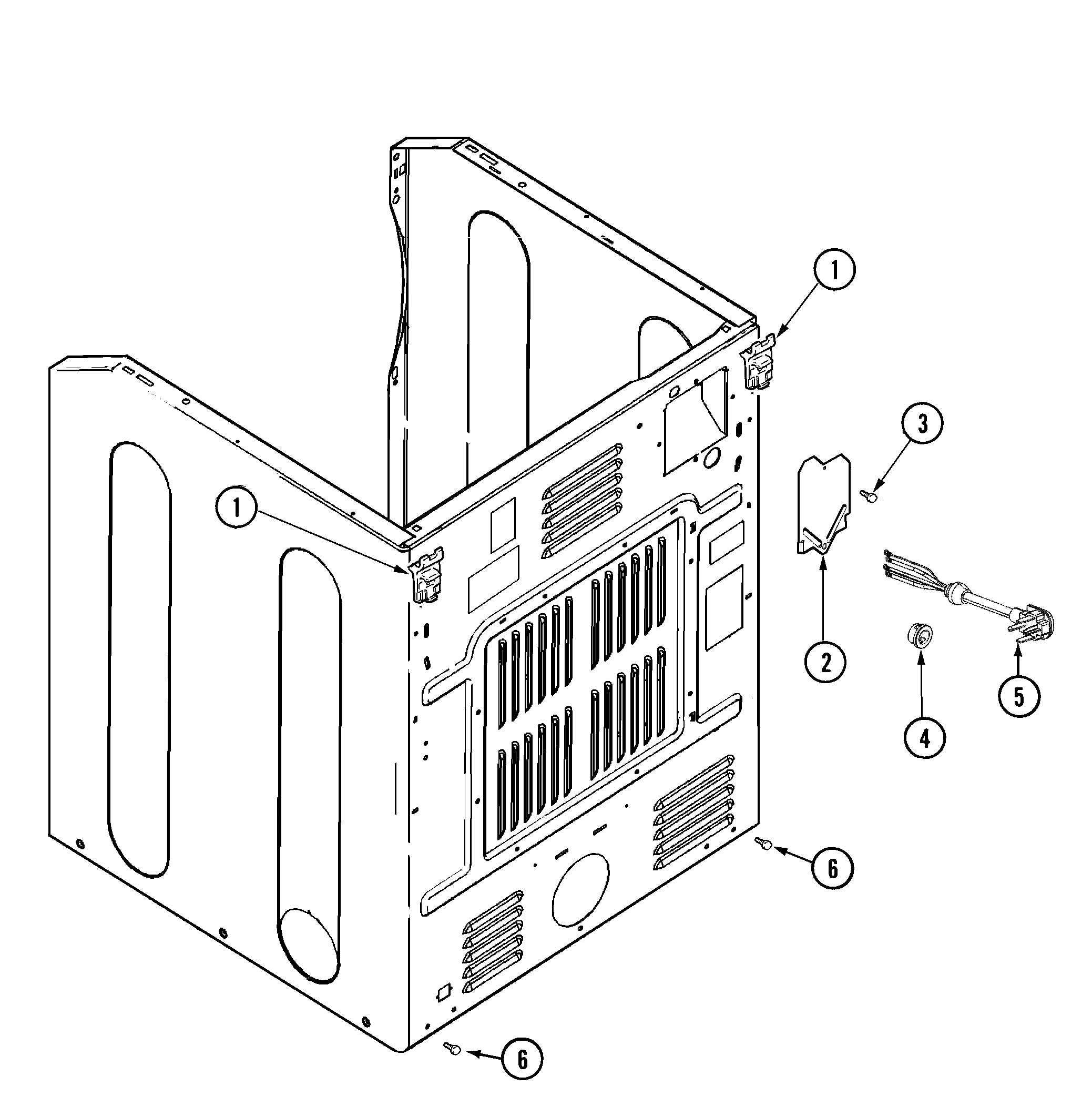

03 - CABINET-FRONT

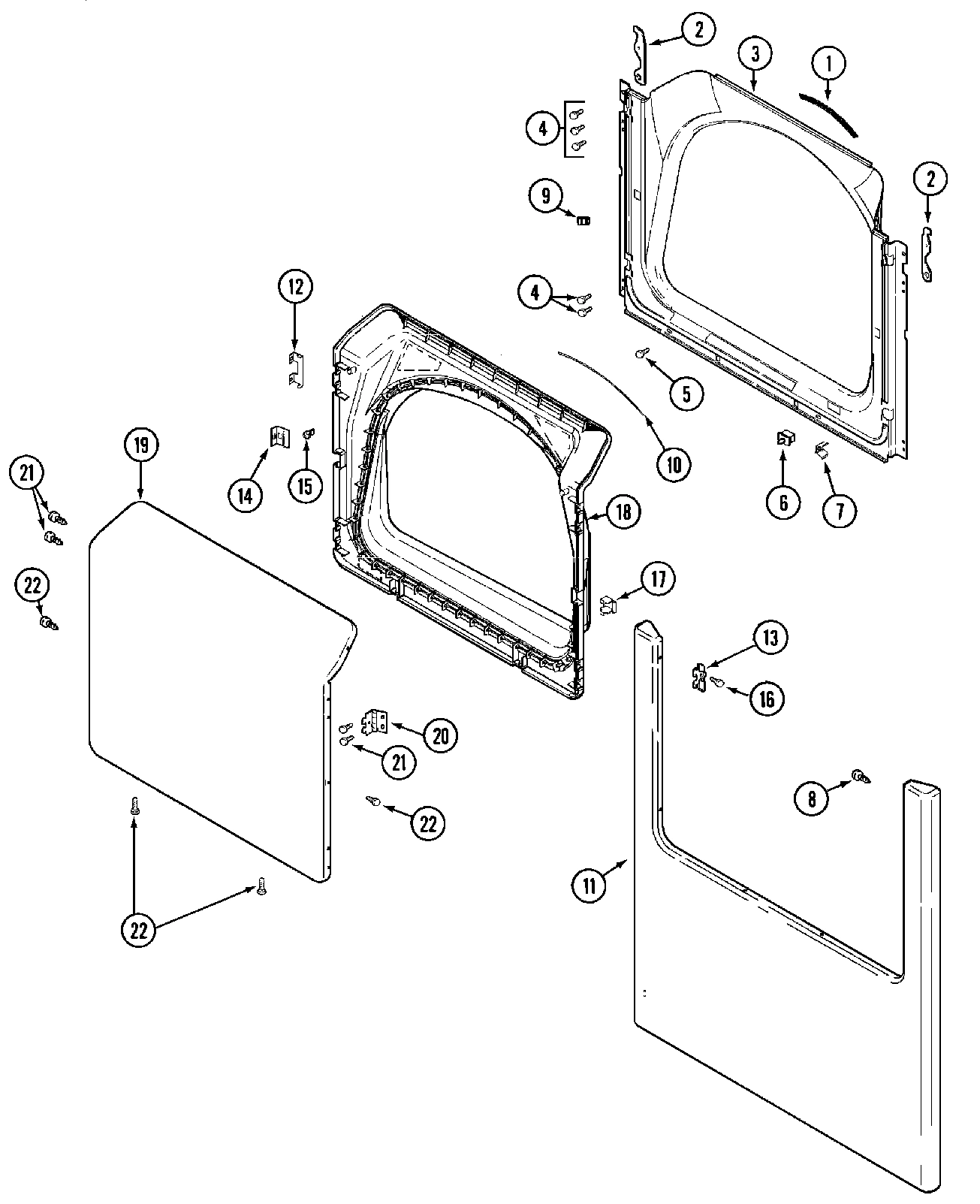

04 - DOOR
05 - CABINET-REAR
06 - TUMBLER
07 - HEATER

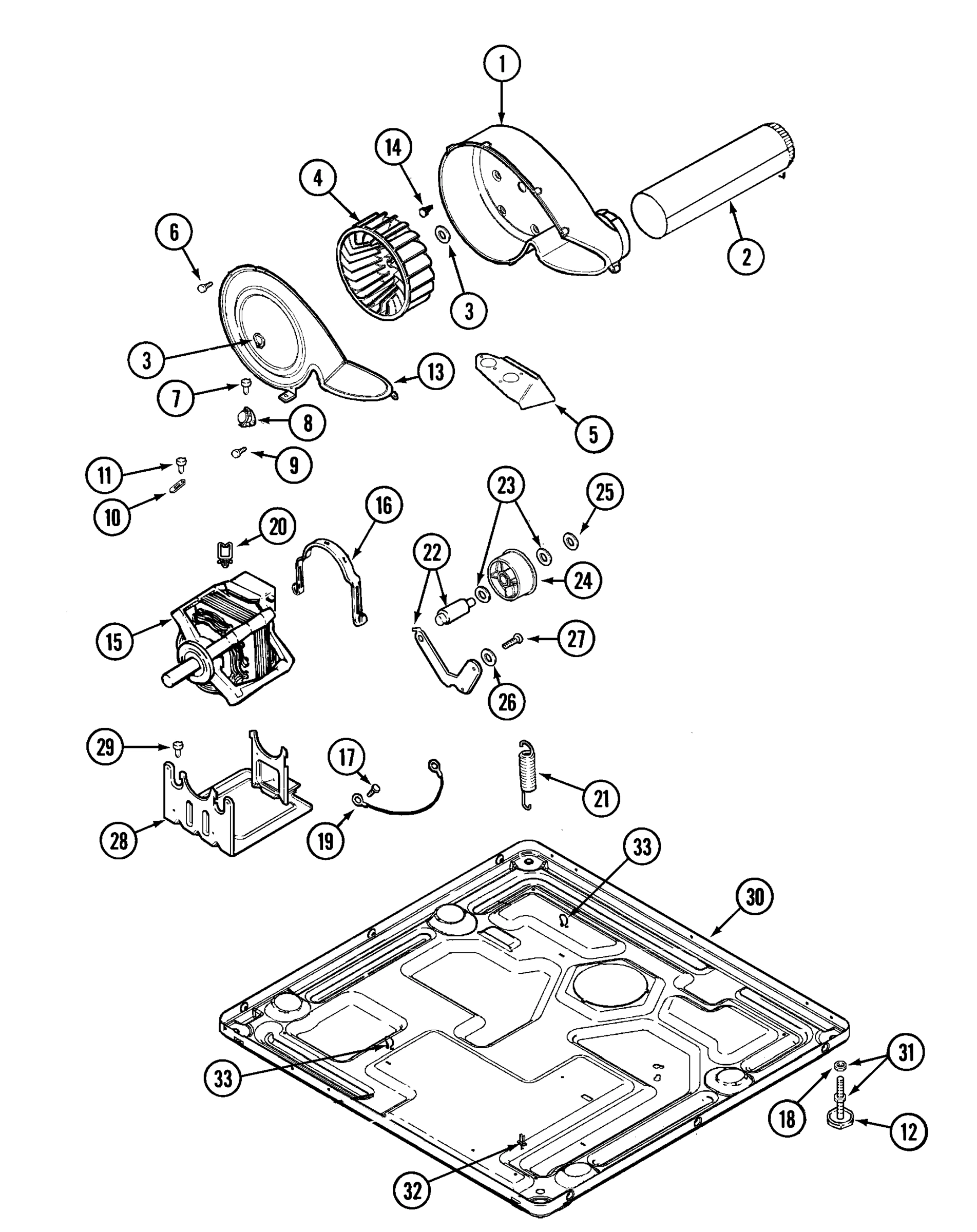

08 - MOTOR DRIVE

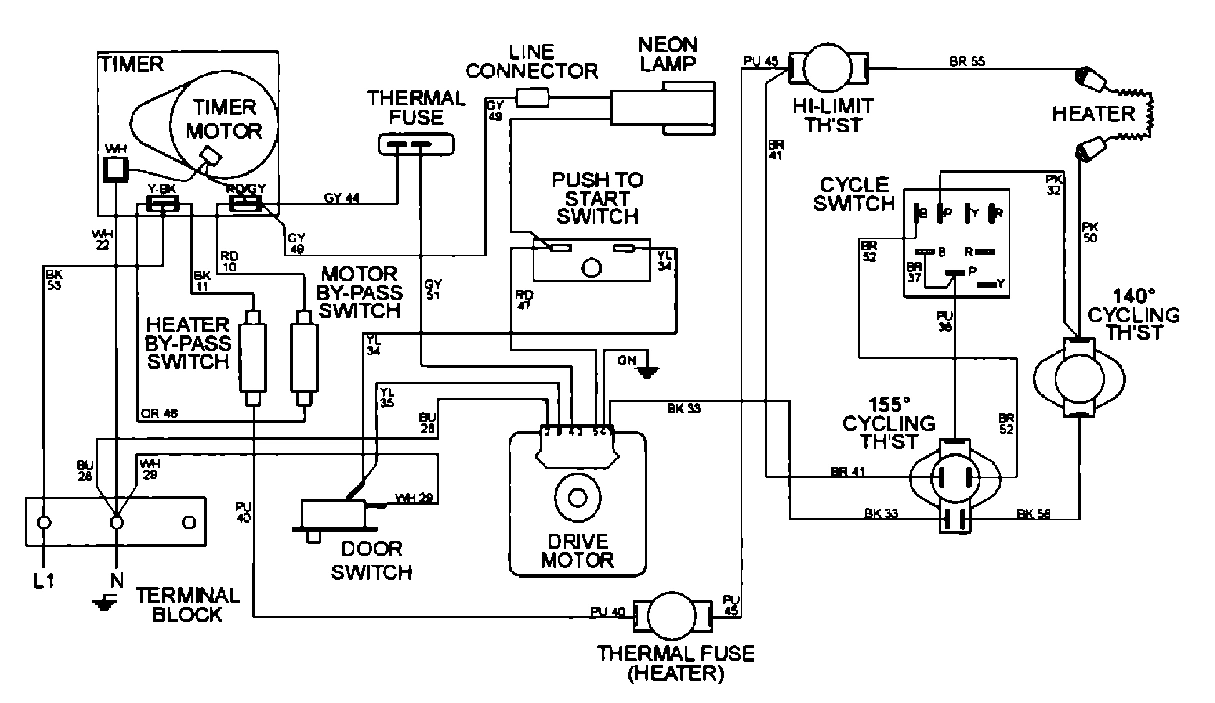

09 - WIRING INFORMATION
Common parts from model Maytag MDE16CSDYW ELECTRIC DRYER
001
MAY 33001767 MAY 33001767 Contact Us For Availability
001
MAY 33001799 MAY 33001799 Contact Us For Availability
001
MAY 22004095 MAY 22004095 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
002
MAY 33002597 MAY 33002597 Contact Us For Availability
002
MAY 33001795 MAY 33001795 Contact Us For Availability
002
MAY 33002767 MAY 33002767 Contact Us For Availability
002
MAY 33003038 MAY 33003038 Contact Us For Availability
002
MAY 33001800 MAY 33001800 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
003
MAY 33001900 MAY 33001900 Contact Us For Availability
003
SCREW, TERMINAL BLOCK COVER MAY 33002190 Contact Us For Availability
003
SCREW, TERMINAL BLOCK GROUND MAY Y912873 Contact Us For Availability
003
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
004
MAY 33002157 MAY 33002157 Contact Us For Availability
004
MAY 33002560 MAY 33002560 Contact Us For Availability
004
MAY 314998 MAY 314998 Contact Us For Availability
005
MAY 22004502 MAY 22004502 Contact Us For Availability
005
MAY 33001425 MAY 33001425 Contact Us For Availability
005
MAY 33002258 MAY 33002258 Contact Us For Availability
005
MAY 33002260 MAY 33002260 Contact Us For Availability
005
MAY 33002916 MAY 33002916 Contact Us For Availability
005
MAY 307184 MAY 307184 Contact Us For Availability
005
MAY 307185 MAY 307185 Contact Us For Availability
005
MAY 307186 MAY 307186 Contact Us For Availability
005
MAY 33001837 MAY 33001837 Contact Us For Availability
006
MAY 33002106 MAY 33002106 Contact Us For Availability
006
MAY 33002259 MAY 33002259 Contact Us For Availability
006
MAY 33002239 MAY 33002239 Contact Us For Availability
006
MAY 314999 MAY 314999 Contact Us For Availability
007
SCREW, TERMINAL BLOCK MAY Y312209 Contact Us For Availability
007
MAY 33001760 MAY 33001760 Contact Us For Availability
008
MAY 33001802 MAY 33001802 Contact Us For Availability
008
MAY 306967 MAY 306967 Contact Us For Availability
008
MAY 22002244 MAY 22002244 Contact Us For Availability
008
WIRE HARNESS, THERMOSTAT MAY 33001306 Contact Us For Availability
009
MAY Y312184 MAY Y312184 Contact Us For Availability
009
MAY Y304578 MAY Y304578 Contact Us For Availability
009
MAY 33002159 MAY 33002159 Contact Us For Availability
011
MAY 22002239 MAY 22002239 Contact Us For Availability
011
MAY 33001901 MAY 33001901 Contact Us For Availability
011
MAY 33002261 MAY 33002261 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
013
MAY 33001771 MAY 33001771 Contact Us For Availability
013
MAY 33001756 MAY 33001756 Contact Us For Availability
013
MAY 315346 MAY 315346 Contact Us For Availability
013
MAY 33002711 MAY 33002711 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
TORSION TIMER ASSY. MAY 33001275 Contact Us For Availability
015
MAY 33001761 MAY 33001761 Contact Us For Availability
015
RETAINER, SHROUD MAY 213280 Contact Us For Availability
015
MAY 33001794 MAY 33001794 Contact Us For Availability
015
MAY Y308590 MAY Y308590 Contact Us For Availability
016
MAY 22002039 MAY 22002039 Contact Us For Availability
017
MAY 33001763 MAY 33001763 Contact Us For Availability
017
MAY 33001788 MAY 33001788 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
SWITCH, BY-PASS (HEATER) MAY Y305799 Contact Us For Availability
018
MAY 33002779 MAY 33002779 Contact Us For Availability
018
MAY 33003037 MAY 33003037 Contact Us For Availability
019
MAY 33001904 MAY 33001904 Contact Us For Availability
019
MAY 901220 MAY 901220 Contact Us For Availability
020
MAY Y310376 MAY Y310376 Contact Us For Availability
021
DRIVER, INDEX WHEEL MAY 314330 Contact Us For Availability
021
MAY 33002461 MAY 33002461 Contact Us For Availability
022
PEG, TINE ADJUSTMENT MAY 314335 Contact Us For Availability
022
MAY 22002063 MAY 22002063 Contact Us For Availability
023
MAY Y312527 MAY Y312527 Contact Us For Availability
024
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
026
MAY 33002967 MAY 33002967 Contact Us For Availability
026
MAY 33002218 MAY 33002218 Contact Us For Availability
028
MAY 33002817 MAY 33002817 Contact Us For Availability
029
SCREW, MOTOR & BLOWER MAY Y313561 Contact Us For Availability
032
MAY 315471 MAY 315471 Contact Us For Availability
033
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
