Model Maytag MBF2258XEB3 REFRIGERATOR – Common Parts & Diagrams

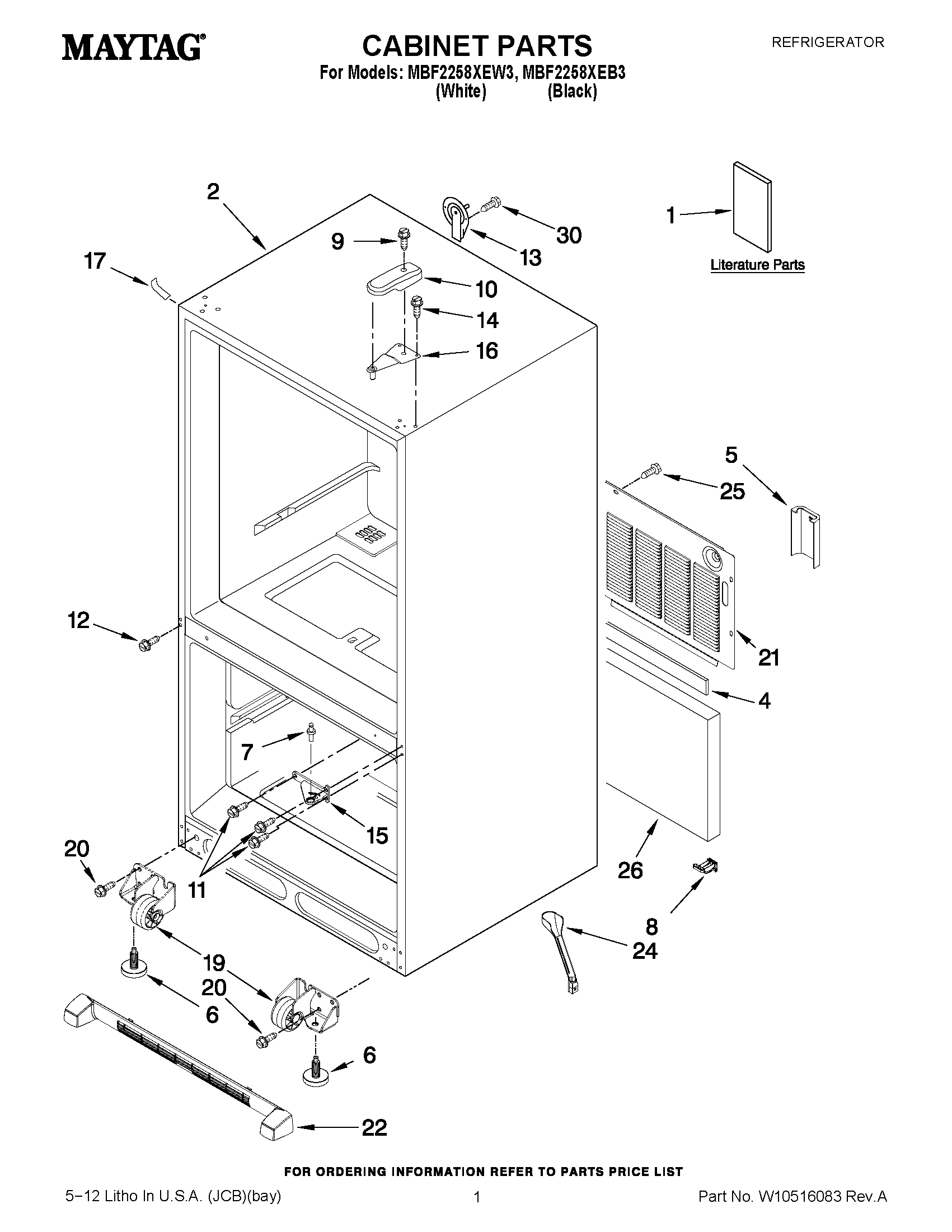

01 - CABINET PARTS

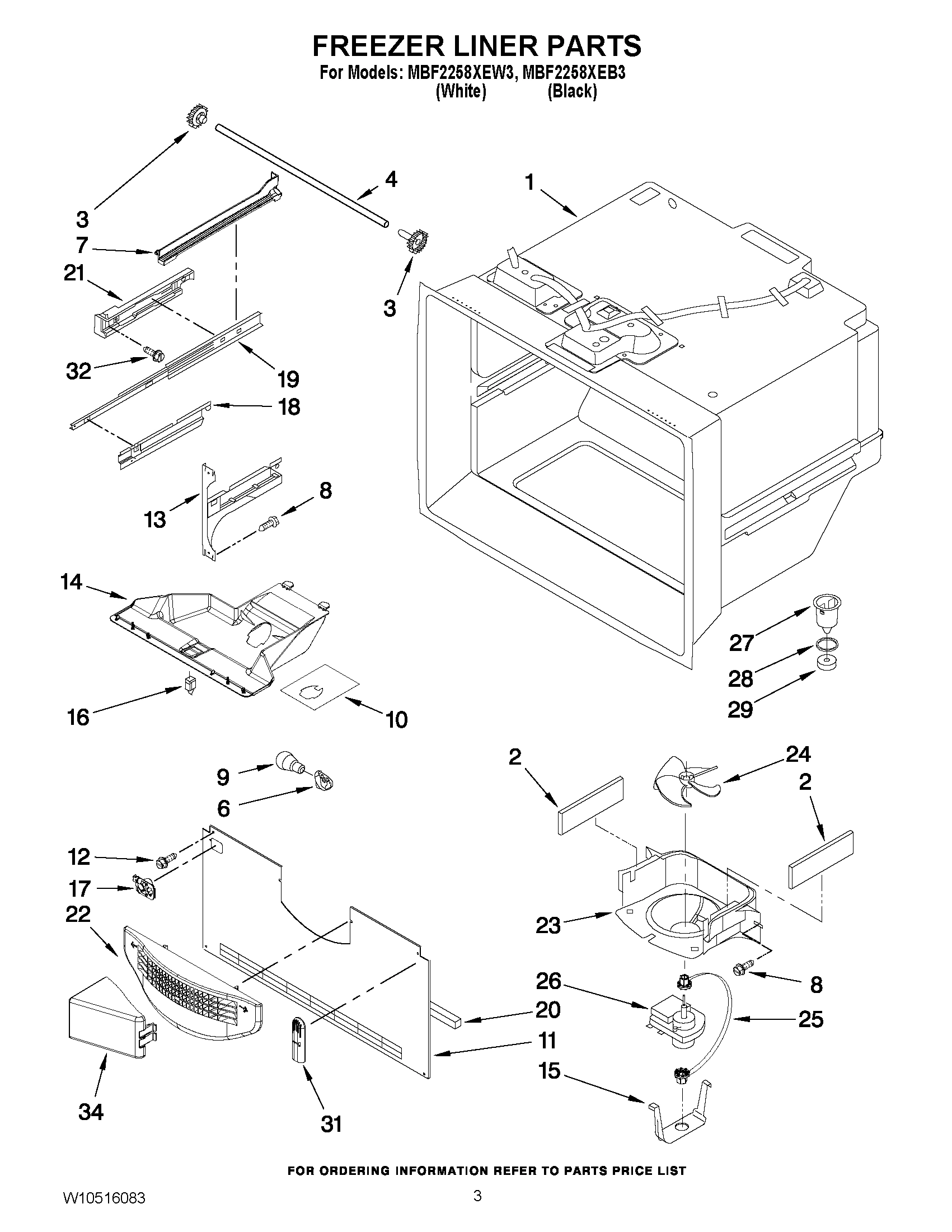

02 - FREEZER LINER PARTS

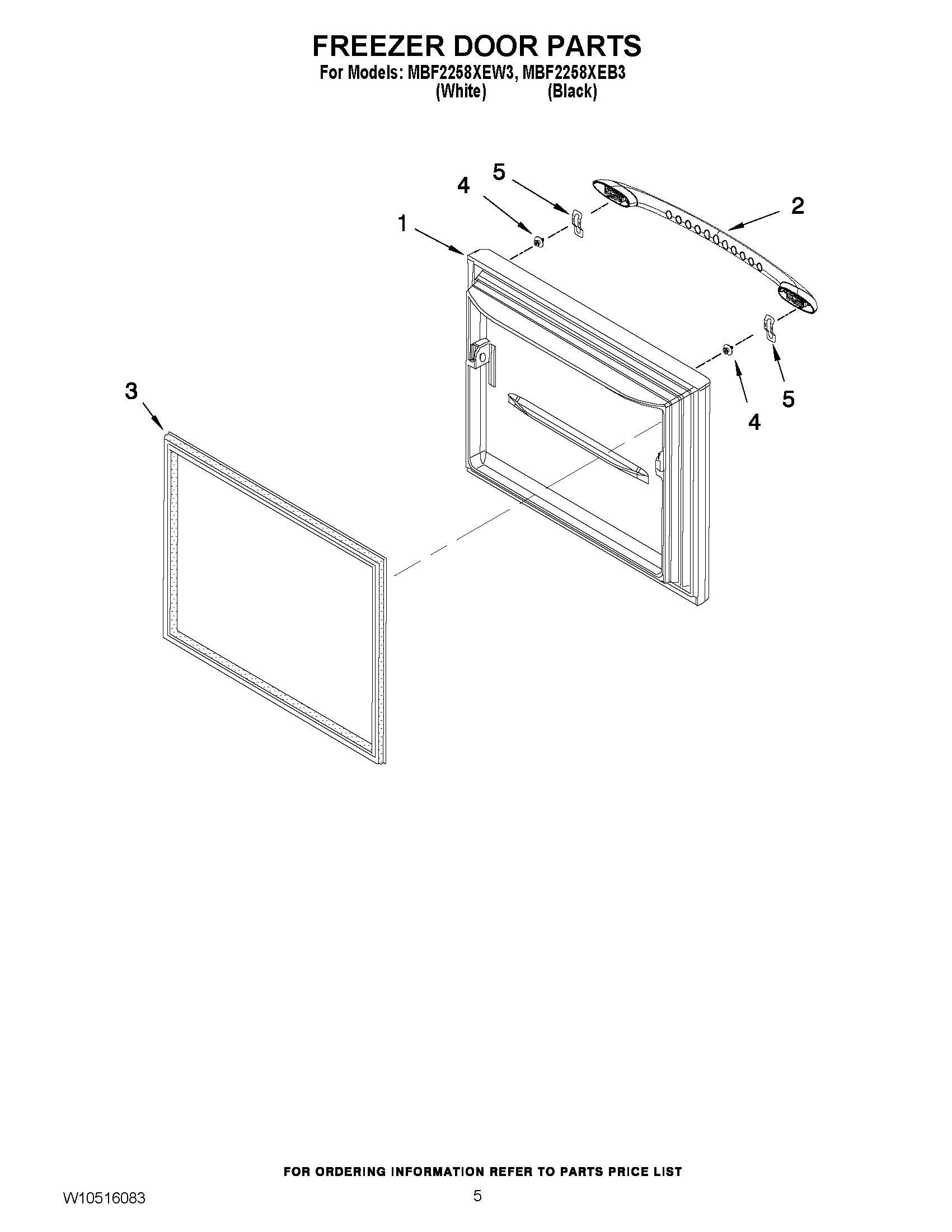

03 - FREEZER DOOR PARTS

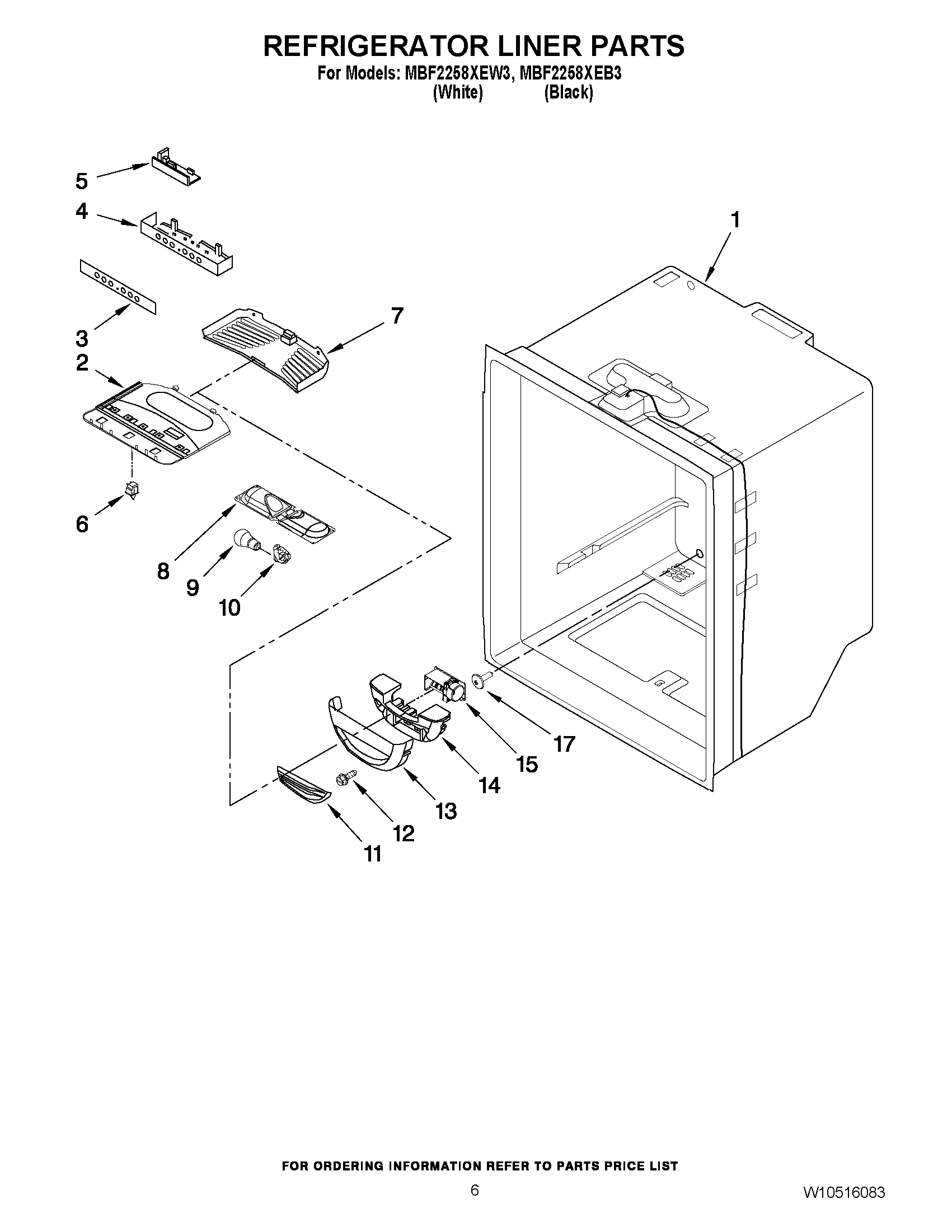

04 - REFRIGERATOR LINER PARTS

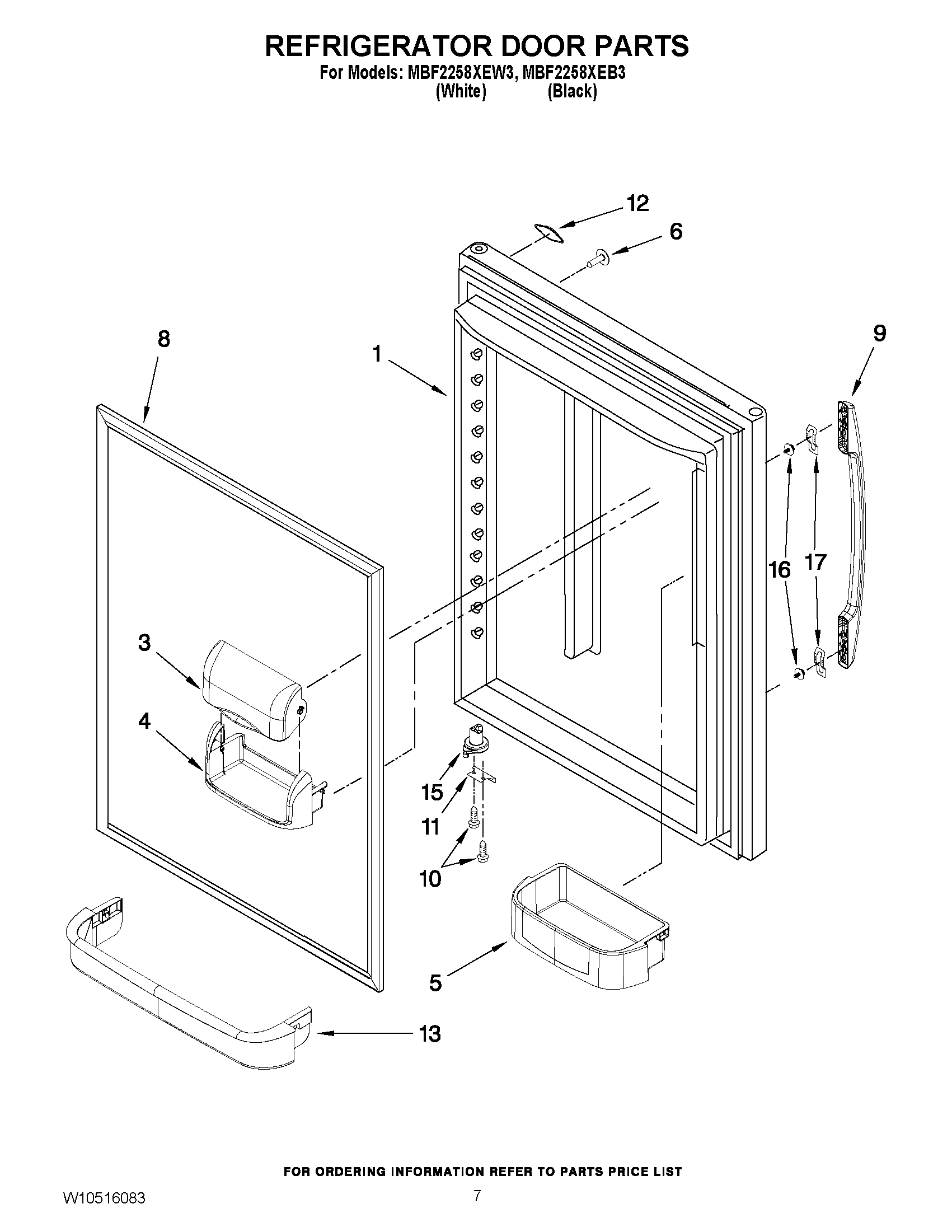

05 - REFRIGERATOR DOOR PARTS

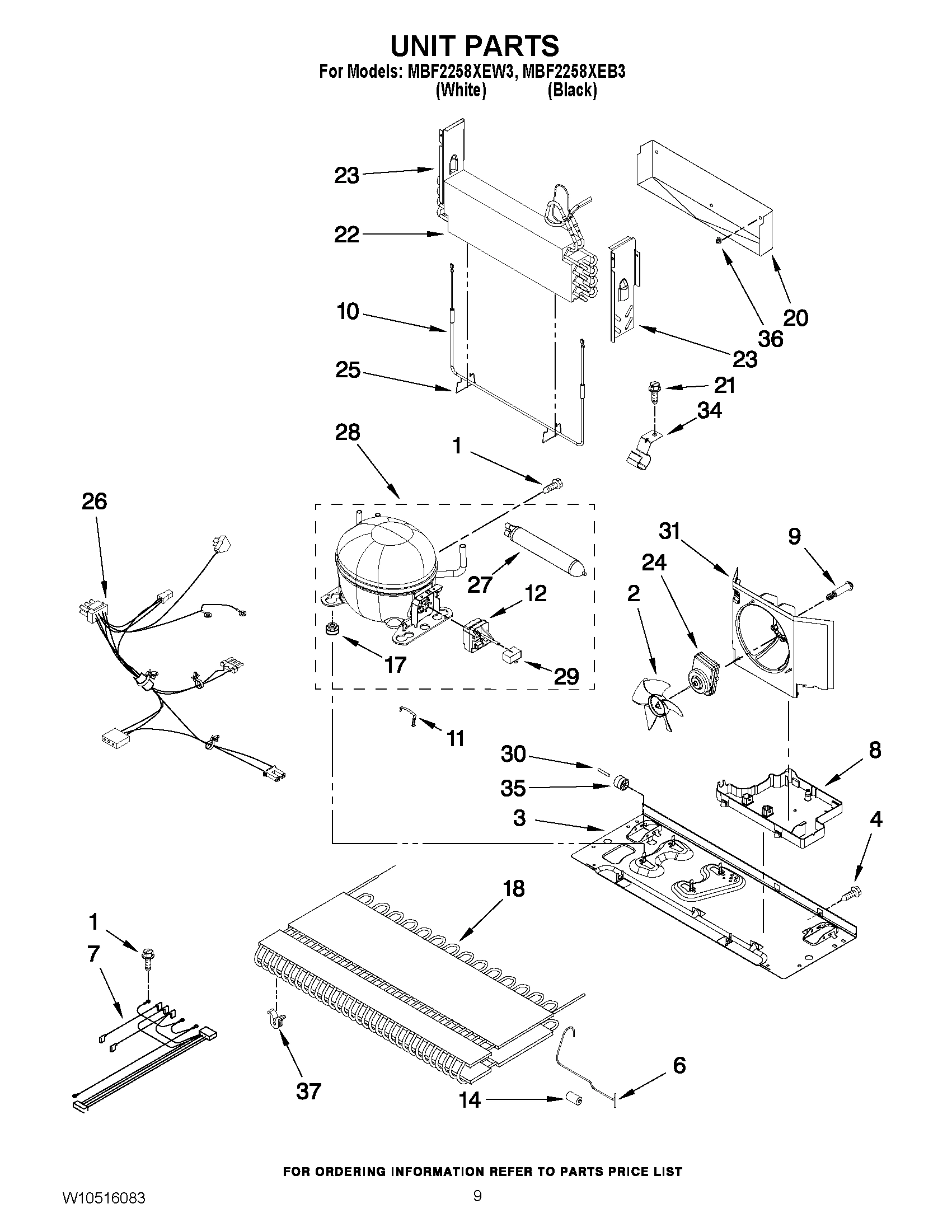

06 - UNIT PARTS

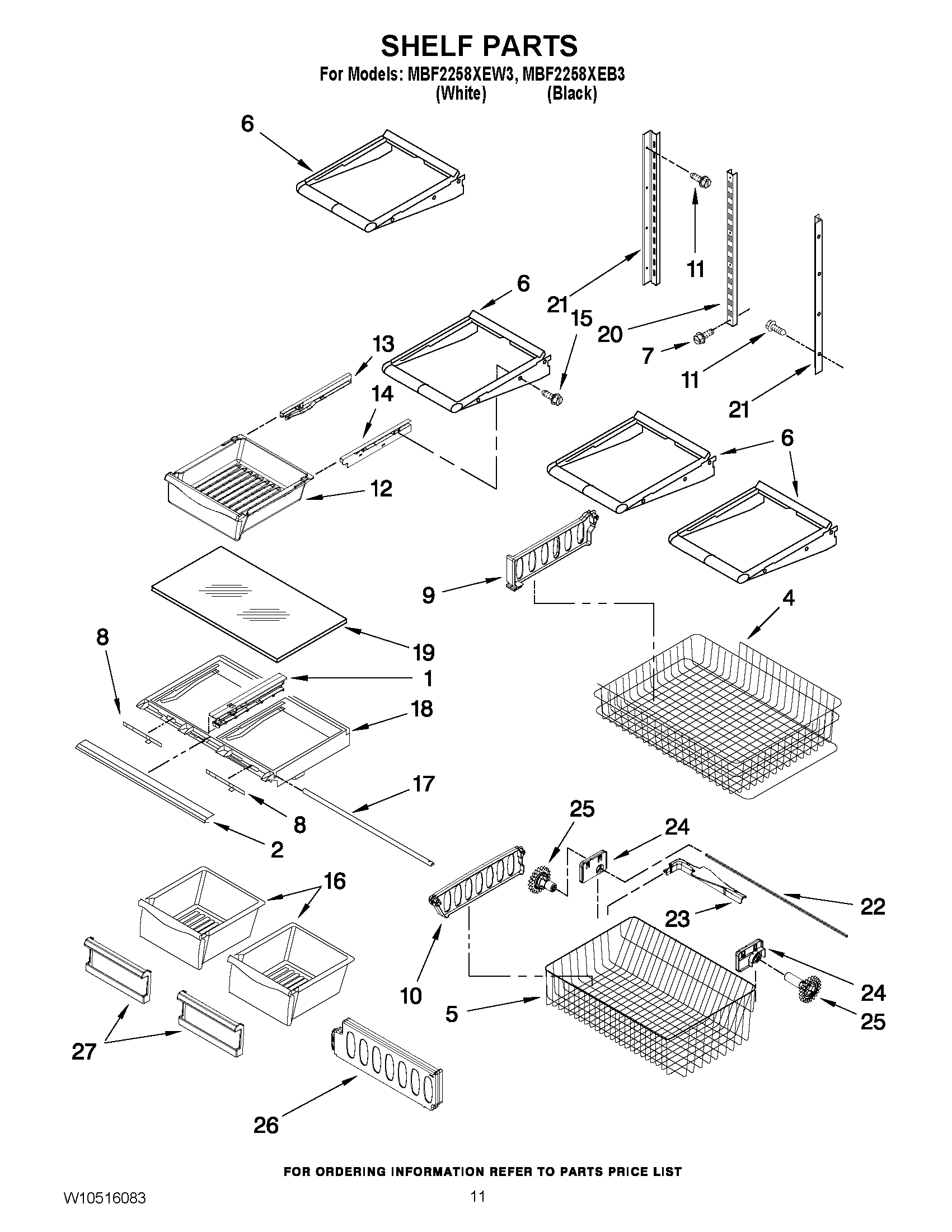

07 - SHELF PARTS

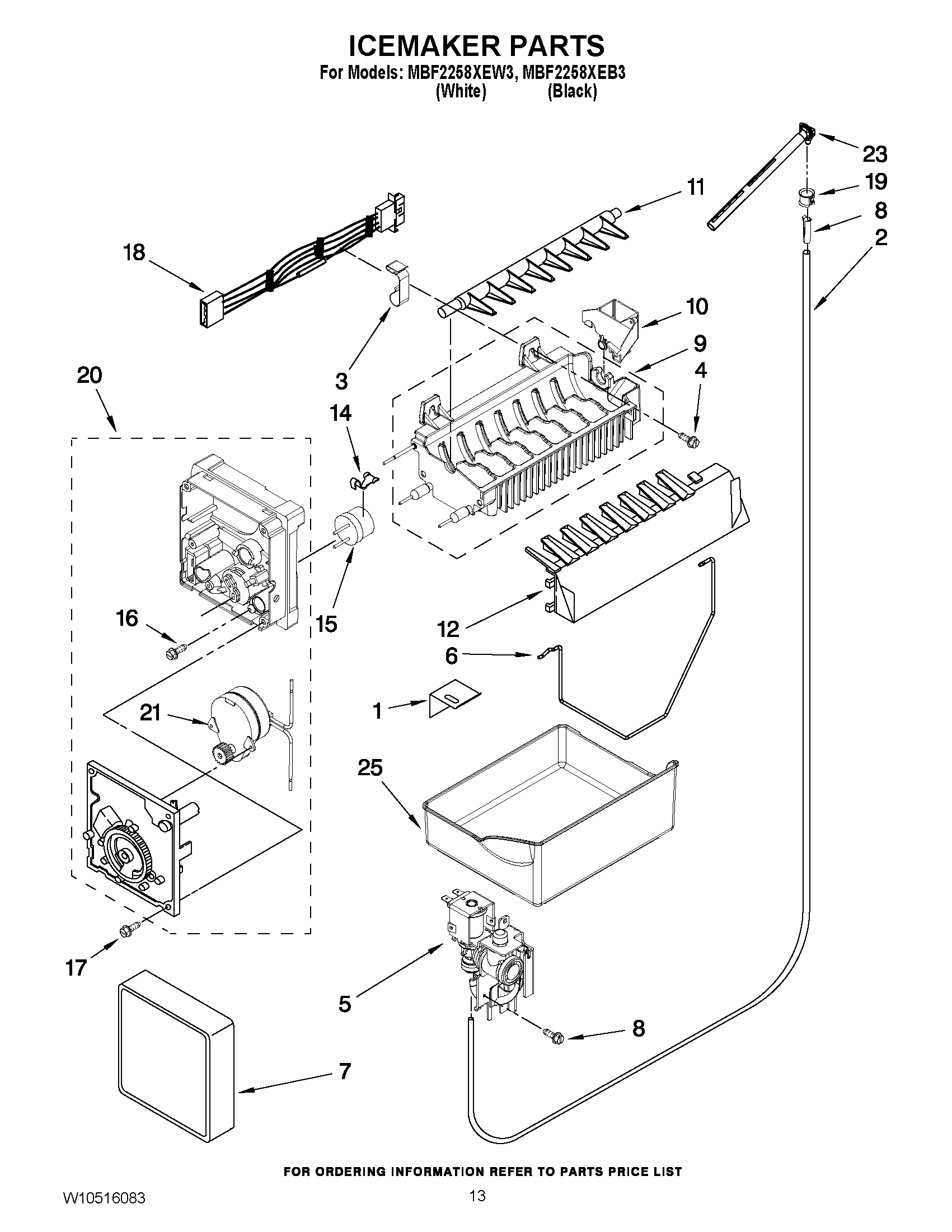

08 - ICEMAKER PARTS
Common parts from model Maytag MBF2258XEB3 REFRIGERATOR
1
MAY W10475386 MAY W10475386 Contact Us For Availability
1
MAY 13109214B MAY 13109214B Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY 13109214W Contact Us For Availability
1
MAY 13109401B MAY 13109401B Contact Us For Availability
1
DOOR, REFRIGERATOR (WHITE) MAY 13109401W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12530701N MAY 12530701N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
BRACKET, CONTROL AND LIGHTS MAY W10464757 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343N MAY W10231343N Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY W10436250 MAY W10436250 Contact Us For Availability
3
MAY W10443315 MAY W10443315 Contact Us For Availability
3
Overlay MAY W10207257 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
SHAFT MAY 12812902WD Contact Us For Availability
4
HOUSING, ELECTRONIC CONTROL MAY W10464769 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10348238 MAY W10348238 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
GUARD-WATER VALVE MAY W10208592 Contact Us For Availability
5
MAY 12784415V MAY 12784415V Contact Us For Availability
5
BUCKET, MEDIUM (3) MAY 12801902 Contact Us For Availability
5
MAY W10150038 MAY W10150038 Contact Us For Availability
5
MAY W10420082 MAY W10420082 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
PLUG-BUTTON (WHITE) MAY 12246607 Contact Us For Availability
6
MAY 12246608 MAY 12246608 Contact Us For Availability
6
MAY W10233570 MAY W10233570 Contact Us For Availability
6
SHELF (4) MAY 12463509 Contact Us For Availability
6
ARM-SHUT OFF MAY W10378255 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
RAIL-SIDE, LEFT MAY W10284694 Contact Us For Availability
7
RAIL-SIDE, RIGHT MAY W10284695 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10290745 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY W10216614 MAY W10216614 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY W10436248 MAY W10436248 Contact Us For Availability
8
MAY W10443313 MAY W10443313 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311527 Contact Us For Availability
9
MAY W10252284N MAY W10252284N Contact Us For Availability
9
MAY W10252285N MAY W10252285N Contact Us For Availability
9
MAY W10311505N MAY W10311505N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
9
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) MAY W10300025 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
EVAPORATOR HEATER MAY 12729128 Contact Us For Availability
10
MAY W10146440 MAY W10146440 Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
11
MAY W10308415 MAY W10308415 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 10447111 MAY 10447111 Contact Us For Availability
11
Stop, Door (Black) MAY 10447112 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY W10293291 MAY W10293291 Contact Us For Availability
12
START PROTECT, COMBO (SERVICE) MAY W10448874 Contact Us For Availability
12
MAY 12656404V MAY 12656404V Contact Us For Availability
12
ICE STRIPPER MAY W10122563 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10330994 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10330995 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
RETAINER, REF DOOR MAY 12557905 Contact Us For Availability
13
GLIDE, LEFT MAY 12656601V Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
GLIDE, RIGHT MAY 12656602V Contact Us For Availability
14
CLIP,FUSE MAY 628379 Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
SCREW, GLIDE (4) MAY 12990302V Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC) MAY W10290336 Contact Us For Availability
16
MAY 12566606ED MAY 12566606ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY W10288153 MAY W10288153 Contact Us For Availability
16
MAY 12530505N MAY 12530505N Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12932103 MAY 12932103 Contact Us For Availability
17
CLIP, HANDLE MAY 2255411 Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
Brace, Crisper MAY 12227303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
19
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
GLASS, CRISPER COVER MAY 12204822N Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
Screw (4) MAY 12991302 Contact Us For Availability
20
MAY A3189395 MAY A3189395 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
MODULE ASSEMBLY INCLUDES ITEMS 21& 22) MAY W10281342 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT) MAY W10284684 Contact Us For Availability
21
ADAPTER, SLIDE (RIGHT) MAY W10284685 Contact Us For Availability
21
MAY 12992101 MAY 12992101 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
MAY W10236195N MAY W10236195N Contact Us For Availability
22
MAY W10236196N MAY W10236196N Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY W10317013 MAY W10317013 Contact Us For Availability
22
MAY 12812905WD MAY 12812905WD Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10149389N MAY W10149389N Contact Us For Availability
23
MAY 10463203 MAY 10463203 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
LIFT-BAIL ARM (LEFT SIDE) MAY W10348259 Contact Us For Availability
24
MOUNT-GEAR (RIGHT SIDE) MAY W10348260 Contact Us For Availability
25
GROMMET (2) MAY W10150583 Contact Us For Availability
25
GEAR (LONG-RIGHT) MAY W10474715 Contact Us For Availability
25
GEAR (SHORT-LEFT) MAY W10474716 Contact Us For Availability
25
MAY W10171529N MAY W10171529N Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
MAY 13062901 MAY 13062901 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
26
DIVIDER-UPPER FZ MAY W10311695 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
FRAME, CRISPER MAY 12643702 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & MAY W10445422 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
34
MAY W10157765 MAY W10157765 Contact Us For Availability
34
MAY W10281329 MAY W10281329 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
100
MAY W10469286 MAY W10469286 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
× ![]()
