Model Maytag LWN202W WASHER – Common Parts & Diagrams
01 - BASE
02 - CONTROL PANEL

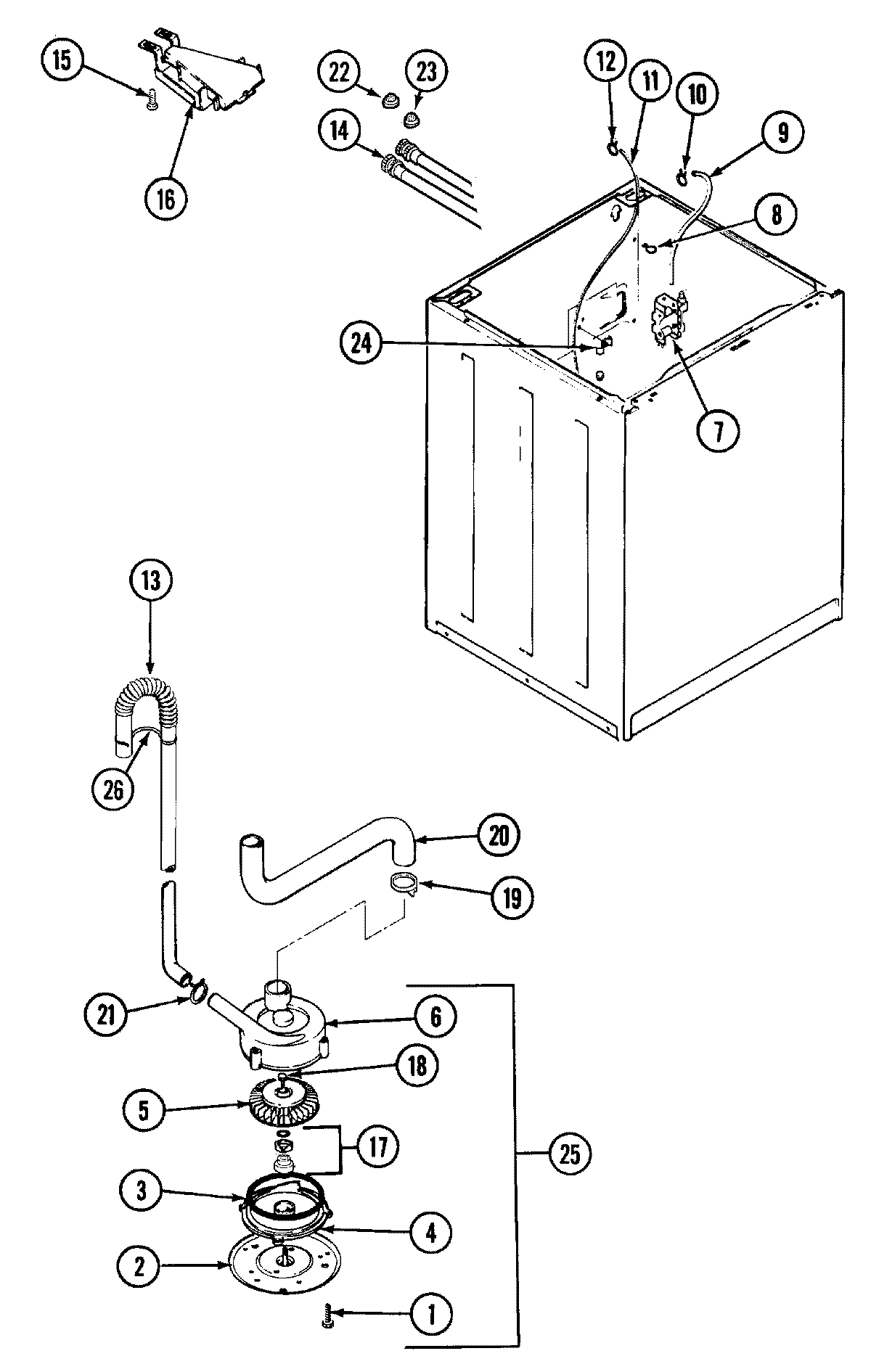

03 - MOTOR & PUMP
04 - TOP

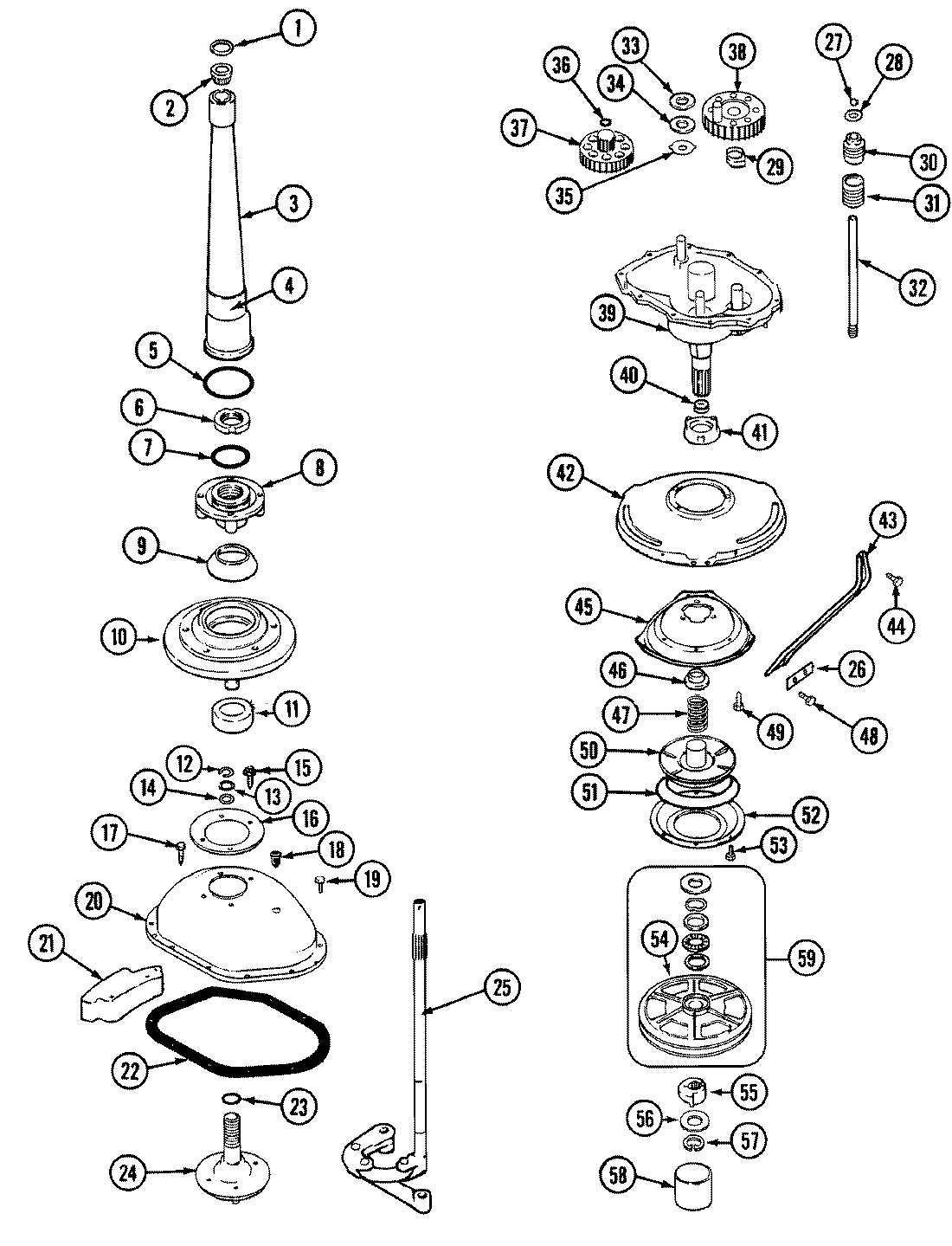

05 - TRANSMISSION

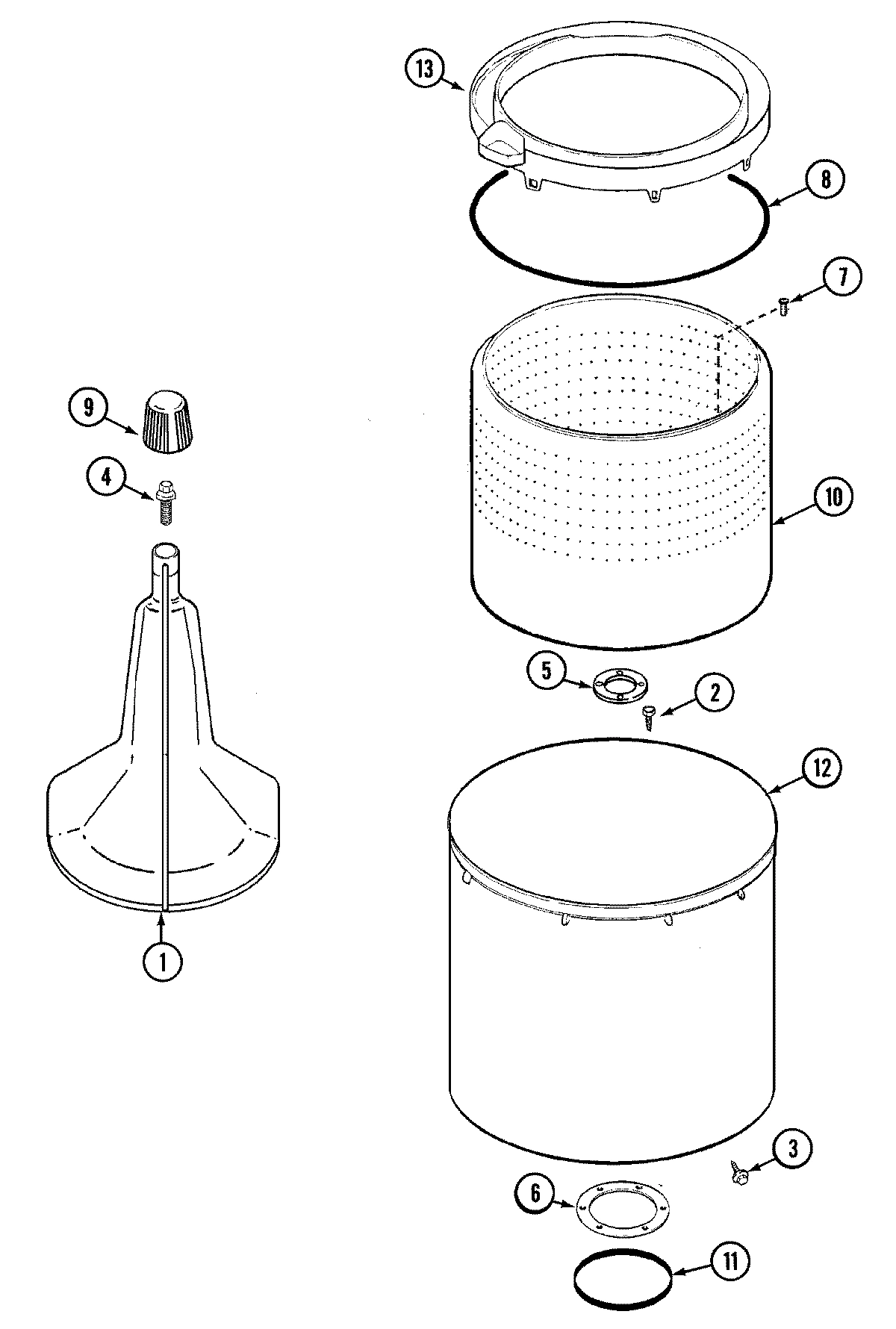

06 - TUB
07 - WIRING INFORMATION
Common parts from model Maytag LWN202W WASHER
1
MAY 25-7941 MAY 25-7941 Contact Us For Availability
1
MAY 35-2026 MAY 35-2026 Contact Us For Availability
1
MAY 21001057 MAY 21001057 Contact Us For Availability
1
MAY 25-7793 MAY 25-7793 Contact Us For Availability
1
MAY 25-7405 MAY 25-7405 Contact Us For Availability
1
MAY 35-3580 MAY 35-3580 Contact Us For Availability
2
MAY 35-2487 MAY 35-2487 Contact Us For Availability
2
MAY 35-2488 MAY 35-2488 Contact Us For Availability
2
MAY 33-6035 MAY 33-6035 Contact Us For Availability
2
MAY 25-7436 MAY 25-7436 Contact Us For Availability
2
MAY 35-2835 MAY 35-2835 Contact Us For Availability
2
MAY 25-7947 MAY 25-7947 Contact Us For Availability
3
MAY 25-7697 MAY 25-7697 Contact Us For Availability
3
MAY 25-7851 MAY 25-7851 Contact Us For Availability
3
MAY 33-6032 MAY 33-6032 Contact Us For Availability
3
MAY 25-7438 MAY 25-7438 Contact Us For Availability
3
MAY 35-2792 MAY 35-2792 Contact Us For Availability
4
MAY 25-7435 MAY 25-7435 Contact Us For Availability
4
MAY 25-7852 MAY 25-7852 Contact Us For Availability
4
MAY 35-2058 MAY 35-2058 Contact Us For Availability
4
MAY 35-2983 MAY 35-2983 Contact Us For Availability
4
MAY 35-3214 MAY 35-3214 Contact Us For Availability
5
MAY 35-3685 MAY 35-3685 Contact Us For Availability
5
MAY 53-0277 MAY 53-0277 Contact Us For Availability
5
MAY 53-0278 MAY 53-0278 Contact Us For Availability
5
MAY 35-2906 MAY 35-2906 Contact Us For Availability
6
MAY 35-3686 MAY 35-3686 Contact Us For Availability
6
MAY 25-7760 MAY 25-7760 Contact Us For Availability
6
MAY 35-2056 MAY 35-2056 Contact Us For Availability
6
MAY 35-2791 MAY 35-2791 Contact Us For Availability
7
MAY 33-9946 MAY 33-9946 Contact Us For Availability
7
MAY 35-2374 MAY 35-2374 Contact Us For Availability
7
MAY 35-0581 MAY 35-0581 Contact Us For Availability
7
MAY 25-7938 MAY 25-7938 Contact Us For Availability
7
MAY 25-7965 MAY 25-7965 Contact Us For Availability
8
MAY 35-2328 MAY 35-2328 Contact Us For Availability
8
MAY 25-7702 MAY 25-7702 Contact Us For Availability
8
MAY 35-2063 MAY 35-2063 Contact Us For Availability
8
MAY 35-3647 MAY 35-3647 Contact Us For Availability
9
MAY 35-2974 MAY 35-2974 Contact Us For Availability
9
MAY 31001128 MAY 31001128 Contact Us For Availability
9
MAY 53-1676 MAY 53-1676 Contact Us For Availability
9
MAY 53-2504 MAY 53-2504 Contact Us For Availability
9
MAY 25-7463 MAY 25-7463 Contact Us For Availability
9
MAY 35-2733 MAY 35-2733 Contact Us For Availability
10
MAY 25-3457 MAY 25-3457 Contact Us For Availability
10
MAY 25-7853 MAY 25-7853 Contact Us For Availability
10
MAY 35-2688 MAY 35-2688 Contact Us For Availability
10
MAY 21001136 MAY 21001136 Contact Us For Availability
10
MAY 25-7437 MAY 25-7437 Contact Us For Availability
10
MAY 35-2716 MAY 35-2716 Contact Us For Availability
10
MAY 35-3687 MAY 35-3687 Contact Us For Availability
11
MAY 35-2205 MAY 35-2205 Contact Us For Availability
11
MAY 35-2978 MAY 35-2978 Contact Us For Availability
11
MAY 35-3840 MAY 35-3840 Contact Us For Availability
11
MAY 35-2261 MAY 35-2261 Contact Us For Availability
11
MAY 35-2321 MAY 35-2321 Contact Us For Availability
11
MAY 21001137 MAY 21001137 Contact Us For Availability
11
MAY 21001148 MAY 21001148 Contact Us For Availability
11
MAY 35-2904 MAY 35-2904 Contact Us For Availability
11
MAY 35-3382 MAY 35-3382 Contact Us For Availability
11
MAY 35-2972 MAY 35-2972 Contact Us For Availability
12
MAY 35-3700 MAY 35-3700 Contact Us For Availability
12
MAY 25-0205 MAY 25-0205 Contact Us For Availability
12
MAY 35-2795 MAY 35-2795 Contact Us For Availability
12
MAY 25-7949 MAY 25-7949 Contact Us For Availability
13
MAY 25-7878 MAY 25-7878 Contact Us For Availability
13
MAY 35-3964 MAY 35-3964 Contact Us For Availability
13
MAY 35-3539 MAY 35-3539 Contact Us For Availability
13
MAY 25-7057 MAY 25-7057 Contact Us For Availability
13
MAY 35-2262 MAY 35-2262 Contact Us For Availability
13
MAY 35-3578 MAY 35-3578 Contact Us For Availability
14
MAY 21001134 MAY 21001134 Contact Us For Availability
14
MAY 35-2485 MAY 35-2485 Contact Us For Availability
14
MAY 35-0873 MAY 35-0873 Contact Us For Availability
14
MAY 35-3076 MAY 35-3076 Contact Us For Availability
14
MAY 25-7051 MAY 25-7051 Contact Us For Availability
15
MAY 21001139 MAY 21001139 Contact Us For Availability
15
MAY 35-0124 MAY 35-0124 Contact Us For Availability
15
MAY 35-2739 MAY 35-2739 Contact Us For Availability
16
MAY 25-7047 MAY 25-7047 Contact Us For Availability
16
MAY 35-4244 MAY 35-4244 Contact Us For Availability
16
MAY 35-2051 MAY 35-2051 Contact Us For Availability
16
MAY 21001167 MAY 21001167 Contact Us For Availability
16
MAY 35-2731 MAY 35-2731 Contact Us For Availability
16
MAY 35-2981 MAY 35-2981 Contact Us For Availability
17
MAY 35-0707 MAY 35-0707 Contact Us For Availability
17
MAY 35-0680 MAY 35-0680 Contact Us For Availability
18
MAY 21001165 MAY 21001165 Contact Us For Availability
18
MAY 21001033 MAY 21001033 Contact Us For Availability
18
MAY 21001034 MAY 21001034 Contact Us For Availability
18
MAY 25-7894 MAY 25-7894 Contact Us For Availability
18
MAY 35-2621 MAY 35-2621 Contact Us For Availability
19
MAY 16002081 MAY 16002081 Contact Us For Availability
19
MAY 33-7450 MAY 33-7450 Contact Us For Availability
19
MAY 25-7926 MAY 25-7926 Contact Us For Availability
20
MAY 33-0930 MAY 33-0930 Contact Us For Availability
20
MAY 35-2620 MAY 35-2620 Contact Us For Availability
20
MAY 35-2971 MAY 35-2971 Contact Us For Availability
21
MAY 35-2046 MAY 35-2046 Contact Us For Availability
21
MAY 35-2903 MAY 35-2903 Contact Us For Availability
21
MAY 35-3706 MAY 35-3706 Contact Us For Availability
22
MAY 35-2052 MAY 35-2052 Contact Us For Availability
22
MAY 25-7048 MAY 25-7048 Contact Us For Availability
22
MAY 35-0542 MAY 35-0542 Contact Us For Availability
23
MAY 33-7313 MAY 33-7313 Contact Us For Availability
23
MAY 34-9701 MAY 34-9701 Contact Us For Availability
23
MAY 25-7722 MAY 25-7722 Contact Us For Availability
24
MAY 33-6099 MAY 33-6099 Contact Us For Availability
24
MAY 25-0224 MAY 25-0224 Contact Us For Availability
24
MAY 35-3702 MAY 35-3702 Contact Us For Availability
25
MAY 35-2099 MAY 35-2099 Contact Us For Availability
25
MAY 35-2344 MAY 35-2344 Contact Us For Availability
25
MAY 53-0643 MAY 53-0643 Contact Us For Availability
25
MAY 35-3804 MAY 35-3804 Contact Us For Availability
26
MAY 33-9537 MAY 33-9537 Contact Us For Availability
26
MAY 35-2084 MAY 35-2084 Contact Us For Availability
26
MAY 35-4200 MAY 35-4200 Contact Us For Availability
26
MAY LA-2176 MAY LA-2176 Contact Us For Availability
27
MAY 25-7847 MAY 25-7847 Contact Us For Availability
28
MAY 35-0837 MAY 35-0837 Contact Us For Availability
28
MAY 25-7415 MAY 25-7415 Contact Us For Availability
29
MAY Y25-7951 MAY Y25-7951 Contact Us For Availability
29
MAY 35-2106 MAY 35-2106 Contact Us For Availability
29
MAY 35-2967 MAY 35-2967 Contact Us For Availability
30
MAY 35-2320 MAY 35-2320 Contact Us For Availability
30
MAY 33-2653 MAY 33-2653 Contact Us For Availability
30
MAY 35-2001 MAY 35-2001 Contact Us For Availability
31
MAY 25-7830 MAY 25-7830 Contact Us For Availability
31
MAY 35-2108 MAY 35-2108 Contact Us For Availability
31
MAY 35-3608 MAY 35-3608 Contact Us For Availability
32
MAY 33-9765 MAY 33-9765 Contact Us For Availability
32
MAY 25-7733 MAY 25-7733 Contact Us For Availability
32
MAY 35-2692 MAY 35-2692 Contact Us For Availability
33
MAY 35-2065 MAY 35-2065 Contact Us For Availability
33
MAY 25-7274 MAY 25-7274 Contact Us For Availability
34
MAY 35-2817 MAY 35-2817 Contact Us For Availability
35
MAY 35-2070 MAY 35-2070 Contact Us For Availability
36
MAY 25-7933 MAY 25-7933 Contact Us For Availability
37
MAY 35-2527 MAY 35-2527 Contact Us For Availability
38
MAY 21001067 MAY 21001067 Contact Us For Availability
38
MAY 35-2631 MAY 35-2631 Contact Us For Availability
39
MAY 35-2812 MAY 35-2812 Contact Us For Availability
40
MAY 35-2010 MAY 35-2010 Contact Us For Availability
41
MAY 35-2730 MAY 35-2730 Contact Us For Availability
41
MAY 35-2973 MAY 35-2973 Contact Us For Availability
42
MAY 21001162 MAY 21001162 Contact Us For Availability
42
MAY 35-3724 MAY 35-3724 Contact Us For Availability
43
MAY 21001164 MAY 21001164 Contact Us For Availability
43
MAY 35-2799 MAY 35-2799 Contact Us For Availability
45
MAY 21001163 MAY 21001163 Contact Us For Availability
45
MAY 35-3698 MAY 35-3698 Contact Us For Availability
46
MAY 35-2017 MAY 35-2017 Contact Us For Availability
47
MAY 35-2112 MAY 35-2112 Contact Us For Availability
48
MAY 25-7930 MAY 25-7930 Contact Us For Availability
49
MAY 25-7895 MAY 25-7895 Contact Us For Availability
50
MAY 35-2948 MAY 35-2948 Contact Us For Availability
52
MAY 35-2018 MAY 35-2018 Contact Us For Availability
53
MAY 25-7900 MAY 25-7900 Contact Us For Availability
54
MAY 35-3829 MAY 35-3829 Contact Us For Availability
55
MAY 35-2439 MAY 35-2439 Contact Us For Availability
56
MAY 35-2082 MAY 35-2082 Contact Us For Availability
56
MAY 35-2132 MAY 35-2132 Contact Us For Availability
58
MAY 35-2007 MAY 35-2007 Contact Us For Availability
60
MAY 35-2025 MAY 35-2025 Contact Us For Availability
61
MAY W10124350 MAY W10124350 Contact Us For Availability
61
MAY 35-3384 MAY 35-3384 Contact Us For Availability
62
MAY 21001091 MAY 21001091 Contact Us For Availability
62
MAY 21001168 MAY 21001168 Contact Us For Availability
62
MAY 35-3748 MAY 35-3748 Contact Us For Availability
NI
MAY 15001243 MAY 15001243 Contact Us For Availability
× ![]()
