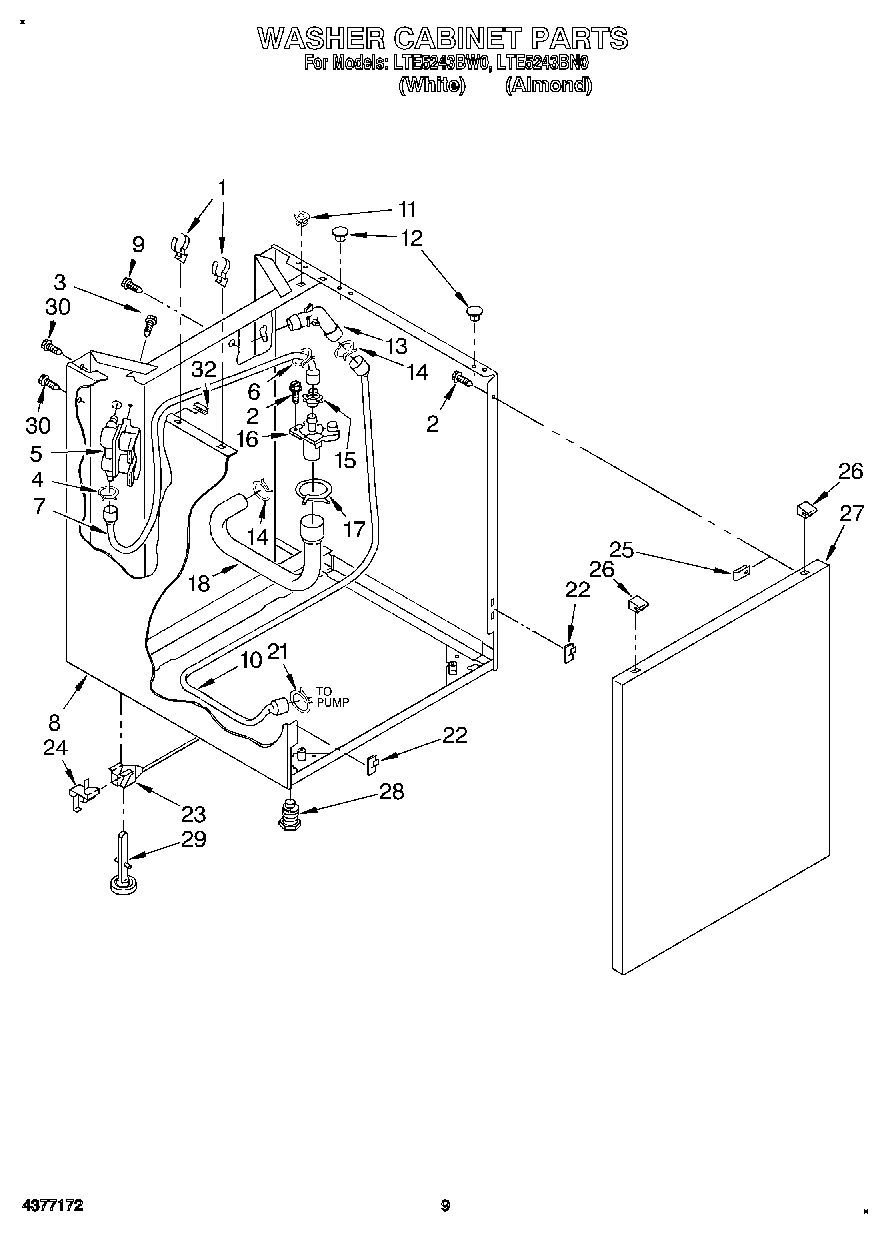

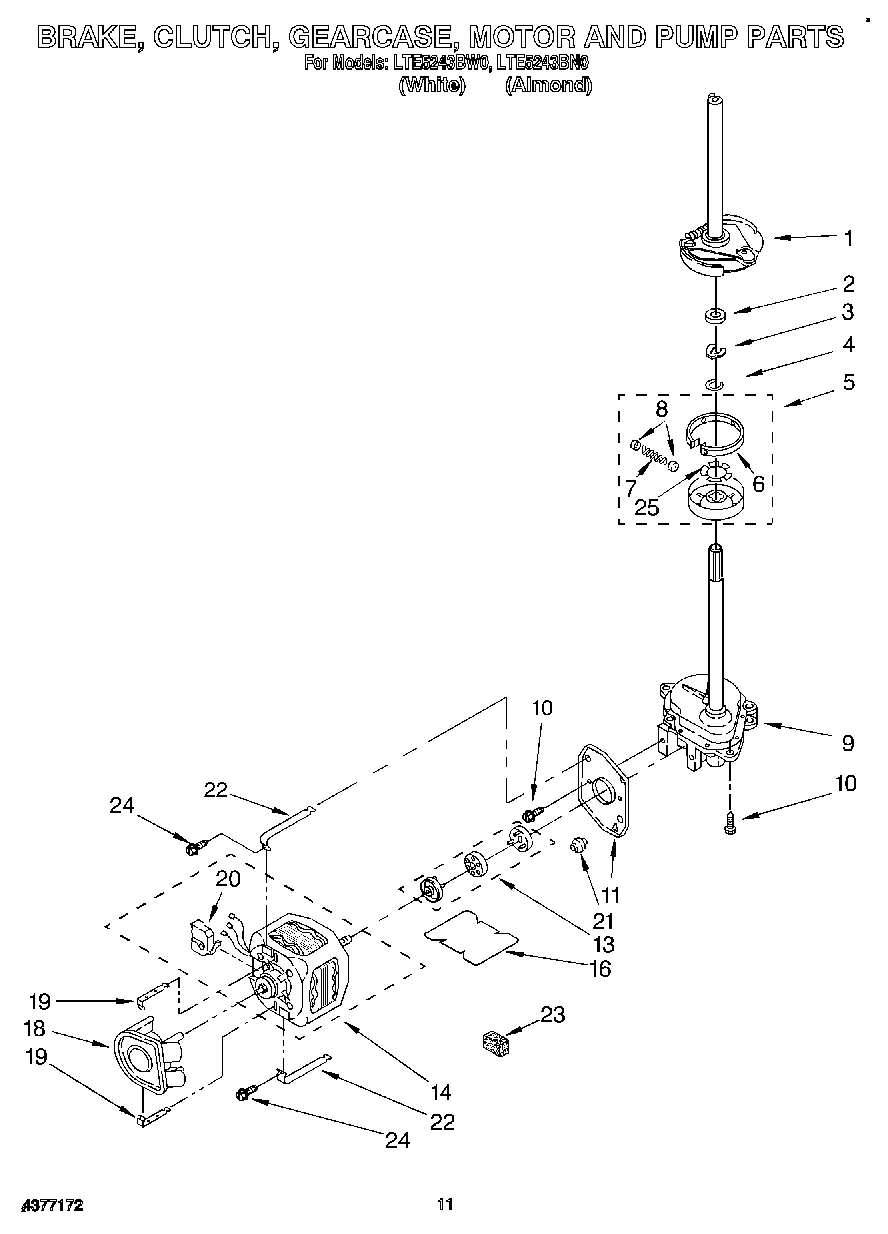

Model Whirlpool LTE5243BW0 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

1

356746 Whirlpool Clip Backorder WPL 356746 $10.76

1

694304 Whirlpool Channel Cover Backorder WPL 694304 $29.26

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1

Exhaust Deflector Kit (Complete) WPL 694609 Contact Us For Availability

1a

3350130 Whirlpool Connector Backorder WPL 3350130 $8.31

1b

696073 Whirlpool Connector Backorder WPL 696073 $30.25

2

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

W11174025 Whirlpool Support Assembly Backorder WPL W11174025 $37.39

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3398848 Whirlpool Lid Backorder WPL WP3398848 $183.64

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

Lid (Almond) WPL 3398844 Contact Us For Availability

3

Wire, Motor Ground WPL 687261 Contact Us For Availability

4

279872 Whirlpool Resistor In Stock WPL 279872 $27.52

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $2.73

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $71.24

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

696541 Whirlpool Base Backorder WPL 696541 $30.89

5

W11174024 Whirlpool Support Backorder WPL W11174024 $94.84

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

5

WP3398128 Whirlpool Cycling Thermostat In Stock WPL WP3398128 $41.32

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $134.12

6

Panel, Rear WPL 3390405 Contact Us For Availability

6

Harness, Upper (Automatic) (Includes Illus. 6 WPL 3388677 Contact Us For Availability

6a

Plug, Terminal (12-Way) (Connects With Automa WPL 696074 Contact Us For Availability

6b

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

6c

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.37

7

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $16.56

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

Basket WPL 3351985 Contact Us For Availability

8

Cover, Terminal Block WPL 307972 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.70

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

9

Tub WPL 63782 Contact Us For Availability

9

Kit, Wire Grounding WPL 685463 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $96.44

WP3402293 Whirlpool Panel Assembly Backorder WPL WP3402293 $158.19

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP696710 Whirlpool Hose In Stock WPL WP696710 $25.46

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Plug, Button (2) WPL 54690 Contact Us For Availability

Panel, Side (L.H.) (Almond) WPL 692614 Contact Us For Availability

Wire, Ground WPL 685449 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

692790 Whirlpool Plug Backorder WPL 692790 $28.09

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.84

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Spring, Lid (L.H.) (Includes Illus 10) WPL 384460 Contact Us For Availability

Plug, Side Panel (2) (Almond) WPL 692791 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

Top (Almond) WPL 384694 Contact Us For Availability

CLIP WPL 693141 Contact Us For Availability

280120 Whirlpool Hose Backorder WPL 280120 $13.36

693711 Whirlpool Sleeve Backorder WPL 693711 $4.59

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

(Alt.) WPL 334828 Contact Us For Availability

Strap, Ground WPL 22965 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.70

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.34

Elbow, Upper WPL 3399602 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.88

Handle, Door (Almond) WPL 689308 Contact Us For Availability

Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

WP3388255 Whirlpool Timer In Stock WPL WP3388255 $179.40

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Screw & Washer (Tub Mounting) (4) WPL 98005 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3399603 Whirlpool Elbow Backorder WPL 3399603 $44.62

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

63637 Whirlpool Shield Backorder WPL 63637 $12.96

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

279710 Whirlpool Nut In Stock WPL 279710 $27.52

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP696394 Whirlpool Hose In Stock WPL WP696394 $49.21

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

THRMST-FIX WPL 696818 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

20

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $27.45

20

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $32.52

694037 Whirlpool Clip Backorder WPL 694037 $30.25

8066051 Whirlpool Motor Pulley Backorder WPL 8066051 $43.90

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384461 Contact Us For Availability

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $25.73

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

WP692771 Whirlpool Nut Backorder WPL WP692771 $2.51

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Ring, Retaining WPL 95082 Contact Us For Availability

3399632 Whirlpool Dryer Base Backorder WPL 3399632 $70.72

696044 Whirlpool Block In Stock WPL 696044 $30.89

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

BAFFLE-DRM WPL 685207 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

26

WP692926 Whirlpool Cover Appliance Backorder WPL WP692926 $30.25

27

692933 Whirlpool Panel Backorder WPL 692933 $105.81

27

Panel, Front (White) WPL 692628 Contact Us For Availability

27

Panel, Transition (Almond) WPL 692934 Contact Us For Availability

28

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

28

WP692641 Whirlpool Dryer Top Assembly Backorder WPL WP692641 $114.70

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

Panel, Side (R.H.) (White) WPL 692607 Contact Us For Availability

Panel, Side (R.H.) (Almond) WPL 692608 Contact Us For Availability

30

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $30.25

31

WP692781 Whirlpool Closure Assembly Backorder WPL WP692781 $72.31

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $30.25

31

Closure, Control Area (Almond) WPL 692782 Contact Us For Availability

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

32

Screw & Washer (3) (Lid Latch Mounting) WPL 354975 Contact Us For Availability

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

34

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

36

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

36b

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

36d

Receptacle, Multi-Terminal (Connects With The WPL 692998 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

279318 Whirlpool Terminal In Stock WPL 279318 $41.56
