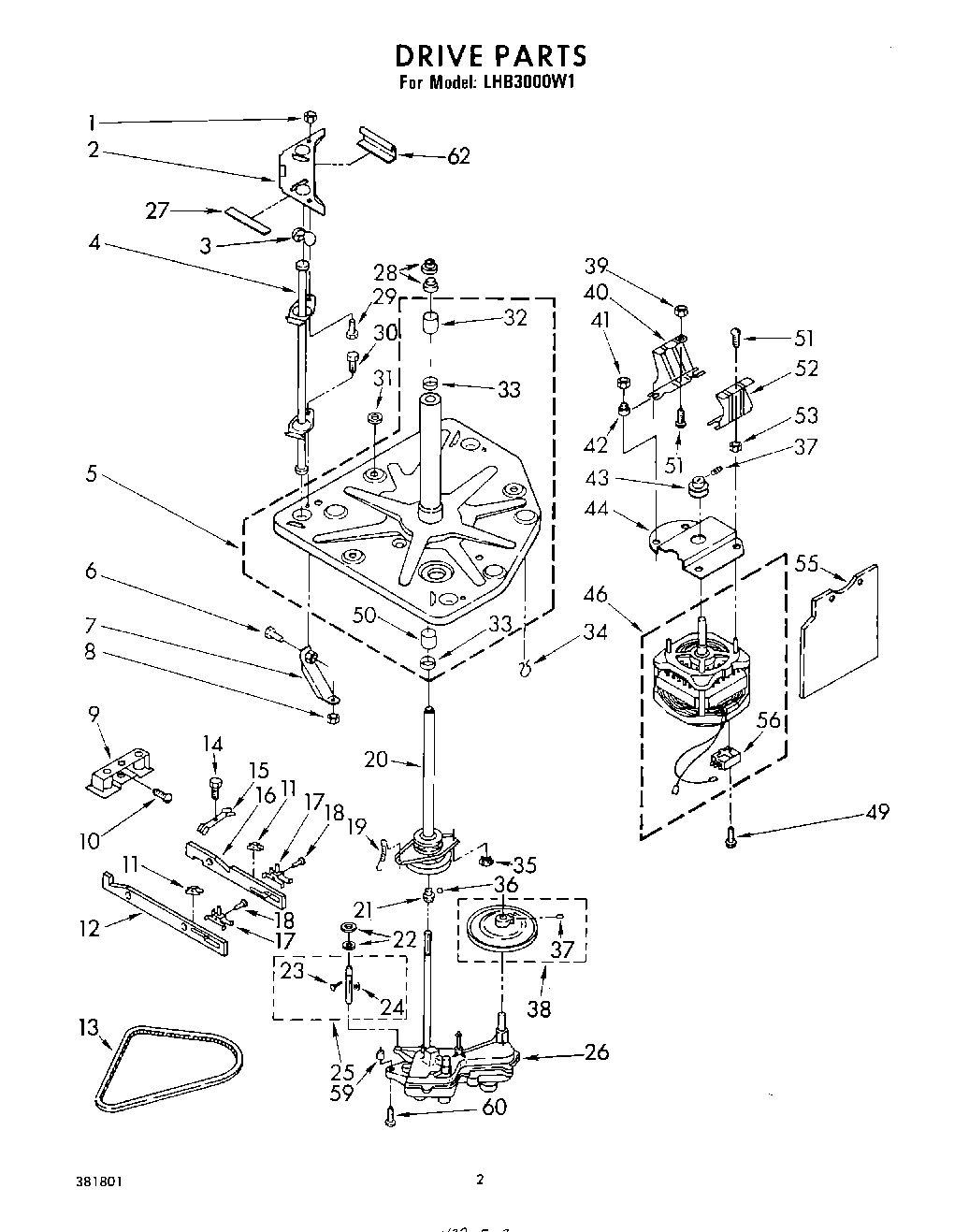

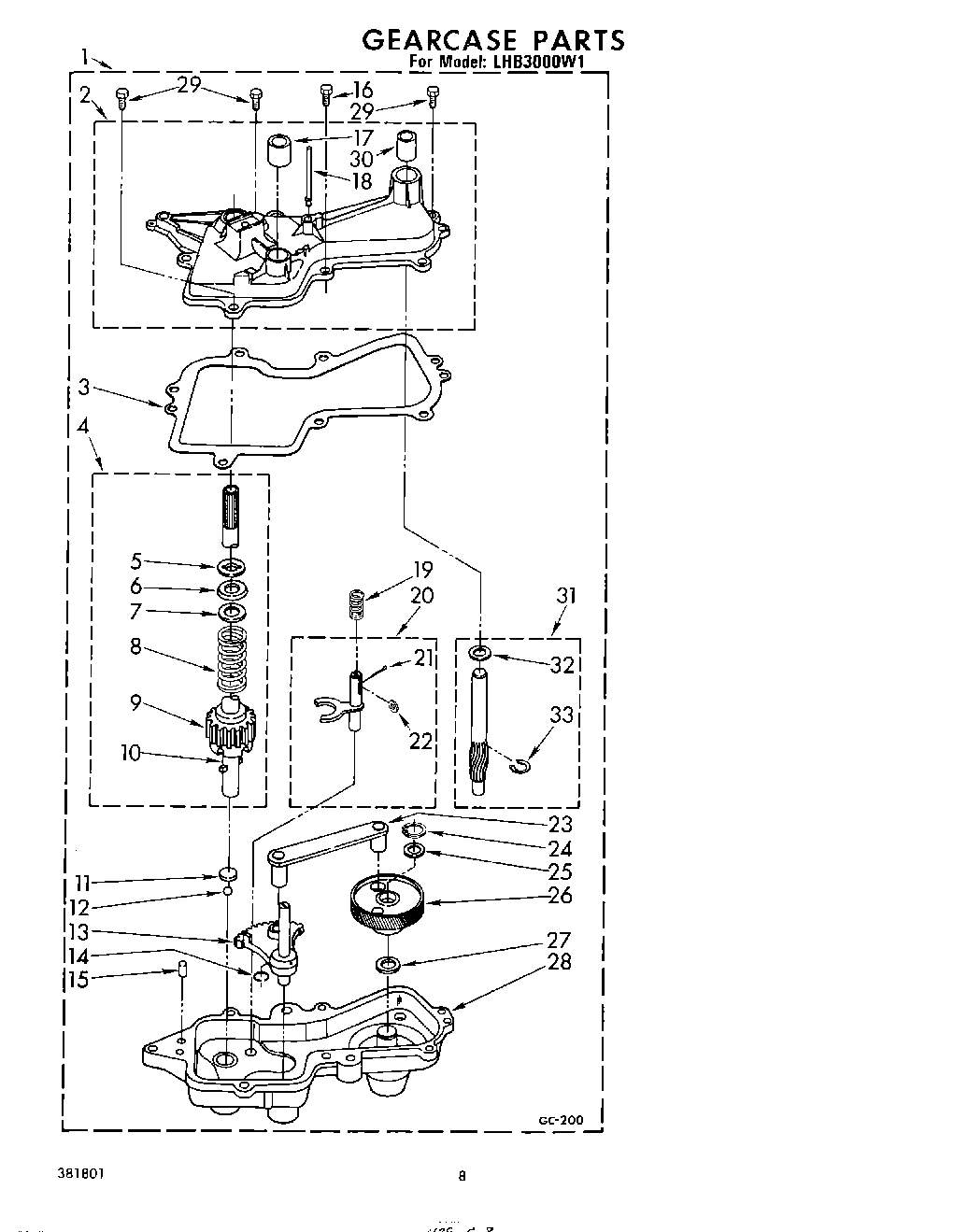

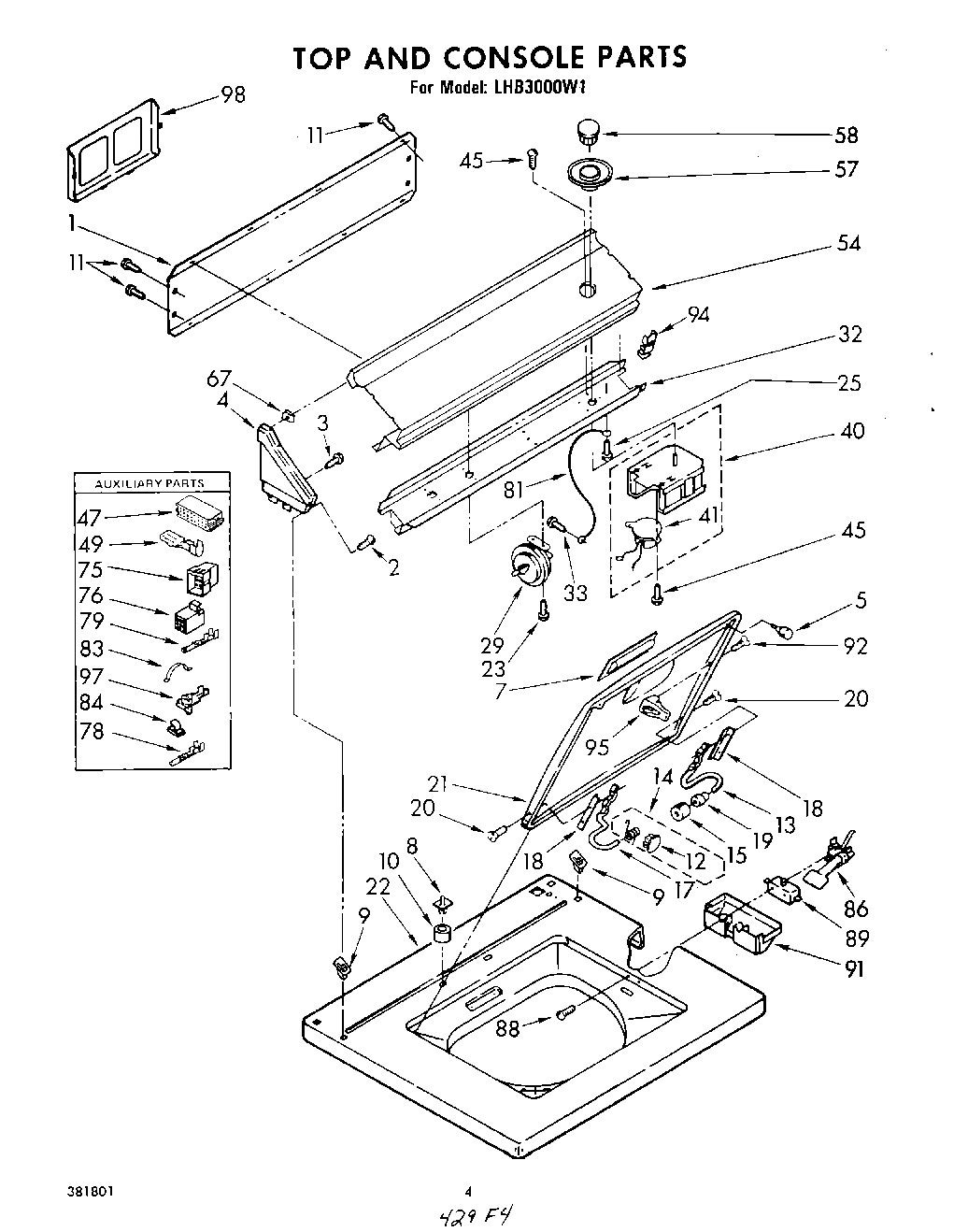

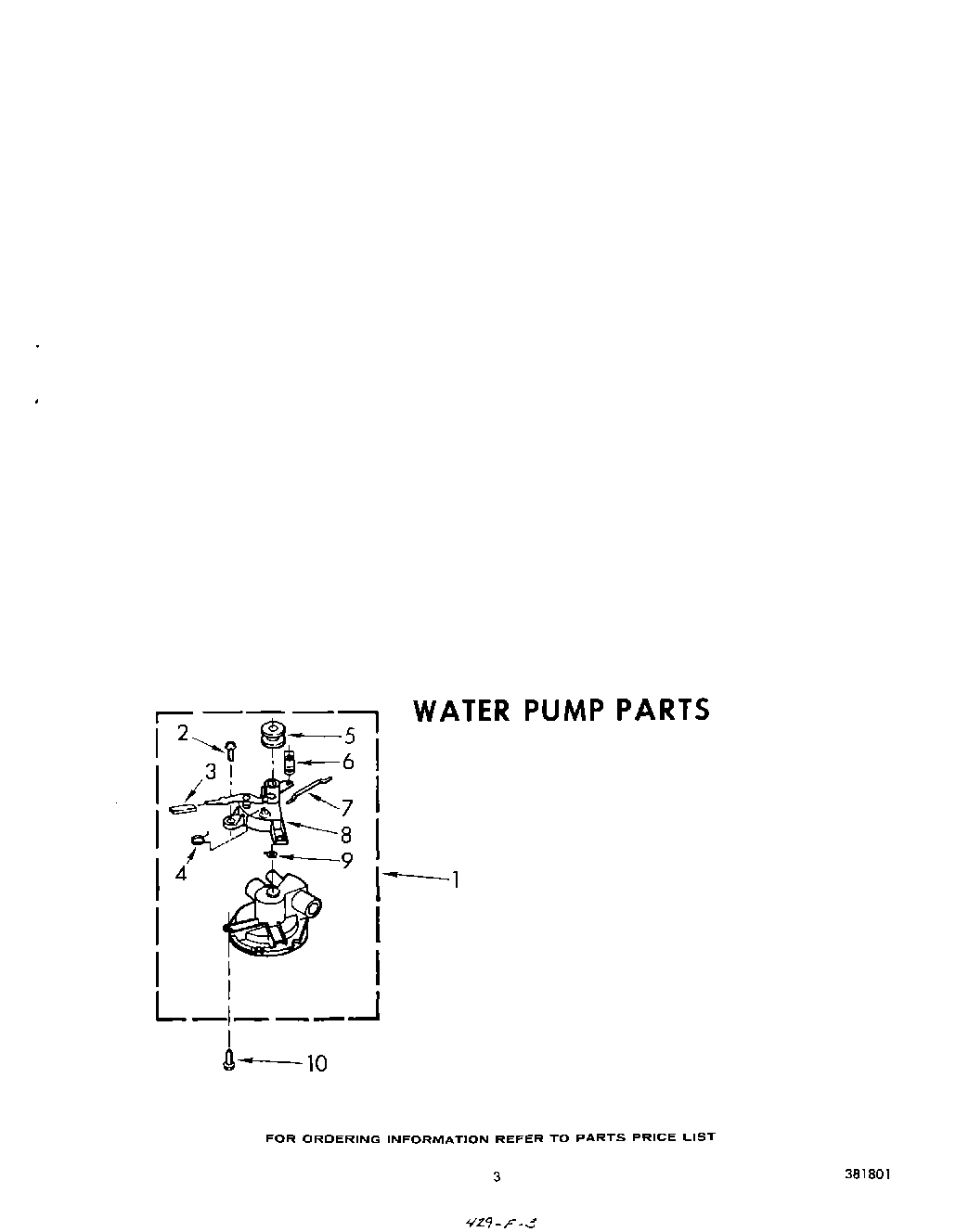

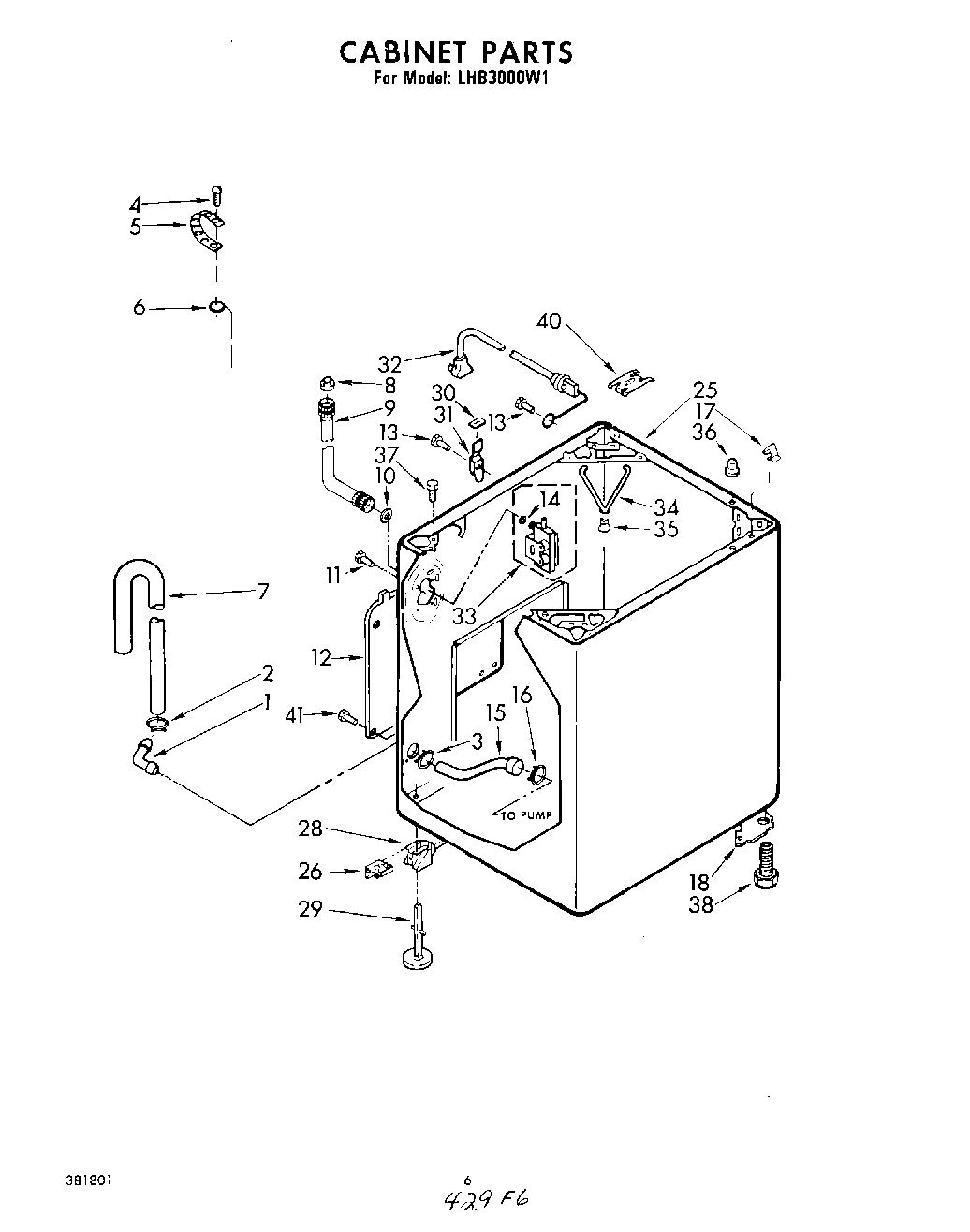

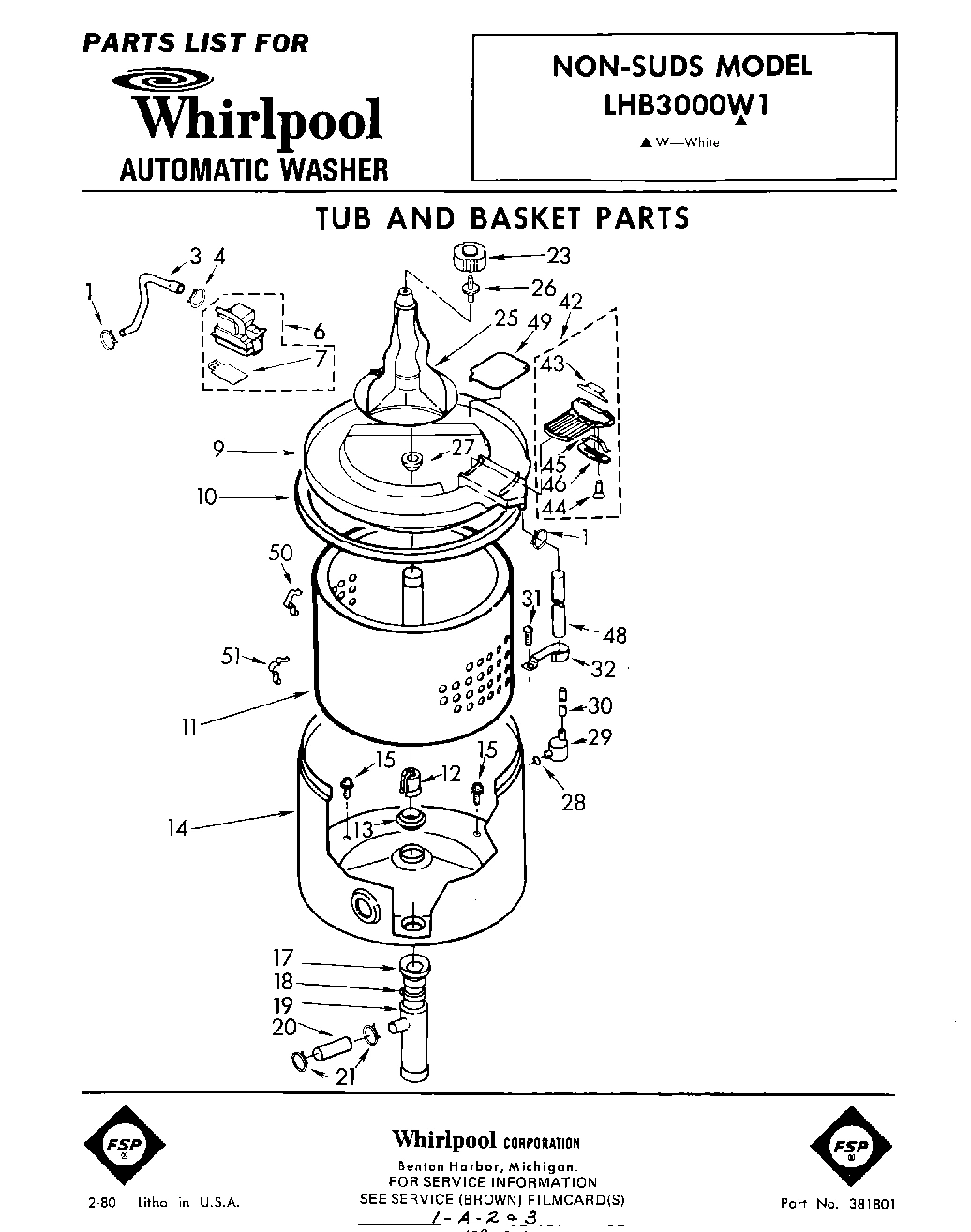

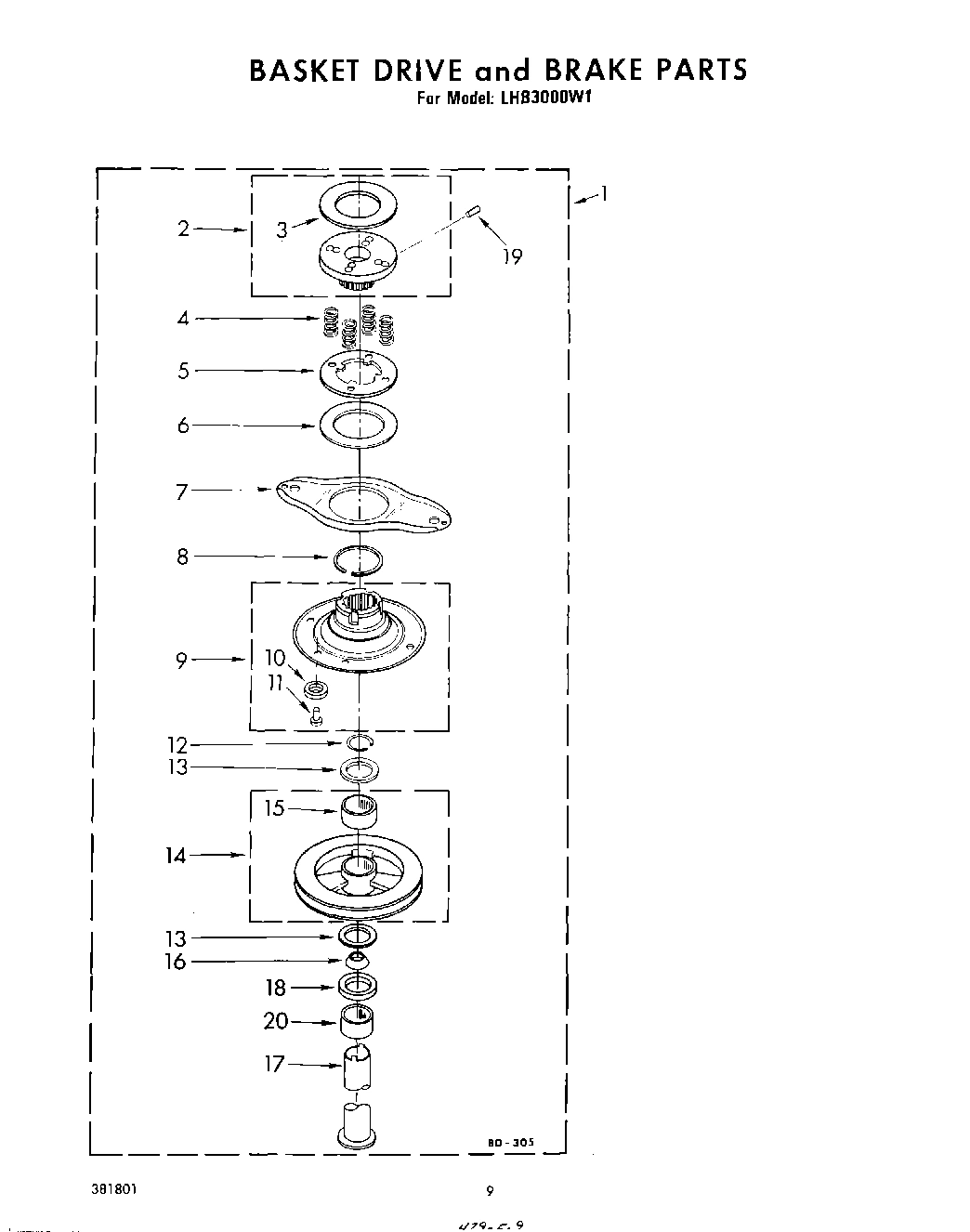

Model Whirlpool LHB3000W1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

Connector, Hose WPL 95440 Contact Us For Availability

1

Panel, Rear Console WPL 357707 Contact Us For Availability

1

Pump Assembly WPL 357729 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

2

Screw, 8-18 WPL 358225 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (Front) WPL 356434 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Hose, Water Inlet WPL 356555 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 372004 Contact Us For Availability

4

Cap, End (L.H.) (White Cap, End (R.H.)) WPL 372008 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Baseplate & Centerpost WPL 358843 Contact Us For Availability

5

Pulley WPL 16113 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

7

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Brace, Baseplate WPL 356581 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

8

Nut, Push-In WPL 356552 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Bearing Block Assembly WPL 87290 Contact Us For Availability

9

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

9

Ring & Filter Tub (Includes Illus. 42) WPL 359313 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Sleeve, Anchor WPL 345059 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

Seal, Tub Ring WPL 356585 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Eyelet (3) WPL 98281 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Basket WPL 358837 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Block, Drive WPL 96384 Contact Us For Availability

Plug, Button WPL 54690 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Spring Assembly L.H. WPL 53749 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Tub WPL 360785 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

16

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

16

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

16

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Drive Tube & Bearing, Basket (Includes Illus. WPL 357965 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Clip, Hose WPL 9421321 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Manifold WPL 84091 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Basket Drive & Brake (Refer To Page 9 For Fur WPL 359517 Contact Us For Availability

Hose WPL 92231 Contact Us For Availability

21

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

21

Lid (White) WPL 373491 Contact Us For Availability

21

Support, Spin Tube WPL 358586 Contact Us For Availability

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

22

Lid (White) WPL 380290 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Pin, Roll WPL 90532 Contact Us For Availability

Rod, Connecting WPL 76577 Contact Us For Availability

Cap, Agitator Cap WPL 358431 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Agitator & Insert WPL 357200 Contact Us For Availability

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Gearcase (Refer To Page 8 For Further Breakdo WPL 358483 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

Stud & Seal, Agitator WPL 358440 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Washer, Thrust WPL 363362 Contact Us For Availability

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

28

Seal WPL 351830 Contact Us For Availability

28

Gearcase WPL 362906 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Switch, Water Level WPL 366509 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

31

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

31

Pinion, Drive WPL 84467 Contact Us For Availability

31

Gasket, Tub (7) WPL 17235 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 357300 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Bracket, Hose WPL 358339 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

40

Timer, 60 Hz. (C.C.A.) WPL 359312 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 357295 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Filter WPL 359296 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

43

Latch WPL 357249 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

44

Screw WPL 176360 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

45

Spring WPL 94403 Contact Us For Availability

46

Motor (Emerson) 60 Hz. WPL 357875 Contact Us For Availability

46

Retainer, Filter WPL 357250 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

48

Hose, Pump To Filter WPL 357612 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

Terminal, Female WPL 352088 Contact Us For Availability

49

Plate, Snubber WPL 355852 Contact Us For Availability

50

Bearing, Lower WPL 354195 Contact Us For Availability

50

Clip, Tub Ring (2) WPL 356701 Contact Us For Availability

51

Bolt, 3/8-16 x 3/4 WPL 98537 Contact Us For Availability

51

Clip, Tub Ring (1) WPL 356700 Contact Us For Availability

52

Bracket, Motor Mount WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Control WPL 371938 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 375621 Contact Us For Availability

58

Knob, Timer WPL 357410 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

62

WPL 54656 WPL 54656 Contact Us For Availability

67

Clip, ``U`` WPL 98084 Contact Us For Availability

75

Cap, Terminal (Console Harness) WPL 94612 Contact Us For Availability

76

Plug, Terminal (Cabinet Harness) WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

Wire, Ground WPL 357535 Contact Us For Availability

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

86

Switch Actuator Assembly WPL 370959 Contact Us For Availability

88

Screw And Washer WPL 354764 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

91

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

92

Screw And Washer WPL 354975 Contact Us For Availability

94

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

95

Strike, Lid Switch WPL 357633 Contact Us For Availability

97

Ring, Grounding WPL 357695 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

WPL 350941 WPL 350941 Contact Us For Availability

WPL 357645 WPL 357645 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
