Model Whirlpool LHA7685W0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

WPL 010875 WPL 010875 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 299885 WPL 299885 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

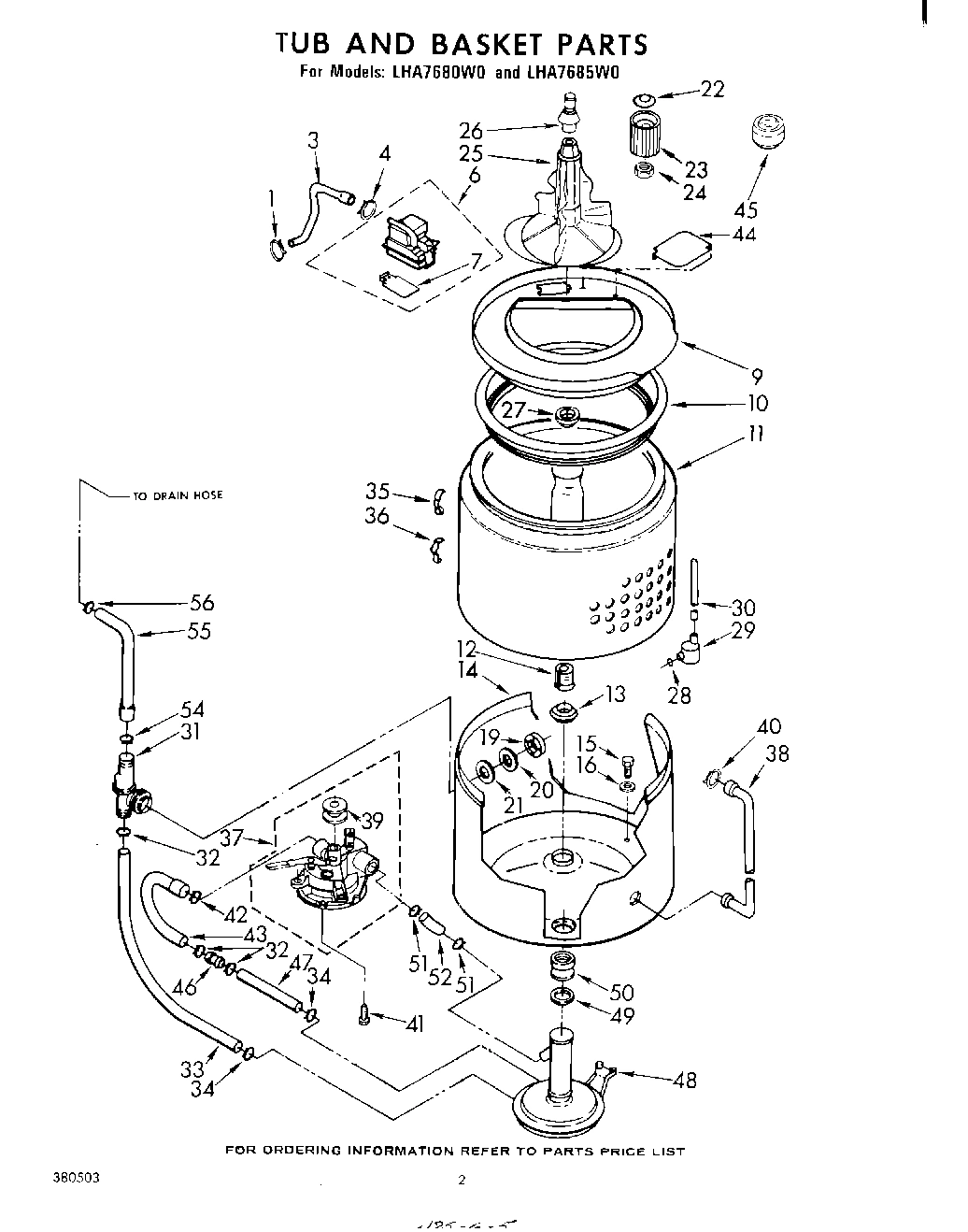

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

Hose, Suds Discharge WPL 91273 Contact Us For Availability

1

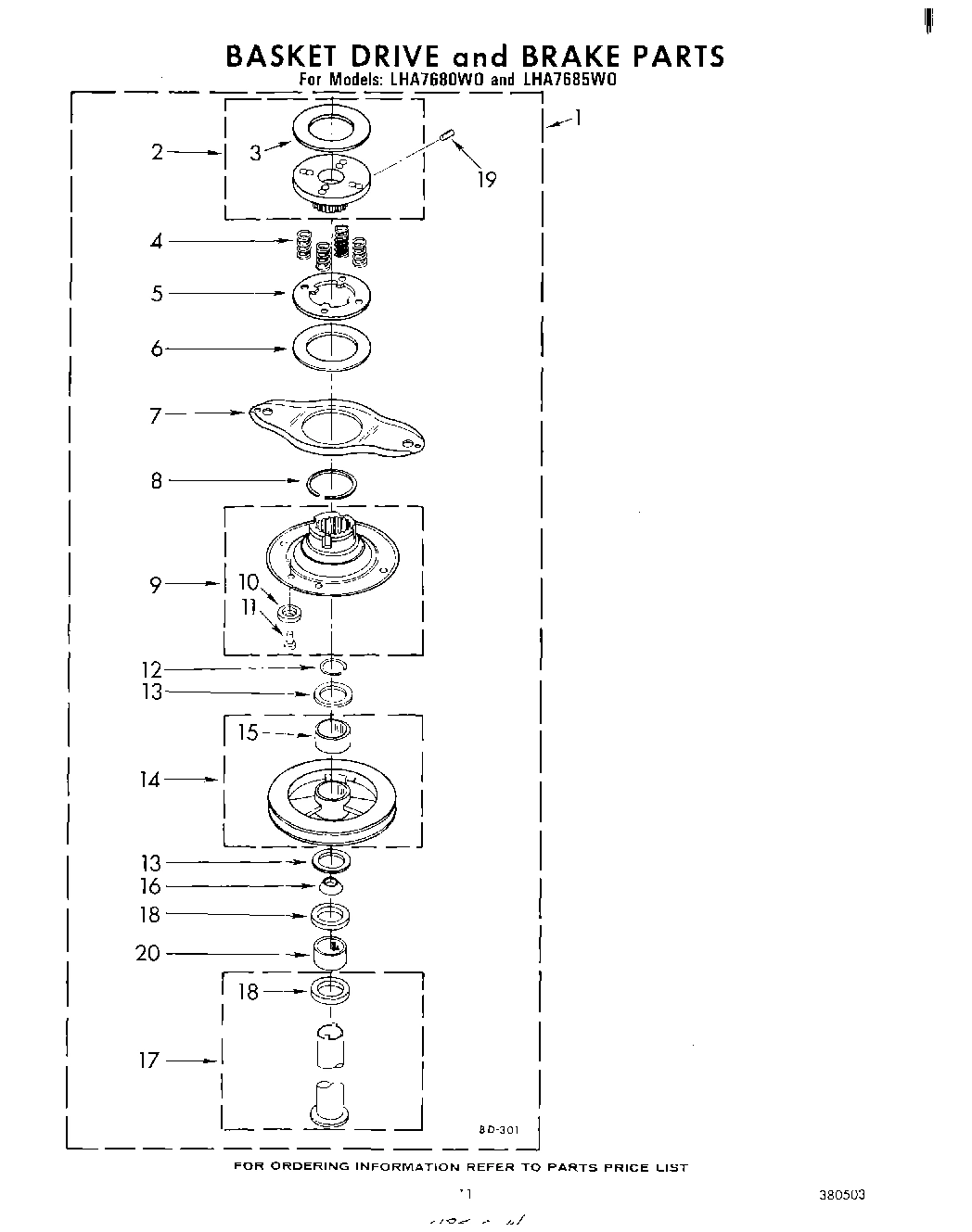

Basket Drive & Brake WPL 357970 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Strainer, Hose WPL 352833 Contact Us For Availability

2

Cover, Gusset (L.R. & R.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly In Stock WPL 96746 $27.41

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Rod, Suspension (3) WPL 87270 Contact Us For Availability

4

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

4

Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

5

Baseplate & Centerpost WPL 358948 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Wire, Ground WPL 364089 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

7

Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Screw & Washer WPL 190575 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

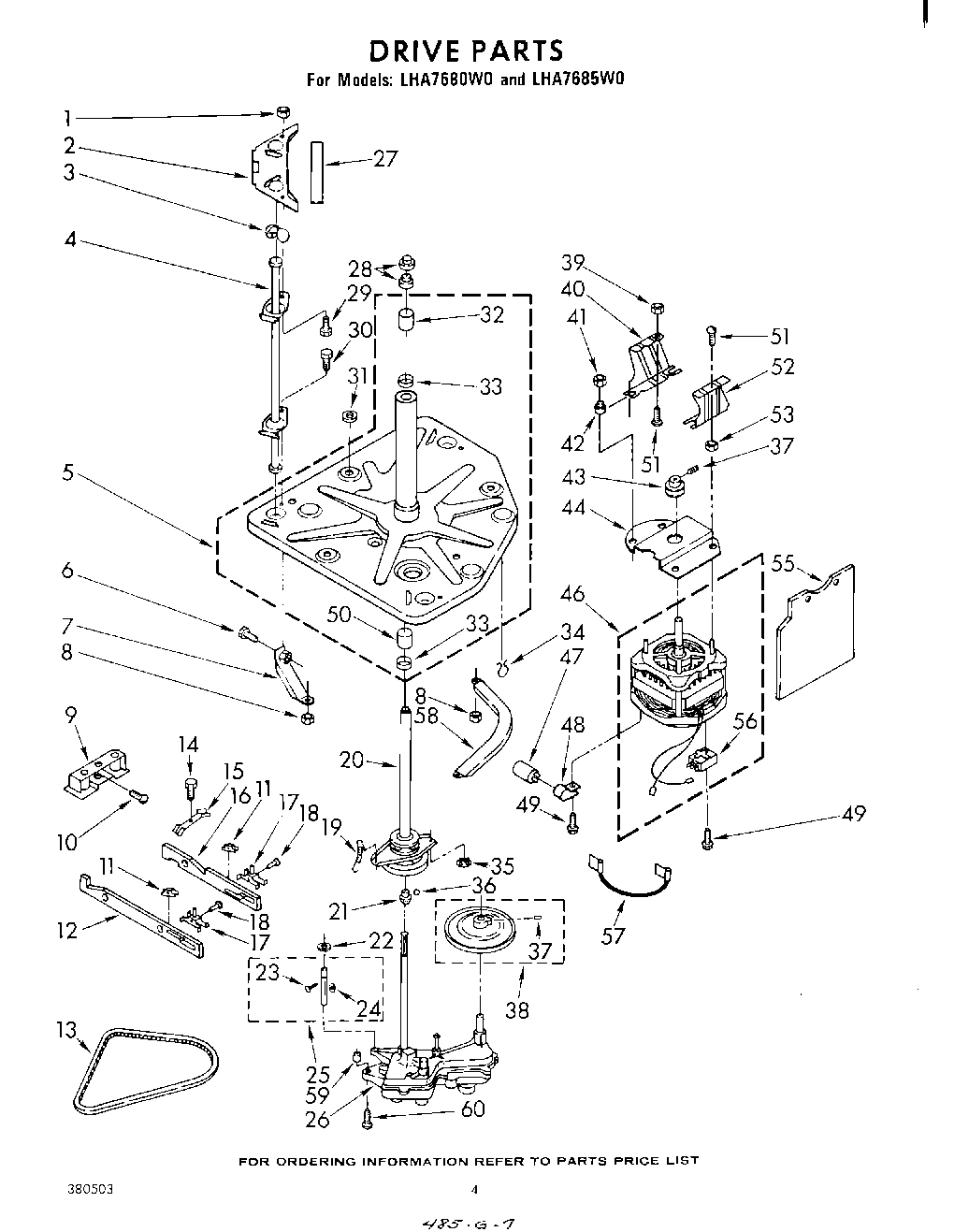

Yoke, Brake WPL 92903 Contact Us For Availability

8

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

8

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

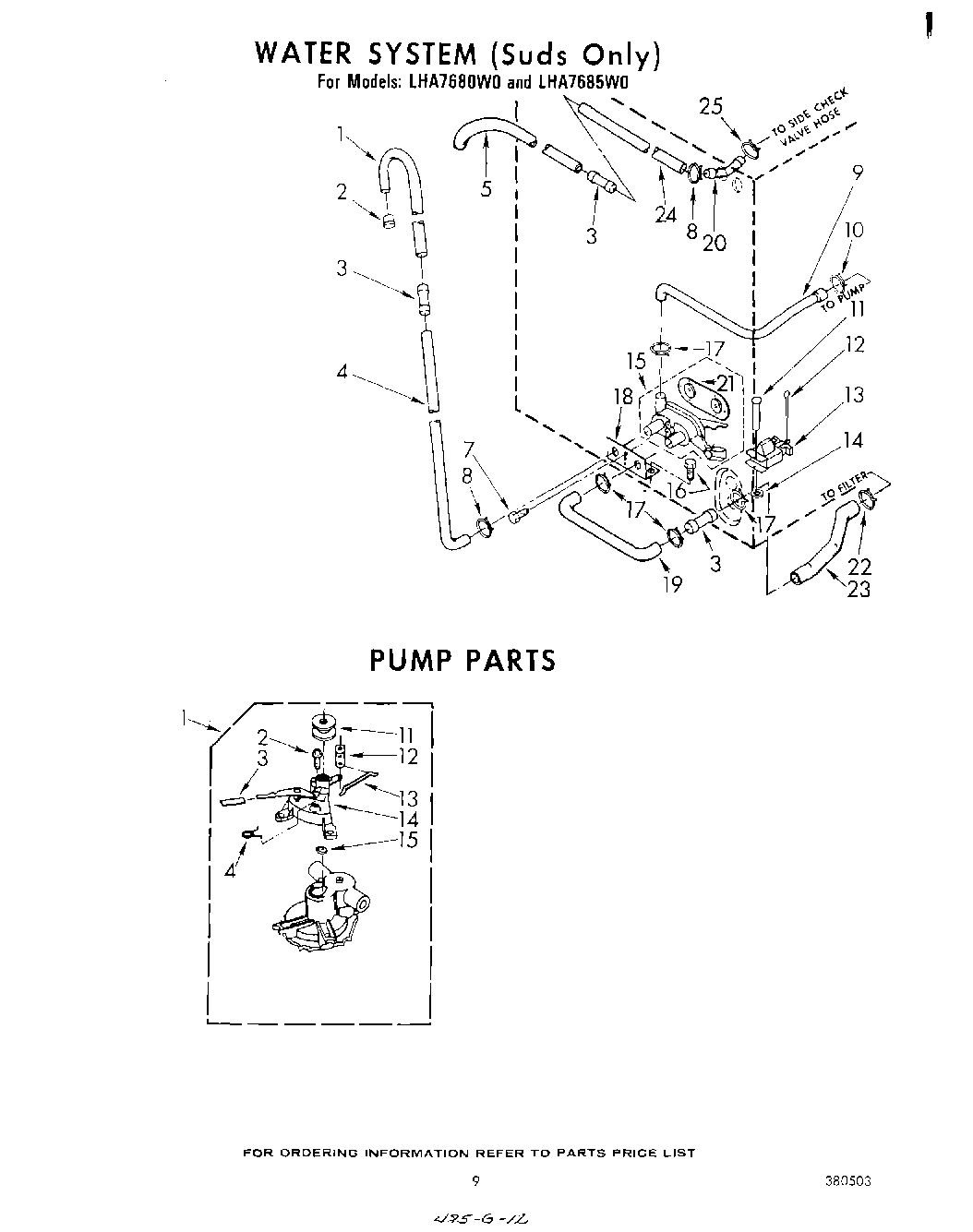

Hose, Pump To Two-Way Valve WPL 97786 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Ring, Tub WPL 356038 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Screw, Taper End WPL 16135 Contact Us For Availability

Seal, Tub Ring WPL 356584 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Screw, 8-18 WPL 358225 Contact Us For Availability

Rivet WPL 356990 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Basket WPL 357968 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Lever, Valve WPL 355538 Contact Us For Availability

Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

Panel, Rear (Suds) WPL 357335 Contact Us For Availability

Panel, Rear (Non-Suds) WPL 85279 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Solenoid, Two-Way Valve WPL 86798 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bearing Block Assembly WPL 87290 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Tub WPL 361983 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

Valve, Two-Way WPL 99830 Contact Us For Availability

Screw, Tub WPL 356973 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP21365 Whirlpool Washer Backorder WPL WP21365 $4.72

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Spring, Lid (L.H.) WPL 92398 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Hinge, L.H. WPL 91099 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Bracket WPL 357191 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Hose, Two-Way Valve To Connector WPL 97784 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Nut, Spanner WPL 92229 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

20

Washer, Fiber WPL 92232 Contact Us For Availability

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Lid (White) WPL 379964 Contact Us For Availability

Lid (Almond) WPL 379965 Contact Us For Availability

Lid (Coffee) WPL 379966 Contact Us For Availability

Lid (New Avocado) WPL 379967 Contact Us For Availability

Lid (Golden Harvest) WPL 379968 Contact Us For Availability

Diaphragm WPL 75183 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Washer, Rubber WPL 92235 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Coffee) WPL 380285 Contact Us For Availability

Top (New Avocado) WPL 380286 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Insert, Agitator Cap WPL 358773 Contact Us For Availability

23

Hose, Filter To Cabinet WPL 355530 Contact Us For Availability

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Cap, Agitator WPL 356863 Contact Us For Availability

24

Hose, Outlet WPL 96744 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Nut, Lock WPL 357732 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

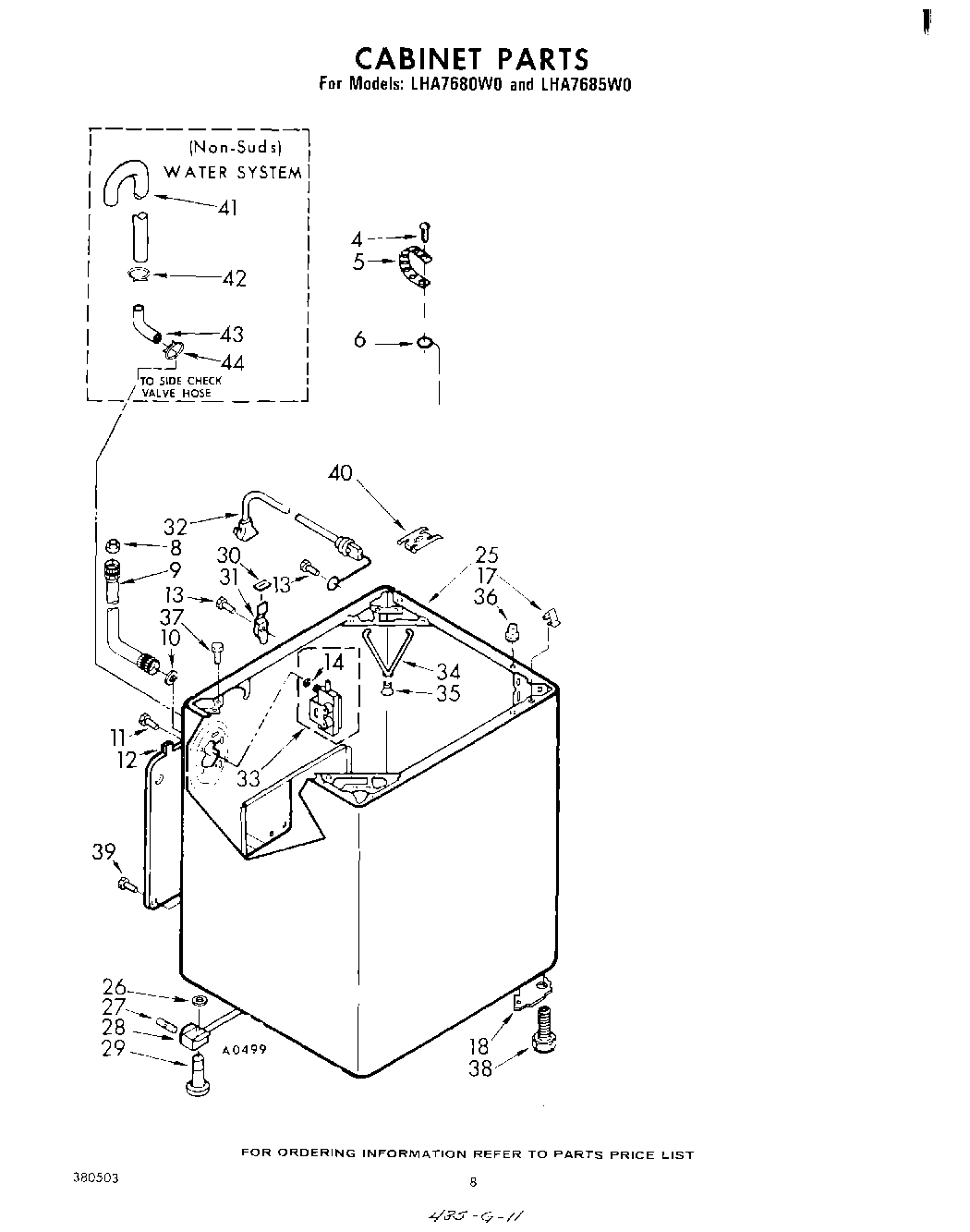

Cabinet (White) WPL 368761 Contact Us For Availability

Cabinet (Almond) WPL 374418 Contact Us For Availability

Cabinet (Coffee) WPL 374419 Contact Us For Availability

Cabinet (New Avocado) WPL 374420 Contact Us For Availability

Cabinet (Golden Harvest) WPL 374421 Contact Us For Availability

Agitator Assembly WPL 358370 Contact Us For Availability

Stop, Push-In Top (2) WPL 358472 Contact Us For Availability

Gearcase (For Further Breakdown Refer To Page WPL 362901 Contact Us For Availability

Washer, Friction WPL 98411 Contact Us For Availability

Stud & Washer Assembly WPL 369516 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

28

Seal WPL 351830 Contact Us For Availability

28

Leveling Link Assembly WPL 75587 Contact Us For Availability

Switch, Water Level WPL 368578 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Foot, Rear (2) WPL 95879 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Switch, Water Temperature WPL 358553 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Valve, Side Check WPL 88677 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 358471 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Clamp, Hose WPL 272857 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only As C WPL 358971 Contact Us For Availability

Hose, Side Check To Filter (Non-Suds & Suds) WPL 355151 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

34

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

35

Clip, Tub Ring (3) WPL 356701 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

36

Clip, Tub Ring (1) WPL 356700 Contact Us For Availability

37

350365 Whirlpool Dryer Washer Water Pump, 2-P In Stock WPL 350365 $79.91

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Hose, Dispenser WPL 352978 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

39

Pulley, Pump WPL 16113 Contact Us For Availability

Timer Assembly (60 Hz) (Mallory) (Alternate) WPL 380126 Contact Us For Availability

Timer Assembly, 60 Hz. (Mallory (Suds)) WPL 380128 Contact Us For Availability

Timer Assembly (60 Hz) (C.C.A.) (Alternate) WPL 380245 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Plug, Cabinet WPL 354179 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability

WPL 365941 WPL 365941 Contact Us For Availability

Hose, Drain WPL 96865 Contact Us For Availability

Nut (4) WPL 98023 Contact Us For Availability

42

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Connector, Hose WPL 95440 Contact Us For Availability

43

Pulley, Motor WPL 357514 Contact Us For Availability

43

Hose, Pump To Filter WPL 355152 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

44

Plate, Snubber WPL 355852 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

45

Dispenser, Rinse WPL 88932 Contact Us For Availability

46

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

46

Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability

46

Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

47

Hose, Pump To Filter WPL 356167 Contact Us For Availability

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

WPL 352090 WPL 352090 Contact Us For Availability

48

Manifold & Filter WPL 371743 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WPL 352088 WPL 352088 Contact Us For Availability

49

Clamp, Hose WPL 9421321 Contact Us For Availability

50

B WPL 354195 Contact Us For Availability

50

Hose, Tub Outlet WPL 96386 Contact Us For Availability

51

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

52

Hose, Pump To Manifold WPL 96251 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

54

WPL 380123 WPL 380123 Contact Us For Availability

54

WPL 380124 WPL 380124 Contact Us For Availability

55

WPL 357395 WPL 357395 Contact Us For Availability

55

Hose, Side Check To Drain (Non-Suds & Suds) WPL 96816 Contact Us For Availability

56

WPL 362086 WPL 362086 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 359254 WPL 359254 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

58

WPL 359206 WPL 359206 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 301008 WPL 301008 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 358116 WPL 358116 Contact Us For Availability

WPL 358770 WPL 358770 Contact Us For Availability

WPL 359325 WPL 359325 Contact Us For Availability

WPL 359326 WPL 359326 Contact Us For Availability

WPL 369743 WPL 369743 Contact Us For Availability

WPL 369756 WPL 369756 Contact Us For Availability

WPL 372832 WPL 372832 Contact Us For Availability

WPL 380472 WPL 380472 Contact Us For Availability

WPL 380503 WPL 380503 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 88916 WPL 88916 Contact Us For Availability

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 690301 WPL 690301 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

77

WPL 352821 WPL 352821 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

80

WPL 352827 WPL 352827 Contact Us For Availability

81

WPL 357535 WPL 357535 Contact Us For Availability

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

92

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

94

WPL 357633 WPL 357633 Contact Us For Availability

95

WPL 354764 WPL 354764 Contact Us For Availability

96

WPL 357645 WPL 357645 Contact Us For Availability
