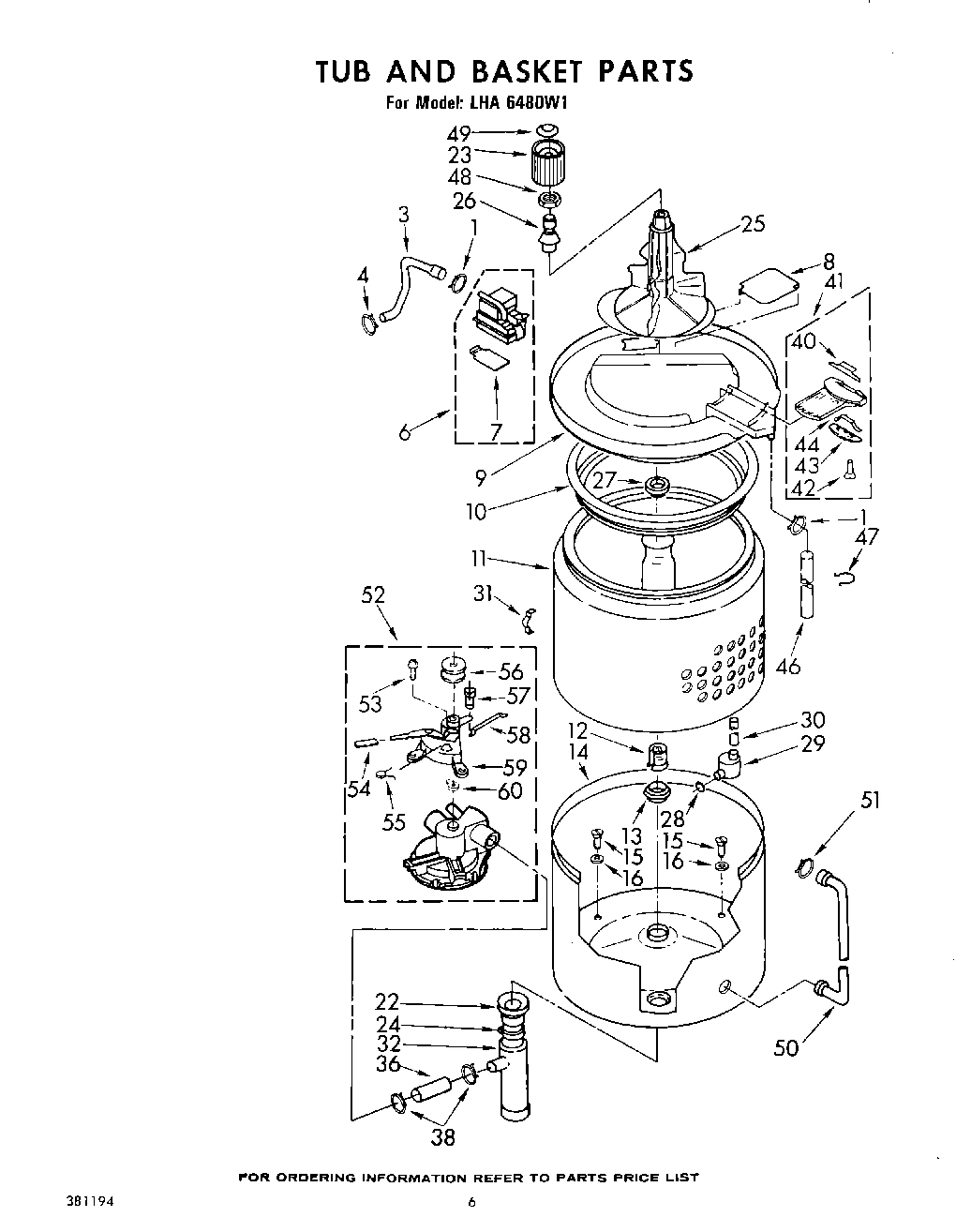

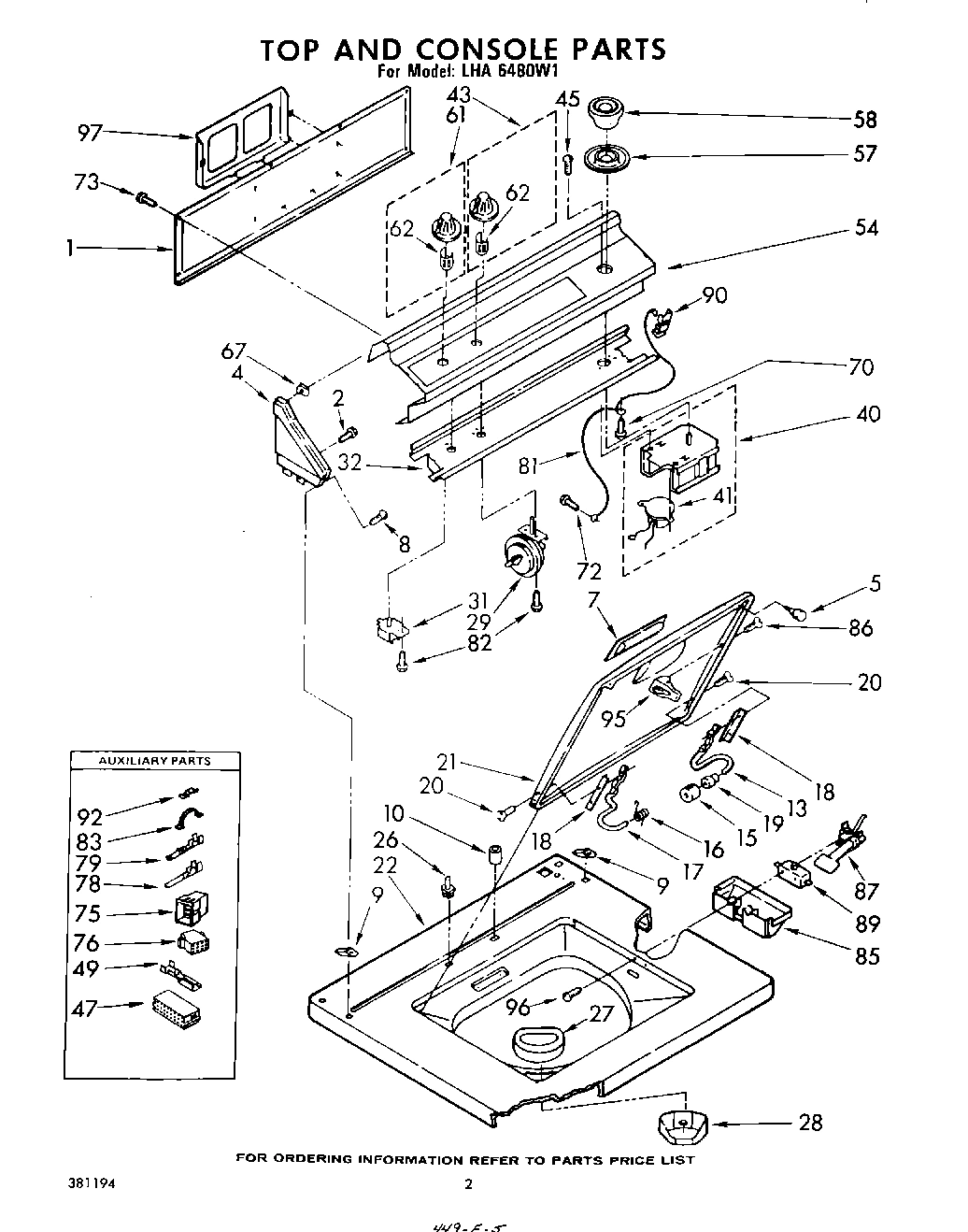

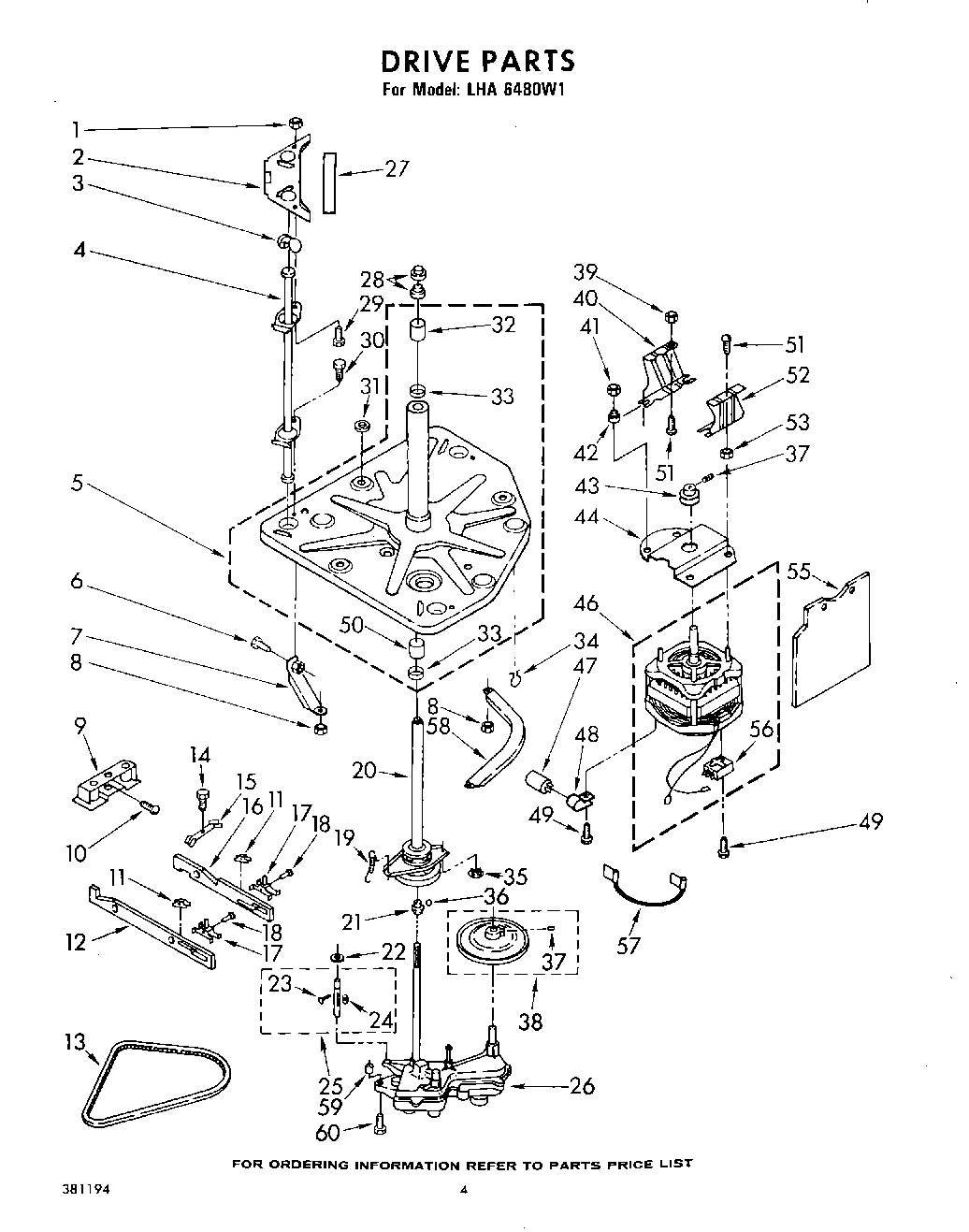

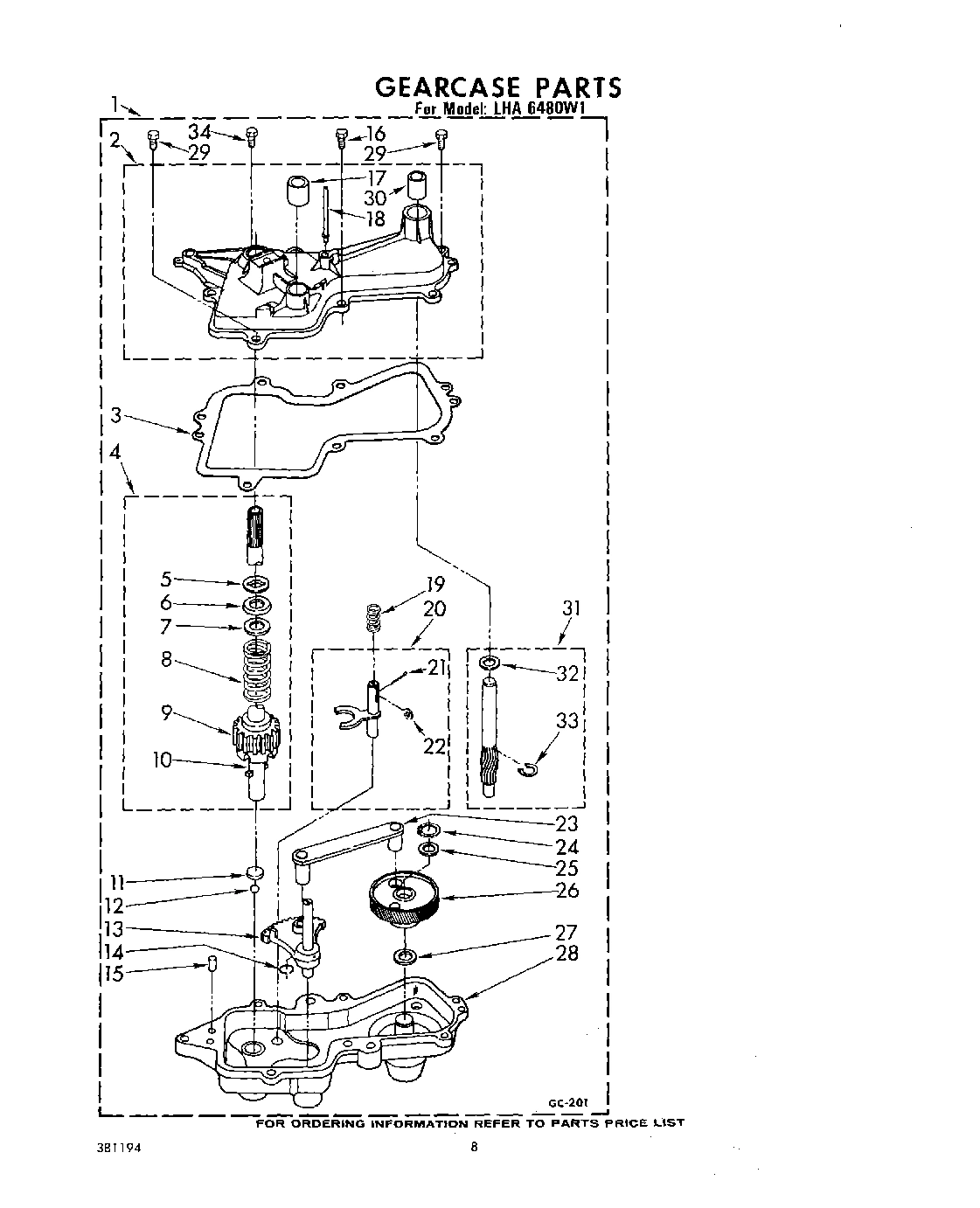

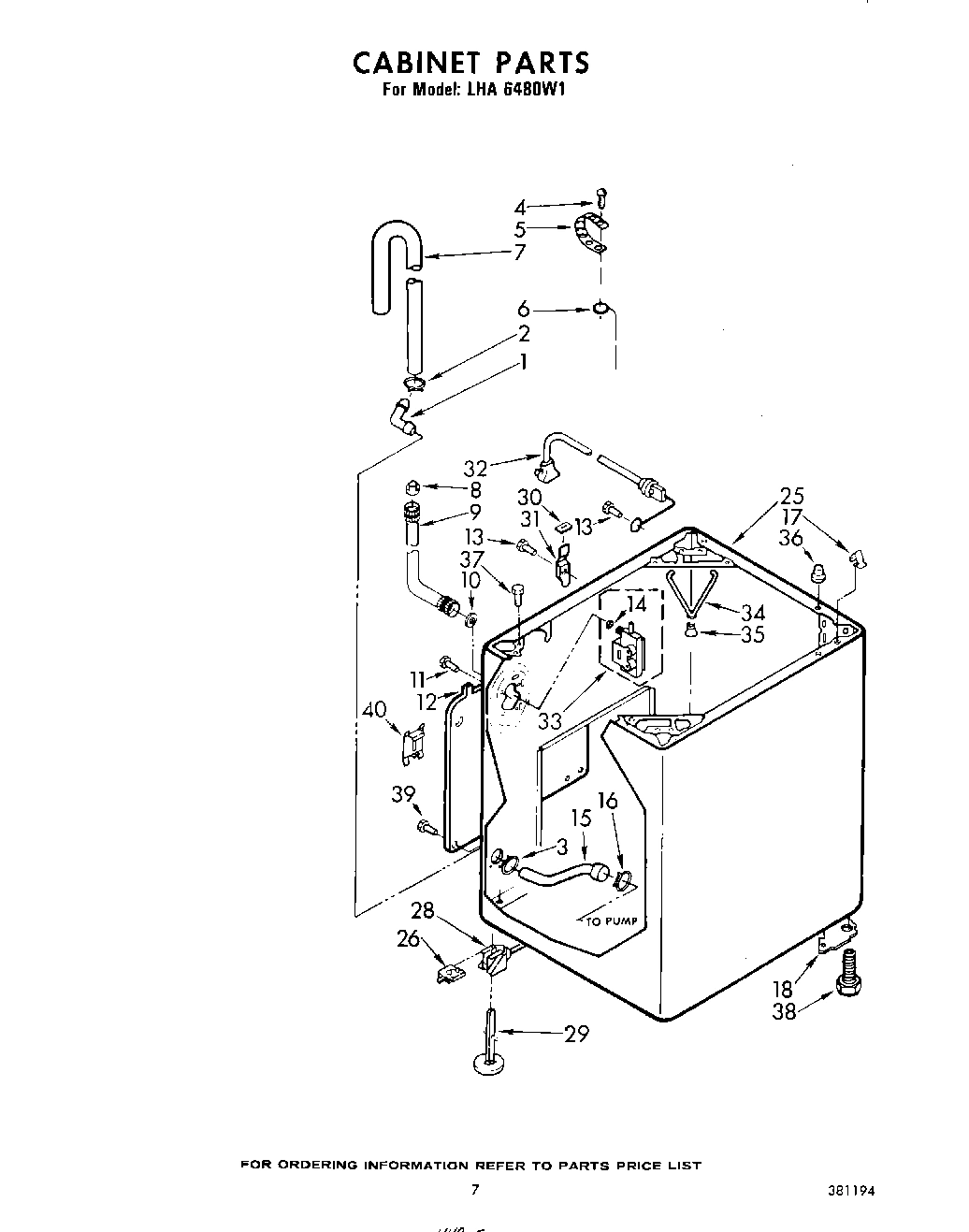

Model Whirlpool LHA6480W1 AUTOMATIC WASHER – Common Parts & Diagrams

WPL  299885
WPL 299885 WPL 299885 Contact Us For Availability
View on Model
WPL  ARI117830A
WPL ARI117830A WPL ARI117830A Contact Us For Availability
View on Model
WPL  ARI117831A
WPL ARI117831A WPL ARI117831A Contact Us For Availability
View on Model
1
Connector, Hose
Connector, Hose WPL 95440 Contact Us For Availability
View on Model
1
Panel, Rear Console
Panel, Rear Console WPL 359373 Contact Us For Availability
View on Model
2
Cover, Gearcase
Cover, Gearcase WPL 367552 Contact Us For Availability
View on Model
2
Screw
Screw WPL 355326 Contact Us For Availability
View on Model
2
Cover, Gusset (L.R. & R.R.)
Cover, Gusset (L.R. & R.R.) WPL 352143 Contact Us For Availability
View on Model
2
Cover, Gusset (L.F.)
Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability
View on Model
3
Gasket, Gearcase
Gasket, Gearcase WPL 95089 Contact Us For Availability
View on Model
3
Hose, Water Inlet
Hose, Water Inlet WPL 356349 Contact Us For Availability
View on Model
3
Ball, Suspension (6)
Ball, Suspension (6) WPL 91073 Contact Us For Availability
View on Model
4
Shaft, Agitator
Shaft, Agitator WPL 362642 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 371918 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 371922 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 377041 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Coffee)
Cap, End (L.H.) (Coffee) WPL 377042 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 377043 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Coffee)
Cap, End (L.H.) (Coffee) WPL 377044 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (New Avocado)
Cap, End (L.H.) (New Avocado) WPL 377045 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Golden Harvest)
Cap, End (L.H.) (Golden Harvest) WPL 377046 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (New Avocado)
Cap, End (L.H.) (New Avocado) WPL 377047 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 377048 Contact Us For Availability
View on Model
4
Rod, Suspension (3)
Rod, Suspension (3) WPL 87270 Contact Us For Availability
View on Model
5
Ring, Retainer
Ring, Retainer WPL 352430 Contact Us For Availability
View on Model
5
Baseplate & Centerpost
Baseplate & Centerpost WPL 358948 Contact Us For Availability
View on Model
6
Inlet, Water
Inlet, Water WPL 366072 Contact Us For Availability
View on Model
6
Seal, Agitator Shaft
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
View on Model
7
Flapper
Flapper WPL 355584 Contact Us For Availability
View on Model
7
Shield, Agitator Spring
Shield, Agitator Spring WPL 94276 Contact Us For Availability
View on Model
7
Handle, Lid (White)
Handle, Lid (White) WPL 379884 Contact Us For Availability
View on Model
7
Handle, Lid (Almond)
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
View on Model
7
Handle, Lid (Coffee)
Handle, Lid (Coffee) WPL 379886 Contact Us For Availability
View on Model
7
Handle, Lid (New Avocado)
Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability
View on Model
7
Handle, Lid (Golden Harvest)
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
View on Model
7
Brace, Baseplate
Brace, Baseplate WPL 353301 Contact Us For Availability
View on Model
8
Plate, Snubber
Plate, Snubber WPL 355852 Contact Us For Availability
View on Model
8
Spring, Agitator Shaft
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
View on Model
8
Screw, 8-18
Screw, 8-18 WPL 358225 Contact Us For Availability
View on Model
8
Nut, 5/16-24
Nut, 5/16-24 WPL 96101 Contact Us For Availability
View on Model
9
Ring & Filter, Tub (Includes Illus. 41)
Ring & Filter, Tub (Includes Illus. 41) WPL 359314 Contact Us For Availability
View on Model
9
Gear, Agitator Shaft
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
View on Model
9
Magnet
Magnet WPL 365998 Contact Us For Availability
View on Model
10
Seal, Tub Ring
Seal, Tub Ring WPL 356584 Contact Us For Availability
View on Model
10
Shaft, Agitator
Shaft, Agitator WPL 362098 Contact Us For Availability
View on Model
10
Sleeve, Anchor (2)
Sleeve, Anchor (2) WPL 345059 Contact Us For Availability
View on Model
10
Screw, Taper End
Screw, Taper End WPL 16135 Contact Us For Availability
View on Model
11
Basket
Basket WPL 357968 Contact Us For Availability
View on Model
11
Guide, Cam Bar
Guide, Cam Bar WPL 95462 Contact Us For Availability
View on Model
12
Cam, Bar Spin
Cam, Bar Spin WPL 354838 Contact Us For Availability
View on Model
13
Gear, Sector
Gear, Sector WPL 75073 Contact Us For Availability
View on Model
14
Tub
Tub WPL 358208 Contact Us For Availability
View on Model
14
Ring, Retainer
Ring, Retainer WPL 52083 Contact Us For Availability
View on Model
14
Screw, 1/4-28 x 1/2
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
View on Model
15
Spring, Brake
Spring, Brake WPL 94726 Contact Us For Availability
View on Model
15
Screw, Tub
Screw, Tub WPL 356973 Contact Us For Availability
View on Model
15
Pin, Dowel
Pin, Dowel WPL 5018 Contact Us For Availability
View on Model
15
Bumper, Lid Hinge
Bumper, Lid Hinge WPL 91605 Contact Us For Availability
View on Model
16
Bolt, 5/16-24 x 3/4 (4)
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
View on Model
16
Spring, Lid (L.H.)
Spring, Lid (L.H.) WPL 92398 Contact Us For Availability
View on Model
16
Cam, Agitator & Pump
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
View on Model
17
Bearing, Gear Fork
Bearing, Gear Fork WPL 96853 Contact Us For Availability
View on Model
17
Hinge, Lid (L.H.)
Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability
View on Model
17
Plunger
Plunger WPL 84866 Contact Us For Availability
View on Model
18
Support, Brake Shoe Yoke
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
View on Model
18
Rivet
Rivet WPL 354959 Contact Us For Availability
View on Model
19
Spring, Gear Fork Shaft
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
View on Model
19
Spring, Brake Yoke
Spring, Brake Yoke WPL 17261 Contact Us For Availability
View on Model
20
Spacer, Agitator Shaft
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
View on Model
20
Fork, Agitator Gear
Fork, Agitator Gear WPL 80398 Contact Us For Availability
View on Model
20

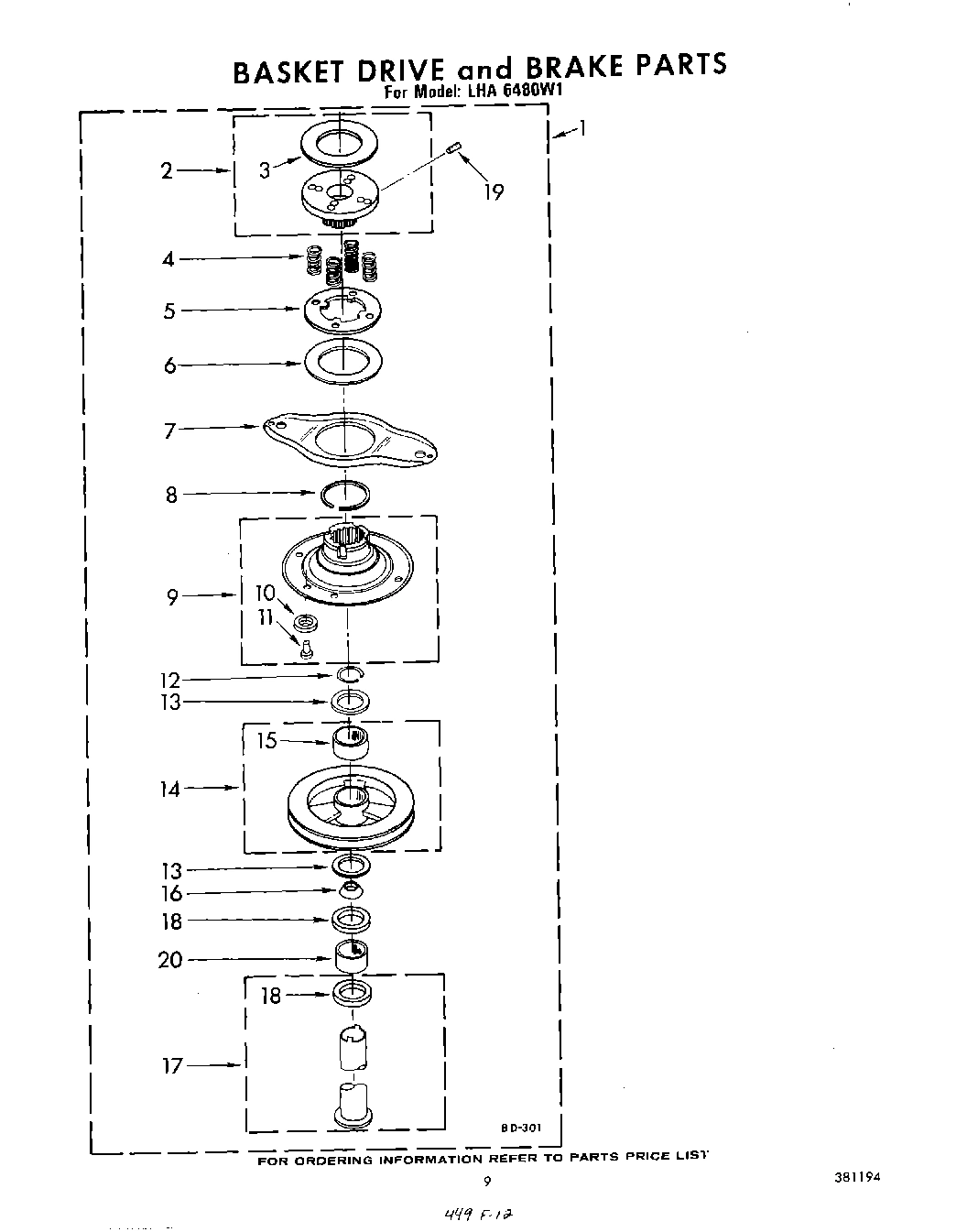

Basket Drive & Brake (For Further Breakdown R
Basket Drive & Brake (For Further Breakdown R WPL 357970 Contact Us For Availability
View on Model
21
Lid (White)
Lid (White) WPL 379964 Contact Us For Availability
View on Model
21
Lid (Almond)
Lid (Almond) WPL 379965 Contact Us For Availability
View on Model
21
Lid (Coffee)
Lid (Coffee) WPL 379966 Contact Us For Availability
View on Model
21
Lid (New Avocado)
Lid (New Avocado) WPL 379967 Contact Us For Availability
View on Model
21
Lid (Golden Harvest)
Lid (Golden Harvest) WPL 379968 Contact Us For Availability
View on Model
21
Support, Spin Tube
Support, Spin Tube WPL 358586 Contact Us For Availability
View on Model
22
Hose, Tub Outlet
Hose, Tub Outlet WPL 96386 Contact Us For Availability
View on Model
22
Top (White)
Top (White) WPL 380283 Contact Us For Availability
View on Model
22
Top (Almond)
Top (Almond) WPL 380284 Contact Us For Availability
View on Model
22
Top (Coffee)
Top (Coffee) WPL 380285 Contact Us For Availability
View on Model
22
Top (New Avocado)
Top (New Avocado) WPL 380286 Contact Us For Availability
View on Model
22
Top (Golden Harvest)
Top (Golden Harvest) WPL 380287 Contact Us For Availability
View on Model
23
Cap, Agitator
Cap, Agitator WPL 356863 Contact Us For Availability
View on Model
23
Pin, Roll
Pin, Roll WPL 90532 Contact Us For Availability
View on Model
23
Rod, Connecting
Rod, Connecting WPL 76577 Contact Us For Availability
View on Model
24
Clip, Hose
Clip, Hose WPL 9421321 Contact Us For Availability
View on Model
24
Roller, Basket Clutch Shaft
Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability
View on Model
24
Ring, Retaining
Ring, Retaining WPL 95082 Contact Us For Availability
View on Model
25
Agitator & Insert Assembly
Agitator & Insert Assembly WPL 358370 Contact Us For Availability
View on Model
25
Washer, Retainer
Washer, Retainer WPL 95083 Contact Us For Availability
View on Model
25
Shaft, Basket Clutch
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
View on Model
26
Stud & Washer
Stud & Washer WPL 369516 Contact Us For Availability
View on Model
26
Gearcase (For Further Breakdown Refer To Page
Gearcase (For Further Breakdown Refer To Page WPL 362901 Contact Us For Availability
View on Model
26
Gear, Main Drive
Gear, Main Drive WPL 353397 Contact Us For Availability
View on Model
26
Nut, Push-In (2)
Nut, Push-In (2) WPL 356552 Contact Us For Availability
View on Model
27
Washer, Thrust
Washer, Thrust WPL 363362 Contact Us For Availability
View on Model
27
Bezel, Dispenser
Bezel, Dispenser WPL 352821 Contact Us For Availability
View on Model
27
Pad, Gusset Cover (6)
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
View on Model
28
Seal
Seal WPL 351830 Contact Us For Availability
View on Model
28
Gearcase
Gearcase WPL 362906 Contact Us For Availability
View on Model
28
Tray, Dispenser
Tray, Dispenser WPL 352827 Contact Us For Availability
View on Model
29
Air Dome Assembly
Air Dome Assembly WPL 360804 Contact Us For Availability
View on Model
29
Bolt, 5/16-24 x 1-1/8 (2)
Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability
View on Model
29
Switch, Water Level
Switch, Water Level WPL 368578 Contact Us For Availability
View on Model
29
Bolt, 5/16 x 5/8 (2)
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
View on Model
29
Bolt, 5/16 x 1 (3)
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
View on Model
29
Bolt, Snubber (1)
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
View on Model
30
Bearing, Drive Pinion
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
View on Model
30
Bolt, 5/16-24
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
View on Model
31
Clip, Tub Ring (4)
Clip, Tub Ring (4) WPL 356701 Contact Us For Availability
View on Model
31
Pinion, Drive
Pinion, Drive WPL 84467 Contact Us For Availability
View on Model
31
Switch, Water Temperature (Alternate)
Switch, Water Temperature (Alternate) WPL 370145 Contact Us For Availability
View on Model
31
Switch, Water Temperature (Alternate)
Switch, Water Temperature (Alternate) WPL 370146 Contact Us For Availability
View on Model
31
Gasket, Tub (7)
Gasket, Tub (7) WPL 17235 Contact Us For Availability
View on Model
32
Manifold
Manifold WPL 84091 Contact Us For Availability
View on Model
32
Washer, Drive Pinion
Washer, Drive Pinion WPL 16024 Contact Us For Availability
View on Model
32
Bracket, Control
Bracket, Control WPL 357301 Contact Us For Availability
View on Model
33
Valve, Mixing (Alternate)
Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability
View on Model
33
Ring, Retainer
Ring, Retainer WPL 90094 Contact Us For Availability
View on Model
34
Screw, 5/16-24 x 1-3/4 (1)
Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability
View on Model
35
Snubber
Snubber WPL 358336 Contact Us For Availability
View on Model
35
Retainer, Brake Yoke
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
View on Model
36
Hose
Hose WPL 357130 Contact Us For Availability
View on Model
36
Ball
Ball WPL 358585 Contact Us For Availability
View on Model
37
Setscrew, 5/16-18 x 1/2
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
View on Model
38
Pulley, Main Drive
Pulley, Main Drive WPL 360840 Contact Us For Availability
View on Model
40
Latch
Latch WPL 357249 Contact Us For Availability
View on Model
40
Timer Assembly (60 Hz.) (Mallory)
Timer Assembly (60 Hz.) (Mallory) WPL 380126 Contact Us For Availability
View on Model
40
Timer Assembly (60 Hz.) (C.C.A.)
Timer Assembly (60 Hz.) (C.C.A.) WPL 380245 Contact Us For Availability
View on Model
40
Bracket, Motor Mounting
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
View on Model
41
Element, Filter
Element, Filter WPL 359296 Contact Us For Availability
View on Model
41
Timer Motor
Timer Motor WPL 362681 Contact Us For Availability
View on Model
41
WPL  365941
WPL 365941 WPL 365941 Contact Us For Availability
View on Model
41
Nut (4)
Nut (4) WPL 98023 Contact Us For Availability
View on Model
42
Grommet, Motor Bracket (4)
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
View on Model
42
Screw (2)
Screw (2) WPL 176360 Contact Us For Availability
View on Model
43
Retainer
Retainer WPL 357250 Contact Us For Availability
View on Model
43
WPL  367676
WPL 367676 WPL 367676 Contact Us For Availability
View on Model
43
Pulley, Motor
Pulley, Motor WPL 357514 Contact Us For Availability
View on Model
44
Spring
Spring WPL 94403 Contact Us For Availability
View on Model
44
Shield, Motor (Upper)
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
View on Model
46
Hose, Pump To Filter
Hose, Pump To Filter WPL 357343 Contact Us For Availability
View on Model
46
Motor (Emerson) (Alternate) 60 Hz.
Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability
View on Model
46
Motor (General Electric) (Alternate) 60 Hz.
Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability
View on Model
48
Locknut
Locknut WPL 357732 Contact Us For Availability
View on Model
49
WPL  352088
WPL 352088 WPL 352088 Contact Us For Availability
View on Model
49
Insert, Agitator Cap
Insert, Agitator Cap WPL 358773 Contact Us For Availability
View on Model
50
Hose, Dispenser
Hose, Dispenser WPL 352978 Contact Us For Availability
View on Model
50
Bea
Bea WPL 354195 Contact Us For Availability
View on Model
51
WPL  98537
WPL 98537 WPL 98537 Contact Us For Availability
View on Model
52
Pump Assembly
Pump Assembly WPL 357729 Contact Us For Availability
View on Model
52
WPL  93549
WPL 93549 WPL 93549 Contact Us For Availability
View on Model
53
WPL  95721
WPL 95721 WPL 95721 Contact Us For Availability
View on Model
54
Sleeve
Sleeve WPL 96175 Contact Us For Availability
View on Model
54
WPL  380540
WPL 380540 WPL 380540 Contact Us For Availability
View on Model
55
Spring, Toggle
Spring, Toggle WPL 96266 Contact Us For Availability
View on Model
55
WPL  357395
WPL 357395 WPL 357395 Contact Us For Availability
View on Model
56
Pulley
Pulley WPL 16113 Contact Us For Availability
View on Model
56
WPL  362086
WPL 362086 WPL 362086 Contact Us For Availability
View on Model
56
WPL  362738
WPL 362738 WPL 362738 Contact Us For Availability
View on Model
57
Lever, Valve
Lever, Valve WPL 355538 Contact Us For Availability
View on Model
57
WPL  359379
WPL 359379 WPL 359379 Contact Us For Availability
View on Model
57
WPL  370950
WPL 370950 WPL 370950 Contact Us For Availability
View on Model
58
Rod, Connecting
Rod, Connecting WPL 96264 Contact Us For Availability
View on Model
58
WPL  356500
WPL 356500 WPL 356500 Contact Us For Availability
View on Model
58
WPL  351499
WPL 351499 WPL 351499 Contact Us For Availability
View on Model
58
WPL  351500
WPL 351500 WPL 351500 Contact Us For Availability
View on Model
59
Bearing Block Assembly
Bearing Block Assembly WPL 87290 Contact Us For Availability
View on Model
59
WPL  16062
WPL 16062 WPL 16062 Contact Us For Availability
View on Model
60
Wick, Oil
Wick, Oil WPL 96265 Contact Us For Availability
View on Model
60
WPL  90877
WPL 90877 WPL 90877 Contact Us For Availability
View on Model
61
WPL  368769
WPL 368769 WPL 368769 Contact Us For Availability
View on Model
62
WPL  90015
WPL 90015 WPL 90015 Contact Us For Availability
View on Model
67
WPL  98084
WPL 98084 WPL 98084 Contact Us For Availability
View on Model
75
WPL  94612
WPL 94612 WPL 94612 Contact Us For Availability
View on Model
76
WPL  94611
WPL 94611 WPL 94611 Contact Us For Availability
View on Model
81
WPL  357535
WPL 357535 WPL 357535 Contact Us For Availability
View on Model
86
WPL  354975
WPL 354975 WPL 354975 Contact Us For Availability
View on Model
87
WPL  370959
WPL 370959 WPL 370959 Contact Us For Availability
View on Model
95
WPL  357633
WPL 357633 WPL 357633 Contact Us For Availability
View on Model
96
WPL  354764
WPL 354764 WPL 354764 Contact Us For Availability
View on Model
97
WPL  799344
WPL 799344 WPL 799344 Contact Us For Availability
View on Model
97
WPL  261886
WPL 261886 WPL 261886 Contact Us For Availability
View on Model
97
WPL  261887
WPL 261887 WPL 261887 Contact Us For Availability
View on Model
97
WPL  261888
WPL 261888 WPL 261888 Contact Us For Availability
View on Model
97
WPL  261889
WPL 261889 WPL 261889 Contact Us For Availability
View on Model
97
WPL  261890
WPL 261890 WPL 261890 Contact Us For Availability
View on Model
97
WPL  261891
WPL 261891 WPL 261891 Contact Us For Availability
View on Model
97
WPL  350941
WPL 350941 WPL 350941 Contact Us For Availability
View on Model
97
WPL  357645
WPL 357645 WPL 357645 Contact Us For Availability
View on Model
97
WPL  358116
WPL 358116 WPL 358116 Contact Us For Availability
View on Model
97
WPL  358770
WPL 358770 WPL 358770 Contact Us For Availability
View on Model
97
WPL  359340
WPL 359340 WPL 359340 Contact Us For Availability
View on Model
97
WPL  372846
WPL 372846 WPL 372846 Contact Us For Availability
View on Model
97
WPL  375962
WPL 375962 WPL 375962 Contact Us For Availability
View on Model
97
WPL  380464
WPL 380464 WPL 380464 Contact Us For Availability
View on Model
97
WPL  381194
WPL 381194 WPL 381194 Contact Us For Availability
View on Model
97
WPL  382240
WPL 382240 WPL 382240 Contact Us For Availability
View on Model
97
WPL  72108
WPL 72108 WPL 72108 Contact Us For Availability
View on Model
97
WPL  799351
WPL 799351 WPL 799351 Contact Us For Availability
View on Model
97
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
