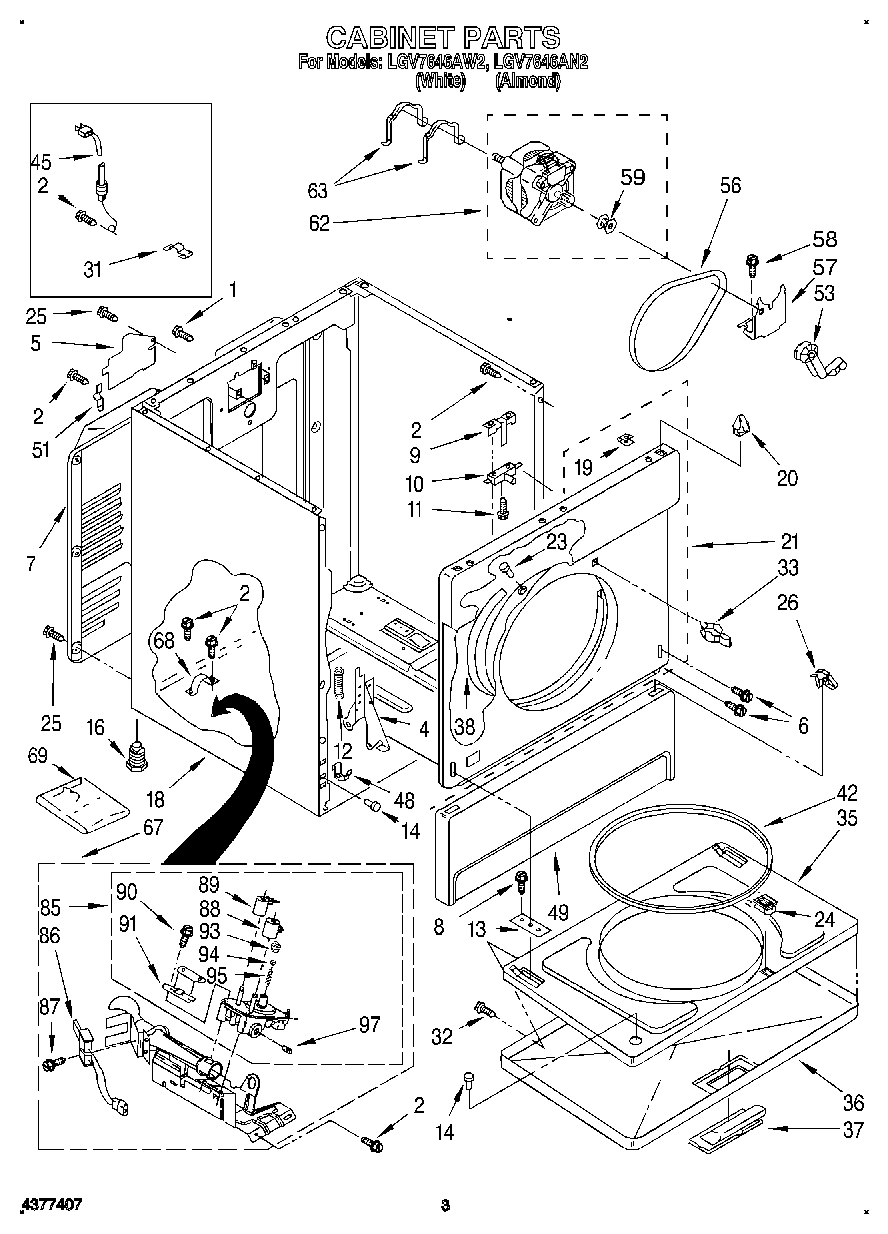

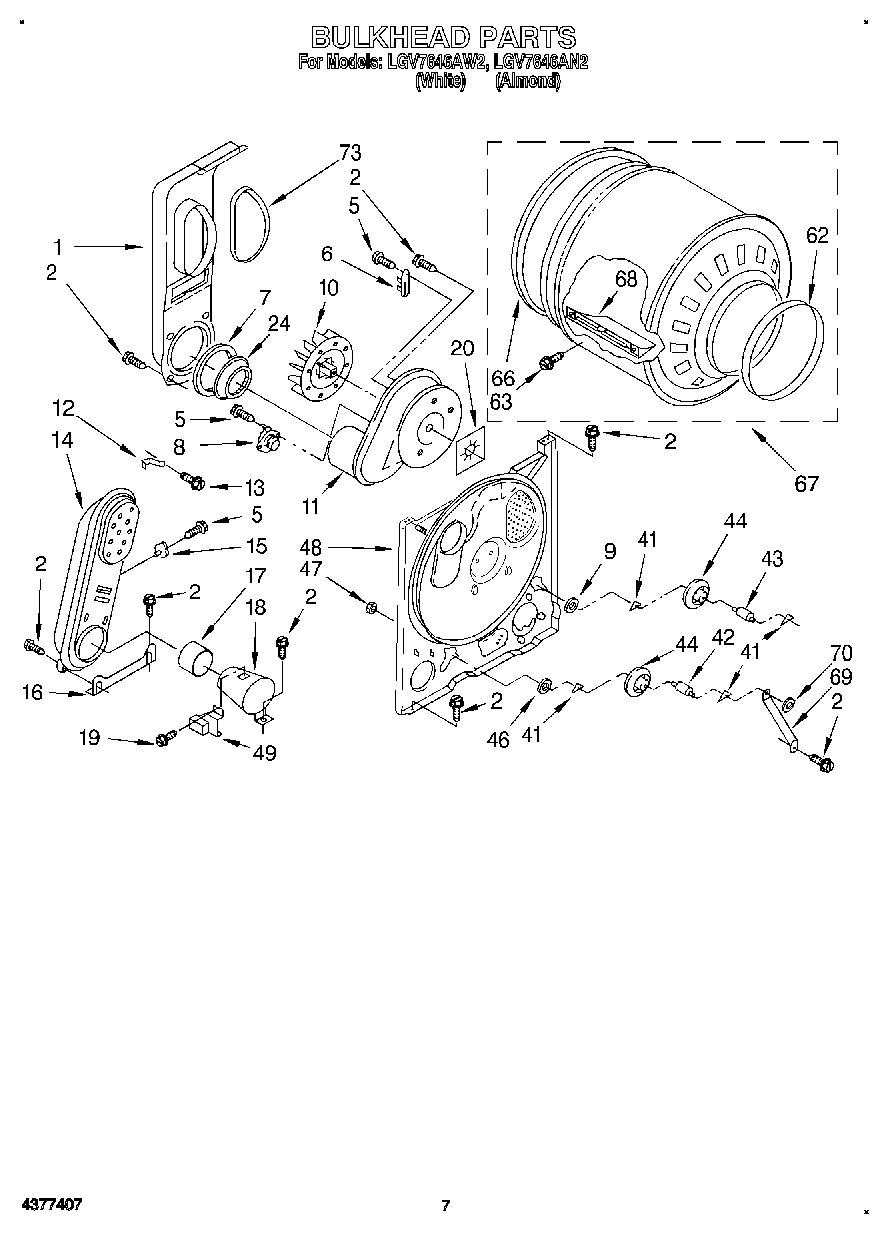

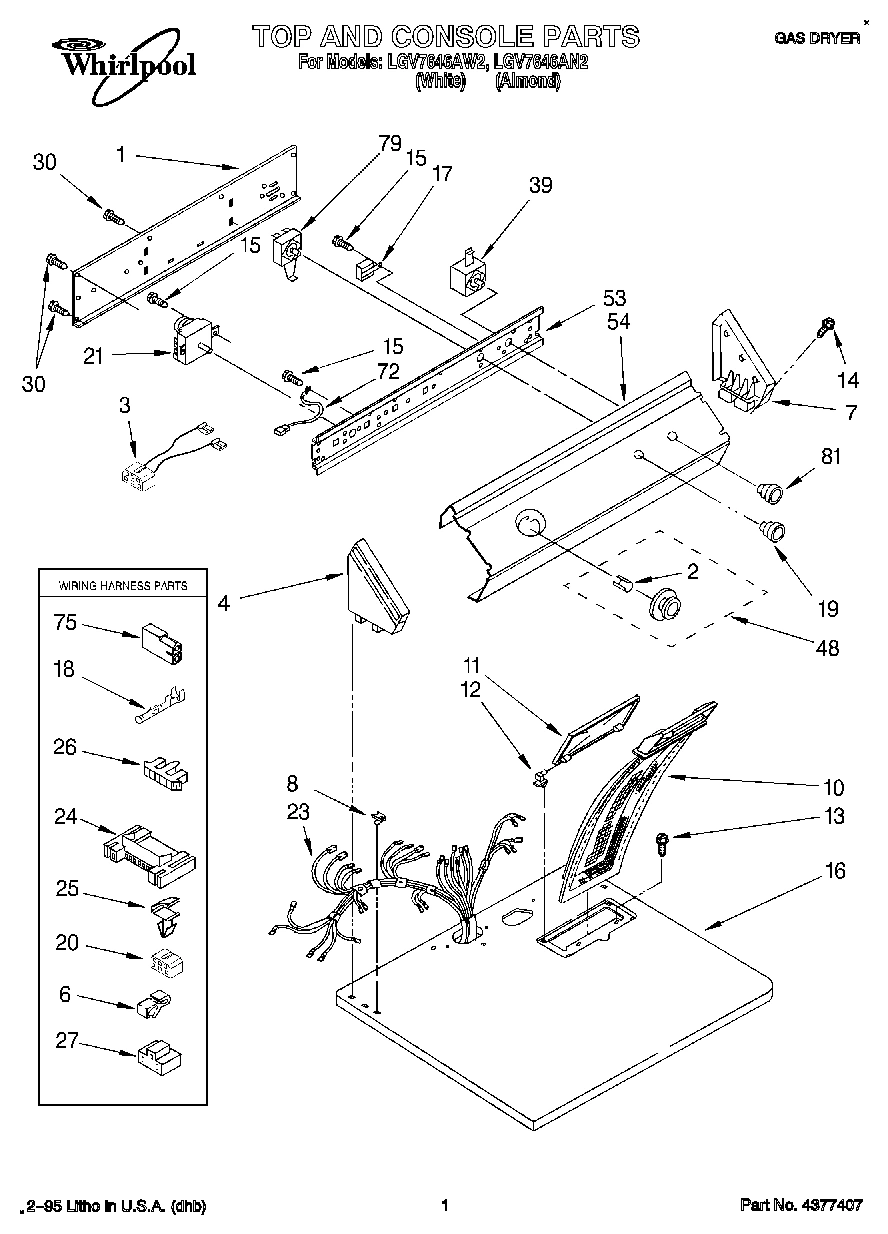

Model Whirlpool LGV7646AN2 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $66.93

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

2

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

4

Hinge, R.H. WPL 687905 Contact Us For Availability

4

Hinge, L.H. WPL 687906 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

280043 Whirlpool Rear Panel Backorder WPL 280043 $135.83

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $12.25

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

Spring, Door (2) WPL 237979 Contact Us For Availability

13

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

13

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

16

Support, Heater Box WPL 348484 Contact Us For Availability

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Cabinet (White) WPL 3399585 Contact Us For Availability

Cabinet (Almond (Includes Illus. Nos. 5, 7, 1 WPL 3399586 Contact Us For Availability

19

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Seal, Blower WPL 3392123 Contact Us For Availability

21

Upper Front Panel (White) WPL 338012 Contact Us For Availability

21

Upper Front Panel (Almond) WPL 689533 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $12.76

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

Nut, Compression WPL 233076 Contact Us For Availability

25

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

26

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.70

26

Connector, Timer WPL 3397269 Contact Us For Availability

27

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

30

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

31

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

35

Door, Rear WPL 695954 Contact Us For Availability

36

Door, Front (White) WPL 348728 Contact Us For Availability

36

Door, Front (Almond) WPL 689330 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $46.54

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

39

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $45.66

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $39.67

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

45

W11222083 Whirlpool Power Cord Backorder WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.52

48

Bulkhead WPL 3399464 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

49

Panel, Toe (White) WPL 692427 Contact Us For Availability

49

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $23.68

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $44.08

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.33

66

Seal, Rear Drum WPL 3397509 Contact Us For Availability

67

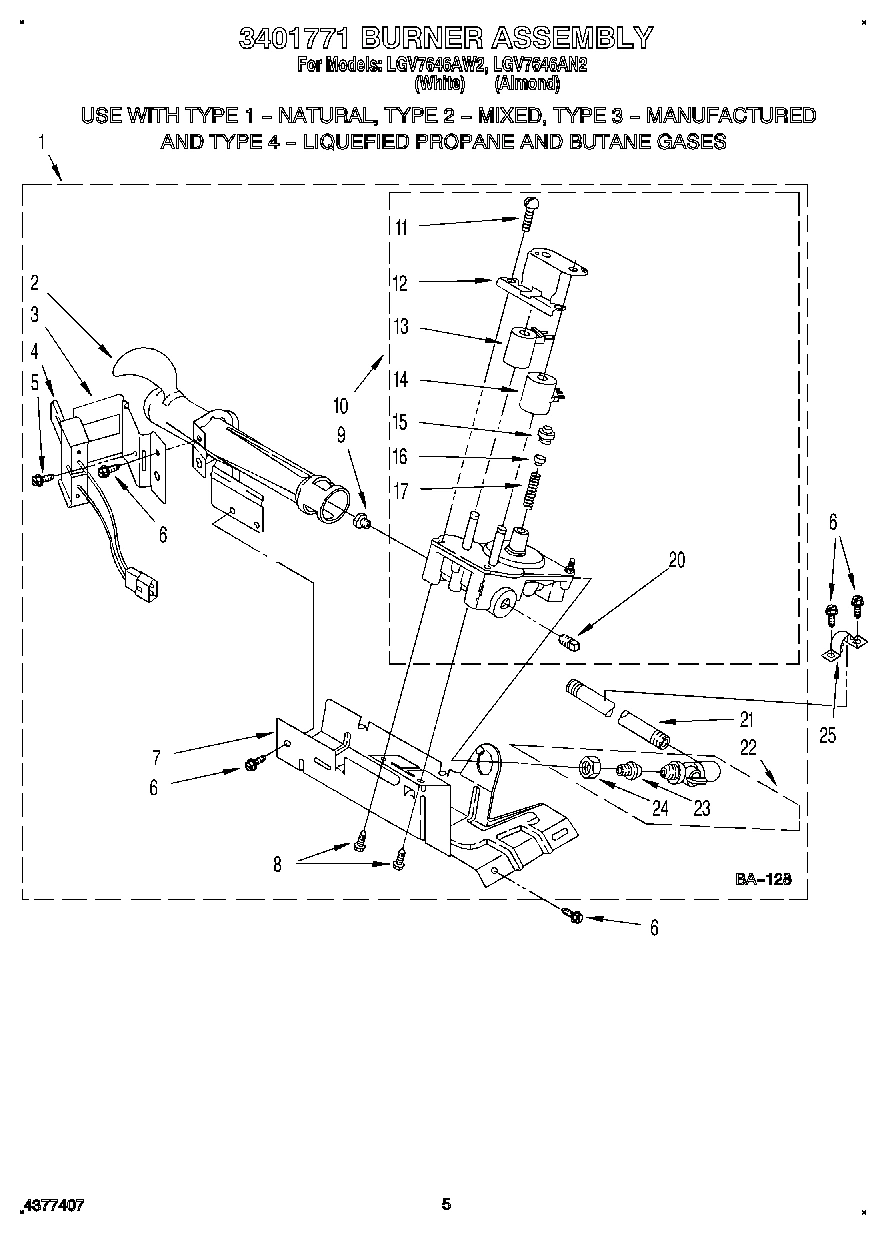

Burner Assembly 60 Hz. (Alternate) (Refer To WPL 3401771 Contact Us For Availability

67

Drum Assembly WPL 3396778 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

73

Seal WPL 3398160 Contact Us For Availability

85

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

86

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

87

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

88

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

90

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

91

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

97

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76
