Model Speed Queen LGS33A* Dryer – Common Parts & Diagrams
Graphic Panel, Control Hood and Controls
Cabinet Top and Control Hood Rear Panel

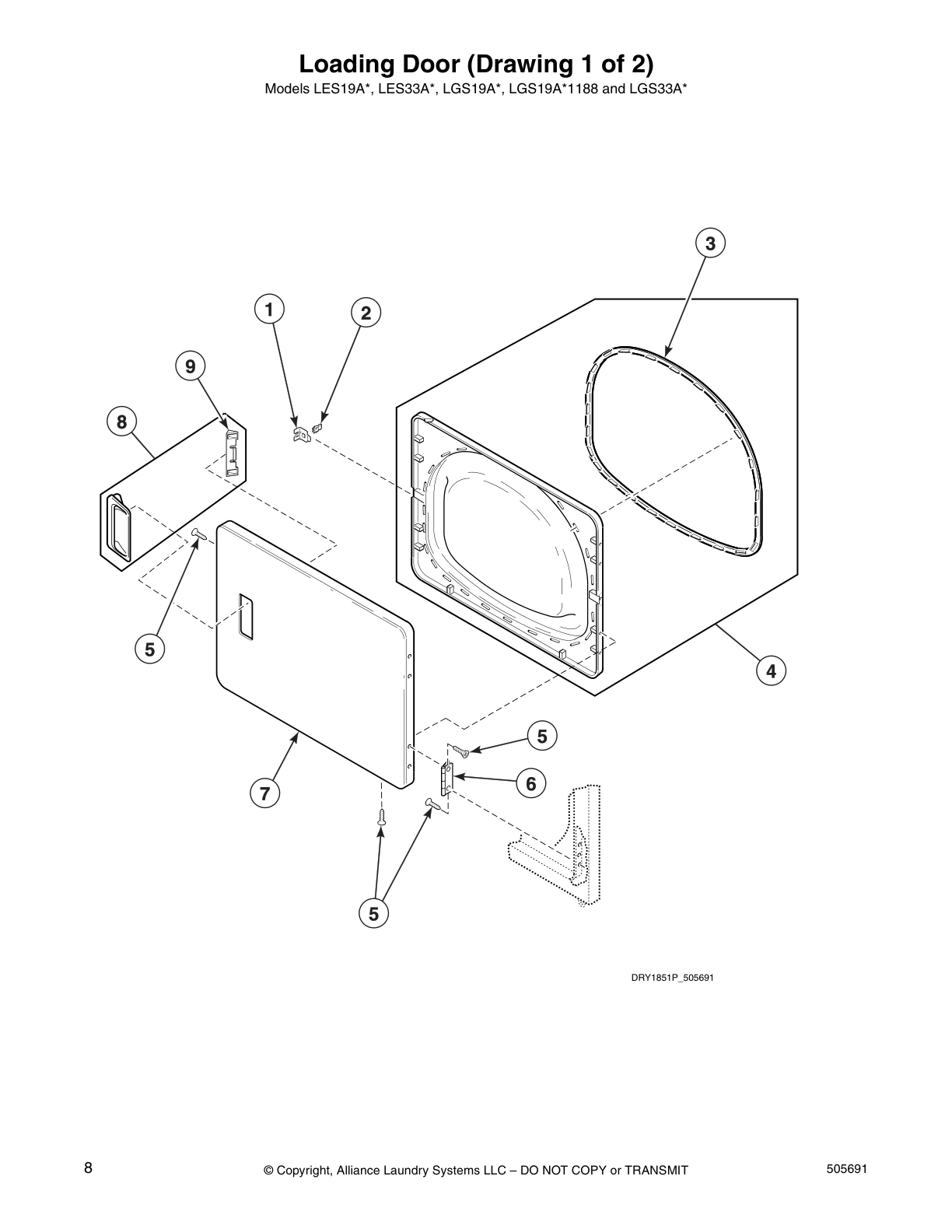

Loading Door (Drawing 1 of 2)

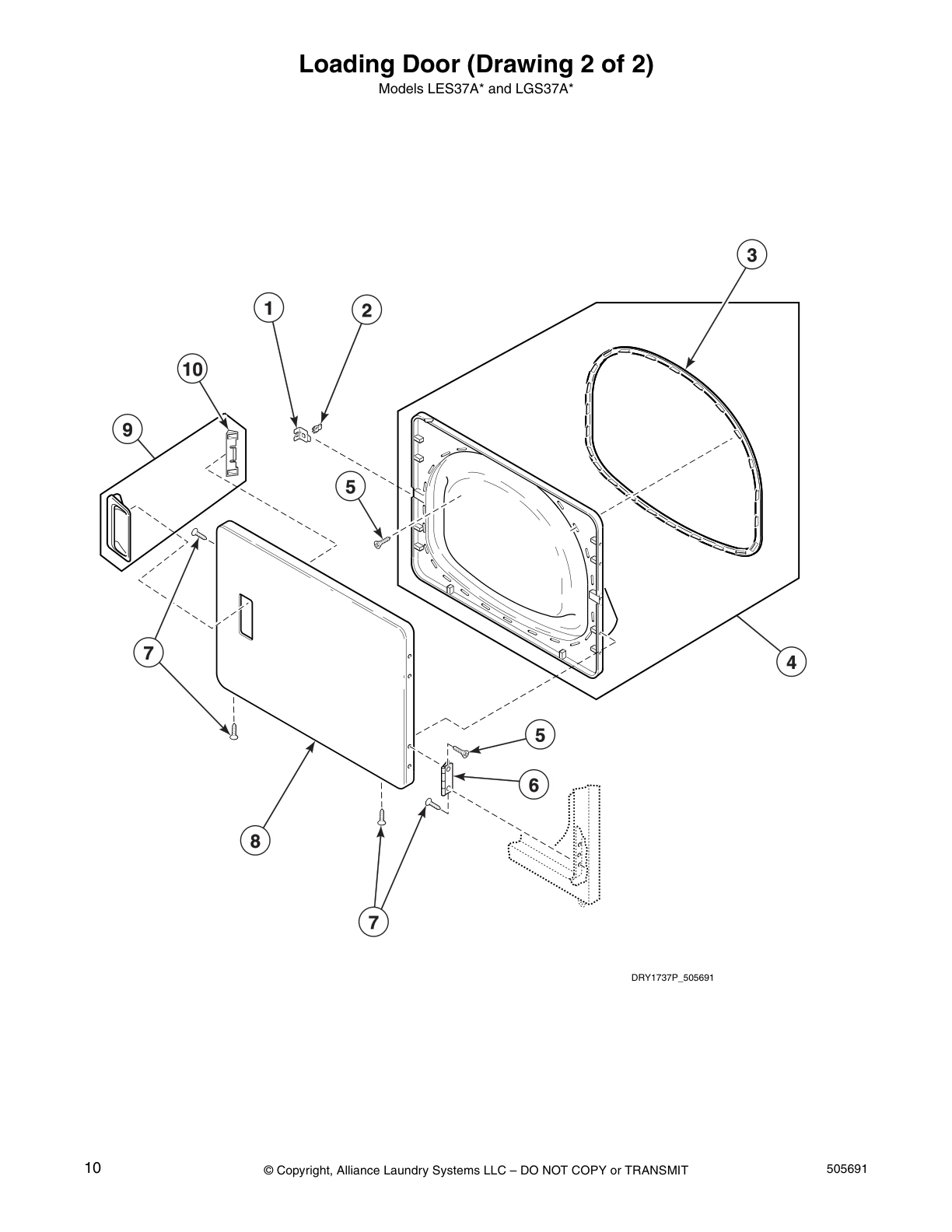

Loading Door (Drawing 2 of 2)

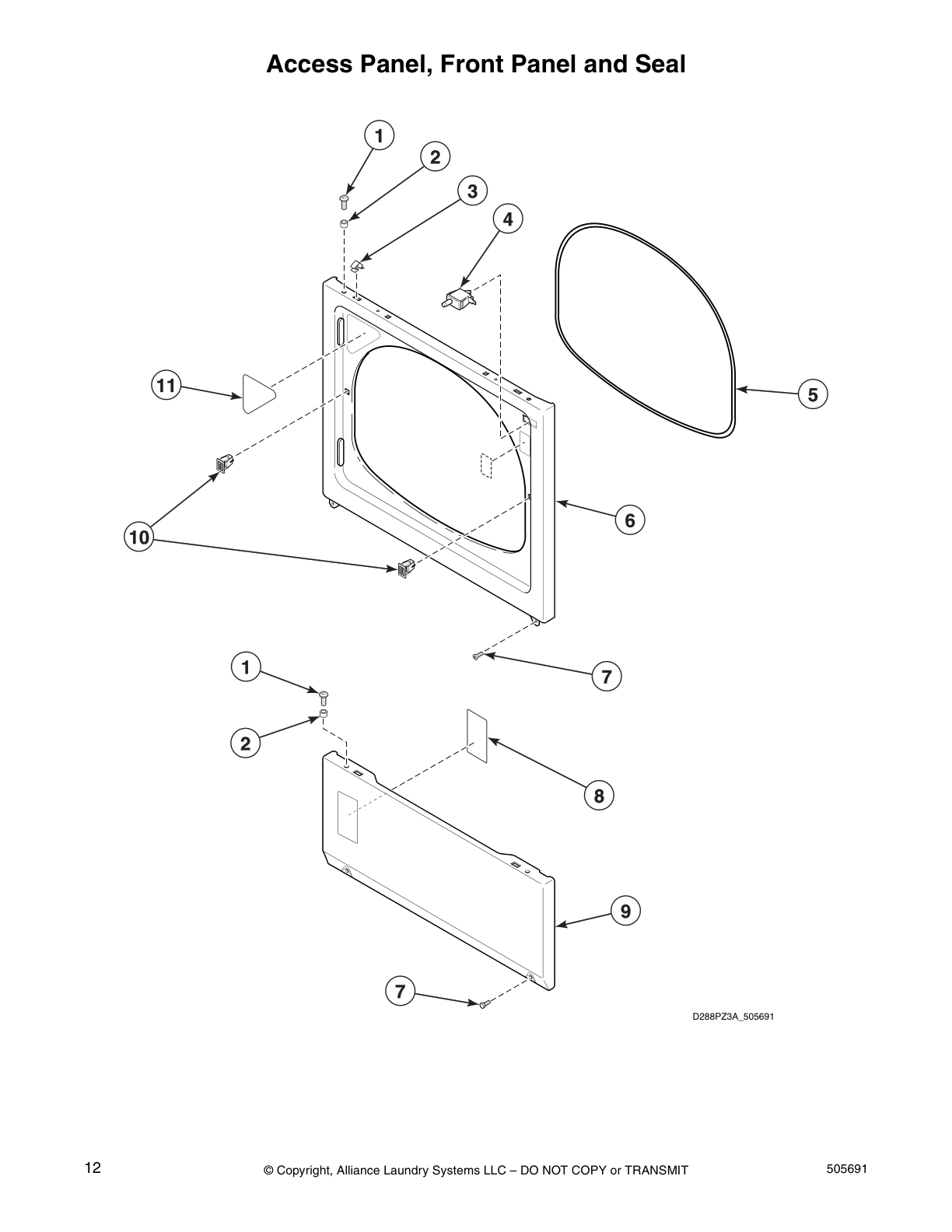

Access Panel, Front Panel and Seal

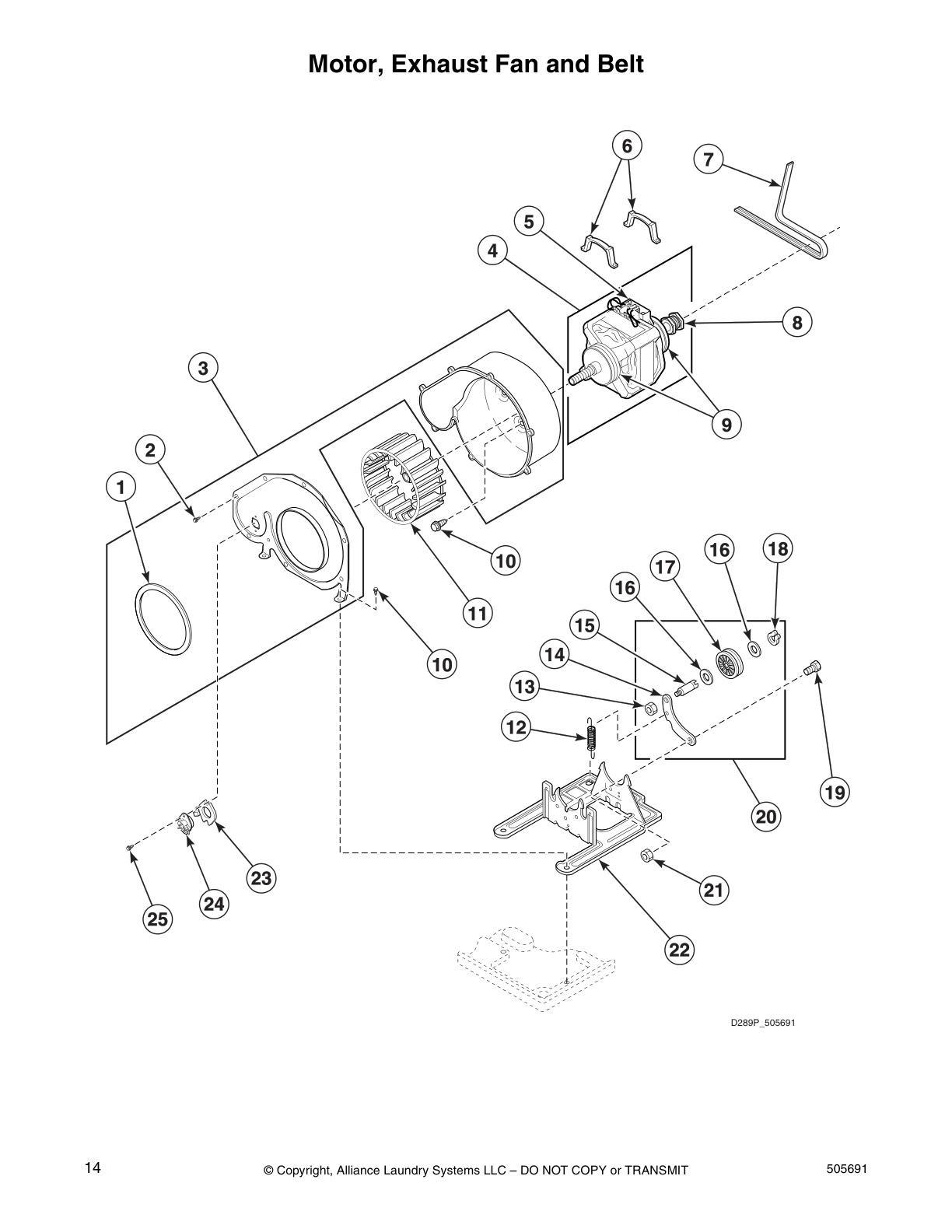

Motor, Exhaust Fan and Belt

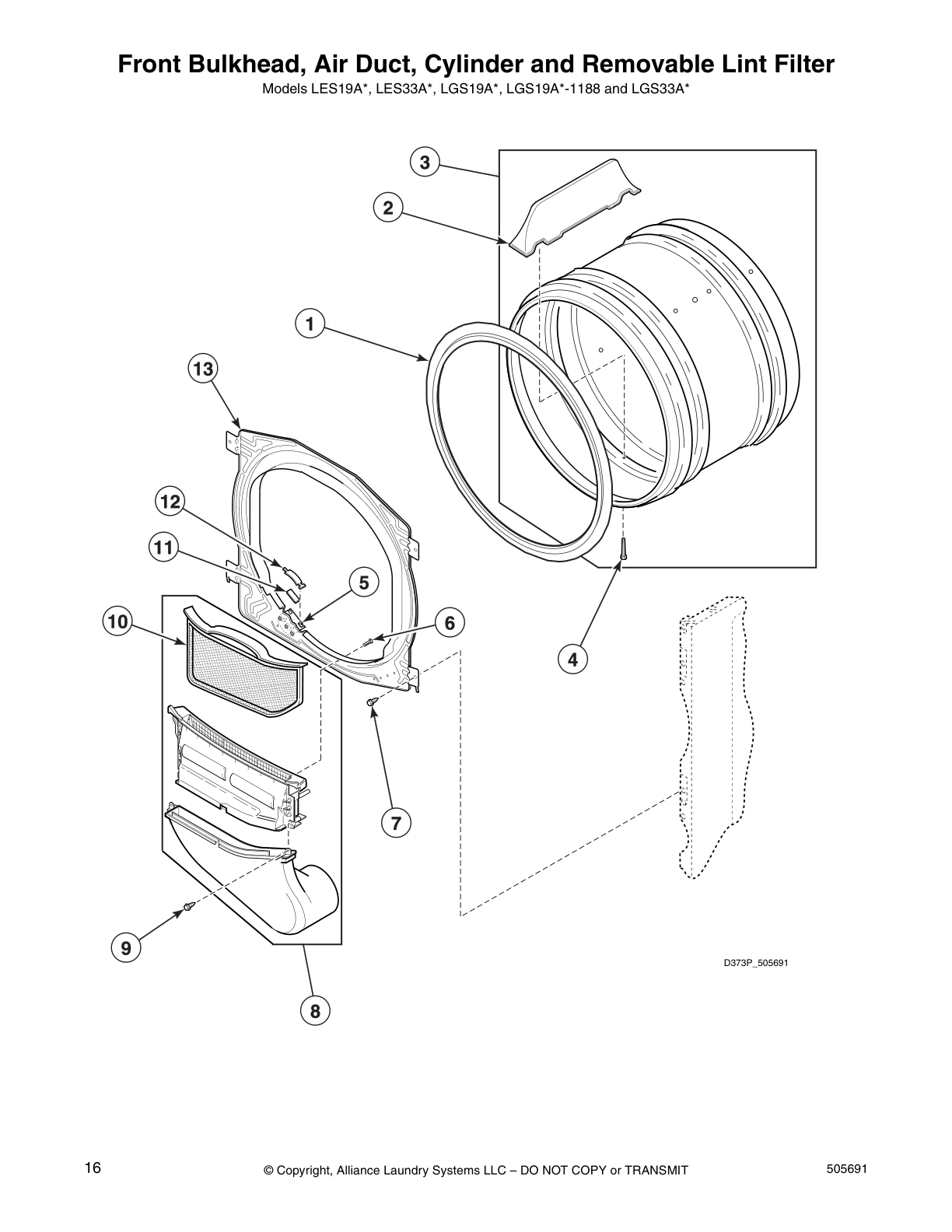

Front Bulkhead, Air Duct, Cylinder and Removable Lint Filter

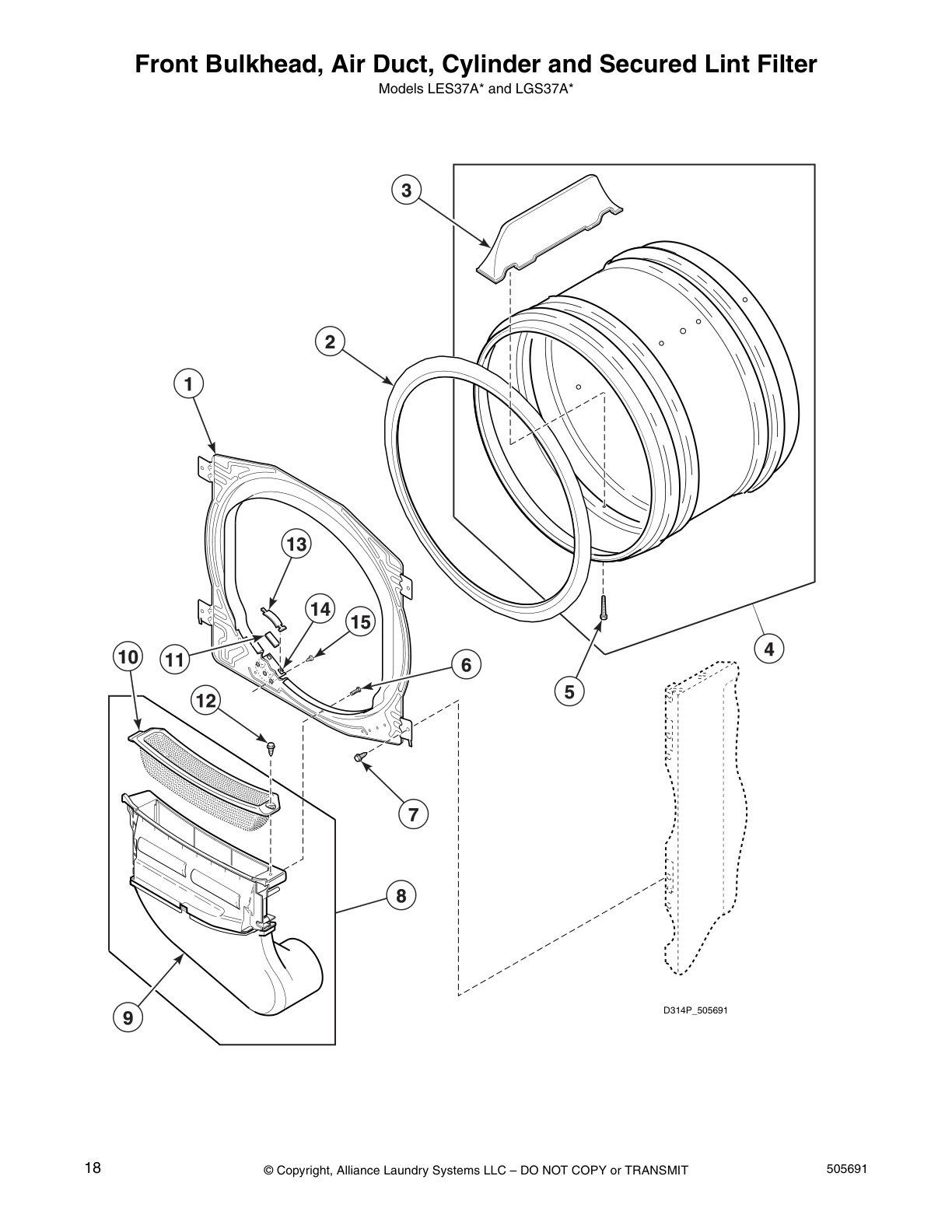

Front Bulkhead, Air Duct, Cylinder and Secured Lint Filter

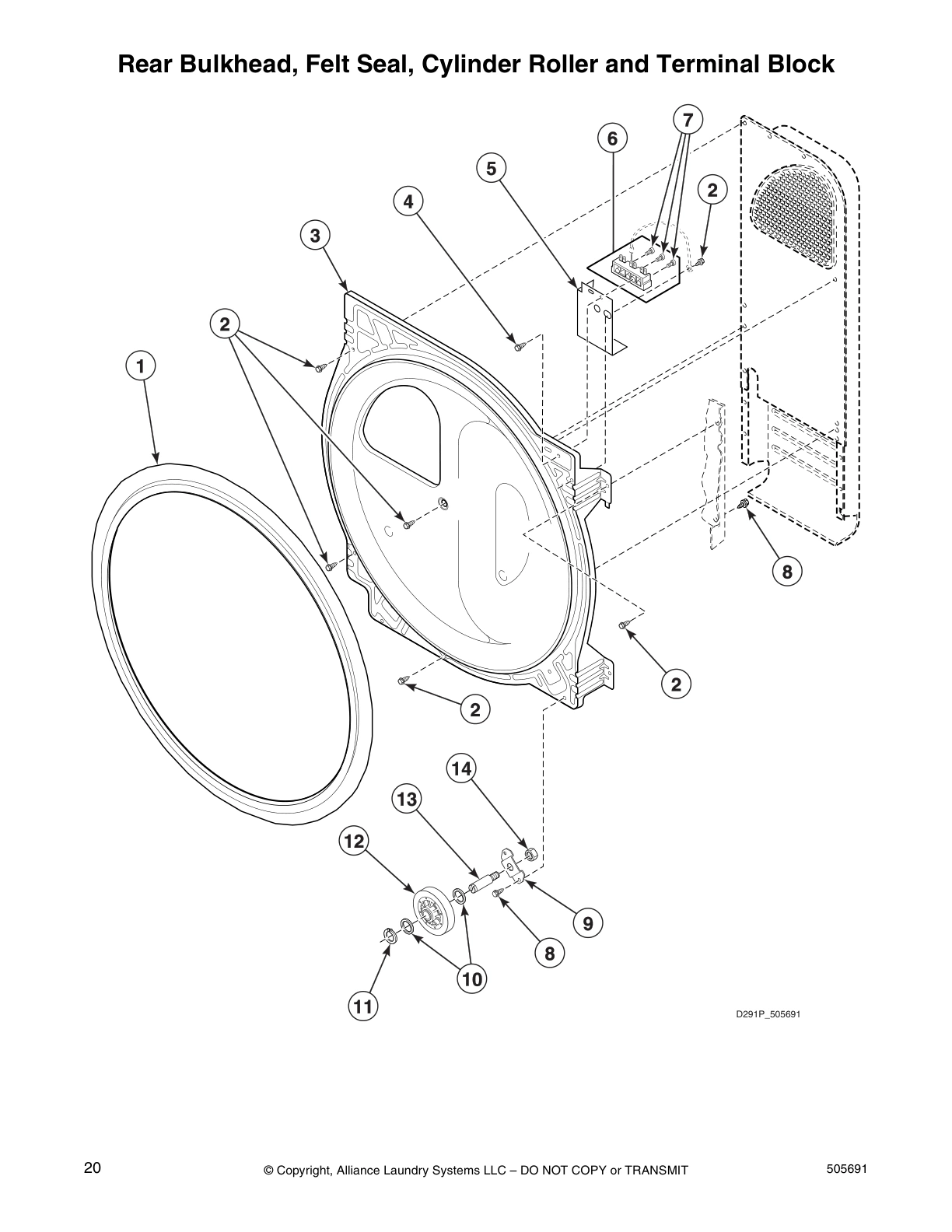

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

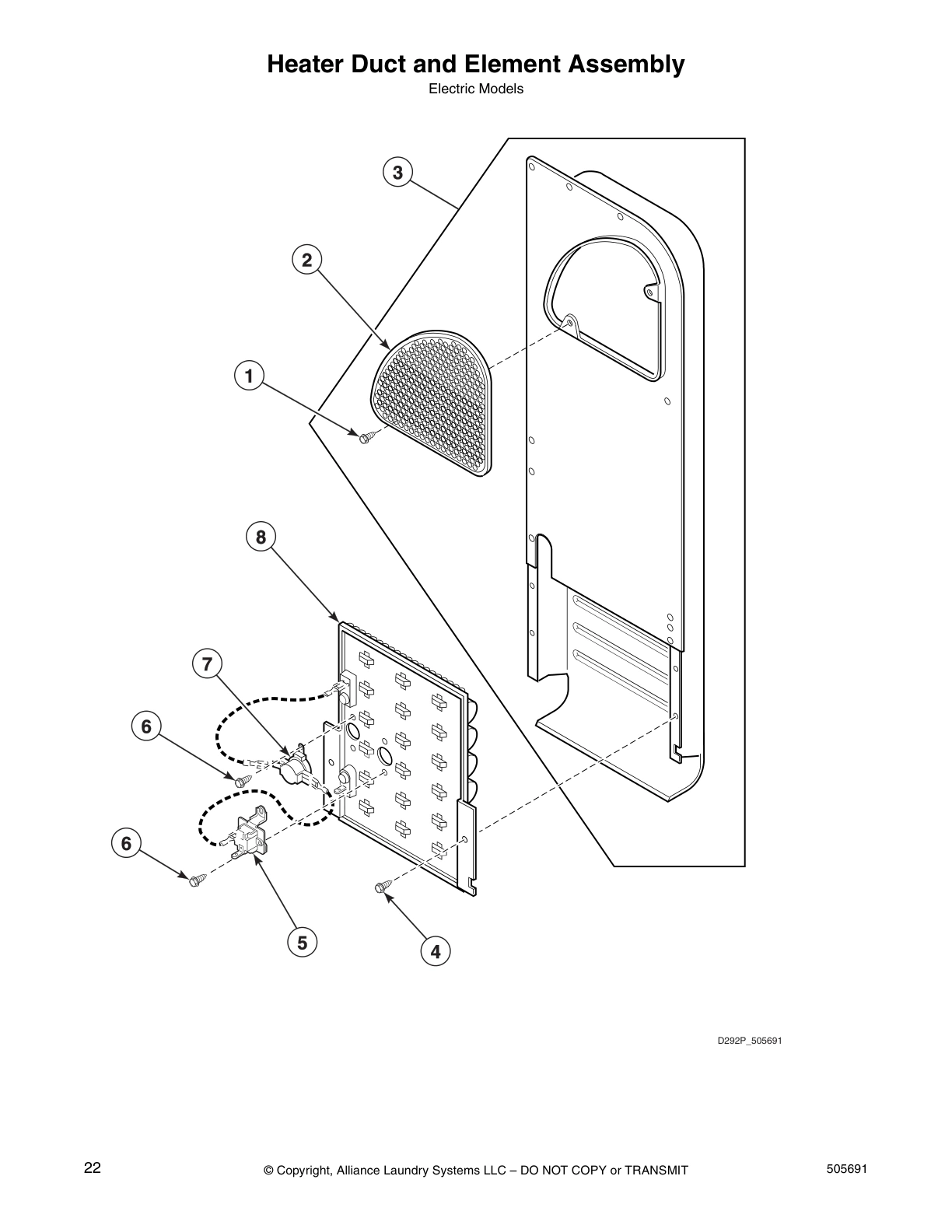

Heater Duct and Element Assembly

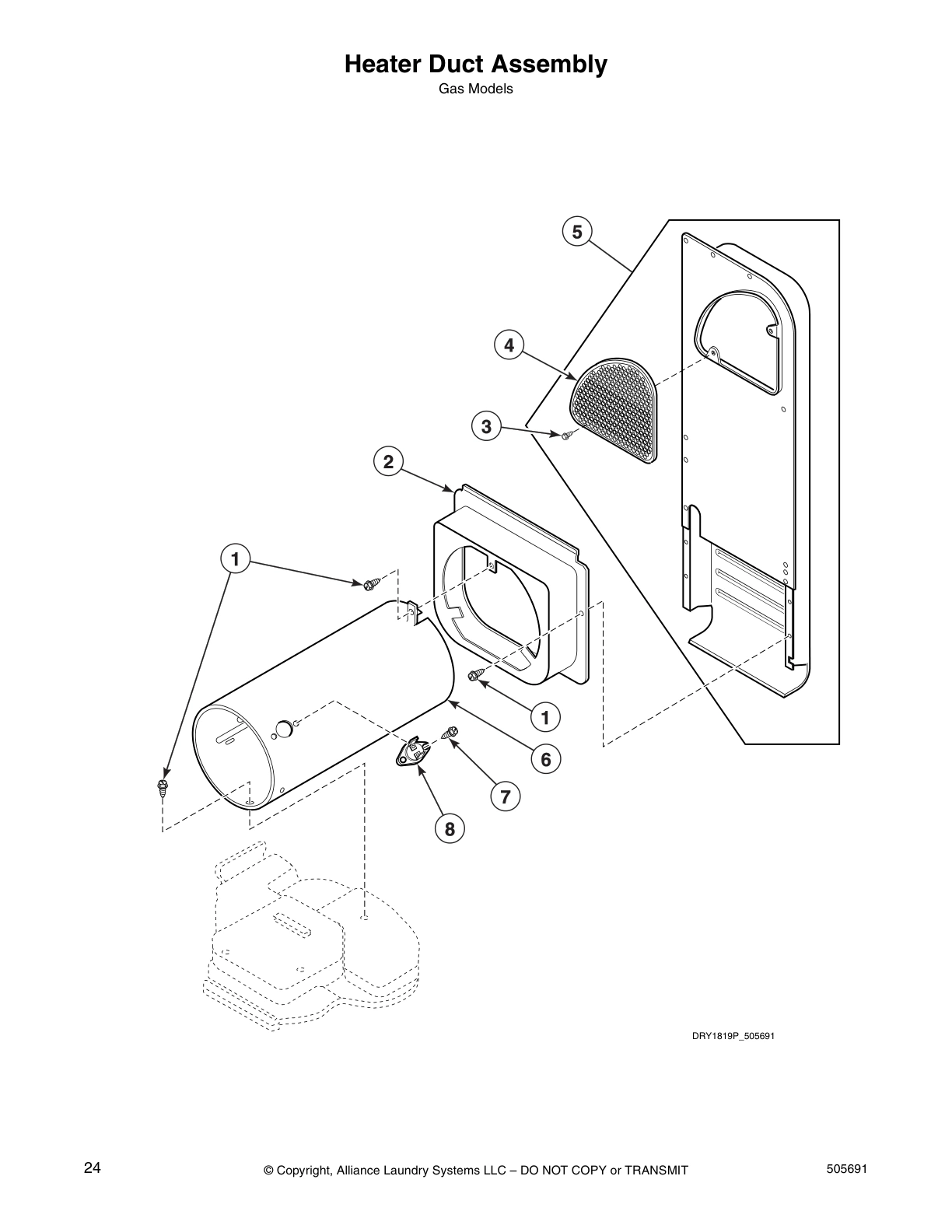

Heater Duct Assembly

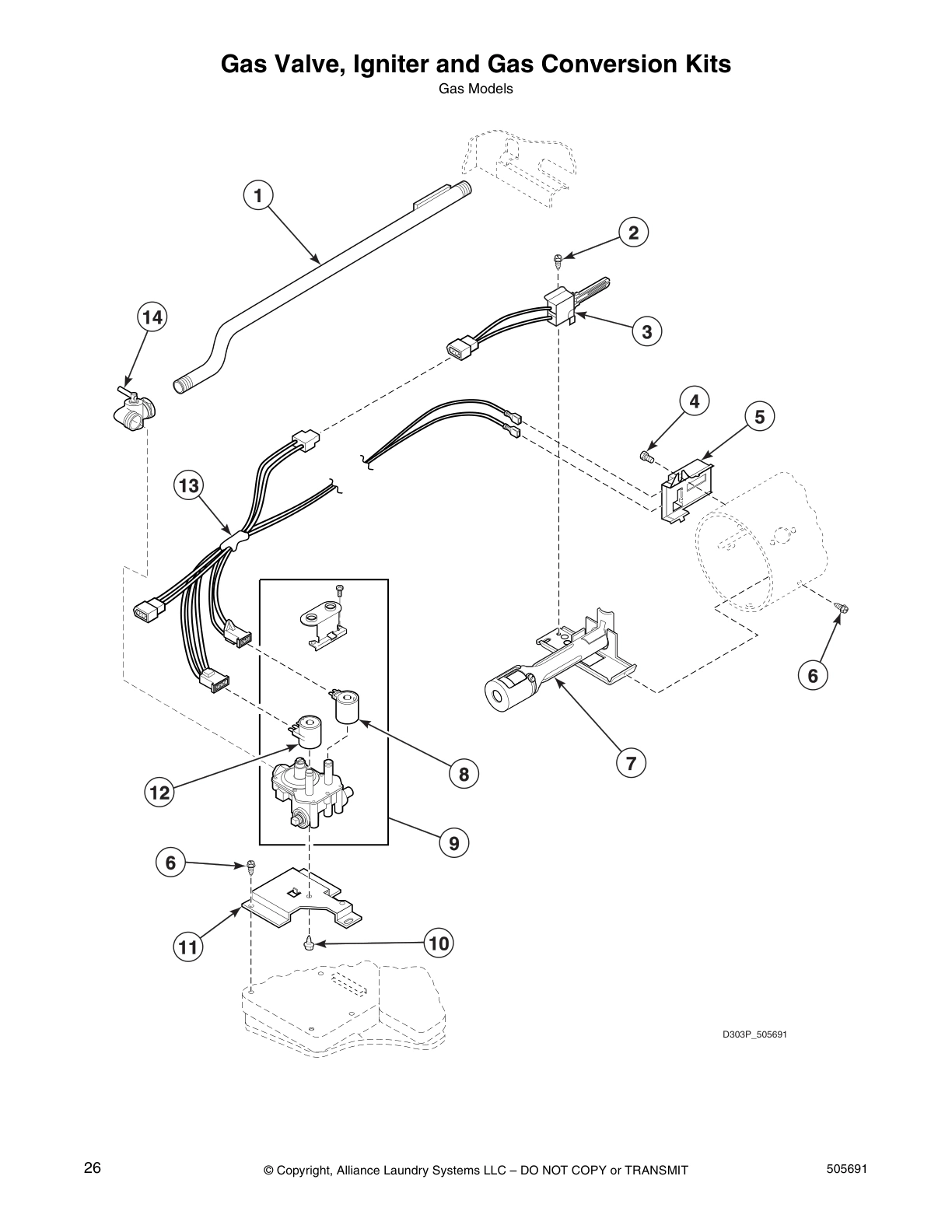

Gas Valve, Igniter and Gas Conversion Kits

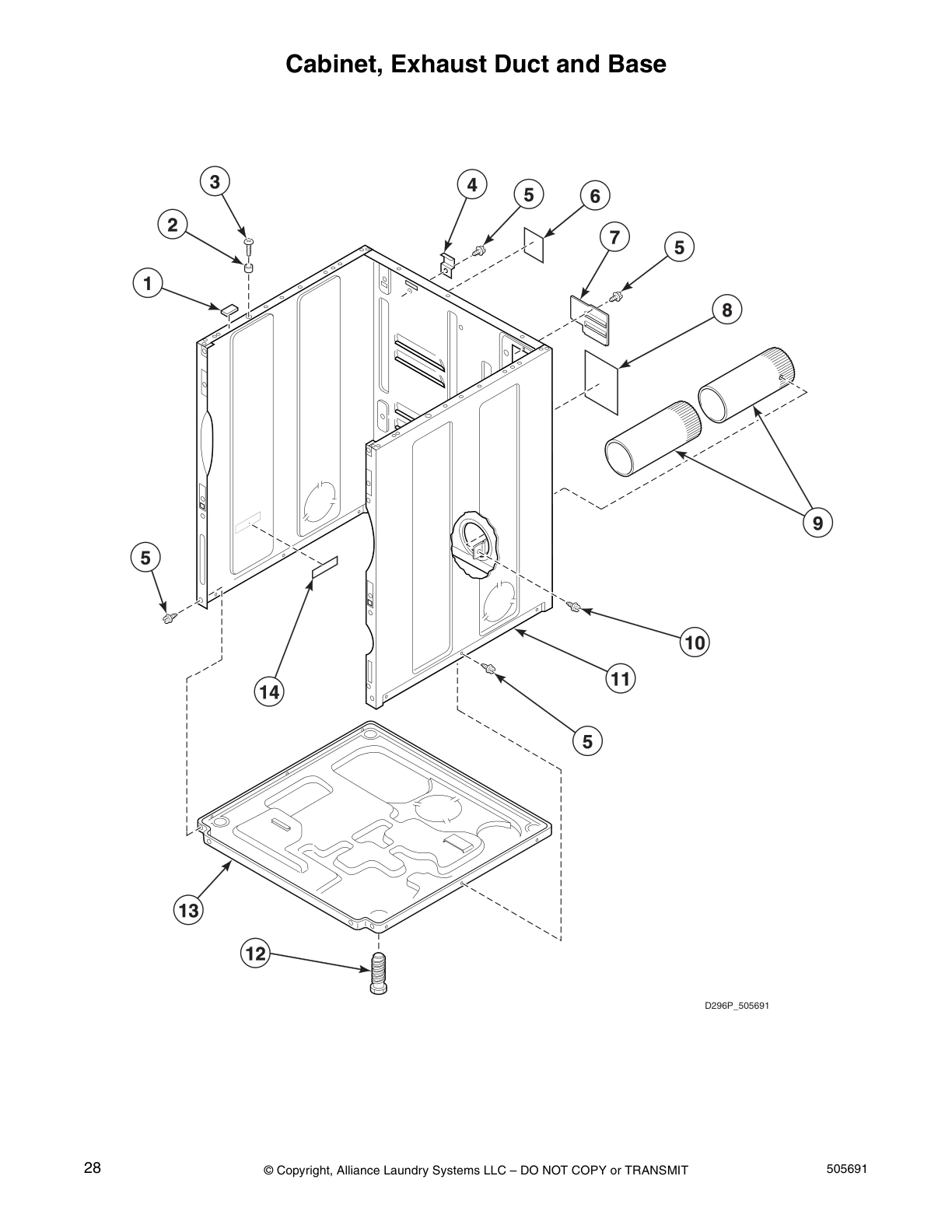

Cabinet, Exhaust Duct and Base
Terminals and Clips

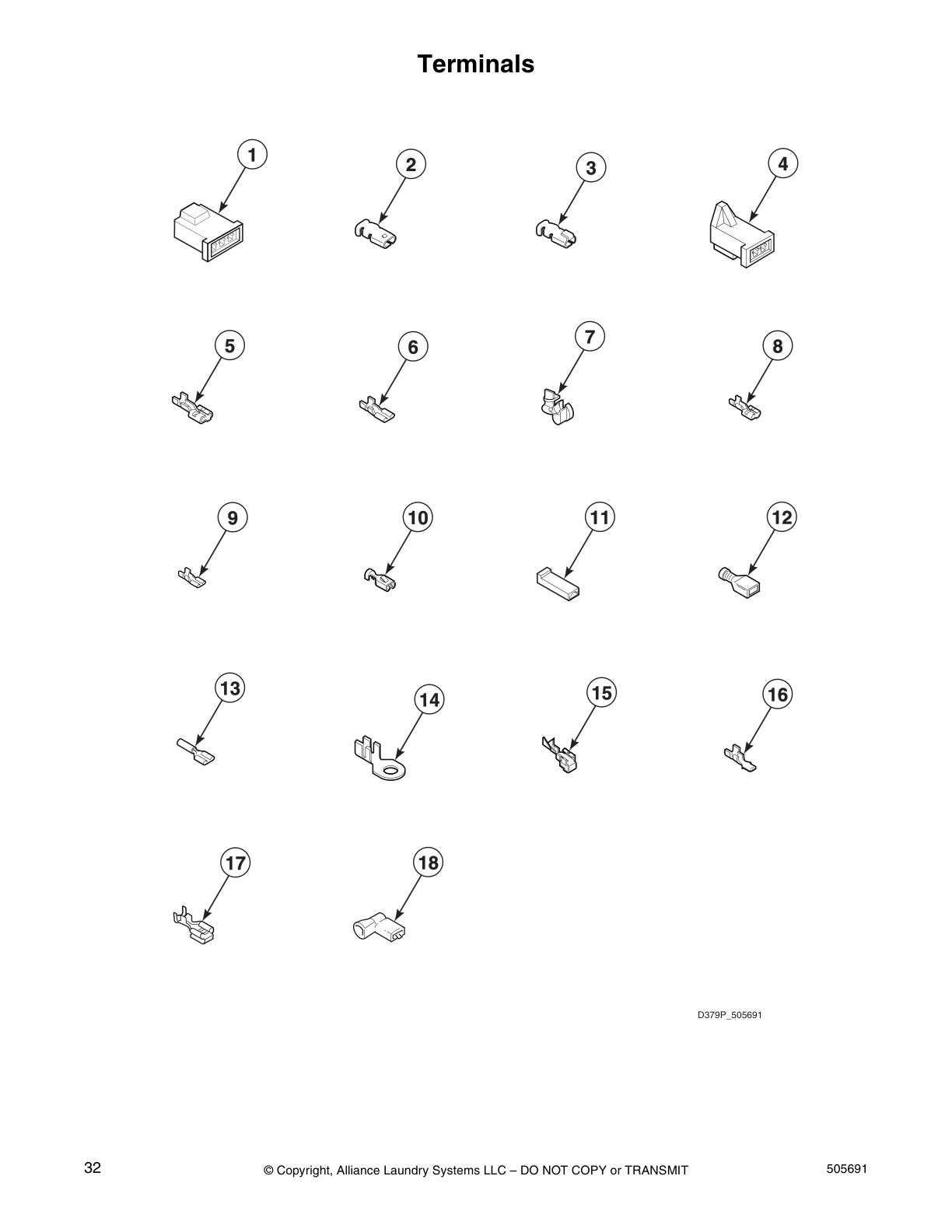

Terminals

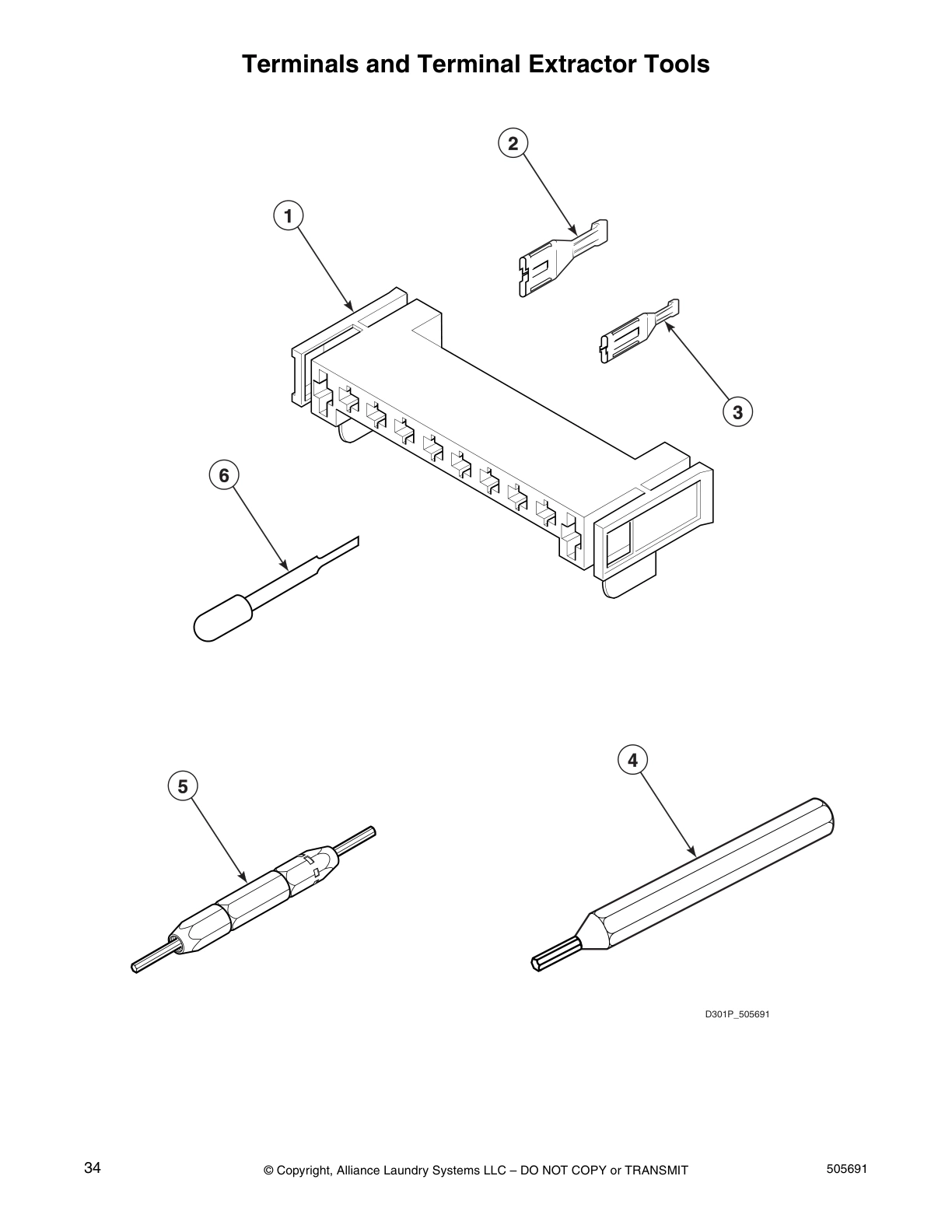

Terminals and Terminal Extractor Tools
Common parts from model Speed Queen LGS33A* Dryer
5
Timer SPQ 505794P Contact Us For Availability
8
Door Pull and Wedge Kit SPQ 510103LP Contact Us For Availability
14
Idler Lever SPQ 510133 Contact Us For Availability
22
Motor Mount Clamp SPQ 510060 Contact Us For Availability
NI
SPQ 510129 SPQ 510129 Contact Us For Availability
× ![]()
