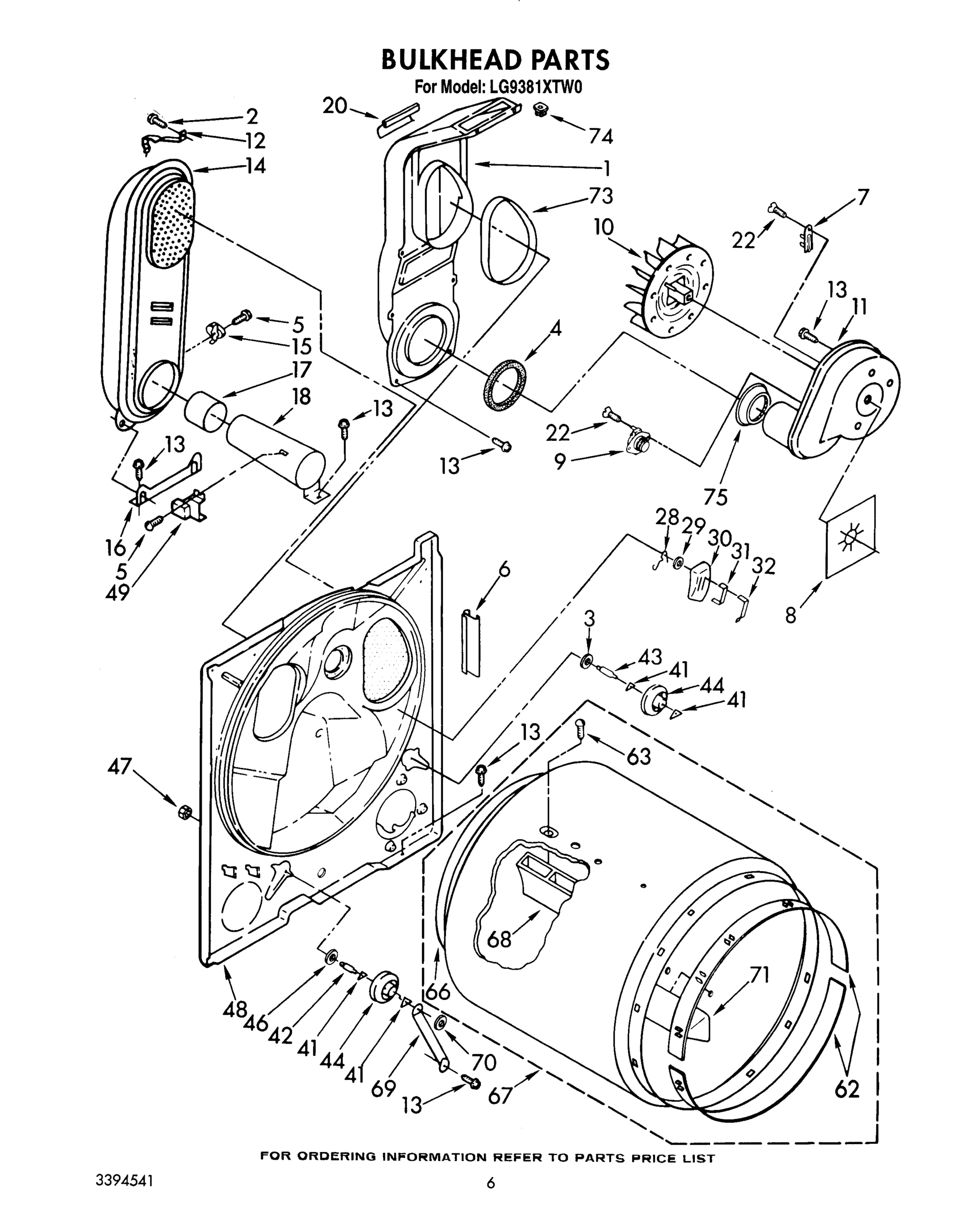

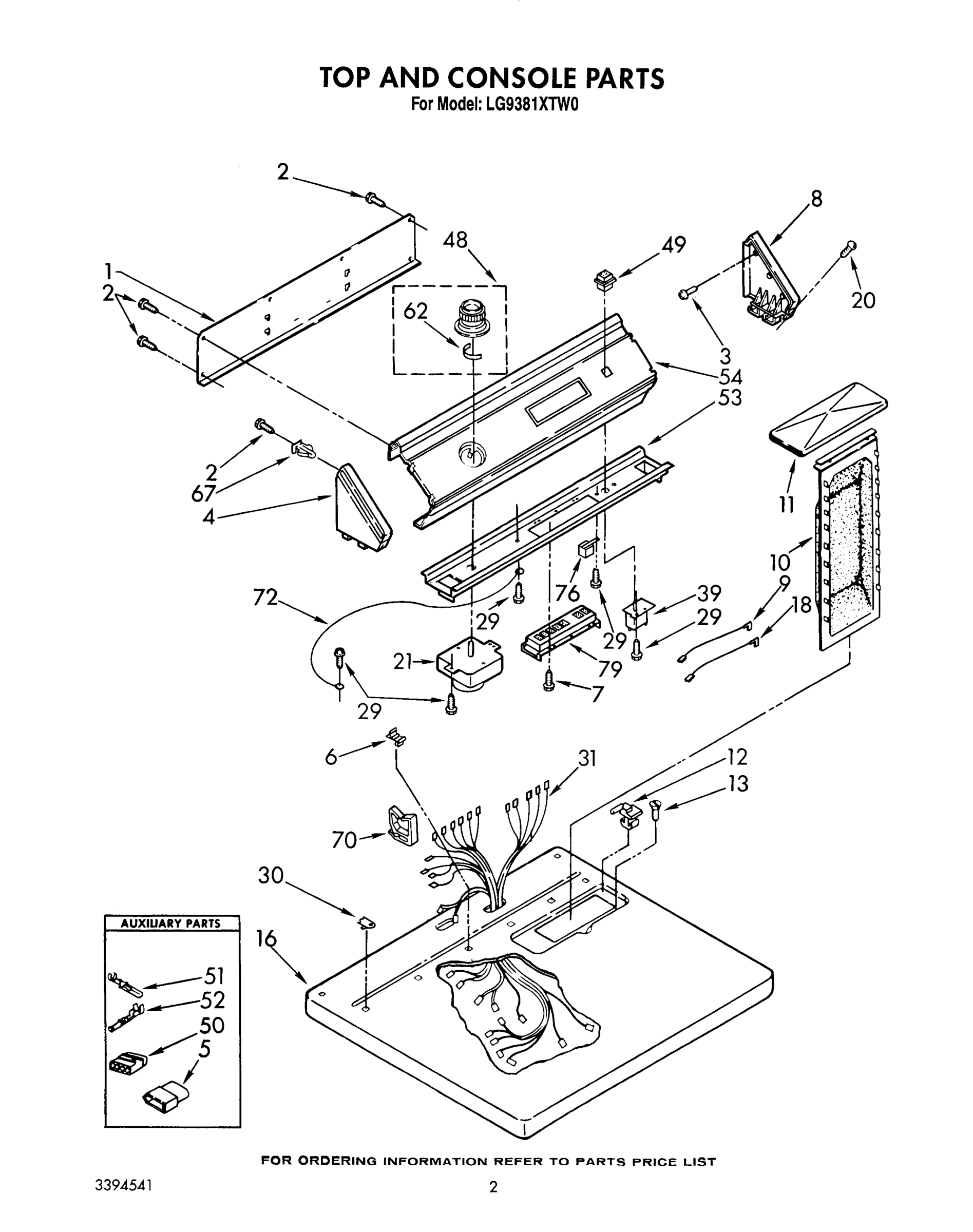

Model Whirlpool LG9381XTN0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

1

W11117429 Whirlpool Chute Assembly Backorder WPL W11117429 $63.75

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

353424 Whirlpool Connector Backorder WPL 353424 $10.76

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

Base, Burner WPL 693986 Contact Us For Availability

7

Panel, Rear WPL 348364 Contact Us For Availability

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

12

Wire, Ground WPL 690236 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

15

(Alt.) WPL 341196 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

Top (White) WPL 3393385 Contact Us For Availability

16

Top (Almond) WPL 3393386 Contact Us For Availability

17

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

18

Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability

18

Cabinet (White) WPL 690841 Contact Us For Availability

18

Cabinet (Almond) WPL 690842 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

Screw, 8-18 WPL 64211 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

Timer Assembly (60 Hz.) WPL 3391655 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

Panel Front (Almond) WPL 695631 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Nut, Compression WPL 233076 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 3391657 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

Relay, Push-To-Start WPL 660936 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

Clamp, Ground WPL 22965 Contact Us For Availability

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 3387900 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Knob, Push To Start WPL 3391230 Contact Us For Availability

Panel, Toe (White) WPL 692427 Contact Us For Availability

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

50

Receptacle, Terminal WPL 691707 Contact Us For Availability

51

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3391255 Contact Us For Availability

54

Panel, Control WPL 3391304 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

64

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

65

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

66

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

67

Burner Assembly, 60 Hz. (See Pages For Furthe WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

69

WPL 279243 WPL 279243 Contact Us For Availability

70

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

Clip, Retainer WPL 688412 Contact Us For Availability

72

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

72

Wire, Ground WPL 690853 Contact Us For Availability

73

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

77

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

78

WPL 694510 WPL 694510 Contact Us For Availability

79

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

79

Switch, Clean-Touch WPL 3393834 Contact Us For Availability
