Model Whirlpool LG5801XSW1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

1

Clip, Harness WPL 688412 Contact Us For Availability

1

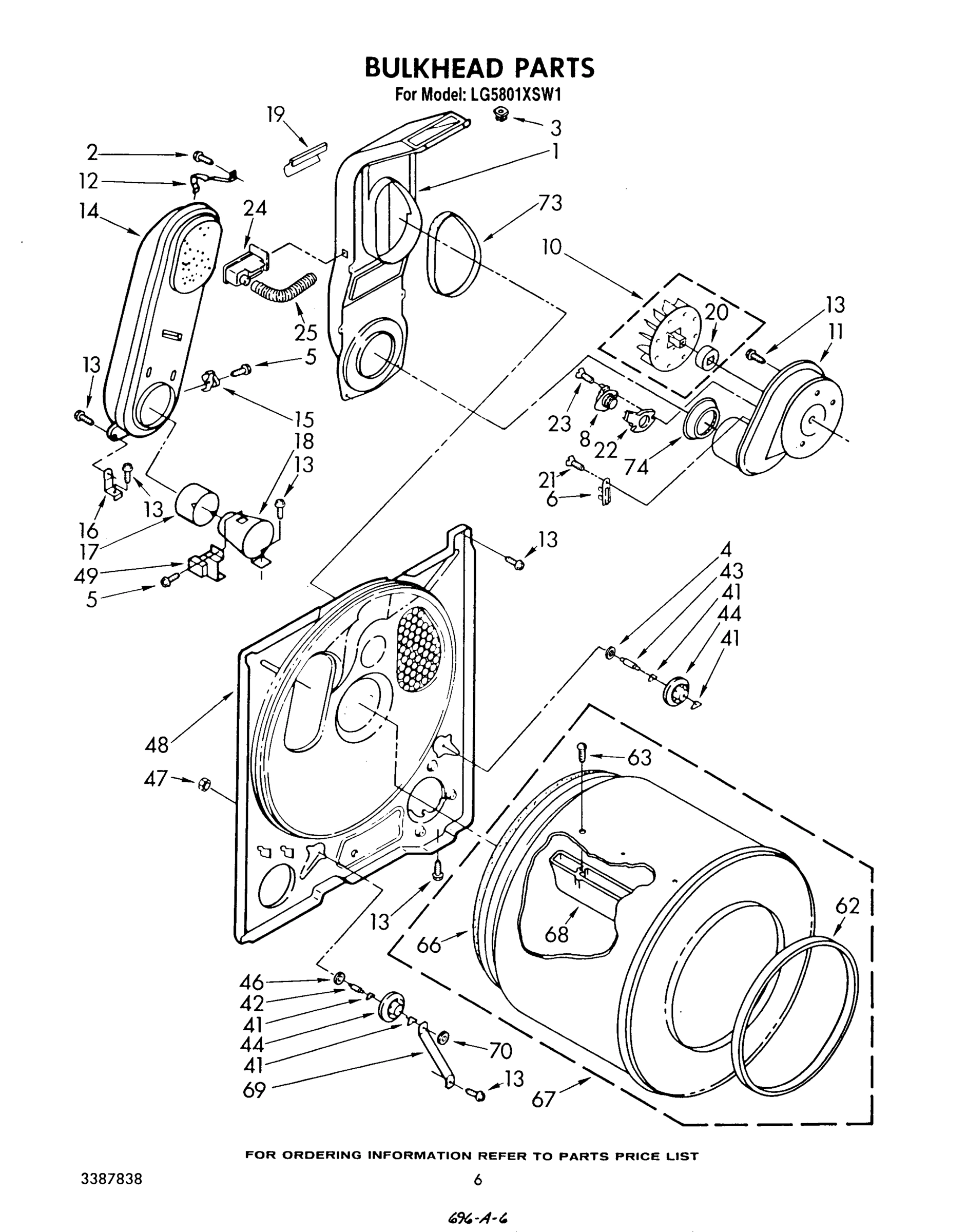

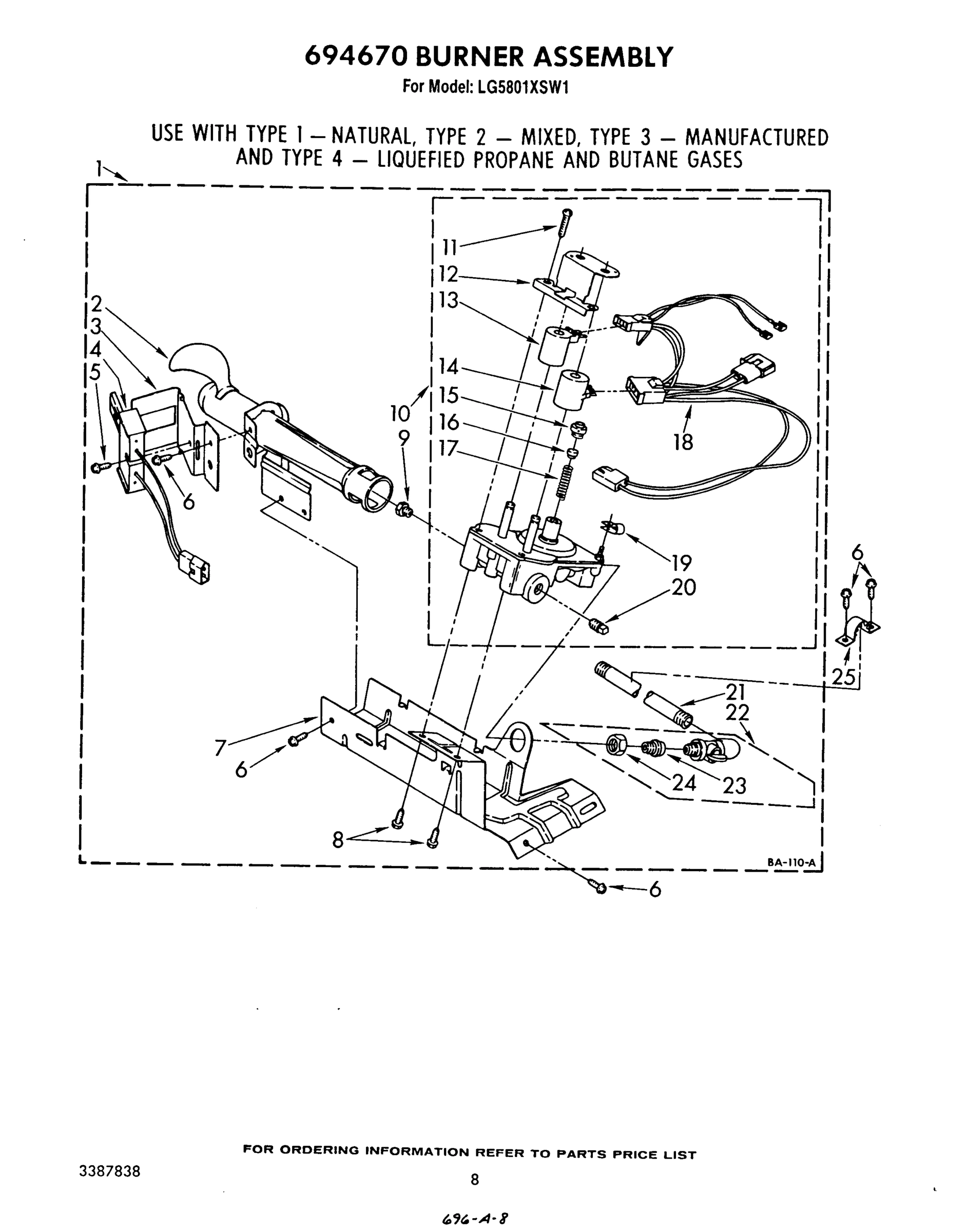

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

Panel, Rear WPL 347736 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.93

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

8

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

SCREEN WPL 339392 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

12

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

Spring, Door (2) WPL 237979 Contact Us For Availability

15

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

15

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Seal, Blower WPL 694630 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Front Panel Assembly (White) WPL 338012 Contact Us For Availability

Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability

Front Panel Assembly (Golden Harvest) WPL 689535 Contact Us For Availability

Front Panel Assembly (Toast) WPL 695026 Contact Us For Availability

Front Panel Assembly (Platinum) WPL 695027 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Heater, Thermostat WPL 61894 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $12.76

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Alert, Lint WPL 690981 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

Hose, Differential WPL 686577 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

Hinge, R.H. WPL 687905 Contact Us For Availability

28

Hinge, L.H. WPL 687906 Contact Us For Availability

29

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

35

Door, Rear WPL 695954 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

Door, Front (Toast) WPL 695034 Contact Us For Availability

Door, Front (Platinum) WPL 695035 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $46.54

Handle, Door (Almond) WPL 690271 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690274 Contact Us For Availability

Handle, Door (Toast) WPL 695014 Contact Us For Availability

Handle, WPL 695015 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

40

WPL 132848 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

41

WPL 22965 WPL 22965 Contact Us For Availability

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $39.67

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPL 364089 WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.70

48

Timer Knob & Dial WPL 3387900 Contact Us For Availability

48

Bulkhead WPL 685775 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

WPL 692427 WPL 692427 Contact Us For Availability

WPL 692428 WPL 692428 Contact Us For Availability

WPL 692431 WPL 692431 Contact Us For Availability

WPL 695142 WPL 695142 Contact Us For Availability

WPL 695143 WPL 695143 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 3387688 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $23.68

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $44.08

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $30.40

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $241.06

67

Nut, Push-On (4) WPL 689559 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

79

Switch, Temperature Selector WPL 696321 Contact Us For Availability

81

Knob, Push-To-Start WPL 3387894 Contact Us For Availability

83

Rack, Literature WPL 63020 Contact Us For Availability
